Drill Master HEAVY-DUTY 1/2" VSR DRILL 3273 Installation manual

HEAVY-DUTY 1/2” VSR DRILL
Model 3273
SET UP AND OPERATING INSTRUCTIONS
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2003 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Manual revised 10f

Page 2For technical questions, please call 1-800-444-3353.SKU 3273
CONTENTS
IMPORTANT SAFETY
INFORMATION............................3
GENERAL POWER TOOL
SAFETY WARNINGS.......................3
DRILL AND IMPACT DRILL
SAFETY WARNINGS.......................5
VIBRATION SAFETY .........................6
GROUNDING.................................7
DOUBLE INSULATED TOOLS:
TOOLS WITH TWO PRONG
PLUGS.............................................7
EXTENSION CORDS .........................8
SYMBOLOGY.....................................8
SPECIFICATIONS..........................9
UNPACKING..................................9
INSTRUCTIONS FOR PUTTING
INTO USE ....................................9
ASSEMBLY.........................................9
FUNCTIONS.......................................9
OPERATING INSTRUCTIONS ......9
TOOL SET UP ....................................9
WORK PIECE AND WORK AREA
SET UP ..........................................10
GENERAL OPERATING
INSTRUCTIONS ............................10
METAL DRILLING............................11
WOOD DRILLING.............................11
AFTER USE......................................11
MAINTENANCE AND
SERVICING ...............................12
CLEANING, MAINTENANCE, AND
LUBRICATION...............................12
CARBON BRUSH SERVICE............12
CHUCK (1) REPLACEMENT ...........12
TROUBLESHOOTING......................13
PARTS LIST.................................14
ASSEMBLY DIAGRAM................15
LIMITED 90 DAY WARRANTY....16

Page 3For technical questions, please call 1-800-444-3353.SKU 3273
SAVE THIS MANUAL
Keep this manual for the safety
warnings and precautions, assembly,
operating, inspection, maintenance and
cleaning procedures. Write the product’s
serial number in the back of the manual
near the assembly diagram (or month
and year of purchase if product has no
number). Keep this manual and the
receipt in a safe and dry place for future
reference.
IMPORTANT SAFETY
INFORMATION
In this manual, on the labeling,
and all other information
provided with this product:
This is the safety alert
symbol. It is used to alert
you to potential personal
injury hazards. Obey all
safety messages that
follow this symbol to avoid
possible injury or death.
DANGER indicates
a hazardous
situation which, if not
avoided, will result in death or
serious injury.
WARNING
indicates a
hazardous situation which, if
not avoided, could result in
death or serious injury.
CAUTION, used
with the safety
alert symbol, indicates a
hazardous situation which, if
not avoided, could result in
minor or moderate injury.
NOTICE is used to
address practices
not related to personal injury.
CAUTION, without
the safety alert
symbol, is used to address
practices not related to
personal injury.
General Power Tool Safety
Warnings
WARNING Read all safety
warnings and instructions.
Failure to follow the warnings and
instructions may result in electric
shock, re and/or serious injury.
Save all warnings and
instructions for future reference.
The term ″power tool″ in the
warnings refers to your mains-
operated (corded) power tool or
battery-operated (cordless) power
tool.
Work area safety1. Keep work area clean and wella. lit. Cluttered or dark areas invite
accidents.
Do not operate power tools inb. explosive atmospheres, such
as in the presence of ammable
liquids, gases or dust. Power tools
create sparks which may ignite the
dust or fumes.
Keep children and bystandersc. away while operating a power
tool. Distractions can cause you to
lose control.

Page 4For technical questions, please call 1-800-444-3353.SKU 3273
Electrical safety2. Power tool plugs must match thea. outlet. Never modify the plug in
any way. Do not use any adapter
plugs with grounded power tools.
Unmodied plugs and matching
outlets will reduce risk of electric
shock.
Avoid body contact with groundedb. surfaces such as pipes, radiators,
ranges and refrigerators. There is
an increased risk of electric shock if
your body is grounded.
Do not expose power tools to rainc. or wet conditions. Water entering
a power tool will increase the risk of
electric shock.
Do not abuse the cord. Never used. the cord for carrying, pulling or
unplugging the power tool. Keep
cord away from heat, oil, sharp
edges or moving parts. Damaged
or entangled cords increase the risk
of electric shock.
When operating a power toole. outdoors, use an extension cord
suitable for outdoor use. Use
of a cord suitable for outdoor use
reduces the risk of electric shock.
If operating a power tool in af. damp location is unavoidable, use
a Ground Fault Circuit Interrupter
(GFCI) protected supply. Use of
a GFCI reduces the risk of electric
shock.
Personal safety3. Stay alert, watch what you area. doing and use common sense
when operating a power tool. Do
not use a power tool while you
are tired or under the inuence
of drugs, alcohol or medication.
A moment of inattention while
operating power tools may result in
serious personal injury.
Use personal protectiveb. equipment. Always wear eye
protection. Safety equipment such
as dust mask, non-skid safety shoes,
hard hat, or hearing protection used
for appropriate conditions will reduce
personal injuries.
Prevent unintentional starting.c. Ensure the switch is in the off-
position before connecting to
power source and/or battery pack,
picking up or carrying the tool.
Carrying power tools with your nger
on the switch or energizing power
tools that have the switch on invites
accidents.
Remove any adjusting key ord. wrench before turning the power
tool on. A wrench or a key left
attached to a rotating part of the
power tool may result in personal
injury.
Do not overreach. Keep propere. footing and balance at all times.
This enables better control of the
power tool in unexpected situations.
Dress properly. Do not wearf. loose clothing or jewelry. Keep
your hair, clothing and gloves
away from moving parts. Loose
clothes, jewelry or long hair can be
caught in moving parts.
If devices are provided for theg. connection of dust extraction and
collection facilities, ensure these
are connected and properly used.
Use of these devices can reduce
dust-related hazards.
Only use safety equipmenth. that has been approved by an

Page 5For technical questions, please call 1-800-444-3353.SKU 3273
appropriate standards agency.
Unapproved safety equipment may
not provide adequate protection.
Eye protection must be ANSI-
approved and breathing protection
must be NIOSH-approved for the
specic hazards in the work area.
Power tool use and care4. Do not force the power tool. Usea. the correct power tool for your
application. The correct power tool
will do the job better and safer at the
rate for which it was designed.
Do not use the power tool if theb. switch does not turn it on and
off. Any power tool that cannot
be controlled with the switch is
dangerous and must be repaired.
Disconnect the plug from thec. power source and/or the battery
pack from the power tool before
making any adjustments,
changing accessories, or storing
power tools. Such preventive
safety measures reduce the risk of
starting the power tool accidentally.
Store idle power tools out ofd. the reach of children and do not
allow persons unfamiliar with the
power tool or these instructions
to operate the power tool. Power
tools are dangerous in the hands of
untrained users.
Maintain power tools. Checke. for misalignment or binding of
moving parts, breakage of parts
and any other condition that may
affect the power tool’s operation.
If damaged, have the power
tool repaired before use. Many
accidents are caused by poorly
maintained power tools.
Keep cutting tools sharp andf. clean. Properly maintained cutting
tools with sharp cutting edges are
less likely to bind and are easier to
control.
Use the power tool, accessoriesg. and tool bits etc. in accordance
with these instructions, taking
into account the working
conditions and the work to be
performed. Use of the power tool
for operations different from those
intended could result in a hazardous
situation.
Drill and Impact Drill Safety
Warnings
Wear ear protectors with impact1. drills. Exposure to noise can cause
hearing loss.
Use auxiliary handles supplied2. with the tool. Loss of control can
cause personal injury.
Hold power tools by insulated3. gripping surfaces when performing
an operation where the cutting tool
may contact hidden wiring or its
own cord. Contact with a ″live″ wire
will make exposed metal parts of the
tool ″live″ and shock the operator.
Maintain labels and nameplates on4. the tool. These carry important safety
information. If unreadable or missing,
contact Harbor Freight Tools for a
replacement.
Avoid unintentional starting. Prepare
5. to begin work before turning on the
tool.
Do not lay the tool down until it has6. come to a complete stop. Moving

Page 6For technical questions, please call 1-800-444-3353.SKU 3273
parts can grab the surface and pull
the tool out of your control.
When using a handheld power tool,7.

both hands to resist starting torque.
Do not leave the tool unattended8. when it is plugged into an electrical
outlet. Disengage the trigger, and
unplug the tool from its electrical
outlet before leaving.
This product is not a toy. Keep it out
9. of reach of children.
People with pacemakers should
10. consult their physician(s) before

proximity to heart pacemaker could
cause pacemaker interference or
pacemaker failure. In addition,
people with pacemakers should:


on.

avoid electrical shock.

grounded. Ground Fault Circuit
Interrupter (GFCI) should also be
implemented – it prevents sustained
electrical shock.
WARNING: Some dust created by11. power sanding, sawing, grinding,
drilling, and other construction
activities, contains chemicals
known [to the State of California] to
cause cancer, birth defects or other
reproductive harm. Some examples
of these chemicals are:


cement or other masonry products

chemically treated lumber
Your risk from these exposures
varies, depending on how often you
do this type of work. To reduce your
exposure to these chemicals: work in
a well ventilated area, and work with
approved safety equipment, such as
those dust masks that are specially

particles. (California Health & Safety
Code § 25249.5, et seq.)
WARNING: Handling the cord on
12. this product will expose you to lead,
a chemical known to the State of
California to cause cancer, and
birth defects or other reproductive
harm. Wash hands after handling.
(California Health & Safety Code §
25249.5, et seq.)
The warnings, precautions,
13. and instructions discussed in
this instruction manual cannot
cover all possible conditions and
situations that may occur. It must
be understood by the operator that
common sense and caution are
factors which cannot be built into this
product, but must be supplied by the
operator.
Vibration Safety
This tool vibrates during use.

vibration may cause temporary or
permanent physical injury, particularly
to the hands, arms and shoulders. To

injury:
Anyone using vibrating tools regularly1. or for an extended period should


ups to ensure medical problems are

Page 7For technical questions, please call 1-800-444-3353.SKU 3273
not being caused or worsened from
use. Pregnant women or people
who have impaired blood circulation
to the hand, past hand injuries,
nervous system disorders, diabetes,
or Raynaud’s Disease should not use
this tool. If you feel any symptoms
related to vibration (such as tingling,

seek medical advice as soon as
possible.
Do not smoke during use. Nicotine2. reduces the blood supply to the


Wear suitable gloves to reduce the3. vibration effects on the user.
Use tools with the lowest vibration4. when there is a choice.
5. day of work.
Grip tool as lightly as possible (while6.

the tool do the work.
To reduce vibration, maintain the tool7. as explained in this manual. If any
abnormal vibration occurs, stop use
immediately.
SAVE THESE
INSTRUCTIONS.
GROUNDING
TO PREVENT
ELECTRIC SHOCK
AND DEATH FROM
INCORRECT GROUNDING
WIRE CONNECTION:
Check with a qualied
electrician if you are in doubt
as to whether the outlet is
properly grounded. Do not
modify the power cord plug
provided with the tool. Never
remove the grounding prong
from the plug. Do not use the
tool if the power cord or plug
is damaged. If damaged, have
it repaired by a service facility
before use. If the plug will not
t the outlet, have a proper
outlet installed by a qualied
electrician.
Double Insulated Tools: Tools
with Two Prong Plugs

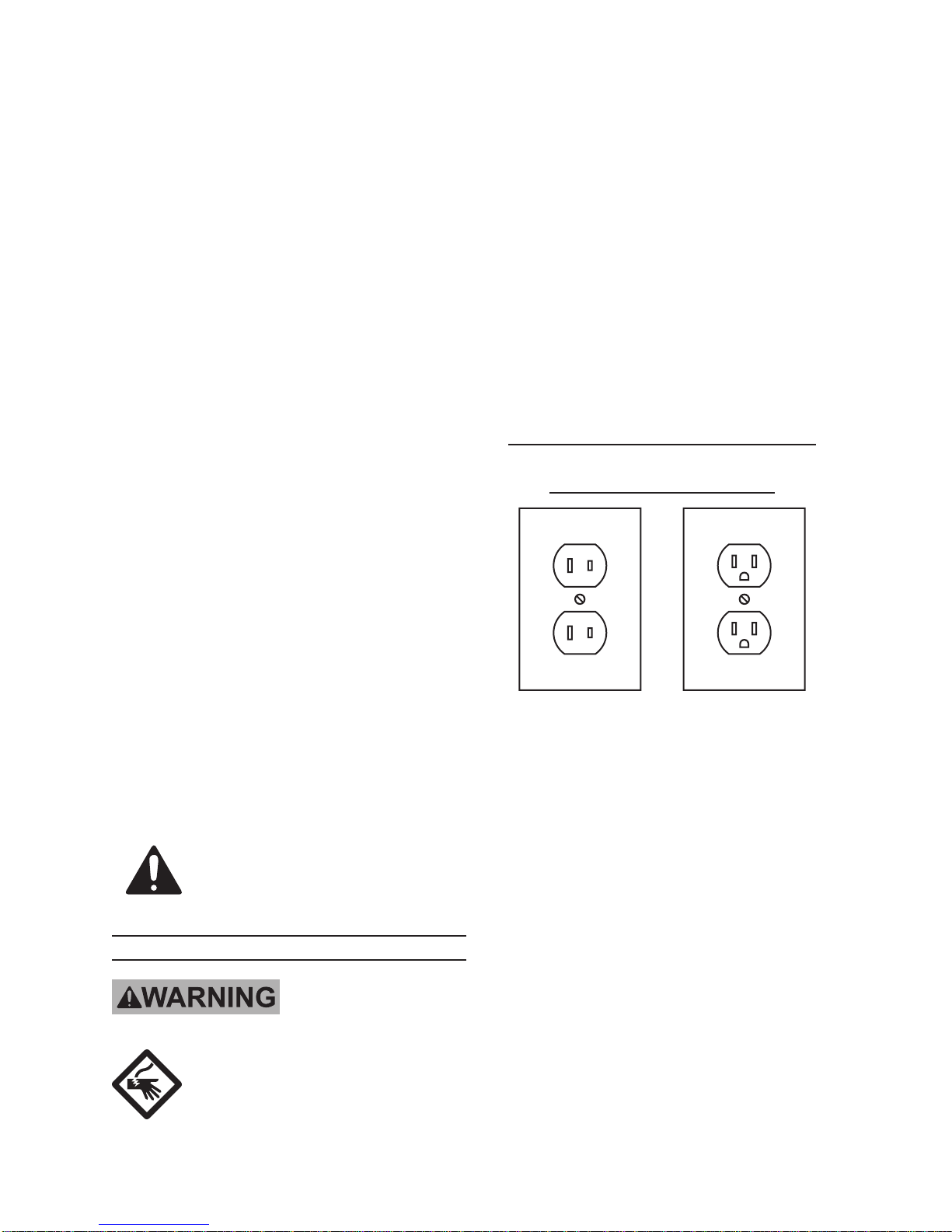

Outlets for 2-Prong Plug
Tools marked “Double Insulated”1. do not require grounding. They
have a special double insulation

requirements and complies with the
applicable standards of Underwriters

Standard Association, and the
National Electrical Code. (See
Outlets for 2-Prong Plug.)
Double insulated tools may be used2. in either of the 120 volt outlets shown

Page 8For technical questions, please call 1-800-444-3353.SKU 3273
in the preceding illustration. (See
Outlets for 2-Prong Plug.)
Extension Cords
Grounded1. tools require a three wire
extension cord. Double Insulated
tools can use either a two or three
wire extension cord.
As the distance from the supply2. outlet increases, you must use a
heavier gauge extension cord. Using
extension cords with inadequately
sized wire causes a serious drop in
voltage, resulting in loss of power and
possible tool damage.
(See Table A.)
The smaller the gauge number of the3. wire, the greater the capacity of the
cord. For example, a 14 gauge cord
can carry a higher current than a 16
gauge cord. (See Table A.)
When using more than one extension4. cord to make up the total length,
make sure each cord contains at
least the minimum wire size required.
(See Table A.)
If you are using one extension cord5. for more than one tool, add the
nameplate amperes and use the sum
to determine the required minimum
cord size. (See Table A.)
If you are using an extension cord6. outdoors, make sure it is marked with

indicate it is acceptable for outdoor
use.
Make sure the extension cord is
7. properly wired and in good electrical
condition. Always replace a damaged
extension cord or have it repaired by

Protect the extension cords from
8. sharp objects, excessive heat, and
damp or wet areas.
RECOMMENDED MINIMUM WIRE
GAUGE FOR EXTENSION CORDS*
(120/240 VOLT)
NAMEPLATE
AMPERES
(at full load)
EXTENSION CORD
LENGTH
25’ 50’ 75’
100’ 150’
0 – 2.0 18 18 18 18 16
2.1 – 3.4 18 18 18 16 14
3.5 – 5.0 18 18 16 14 12
5.1 – 7.0 18 16 14 12 12
7.1 – 12.0 18 14 12 10 
12.1 – 16.0 14 12 10  
16.1 – 20.0 12 10 
TABLE A * Based on limiting the line
voltage drop to ve volts at
150% of the rated amperes.
Symbology
Double Insulated
Canadian Standards Association

V~ Volts Alternating Current
AAmperes
n0xxxx/min. 
(RPM)

Page 9For technical questions, please call 1-800-444-3353.SKU 3273
SPECIFICATIONS
Electrical Input 120 V~ / 60 Hz / 6.3 A (Rated)
Motor Speed 
Chuck Capacity 1/2” (13mm)
Approximate
Work Capacity 3/4” Wood 1/2” Metal
E194601
BQ
90SM
UNPACKING
When unpacking, make sure that the
item is intact and undamaged. If any parts
are missing or broken, please call Harbor

as possible.
INSTRUCTIONS FOR
PUTTING INTO USE
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Disengage the Trigger and
unplug the tool from its
electrical outlet before
assembling or making any
adjustments to the tool.
Note: For additional information regarding
the parts listed in the following pages,
refer to the Assembly Diagram near
the end of this manual.
Assembly
Thread the auxiliary handle securely
into the left or right side of the drill.
Functions
Chuck
Ring
Chuck
Key Hole
Chuck
Jaws Auxiliary
Handle Trigger
Key
Holder
Lock
Button
Direction
Switch
OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
Tool Set Up
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Disengage the Trigger and
unplug the tool from its
electrical outlet before
adjusting tool or installing
accessories.
TO INSTALL A DRILL BIT:
Insert the Chuck Key into the Chuck1. Key Hole and turn it counterclockwise
to open the Chuck Jaws. REV10f

Page 10For technical questions, please call 1-800-444-3353.SKU 3273
Slide the bit into the Jaws as far as it2.

into the chuck.
Hold the bit centered in the Jaws
3. while turning the Chuck Key
clockwise to secure it in place.
Firmly tighten the Jaws using the
4. Chuck Key.
Remove the Chuck Key and store it5. in the holder on the power cord.
Work Piece and Work Area Set Up
Designate a work area that is clean1.

allow access by children or pets to
prevent distraction and injury.
Route the power cord along a safe2. route to reach the work area without
creating a tripping hazard or exposing
the power cord to possible damage.
The power cord must reach the work
area with enough extra length to
allow free movement while working.
Secure loose work pieces using3. a vise or clamps (not included) to
prevent movement while working.
There must not be objects, such as4. utility lines, nearby that will present a
hazard while working.
General Operating Instructions
Make sure the trigger is released1. and not locked on, then plug the
Power Cord into a suitable outlet.
Press the Direction Switch of the2. Trigger to determine the rotation
direction. Press to the left side for
clockwise rotation. Press to the right
side for counterclockwise rotation.
Squeeze the Trigger to start the tool.3. The Trigger has a variable speed
feature. Moving the Trigger slightly
will make the tool operate slowly,
moving the trigger more will cause
the tool to operate faster.
4. position by squeezing the trigger,

releasing the Trigger. The tool will
operate continuously. To stop the tool,
squeeze and release the Trigger.
5. in good condition and appropriate to
the task.
6. but do not press too hard. Too
much pressure will cause the bit to
overheat, may cause the bit to bend
or break, cause undue strain on
the tool, and may damage the work
piece. Pressing too hard may stall the
motor.
If the motor stalls, release the7. Trigger immediately to prevent
damage to the tool.
8. or twisting the bit while drilling may
cause the bit to bend or break and
may damage the work piece.
9. about to penetrate the other side of
the work piece.
Keep the motor running when pulling10. the bit out of a completed hole to
prevent the bit from jamming.

Page 11For technical questions, please call 1-800-444-3353.SKU 3273
Metal Drilling
Use high speed steel, carbide, TiN1. coated, or specialty bits for metal
drilling.
Secure the work piece to keep it from2. moving during the drilling operation.
To make starting the hole easier, use3. a punch to create a dimple at the hole
center.
Unless drilling into cast iron or brass4. use a cutting lubricant.
Start by drilling slowly to keep the bit5. from moving away from your starting
point.
As the hole is established, increase6. tool speed. Do not go so fast or use
so much pressure that the bit heats
up. This can damage the bit and
create an irregular hole. For hard
metal, use cutting oil to keep the bit
cool.
Since drilling in metal is a slow7. operation, you may lock the Trigger

constant speed and reduce fatigue.
When drilling large holes in metal,8. start by drilling a smaller pilot hole,

size hole.
Wood Drilling
Use high speed bits or bits specially1. designed for wood drilling, such as
brad point, spade bits, forstner bits,
etc.
Secure the work piece to keep it from2. moving during the drilling operation.
Start by drilling slowly to keep the bit3. from moving away from your starting
point. Increase speed as the hole is
established.
To prevent or reduce “break out”
4. when the bit penetrates the work
piece, clamp a piece of scrap material
to the back of the work piece.
5. position, as the bit can easily jam in
wood and the motor must be stopped
quickly.
After Use
To prevent accidents, disengage
the trigger, remove the bit, and
disconnect the tool’s power supply
after use. Clean, then store the tool
indoors out of children’s reach.

Page 12For technical questions, please call 1-800-444-3353.SKU 3273
MAINTENANCE AND
SERVICING
Procedures not specically
explained in this manual
must be performed only by a
qualied technician.
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Disengage the Trigger and
unplug the tool from its
electrical outlet before
performing any inspection,
maintenance, or cleaning
procedures.
TO PREVENT SERIOUS
INJURY FROM TOOL
FAILURE:
Do not use damaged
equipment. If abnormal noise
or vibration occurs, have the
problem corrected before
further use.
Cleaning, Maintenance, and
Lubrication
BEFORE EACH USE,1. inspect the
general condition of the tool. Check
for loose hardware, misalignment
or binding of moving parts, cracked
or broken parts, damaged electrical
wiring, and any other condition that
may affect its safe operation.
AFTER USE,2. wipe external surfaces
of the tool with clean cloth.
3. WARNING! If the supply cord of
this power tool is damaged, it must
be replaced only by a qualied
service technician.
Carbon Brush Service

or worn, they must be replaced

Improper service may result in the
double insulation system being
compromised.
Chuck (1) Replacement
Disengage the Trigger and unplug1. the tool from its electrical outlet.
2.
Remove the Chuck Screw (44)3. inside the Chuck Jaws by turning it
counterclockwise.
Switch the Direction Switch to the4. reverse direction. Plug the Power
Cord into a suitable outlet.
Hold the Chuck Ring with a gloved5. hand and gently squeeze the trigger
with your other hand.
The Chuck should come off in your6. gloved hand.
Install the new Chuck by reversing7. the above steps.

Page 13For technical questions, please call 1-800-444-3353.SKU 3273
Troubleshooting
Problem Possible Causes Likely Solutions
Tool will not start. Cord not connected.1. No power at outlet.2.
Tool’s thermal reset breaker3. tripped (if equipped).
Internal damage or wear.4. (Carbon brushes or switch, for
example.)
Check that cord is plugged in.1. Check power at outlet. If outlet is2. unpowered, disengage the trigger and
check circuit breaker. If breaker is
tripped, make sure circuit is right capacity
for tool and circuit has no other loads.
Disengage the trigger and allow tool to3. cool. Press reset button on tool.
Have technician service tool.4.
Tool operates slowly. Extension cord too long or wire size
too small. Eliminate use of extension cord. If an extension cord is needed, use shorter/
heavier gauge cord. See Extension Cords
in GROUNDING section.
Performance
decreases over time. Accessory dull or damaged.
1.
Carbon brushes worn or2. damaged.
Keep cutting accessories sharp.1. Replace as needed.
2. brushes.
Excessive noise or
rattling. Internal damage or wear. (Carbon brushes or bearings, for example.) Have technician service tool.
Drill bit slips in chuck Jaws are loose.
1.
2. Tighten chuck .1. Tighten chuck, then operate tool in2. reverse to back bit out of work piece.
 Forcing tool to work too fast.
1. Accessory dull, damaged, or2. bent.
3.
Motor being strained by long or4. small diameter extension cord.
Allow tool to work at its own rate.1. Keep cutting accessories sharp.2. Replace as needed.
3.

while blowing dust out of motor using
compressed air.
Eliminate use of extension cord. If4. an extension cord is needed, use one
with the proper diameter for its length
and load. See Extension Cords in
GROUNDING section.
Follow all safety precautions whenever diagnosing or servicing the
tool. Disconnect power supply before service.

Page 14For technical questions, please call 1-800-444-3353.SKU 3273
Part Description
1 Chuck
2 Retaining Ring Ø 32
3
4 Wool Washer
5 Spindle
6 Key 3 x Ø10
7
8 Screw ST4.2 x 3.5
9 Washer Ø4
10 Fender Ring Ø15
11 Gear Housing
12 
13 Gear 3
14 Key 3 x Ø10
15 Gear 2
16 
17 Middle Housing
18 Gear 4
19 Spring Ø12
20 
21 
22 Fan
23 Rotor
Part Description
24 
25 
26 Ring Fender
27 Screw ST4.2 x 50
28 Washer Ø4
29 Stator
30 Rear Housing
31 
32 
33 
34 Direction Switch
35 Handle
36 Trigger
37 Screw ST2.9 x 12
38 Screw ST4.2 x 14
39 Cord Clamp
40 Cord
41 Handle
42 Screw ST4.2 x 14
43 Cord Protector
44 Chuck Screw
45 Auxiliary Handle (Not Shown)
PLEASE READ THE FOLLOWING CAREFULLY










PARTS LIST
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not
available individually as replacement parts.

Page 15For technical questions, please call 1-800-444-3353.SKU 3273
ASSEMBLY DIAGRAM
44

Page 16For technical questions, please call 1-800-444-3353.SKU 3273
LIMITED 90 DAY WARRANTY
Harbor Freight Tools Co. makes every effort to assure that its products meet high
quality and durability standards, and warrants to the original purchaser that this product
is free from defects in materials and workmanship for the period of 90 days from the date
of purchase. This warranty does not apply to damage due directly or indirectly, to misuse,
abuse,negligenceor accidents,repairsoralterationsoutsideourfacilities,criminalactivity,
improperinstallation,normalwear and tear, or tolackofmaintenance.Weshall innoevent
be liable for death, injuries to persons or property, or for incidental, contingent, special
or consequential damages arising from the use of our product. Some states do not allow
the exclusion or limitation of incidental or consequential damages, so the above limitation
of exclusion may not apply to you.


To take advantage of this warranty, the product or part must be returned to us with
transportationchargesprepaid.Proofofpurchasedateandanexplanationofthecomplaint
            
repair or replace the product at our election or we may elect to refund the purchase price
if we cannot readily and quickly provide you with a replacement. We will return repaired
products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning
the product.

vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]
