Drill Master 90374 User manual

18V CORDLESS COMBO PACK
Model 90374
ASSEMBLY AND OPERATING INSTRUCTIONS
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit ourWeb site at: http://www.harborfreight.com
Copyright©2003 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions, please call 1-800-444-3353.
Distributed exclusively by
Harbor Freight Tools
®
.
Due to continuing improvements,
actual product may differ slightly from the product described herein.
REV 07l

PRODUCT SPECIFICATIONS
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures, parts list and as-
sembly diagram. Keep your invoice with this manual. Write the invoice number
on the inside of the front cover. Keep this manual and invoice in a safe and dry
place for future reference.
GENERAL SAFETY RULES
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in
electric shock, fire, and/or serious injury.
SAVE THESE INSTRUCTIONS
WORK AREA
1. Keep your work area clean and well lit. Cluttered benches and dark areas
invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
SKU 90374 PAGE 2 REV 05g, 07l
metInoitpircseD
stnemeriuqeRlacirtcelE zH06/CAV021:tupnIregrahCrettaB
CDV81:tuptuOyrettaB
emiTgnigrahCyrettaBsruoH5ot3
sno
itacificepSllirD MPR009/deepSelgniS/elbisreveR/sselyeK"8/3
8-1:stnemtsujdAeuqroT/reggirTezeeuqS
rednaSgn
itallicsO
snoitacificepS
tnemhcattApooL&kooH/epahSelgnairT
hctiwSrewoPrekcoR/MPO000,6
snoitacificepSthgil
hsalF hctiwSrewoPredilS/daeHleviwSeergeD09-0/pirGlotsiP
bluBttaW8/)raelC(sneLdeppetS
snoitacificepSwasgi
JreggirTezeeuqS/deepSenO/MPS007,1/ekortS"2/1
elbatsujdAelgnA/drauGedalB/kcoLytefaS
seirosseccA regrahCyr
ettaB/yrettaBCDV81elbaegrahceR
thgieWsdnuoP04.31

3. Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to lose control. Protect others in the work area from
debris such as chips and sparks. Provide barriers or shields as needed.
ELECTRICAL SAFETY
4. Grounded tools must be plugged into an outlet properly installed and
grounded in accordance with all codes and ordinances. Never remove the
grounding prong or modify the plug in any way. Do not use any adapter
plugs. Check with a qualified electrician if you are in doubt as to whether
the outlet is properly grounded. If the tools should electrically malfunction or
break down, grounding provides a low resistance path to carry electricity away
from the user.
5. Double insulated tools are equipped with a polarized plug (one blade is
wider than the other). This plug will fit in a polarized outlet only one way. If
the plug does not fit fully in the outlet, reverse the plug. If it still does not
fit, contact a qualified electrician to install a polarized outlet. Do not
change the plug in any way. Double insulation eliminates the need for the
three wire grounded power cord and grounded power supply system.
6. Avoid body contact with grounded surfaces such as pipes, radiators,
ranges, and refrigerators. There is an increased risk of electric shock if your
body is grounded.
7. Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
8. Do not abuse the Power Cord. Never use the Power Cord to carry the tools
or pull the Plug from an outlet. Keep the Power Cord away from heat, oil,
sharp edges, or moving parts. Replace damaged Power Cords immediately.
Damaged Power Cords increase the risk of electric shock.
9. When operating a power tool outside, use an outdoor extension cord
marked “W-A” or “W”. These extension cords are rated for outdoor use, and
reduce the risk of electric shock.
PERSONAL SAFETY
10. Stay alert. Watch what you are doing, and use common sense when
operating a power tool. Do not use a power tool while tired or under the
influence of drugs, alcohol, or medication. A moment of inattention while
operating power tools may result in serious personal injury.
SKU 90374 PAGE 3

11. Dress properly. Do not wear loose clothing or jewelry. Contain long hair.
Keep your hair, clothing, and gloves away from moving parts. Loose
clothes, jewelry, or long hair can be caught in moving parts.
12. Avoid accidental starting. Be sure the Power Switch is off before plugging
in. Carrying power tools with your finger on the Power Switch, or plugging in
power tools with the Power Switch on, invites accidents.
13. Remove adjusting keys or wrenches before turning the power tool on. A
wrench or a key that is left attached to a rotating part of the power tool may result
in personal injury.
14. Do not overreach. Keep proper footing and balance at all times. Proper
footing and balance enables better control of the power tool in unexpected
situations.
15. Use safety equipment. Always wear eye protection. Dust mask, non-skid
safety shoes, hard hat, or hearing protection must be used for appropriate
conditions.
TOOL USE AND CARE
16. Use clamps (not included) or other practical ways to secure and support
the workpiece to a stable platform. Holding the work by hand or against your
body is unstable and may lead to loss of control.
17. Do not force the tool. Use the correct tool for your application. The correct
tool will do the job better and safer at the rate for which it is designed.
18. Do not use the power tool if the Power Switch does not turn it on or off.
Any tool that cannot be controlled with the Power Switch is dangerous and must
be replaced.
19. Disconnect the Battery from the tool before making any adjustments,
changing accessories, or storing the tool. Such preventive safety measures
reduce the risk of starting the tool accidentally.
20. Store idle tools out of reach of children and other untrained persons. Tools
are dangerous in the hands of untrained users.
21. Maintain tools with care. Keep cutting tools sharp and clean. Properly
maintained tools with a sharp cutting edge are less likely to bind and are easier
to control. Do not use a damaged tool. Tag damaged tools “Do not use” until
repaired.
SKU 90374 PAGE 4 REV 03j

22. Check for misalignment or binding of moving parts, breakage of parts, and
any other condition that may affect the tool’s operation. If damaged, have
the tool serviced before using. Many accidents are caused by poorly main-
tained tools.
23. Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one tool may become hazardous
when used on another tool.
SERVICE
24. Tool service must be performed only by qualified repair personnel. Service
or maintenance performed by unqualified personnel could result in a risk of injury.
25. When servicing a tool, use only identical replacement parts. Follow
instructions in the “Inspection, Maintenance, And Cleaning” section of this
manual. Use of unauthorized parts or failure to follow maintenance instructions
may create a risk of electric shock or injury.
GROUNDING
SKU 90374 PAGE 5
WARNING!
Improperly connecting the grounding wire can result in the risk of electric shock.
Check with a qualfified electrician if you are in doubt as to whether the outlet is
properly grounded. Do not modify the power cord plug provided with the tool.
Never remove the grounding prong from the plug. Do not use the tool if the power
cord or plug is damaged. If damaged, have it repaired by a service facility before
use. If the plug will not fit the outlet, have a proper outlet installed by a qualified
electrician.
REV 03j

SKU 90374 PAGE 6 REV 03j
DOUBLE INSULATED TOOLS: TOOLS WITH TWO PRONG PLUGS
1. Tools marked “Double Insulated” do not require grounding. They have a special
double insulation system which satisfies OSHA requirements and complies with
the applicable standards of Underwriters Laboratories, Inc., the Canadian
Standard Association, and the National Electrical Code. (See Figure B.)

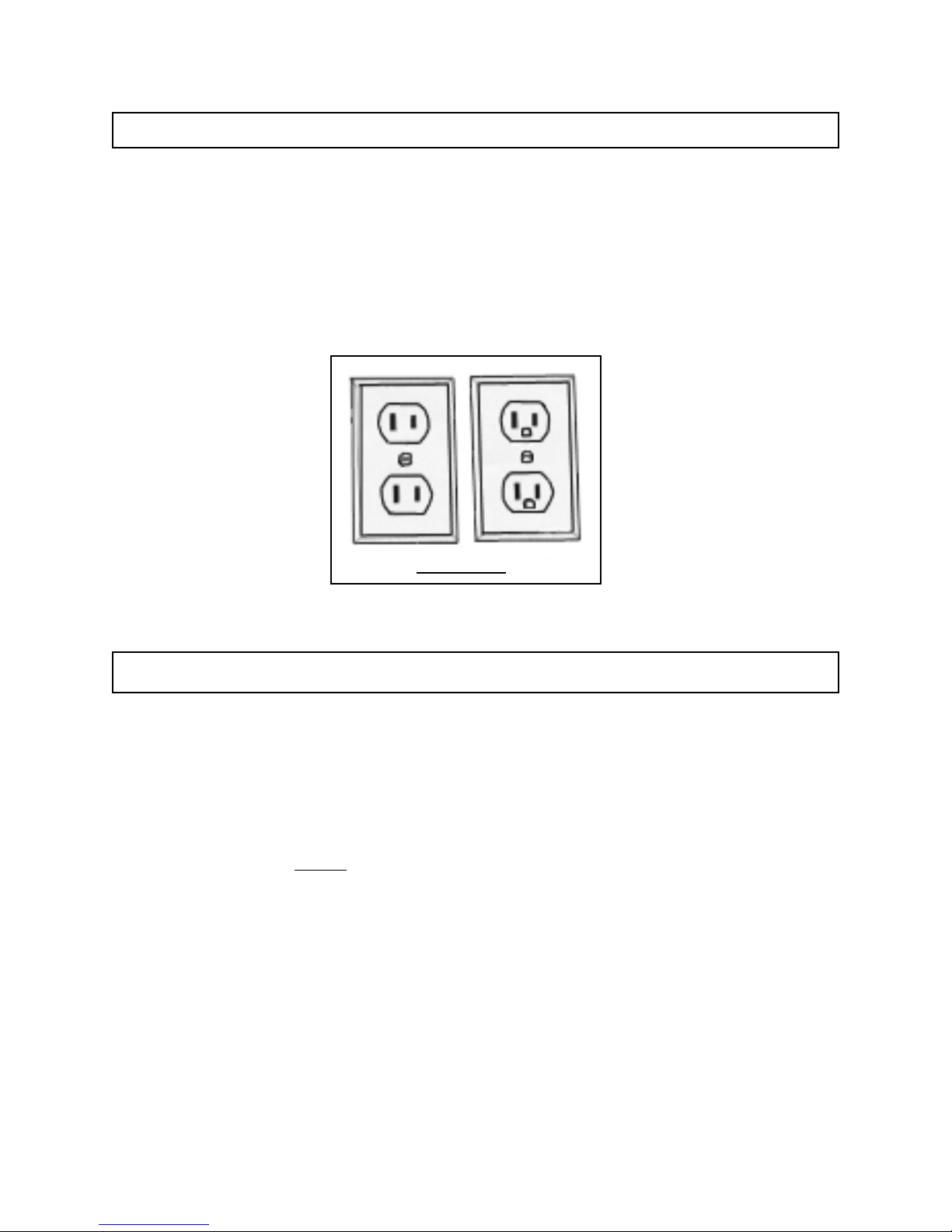

2. Double insulated tools may be used in either of the 120 volt outlets shown in the
following illustration. (See Figure B.)
FIGURE B
EXTENSION CORDS
1. Grounded tools require a three wire extension cord. Double Insulated tools
can use either a two or three wire extension cord.
2. As the distance from the supply outlet increases, you must use a heavier gauge
extension cord. Using extension cords with inadequately sized wire causes a
serious drop in voltage, resulting in loss of power and possible tool damage.
(See Figure C, below.)
3. The smaller the gauge number of the wire, the greater the capacity of the cord.
For example, a 14 gauge cord can carry a higher current than a 16 gauge cord.
(See Figure C.)
4. If using more than one extension cord to make up the total length, make sure
each cord contains at least the minimum wire size required. (See Figure C.)

SKU 90374 PAGE 7
5. If you are using one extension cord for more than one tool, add the nameplate
amperes and use the sum to determine the required minimum cord size.
(See Figure C.)
6. If you are using an extension cord outdoors, make sure it is marked with the
suffix “W-A” (“W” in Canada) to indicate it is acceptable for outdoor use.
7. Make sure your extension cord is properly wired and in good electrical condition.
Always replace a damaged extension cord or have it repaired by a qualified
electrician before using it.
8. Protect your extension cords from sharp objects, excessive heat, and damp or
wet areas.
RECOMMENDED MINIMUM WIRE GAUGE FOR EXTENSION CORDS*
(120 VOLT)
NAMEPLATE
AMPERES
(
At Full Load
)
EXTENSION CORD LENGTH
25
Feet
50
Feet
75
Feet
100
Feet
150
Feet
0 – 2.0 18 18 18 18 16
2.1 – 3.4 18 18 18 16 14
3.5 – 5.0 18 18 16 14 12
5.1 – 7.0 18 16 14 12 12
7.1 – 12.0 18 14 12 10 -
12.1 – 16.0 14 12 10 - -
16.1 – 20.0 12 10 - - -
* Based on limiting the line voltage drop
to five volts at 150% of the rated amperes.
FIGURE C

SKU 90374 PAGE 8

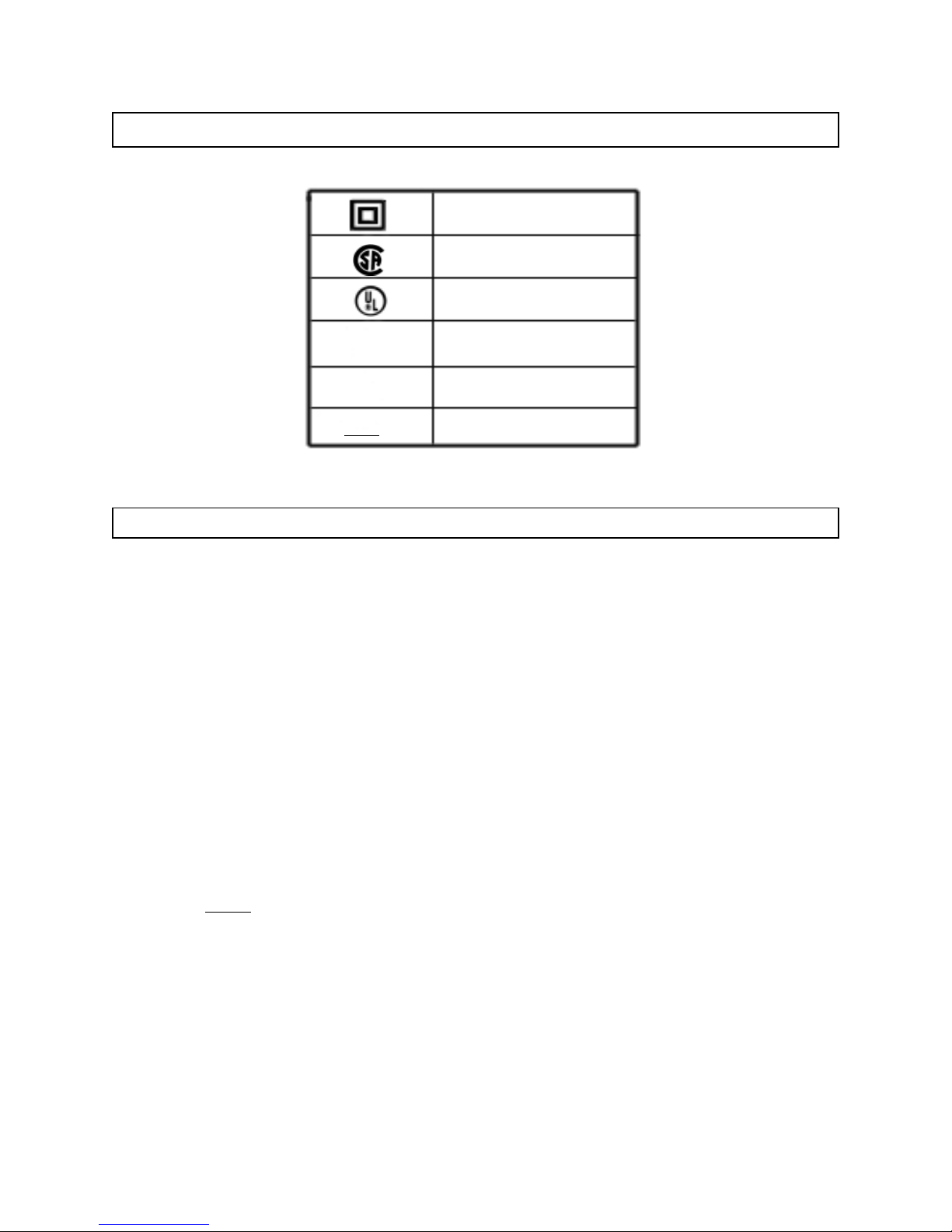

SYMBOLOGY
Double Insulated
Canadian Standards
Association
Underwriters
Laboratories, Inc.
Volts Alternating Current
Amperes
No Load Revolutions
per Minute (RPM)
noxxxx/min.
A
V ~
SPECIFIC SAFETY RULES
1. Maintain a safe working environment. Keep the work area well lit. Make sure
there is adequate surrounding workspace. Always keep the work area free of
obstructions, grease, oil, trash, and other debris. Do not use the Combo Pack in
areas near flammable chemicals, dusts, and vapors.
2. Maintain labels and nameplates on the Combo Pack. These carry
important information. If unreadable or missing, contact Harbor Freight Tools for
a replacement.
3. Ground this product. To comply with the National Electric Code, and to provide
additional protection from the risk of electrical shock, the Battery Charger (1B)
should only be connected to a 120 volt electrical outlet that is protected by a
Ground Fault Circuit Interrupter (GFCI).
4. When using a hand-held power tool, always maintain a firm grip on the tool
with both hands.
5. To avoid electrical shock, do not pull or carry the Battery Charger/Charger
Base (1B, 1C) by its Power Cord or pull the Power Cord around sharp
corners or edges. Do not unplug the Battery Charger by pulling on the Power
Cord. Keep the Power Cord away from heated surfaces.
6. Never leave the Battery Charger (1B) unattended when it is plugged into an
electrical outlet. Make sure to unplug the Battery Charger from its outlet before
leaving.
REV 04f

7. Use eye protection. Always wear ANSI approved safety impact eye goggles
when working with these products.
8. Proper Battery Care: Battery (1A) leakage may occur under extreme usage or
temperature conditions. If Battery fluid comes in contact with skin, wash with soap
and water and rinse with lemon juice and vinegar. If the fluid comes in contact
with eyes, flush with water for several minutes and contact a doctor immediately.
Never burn the Battery, as it can explode in a fire. Do not attempt to charge a
leaking Battery. Contact local solid waste authorities for instructions on correct
disposal or recycling of the Battery.
9. Do not allow children to handle or play with these products.
10. Store idle equipment. When not in use, tools and equipment should be stored
in a dry location to inhibit rust. Always lock up tools and equipment, and keep out
of reach of children.
11. Do not use these products if under the influence of alcohol or drugs. Read
warning labels on prescriptions to determine if your judgement or reflexes are
impaired while taking drugs. If there is any doubt, do not attempt to use these
products.
12. Industrial applications must follow OSHA requirements.
13. Maintain this product with care. Keep these products clean and dry for better
and safer performance.
14. Maintenance: For your safety, service and maintenance should be performed
regularly by a qualified technician.
15. Check for damaged parts. Before using these products, carefully check that
they will operate properly and perform their intended function. Check for
damaged parts and any other conditions that may affect the safe operation of
these products. Replace or repair damaged or worn parts immediately.
16. Replacement parts and accessories: When servicing, use only identical
replacement parts. Only use accessories intended for use with this product.
17. Use the right tool or attachment for the right job. Do not attempt to force a
small tool or attachment to do the work of a larger industrial tool or attachment.
There are certain applications for which these products were designed. They will
do the job better and more safely at the rate for which they were intended. Do
not modify these products, and do not use these products for a purpose for which
they were not intended.
SKU 90374 PAGE 9

18. WARNING! Some dust created by power sanding, sawing, grinding, drilling,
and other construction activities, contain chemicals known (to the State of
California) to cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are: lead from lead-based paints, crystalline silica
from bricks and cement or other masonry products, arsenic and chromium from
chemically treated lumber. Your risk from these exposures varies, depending on
how often you do this type of work. To reduce your exposure to these chemicals:
work in a well ventilated area, and work with approved safety equipment, such as
those dust masks that are specially designed to filter out microscopic particles.
(California Health & Safety Code 25249.5, et seq.)
19. WARNING! People with pacemakers should consult their physician(s)
before using this product. Operation of electrical equipment in close proximity to
a heart pacemaker could cause interference or failure of the pacemaker.
20. WARNING! The warnings, precautions, and instructions discussed in this
manual cannot cover all possible conditions and situations that may occur. The
operator must understand that common sense and caution are factors which
cannot be built into this product, but must be supplied by the operator.
UNPACKING
When unpacking, check to make sure all the parts shown on the Parts Lists on pages 18,
19, 20, and 21 are included. If any parts are missing or broken, please call Harbor Freight
Tools at the number shown on the cover of this manual as soon as possible.
ASSEMBLY AND OPERATING INSTRUCTIONS
NOTE: For additional information regarding the parts mentioned in the following pages,
refer to the Assembly Diagrams on pages 18, 19, 20, and 22.
SKU 90374 PAGE 10
1. NOTE: The Battery (1A) requires charging. The first charge requires 5 hours
charge time prior to using a cordless tool. (See Figure D, next page.)
2. The Battery (1A) should only be re-charged when the Flashlight Bulb (7C) begins to
dim or a cordless tool begins to run slowly. (See Figure D.)
3. When the Battery (1A) requires re-charging, a 3 to 5 hour charge allows the tool
to operate at full power. Do not re-charge the Battery longer than 5 hours, as
damage to the Battery and/or Flashlight or cordless tool will occur.
(See Figure D.)

SKU 90374 PAGE 11
4. To charge the Battery (1A), plug the Battery Charger’s Plug (1B) into the Charging
Base (1C). Plug the Battery (1A) into the Charging Base (1C). Charging room
temperature: 50° F - 104° F. Then, plug the Battery Charger into the nearest 120
Volt, grounded, electrical outlet. (See Figure D).
5. A Charging Indicator Light on the Charging Base (1C) will illuminate to show that
charging is taking place. NOTE: The Battery Charger (1B) will not automatically
turn off when the Battery is fully charged, and the Charging Indicator Light will
remain on until the Battery Charger is disconnected from the electrical outlet.
Recharging the Battery more than 5 hours can cause damage to the battery cells.
(See Figure D.)
6. While charging, the Battery (1A), Battery Charger (1B), and/or Charger Base (1C)
may become warm to the touch. This is normal, and does not indicate a problem.
(See Figure D.)
7. Once the Battery (1A) is fully charged, disconnect the Battery Charger (1B) from
the electrical outlet. Then, disconnect the Battery from the Charging Base.
(See Figure D.)
CHARGING BASE (1C)
BATTERY CHARGER (1B)
CHARGER PLUG
CHARGING INDICATOR LIGHT
PLUG BATTERY CHARGER
ONLY INTO A
120 VOLT, GROUNDED,
ELECTRICAL OUTLET.
FIGURE D

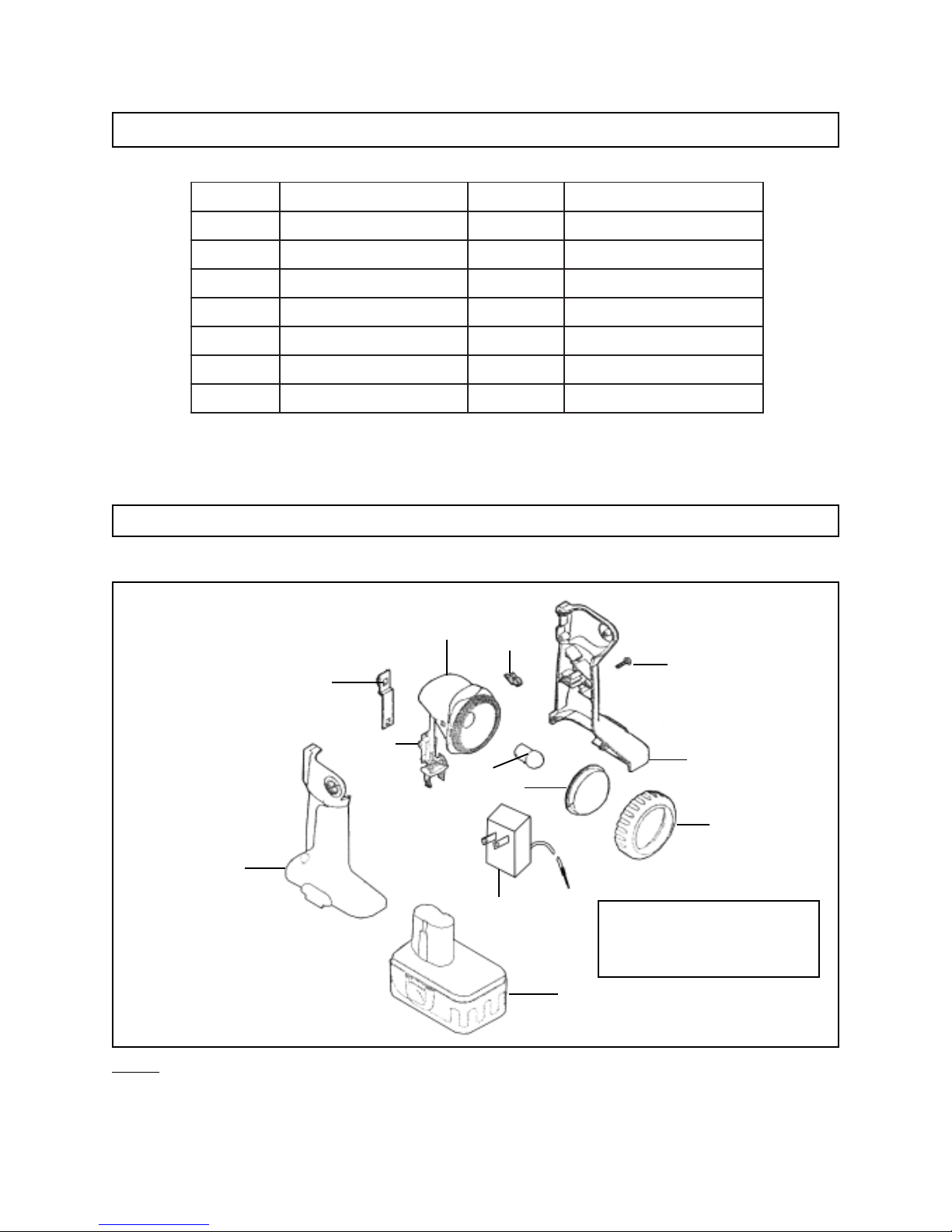

To Operate The Flashlight:
1. Insert the fully charged Battery (1A) in the Flashlight’s Handle, and make sure the
Spring on the Battery snaps into place on the Handle.
(See Figure E, next page.)
2. Slide the Switch Button (4C) on the Handle forward to turn “ON”. (See Figure E.)
Note: Always switch to a fresh battery when tool performance
begins to diminish. Severe heat is most destructive to a battery; the
more heat generated, the faster the battery loses power. A battery that
gets too hot can be permanently damaged. Never over-discharge a
battery by using the tool even after tool performance is decreasing.
Never attempt to discharge a tool’s battery by continuing to pull the tool
trigger. When tool performance begins to diminish, stop the tool,
re-charge the battery and use the fresh battery for optimal
performance.
REV 03j, 04f, 07k

SKU 90374 PAGE 12
3. To turn off the Flashlight, slide the Switch Button (4C) to its OFF position.
(See Figure E.)
4. To change the Bulb (7C), unscrew the Light Head Cap (9C) and remove the Lens
(8C). Remove the old Bulb by pushing in on the Bulb while turning it clockwise.
Insert a new Bulb by aligning the tabs on the Bulb with the slots in the Bulb
socket. Push in on the new Bulb while turning it counterclockwise. Re-attach the
Lens and Light Head Cap. (See Figure E.)
FIGURE E
FLASHLIGHT
HANDLE
BATTERY (1A)
SWITCH
BUTTON
(4C)
LIGHT
HEAD
CAP
(9C)
LENS
(8C)
BULB
(7C)

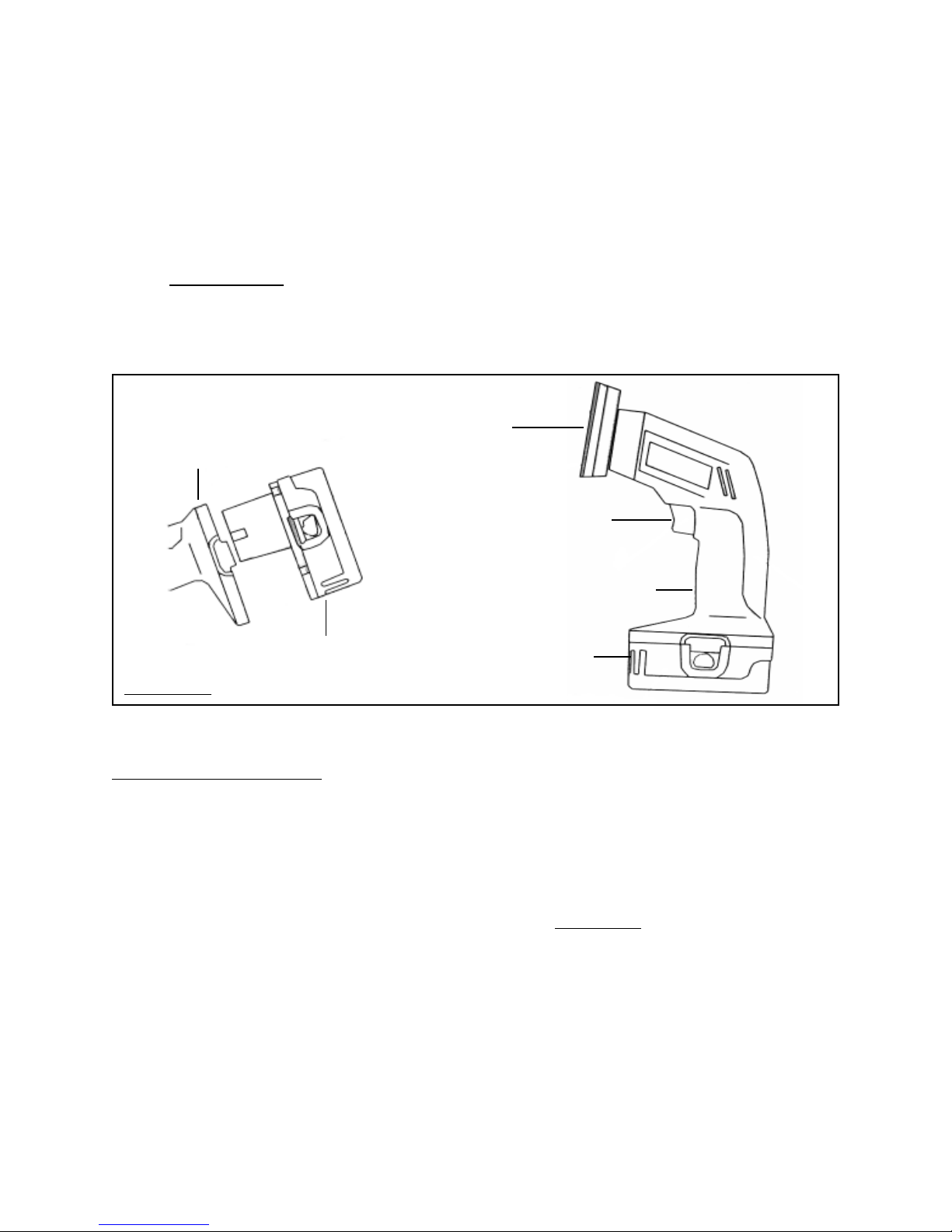

To Operate The Sander:
1. WARNING! The Cordless Sander is not designed for wet sanding.
2. Make sure the Battery (1A) is disconnected from the Sander prior to attaching
sand paper (not included) to the tool.
3. To attach sand paper to the Sander, use the hook and loop mechanism on its
Sand Paper Pad (17D). (See Figure F, next page.)
4. Whenever possible, secure the workpiece that is to be sanded in a vise or with
clamps.
5. Insert the fully charged Battery (1A) in the Sander’s Handle, and make sure the
Spring on the Battery snaps into place on the Handle. (See Figure F.)
6. To turn on the Sander, squeeze the Switch (3D). NOTE: Always grip the Sander
firmly with both hands when the tool is running.

SKU 90374 PAGE 13
7. Lightly apply the oscillating Sand Paper Pad (17D) to the workpiece surface, and
begin sanding the workpiece by moving the tool forward and backward with
(parallel to) the grain of the workpiece.
8. Once the sanding job is completed, release pressure on the Switch (3D) to turn off
the Sander. (See Figure F.)
9. IMPORTANT:If, during the sanding process it becomes necessary to replace
worn sand paper with new sand paper, make sure to turn off the Sander and
disonnect the Battery (1A). Re-install new sand paper and then re-attach the
Battery. (See Figure F.)
BATTERY (1A)
SANDER
HANDLE
SAND PAPER
PAD
(17D)
SWITCH
(3D)
SANDER HANDLE
BATTERY (1A)
FIGURE F

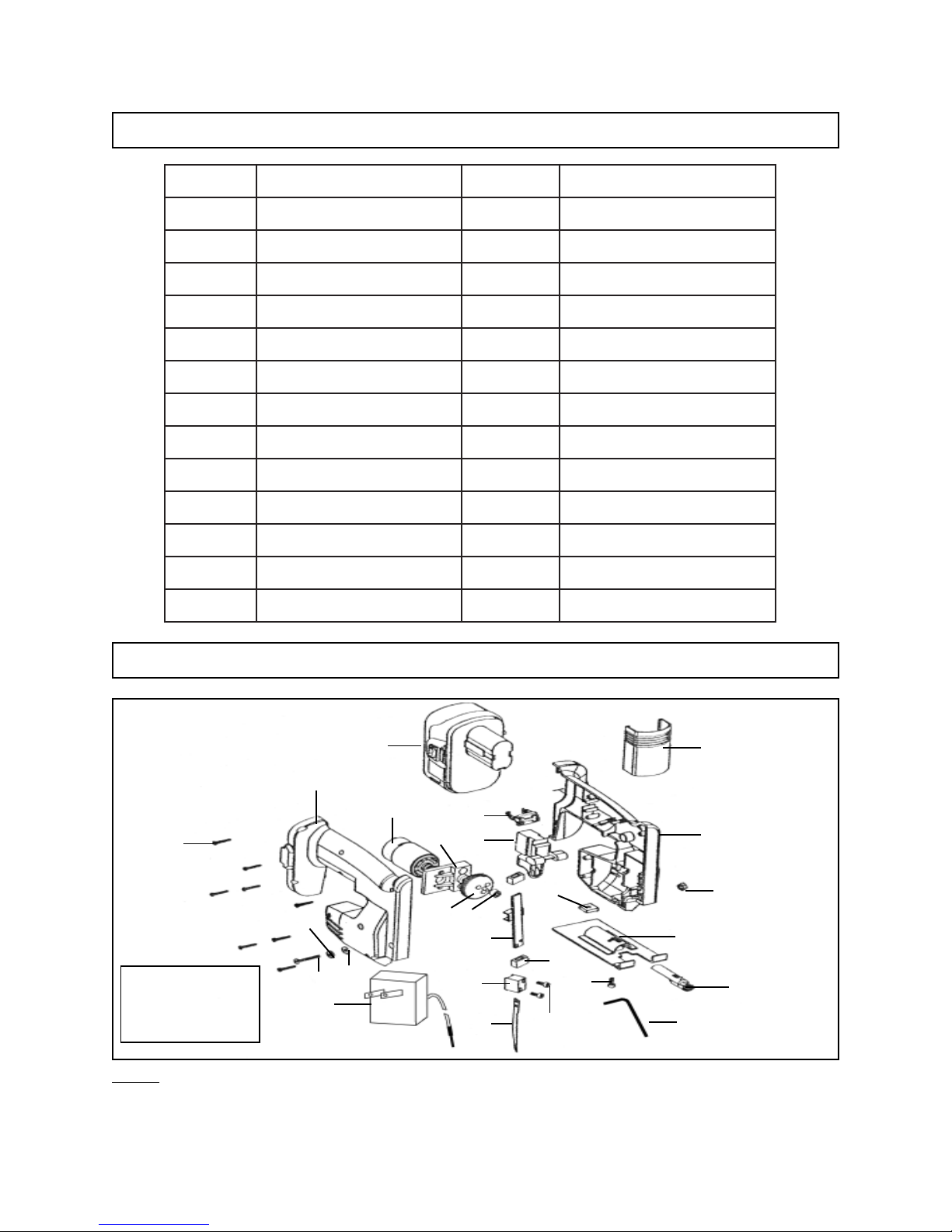

To Operate The Jigsaw:
1. Make sure the Battery (1A) is disconnected from the Jigsaw prior to attaching the
Saw Blade (16E) to the tool.
2. To attach the Saw Blade (16E) to the Jigsaw, use the Hex Key (24E) to loosen the
two Hex Socket Screws (14E). (See Figure G, next page.)
3. Insert the shank of the Saw Blade (16E) upward into the Blade Holder (15E) with
its saw teeth pointing to the front of the tool. Then, re-tighten the two Hex Socket
Screws (14E) to secure the Saw Blade in place. (See Figure G.)
4. If desired, the angle of a cut may be adjusted. To do so, loosen the Hex Socket
Screw (14E) located on the underside of the Sander. Tilt the Base Plate (19) to
the desired angle. Then, re-tighten the Hex Socket Screw. (See Figure G.)

SKU 90374 PAGE 14
6. Insert the fully charged Battery (1A) in the Jigsaw’s Handle, and make sure the
Spring on the Battery snaps into place on the Handle.
(See Figure G.)
7. The Jigsaw is equipped with a Safety Button that prevents accidental starting. To
turn on the Jigsaw, depress the Safety Button and then squeeze the Switch (5E).
NOTE: Always grip the Jigsaw firmly with both hands when the tool is running.
(See Figure G.)
8. WARNING! Always keep hands and fingers away from the moving Saw
Blade (16E). (See Figure G.)
9. Lightly feed the Saw Blade (16E) into the workpiece and apply light,gradual,
forward, pressure on the Jigsaw to move the tool along the area to be cut.
10. Do not attempt to back out of an uncompleted cut while the Jigsaw is running. If
necessary, release pressure on the Switch (5E) to turn off the Jigsaw. Then,
remove the tool from the workpiece. (See Figure G.)
11. IMPORTANT:If, during the cutting process it becomes necessary to replace a
bent or broken Saw Blade (16E) with a new Saw Blade, or re-adjust the angle of
the Base Plate (19E), make sure to turn off the Jigsaw and disonnect the Battery
(1A). Re-install a new Saw Blade, or re-adjust the Base Plate, and then re-attach
the Battery. (See Figure G.)
5. Whenever possible, secure the workpiece that is to be cut in a vise or with
clamps.
FIGURE G
HEX KEY
(24E)
HEX KEY
(24E)
SAFETY
BUTTON
SWITCH
(5E)
SAW
BLADE
(16E)
BATTERY
(1A)
HANDLE
BASE
PLATE
(19E)
HEX
SOCKET
SCREW
(14E)
HEX
SOCKET
SCREW
(14E)

SKU 90374 PAGE 15
To Operate The Drill:
1. WARNING! Always make sure the Trigger (3F) of the Cordless Drill is in its
“OFF” position, the Battery (1A) is removed from the Drill, and the Battery
Charger (1B) is unplugged from its electrical outlet prior to making any
adjustments to the tool. (See Figure H.)
2. The Chuck (12F): Accepts up to 3/8” diameter drill bits (not included) and the
Screwdriver Bit (31F). To install a drill bit, hold the Chuck Sleeve firmly in place
and turn the Chuck (12F) counterclockwise . Insert the shank of a drill bit all the
way into the Chuck. While holding the Chuck Sleeve in place, turn the Chuck
clockwise to lock the drill bit in place. (See Figure H.)
3. The Trigger (3F): The Trigger is operated manually simply by squeezing the
Trigger to turn on the Drill and releasing pressure on the Trigger to turn off the
Drill. (See Figure H.)
4. The Rotation Button (33F): The Rotation Button allows you to change the
rotational direction of the Drill. For a clockwise rotation, move the Rotation
Button to the right . For a counterclockwise rotation, move the Rotation
Button to the left . (See Figure H.)
5. The Torque Setting Ring (8F): The Torque Setting Ring allows you to select
up to eight different driving torque settings, depending on the job required. To
change the driving torque, simply turn the Torque Setting Ring to the desired setting.
(See Figure D.)
FIGURE H
TORQUE SETTING RING (8F)
CHUCK SLEEVE
CHUCK (12F)
ROTATION BUTTON (33F)
TRIGGER (3F)
BATTERY (1A)
DRILL HANDLE

SKU 90374 PAGE 16
6. Whenever possible, secure the workpiece that is to be drilled in a vise or with
clamps.
7. When installing drill bits or the Screwdriver Bit (31F), make sure the Battery (1A) is
removed from the Drill to avoid accidental starting. Then, insert and lock inplace
a drill bit or Screwdriver Bit in the Chuck (12F) of the Drill.
(See Figure H.)
8. Insert the fully charged Battery (1A) in the Drill’s Handle, and make sure the
Spring on the Battery snaps into place on the Handle. (See Figure H.)
9. Lubricate the cutting tip of the drill bit with cutting oil when drilling iron or steel.
Use a coolant when drilling non-ferrous metals such as copper, brass, or
aluminum.
10. When drilling in light gauge metal or wood, use a wooden block to back up the
material to prevent damage to the workpiece.
11. Mark the center of the hole to be drilled with a center punch to give a drill bit a
start and to prevent it from “walking”.
12. To turn on the Drill, squeeze the Trigger (3F). NOTE: Always grip the Drill firmly
with both hands when the tool is running. (See Figure H.)
13. Drill only as deep as necessary. Do not drill deeper than necessary into walls or
other areas where you cannot identify any possible hazards behind the drilling
surface.
14. To reduce jamming as the drill bit breaks through the workpiece, decrease the
drilling pressure when the point of the drill bit breaks through the workpiece.
15. When you have drilled the hole, remove the drill bit from the hole while the Drill is
still running. This prevents the drill bit from getting caught in the hole and causing
damage.
16. Release the Trigger (3F) to stop the Drill. Then, remove the Battery (1A) and drill
bit from the Drill.
INSPECTION, MAINTENANCE, AND CLEANING
1. WARNING! Always remove the Battery Pack (1A) from a tool and
unplug the Battery Charger (1B) from its electrical outlet before performing
any inspection, maintenance, or cleaning on the tool.

SKU 90374 PAGE 17
2. BEFORE EACH USE, inspect the general condition of the tools. Check for
misalignment or binding of moving parts, cracked or broken parts, damaged
wiring, and any other condition that may affect their safe operation. If abnormal
noise or vibration occurs with a tool, have the problem corrected before further
use. Do not use damaged equipment.
3. TO CLEAN, use a clean, damp, cloth to clean the outer surfaces of the Combo
Pack tools and accessories. A mild detergent may be used. Do not use solvents.
Do not immerse any of the tools, Battery, or Battery Charger in water.
4. WHEN STORING, always keep the Combo Pack tools and accessories in a clean,
dry location.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KINDTO THE BUYERTHAT HE
OR SHE IS QUALIFIEDTO MAKE ANY REPAIRS TOTHE PRODUCT, OR THAT HE OR SHE IS QUALIFIED
TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTUER AND/OR DISTRIBUTOR
EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY
CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL
RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR
REPLACEMENT PARTSTHERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT
PARTS THERETO.
REV 07l

SKU 90374 PAGE 18 REV 04g
NOTE: Some parts are listed and shown for illustration purposes only, and are not available individually
as original or replacement parts.
PARTS LIST - FLASHLIGHT
ASSEMBLY DIAGRAM - FLASHLIGHT
1A
1B
#traPnoitpircseD#traPnoitpircseD
A1yrettaBC6gnirpSetacoL
B1regrahCyrettaBC7bluB
C1esaBregrahCC8sneL
C2erusolcnEthgiRC9pa
CdaeHthgiL
C3hctiwSC01erusolcnEtfeL
C4nottuBhctiwSC11wercS
C5revoCdaeHthgiL
2C
3C
4C
5C 6C
7C 8C
9C
10C
11C
Note: 1C Charger Base
not shown
(see page 11, Figure D)

SKU 90374 PAGE 19 REV 04g
PARTS LIST - SANDER
NOTE: Some parts are listed and shown for illustration purposes only, and are not available individually
as original or replacement parts.
1A
1B
ASSEMBLY DIAGRAM - SANDER
1D
2D 3D
4D
6D 7D 8D9D10D 11D
12D 13D
14D
15D
16D 17D
18D
#traPnoitpircseD#traPnoitpircseD
A1yrettaBD9raeG
B1regrahCyrettaBD01gninraeB
C1esaBregrahCD11tfahS
D1erusolcnED21rotalli
csO
D2erusolcnED31gniraeB
D3hctiwSD41troppuS
D4etalPeloPD51etalPesaB
D6rotoMD61wercSgnippaT
D7raeGD71daPrepaPdnaS
D8gniraeBD
81wercSgnippaT
Note: 1C
Charger Base
not shown

SKU 90374 PAGE 20 REV 04g
PARTS LIST - JIGSAW
ASSEMBLY DIAGRAM - JIGSAW
NOTE: Some parts are listed and shown for illustration purposes only, and are not available individually
as original or replacement parts.
#traPnoitpircseD#traPnoitpircseD
A1yrettaBE21raBedilS
B1regrahCyrettaBE31wercS
C1esaBregrahCE41wercStekcoSxeH
E1erusol
cnEE51redloHedalB
E2drauGE61edalBwaS
E4etalPeloPE71eveelSedilS
E5hctiwSE81kcolB
E6raeGlartnecxEE91etalPesaB
E7tekcarBtrop
puSE02troppuSrelloR
E8rotoME12rehsaWgnirpS
E9erusolcnEE22rehsaW
E01wercSgnippaTE32tuN
E11gniraeBdeliO-fleSE42yeKxeH
1E
2E
4E
1A
1B
5E
6E
7E
8E
9E
10E
11E
12E
13E
14E
15E
16E
17E
18E
19E
20E
21E
22E
23E
14E
24E
Note: 1C
Charger Base
not shown
