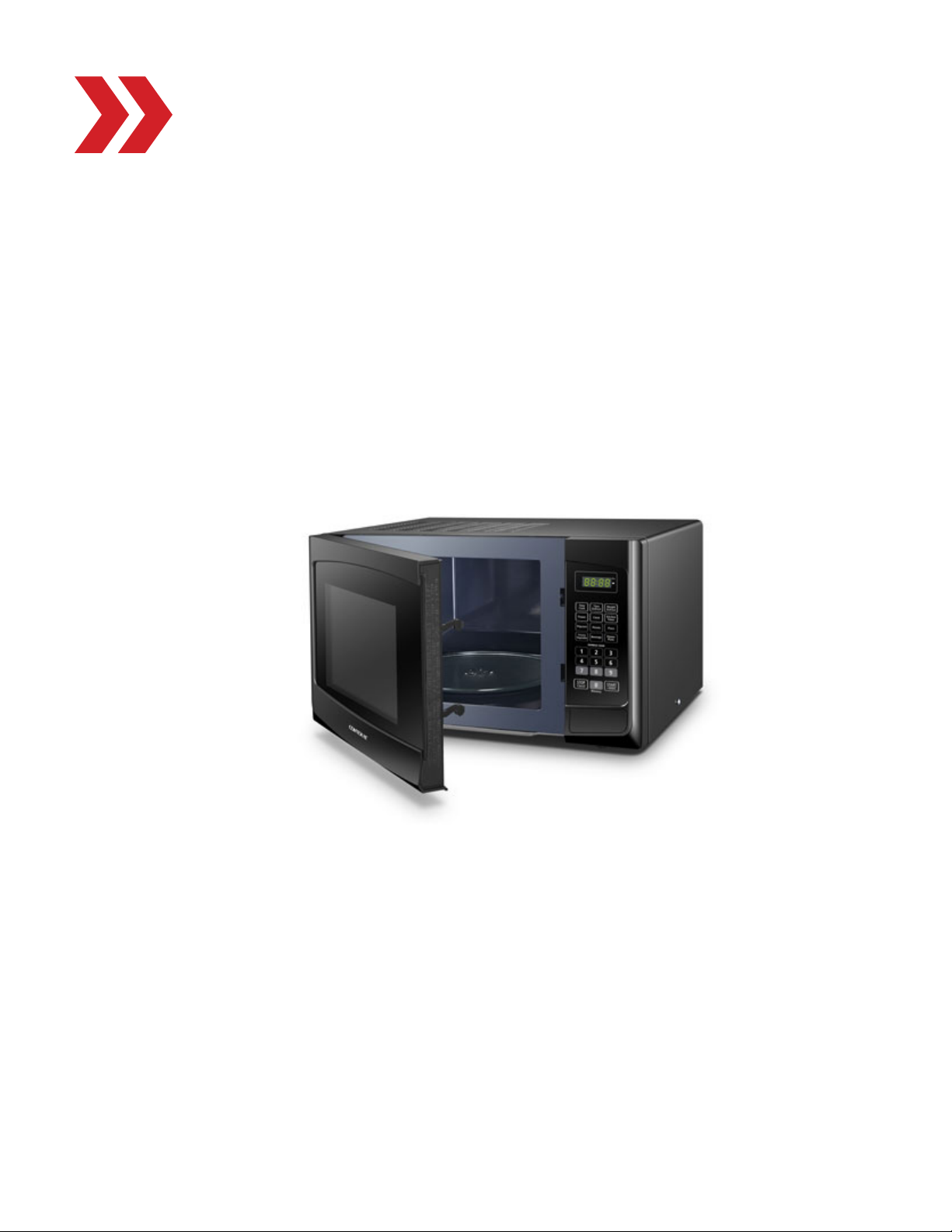

DRIVEN RV-980B-D User manual

1.0 CU.FT. BUILT-IN MICROWAVE OVEN
DELUXE BUILT-IN
BLACK WITH EASY-TO-CLEAN INTERIOR
INSTRUCTION MANUAL
MODEL: RV-980B-D
(PICTURED WITH OPTIONAL TRIM KIT MODEL RVTRIM-9B)
BUILT-IN MWO
Before using your microwave oven, please read this manual carefully and keep it for future reference.
www.contoureusa.com

WWW.CONTOUREUSA.COM
WELCOME & CONGRATULATIONS
Thank you for purchasing this quality CONTOURE®appliance.
Congratulations on purchasing a new built-in microwave.
For your safety and full enjoyment of this product, always read the
instruction book carefully before using.
Don’t forget to register your product at www.contoureusa.com for updates
and other relevant information.
This manual contains important information on the installation, use, and care
of your appliance. Please read this manual carefully before installation and
operation of this machine to prevent injury and property damage and to take
full advantage of your microwave’s benefits and features.
SAVE THESE INSTRUCTIONS
1

WWW.CONTOUREUSA.COM
IMPORTANT SAFETY &
PRECAUTIONS
This manual contains important information on the installation, use, and care
of your appliance. Please read this manual carefully before installation and
operation of this machine to prevent injury and property damage.
WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS:
Warnings and Important Safety Instructions in this manual DO NOT cover all
possible conditions and situations that may occur. It is your responsibility to
use common sense, caution and care when installing, maintaining and
operating this appliance.
IMPORTANT SAFETY SYMBOLS & PRECAUTION WARNINGS:
This symbol indicates that hazards or unsafe practices may cause
serious personal injury or death.
To reduce the risk of fire, explosion, electric shock, or personal injury when
using your appliance, these basic safety precautions MUST be followed.
These warnings are to prevent injury to you and to others. Please follow the
explicitly.
After reading this section, keep it in a safe place for future reference.
STATE OF CALIFORNIA PROPOSITION 65 WARNINGS:
The California Safe Drinking Water and Toxic Enforcement Act
requires the Governor of California to publish a list of substances
known to the State of California to cause cancer, birth defects, or
other reproductive harm, and requires business to warn of potential exposure
to such substances.
This product contains a chemical known to the State of California to cause
cancer, birth defects, or other reproductive harm. This appliance can cause
low-level exposure to some of the substances listed, including benzene,
formaldehyde, and carbon monoxide.
SAVE THESE INSTRUCTIONS
2

WWW.CONTOUREUSA.COM
IMPORTANT SAFETY &
PRECAUTIONS
WARNING - To reduce the risk of fire, electric shock, burns, injury or expo-
sure to excessive microwave energy and when using electrical appliances,
follow basic precautions, including the following:
• Read all instructions before using this appliance.
• Read and follow the specific warning: PRECUATIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
• This appliance must be grounded. Connect only to properly grounded outlet.
SEE GROUNDING INSTRUCTIONS.
• Install or locate this appliance only in accordance with the provided INSTAL-
LATION INSTRUCTIONS.
• Some products such as whole eggs and sealed containers – for example,
closed glass jars – can explode and should NOT be heated in this appliance.
• Use this appliance only for its intended use as described in this manual.
• DO NOT use corrosive chemicals or vapors in this appliance
• This oven is specifically designed to heat or cook food. It is not designed for
industrial or laboratory use.
• As with any appliance, close supervision is necessary and required when it
is used by children.
• DO NOT operate this appliance if it has a damaged cord or plug, if it is not
working properly or if it has been damaged or dropped.
• This appliance should be serviced only by qualified service technicians.
• Do NOT cover or block any openings on the appliance.
• DO NOT store or use this appliance outdoors.
• DO NOT use this product near water, for example, near a kitchen sink, in a
wet basement, near a swimming pool, or similar location.
• DO NOT immerse cord or plug in water
• Keep cord away from heated surfaces.
• DO NOT let cord hang over edge(s) of tables, or countertops.
• When cleaning surfaces of door and oven that come together on closing the
door, only use mild, nonabrasive soaps or detergents applied with a sponge or
soft cloth.
SAVE THESE INSTRUCTIONS
3

WWW.CONTOUREUSA.COM
IMPORTANT SAFETY &
PRECAUTIONS
WARNING - TO REDUCE THE RISK OF FIRE IN THE OVEN INTERIOR:
• DO NOT overcook food.
• Carefully attend appliance when paper, plastic or other combustible materi-
als are placed inside the oven to facilitate cooking.
• Remove wire twist-ties from paper or plastic bags before placing bag in
oven
• If Materials inside the oven ignite, keep oven door closed, turn oven off, and
disconnect the power cord, or shut off power at the fuse or circuit breaker
panel.
• DO NOT use the interior for storage purposes.
• DO NOT leave paper products, cooking utensils or food in the oven when
not in use.
WARNING - To reduce the risk of fire, electric shock, burns, injury or expo-
sure to excessive microwave energy and when using electrical appliances,
follow basic precautions, including the following:
• Liquids such as water, coffee or tea can be overheated beyond the
Boiling point without appearing to be boiling. This is called delayed eruptive
boiling.
• Visible bubbling or boiling when the container is removed from the micro-
wave oven it is not always present.
THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER
WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO
THE LIQUID.
WARNING - TO REDUCE THE RISK OF INJURY TO PERSONS:
• DO NOT use straight-sided containers with narrow necks. Use wide-mouth
containers.
• Stir liquid both before and halfway through heating it.
• DO NOT overheat liquid.
• Use extreme care when inserting a spoon or other utensil into the contain-
er. This may also cause delayed eruptive boiling.
• After heating, allow the container to stand in the microwave oven for at
least 20 seconds before removing the container.
SAVE THESE INSTRUCTIONS
4

WWW.CONTOUREUSA.COM
IMPORTANT SAFETY &
PRECAUTIONS
WARNING – PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY:
• DO NOT attempt to operate this oven with the door open, this can result in
harmful exposure to microwave energy. It is important not to break or tamper
with the safety interlocks.
• DO NOT place any object between the oven front face and the door or allow
soil or cleaner residue to accumulate on sealing surfaces
• DO NOT operate the oven if it is damaged.
• It is very important that the oven door closes properly and that there is no
damage to the door (for example, make sure that the door is not bent)
• It is very important that the oven door closes properly and there is no
damage to hinges, latches and door seals (for example, make sure that the
hinges, latches or door seals are not broken or loosened.
• The oven should never be adjusted or repaired by anyone except properly
qualified service personnel.
• If the microwave unit is not kept clean, its surface may be degraded and
lead to a hazardous situation.
DANGER ELECTRIC SHOCK HAZARD
• Touching some of the internal components can cause serious personal
injury or death.
• DO NOT disassemble this appliances
WARNING ELECTRIC SHOCK HAZARD
• Improper use of the grounding can result in electric shock.
• DO NOT plug into an outlet until appliance is properly installed and
grounded.
SAVE THESE INSTRUCTIONS
5

WWW.CONTOUREUSA.COM
IMPORTANT SAFETY &
PRECAUTIONS
WARNING ELECTRIC SHOCK HAZARD
• Improper use of the grounding can result in electric shock.
• DO NOT plug into an outlet until appliance is properly installed and
grounded.
SAVE THESE INSTRUCTIONS
6

WWW.CONTOUREUSA.COM
IMPORTANT SAFETY &
PRECAUTIONS
CRITICAL INSTALLATION WARNINGS
The installation of this appliance MUST be performed by a qualified
technician or service company.
Failing to have a qualified technician or service company install the oven may
result in electric shock, fire, an explosion, problems with the product or injury.
Keep all packaging materials out of the reach of children.
DO NOT allow children to use them for play.
RADIO INTERFERENCE
Operation of your microwave oven may cause interference to your radio, TV
or Similar equipment.
If there is interference, it may be reduced or eliminated by using the
following steps:
• Clean the door of the microwave and seal the surface of the oven
• Change the orientation of the receiving antenna used by the radio
or TV
• Relocate the microwave oven with respect to the receiver
• Move the microwave oven away from the receiver
• Plug the microwave oven into a different outlet so that the microwave
and receiver are on different branch circuits.
SAVE THESE INSTRUCTIONS
7

WWW.CONTOUREUSA.COM
IMPORTANT SAFETY &
PRECAUTIONS
GROUNDING INSTRUCTIONS This appliance must be grounded.
In the event of an electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the electric current. This
appliance is equipped with a cord with a grounding plug. The plug must be
plugged into an outlet that is properly installed and grounded. Consult a
qualified electrician or serviceman if the grounding instructions are not
completely understood or if doubt exists as to whether the appliance is
properly grounded. If it is necessary to use an extension cord, use only a
3-wire extension cord that has a 3-pronged grounding plug, and a 3-slot
receptacle that will accept the plug on the appliance.
A short power-supply cord is provided to reduce the risks resulting from
becoming entangled in or tripping over a longer cord.
Longer cord sets or an extension cord should NOT be used unless the
below precautions are followed:
If a longer cord or extension cord is used:
• The marked electrical rating of the cord set or extension cord should
match the rating of the appliance
• The extension cord must be a grounding-type 3-wire cord.
• The longer cord should be arranged so that it will not drape over the
countertop or tabletop where it can be pulled on by children, or tripped
over.
SAVE THESE INSTRUCTIONS
8

WWW.CONTOUREUSA.COM
IMPORTANT SAFETY &
PRECAUTIONS
IMPORTANT SAFEGUARDS
WARNING - To reduce the risk of fire, electric shock, burns, injury or
exposure to excessive microwave energy and when using electrical
appliances, follow basic precautions, including the following:
If there is interference, it may be reduced or eliminated by using the
following steps:
• The oven must be placed on a level surface
• The glass turntable and turntable assembly must be in the oven during
cooking
• Handle glass turntable carefully and place cookware on it gently to avoid
possible breakage.
• Incorrect use of browning dish may cause the turntable to break.
• Use only the correctly specified bag size when using the preset popcorn
program
• The oven has several built-in safety switches to ensure that the power
remains off when the door is open. DO NOT tamper with these switches.
• DO NOT operate the microwave oven empty. Operating with no food or food
that is low in moisture can cause fire, charring or sparking.
• DO NOT cook bacon directly on the turntable
• Excessive local heating of the turntable may cause the turntable to break
• DO NOT heat baby bottles or baby food in the microwave oven. Uneven
heating / hotspots may occur and cause injury.
• DO NOT heat narrow-necked containers, like as syrup bottles.
• DO NOT attempt to deep-fry in your microwave oven.
• DO NOT attempt home canning in this microwave oven. It is impossible to
be sure all contents of the jar have reached boiling temperature.
• DO NOT use this microwave oven for commercial purposes. This microwave
oven is made for household use only.
• Failure to maintain the oven in a clean condition could lead to deterioration
that could adversely affect the life of the appliance and possibly result in a
hazardous situation.
SAVE THESE INSTRUCTIONS
9

WWW.CONTOUREUSA.COM
ABOUT MICROWAVE COOKING
MATERIALS YOU CAN USE IN A MICROWAVE
Arcing is a spark or electric flash that crackles and/or pops. Arcing can
produce heat that is very intense and can damage the interior of the
microwave or container(s) used.
Arcing can also cause fire. Arcing occurs when metal containers are used in
the microwave. Arcing can also occur with the use of metal skewers, metal
clamps, or twist ties from plastic bags like bread bags.
To prevent arcing, use the charts to determine the materials that are micro-
wave safe and follow instructions from the container manufacturer.
Plastic cookware designed for microwave cooking should be used carefully.
Some plastic containers advertised as “microwave safe” plastic containers
may not be as tolerant of overcooking conditions like their glass or ceramic
counterparts. These containers may soften or char if subjected to short pe-
riods of overcooking. In longer exposures to overcooking, the food and cook-
ware may ignite.
• Use ”microwave-safe” plastics only in strict compliance with the
recommendations provided by the cookware manufacturer.
• DO NOT microwave empty cups or containers.
• DO NOT permit children to use plastic cookware unsupervised
MATERIALS YOU CAN USE IN A MICROWAVE / COOKWARE
It is not required to buy all new cookware after purchasing your microwave
oven.
Many of the cookware pieces you already own can be used successfully in
your new power convection microwave oven.
The chart below will help you decide what utensils, containers and coverings
may be used with each feature. Make sure utensils DO NOT touch the
interior walls of the oven during cooking.
SAVE THESE INSTRUCTIONS
10

WWW.CONTOUREUSA.COM
ABOUT MICROWAVE COOKING
CAUTION: PERSONAL INJURY HAZARD
Tightly closed containers may explode.
Closed containers should be opened and plastic pouches should be pierced
before cooking.
Some non-metallic materials are not safe to use for microwaving. If in doubt,
you can test the material in questions using the following procedure:
MATERIAL / CONTAINER TEST
1. Fill a “microwave-safe” container with 1 cup of cold water (250 ml) along
with the material you’re testing.
2. Cook on maximum power for 3—seconds
3. Carefully feel the material or container. If the material or container is
warm, DO NOT use it for microwave cooking.
4. DO NOT exceed 1 minute cooking time for this test
5. Please take precautions when testing all “microwave-safe” materials and
or containers.
6. DO NOT allow children to conduct this test.
SAVE THESE INSTRUCTIONS
11

WWW.CONTOUREUSA.COM
ABOUT MICROWAVE COOKING
SAVE THESE INSTRUCTIONS
UNDERSTANDING YOUR OVEN
DO NOT use the oven without the turntable and support OR turn the
turntable over so that a large dish can be placed in the oven.
The turntable will turn both clockwise and counterclockwise.
ALWAYS have food in the oven when it is on to absorb the microwave energy.
When using the oven at power levels below 100% you might hear the
magnetron cycling on and off.
It is normal for the exterior of the oven to be warm to the touch when
cooking or reheating.
Condensation is a normal part of microwave cooking. The humidity in a room
and the moisture in food will influence the amount of moisture that
condenses in the oven. Usually, covered foods will not cause as much
condensation as uncovered foods.
Microwave Ovens will become HOT after use.
DO NOT use the oven for anything other than food preparation.
DO NOT use the oven to dry clothes or newspapers.
The wattage of this oven is 1000 watts as rated by the IEC Test Procedure
method. When using your own recipes or package directions please check the
food a minute or two before the minimum time and add time
accordingly. Depending on the recipe this oven may cook food more quickly
then your traditional oven.
12

WWW.CONTOUREUSA.COM
ABOUT MICROWAVE COOKING
SETTING UP YOUR OVEN (PARTS & ACCESSORIES)
Thank you for purchasing this quality CONTOURE® appliance. We are
excited for you to get started using your new Built-in Microwave Oven!
Remove all packaging materials and accessories from the carton and oven
cavity.
Examine your new oven for any damage, like dents, or a broken door.
DO NOT continue with installation if the oven is damaged.
SETTING UP YOUR OVEN
Your new oven comes with the following accessories:
SAVE THESE INSTRUCTIONS
13
A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
F
G
A
CB
ED
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1

WWW.CONTOUREUSA.COM
PARTS & ACCESSORIES
SETTING UP YOUR OVEN (TURNTABLE INSTALLATION)
Please reference the diagram below to help during installation.
NEVER place the glass tray upside down. The glass tray should NEVER be
restricted.
Both glass tray and turntable ring assembly must always be used during
cooking.
All food and containers of food should always be placed on the glass tray for
cooking.
If you are missing your glass tray or turntable ring assembly or it cracks or
breaks, please contact your retail store where purchased. You may also reach
out to customer service, see the warranty & service section for further
information.
SAVE THESE INSTRUCTIONS
14

WWW.CONTOUREUSA.COM
CONTROL PANEL & FEATURES
UNDERSTANDING THE CONTROL PANEL
Please reference the diagram below:
SAVE THESE INSTRUCTIONS
Microwave Oven Settings:
1- TIME COOK
2- TIME DEFROST
3- POWER
4- CLOCK
5- AUTO MENUS:
POPCORN
POTATO
PIZZA
FRESH VEGETABLE
BEVERAGE
DINNER PLATE
6- NUMBER BUTTONS: 0-9
7- WEIGHT DEFROST
8- KITCHEN TIMER
9- STOP/CANCEL
(Clears all previous settings
pressed before cooking starts.
During cooking: Press once to
stop oven; press twice to stop
and clear all entries)
10- MEMORY FUNCTION
11- START / +30 SECONDS
15
(1)
(2)
(3)
(4)
(5)
(6)
(9)
(10)
(7)
(8)
(11)

WWW.CONTOUREUSA.COM
OPERATING INSTRUCTIONS
BEFORE OPERATING YOUR OVEN
Before operating your new microwave oven it is important that you read and
understand the instruction booklet and operating instructions completely.
Before the oven can be used, please complete the following procedures:
1. Plug in the oven and close the door
2. Touch the Stop/Cancel pad so that 0:00 appears
3. Set the clock
SET THE DISPLAY CLOCK
After the microwave is plugged in the LED display on the oven will
display 00:00.
The input time needs to be between 1:00 – 12:59.
EXAMPLE: To set 10:30 AM or PM
• Press CLOCK and the buzzer will beep once
• Press the number keys: 1,0,3,0
• Press CLOCK to finish this setting.
If 0:00 is displayed the clock is NOT set
This microwave comes with a 12-hour clock. To change or correct a setting,
touch the Stop/C pad and re-enter the time.ancel
If the electrical power supply to your microwave oven is interrupted during
cooking, the program will be erased. When the power is restored, press
“CLOCK” and reset the clock for the correct time of day.
SAVE THESE INSTRUCTIONS
16

WWW.CONTOUREUSA.COM
OPERATING INSTRUCTIONS
SET THE KITCHEN TIMER
(NOTE: When kitchen timer is engaged, the oven will NOT start any program
and the oven light, will NOT light.)
Press KITCHEN TIMER so 00:00 is displayed.
Press the number keys to set the time desired. The range must be within 99
minutes and 99 seconds. For example, to set the kitchen timer for 10
minutes and 15 seconds, press 1,0,1,5 in turn.
Press Start/+30SEC to confirm and the time will count down on the display.
When the time is complete, the buzzer will beep 5 times.
STOP / CANCEL
Touch the STOP/CANCEL pad if you would like to:
1. Erase your selection if you made a mistake during program selection
2. Cancel the kitchen timer set
3. Return the time to the display
4. Touch once to temporarily stop the oven during cooking
5. Touch twice to cancel a program during cooking
CHILD SAFETY LOCK
Using your child safety lock will prevent unwanted or accidental oven operation
by setting the oven to deactivate or lock the control panel.
Lock your control panel by pressing STOP/CANCEL for 3 seconds. You will hear
a long beep confirming that the child lock is activated and a lock icon will ap-
pear. When the control panel is locked the keypad will NOT be able to be used.
To unlock your control panel, press STOP/C for 3 seconds. You will hear aANCEL
long beep confirming that the child lock is deactivated and the microwave oven
has been unlocked and the lock icon will disappear.
SAVE THESE INSTRUCTIONS
17

WWW.CONTOUREUSA.COM
OPERATING INSTRUCTIONS
SAFETY PRECAUTIONS TO UNDERSTAND (PLEASE READ CAREFULLY)
Before enjoying foods, please check to see that they are cooked in accordance
with the United States Department of Agriculture’s recommended tempera-
tures prior to consuming.
Be careful and use care when removing items from the oven so that your
clothes or cooking accessories DO NOT touch the safety door latches.
DO NOT use the interior of the oven for storage of any kind.
Make sure to select, store and handle food with extreme caution to preserve
food quality and minimize the spread of foodborne bacteria.
Maintain a clean microwave and micro-guide cover. Food residue may cause
arcing and/or fires.
Check cooking progress frequently while cooking to eliminate any chance of
overcooking food.
When handling utensils or cookware that is in contact with hot food ALWAYS
use potholders to prevent burns. There is enough heat from the food that can
transfer through utensils or cookware to cause skin burns.
Direct steam AWAY from face and hands to avoid steam burns. Carefully open
popcorn or other oven cooking bags AWAY from your face. Lift the farthest
edge of cookware’s covering slowly and away from face.
If testing foods “readiness, “insert a meat thermometer into a thick or dense
area away from fat or bone. DO NOT leave the thermometer in the food during
cooking, EVER, unless it is approved by the manufacturer for use in a
microwave oven.
SAVE THESE INSTRUCTIONS
18
