Drolet Edison User manual

Read and keep this manual for future reference
45787A
Printed in Canada 08-09-2015
Installation and Operation Manual
Edison ( DP00065)
Safety tested according to ULC S627, UL1482
and ASTM E1509
by an accredited laboratory.
www.drolet.ca
Stove Builder International Inc.
250, rue de Copenhague, St-Augustin-de-Desmaures
(Quebec) Canada G3A 2H3
After-sale service: 418-908-8002
E-mail: [e-mail]
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND
INSTALLATION INSPECTION REQUIREMENTS IN YOUR AREA.
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS
PELLET FUEL-BURNING ROOM HEATER. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR
EVEN DEATH.
INSTALLATION BY A PROFESSIONAL IS STRONGLY RECOMMENDED
This manual is available for free download on the manufacturer’s web site. It is a
copyrighted document. Re-sale is strictly prohibited. The manufacturer may update this
manual from time to time and cannot be responsible for problems, injuries, or damages
arising out of the use of information contained in any manual obtained from
unauthorized sources .

Edison Installation and Operation Manual
2
THANK YOU FOR CHOOSING THIS DROLET PELLET STOVE
As one of North America’s largest and most respected pellet stove, wood stove and
fireplace manufacturers, Stove Builder International takes pride in the quality and
performance of all its products. We want to help you get maximum satisfaction as you use
this product.
In the pages that follow you will find general advice on pellet heating, detailed instructions
for safe and effective installation, and guidance on how to get the best performance from
this stove as you build and maintain your pellet heating system.
We highly recommend that our pellet burning hearth products be installed and serviced by
professionals who are certified in the United States by NFI (National Fireplace Institute
®
) or
in Canada by WETT (Wood Energy Technology Transfer) or in Quebec by APC
(Association des Professionnels du Chauffage).
Congratulations on making a wise purchase.
REGISTER YOUR WARRANTY ONLINE
To receive full warranty coverage, you will need to show evidence of
the date you purchased your stove. Keep your sales invoice. We also
recommend that you register your warranty online at:
http://www.drolet.ca/en/service-support/warranty-registration
Registering your warranty online will help us to quickly track the
information we need about your stove.

Edison Installation and Operation Manual
3
Table of contents
1 Introduction..............................................................................................................................................6
1.1 About Pellet Heating..............................................................................................................................6
1.1.1 Top 10 Reasons for Buying a DC Pellet Stove.............................................................................6
1.2 Edison Specifications.............................................................................................................................7

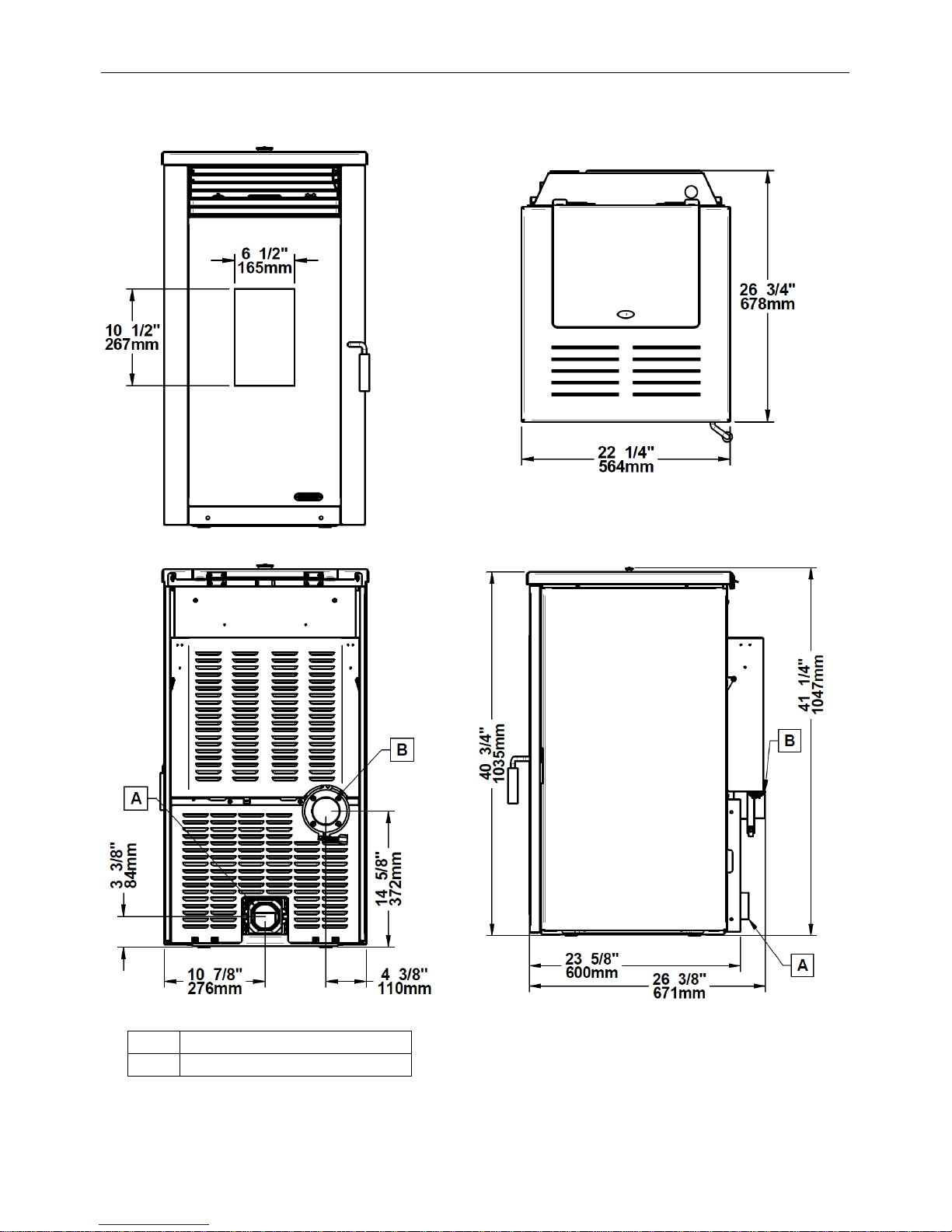

1.3 Overall Exterior Dimensions..................................................................................................................8
PART A – INSTALLATION................................................................................................................................9
2 Installation Safety Information ...............................................................................................................9
2.1 Installation Warnings, Cautions and Recommendations.......................................................................9
2.2 Regulations Covering Pellet Stove Installation....................................................................................11
2.3 Before Operating Your Stove ..............................................................................................................11
2.4 Connection of the Auxiliary Battery System (Optional) .......................................................................14
3 Clearances to Combustible Material....................................................................................................14
3.1 Certification Label Location .................................................................................................................15

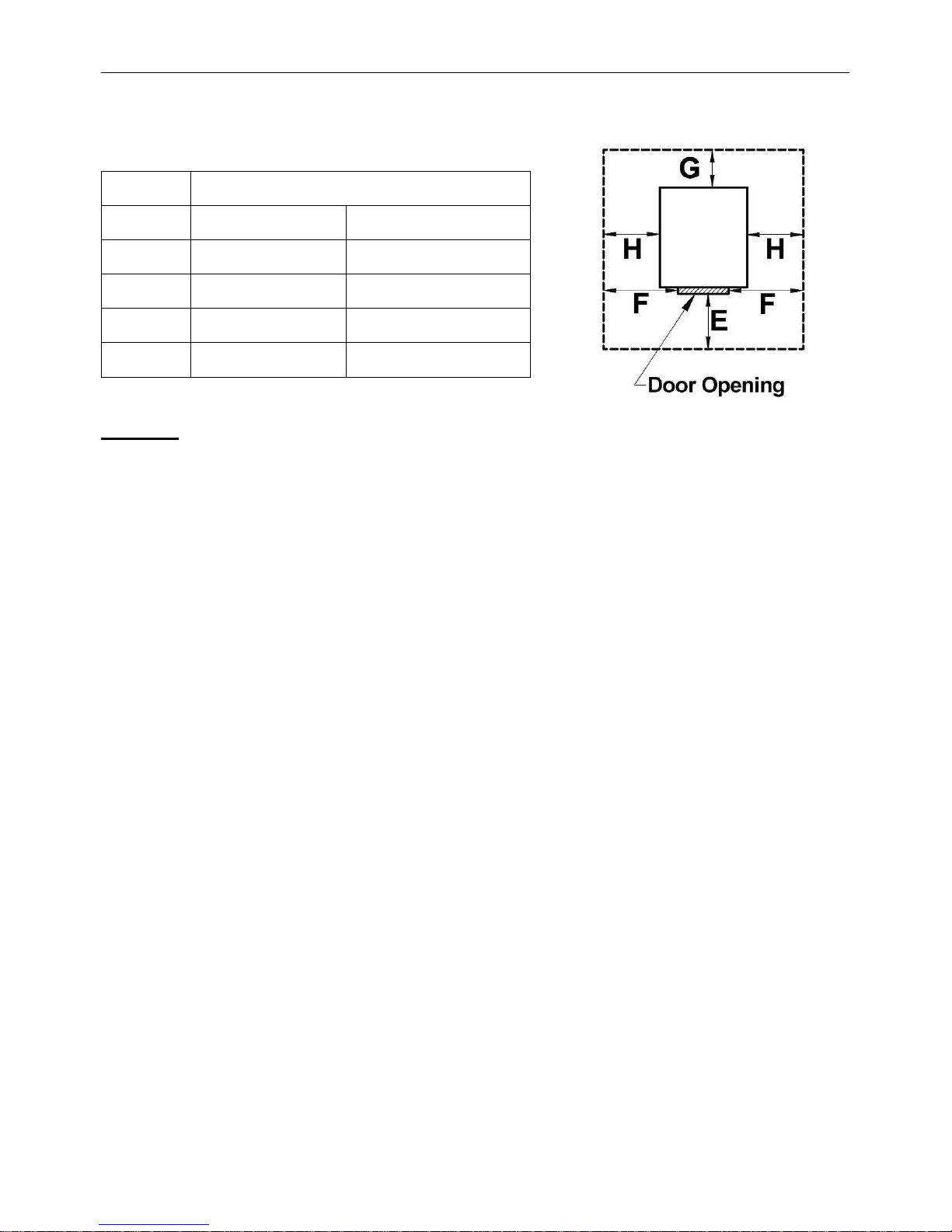

3.2 Minimum Clearances to Combustibles................................................................................................15
3.3 Back Wall Installation...........................................................................................................................16
3.3.1 With LCD Touch Screen Wall Mount Support: ...........................................................................16
3.3.2 With Optional LCD Touch Screen Sliding System:.....................................................................16
3.4 Corner Installation................................................................................................................................16
3.4.1 With LCD Touch Screen Wall Mount Support: ...........................................................................16
3.4.2 With Optional LCD Touch Screen Sliding System:.....................................................................16
3.5 Ceiling Clearances...............................................................................................................................16
3.6 Floor Protection ...................................................................................................................................17
4 Venting System ......................................................................................................................................17
4.1 General................................................................................................................................................17
4.2 Recommendations...............................................................................................................................17

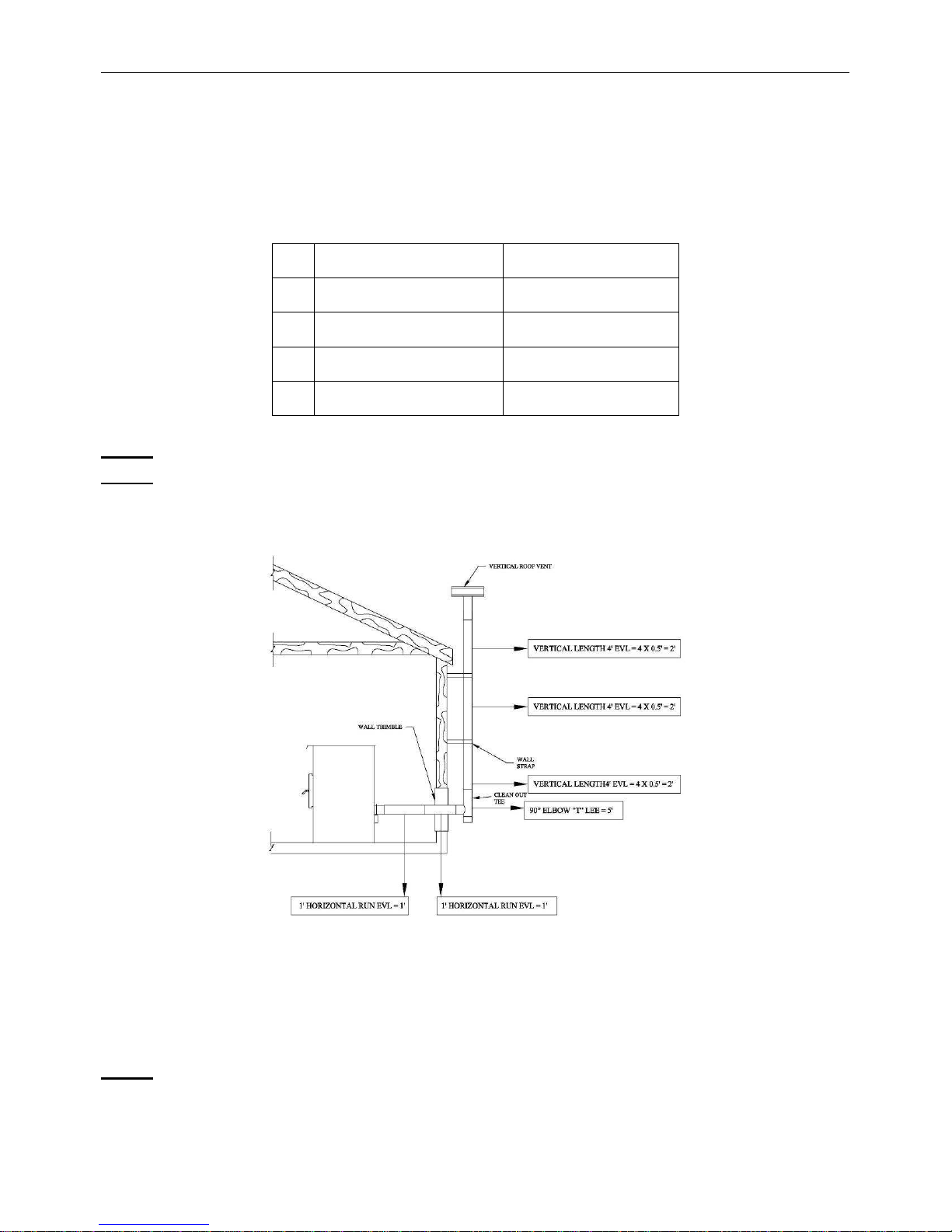

4.3 Equivalent Vent Length (EVL) .............................................................................................................18
4.4 Termination Location...........................................................................................................................19
4.4.1 Permitted Termination Location..................................................................................................20
4.5 Installation Configurations ...................................................................................................................21
4.5.1 Installation Warnings, Cautions and Recommendations Reminder ...........................................21
4.5.2 Through Wall Installation (Main Floor or Basement) ..................................................................22
4.5.3 Through Roof Installation............................................................................................................23
4.5.4 Through a Factory Built Chimney ...............................................................................................24
4.5.5 Through an Existing Masonry Fireplace .....................................................................................25
4.5.6 Through an Existing Masonry Chimney......................................................................................26
PART B - OPERATION....................................................................................................................................27
5 General Information...............................................................................................................................27
5.1 Operation Warnings, Cautions and Recommendations......................................................................27
5.1.1 Operation Warnings, Cautions and Recommendations on Auxiliary Battery System................29
5.1.2 Zone Heating and How to Make It Work for You........................................................................30
5.2 Combustible.........................................................................................................................................30
5.2.1 Proper Fuel .................................................................................................................................30
5.2.2 Where to Store Bags of Pellets...................................................................................................31
6 Stove controls........................................................................................................................................31
6.1 General Information.............................................................................................................................31
6.1.1 LCD Touch Screen Controls, Operation and Configuration .......................................................31
6.1.2 Configuration and Operation Diagram........................................................................................33
6.1.3 Selecting the Language and Temperature Unit (°F or °C)..........................................................33
6.1.4 Viewing Statistics........................................................................................................................33
6.1.5 Auxiliary Battery System Level ...................................................................................................34
6.1.6 Adjusting the Combustion Level (Heat Output) ..........................................................................34
6.1.7 Combustion Settings and Pilot Settings depending on Fuel Quality ..........................................35
6.1.8 Convection Fans Speed Adjustment ..........................................................................................36
6.1.9 Selecting MANUAL or AUTO THERMOSTAT............................................................................36

Edison Installation and Operation Manual
4
6.1.10 Selecting the Pilot Cycle.............................................................................................................37
6.1.11 Filling or Purging Auger Housing................................................................................................37
6.1.12 Demo Mode.................................................................................................................................38
7 Stove operation......................................................................................................................................39
7.1 First Startup .........................................................................................................................................39
7.2 Everyday Startup.................................................................................................................................39
7.3 Running Out of Pellets.........................................................................................................................39
7.4 Refueling..............................................................................................................................................39
7.5 Shutting Down Procedure....................................................................................................................40
7.6 Signs of an Overheating Stove............................................................................................................40
8 Maintenance ...........................................................................................................................................41
8.1 Stove Maintenance..............................................................................................................................41
8.1.1 Recommended Maintenance Schedule......................................................................................41
8.1.2 Cleaning the Baffle, the Heat Exchanger and the Combustion Chamber ..................................42
8.1.3 Exhaust Channel and Exhaust Blower Maintenance..................................................................45
8.1.4 Cleaning the Burn Pot.................................................................................................................47
8.1.5 Ash Removal...............................................................................................................................49
8.1.6 Glass Care..................................................................................................................................50
8.1.7 Replacement of Broken Door Glass ...........................................................................................50
8.1.8 Door Gasket Maintenance ..........................................................................................................50
8.1.9 Door Adjustment .........................................................................................................................51
8.2 Venting System Maintenance..............................................................................................................51
8.2.1 Dealing With a Chimney Fire......................................................................................................51
8.2.2 Soot and Fly Ash.........................................................................................................................52
9 Troubleshooting.....................................................................................................................................53
9.1 Validating Status..................................................................................................................................53
9.2 Testing Components............................................................................................................................55
9.3 Main Error messages, Possible Causes and Solutions.......................................................................55
9.3.1 Blocked Flue ...............................................................................................................................56
9.3.2 No Fuel........................................................................................................................................57
9.3.3 Failed Ignition..............................................................................................................................59
9.3.4 Defective Igniter Fuse.................................................................................................................60
9.3.5 Auger Fuse..................................................................................................................................60
9.3.6 Unit Overheat..............................................................................................................................61
9.3.7 Hopper Lid Open.........................................................................................................................63
9.3.8 Power Loss .................................................................................................................................63
9.3.9 Low battery (With Auxiliary Batteries Only) ................................................................................64
9.3.10 Cancel stop timeout ....................................................................................................................64
9.3.11 Stove hot while off.......................................................................................................................64
9.3.12 Back draft....................................................................................................................................65
9.3.13 Smoke Smell...............................................................................................................................66
9.3.14 Combustion Air Starvation..........................................................................................................66
9.3.15 The LCD Touch Screen Does Not Lightup.................................................................................67
9.4 software update...................................................................................................................................67
9.4.1 How to update the DC Mother Board..........................................................................................68
9.4.2 How to update the LCD Touch Screen.......................................................................................69
9.4.3 Screen Calibration ......................................................................................................................69
10 Wiring Diagram.......................................................................................................................................70
11 Access to Fuses.....................................................................................................................................71
12 Components Location...........................................................................................................................73
13 Blower Replacement..............................................................................................................................74
14 L-250 and F-160 Thermal Switch Replacement...................................................................................80
15 Replacement Parts.................................................................................................................................82

Edison Installation and Operation Manual
5
Appendix A: Horizontal and Vertical Vent Chart.........................................................................................93
Appendix B: LCD Touch Screen Supports ..................................................................................................95
Appendix C: Battery Holder kit (AC01452) and Optional 24V (2X 12V) battery kit (AC01454)................98
Appendix D: Installing an Optional Thermostat........................................................................................102
Appendix E: Mobile Home Installation .......................................................................................................105
Appendix F: Combustion Air Supply..........................................................................................................107
DROLET LIMITED LIFETIME WARRANTY..................................................................................................110

Edison Installation and Operation Manual
6
1 Introduction
1.1 About Pellet Heating
Pellet stoves offer a dramatic improvement in the convenience of heating with solid fuel.
Wood pellets are handled in bags and are therefore easily and cleanly stored. A single
loading of a pellet stove can provide long hours of warmth. Pellet stoves also provide a
special comfort associated with wood burning. The combination of fans delivering warm air
currents and the direct comfort of radiant heat provides special satisfaction on a cold
winter day. The heat provided is even and constant, due to the auto fuel feed responding
to owner settings. Pellet stoves also offer strong environmental benefits; pellets not only
reduce dependence on finite supplies of fossil fuels like oil and gas, but they also put to
good use materials that would otherwise unnecessarily and expensively add to our waste
disposal problems.
In addition, pellet stoves burn very cleanly and offer the lowest emissions of unwanted
pollutants of all solid fuel burning appliances.
1.1.1 Top 10 Reasons for Buying a DC Pellet Stove
1) Works during power breakdown due to an optional battery system (see Appendix C:
Battery Holder kit (AC01452) and Optional 24V (2X 12V) battery kit (AC01454)).
2) Fuel is relatively cheap, easy to handle and store.
3) Installation is relatively inexpensive and flexible.
4) Can be thermostatically controlled.
5) Can run for long hours without the need to refuel.
6) Heat output is steady because fuel feed is regulated.
7) Provides powerful convection heat.
8) Has the lowest emissions of all solid fuels.
9) Reduces our dependence on fossil fuels.
10)Wood pellets are made of 100% residual matter (saw dust) and are a renewable fuel.
This creates added-value from waste that would otherwise end up in a landfill.

Edison Installation and Operation Manual
7
1.2 Edison Specifications
Fuel Type Wood pellets
Test Standards (safety) ULC S627, ASTM E1509 and UL 1482
Heating capacity range
1
500 to 1800 sq. ft. (45 to 167 m
2
)
Input range (BTU/h)
2
From 10,000 BTU to 45,000 BTU (3 kW to 13kW)
Hopper capacity
2
60 lb (27 Kg)
Average particulate emission rate 2.5 g/h
Average overall efficiency
3
62.8 % (HHV)
4
67.7 % (LHV)
4
Overall heat output rate
3
6,619 BTU/h to 25,478 BTU/h (1.9 kW to 7.5 kW)
Average carbon monoxyde 111.8 g/h
Maximum Burn Time
1
50 h
Burn rate
2
1.2 lb to 5.3 lb per hour (0.5 kg/h – 2.4 kg/h)
Shipping Weight 414 lb (188 kg)
Appliance Weight 384 lb (174 kg)
Vent system size 3 po (see Section 4.3: Equivalent Vent Length
(EVL))
Baffle material Stainless Steel
Energy consumption 1.6A for ignition cycle
0.3A Min./0.6A Max. for continuous operation
Electrical requirements Voltage and frequency : 88 - 264VAC and 47 - 63Hz AC Current: 3.6A/115VAC - 1.8A/230VAC
Battery back-up (optional): 24v DC and20 Ah (min.)
Control board fuses Main: ATC Auto Fuse 7.5A 32VDC
Battery Backup: ATC Auto Fuse 7.5A 32VDC
Power cord inlet socket 3A / 250V (5 X 20) fuse
Main Board Battery : CR2032
Mobile home approved
‡
Yes
Approved for alcove application Yes (see Section 3.2: Minimum Clearances to
Combustibles)
1
Burn time and heating capacity may vary subject to location in home, chimney draft, chimney
diameter, locality, heat loss factors, climate, selected fuel level, fuel types and other variables.
2
This can vary depending on pellet density, length, and diameter.
3
As calculated per CSA B415.1-10
4
Higher Heating Value of the fuel (HHV) and Lower Heating Value of the fuel (LHV).
‡
Mobile home (Canada) or manufactured home (USA): The US department of Housing and
Urban Development describes “manufactured homes” better known as “mobile homes” as
followed; buildings built on fixed wheels and those transported on temporary wheels/axles and
set on a permanent foundation. In Canada, a mobile home is a dwelling for which the
manufacture and assembly of each component is completed or substantially completed prior to
being moved to a site for installation on a foundation and connection to service facilities and
which conforms to the CAN/CSA-Z240-MH standard.

Edison Installation and Operation Manual
8
1.3 Overall Exterior Dimensions
A
FRESH AIR INLET
B
EXHAUST

Edison Installation and Operation Manual
9
PART A – INSTALLATION
2 Installation Safety Information
2.1 Installation Warnings, Cautions and Recommendations
•PROFESSIONNAL INSTALLATION IS HIGHLY RECOMMENDED.
•YOU MAY NEED TO OBTAIN A BUILDING PERMIT FOR THE INSTALLATION OF
THIS STOVE AND ITS VENTING SYSTEM. CONSULT YOUR MUNICIPAL
BUILDING DEPARTMENT OR FIRE DEPARTMENT BEFORE INSTALLATION TO
DETERMINE THE NEED TO OBTAIN ONE. WE RECOMMEND THAT YOU ALSO
INFORM YOUR HOME INSURANCE COMPANY TO FIND OUT IF THE
INSTALLATION WILL AFFECT YOUR POLICY.
•THIS STOVE MUST BE CONNECTED TO A STANDARD GROUNDED ELECTRICAL
OUTLET FROM 88 TO 264V AC AND FROM 47 TO 63 HZ. DO NOT USE AN
ADAPTER PLUG OR SEVER THE GROUNDING PLUG. DO NOT ROUTE THE
ELECTRICAL CORD UNDERNEATH, IN FRONT OR OVER THE STOVE.
•THIS STOVE CAN BE PLUGGED TO A 24 TO 30V BATTERY SYSTEM (MINIMUM
20Ah) AND ABSOLUTLY NEEDS TO USE THE ANDERSON SB50® CONNECTOR.
IF YOU INSTALL THE BATTERY BEHIND THE STOVE USING THE OPTIONAL
BATTERY HOLDER KIT (AC01452), THE BATTERIES MUST BE SEALED.
•IF THIS STOVE IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT.
TO REDUCE THE RISK OF FIRE, FOLLOW THE INSTALLATION INSTRUCTIONS.
•BURNING ANY SOLID FUELS GENERATES CARBON MONOXIDE IN LOW
CONCENTRATION. THIS GAS IS EVACUATED BY THE VENTING SYSTEM. IN
HIGHER CONCENTRATIONS, CARBON MONOXIDE IS TOXIC AND MAY CAUSE
DEATH. TO PREVENT THIS, ENSURE THAT YOUR VENTING SYSTEM IS
AIRTIGHT.
•THIS STOVE IS MOBILE HOME APPROVED AND REQUIRES INSTALLATION OF
A FRESH AIR KIT, SOLD SEPARATELY. THE STOVE MUST BE ATTACHED TO
THE STRUCTURE OF THE MOBILE HOME AND THE STRUCTURAL INTEGRITY
OF THE MOBILE HOME FLOOR, WALL, AND CEILING/ROOF MUST BE
MAINTAINED. DO NOT INSTALL IN A SLEEPING ROOM.
•THIS STOVE IS NOT RECOMMENDED TO BE INSTALLED IN A BEDROOM OF
CONVENTIONAL HOUSES.
•THIS STOVE HAS BEEN DEVELOPED AND BUILT FOR RESIDENTIAL
SUPPLEMENTARY HEAT SOURCE. COMMERCIAL AND INDUSTRIAL USE IS
PROHIBITED AND WILL VOID THE WARRANTY.

Edison Installation and Operation Manual
10
•THE INFORMATION GIVEN ON THE CERTIFICATION LABEL AFFIXED TO THE
STOVE ALWAYS OVERRIDES THE INFORMATION PUBLISHED IN ANY OTHER
MEDIA (OWNER’S MANUAL, CATALOGUES, FLYERS, MAGAZINES AND/OR WEB
SITES).
•CONNECT THIS STOVE ONLY TO A LISTED PELLET VENT FOR USE WITH SOLID
FUEL OR TO A LINED CHIMNEY CONFORMING TO NATIONAL AND LOCAL
BUILDING CODES.
•DO NOT INSTALL A FLUE DAMPER IN THE EXHAUST VENTING SYSTEM OF
THIS UNIT.
•DO NOT CONNECT THIS STOVE TO ANY OTHER EXISTING VENTING SYSTEM
SERVING ANOTHER APPLIANCE.
•DO NOT CONNECT TO OR USE IN CONJUNCTION WITH ANY AIR DISTRIBUTION
DUCTWORK.
•THE VENTING SYSTEM MUST BE COMPLETELY AIRTIGHT AND PROPERLY
INSTALLED. ALL VENT CONNECTOR JOINTS MUST BE SEALED AND
FASTENED IN ACCORDANCE WITH THE PELLET VENT MANUFACTURER'S
INSTRUCTIONS TO ENSURE CONSISTENT PERFORMANCE AND AVOID SMOKE
AND ASH SPILLAGE.
•THE VENTING SYSTEM SHOULD BE CHECKED, AT LEAST TWICE A YEAR FOR
ANY BUILDUP OF SOOT OR CREOSOTE.
•NEVER BLOCK ANY LOUVERS OF THE STOVE.
•IF REQUIRED, A FRESH AIR KIT CAN BE INSTALLED TO SUPPLY COMBUSTION
AIR TO THE ROOM OR SPACE (SEE APPENDIX F: COMBUSTION AIR SUPPLY).
•MIXING OF APPLIANCE COMPONENTS FROM DIFFERENT SOURCES OR
MODIFYING COMPONENTS IS PROHIBITED AND WILL VOID THE WARRANTY.
•ANY MODIFICATION OF THE STOVE THAT HAS NOT BEEN APPROVED IN
WRITING BY THE TESTING AUTHORITY IS PROHIBITED AND VIOLATES CSA
B365 (CANADA), AND ANSI NFPA 211 (USA).
•NO MODIFICATION SHOULD BE MADE TO THE AUXILIARY BATTERY SYSTEM.
•STOVE BUILDER INTERNATIONAL INC. (SBI) GRANTS NO WARRANTY, IMPLIED
OR STATED, FOR THE POOR INSTALLATION OR LACK OF MAINTENANCE OF
YOUR STOVE AND ASSUMES NO RESPONSIBILITY OF ANY CONSEQUENTIAL
DAMAGES.

Edison Installation and Operation Manual
11
2.2 Regulations Covering Pellet Stove Installation
When installed and operated as described in these instructions, this pellet stove is suitable
for use as a freestanding heater in residential installations.
In Canada, the CSA B365 Installation Code for Solid Fuel Burning Appliances and
Equipment and the CSA C22.1 Canadian National Electrical Code are to be followed in the
absence of local code requirements. In the USA, the ANSI NFPA 211 Standard for
Chimneys, Fireplaces, Vents and Solid Fuel-Burning Appliances and the ANSI NFPA 70
National Electrical Code are to be followed in the absence of local code requirements.
This stove must be connected to a pellet vent system complying with the requirements for
Pellet Vent in the standards UL 103, UL 641, ULC S629M, CAN/ULC S609 and ULC/ORD
C441 or to a code-approved masonry chimney with a stainless steel flue liner.
2.3 Before Operating Your Stove
Some minor installation and adjustment are required prior to use:
•If your unit has the optional LCD touch screen sliding support, it can be installed on the
left at the back of the stove; (see Appendix B: LCD Touch Screen Supports).
•If you do not use the optional LCD touch screen sliding support, you can install the
LCD touch screen wall mount support provided in the owner’s manual kit on the side or
at the back of the stove; (see Appendix B: LCD Touch Screen Supports).
•See that handle and door are well adjusted (see section 8.1.9: Door Adjustment).
•The stove must be leveled using threaded legs.
•Make sure to remove all tools or accessories (A-E) that have been inserted in the stove
for transportation purposes (see following illustration).
•Make sure the fresh air intake back draft shutter (F) works freely.
•Remove the insulating film (G) from the Main Board Battery (H).
•If your stove is equipped with the auxiliary battery system, connect it to the stove (see
Appendix C: Battery Holder kit (AC01452) and Optional 24V (2X 12V) battery kit
(AC01454))
NOTE: For first start-up, see Section 7: Stove operation.

Edison Installation and Operation Manual
12
STEP 1
A
LCD TOUCH SCREEN
SCREEN
B
OWNER’S MANUAL
KIT
C SCRAPER
D
SWEEPING BRUSH
(the tie wrap must be
cut)
E
DESICCANT (drying
agent)
STEP 2
F BACK DRAFT SHUTTER

Edison Installation and Operation Manual
13
STEP 3
STEP 4
G
INSULATING FILM
H
BUTTON BATTERY
(CR2032)

Edison Installation and Operation Manual
14
STEP 5
I USB CONNECTOR
J USB CABLE GROMMET
2.4 Connection of the Auxiliary Battery System (Optional)
If your stove is equipped with the auxiliary battery system, see Appendix C: Battery
Holder kit (AC01452) and Optional 24V (2X 12V) battery kit (AC01454) to connect it to
the stove.
3 Clearances to Combustible Material
The clearances shown in this section have been determined by tests according to
procedures set out in safety standards ULC S627 (Canada), ASTM E1509 (U.S.A) and
UL1482 (U.S.A). When the pellet stove is installed so that its surfaces are at, or beyond,
the minimum clearances specified, combustible surfaces will not overheat under normal
and even abnormal operating conditions.
WARNING: NO PART OF THE STOVE MAY BE LOCATED CLOSER TO
COMBUSTIBLES THAN THE MINIMUM CLEARANCES SPECIFIED ON THE
CERTIFICATION LABEL.
CAUTION: NO PART OF THE PELLET VENT SYSTEM MAY BE LOCATED CLOSER
TO COMBUSTIBLES THAN THE MINIMUM CLEARANCES SPECIFIED BY THE VENT
MANUFACTURER.
CAUTION: DO NOT USE MAKESHIFT MATERIALS OR MAKE ANY COMPROMISES
WHEN INSTALLING THIS STOVE.

Edison Installation and Operation Manual
15
3.1 Certification Label Location
Since the information given on the certification label affixed to the stove always overrides
the information published in any other media (owner’s manual, catalogues, flyers,
magazines and/or web sites), it is important to refer to it in order to have a safe and
compliant installation. In addition, you will find important information about your stove
(model, serial number, etc.). You will find the certification label on the inner side of the
hopper lid of the stove.
3.2 Minimum Clearances to Combustibles
WARNING: MINIMUM CLEARANCES IN THE TABLE BELLOW DO NOT TAKE INTO
ACCOUND THE MINIMUM SPACE NEEDED TO ALLOW THE LCD TOUCH SCREEN
SLIDING SUPPORT TO MOVE FREELY AND FULLY EXTENDED (SEE SECTION 3.3:
BACK WALL INSTALLATION AND SECTION 3.4: CORNER INSTALLATION).
LETTE
R MINIMUN CLEARANCES TO
COMBUSTIBLES
CANADA USA.
A* 1″(25 mm) 1″(25 mm)
B 4″(102 mm) 4″(102 mm)
C 1″(25 mm) 1″(25 mm)
D Refer to vent manufacturer’s
clearances Refer to vent manufacturer’s clearances
I 54″(1 372 mm) 54″(1 372 mm)
LETTR
E RECOMMENDED CLEARANCES FOR MAINTENANCE
CANADA USA
A* 12″(305 mm) 12″(305 mm)
B 24″(610 mm) 24″(610 mm)
C 12″(305 mm) 12″(305 mm)
D Refer to vent manufacturer’s
clearances Refer to vent manufacturer’s clearances
* From the rear panel
Note: These clearances are also valid for an alcove installation.
WARNING: IF THE STOVE IS INSTALLED IN AN ALCOVE, TO PERFORM
MAINTENANCE, YOU SHOULD EXPECT TO MOVE THE APPLIANCE TO GET TO THE
MAINTENANCE ACCESS DOORS AND COMPONENTS.

Edison Installation and Operation Manual
16
3.3 Back Wall Installation
3.3.1 With LCD Touch Screen Wall Mount Support:
If you wish to install the stove with minimum clearances
(see table in Section 3.2 Minimum Clearances to
Combustibles), it is possible to locate the LCD touch
screen on a wall with the wall mount support provided. If
not, you can install the LCD touch screen within the
maximum length of the USB wire provided (see
Appendix B: LCD Touch Screen Supports).
3.3.2 With Optional LCD Touch Screen Sliding
System:
In order to allow the optional LCD touch screen sliding
system to move freely and fully extend, you should allow
a minimum of 7.5" (190 mm) clearance from the side
wall (B) and 2″(52 mm) clearance at the back of the
stove, from the real panel (A). You may also install the
LCD touch screen sliding system on the left side of the
stove (see Appendix B: LCD Touch Screen
Supports).
3.4 Corner Installation
3.4.1 With LCD Touch Screen Wall Mount Support:
If you wish to install the stove with minimum clearances
(see table in Section 3.2 Minimum Clearances to
Combustibles), it is possible to locate the LCD touch
screen on a wall with the wall support provided. If not,
you can install the LCD touch screen within the
maximum length of the USB wire provided.
3.4.2 With Optional LCD Touch Screen Sliding
System:
In order to allow the LCD touch screen sliding system to
move freely and fully extend, you should allow a 10"
(254 mm) minimum clearance from the adjacent wall
(C). You could also want to install the LCD touch screen
sliding system on the left side of the stove (see
Appendix B: LCD Touch Screen Supports).
3.5 Ceiling Clearances
For ceiling clearances refer to the table in Section 3.2
Minimum Clearances to Combustibles.

Edison Installation and Operation Manual
17
3.6 Floor Protection
For floor protection clearances refer to the following table.
FLOOR PROTECTION
LETTER CANADA USA
E 18″(460 mm) 6″(155 mm)
F N/A (USA only) 6″(155 mm)
G 8″(205 mm) N/A (Canada only)
H 8″(205 mm) N/A (Canada only)
CAUTION: THE STOVE MUST BE PLACED ON A CONTINUOUS (GROUTED JOINTS)
NONCOMBUSTIBLE MATERIAL SUCH AS CERAMIC TILE*, CEMENT BOARD, BRICK,
MILLBOARD OR EQUIVALENT, OR ANY OTHER APPROVED OR LISTED MATERIAL SUITED
FOR FLOOR PROTECTION.
*Any type of tile will require a continuous non combustible sheet beneath to prevent the
possibility of embers falling through to the combustible floor if cracks or separation should
occur in the finished surface, this would include floor protection for built-in raised hearths.
Check local codes for approved alternatives.
4 Venting System
4.1 General
Even though the chimney draft is mechanical, a suitable venting system will ensure a
natural draft which will prevent smoke spillage in your home if a power outage occurs.
Moreover, a suitable venting system configuration will help getting the best efficiency out
of your stove when installed in accordance with the required EVL (see Section 4.3
Equivalent Vent Length (EVL)).
Even the best stove will not function safely and efficiently as intended if it is not connected
to a suitable venting system.
4.2 Recommendations
In Canada, we recommend that you use a listed pellet vent that meets the CAN/ULC S609
or ULC/ORD C441 Standard. A pellet vent listed to ULC S629M is also suitable for
installation with this stove.
For the United States, we recommend that you use a listed pellet vent that meets the UL
641 Standard. A pellet vent listed to UL 103 is also suitable for installation with this stove.
This stove can be vented in an existing factory-built or masonry chimney with the addition
of a stainless steel liner, provided the chimney is more than 4” in diameter. The liner
should be listed and should meet the ULC S635 or CAN/ULC S640 standard in Canada
and the UL 1777 standard in the USA. Refer to the instructions provided by the vent
manufacturer, especially when passing through a wall, ceiling or roof.

Edison Installation and Operation Manual
18
4.3 Equivalent Vent Length (EVL)
Recommended venting system inner pipe diameter is 3”. Use a 4” pipe if you have more
than 15 feet of Equivalent Vent Length (EVL).
To calculate the EVL of your installation, use the following conversions:
Qty Type of pipe EVL equivalent(ft)
1 90° elbow or “T” 5
1 45° elbow 3
1 ft Horizontal pipe run 1
1 ft Vertical pipe run 0.5
NOTE: Horizontal runs shall not exceed 9 feet.
NOTE: Never exceed 30 feet of EVL.
Here is an example to help you calculate Equivalent Vent Length. On the following figure
the EVL can be calculated like this:
•2 horizontal run of 1’ = (2 X 1’) X 1’ = 2’ of EVL
•1 elbow 90° or "Tee" = 5’ of EVL
•3 vertical length of 4’ = (3 X 4’) X 0.5’ = 6’ of EVL
•Total EVL = (2’ + 5’ + 6’) = 13’.
NOTE: Do not include the exterior wall termination in the EVL calculation (45° elbow
and termination).

Edison Installation and Operation Manual
19
For example, let’s imagine an installation consisting of a
horizontal vent coming out at the back of the stove on a total
distance of 8 feet. This horizontal run is followed by a tee and a
6-foot vertical rise. This type of installation is not acceptable. As
you can see, the vent termination is clearly outside the allowed
configuration zone on the chart because the venting system
proposed does not have at least one foot of vertical rise for
each foot of horizontal run.
Instead, if the installation consisted of a horizontal vent coming
out at the back of the stove on a total distance of 4 feet,
followed by a tee and a 6-foot vertical rise, it would be
acceptable. The installation end should be within the allowable
configuration zone on the chart since it would have at least one
foot of vertical rise for each foot of horizontal run. Furthermore,
the total vertical rise would be at least 3-foot high.
WARNING: To reduce the risk of smoke spillage there
should always be at least one foot of vertical rise for each
foot of horizontal run. In all cases, at least 3 feet of vertical
rise is needed.
4.4 Termination Location
Termination should not be located so that
hot exhaust gases can be a hazard. They
can reach temperatures of 500°F (260°C)
and cause serious burns.
CAUTION: TERMINATION COLLAR
(SPARK ARRESTER) IS MANDATORY.
O.K.

Edison Installation and Operation Manual
20
4.4.1 Permitted Termination Location
Refer to NFPA 211 (USA) or CSA B365 (Canada) for rules for the distance of exit terminal
from windows and openings. The exit terminal of a mechanical draft system, other than a
direct vent appliance (see Section 4.4.1.1: Direct Vent System (2-in-1 Exhaust and
fresh air intake)) shall be located in accordance with the following.
Canada:
Letter Min.
clearances Description
A 12’’ (30 cm) Clearances above grade level or any adjacent surface that might
support snow, ice, or debris
B*39’’ (100 cm) Clearance to window or door that may be opened
F 39’’ (100 cm) Clearance to corner or adjacent wall
H 39’’ (100 cm) Not to be installed above a meter/regulator assembly within 39" (100
cm) horizontally from the vertical center-line of the regulator and for 15’
vertically
I 72’’ (183 cm) Clearance to gas service regulator vent outlet or within 39’’ (100 cm) of
an oil tank vent or an oil tank fill inlet
J 39’’ (100 cm) Clearance to the combustion air inlet to any other appliance
K 72’’ (183 cm) Clearance to a mechanical air supply inlet
L 84’’ (213 cm) Clearance above paved side-walk or a paved driveway located on
public property
39’’ (100 cm) Clearance to property boundary
A vent shall not terminate underneath a veranda, porch, or deck
