Drop DROP PISARA User manual

INSTALLATION AND OPERATING INSTRUCTIONS
DROP PISARA

• Drop pool
• Stove 35 kW
• 3 metres of hose (50 mm) for the stove
• 4 paper clips to fasten the hose
• Chimney extension (1 m)
• Chimney cap (1 m)
• Protective grill for the chimney
• Extreme Winter insulation cover
CONTENTS OF THE POOL
The manufacturer reserves the right to alter the product’s compilation and structure
without a separate notice and without a consequential obligation.
DROP PISARA
These instructions contain important information about the
installation, operation and maintenance of the pool. Please read
through the instructions carefully before you install your new pool and
take it in use. Keep the instructions for later use. If you are unsure about
anything, do not hesitate to contact Drop’s customer service.

DROP PISARA
SAFETY
The use of the pool requires you to follow the safety guidelines provided in these
instructions. Be alert, use common sense and make sensible decisions in all water-
related activities.
• Restrict access to the pool for children under the age of 5
to prevent drowning and serious injuries.
• Children are not allowed to use the pool without an
adult present.
• When you use the pool with small children, make sure that
the water temperature is appropriate.
• No diving in the pool. Never jump into the pool. This could
lead to a serious injury or even death.
• Remove the cover completely before entering the pool.
• Do not overheat the water. The highest recommended water
temperature is 37°C.
• If you have a heart disease, keep the temperature below 37°C.
 • Donotusethepoolundertheinuenceofalcoholorsuch 
  medicinethatcouldaectthesafeuseofthepool.Usingthe
  poolundertheinuenceoftheabove-mentionedsubstances
is at the user’s own risk.
• Do not bring an electric appliance closer than 2.5 metres of
the pool. Neglecting to keep a safe distance increases the risk
of electric shock and could cause a serious injury or lead to death.
• The surface of the pool can be extremely slippery. Be careful
when you enter or leave the pool.
• Keep any chemicals (e.g. water treatment agents, cleaners and
disinfectants) away from children.
• Keep the cover closed and locked when the pool is not in use.
• Do not stand, sit or lean on or overload the cover.
• Take care of the safety of children in the proximity of the stove.
• The stove and, in particular, its front door and chimney heat up
when used, which can cause a serious injury.

DROP PISARA

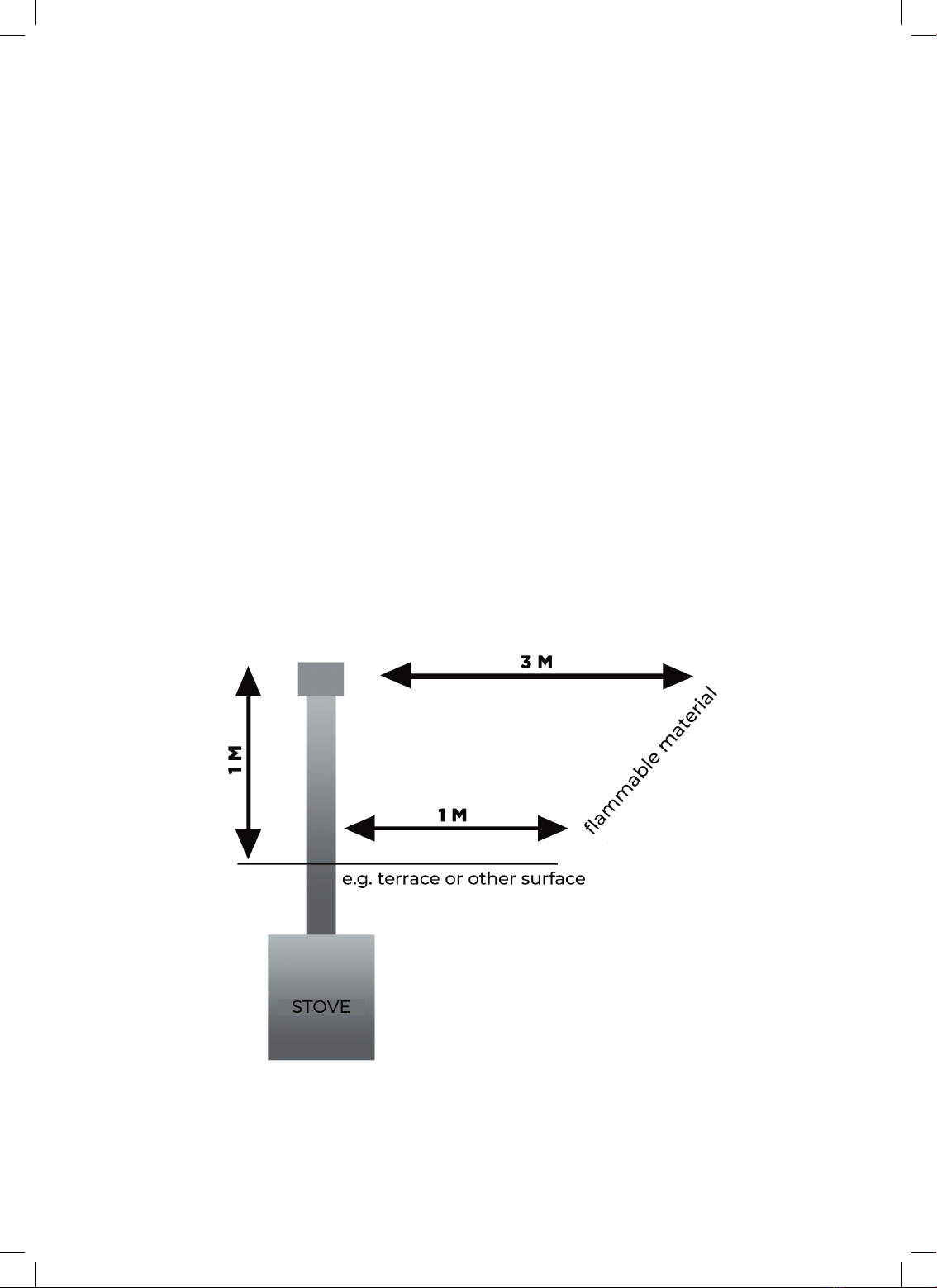

The stove’s safety distances
If the stove is placed near buildings, for example, at the edge of a terrace, make sure
thatthechimneyandstovearefarenoughfromanyammablestructures/materials.
Theminimumdistancefromthemouthofthechimneytoanyammablestructures/
materialsmustbeatleast3metres.Youmustleavesucientspacearoundanexternal
stoveaswell.Donotkeepammablematerialsinfrontoftherebox.
The stove will not heat up more than the temperature of the water because the
stove is surrounded by a water jacket. However, the stove chimney and door can
heat up to burning hot. We recommend checking the safety distances with your local
authorities.

DROP PISARA

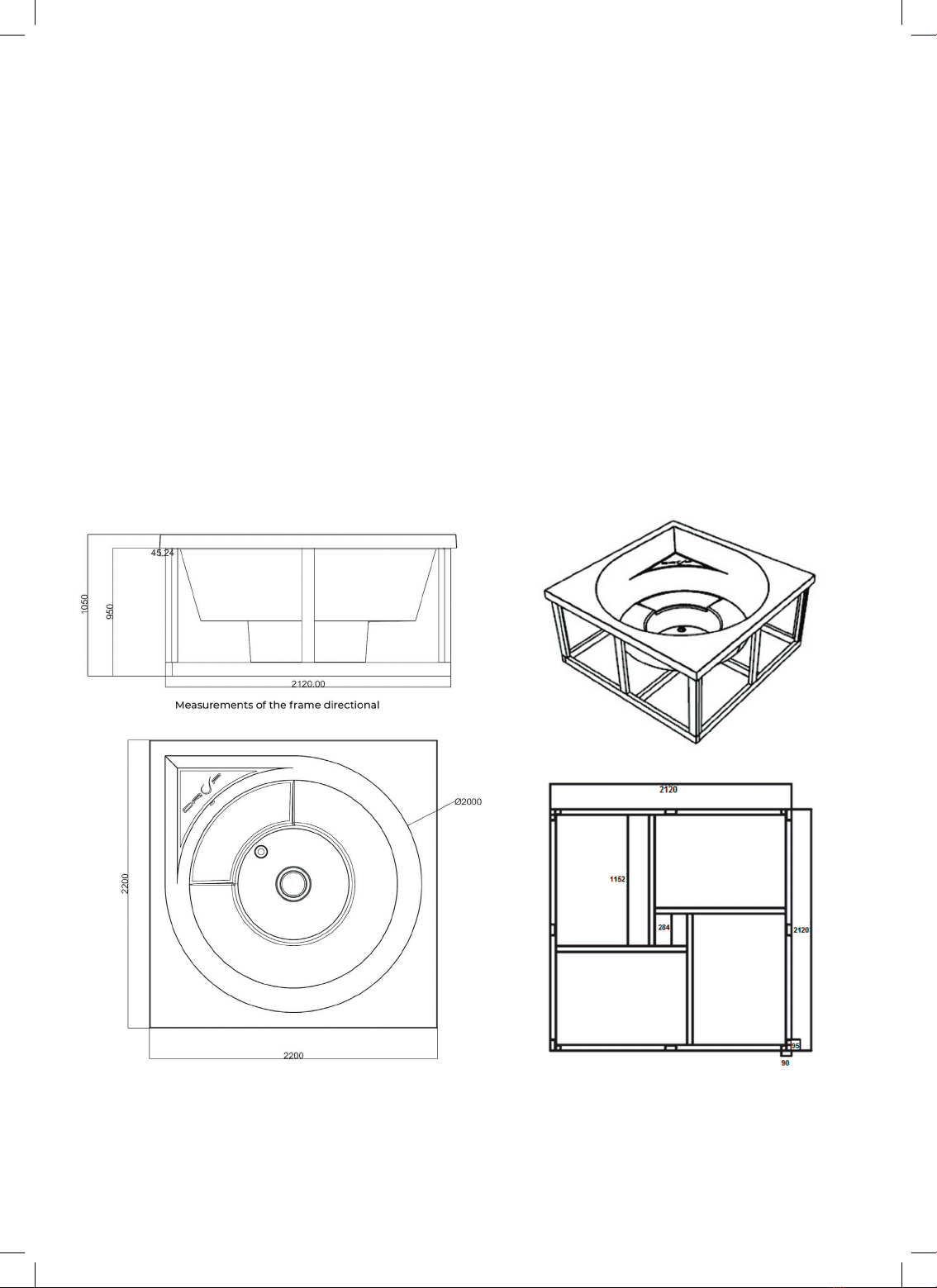

Pool measurements
The pool package contains a framework made from pressure-treated wood which
has been built to support the pool. The bottom of the framework is built so that the
weight of the pool is distributed evenly across the whole base. If you sink the pool
into a terrace, make the hole in the terrace a few centimetres larger.
BEFORE THE POOL
ARRIVES
The placement of the pool should be planned as carefully as possible to ensure
comfort of use and safety. Place the pool in an open area, if possible. Otherwise,
leaves falling from trees and other dirt will easily end up in the pool water during
bathing. Consider your neighbours if you live in a densely populated area. When
placing the pool, consider where the discharge water will drain, or will you
use e.g. a submersible pump to empty the pool. A pool that is heated up with
a stove must be emptied after each use. Also note the stove’s safety distances
The pool must be installed and stored on its framework. The pool should not rest on
its upper edge, and the upper edge should not rest on, for example, the terrace. The
blueprints are indicative examples of installation.

DROP PISARA
Foundation of the pool
The placement of each pool must be planned according to the situation and place.
The foundation must be even, load-bearing and horizontal. The best foundation
is concrete, gravel, wood or some other hard foundation material. The foundation
must endure a weight of 2,500 kg without sinking or changing. In addition, consider
the impact of frozen ground when planning the foundation as well as keeping a safe
distance from the stove. The blueprints are indicative examples.

DROP PISARA

DROP PISARA
RECEIVING THE
SHIPMENT
Please check the package externally before you acknowledge its receipt. Notify
the driver or our customer service of any detected external transport damage
immediately.Alltransportdamagemustalsobenotiedwithin7daysinwriting
todrop@drop..
Ifthe deliveredproducthas anyawsor defects,thesellerwilleitherimplement
the requested alterations to the product or deliver a replacement to the customer.
Notify the seller of any defects in the product within 14 days of receiving it.

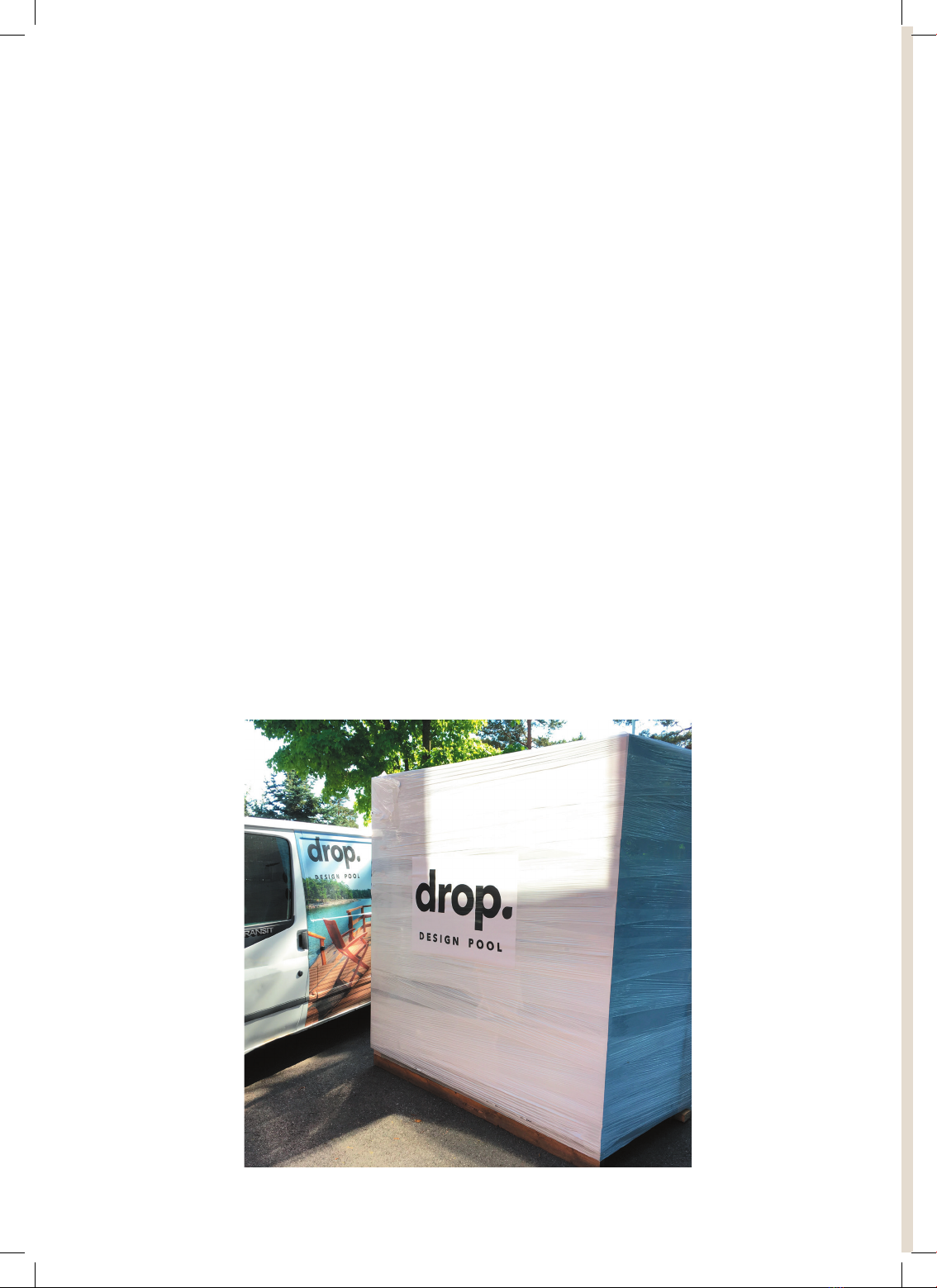

The pool is delivered upright on a lorry with a tailboard. Remove the packaging
plastic, cardboard and potential other equipment or parts delivered inside the pool
before turning it to the right position. You need 2–4 people to turn the pool into
the correct position.

DROP PISARA
INSTALLATION OF
THE POOL
Approximately 4 people are needed to move the pool. Please be extremely careful
when moving the pool to avoid accidents. For example, when you are lowering the
pool into a hole in the terrace, we recommend the use of lifting straps to ensure a safe
installation. Reserve approximately one hour for the installation.
The installer is responsible for the installation, and the buyer is responsible to
ensure that the installation is carried out according to the provided instructions.
Any damage caused by an installation error is not covered by the warranty. The stove
is not integrated into the pool. It is delivered in separate parts with the shipment,
and you must install it by yourself according to the instructions. The customer is
always responsible for carrying out the foundation work for the pool. In addition,
the customer is responsible for installing the stove. The remote-controlled LED
pool lights have already been installed.
Phase 1. Installation of the stove
The stove must be installed on an even, hard foundation and at the same level as the
pool. Make sure that the stove’s upper return hose moves in the direction of the pool
and clearly upwards. The stove must never be connected so that the water return is
turnedobecausethiscreatespressureinsidethestove.
The stove comes with 3 metres of hose. The hoses must be cut to the correct length.
The stove can also be placed further away from the pool, but please note that the
hoses must be straight (no bending). The recommended maximum distance of the
stove with free water circulation from the upper lead-in is one metre. If you place
the stove any further, note that the power weakens the further the stove is placed.

Phase 2. Installation of the stove’s hoses
Before you connect the stove to the hoses, twist the clamps at the ends of the hoses to
openthemalittleandthenrmlypushthehosesonthepipesatthebackofthestove.
You can use liquid soap or some other lubricant to connect the hoses without the use
of excessive force. After this, you can tighten the pipes around the stove’s return and
outgoing connections. To ensure the tightness of the hoses, we recommend using, for
example, duct tape for the installation.
TIP! When attaching the hose, you can heat it with a hot-air gun or a hairdryer which
will make it easier to tighten the paper clips and bend the hose. A heated, softer hose will
also settle better in the connection and become tight at once.

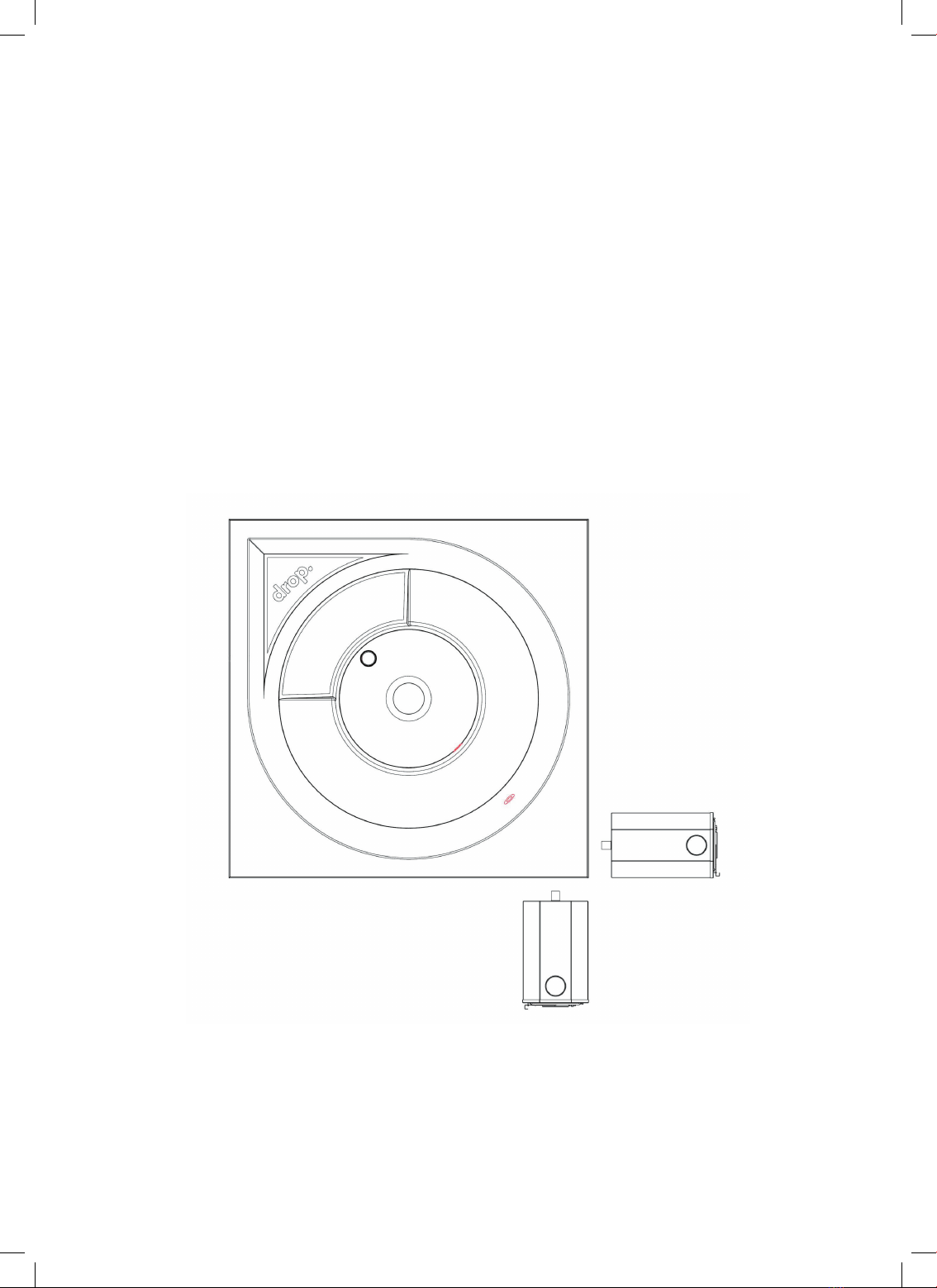

nthepictureontheright,thestovepackage’sreturn/lead-inhavebeenmarkedonthe
pool’s vertical wall. It is recommended to place the stove no more than one metre from it.
DROP PISARA

DROP PISRA
Phase 3. Installation of the chimney
Connect the chimney pipes to each other and slide the stove’s protective grille to
the bottom of the chimney. Place the chimney on the collar on top of the stove.
Make sure that the chimney’s joint has been pushed all the way through. Make sure
thatthestove’sgrateisinitsownplaceintherebox.
Tähän kuva savupiipun asennus

DROP PISARA
OTHER POOL
EQUIPMENT
LED pool light
A remote-controlled RGB LED light is situated under the pool’s transparent dome.
The light’s colour and brightness can be adjusted with a remote control. The pool
light has already been installed. The light’s electric conductor must be plugged in
and the remote control must be equipped with batteries.
Using the remote control
ONN/OFF Switchon/o
M+andM- Programmebuttonforthe19dierentlightprogrammes.
B+ and B- Adjusts the brightness. Adjusts the pool light’s brightness
on a scale of 0–25.
S+ and S- Adjusts the speed. Adjusts the speed of the programme
changing the colours on a scale of 0–100.
Play/Pause Stopstheprogrammeatthecurrentselectionina  
changing programme.
Check the pairing by changing the colour from the remote control and turning on
the pool light with the remote control. The lights of the control unit should change
simultaneouslywiththepoollightandturnon/ofromtheremotecontrol’sstart
button.
If the remote control is not working properly, it must be paired again.

DROP PISARA
Pairing the remote control with the control unit
• Turn on the pool light from the control unit’s power
button or remote control.
• When the pool light is on, one or more lights should be on
in the control unit.
 • Turnothepoollightfromthecontrolunit’spowerbutton
and keep the button pressed. The unit should remain turned
  o.
• With the power button of the control unit pressed, point the
remote control at the control unit and press the remote
control’s power button.
• The control unit’s lights should blink quickly for
approximately three times, after which the pool light will also
turn on.
Insulation cover
The cover is made from polyvinyl chloride (PVC). Avoid vinyl conditioners that
contain silicone, oils or are wax-like as they are particularly harmful for vinyl. Do
not use sharp objects to remove excess weight to avoid damaging the leather of the
insulation cover.
Regular washing with mild general household cleaners lengthens the operating
life and general look of the cover. The cover must be clean when applying vinyl
conditioner. It’s important to remove excess snow on top of the cover in the winters.
Please keep the cover locked when you are not using the pool.
N.B.! The pool’s insulation cover cannot sustain the weight of a human.

MAINTENANCE AND USE
OF THE POOL
DROP PISARA
Filling and heating the pool
Thersttimeyouusethepool,cleananypotentialtrashandmachiningresidues
from the bottom of the pool. Make sure that the drain plug is in place. The Drop
Original pool’s capacity is approximately 1,500 litres. Please note that the water
level rises with the number of bathers. In general, keep the water level approximately
10–15cmbelowthepool’sedge.Thepoolislledwith,forexample,agardenhose.
Duringthelling,checkthatthejointsofthestove’shosesarenotleaking.Tighten
the band clamps if necessary.
N.B.! The pool’s stove must never be lit when the pool is empty, partly
empty or frozen! Heating up a partly empty pool will always lead to
the melting of the stove! Before starting the heating process, the pool
must be lled 5 cm above the upper lead-in. Also ensure that the stove
is completely lled with water. If the stove’s circulation has frozen and
blocked up, heating the stove may cause a great pressure and a risk of
injury. Always ensure that the stove’s circulation has not been blocked
and that the water level is suciently high.
Thestovemayproducesometrashwhenthepoolislledwithwaterfortherst
time. The stove should only be heated with wood. We do not recommend using
lighteruids.Ashandotherimpuritiesmayaccumulateontheinnersurfaceofthe
stove’scombustionchamber,whichweakensitspowersignicantly.Byburning
dry quality wood, you reduce the impurities on the inner surfaces. If you notice
that the inner surfaces are dirty, clean them, as the dirt functions as an
Before you start the heating process, ll the pool 5 cm above the upper lead-in.
Also ensure that the stove is completely lled with water.

DROP PISARA
insulationbetweenthecombustionchamberandwaterandweakenstheeciency
of the stove.
We recommend using the insulation cover when you heat the water. Thanks to the
cover,thewaterwillheatupsignicantlyfaster.Thewaterislayeredwhenheated.
Mixing it during the heating ensures an even temperature.
Emptying the pool and stove
Remember to empty both the pool and the stove. The bottom of the pool has a
plug, and the side of the pool has an outlet pipe which are used to empty the pool.
The pool can also be emptied with, for example, a submersible pump. If you used
chemicals in the water, the water must always be sewered!
The stove must also be emptied of water by using the base valve at its bottom. Make
sure that there is no water left in the hoses. Do not start emptying the pool before
the re and the embers have fully died down in the stove. When emptying the
pool, leave the cover ajar so that no vacuum is created in the pool.
Emptythestove’sreboxandashpitaftereachuse.Thismakesthenextlightingeasier,
improvesthereeventandlengthensthestove’slifesignicantly.Werecommend
cleaningthepool’swaterlineregularlyoraftereachusewithamicroberclothto
prevent dirt from sticking. If the pool is used in sub-zero temperatures, the pool and
stove must be completely emptied after use. Do not let water freeze inside the pool!
The pool’s drain plug and the stove’s outlet valve must always be left open so that any
water left in the pool can drain and not freeze in the winter. See further instructions
on page X.
Cleaning the pool and stove
Always wash yourself before entering the pool. We recommend cleaning the pool’s
waterlineregularlyoraftereachusewithamicroberclothtopreventdirtfrom
sticking. Take care of the pool’s cleanliness and hygiene by washing and drying it
carefully and often enough. The entire pool can be cleaned with a soft non-scratch
pool sponge or cloth and mild detergent.
We recommend rinsing the stove’s hoses after each use. After emptying and cleaning,
leave the pool’s drain plug and the stove’s outlet valve open so that all of the water
can drain from the pipes.

Drop tolerates sub-zero temperatures extremely well when empty. The most
important thing in maintaining the Drop pool in the winter time is to make sure the
pipes never freeze.
Regularly remove any snow that has accumulated on top of the cover. At worst, a
heavy layer of snow can even cause the cover to break. In addition, we recommend
keeping the area surrounding the pool and a passage to the pool free of snow so that
it can be taken in use quickly when desired and it will be safe to enter the pool. In the
winter, the area surrounding the pool might be especially slippery when the water
splashing from the pool freezes.
TheDroppoolcanbeusedwithjustthestoveinthewinter.First,llthepoolabove
the upper lead-in so that the water can enter the stove’s water jacket as well. N.B.!
Never heat the stove until you are completely sure that the water level is above the
upperlead-inandwatercanowfreelyinthestove’scirculation.Pleasenotethat
heating the pool in the winter may take longer than usual.
Makesurethattherearenoembersleftinthereplacebeforeemptyingthepool.
Emptythereplaceofashesbeforeemptyingthepool.Thestovemustbeemptiedof
water by using the base valve in its front panel. Make sure that there is no water left
in the hoses. Any water left in the stove or its hoses might damage the stove. Water
frozen in the hoses might cause a dangerous situation when the stove is heated the
following time and the water cannot circulate freely. Cover the pool when it’s not
in use. Prevent snow from getting inside the pool’s framework and make sure that
drainage water does not remain inside the pool’s framework. If the pool is partly
sunk into ground, it’s extremely important to plan the absorption of drainage water
as well as to support and insulate the walls of the pool. In sub-zero temperatures,
store the drain plug in a warm space.
Any damage caused by freezing is not covered by the warranty.
DROP PISARA
MAINTENANCE AND USE
OF THE POOL

DROP PISARA
WARRANTY
General warranty terms
The warranty applies to products which have been purchased for private use from
Drop Design Pool Oy’s own sales or an authorised distributor. The warranty is valid
for two (2) years, and it begins from the delivery date, however, no more than six (6)
months after the purchase date. The buyer is entitled to warranty repairs as referred
to in the warranty terms only by presenting the original proof of payment. During
the warranty period, Drop Design Pool Oy repairs any defects in the product within
a reasonable amount of time.
Requirements for the validity of the warranty
For the warranty to be valid, the Drop pool must have been installed according to
the pool’s user instructions, the pool must be used according to the user instructions
and only for its purpose of use and the pool must be used solely for private use. The
installer is responsible for the pool’s installation, and the buyer is responsible to ensure
that the installation is carried out according to the provided installation instructions
in the user instructions. The seller is in no way liable for any installation mistakes
made by the customer. The product’s warranty becomes void if the installation is
erroneous or if the pool is stored incorrectly emptied in sub-zero temperatures.
Commercial use — restrictions
The Drop pool is designed to withstand normal use. The warranty for pools installed
forcommercialorleasepurposesisrestrictedanddenedonacase-by-casebasis.If
commercial use has not been mentioned in the order phase and the warranty has not
been separately agreed upon in the order, the warranty for the products is three (3)
months from the delivery. Drop Design Pool is not liable for any indirect damage
caused by the pool, such as lost rental income or other damages incurred by the
customer.

Restrictions
The buyer is not entitled to repairs as referred to in these warranty terms if the fault
or damage is caused by wear and tear caused by normal use, incorrect installation, the
customer’s alterations, an accident, faulty use, freezing, incorrect use of chemicals,
commercial use, the use of an accessory approved by someone other than Drop
Design Pool Oy, neglect to follow the user instructions, not maintaining or cleaning
the pool, or repairs done by someone other than a repair shop authorised by Drop
Design Pool Oy. The warranty does not cover damage caused by extreme weather
conditions (hail, storm, earthquake etc.). Costs caused by the above-mentioned
reasons incurred by the manufacturer are invoiced from the customer according to
the normal service price list. The stove has a one (1) year warranty. The warranty
doesnotapplytothepool’spotentialsuction,ozonizer,UVcleaningequipment,
heatinsulationcoverandtheltercontainer’soat.Theseproductshaveawarranty
of six (6) months.
The warranty does not cover indirect or other unusual damage incurred by the
buyer,suchaslosses,unobtainedprotsorotherconsequentiallossoranyproperty
damage.
Warranty for demonstration products
Demonstration products are sold in the condition they are in at the time of
purchase. Drop Design Pool Oy is not liable for any surface damage or other damage
indemonstrationproductsandxingthedecienciesisnotcoveredbythewarranty.
In any other regard, the warranty covers demonstration products unless otherwise
agreed in writing during the time of order.
DROP PISARA

DROP PISARA
Warranty measures
The buyer must immediately notify the seller of a faulty Drop pool or its part. When
makingtheerrornotication,mentionthefollowinginformation:thename/model
of the pool, purchase and installation date, the type of defect, photographs of the
defectandconditionswhenthedefectwasrstdetected.
Drop Design Pool Oy or a maintenance agent authorised by Drop Design Pool Oy is
responsibleforverifyingandxingthedefects.Afaultypoolwillbexedbyrepair,
maintenance or changing the faulty parts within a reasonable amount of time or, at
Drop Design Pool Oy’s sole discretion, by changing the faulty pool to a completely
new pool.
The buyer must make sure that the repairman can access the pool. Costs incurred by
disassembling the terrace or other built structure, removing the pool or reinstalling
the pool are invoiced from the buyer. When the pool is sunk into the terrace, we
recommend making a maintenance hatch from where it’s possible to descend to the
pool and potential accessories. If the measures do not require special competence,
they will be taken care of with the help of phone support or another corresponding
method. The buyer must accept this operating method when it’s based on the seller’s
experience about repairs. If the seller or manufacturer requests information, such as
photos, to be able to assess the necessary measures, the buyer must do their part. The
seller’s responsibility is limited to delivering a new product, maintenance or a certain
refund of the purchase price according to the seller’s discretion. The seller cannot be
held liable for direct or indirect damage, defects caused by them or the buyer’s losses.
Refund for/invoicing a warranty part
Themanufacturermustbegiventheopportunitytoexaminethenotiedwarranty
matter. The buyer must follow the manufacturer’s instructions. The refunded or
changed original part must be returned to Drop Design Pool Oy for examination. If
the part is not returned for examination, the replacement will be invoiced just as any
other regular purchase unless otherwise agreed.

SHOWROOM TURKU
Linnankatu 35a
20100 Turku
SHOWROOM VANTAA
Riihitontuntie 1
01720 Vantaa
CONTACT
www.drop.
drop@drop.
010 339 1900
Facebook & Instagram
@dropdesignspa
DROP PISARA
