DST FIX-50 User manual

Outline
FIX-50 is an option board for PCK-50 to be able to set the frequency easily.
When PCK-50 is inserted to the sockets of FIX-50, the desired frequency can be
obtained by 8 BCD switches on the board. A frequency and setting value can be
memorized by a save switch on the board. When PCK-50 is used for itself, FIX-
50 is used as a memory setting tool of the parameter.
Layout
Specification
Voltage +5V ±5%(0.25V)
Current less than 200mA(with PCK-50 )
LED
The LED lamp on the board indicates the operating status.
Lighting : LED always lights at the normal status
Blinking : LED blinks continuously when PCK-50 is not correctly mounted.
Blink once : In case of setting value was changed and the save switch is
pushed, LED blinks Momentarily.
.
FREQUENCY SETTING BOARD FIX-50

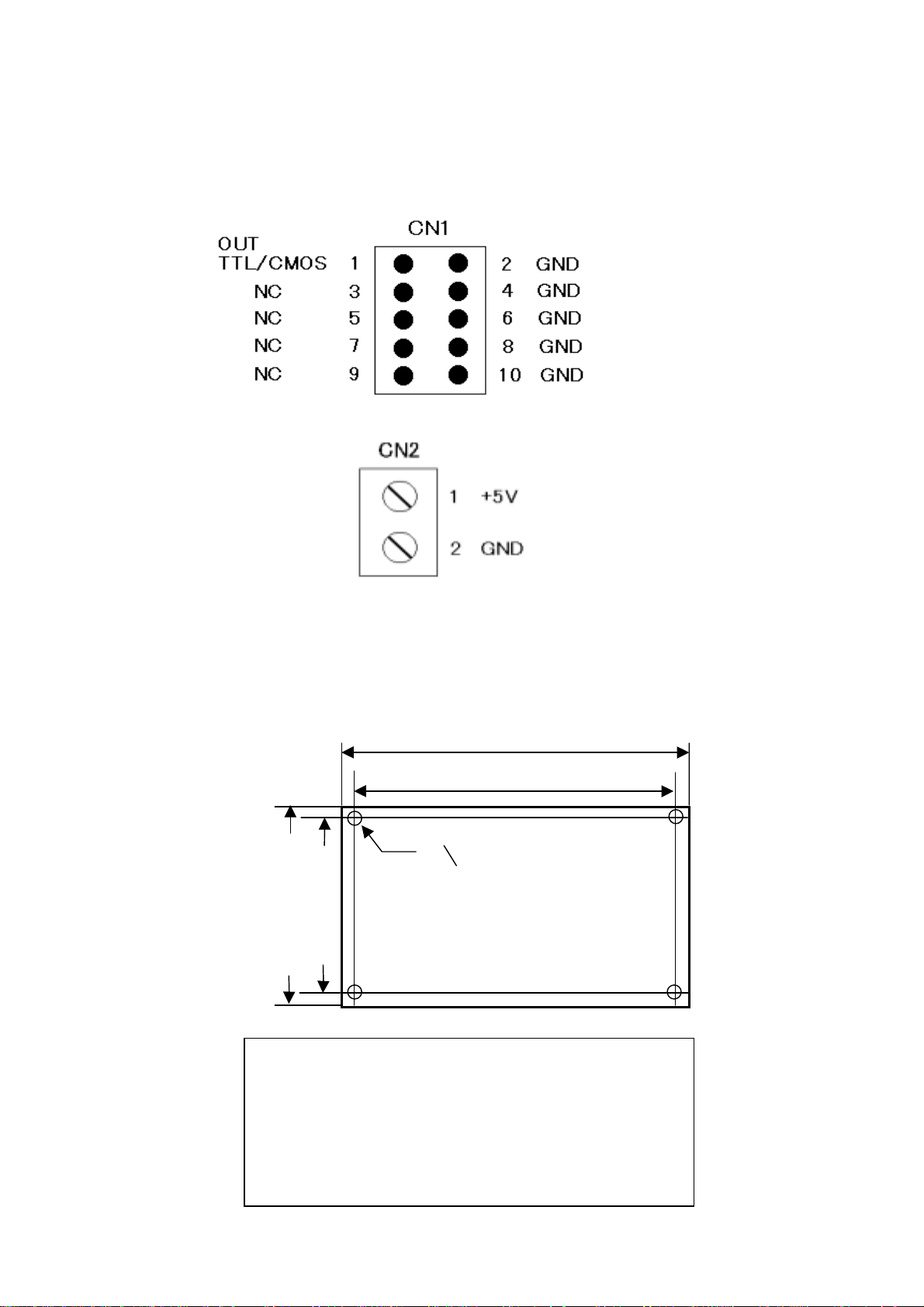

Pin assignment for connector
CN1 is a digital output terminal for TTL/CMOS level.
CN2 is a power supply terminal. Supply +5V
CN3 outputs sine waves. As their output impedance is 50Ω, use 50Ω
impedance coaxial cable. SMB(C05) connector will be suitable.
Dimensions 65x111mm
Design, Manufacture, Sales
DIGITAL SIGNAL TECHNOLOGY, INC.
DIGITAL SIGNAL TECHNOLOGY, INC.DIGITAL SIGNAL TECHNOLOGY, INC.
DIGITAL SIGNAL TECHNOLOGY, INC.
1-6-28,HigashiBenzai,AsakaCity,Saitama,351-0022,Japan
TEL:[phone]FAX:[phone]
URL:http://www.dst.co.jp
105
105105
105
111
111111
111
65
6565
65 59
5959
59
4‑O3.2
4‑O3.24‑O3.2
4‑O3.2
