Dual DL-TQL32R1-002 User manual

32” WIDESCREEN LED TV
MODEL NO.: DL-TQL32R1-002
USER MANUAL
Please read this manual carefully before using,
and keep it for future reference.
Dual provide 2 years pick up and return warrantee service for this product,
If there is any technical problem please call helpdesk: 00800-34448378 .During office hours.

1
TABLE OF CONTENTS
IMPORTANT INSTRUCTIONS
SAFETY INFORMATION...................................................................................................2-3
ACCESSORIES………..........................................................................................................4
FEATURES....................................................................................................................5
GENERAL PARTS.........................................................................................................6-7
REMOTE CONTROL..........................................................................................................8-9
REMOTE CONTROL PREPARATION.................................................................................10
BASIC CONNECTION………………………………........................................................11-14
OPERATIONS
BASIC OPERATIONS.............................................................................................15-21
MAIN MENU...........................................................................................................22-27
TV MODE.................................................................................................................22-26
AV AND OTHER MODES.................................................................................................26
PC MODE........................................................................................................................27
FOR REFERENCE
MAINTENANCE...........................................................................................................28
WALL MOUNTING…………………………………………………………………..…………….28
STAND INSTALLATION…………………………………………………………………………..29
SPECIFICATIONS....................................................................................................30
TROUBLESHOOTING.........................................................................................................31

2
SAFETY INSTRUCTIONS
De bliksemschicht met
pijl in de driehoek is een
waarschuwingsteken
dat u attent maakt op
“gevaarlijke spanning”
binnenin het product.
VOORZICHTIG: OM HET RISICO OP
EEN ELEKTRISCHE SCHOK TE
VERMINDEREN DIENT U HET
DEKSEL (OF DE ACHTERKANT)
NIET TE VERWIJDEREN. ER
BEVINDEN ZICH BINNENIN GEEN
DOOR DE GEBUIKER TE
REPAREREN ONDERDELEN. LAAT
DE SERVICE OVER AAN BEVOEGD
PERSONEEL.
The exclamation
point within the
triangle is a warning
sign alerting you of
important
instructions
accompanying the
product.
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
SERIOUS PERSONAL INJURY:
● If the cord is damaged, have it repaired by the manufacturer, its service or a similarly
qualified person in order to avoid any hazard.
● The cord should always be readily accessible.
● The apparatus shall not be exposed to dripping or splashing of water or liquids and that
no objects filled with liquids such as flowers vases shall be placed on the product.
● The normal ventilation of the product shall not be impended for intended use.
● Always leave a minimum distance of 10 cm around the unit to ensure sufficient
ventilation.
● Naked flame sources, such as candles, should not be placed on top of the device.
● The device is intended for use only in a temperate climate.
● Situate this product away from heat sources such as radiators, heat registers, stoves, or
other appliances (including amplifiers) that produce heat.
● Clean the product only as recommended by the manufacturer (see “Maintenance”
section for details). Unplug the power plug from the wall outlet before cleaning,
● Unplug the power plug from the wall outlet when left unused for an extended period.
● Prevent objects/liquids from falling or spilled on the product.
● Operate the product only with the supplied power cord. Route power cords so they are
not likely to be walked on or pinched by items placed upon or against them, paying
particular attention to plugs, convenience receptacles, and the point where they exit from
the product.
● Where the MAINS plug or an appliance coupler is used as the disconnect device, the
disconnect device shall remain readily operable.
IMPORTANT INSTRUCTIONS

3
● Do not operate this product under the following conditions.
- When the power-supply cord or plug is damaged.
- If liquid has been spilled into or objects have fallen into the product.
- If the product has been exposed to rain or water.
- If the product does not operate when used according to the operating instructions.
- If the product has been dropped or damaged in any way.
● Do not attempt to service the product; take it to the electronics repair shop of your choice
for any servicing or repair.
● Do not overload wall outlets, extension cords, or integral convenience receptacles.
● Connect this product to the power outlet which has protective earth connection.
CAUTION- TO REDUCE THE RISK OR PERSONAL INJURY OR
PRODUCT/PROPERTY DAMAGE:
● This product is intended solely for non-commercial, non-industrial, personal use as a
television. Do not use this product for any other purpose.
● Do not subject the product to violent shocks, extreme temperatures, or lengthy periods of
direct sunlight.
● Keep the product away from magnetic objects, motors, and transformers.
● Do not use outdoors in inclement weather.
● Do not use the TV while driving; this is dangerous and is illegal in some areas.
BATTERY HANDLING AND USAGE:
● CAUTION: Danger of explosion if battery is incorrectly replaced or not replaced by the
same type or equivalent.
● The battery should not be exposed to excessive heat such as sunshine, fire or similar.
● Different types of batteries, new and used batteries should not be mixed.
● The battery must be installed according to the polarity.
● If the battery is worn, it must be removed from the product.
● The battery must be disposed of safely. Always use the collection bins provided (check
with your dealer) to protect the environment.
● Keep batteries away from children and pets. Only adults should handle batteries.
● Never throw batteries into a fire or expose them to fire or other heat sources.
● Follow the battery safety and usage instructions.

4
DISPOSAL OF OLD ELECTRICAL APPLIANCES
The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE),
requires that old household electrical appliances must not be disposed of in the normal
unsorted municipal waste stream. Old appliances must be collected separately in order to
optimize the recovery and recycling of the materials they contain, and reduce the impact on
human health and the environment.
The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that
when you dispose of the appliance, it must be separately collected.
Consumers should contact their local authority or retailer for information concerning the
correct disposal of their old appliance.
DUAL ELECTRONICS – 79/81 ANCIENNE RN7 – 69570 DARDILLY
User Manual……………………………………………………………………………………1
Remote Control……………………………….………………………………………………1
All the pictures in this manual are just for your reference, appearance and display
should subject to the final product.
ACCESSORIES
To avoid possible hearing damage, do not listen at
high audio volume for long periods of time.

5
32" TFT DISPLAY
This player has a built-in 32” TFT display window to provide clear vision and low
radiation.
Support auto TV scanning
Support multi-languages on screen display
Support full function remote control
Support USB multimedia playback
Support HDMI, VGA, SCART, PC AUDIO, YPBPR, CVBS and AUDIO R/L input
Support EARPHONE output
With detachable stand holder
With external antenna jack
With built-in speakers
FEATURES

6

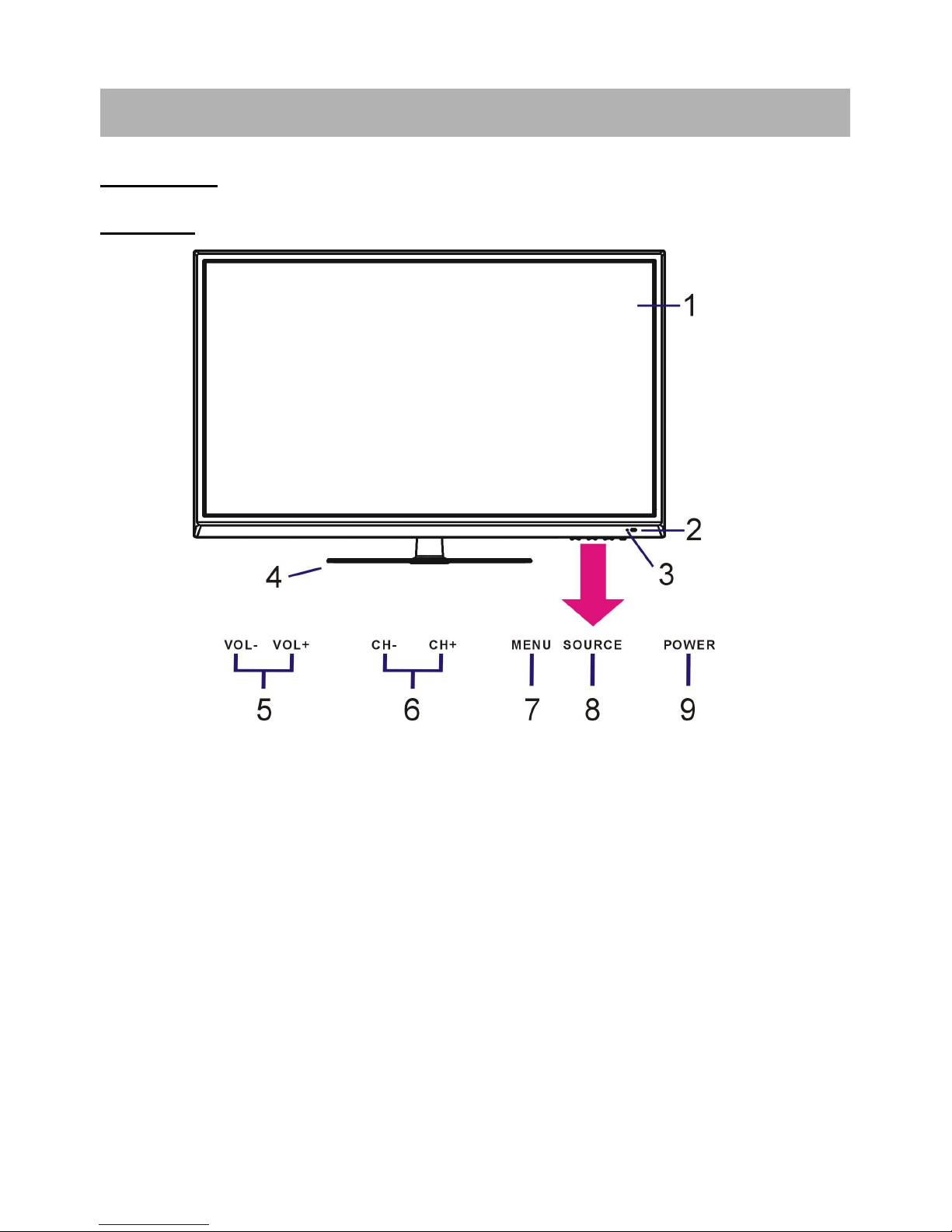

MAIN UNIT
Front View
1. LED display screen
2. Remote control sensor
3. Power indicator- In standby mode the indicator light will display red color; when switching
on the unit the indicator light will display blue color.
4. Stand holder
5. VOL +/- button- To increase/decrease the volume level or move left/right.
6. CH +/- button- To select next/previous channel or move up/down.
7. MENU button- To enter menu setting page.
8. SOURCE button- To select the input source.
9. POWER button- To turn ON/OFF the TV.
GENERAL PARTS

7

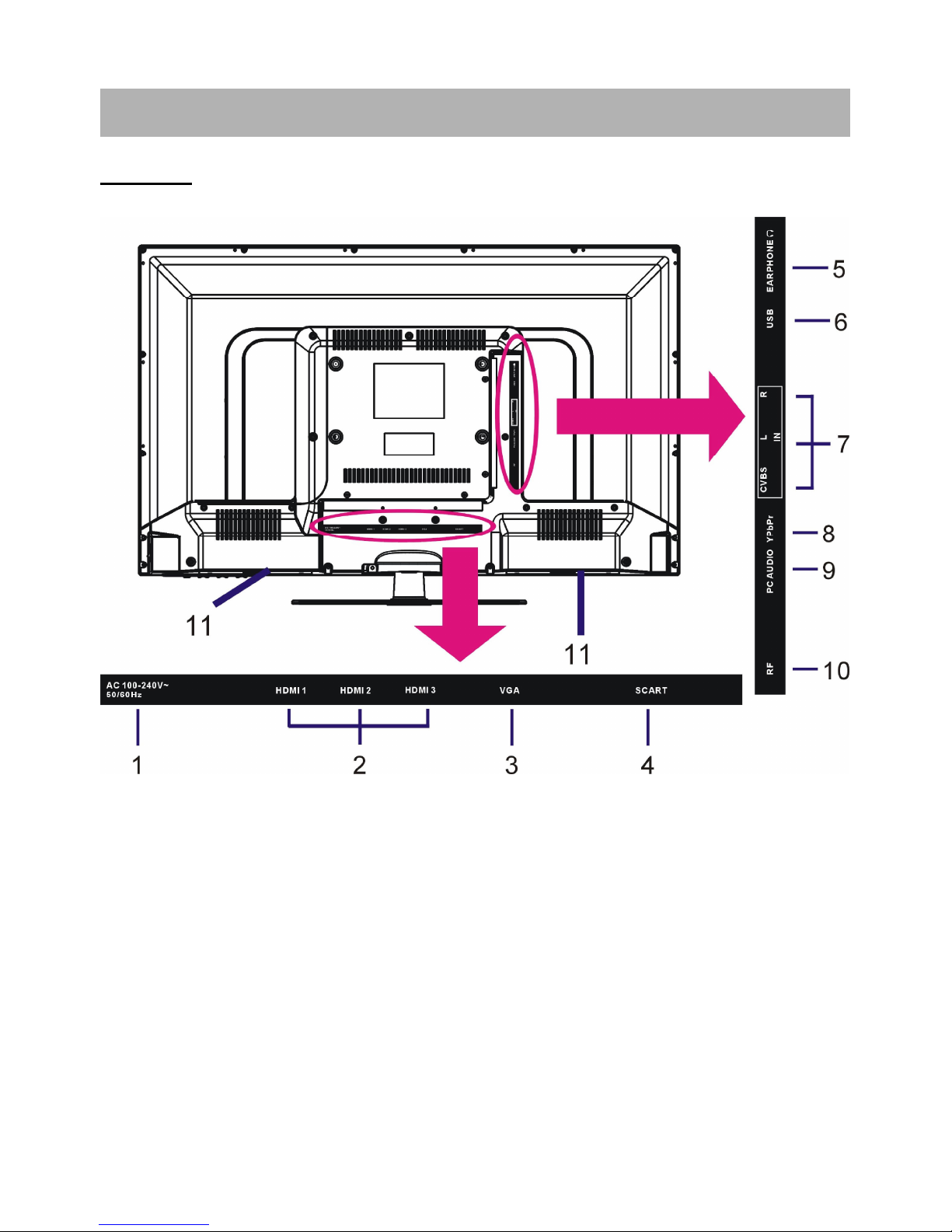

Back View
1. Power input
2. HDMI1/HDMI2/HDMI3 input terminals
3. VGA input terminal
4. SCART input terminal
5. EARPHONE output terminal
6. USB input terminal- For multimedia files playback.
7. CVBS and AUDIO R/L input terminals
8. YPbPr input terminal
9. PC AUDIO input terminal
10. RF (Antenna) input terminal
11. Built-in speakers
GENERAL PARTS

8

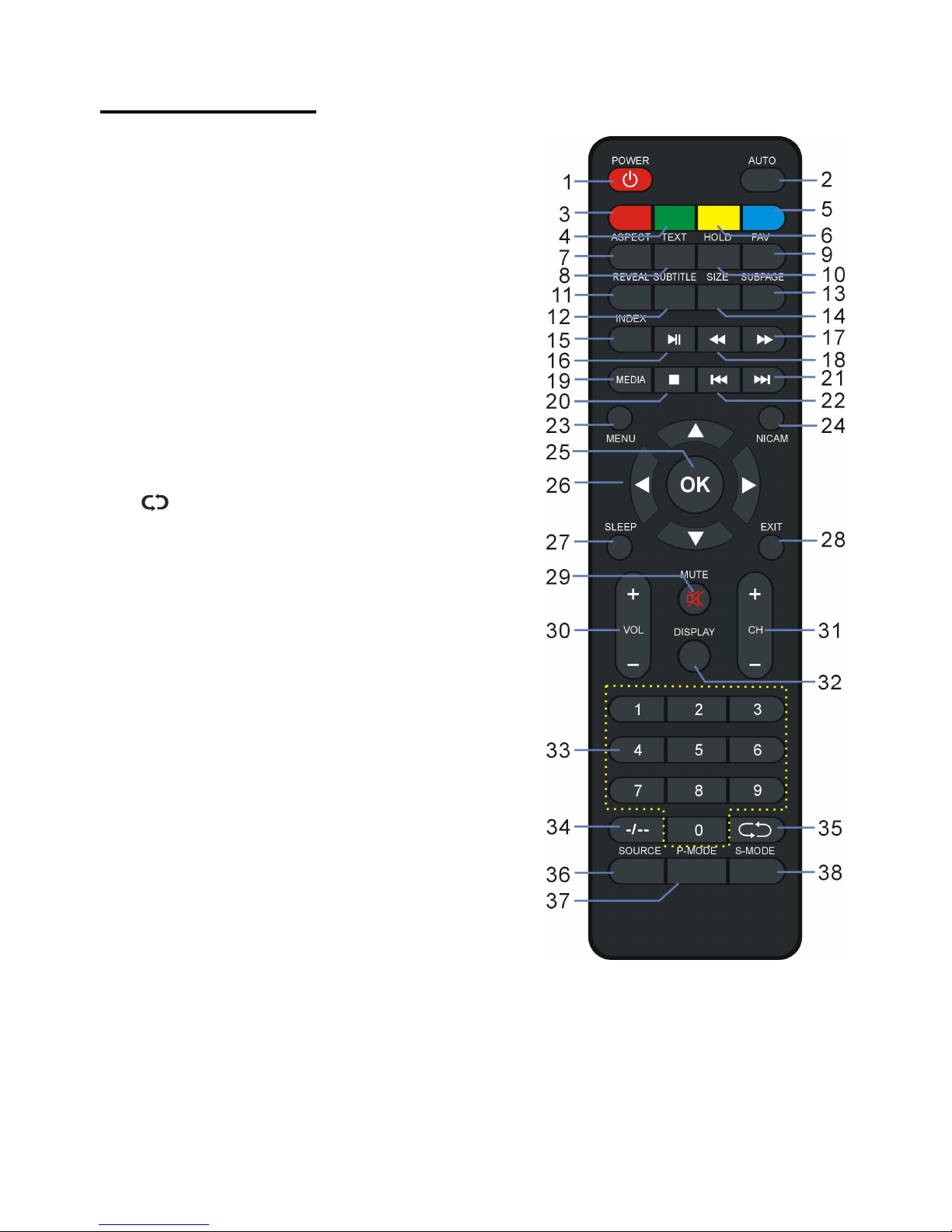

REMOTE CONTROL
1. POWER: To set the unit in standby mode; press
it again to switch it on.
2. AUTO: To adjust the screen automatically
(PC/VGA).
3. RED button
4. GREEN button
5. BLUE button
6. YELLOW button
7. ASPECT: Press this button repeatedly to select
desired aspect ratio of screen.
8. TEXT: To display the TELETEXT.
9. FAV: To display the favorite channel list.
10. HOLD: To hold the TELETEXT.
11. REVEAL: To hide TELETEXT, or display
hidden characters.
12. SUBTITLE: To display the available subtitle.
13. SUBPAGE: To enter the sub-page of
TELETEXT.
14. SIZE: To switch TELETEXT size.
15. INDEX: To display the index.
16. : To play or pause playing.
17. : To move fast forward.
18. : To move fast backward.
19. MEDIA: To enter Media mode directly.
20. █ : To stop playing.
21. : To play next chapter.
22. : To play previous chapter.
23. MENU: To display the main menu. Press it
again to return to previous menu page.
24. NICAM: To switch the soundtrack.
25. OK: To confirm selection.

9
REMOTE CONTROL
26. ▲/▼/◄/►: Navigation buttons
27. SLEEP: To set the sleep time as desired.
28. EXIT: To exit menu page.
29. MUTE: To mute the sound.
30. VOL +/-: To turn up/down the volume.
31. CH+/-: To play the next/previous channel.
32. DISPLAY: To display information of current
program.
33. NUMBERIC BUTTONS (0-9): To input the
number information, such as channel number
and so on.
34. -/--: To switch the digit when selecting desired
channel.
35. : To return to previous channel or input
source.
36. SOURCE: To display the input source list.
37. P-MODE: To switch the picture mode.
38. S-MODE: To switch the sound mode.

10
REMOTE CONTROL PREPARATION
BATTERY INSTALLATION
Install the batteries as the following pictures. Be sure + and – terminals are positioned
as indicated in the battery compartment (Fig1).
SERVICE LIFE OF BATTERIES
- The batteries normally last for one year although this depends on how often the
remote control is used.
- If the remote control fails to work even when it is operated near the player, replace the
batteries.
- Use two size AAA dry batteries.
NOTE:
● Do not drop, step on or otherwise impact the remote control. This may damage the
parts or lead to malfunction.
● If the remote control is not going to be used for a long time, remove the batteries.
REMOTE CONTROL
OPERATION
Point the remote control from no more
than about 6m from the remote control
sensor and within about 60°of the
front of the player (Fig2).
NOTES:
- The operating distance may vary
according to the brightness of the
room.
- Do not point bright light at remote
control sensor.
- Do not place objects between the
remote control and the remote control
sensor.
- Do not use this remote control while
simultaneously operating the remote
control of any other equipments.
Fig1
Fig2
Remote Control
Sensor
Push
Open
Press

11
● Ensure all the cables are disconnected from the main unit before connecting to AC
power source.
● Read through the instructions before connecting other equipments.
CONNECTING TO AC POWER SOURCE
CONNECT EXTERNAL ANTENNA TO UNIT
Install external antenna into antenna jack for best picture.
BASIC CONNECTION
Main unit
To power outlet
Antenna
Outdoor
antenna
amplifier
Indoor
antenna
amplifier
Power plug
of antenna
amplifier
75 OHM
antenna
plug

12
COMPOSITE AV (CVBS) CONNECTION
COMPONENT (YPbPr) CONNECTION
Back of DVD/VCR
AV cable
For basic connection, use the
composite Audio L/R (white/red) and
CVBS (yellow) cable to connect the
unit with other devices.
YPbPr cable
AUDIO cable
Back of DVD/VCR

13

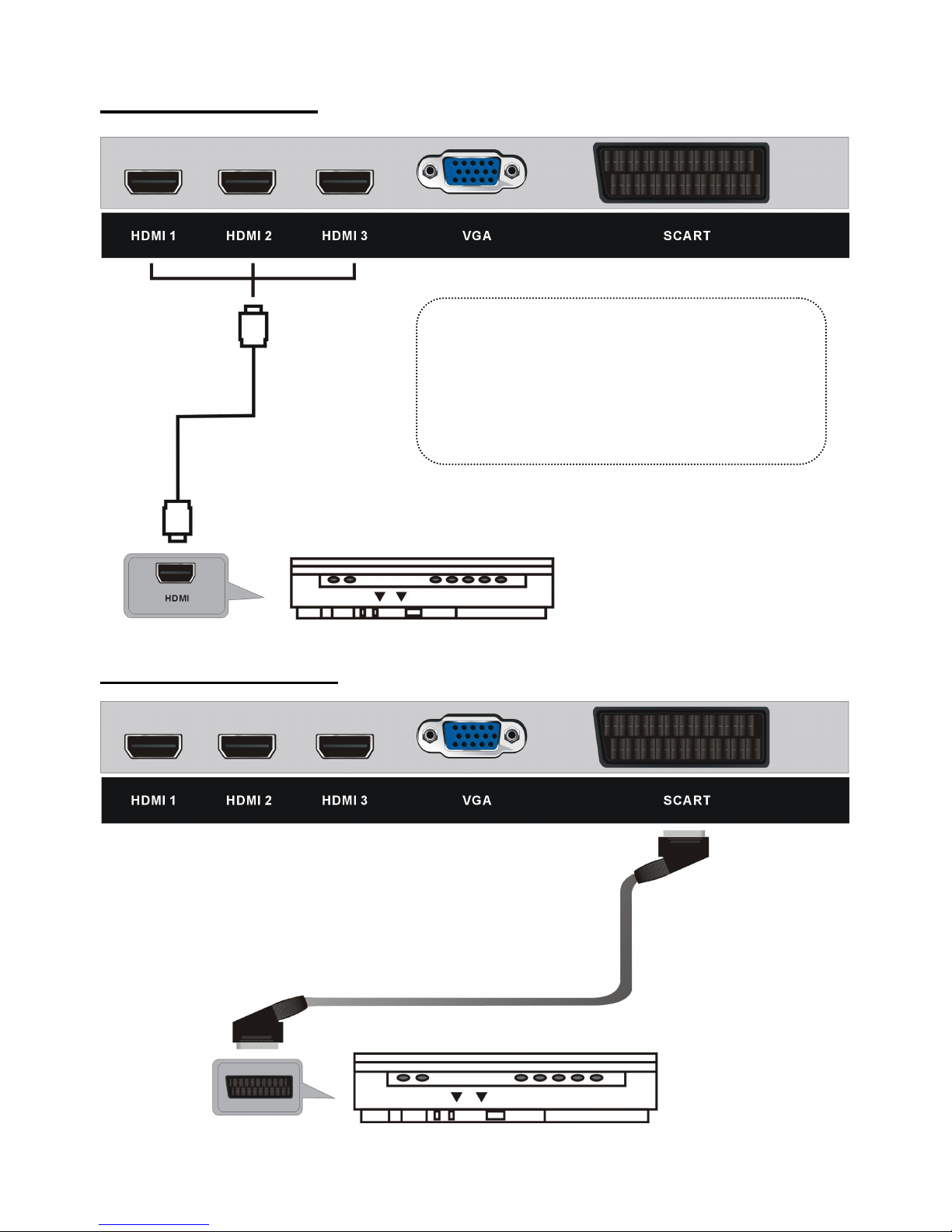

HDMI CONNECTION
SCART CONNECTION
SCART cable
Back of DVD/VCR
Use HDMI cable to connect the unit with other
devices to receive high-definition multimedia
signal.
NOTE: Up to 3 roads HDMI can be connected
for this TV.
HDMI cable
Back of DVD/VCR

14
PC/VGA CONNECTION
CONNECT EARPHONE TO THE UNIT
USB CONNECTION
Audio cable
VGA cable
Back of PC
Use VGA cable and Audio cable to
connect the unit with TV or PC,
and use this product as a monitor.
EARPHONE cable

15
MAKE SURE ALL THE EQUIPMENTS AND POWER CORD ARE
CONNECTED PROPERLY AND THE UNIT IS SET IN CORRECT MODE
BEFORE KINDS OF OPERATIONS.
- Press POWER button on the unit or remote control to power ON the unit (indicator
will glow blue); press it again to power OFF (standby mode) the unit (indicator will
glow red).
- Press SOURCE button on the unit or remote control to set the unit in TV mode.
SELECT DESIRED PROGRAM
1. Press CH+ button to play next channel.
2. Press CH- button to play previous channel.
3. Press number buttons on remote control directly to select desired program.
NOTE: Press -/-- button repeatedly to switch the digit when selecting multiple digit
channels.
VOLUME CONTROL
- Press VOL+ or VOL- to adjust the level of current volume.
Available range: 0-100.
MUTE CONTROL
- Press MUTE button to mute the sound, press it again to turn on the sound.
INPUT SOURCE SELECTION
- Press SOURCE button on the unit or remote control to display the sources list.
- Press UP or DOWN navigation button to select desired input source, and then press OK
button to confirm selection.
Available options: TV, AV, SCART, YPBPR, HDMI1, HDMI2, HDMI3, PC, Media.
PICTURE MODE
- Press PICTURE button on remote control repeatedly to select desired PICTURE mode
directly.
Available options: User, Dynamic, Standard, Mild.
SOUND MODE
- Press SOUND button on remote control repeatedly to select SOUND mode directly.
Available options: Standard, Music, Movie, Sports, User.
BASIC OPERATIONS

16
SLEEP TIME SETTING
- Press SLEEP button on remote control repeatedly to select SLEEP TIME directly.
Available options: Off, 10min, 20min, 30min, 60min, 90min, 120min, 180min, 240min.
VIDEO SIZE SETTING
- Press ASPECT button on remote control repeatedly to select VIDEO SIZE directly.
Available options: Auto, 4:3, 16:9, Zoom1, Zoom2.
NOTE: The available video size may be different for different input source.
SOUND SETTING
- Press NICAM button on remote control repeatedly to select desired soundtrack.
NOTE: In different channels, pressing NICAM button may have different options.
INFORMATION DISPLAY
- Press DISPLAY button on remote control to display related information of your channel,
including channel number, color system, sound system and so on.
TELETEXT
When displaying available teletext:
- Press TEXT button on remote control to display the teletext.
- Press HOLD button on remote control to hold the teletext.
- Press REVEAL button on remote control to hide or display hidden characters.
- Press SUBPAGE button on remote control to enter subpage.
- Press INDEX button on remote control to display the index.
- Press SIZE button on remote control repeatedly to switch teletext size.
QUICK SELECTION
- Press OK button on remote control to display the Channel List.
- Press UP/DOWN navigation button to select a channel, and press OK button to watch it.

17
MEDIA PLAYBACK
- Insert a USB memory device into USB slot.
- Press SOURCE button on the unit or remote control to switch this unit to Media mode.
- Press EXIT button on remote control to return to previous menu page.
1. PHOTO
- Press LEFT or RIGHT navigation button to select PHOTO item.
- Press OK button to enter it and press LEFT or RIGHT navigation button to select desired
disk.
- Press OK button to enter it and press navigation buttons to select desired folder.
- Press OK button to enter it and press navigation buttons to select desired Photo file.

18
- Press RED button to enter a dialog box, and press LEFT or RIGHT navigation button to
decide whether delete it or not.
- Press OK button to play highlighted file.
During PHOTO normal playing:
- Press EXIT button on remote control to hide the tool bar.
- Press DISPLAY button on remote control to display the tool bar.
- Press LEFT/RIGHT navigation buttons to select desired option and press OK button to
confirm it.
- Press button to pause/start playing.
- Press / button to play previous/next file.
- Press █ button to stop playing.
2. MUSIC
- Press LEFT or RIGHT navigation button to select MUSIC item.
- Press OK button to enter it and press LEFT or RIGHT navigation button to select desired
disk.
- Press OK button to enter it and press navigation buttons to select desired folder.
- Press OK button to enter it and press navigation buttons to select desired Music file.

19
- Press RED button to enter a dialog box, and press LEFT or RIGHT navigation button to
decide whether delete it or not.
- Press OK button to play highlighted file.
During MUSIC normal playing:
- Press LEFT or RIGHT navigation button to select desired option in the tool bar, and press
OK button to confirm selection.
- Press button to pause/start playing.
- Press / button to play fast backward / fast forward.
- Press / button to play previous/next file.
- Press █ button to stop playing.
3. MOVIE
- Press LEFT or RIGHT navigation button to select MOVIE item.
- Press OK button to enter it and press LEFT or RIGHT navigation button to select desired
disk.
- Press OK button to enter it and press navigation buttons to select desired folder.
- Press OK button to enter it and press navigation buttons to select desired Movie file.
