DW V1365T Series User manual

V1365T Series
INSTRUCTION MANUAL
5436 W Crenshaw Street
Tampa, FL 33634
www.digital-watchdog.com
Technical Support : 1-866-446-3595 / 813-888-9555
About manual
Before installing and using the camera, please read this
manual carefully.
Be sure to keep it handy for future reference.
5436 W Crenshaw Street
Tampa, FL 33634
www.digital-watchdog.com
Technical Support : 1-866-446-3595 / 813-888-9555

PRECAUTIONS
■Do not open or modify
Do not open the case except during maintenance and installation,
as it may be dangerous and cause damages.
■Do not put objects inside the unit
Make sure that no metal objects or flammable substances
get inside the camera. It could cause fire, short-circuits or damages.
■Be careful when handling the unit
To prevent damage, do not drop the camera or subject it to
strong shock or vibration.
■Install away from electric or magnetic fields
■Protect from humidity and dust
■Protect from high temperature
Be careful when installing close to the ceiling , in a kitchen or boiler
room, as the temperature may rise to high levels.
■Cleaning
Dirt can be removed from the case only by wiping it with a soft cloth
■Do not open or modify
Do not open the case except during maintenance and installation,
as it may be dangerous and cause damages.
■Do not put objects inside the unit
Make sure that no metal objects or flammable substances
get inside the camera. It could cause fire, short-circuits or damages.
■Be careful when handling the unit
To prevent damage, do not drop the camera or subject it to
strong shock or vibration.
■Install away from electric or magnetic fields
■Protect from humidity and dust
■Protect from high temperature
Be careful when installing close to the ceiling , in a kitchen or boiler
room, as the temperature may rise to high levels.
■Cleaning
Dirt can be removed from the case only by wiping it with a soft cloth
moistened with a soft detergent solution.
■Mounting Surface
The mounting surface material must be strong enough to support
the camera.

TROUBLESHOOTING
Before sending the camera out for repair, check the items below.
If the problem persists after checking these items, contact your service
center.
■If no image appears
Is the coaxial cable attached securely?
Are the power and voltage normal?
Has the iris of the lens inside the camera been
adjusted correctly (with the level volume) ?
Is there adequate illumination?
■If the image is unclear
Is the lens in focus?
Is the lens dirty?
Dirt or fingerprints on the lens can adversely affect the
images. Gently wipe any dirt or fingerprints off the lens
with a soft cloth or lens cleaning paper and cleaning
Before sending the camera out for repair, check the items below.
If the problem persists after checking these items, contact your service
center.
■If no image appears
Is the coaxial cable attached securely?
Are the power and voltage normal?
Has the iris of the lens inside the camera been
adjusted correctly (with the level volume) ?
Is there adequate illumination?
■If the image is unclear
Is the lens in focus?
Is the lens dirty?
Dirt or fingerprints on the lens can adversely affect the
images. Gently wipe any dirt or fingerprints off the lens
with a soft cloth or lens cleaning paper and cleaning
fluid (commercially available).
Is the monitor adjusted correctly?
WARNING:
TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.

DIMENSION (mm)

V1365T Series
INSTALLATION
B
C
D
E
F
A
B
C
D
E
G
F

INSTALLATION (cont.)
A. Use the supplied L-wrench to remove the four fixing screws from the dome
cover.
B. Align the camera unit with the surface of the ceiling, make marks on the
ceiling in the places where the screw holes are to be drilled, and then drill the
four holes.
C. Cut a hole in the ceiling for routing the cables.
D. Pass the power cable and video cable from the camera unit through the
cable hole in the ceiling.
E. Align the four screw holes in the camera unit with the screw holes in the
ceiling, and then secure the camera in place by tightening the four or more
screws through the washers.
F. Carry out the settings and adjustments for the camera.
G
Sthd btihtith
A. Use the supplied L-wrench to remove the four fixing screws from the dome
cover.
B. Align the camera unit with the surface of the ceiling, make marks on the
ceiling in the places where the screw holes are to be drilled, and then drill the
four holes.
C. Cut a hole in the ceiling for routing the cables.
D. Pass the power cable and video cable from the camera unit through the
cable hole in the ceiling.
E. Align the four screw holes in the camera unit with the screw holes in the
ceiling, and then secure the camera in place by tightening the four or more
screws through the washers.
F. Carry out the settings and adjustments for the camera.
G. Secure the dome cover by tightening the screws.

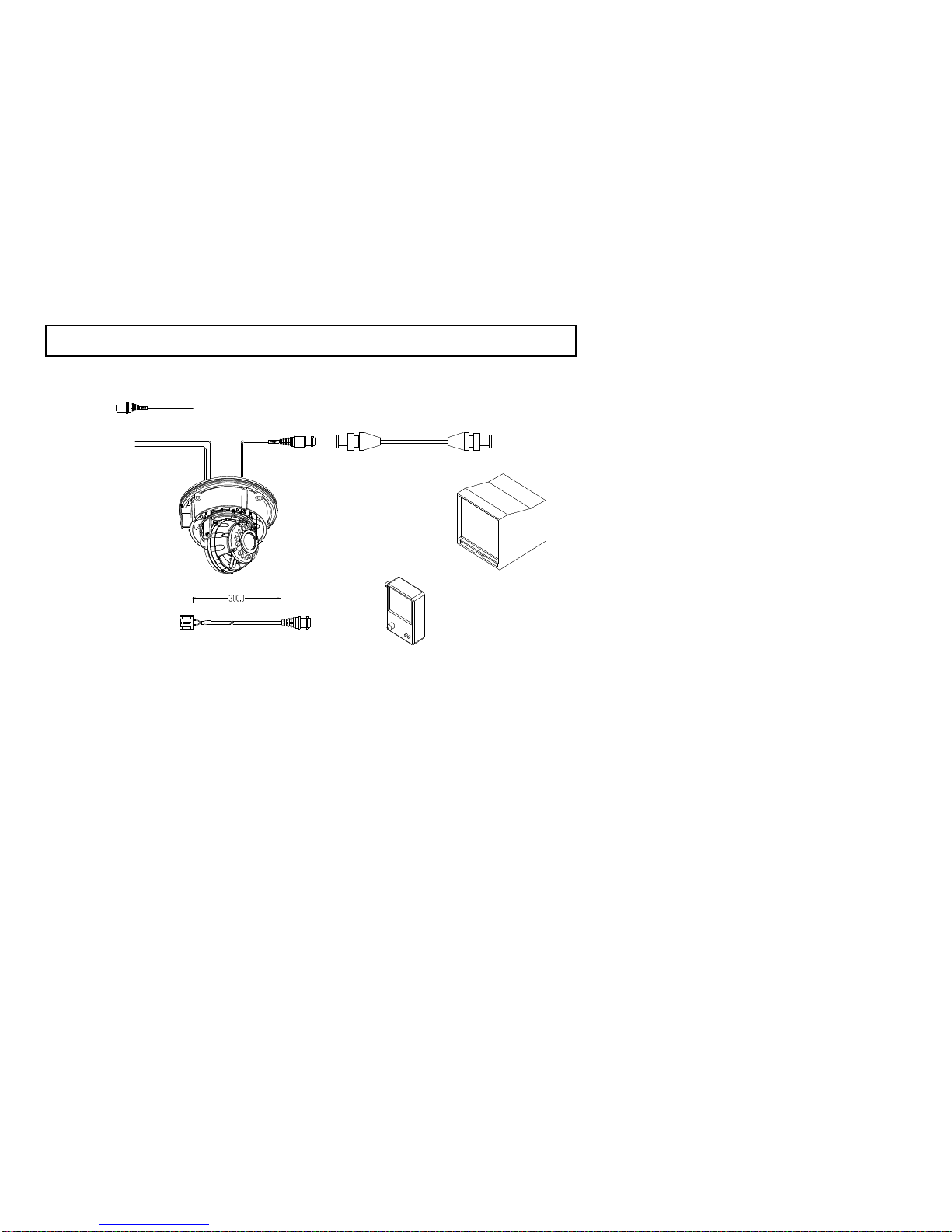

CONNECTION
DC12
V
DC12V / AC24V
CAUTION :
Check for polarity when using a DC 12V power supply.
DC12
V
DC12V / AC24V

■LENS ADJUSTMENT
CAMERA SETTINGS
B. Focus lever
A. Zoom Lever
A. Set the zoom lever to the desired position by moving the Zoom lever.
B. Move the Focus lever until the image is focused.
B. Focus lever
A. Zoom Lever

V1365T Series
OSD MENU SETTINGS - V1365T Series
■OSD MENU CONTROL
• CENTER KEY - Used to access menu mode, Also used to confirm the
setting
• UP/DOWN KEY - Used to choose the desired menu selection.
• LEFT/RIGHT KEY - Used to choose the desired menu feature adjustment.
■OSD MENU ENTER/EXIT
A. OSD MENU ENTER
• Pushing Center Key for 3 seconds.
B. OSD MENU EXIT
• Press EXIT Menu from Main Menu
• If Pressing Set Key for 3 seconds from Main Menu appear In this case, just
press Set Key.
C. 'SAVE' and 'QUIT'
•
Left or Right Key
-
Selecting Menu
f“”OCOOf
■OSD MENU CONTROL
• CENTER KEY - Used to access menu mode, Also used to confirm the
setting
• UP/DOWN KEY - Used to choose the desired menu selection.
• LEFT/RIGHT KEY - Used to choose the desired menu feature adjustment.
■OSD MENU ENTER/EXIT
A. OSD MENU ENTER
• Pushing Center Key for 3 seconds.
B. OSD MENU EXIT
• Press EXIT Menu from Main Menu
• If Pressing Set Key for 3 seconds from Main Menu appear In this case, just
press Set Key.
C. 'SAVE' and 'QUIT'
• Left or Right Key - Selecting Menu
• Up or Down Key - Returning to Menu
1. Press the SET key to access the main setup mode.
2. Select the desired feature using the UP or Down key.
3. Change the status of the selected feature using the LEFT
or RIGHT key.
f“”OCOOf

■MAIN MENU
A. SETUP ID
• DISPLAY ID
- ON :The ID name will displayed in the monitor.
- OFF : The name will not displayed in the monitor.
• CAMERA ID : You can be written to 12 characteristic.
• ID POSITION : Select on screen position of the camera ID.
B. LENS
• MANUAL : Use When using Manual lens.
• DC : You can control the brightness of the screen and adjust the desired
DC
level from 10 to -40.
C. WDR
•EXPO(EXPOSURE): It has the effect of lightening or darkening the picture
•WDR (Wide Dynamic Range) : You can adjust the desired WDR level
from 20 to -20.
D. WB CONTROL
• ATW
(
Auto Trackin
g
White Balance
)
: The camera
■MAIN MENU
A. SETUP ID
• DISPLAY ID
- ON :The ID name will displayed in the monitor.
- OFF : The name will not displayed in the monitor.
• CAMERA ID : You can be written to 12 characteristic.
• ID POSITION : Select on screen position of the camera ID.
B. LENS
• MANUAL : Use When using Manual lens.
• DC : You can control the brightness of the screen and adjust the desired
DC
level from 10 to -40.
C. WDR
•EXPO(EXPOSURE): It has the effect of lightening or darkening the picture
•WDR (Wide Dynamic Range) : You can adjust the desired WDR level
from 20 to -20.
D. WB CONTROL
• ATW (Auto Tracking White Balance) : The camera
automatically control the white balance in any environment.
• AWB (Auto White Balance) : The white balance is
automatically adjusted in a specific environment.
• MANUAL : Users can adjust the colors by adding or
reducing the WB level. You can adjust the desired
WB level from 2,500K to 9,500K
E. AGC
• ON : Activate automatic gain control feature.
You can adjust the desired AGC level from 0 to 38dB.
• OFF : Deactivate automatic gain control feature.

F. LOW LIGHT
• SLOW SHUTTER : Control Image brightness by adjusting
shutter speed
- AGC : shutter speed setting( Range 28 to 48)
- MAX FIELD : Shutter open from Min. x2 to Max. x32
filed accumulation period.
• B&W SS (Black and White Slow Shutter)
• GAIN : To get brighter picture.
G. SYNC
• INTERNAL : Internal synchronization
• LINE LOCK : Phase adjustment may be necessary in multiple camera
installations to prevent picture roll when switching between cameras
H. RS485
• CAMERA # : Selectable from 1 to 255
(Note : Pelco D is the default)
I. DAY/NIGHT
•
AUTO : For automatic switchover from day mode to night
F. LOW LIGHT
• SLOW SHUTTER : Control Image brightness by adjusting
shutter speed
- AGC : shutter speed setting( Range 28 to 48)
- MAX FIELD : Shutter open from Min. x2 to Max. x32
filed accumulation period.
• B&W SS (Black and White Slow Shutter)
• GAIN : To get brighter picture.
G. SYNC
• INTERNAL : Internal synchronization
• LINE LOCK : Phase adjustment may be necessary in multiple camera
installations to prevent picture roll when switching between cameras
H. RS485
• CAMERA # : Selectable from 1 to 255
(Note : Pelco D is the default)
I. DAY/NIGHT
• AUTO : For automatic switchover from day mode to night
( Note : This setting is dependent on the AGC setting.)
• B/W : To keep a B/W image at all times
• COLOR : To keep a color image at all times
• CDS : external input signal control
J. EXIT MENU
• EXIT NO CHANGES : No change
• SAVE NEW AND EXIT : Save change
• RESTORE FACTORY SETTINGS : Factory default
• SW REV
K. PREVIOUS PAGE
• PREVIOUS PAGE : Return page

WARRANTY INFORMATION
Digital Watchdog (referred to as “the Warrantor”) warrants the Camera
Series against defects in materials or workmanship as follows:
LABOR: For the initial five (5) years from the date of original purchase, if the
camera is determined to be defective, the Warrantor will repair or replace the
unit, with
new or refurbished product at its option, at no charge.
PARTS: In addition, the Warrantor will supply replacement parts for the initial
five (5) years.
To obtain warranty or out of warranty service, please contact a Technical
Support Representative at 1-866-446-3595 Monday through Friday from 9:00
AM to 5:00 PM Eastern.
A
p
urchase recei
p
t or other
p
roof of the date of the ori
g
inal
p
urchase is
Digital Watchdog (referred to as “the Warrantor”) warrants the Camera
Series against defects in materials or workmanship as follows:
LABOR: For the initial five (5) years from the date of original purchase, if the
camera is determined to be defective, the Warrantor will repair or replace the
unit, with
new or refurbished product at its option, at no charge.
PARTS: In addition, the Warrantor will supply replacement parts for the initial
five (5) years.
To obtain warranty or out of warranty service, please contact a Technical
Support Representative at 1-866-446-3595 Monday through Friday from 9:00
AM to 5:00 PM Eastern.
A purchase receipt or other proof of the date of the original purchase is
required before warranty service is rendered. This warranty only covers
failures due to defects in materials and workmanship which arise during
normal use. This warranty does not cover damage which occurs in shipment
or failures which are caused by products not supplied by the Warrantor or
failures which result from accident, misuse, abuse, neglect, mishandling,
misapplication, alteration, modification, faulty installation, set-up adjustments,
improper antenna, inadequate signal pickup, maladjustment of consumer
controls, improper operation, power line surge, improper voltage supply,
lightning damage, rental use of the product or service by anyone other than
an authorized repair facility or damage that is attributable to acts of God.

LIMITS AND EXCLUSIONS
There are no express warranties except as listed above. The Warrantor will
not be liable for incidental or consequential damages (including, without
limitation, damage to recording media) resulting from the use of these
products, or arising out of any breach of the warranty. All express and implied
warranties, including the warranties of merchantability and fitness for
particular purpose, are limited to the applicable warranty period set forth
above.
Some states do not allow the exclusion or limitation of incidental or
consequential
damages, or limitations on how long an implied warranty lasts, so the above
exclusions or limitations may not apply to you. This warranty gives you
specific legal rights and you may also have other rights that vary from state to
state.
LIMITS AND EXCLUSIONS
There are no express warranties except as listed above. The Warrantor will
not be liable for incidental or consequential damages (including, without
limitation, damage to recording media) resulting from the use of these
products, or arising out of any breach of the warranty. All express and implied
warranties, including the warranties of merchantability and fitness for
particular purpose, are limited to the applicable warranty period set forth
above.
Some states do not allow the exclusion or limitation of incidental or
consequential
damages, or limitations on how long an implied warranty lasts, so the above
exclusions or limitations may not apply to you. This warranty gives you
specific legal rights and you may also have other rights that vary from state to
state.
If the problem is not handled to your satisfaction, then write to the Address
above.
Service calls which do not involve defective materials or workmanship as
determined by the Warrantor, in its sole discretion, are not covered. Costs of
such service calls are the responsibility of the purchaser.

Model No. V1365T
Camera TYPE Color/BW Anti-Vandal Day/Night PIXIM Dome Camera
Mount Surface
Image Device PIXIM CMOS
Size 1/3"
Pixels-Total 742(H) x 552(V)
Pixels-Effective 720(H) x 540(V)
Scanning System 525 line, 2:1Interlace
Horizontal Frequency Internal Mod 15,734Hz
Vertical Frequency Internal Mode 59.94Hz
Min. Scene Illumination F1.2 0.08 Lux [TDN 0.01 Lux]
Functions WDR ON
AGC ON/OFF (Gain Adjust)
AWB ATW / AWB / Manual
Lens Focal Length 3.3 ~ 12mm (3.6x Optical)
Resolution Horizontal 540 TV Lines [at TDN (B/W) :570 TV Lines]
Video Output VBS 1.0Vp-p VBS 1.0Vp-p(75 Load)
S/N Ratio S/N Ratio 48dB
OSD OSD YES
Environmental Conditions Operating Temperature -10℃~ +55℃(14℉~ 131℉)
Humidity Less than 90%
Power Power Requirement 12VDC/24VAC
Power Consumption 12VDC: 190mA
24VAC: 165mA
Physical Specification Dimensions(φx H) 145 x 109.6mm
