Dynalab UM-200 User manual

3211 Fruitland Ave
Los Angeles, CA 90058
UM-200
2-Channel Monitor
Version 2
Installation and Operation Manual
Rev. D
P/N145F-13019
(c) Copyright 2013, Dynalco Controls
All Rights Reserved
Published: December 3, 2013
DVNALCO
Al arm D
Inlet Tern1:,erature
CH2 982 F

1
IMPORTANT - PLEASE READ BEFORE PROCEEDING!
This manual applies to all Version2 UM-200 monitors.
The Dynalco model UM-200 is designed for reliable and rugged operation on engines,
turbines, pumps, compressors and other machinery for accurate process
measurement and protection. This product has been designed and tested to meet the
demands required in many industrial and hazardous locations meeting critical CSA
standards. The performance is directly related to the quality of the installation and
knowledge of the user in operating and maintaining the instrument. To ensure
continued operation to the design specifications, personnel should read this manual
thoroughly before proceeding with installation, operation and maintenance of this
instrument. If this product is used in a manner not specified by Dynalco, the protection
provided by it against hazards may be impaired.
WARNING
•Failure to follow proper instructions may cause any one of the following
situations to occur: Loss of life; personal injury; property damage; damage to
this instrument; and warranty invalidation.
•For clarification of instructions in this manual or assistance with your
application, contact Dynalco at [phone] or [phone] or send email to
[e-mail]
•Additional manuals and CSA certificates are available at
•Follow all warnings, cautions, and instructions marked on and supplied with the
product.
•Use only qualified personnel to install, operate, program and maintain the
product.
•Educate your personnel in the proper installation, operation, and maintenance of
the product.
•Install equipment as specified in the installation section of this manual. Follow
appropriate local and national codes. Only connect the product to power
sources and end devices specified in this manual.
•Any repair is only to be performed by Dynalco using factory documented
components. Tampering or unauthorized substitution of parts and procedures
can affect the performance and cause unsafe operation of your process.
•All equipment doors must be closed and protective covers must be in place
unless qualified personnel are performing maintenance.
•Shutdown / alarms should be tested monthly for proper operation (see page 9)
•Please see page 10 for CSA specific installation instructions.
w

2
System Overview
The Dynalco UM-200 is capable of reading up to 2 input channels, calculating differential
value and providing an alarm / shutdown output.
Basic operation:
The UM-200 will be in “stopped” mode until a run indication is sensed. This is selectable as
either a contact closure or magnetic pickup input. Once “running” mode is sensed, the UM-
200 will read both inputs at a rate of 100 msec per channel. If any input crosses either an
over or under threshold, the unit will invoke a flashing red LED on the front panel as well as
an output trip (solid-state relay) that can be used for alarm or shutdown.
Additional Features
•5 - Digit Hourmeter Function (non-resettable)
•Engine RPM Display
•Fully programmable from front keypad
•Standard SAE case size fits panels with 3-3/8 inch (86 mm) opening
Specifications
Input Types J or K type thermocouple (ungrounded) accurate to +/- 0.2 %
4 - 20 mA
0 – 1 VDC
0 - 5 VDC
0 – 10 VDC
Digital Input Closure to ground indicates run condition (or use pulsed input)
Pulsed Input Magnetic pickup input for RPM display & to indicate run condition
Relay Output Digital Output rated @ 0.15 A / 48 VDC
Input Power 10 – 36 VDC
Display Backlit Graphic Display
Connections Screw Terminals
Operating Temperature Range - 40 to + 70 Deg C
Certification CSA Class I, Division 2, Groups A, B, C, D
User Interface
The UM-200 is configured via the keypad on the front panel which includes a graphical backlit
LCD display capable of displaying alpha numeric values and custom engineering units of
measure. The keypad implements a menu system, which is navigated using the up, down,
left, right, enter and escape buttons. The backlight will turn off after five minutes of inactivity
and will turn on when any of the keys are pressed.

3
Installation
The UM-200 is designed to be panel mounted. The dimensions are shown below.
The UM-200 has a bracket for securing into the panel.
. .
t
¢3 .35
¢3 . 89
'
~
u
=
~
~
1
2. 01
2.94

4
Terminal Connections
All connections are made to terminals on the back of the unit.
Terminal screws to be tightened to 8 inch-pounds torque.

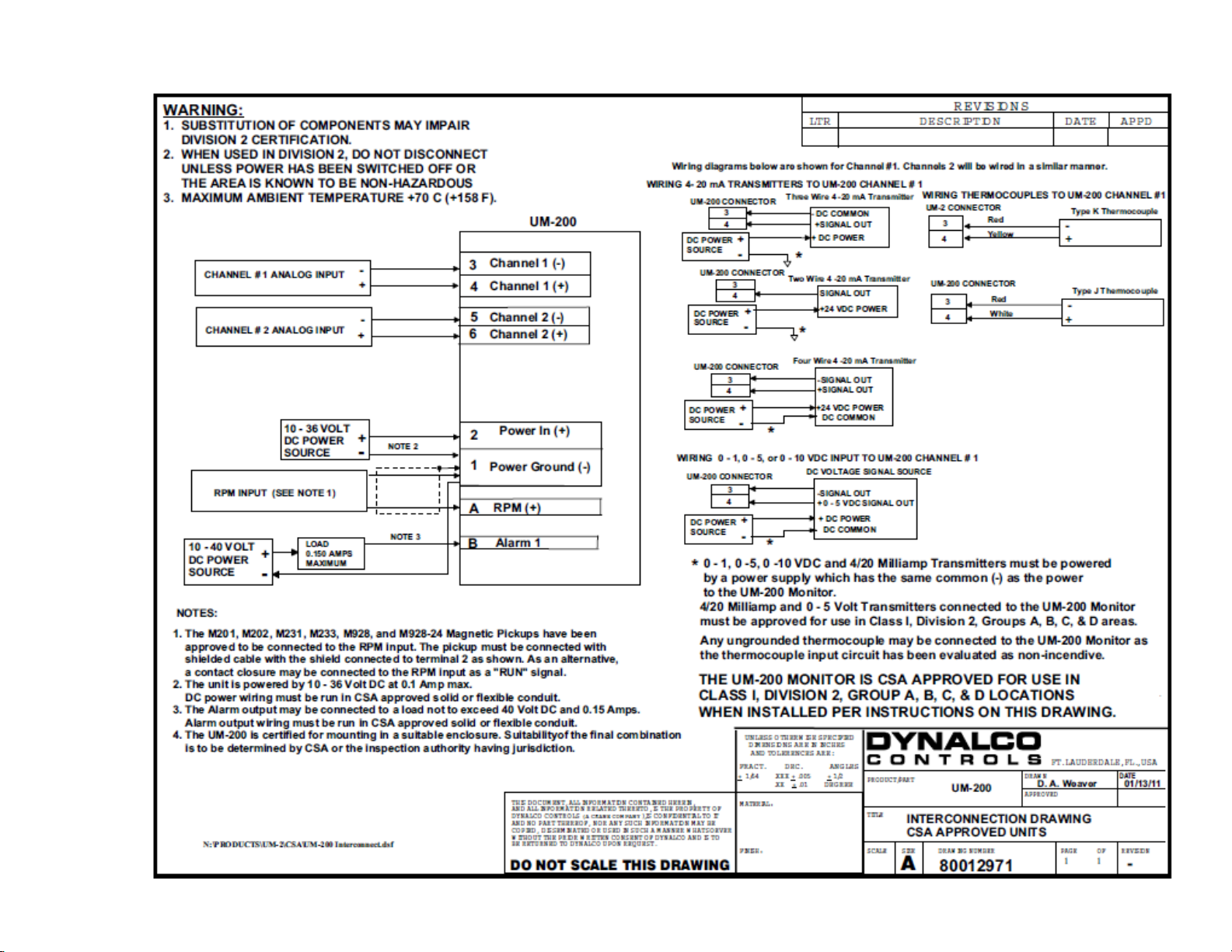

See page 10 for complete wiring information.
SIGNAL TERMINAi
NEG.(-) DCVOLTS 1
P
OS .(+) DCVOLTS 2
NEG.(-)
Al CHNL 1 3
P OS .(+) AI CHNL 1 4
NEG.(-) Al CHNL 2 5
P OS .(+) AI CHNU 6
RPM SIGN AL IN A
ALARM OUTPUT (+) B

5
Programming Overview
All programming is accomplished through the front keypad. Below is a brief description of
each key.
Press to enter or exit the configuration screens
Press to enter or accept values
Select up
Select down
Go back one screen
Select and advance to next screen
..
..
DI
DI
DY NAL OO
Alim Cl
,L.M, 200

6
Initial configuration consists of the following steps:
1) Enabling each input
2) Defining each input type
3) Defining min. & max. display values for any current or voltage inputs
4) Defining measurement display units (PSI, mV, F, C, H20, etc)
5) Setting over / under setpoint trips
6) Setting either latching or non-latching for output trip
Programming Instructions
Important: The UM-200 must first be programmed prior to operation.
When first powering up the unit, the display will first indicate the firmware version and then go
to the operational mode.
To configure each input, first go to the main programming screen by pressing the Menu /
Escape key:
The main configuration screen shows the following icons:
Run Signal - defines run status input type
Channel - enables each channel & defines input type
Calibration - defines zero & span values for DCV & mA inputs
Alarm Settings - defines alarm thresholds
System - configures password & digital output logic
Ill
a
~
~.L
m
,t

7
Configuration of “Run Signal”
Using the arrows on the keypad, select the “Run Signal” icon.
There are (3) run types available. The definitions are as follows:
None: No run indication required. Monitoring is always active.
RPM: Monitoring is active when signal received from magnetic pickup.
Digital: Monitoring is active when contact closure (connection to ground) is sensed.
To select run signal type, use the up / down arrows to select, then press the right arrow.
If “None” is selected, there is no other action required other than to select “escape.” After
selecting escape, you will be asked to select “yes” to save.
If “RPM” is selected, you will need to set the # gear teeth, RPM threshold and startup delay.
The RPM threshold is the speed above which monitoring will be active. The startup delay
allows you to delay monitoring for as many as 300 seconds (5 minutes) to allow time for all
inputs to be at normal levels. If no delay is required, set to 0 seconds. The magnetic pickup
should be connected to input terminals (A) and (1). See page 4 for connections.
If “Digital” is selected, you will only need to set the startup delay (if applicable). In this mode,
a run signal will be sensed with a contact closure (or short) between terminals (A) and (1).
Pressing at any time during configuration will prompt you to save the changes.
Select “Yes” to save any changes made. Selecting “No” will not save changes.
Configuration of each “Channel”
Using the arrows on the keypad, select the “Channel” icon.
Next, select the channel number to configure by pressing the up / down arrows and press the
right arrow. Use the right arrow to navigate and select the following:
Enable Channel Yes / No
Channel Type 0-1 V, 0-5 V, 0-10 V, 4-20 mA, J Type, K Type
Description name input with up to 20 characters
Engineering Units up to 3 characters for PSI, F, C etc…
Note: For thermocouple inputs, you must enter either “F” or “C”
Differential calculations between channels 1 & 2 are also enabled by selecting the
“Channel” icon.
DI
..

8
Configuration of “Calibration”
Using the arrows on the keypad, select the “Calibration” icon.
Next, select the channel number to configure by pressing the up / down arrows and press the
right arrow.
The screens allow you to define the “Cal Zero” and “Cal Span” values for a channel that is
configured for 0-1 V, 0-5 V, 0-10 V or 4-20 mA input.
Example 1:
A pressure transmitter is connected to channel # 1. The transmitter has a 4-20 mA
output representing a pressure input of 0 - 500 PSI. The “Cal Zero” and “Cal Span”
values would be defined as:
Cal Zero = 0
Cal Span = 500
Note that the “Engineering Units” would be input as PSI in “Channel” configuration
above.
Example 2:
An oxygen sensor is connected to channel # 2. The output of the oxygen sensor is 0-1
VDC (0-1000 mV). The “Cal Zero” and “Cal Span” values would be defined as:
Cal Zero = 0
Cal Span = 1000
Note that the “Engineering Units” would be input as mV in “Channel” configuration
above.
Configuration of “Alarm Settings”
Using the arrows on the keypad, select the “Alarm Settings” icon.
Next, select the channel number to configure by pressing the up / down arrows and press the
right arrow. Use the right arrow to navigate and select the following:
Enable alarms Yes / No
Alarm Type latching or non-latching
Alarm Output select to enable output trip
Alarm Low select threshold for under-trip
Alarm High select threshold for over-trip
Alarm Reset Points select either the default reset value or manually set
Alarm Reset Low manually set reset hysteresis for low trip
Alarm Reset High manually set reset hysteresis for high trip
DI DI
~
DI
TG)

9
System
Using the arrows on the keypad, select the “System” icon.
“Display defaults” allows selection of two different screen displays:
“Single Channel” mode displays each individual channel in large format
“Differential” mode displays both input channels plus differential. It also displays
RPM & Hours if the “Run Signal” is configured for “RPM” input.
Note that you are selecting the default layout type. You will be able to change the
layout during normal operation by pressing the left / right arrows.
“Digital output” is used to set the digital output logic as Normally Open or Normally Closed
“Security pin” can be enabled to set up password protection.
Operation
Once programmed, the UM-200 will begin scanning the enabled channel inputs and will
initiate alarms based on over / under threshold values configured for each channel. It is not
necessary to define alarm threshold values for both channels as they may be for monitoring
only.
Alarm / Shutdown Output
The UM-200 will alarm when either channel value or differential value is above or below limits
as specified. Alarms can be configured as either latching or non-latching. If an alarm
condition is met, the red LED on the front panel will blink and the digital output (if enabled)
will trip. Non-latching alarms will reset the alarm if its value returns to normal. Latching alarms
require manual resetting by pressing the “Enter” key on the keypad.
WARNING:
Terminal connection screws to be tightened to 8 inch-pounds torque.
The alarm / shutdown output should be tested monthly for proper operation, especially
if being used for over / under pressure, over / under temperature shutdown or other
critical function.

10
Additional instructions for current users of Dynalco models TID-110 or STM-110 series
temperature monitors
The following products may be upgraded to the model UM-200 monitor:
TID110-11 J type thermocouple (displays in DegF)
TID110-12 J type thermocouple (displays in DegC)
TID110-13 K type thermocouple (displays in DegF)
TID110-14 K type thermocouple (displays in DegC)
STM110-11 J type thermocouple (displays in DegF)
STM110-12 J type thermocouple (displays in DegC)
STM110-13 K type thermocouple (displays in DegF)
STM110-14 K type thermocouple (displays in DegC)
Please see the programming steps in this manual for configuring the proper thermocouple
type and display in either DegF or DegC. Replacing the STM-110 series will also require
setting up the over temp alarm.

11
WARN I NG : REV
ED NS
1. SUBSTITUTI ON OF CO MPONENTS MAY IMPAIR
LTR I D
BSC R lPTDN
7
OATB 7 APPO
DIVISI ON 2 CERTIFICATI ON . I I I
2. WHEN USED IN DIVISI ON 2, OD NO T DISCONNECT
UNLESS POWER
HAS BEEN SWITCHED OFF OR
\'&tig dlilgra ms below are shown for ChnMeln CtmMds 2 WII be wt red., 1smlltr R111mo r.
THEAREA IS KNOWN TO BE NON -HAZARDOUS \WUNG 6-20 mA TRAHSWTTERSTOUM,.2000tA IOE LI 1
3. MAXIMUM AMBIE PfT TEMPERATURE +70 C (+ 158 F) . lD
lll ..2MCOKKECTOR n, .. .,...•· »* 1, ---., WIRINGTHEIRMOCOUPLES TOUM~OO CHI\N.NELl ·I
UM-200 i
DC OOW 1111 0tf 1.111 4 OOtiKECTOR T'ft)t K Tl • _..
• , ·•-OUT EB: ... 1· I
I DC POWER + oc POWEA • Y tlms ,.
SOIJ.RCE L___ A
I CHA ... EL I 1ANI\L OG I NPUT
3 Channel 1 (·) . v
• I
Channe l 1 (+)
IJ .W.~ Ec:JOR T "'°W- • ' ,a..,. T __..,
• 4
IJ .W. fl OOfQfECTOR
I • s-....OUT
[I]:
T'(tW'JT .,._.,...,
...
L I
ICHAH.NEL l2AHA L OG lt,t,UT 5 Channel 2(·I Ioc
POWER +
2•\'0CPOWEA
"""'
• I SO IJ .ICE •
• 6
Channel 2 (+) •
U .1111 ..ict OOtiKECTOR
~ ... . ..i. .. 1, ---.,
• -
aG'-'LOUT
• •SIGKA.L
OUT
IOCPOWEA +
~
24\'0CPOWat
SOURCE • OCOO!il.W:Ut
110 - 36VO LT I 2 Power I n(+)
•
DCPOWER +I •
=•
SO URCE •
WRING 0 • 1, 0 • S. o,0 • 10VDC INP\JTTOUM ~OO CHAN.NELi 1
---------1 Power
Ground (-)
I
OC \IOLT AGE aGKA.LSOU-.llCE
I:
IJ .111 ..io.CO KKECTOR
' •
RPM INPUT ( SU NOTE 1) ' I 4 ....... 0UT
' ' A
RP M I+\
I •
•• • S VOC SIGAAL OUT , ________
IOCPOWEA + •
DC POWER
SOIJ.RCE •
DC OOWIIOJt
,o ,o
10 - 40VO LT H ~
AW 1'S I
~
Ala rm 1 ' •
DCPOWER + IIIAXHIIU
]II
* o - 1, o -5, o - 10 voe and 4/ 20 MUi a.m p Tr ansm i tt ers must be p owe red
SOU RCE
-
by a power su pp ly wh i ch has th e same commo:n (·) as the p owe r
to th e UM- 20 0 Mon i to r.
NO T ES:
41 20 MiH ia.m p and O. 5 Vo lt Transm i tte rs connected to th e UM-200 Mon i to r
1. T
he M201 , M202 , MZ31 , MZ33 , M928 , and M 928 - 2' Mag netic Picku ps haw bee.n
must be a ppr oved fo r use in Cl ass I, Divi sion 2, Gr ou ps A, B, C, & D ar eas .
a
ppr oved to be co nn ,ected to the RP MInput. th e pickup must beco nn ectedwith
Any ung r ounded th er mocou ple may be conneet!ed to the UM- 20 0 Mon i to r as
shle.lded cablewith the shle.ld conne-cted to te. rm lnal 2 ass h <1N n. Asa n a lt e rn ative,
th e th er mocou pl e inp ut c ir cu it has been evaluated as non -i ncend i ve .
a contact closu
re maybe connected to the RP MInput as a"R UN"' slgna l.
TH E UM-200 MON ITO R IS CSA APPROVED F OR USE IN
2. T he unit Is p <1Nef1!-d by 10 • 36 Volt DC at 0.1Amp max.
DC powe.r wlrtng m ust berun In CSAa ppr oved solld or flexlble condui t. CLASS I, D IVI S IO N 2, GROUP A, B, C, & D LOCATIONS
3. T he Alarm output may beco nn ected to al oad not to excee,ct 40 Vol t DC and 0.15Amps..
WHEN I NSTALLED PER I NSTRUCT IO NS ON THIS DRAW I NG .
Alarmoutputwiring m ust berun In CSAa ppr oved solld orflexiblecondu it .
4. T
he UM-200 Is ce rtifi ed for mou nting In as ultablee.nclosu re . Sultabllltyofthefinal combina ti on
mri.ai:s;o111n 11 s•i:n·:.-.u
CIVNALCD
Is to be de te.rmln ed by CSAor theInspecti on authority havingJ ur isdiction.
llll t tll~ O ll~.UIIII ,t:111!$
.UOt'OI.DllllCUAU :
CONTR 0 L S ff .l.AtlDltiDA.U!,i't.- USA
J'UCT . 11•c . -~,
~ 1µ XU .:, .O«. .:, ~R
n.couc,>u, l
lll ""'O. A. WHVIII' l 1t ~1nm
.u ,. .en !;;11) . llQ
U M- 200
~f .PfiC!!!:,,g).~ ,m~ll,lJ:1.lJ.-' . ffli~li:11~U n OP
11.mu .e. . 1
uue ·, 111
l
O'l'II.IJ.COOCMSTlOU: "-•e =--" U: 00 • n:.irn.1.,o r = INTERCONN.ECTI
ON DRAWING
Ull • ll JM:f f:DIIIIIIP. lt01l,\J'l'$11C.ll ll lOll lU , DII IU ., U
01,1111.
o,:: 111 • lns)OllllUII •" ai ... ,....nil ll lllUIOrnll
CSA APPROV ED UNrTS
• ~llln 11111Plllll ll l:-1!L'I" 00n11n11,11U.&1,00 ,\ l[II i ftl
,i •: ff>IIO l)t:' C'fS ,L~~,C'S,A.'l.')d. !• 1 ...,__, all u;r.-• • ~ l!> 11, 11 .u.:o UQ.I" •llllllln . i i I
'~·
••n· •=
e« U -~r.w~n OP I U\'lltir
DO NOT SCALE nu s DRAWING 80012971 I -
