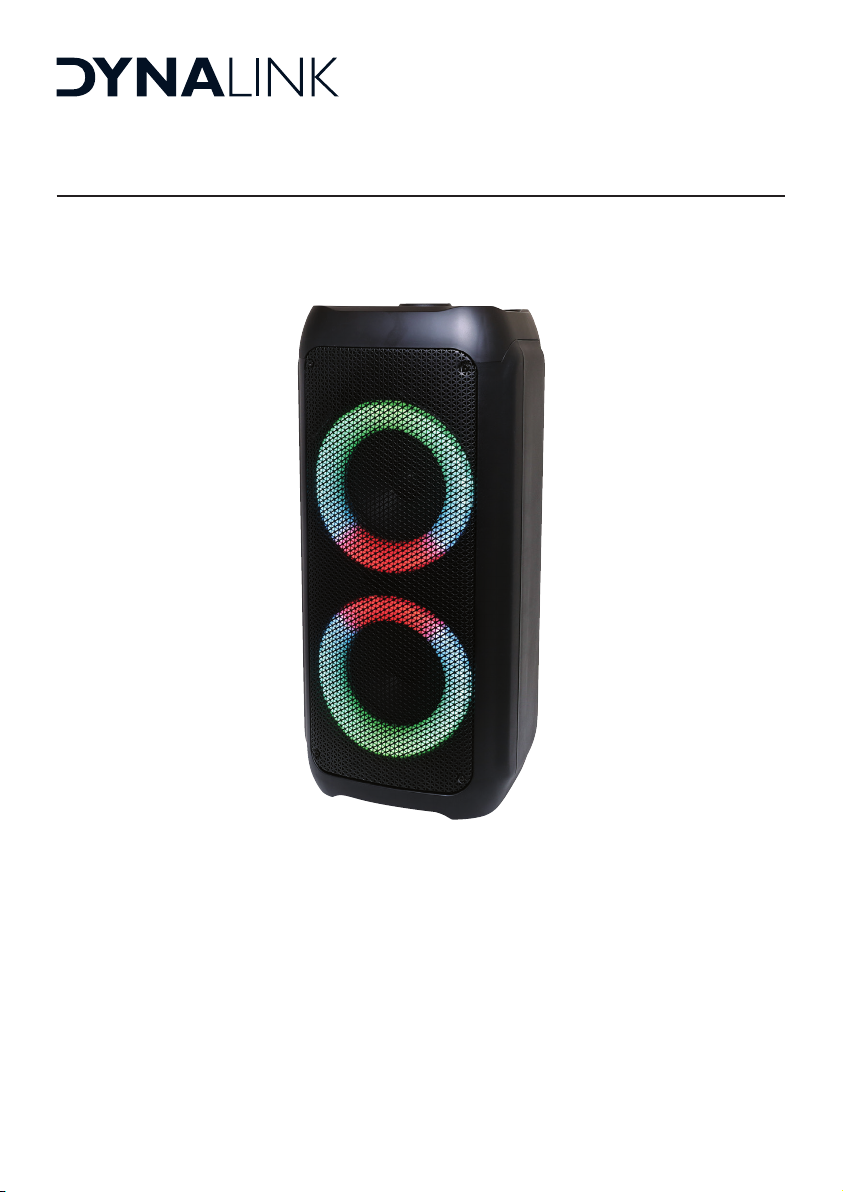

Dynalink C 5160 User manual

Entertainer Portable Bluetooth Speaker
Operating Instructions
C 5160
• User Friendly: Simple plug and play interface
• Bluetooth: Stream audio wirelessly from any bluetooth enabled device
• TWS: True wireless stereo pairing synchronize two speakers together to play the same music
• USB port & Micro SD card slot: Access music stored on memory devices
• FM Radio: Digital FM tuner with auto scan
• Digital Recorder: Record music and spoken word applications directly onto your ash drive
• Wireless Microphone: Included in box, features volume & echo controls
• Mic inputs: Microphone input with independent volume and echo controls
• Volume control: Independant Master volume, bass & treble controls
• AUX input: Plug and play smart phones, tablets & MP3 players
• Power source: Large internal battery for long play times
• Party Lights: Exciting lighting effect with multiple colours
Features

DYNALINK Entertainer Bluetooth Speaker
• Bluetooth Version: V5.0
• Frequency range: 2.4-2.48Ghz
• Working distance: up to 15m
• Supporting: USB/TF card play
• Remote Control: up to 5m in open space
• Output Power: 35W RMS
• Distortion: ≤1.0%
• Frequency response: 180Hz-20KHz
• Working time: 6-8 hours at 80% volume
• Input jack: AUX input, wired microphone input
• Charging input power: 9V DC (adapter supplied)
• Internal Battery: 7.4V 5400mah 39.96Wh
• Dimensions: 560H x 250D x 260W
Specifications
This wireless Bluetooth speaker has been designed for outdoor or indoor entertaining with colour
LED lighting for added party atmosphere. Powered by an internal rechargeable battery, it’s the perfect
speaker to set up anywhere you need instant sound, providing up to 8 hours use before requiring
charge. The unit is True Wireless Stereo (TWS) enabled allowing you to synchronise two speaker units
together for stereo sound in a large room or outdoor area. Stream audio wirelessly from any Bluetooth
enabled device, or play audio from the USB port or micro SD card slot. With the included wireless
microphone you can easily make speeches or perform your own home karaoke along with the music.
Music and microphone audio can also be recorded to connected USB memory sticks.
Overview
Panel Function Description
1. USB Card
2. Micro SD Card
3. Aux input
4. Microphone Input
5. 9V DC Input
6. Power Sw On/Off
7. Adjust the total volume
8. BASS
9. TREBLE
10. Microphone Volume Adjust
11. ECHO
12. Mode Selection
13. Light Mode Selector
14. Record
15. Next Song
16. Play/Pause
17. Previous Song

DYNALINK Entertainer Bluetooth Speaker
Audio Recording Function
Step 1
• Make sure the unit is working, put the USB or TF card into the Slot
Step 2
• Inserting the wired microphone or wireless mic, make sure it is working normally by speaking
some words, example “hello”, if the microphone works well, you can start the record
Step 3
• Long Press the button” REC” then to start recording, you are freely to record what you want
• Short Press the button“REC” to play record when you nish the recording
Remote Instructions
1. MUTE: Press this button to mute the unit.
2. Press this button to toggle between the various inputs (AUX, USB/TF CARD,
BLUETOOTH), Long press this button to turn on/turn off the voice prompt.
3. Press this button to start recording.
4. Press this button to increase the master volume for the unit.
5. Press this button to pause or play the unit when it is working
6. Press this button to select the previous song
7. Press this button to reduce the master volume for the unit.
8. Press this button to repeat one/repeat all.
9. Press this button to play the recording.
10. Press this button to select the next song
11. Press this button to the EQ mode of Normal, Jazz, Rock, Pop, Classical.
12. 0-9, Key number for selecting the certain songs in the USB/TF Card or Bluetooth Device
12
3
4
6
510
11
12
7
8

DYNALINK Entertainer Bluetooth Speaker
• PLAY/PAUSE key-pressing: press the key and the radio will scan the local radio station and save it
automatically.
• NEXT + key-pressing: press the key and the radio will read the saved radio station and select the
next one in ascending order;
• PREV - key-pressing: press the key and the radio will read the saved radio station and select the
previous one in descending order;
Note: MODE key is used to switch radio status in order to use radio key-pressing function; if
the receiving frequency needs inputting manually, press the numbers on remote control directly to
input the frequency of radio station.
Operation of FM receiving function
STEP 1
Press the mode button on front panel to launch the Bluetooth application. Then you will see that ‘bLUE’
show on the screen.
STEP 2
Slide the ‘bluetooth’ switch of your others devices with Bluetooth function to ‘on’, like smart phones,
computer or others, then it automatically begins scanning for nearby Bluetooth devices.
STEP 3
When the “ FG206-07” appears on your devices, tap to connect it. It will show” Connected” on your
device after connected successfully. Depending on which device you are trying to connect the speaker to,
it may be necessary to enter a passcode. Enter passcode “0000” if prompted by the device.
STEP 4
Tap the entry for Bluetooth accessory when it is detected by the smart phone or computer and displayed
on the screen. Then it can use Bluetooth to operate in conjunction with accessory.
Bluetooth Function Instructions
You can connect your one speaker with another speaker and enjoy a True Wireless Stereo experience.
1. Turn ON speaker NO.1 (Master speaker).
Adding a second speaker (TWS)
2. Press MODE button to interchange bluetooth function (screen message bLUE)

DYNALINK Entertainer Bluetooth Speaker
4. Press MODE button (Slave speaker) to interchange bluetooth function (screen message bLUE)
3. Turn ON speaker NO.2 (Slave speaker).
5. Keep pressing “NEXT” button (Slave speaker) until “BLUETOOTH CONNECTED ” voice, The speakers
will pair automatically.
6. Connect your audio device to the MASTER speaker and enjoy TRUE WIRELESS STEREO sound.
When playing back MP3 les from USB or Micro SD card is important to note that the drive must be
formatted in FAT32 le system. Songs will be played back in the order in which they were copied to the
card/USB stick.
Delete all uneccessary les from the drive before attempting playback to ensure reliable playback and
sequencing of les.
Playback from USB/SD memory cards

DYNALINK Entertainer Bluetooth Speaker
Charging: the led light will be in red color
Full: when full-charging the led light will be in green color
Charging time: 5 to 6 hours
Working time: 6 to 8 hours
Charging Indicator
1. This speaker has a rechargeable battery, when the battery power is at, plug in the included adapter to
charge the speaker.
2. When the unit is charging please make sure AC/DC switch should be on, once charged please unplug
the socket from electricity safely. For rst time use, charge the speaker for 10 to 12 hours. After the rst
use, charging will take 5 to 6 hours. Average working time of the speaker battery is around 6 to 8 hours,
typically at 80% volume.
3. In order to maintain a longer battery life, we recommend charging the speaker every time the battery
has gone at. If the battery is left uncharged for a long period of time it could cause damage to the bat-
tery.
Charging Instructions
If there is still fault after the inspection above, please refer to the back warranty page. This unit contains no
user serviceable part inside. Do not open.
Trouble Shooting
Fault phenomenon Simple fault analysis Troubleshooting
Failing to turn on • The power switch is not on
• The electricity quantity of built-in
battery is totally consumed
• Turn power switch on
• Use power adaptor to charge the
battery
No sound • Failing to input sound source
• Failing to establish signal line
• Main volume is switched to
minimum
• USB disk playing has no sound
• Faults with external signal source
• Poor contact or damage of external
signal line
• Change signal source
• Reconnect signal line
• Properly adjust the volume knob
• Inspect USB disk or audio switch
• Change signal source
• Readjust or change signal line
• Totally insert the microphone to the jack
External
microphone has
no sound
• External microphone is not fully
inserted in the jack
• The external microphone switch is
not on
• The volume knob of microphone is
too low
• Turn the switch of the microphone on
• Properly adjust the volume knob of
microphone

DYNALINK Entertainer Bluetooth Speaker
Altronic Distributors warrants this product for one year from date of purchase from Altronics or its resellers
to the consumer. If this item is part of an installation or another product, please contact the installer or
supplier for your warranty.
During the warranty period, we undertake to repair or replace your product at no charge if found to be
defective due to a manufacturing fault. The warranty excludes damage by misuse or incorrect installation
(i.e. failure to install and operate device according to specications in the supplied instruction manual),
neglect, shipping accident, or no fault found, nor by use in a way or manner not intended by the supplier.
For repair or service please contact your PLACE OF PURCHASE.
If this item was purchased directly from Altronics please make a warranty claim by:
1. FOR MAIL ORDER CUSTOMERS (includes school and trade orders),
a) Calling your nearest store location and quoting your tax invoice number.
b) Upon contacting Altronics, we will issue an R.A. (Return Authorisation). As Altronics have a number of
service agents throughout Australia, a copy of the R.A. will be emailed, faxed or mailed to you with full
instructions of how and where to send the goods. The freight for shipping goods back to
Altronics for all repairs is at the customers expense.
c) A copy of the R.A. form, (or at the very minimum, the R.A. number) must accompany the
goods to effect the repair.
d) Altronics will pay the return freight to the customer where the warranty claim has been accepted.
e) Please quote the R.A. number in any correspondence to us.
2. FOR OVER THE COUNTER PURCHASES to make a warranty claim, please return the goods to us in
any of our stores, with a copy of your proof of purchase (tax invoice).
a) Upon leaving the goods at one of our stores, an R.A. number will be issued to you.
b) Once repaired, you will be contacted, advising that the goods are ready to be collected from the store.
It is at Altronics discretion as to whether the goods will be repaired or replaced (whilst under warranty); and
as to whether identical goods will be used to replace the item due to changes of models / products.
Note: Under no circumstances should you attempt to repair the device yourself or via a non-authorised
Altronics service centre, as this will invalidate the warranty!
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail
to be of acceptable quality and the failure does not amount to a major failure.
Distributed by Altronic Distributors Pty. Ltd.
Phone: [phone]
altronics.com.au
Revision 16/10/2020
