Chapter 1 Introduction
1-1 Main Board Overview
The main board is a new-generation PentiumÆ II and PentiumÆ III main board
based on VIA VT82C693/693A chipset. The main board has integrated the latest
advances in processor, memory, I/O technologies into an ATX form factor.
The main board utilizes VIA 693/693A chipset designed for PentiumÆ II and
PentiumÆ III CPUs and supports new architects such as high-speed AGP graphic
port, SDRAM, Ultra DMA/66, bus master IDE and USB port. It has three Dual
In-line Memory Modules (DIMM) which can be installed with SDRAM memory
. The memory subsystem supports up to either 384 MB ( SDRAM) or 384 MB
(EDO RAM). The main board using the Slot 1 socket, accepts IntelÆ PentiumÆ
II (66/100 MHz) & PentiumÆ III(100/133 MHz) processors. Built-in second
level (L2) cache in CPU, there is no cache necessary in this system board.
The main board has implemented VIA VT82C686A high performance I/O
Controller utilizes with fully Plug and Play device which supports 2.88 MB
Floppy, Dual 16550 Compatible (with 16 bytes FIFO, up to 460K baud rate)
Serial Port, ECP (Enhanced Capabilities Port), EPP (Enhanced Parallel Port)
parallel port, Infrared IrDA (HPSIR), Amplitude Shift Keyed IR. (ASKIR) port
and Audio.
The main board supports 4*PCI, 2*ISA, 1*A.G.P and 1*AMR. (three PCI Bus
Mastering slots & 1 PCI Bus Slave slot) for highest performance I/O add-on
adapter cards.

2
The main board is also strengthened with Power Management Wake up Event
such as ìWOL (Wake up on LAN),î ìModem ring onî which are the new
inventions to enable PCs to be turned on over the network. These are also key
benefits in PC operation, asset management, new system setup and power
conservation.
In conclusion, the main board is a combination of the highest in performance,
flexibility, efficiency, and ease of use that meets a variety of price/performance
levels. The main board is an ideal platform for the increasing requirements of
todayís and futureís desktop application.

3
1-2 Reference For PentiumÆ II CPUs
The main board supports Intel Æ PentiumÆ II and PentiumÆ III
microprocessors. The PentiumÆ II and Pentiumô III processors deliver more
performances than previous generation processors (such as PentiumÆ, PentiumÆ
MMXô, etc...) through an innovation called Dynamic Execution Architecture.
It is improved by 3D visualization and interactive capabilities required by present
high-end commercial and technical applications and futureís emerging
applications as well.
Below is the reference for PentiumÆ II CPUs accomodating this main board.
IntelÆ Processors for Slot 1
Pentiumô III PentiumÆ II
100 MHz F.S.B 100 MHz F.S.B 66MHz F.S.B
Katmaiô
W/512K
Deschutesô
w/512K
Klamathô
w/512K
Celeronô
w/128K & CPU
code A
Celeronô w/o
L2 cache
450-500 MHz 350- 450 MHz 233-333 MHz 300 & 333 MHz 266- 300 MHz
Note1: CPU is not enclosed in the package
Note2: Celeronô has 2 models. One is with internal cache and one without.
The one with cache has a CPU code ìA,î such as Celeron 300A..
Note3: When chip is VT82C693A, CPU clock speed setting 133MHz Bus
Frequency.

4
1-3 Specifications
•PCB board size: 30.5 cm x 18.00 cm
•PCB layer: 4 layers
•Slot 1 socket
Support IntelÆ PentiumÆ II CPU at 66 MHz &100 MHz & 133MHz F.S.B
and PentiumÆIII 100MHz F.S.B.
CPU is not enclosed in the package
•Memory DIMM: 3 of 168-pin 3.3V DIMM
!Professional PC
*100 MHz freq. : PC-100 DIMM
* 66 MHz freq. : SDRAM up to 384MB
PC-100 DIMM is required for 100 MHz F.S.B. CPUs.
!Basic PC: 66 MHz freq.
* SDRAM up to 384MB
•Expansion Slot : 2x ISA, 4 x PCI slots, 1x A.G.P. slot and 1 x AMR
•Chipset
!VIA VT82C693/693A
!VIA VT82C686A
•BIOS: flash EEPROM for BIOS
AwardÆ full PnP (Plug & Play) BIOS

5
•I/O function
!2 x PCI IDE devices
!1 x FDC, 2 x serial ports(16550 fast com)
!1x parallel port device /EPP/ECP/SPP
!2x USB connector
!IrDA (infrared) connector
!Audio function
•Green function: Complied with APM (Advanced Power Management)
•ATX form factor
The ATX form factor has been defined to address four major areas of
improvement required of todayís predominant form factors.
!Enhance PC ease-of-use with all built-in I/O connector
!Better support for current and future I/O
!Reduce total system cost
!Better support for future processor technology
ATX is an evolution of the popular Baby-AT form factor. By mounting the
power supply on its side, the processor is relocated away from the expansion
slots, and the longer side of the board is used to host more on-board I/O
connector; this placing of I/O on the board reduces cabling inside the box,
lower costs, and improves reliability and ease-of use. A flexible I/O panel
allows ATX to support all current and future I/O requirements. The ATX
power supply will directly suck the air out of chassis that will save the cost of
a secondary fan in the system. System cost is further reduced by the higher
integration of PC components onto the system board itself, saving materials,
inventory holding, and assembly cost.
•Power supply regulation
Onboard switching voltage that supports appropriate power to the CPU and
future upgraded CPUs.

6
•Over-current protection circuit
With AIC 1569CS AH10 (protect CPU from accident short circuit), if system
current is over-loaded, the system will break down to protect direct damage of
the main board.
•Electrical--- Typical power supply
Below is reference for ATX case requirement on power supply.
Current
Voltage Tolerance
230W 250W 300W
+5V ±5% 23A 25A 30A
+3.3V ±5% 14A 14A 14A
+12V ±10% 9A 10A 12A
-5V ±5% 0.5A 0.5A 0.5A
-12V ±5% 0.8A 0.8A 0.8A
+5VSB ±5% 1A 1A 1A
WOL (Wake up on LAN) function requirement:
Power supply should offer at lest 750mA to the signal ì5VSBîto support WOL
function.
•Special features
!Wake up on LAN (ATX power supply is required)
!Modem ring on
!Windows 95/98 power off (ATX power supply is required)
!AMR
!Audio on board

7
1-4 Notice of Hardware Installation
Before hardware installation, make sure you have checked the following
things.
A. Check the package
If any of these items is missing or damaged, contact the dealer from whom
you purchase. Leave this main board in its original package until you are
ready to install it. In the package, there are:
!the main board
!manual
!cables
!driver & utility / CD
!retention mechanism
B. Make sure power is off.
During hardware installation, be sure there is no power connected at this
period.
C. Avoid ESD (Electrical Static Discharge)
While working with the main board, wear a grounded wristband or ankle
strap to avoid ESD (Electrical Static Discharge).

8
1-5 Notice of CD Driver Installation
This CD contains drivers as below. Read ìIndexî before installing required
drivers. ìIndexî file is HTML format.
CD driver is always updated with the latest version, so the
actual CD content may have some difference with the above
picture.
1. Main boards: i440ZX, i440BX, i440EX, i440LX, i430TX, VIAÆ VPX,
VP3, 691BX, 692BX Pro and 693-based main boards
Please go to ì5MVP4î directory to install drivers.
2. A.G.P cards: S- 6326 and T985
3. Solo-1: ESS-solo-1 sound driver

9
4. Pccillin: anti- virus protection software
5. XStore Pro IDE Driver: IDE Bus Master Driver for Ultra DMA 33
1-6 XStore Pro IDE Driver
Our corporation has integrated High Pointís new-invented software technology,
ìXStore Pro,î to our valued customers as a free service. Developing the
technique of ìread ahead caching after seeking,î XStore Pro increases hard disk
performance. More concretely, it effectively enhances hard disk performance up
to 50%, and system performance up to 10%.
System requirement
Under the below environments, the driver will perform its best in your system.
No extra computer components are required.
T
Windows 95 or Windows 98 environment
T
Recommended system memory: 32 MB or above

10
Chapter 2 Installation

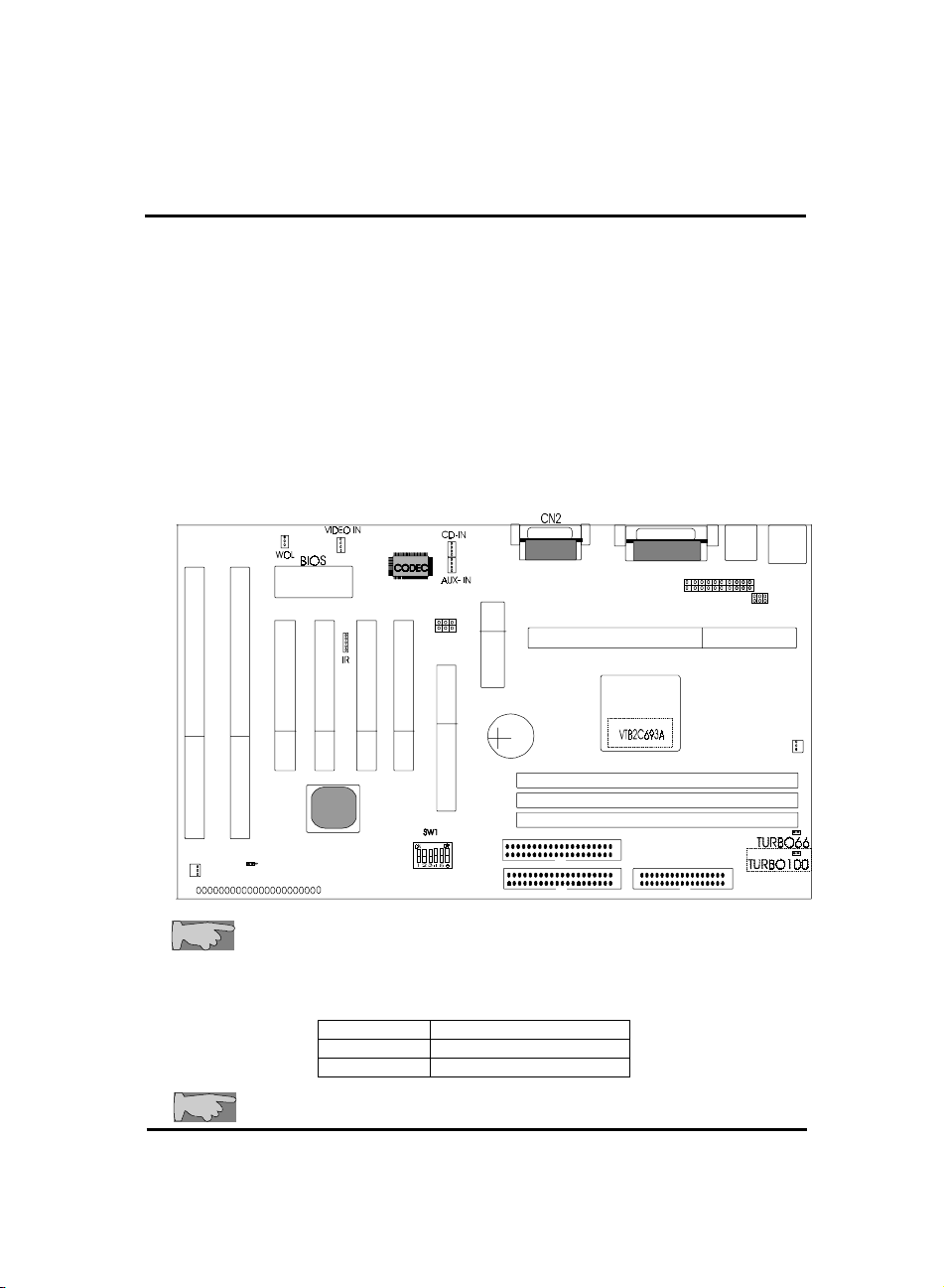

2-1 Layout Reference
TURBO-66 is an over-clocking jumper which enables 66 MHz CPU to run at 100
MHz. TURBO66 is only reserved for internal test only. No guarantee is provided for
over-clocking setup.
TURBO-66 Operation
Close Normal
Open Over-clock
SLOT1
VT82C693
FAN1
DIMM1
DIMM3
DIMM2
IDE1
FLOPPY
IDE2
RTC
VT82C686A
J4
FAN2
USB
COM2/4-COM1/3
LPT
JP2
ATX1
PCI4 PCI3 PCI1PCI2
ISA2 ISA1
KB &
MOUSE
JP1
AGP1
AMR

11
TURBO-100 is a 2-pin connector which setting CPU clock speed. Below function
effective when chip is VT82C693A.
TURBO-100 Operation
Close 100 clock speed
Open 133 clock speed
2-2 Jumper Setting

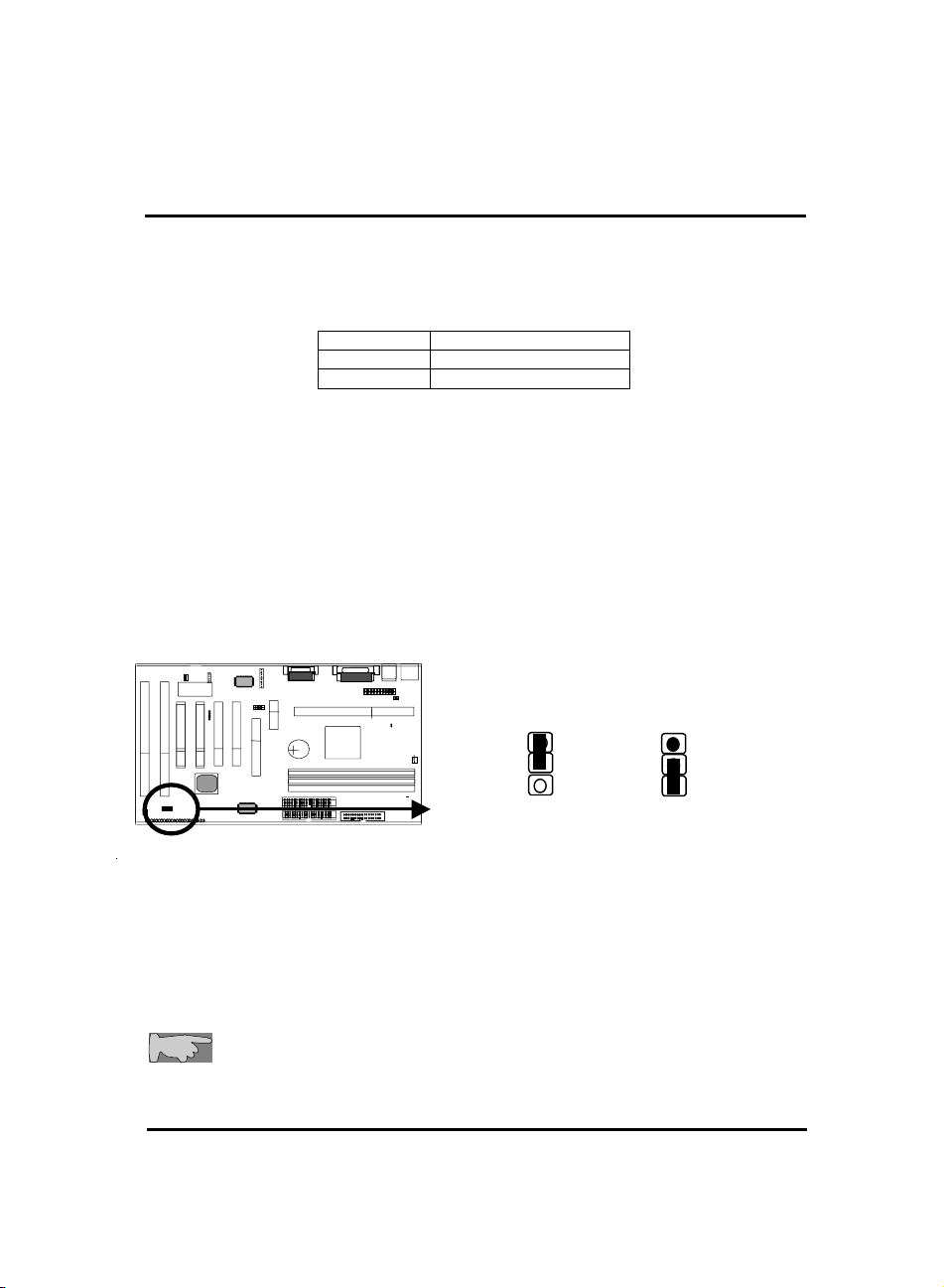

2-2-1 RTC- CMOS status
RTC is a 3-pin connector. Clear CMOS if system password is forgotten. Below
is details to show how to clear CMOS.
Procedure to clear CMOS:
Step 1: Shut down the system and disconnect the power supply from AC power.
Step 2: Pull out the ATX cable from ATX connector ìATX1î
Step 3: Short the CMOS jumper by putting jumper cap on Pin 2-3 for a few seconds.
Step 4: Return to pin 1-2 for normal setup.
Step 5: Link ATX power cable to ATX connector & connect AC power to power supply.
Step 6: Turn on system power.
If youíd like to set password, press ìDelî Key during system bootup to enter
CMOS setup and establish a new password.
RTC
Set to ì1-2î---
Normal default
)
Set to ì2-3î---
Clear CMOS
1
2
3
1
2
3

12

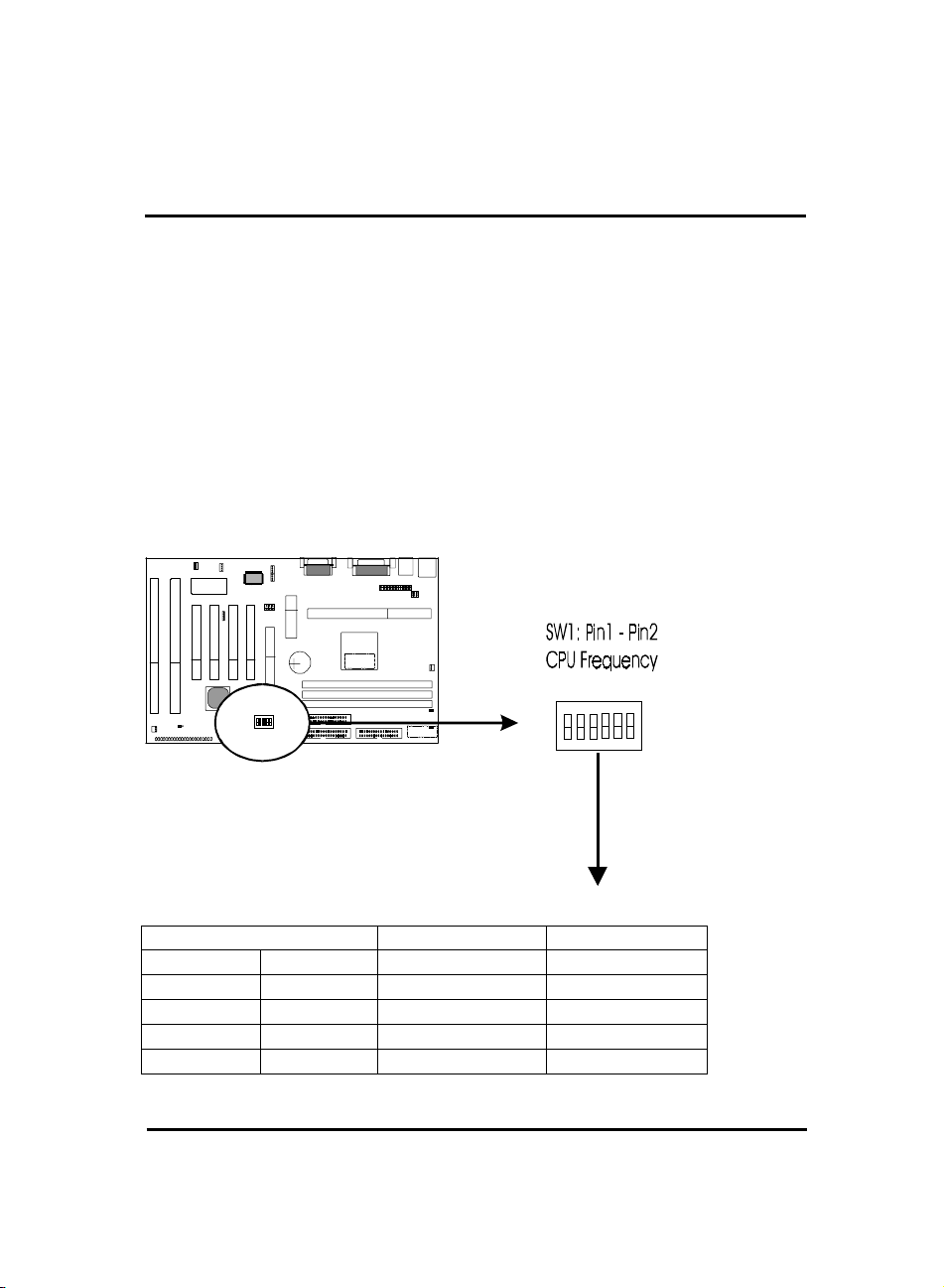

2-2-2 SW1 Pin1 ñ Pin2 : CPU Frequency Selector
SW1 is a 6-pin DIP switch and Pin1 - Pin2 is the CPU Frequency selector. Select
the right frequency according to your CPU, and see details as below.
SW1 CPU BUS CPU FREQ.
12
100 MHz 66 MHz
OFF OFF 100 MHz 66 MHz
ON ON 103 MHz 50 MHz
ON OFF 112 MHz 75 MHz
OFF ON 133 MHz 83 MHz
ON DIP
123456

13

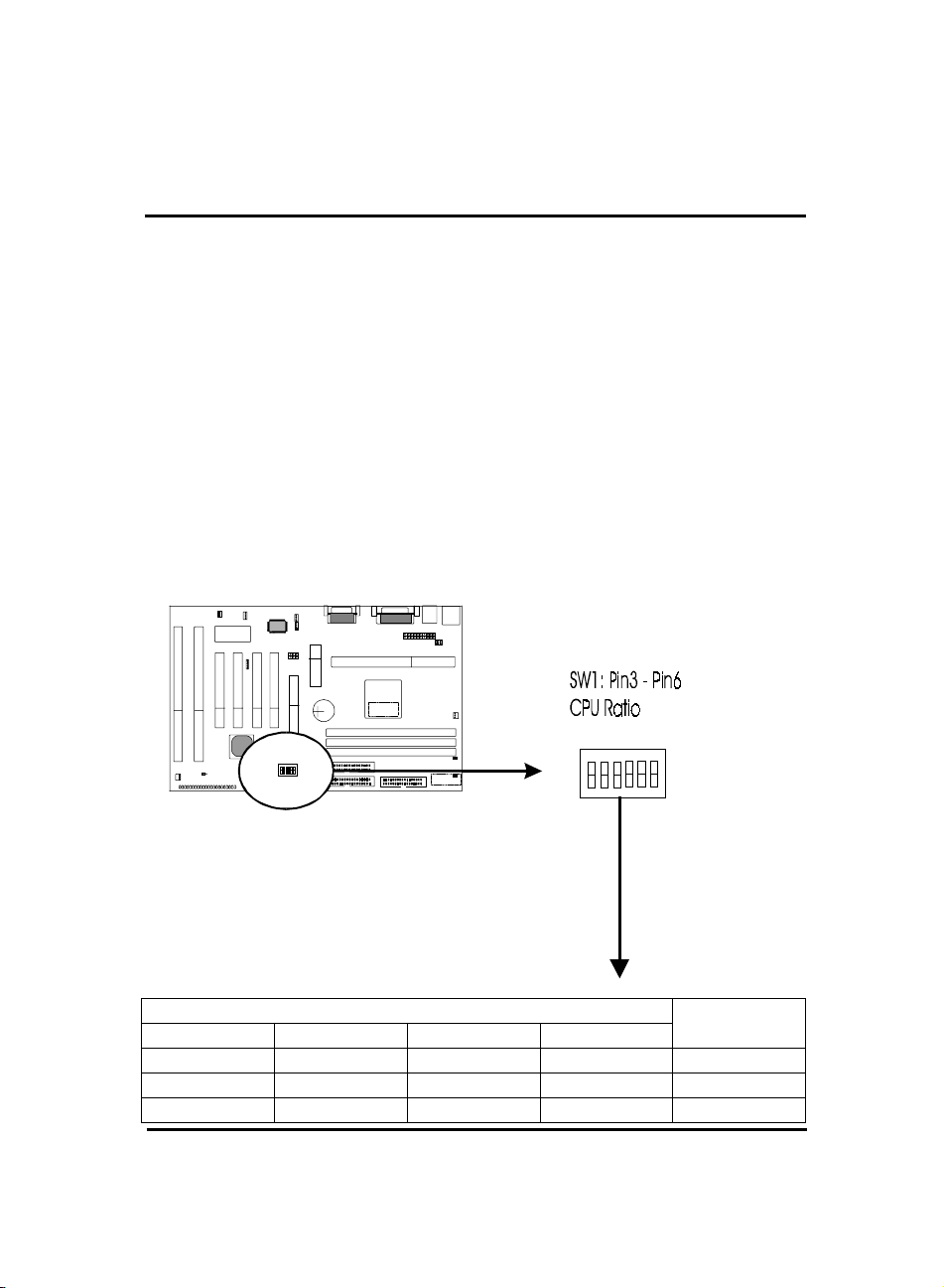

2-2-3 SW1 Pin3 ñ Pin6 : CPU Ratio Selector
SW1 is a 6-pin DIP switch, and Pin3-Pin6 is the CPU ratio selector. Please select
the right ratio according to your CPU and set details as below.
SW1
3456
CPU Ratio
ON OFF ON ON 3x
OFF OFF ON ON 3.5x
ON ON OFF ON 4x
ON DIP
123456

14
OFF ON OFF ON 4.5x
ON OFF OFF ON 5x
OFF OFF OFF ON 5.5x
2-3 Connectors
There are many connectors on this main board. Refer to the following pages for
details.

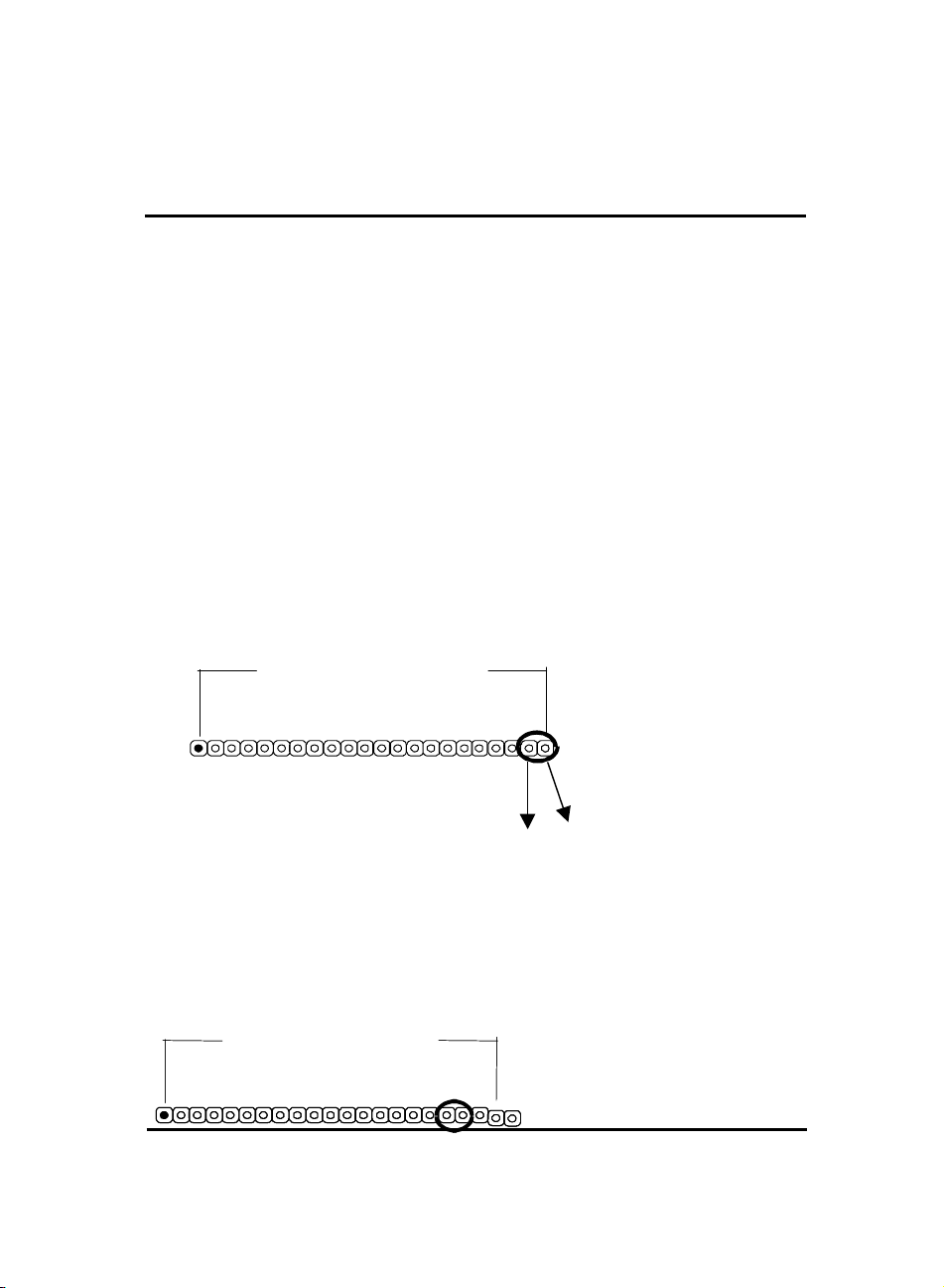

2-3-1 Front Panel
Front panel has connectors as ìEXTSMI,î ìPW-BT,î ìHDD-LED,î ìRESET,î
ìSPEAKER,î ìTURBO,î and ìPW-LEDî. Please refer to details as below.
PW-LED
TURBO
SPEAKER
RESET
HDD-LED
PW-BT
EXTSMI

15
SYSTEM MANAGEMENT INTERRUPT
SMI connector is a 2-pin Berg strip which is also called ìgreenî or ìsleepî
connector. When EXTSMI is turned from open to close and back to open, the
system will enter sleep mode immediately. This function is to make sure power
saving is working well. In PC system, it is used to connect to the push button
EXTSMI switch located on the case front panel (if there is). The system can be
forced to power saving mode by pressing the EXTSMI switch.
POWER BUTTON
Power Button with a 2-pin Berg strip on case front panel indicates the current
power status of system. It is used to connect to the Power Button on the front
panel of the case (if there is).
EXTSMI
GND
J4 : front panel
EXTSMI
J4 : front panel
PW-BT
