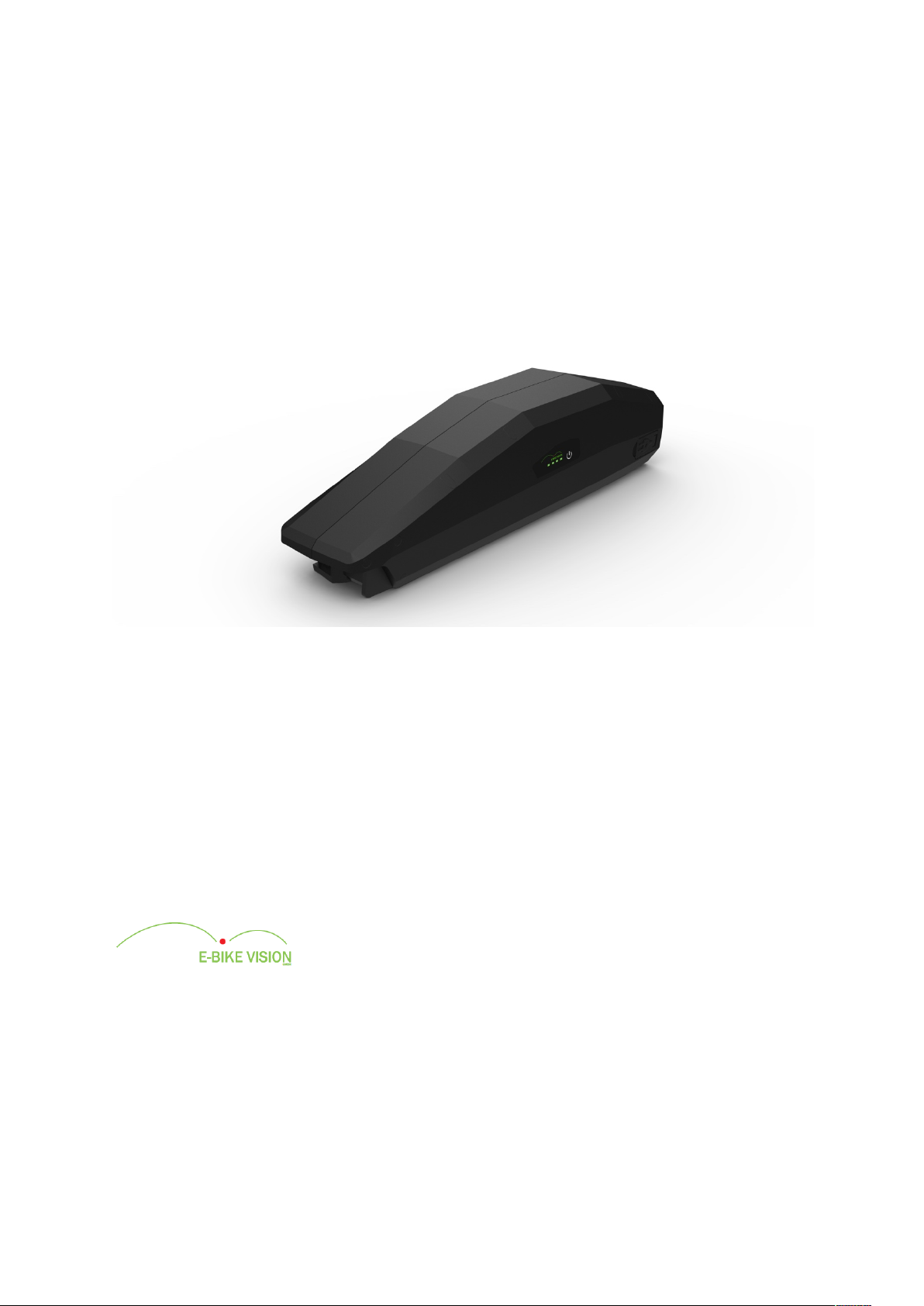

e-bike vision POWERPACK 745 Wh Quick start guide

Manual for Power Pack compatible for Yamaha* PW Series drive system
* Yamaha is a trademark of the YAMAHA CORPORATION Page 1 of 12
Manual / Safety notes
for your E-Bike Vision Power Pack, compatible with
Yamaha* PW Series with 36 V
Power information:
17,1 Ah / 624 Wh Battery downtube
20,7 Ah / 745 Wh Battery downtube
Dimensions downtube version 17,1 and 20,7 Ah: 372,0 x 98,2 x 98,4 mm
Date: January 2020
Version: 01
E-Bike Vision GmbH
Friedenstraße 17
D-63814 Mainaschaff
fon: +49 (0) 6021 / 3289 - 288
fax: [phone] / 3289 - 286
mail: [e-mail]
web: www.e-bike-vision.de
www.facebook.com/ebikevision

Manual for Power Pack compatible for Yamaha* PW Series drive system
* Yamaha is a trademark of the YAMAHA CORPORATION Page 2 of 12
Read manual carefully before use!
This manual is integral part of the product. It contains important information and
safety notes. Keep it in range and give it away with the product to third party.
Introduction
We are glad, that you choose a Lithium battery of our Power Pack range.
Please take some time to read this manual carefully. It contains detailled information about
handling of your battery, it’s functions and it’s care, as well as the usage of the E-Bike Vision
fast charger.
For further questions, do not hesitate to contact your dealer or get in contact with us via our
homepage.
Enjoy your new Power Pack and thank you for your confidence.
Your E-Bike Vision Team
Disclaimer
The E-Bike Vision GmbH assumes no responsibility for any loss, damages or costs arising
from incorrect use and operation of the product, or related.
The obligation to pay any compensation, regardless of the legal reason, is limited to the
directly involved E-Bike Vision products invoiced value, as far as this is permitted by law.
This does not apply, if a liability according to binding legal rules due to intent or gross
negligencem has to be respected. Furthermore, the E-Bike Vision GmbH assumes no
responsibility for the completeness and accuracy of the documents that come with the
battery, due to its‘ different distribution channels.
Guarantee
For our battery products, we accept the legally applicable guarantee beyond a 24 months
warranty. To qualify for the 24 months guarantee, submission of the purchase receipt is
required.
Please contact your dealer from whom you purchased the product, in guarantee cases.
Excluded from the guarantee are malfunctions caused by:
- improper operations, e.g. overheating, incorrect connection, short-circuit or reverse polarity,
immersion in water, cleaning with high pressure or steam cleaners, deep discharge, wrong
polarity or drop
- use of non-approved accessories by the E-Bike Vision GmbH
- accidental or deliberate damages
- defectives due to normal tear
- operation outside the technical specifications
- damages that will not appear directly on the device, for which we assume the guarantee
- grease the contacts with contact spray or similar
- changes / repairs / modifications / installations or upgrades that have not be performed by
the E-Bike Vision service center à use only our service center for repairs
- optical damages that justify no functional damages or which can be remedied by cleaning
- the costs for rental batteries
Removal of the performace label leads to loss of warranty claim.

Manual for Power Pack compatible for Yamaha* PW Series drive system
* Yamaha is a trademark of the YAMAHA CORPORATION Page 3 of 12
CE declaration of conformity
The evaluation of the device was carried out by European harmonized directives.
You therefore have a product that is related to it’s construction meets the safety
objectives of the European Community to the safe operation of equipment. The
detailed CE declaration of conformity can be obtained from our service center.
Technical information
Li-Ionen battery
17,1 Ah / 624 Wh
20,7 Ah / 745 Wh
Nominal voltage
36 V
36 V
Nominal capacity
17,1 Ah
20,7 Ah
Energy
624 Wh
745 Wh
Operating
temperature
-10 up to 60°C
-10 up to 60°C
Charge temperature
0 up to 45°C
0 up to 45°C
Storing temperature
~ 17°C
~ 17°C
Weight
approx. 3,5 kg
approx. 3,5 kg
Safety class
dust- and splash water approved
Care and storage
- Use only a soft cloth and a little water or a neutral detergent for cleaning
- Never clean with a high pressure or steam cleaner!
- Do not immerse in any liquids!
- Do not use any cleaning agents as gasoline, alcohol or other liquids.
- Abrasive cleaning agents can lead to detachment of the painting, discoloration,
deformation, scratechs or similar defects.
- Store your battery at room temperature (18° to 23° C).
- For longer periods, store it at temperatures around 17° C.
- Humidity should be in the range of 0 to 80 %.
- Ideal charging state in not use is about 70 % charged capacity.
- Check the state of charge by prolonged non-use regularly and charge your battery if
necessary.
Accessories
- E-Bike Vision fast charger for power packs with 36 V and a charge current of 7A.
- E-Bike Vision charger for power packs with 36 V and a charge current of 4A.
Both chargers must be used with the following adaptor:
- E-Bike Vision charge adaptor for Power Pack comp. with Yamaha PW Series

Manual for Power Pack compatible for Yamaha* PW Series drive system
* Yamaha is a trademark of the YAMAHA CORPORATION Page 4 of 12
Common safety notes for Power Packs
Please read this manual carefully! Please consider the safety notes!
- Power Packs are no toys. Keep them away from children!
- Don’t change anything on the battery. Especially, consider that you are not allowed to open
the battery, or rather modify it, otherwise you loose your warranty claim.
- By mishandling (heating, e.g. solar irridation or store on radiators, open fire, dipping into
water, cleaning with pressure washer or steam cleaner, short circuit, over charging, deep
discharging, inverse polarity or droping) or situations, that lead to not-proper operation, that
can heart people or catch the battery fire.
- Power Pack batteries are products which may not release any substances under normal
and reasonably foreseeable conditions of use.
- Howerver, should any liquids or gas eject from the battery, avoid any contact with it and
also do not breathe it. If contact occurs randomly, wash the affected skin with water.
- In case of burns or on contact of the eyes with one of these fluids or by respiratory irritation,
please consult a doctor!
- In extreme cases, seal batteries airtight and add dry sand, chalk powder (CACO3) or
vermiculite.
- Do not use damaged batteries or chargers. In any doubt, contact your dealer.
- Do not use battery and/or charger for other purposes.
- You must use Power Packs only in the designated eBikes.
- Use only the appropriate chargers.
- Contacts should not be treated with lubricants.
- The battery connectors at the eBike must be dry and clean before contacting!
- The covers of charge/discharge connectors must be replaced immediately on loss,
otherwise warranty void.
à That way, you do have the maximum saftey!

Manual for Power Pack compatible for Yamaha* PW Series drive system
* Yamaha is a trademark of the YAMAHA CORPORATION Page 5 of 12
Safety notes for charging
Please pay particular attention to the following points when charging:
- Connect the charger only to a suitable mains supply.
- Do not charge NiCd, NiMh or primary cells!
- Use the charger only with the appropriate Power Packs of E-Bike Vision!
- When not using for a longer period, disconnect the mains supply and also connected
batteries.
- The charging time varies depending on the battery’s capacity and charger type.
- Do not charge the battery below 0° and not above 45° C. The battery management system
will not allow to start the charging process.
- Please charge your Power Packs only under supervision and on a non-combustible surface
(both battery and charger).
- The charger is designed for operation in ventilated, dry and dust-free environment. Never
expose to rain or extreme heat. Allow adequate air circulation.
- Do not cover the charger, nor the battery.
- Ensure that that the plugs and sockets of the charger are not damp or contaminated.
- Do not touch plugs and sockets of the charger with wet hands.
- Do not try to convert or disassemble the charger.
- Before the charger is connected to the mains, please ensure that line voltage matches to
the supply voltage of the charger. The charger’s needed voltage is indicated on it‘s
nameplate on the backside.
- A charger with a damaged power supply cord or plug must not be connected to the
electrical grid and must promptly replaced or repaired by the E-Bike service center.
- Penetration of water and moisture into the charger must be avoided in any case. Should
this have happened, power off the charger (by turning off the fuse) immediately. Disconnect
the charger from the mains and let it be checked by the E-Bike Vision service center.
- A sudden temperature change from cold to hot, there could be condensation water on and
in the charger. In this case, wait for connecting to the mains until the charger is as warm as
the room. Try to avoid this case by storing the charger where you use it.
For maximum life of your battery, charge it only within 10° and 30° C temperature range.

Manual for Power Pack compatible for Yamaha* PW Series drive system
* Yamaha is a trademark of the YAMAHA CORPORATION Page 6 of 12
The charging
You can charge your new battery as usual with the original charger, which was
included in the scope of delivery when you purchased the pedelec.
When using the E-Bike Vision charger in combination with the optionally available
charging adapter or when using the original charger, you can charge your battery in the
Pedelec or outside the Pedelec.
Requirements for charging in the pedelec
Open the cap of the charging socket, which is located on the bike frame or near the battery.
It is irrelevant whether the drive system is switched on.
Requirements for charging outside of the pedelec
You can start charging outside the pedelec by switching off the drive system. Please wait
until all the LEDs on the battery have gone out. Now you can remove the battery as usual by
unlocking the lock and z. B. in your apartment or garage in your presence.
Start the charging process with the original charger
1. Connect the charger to the electrical network.
2. Make sure that none of the battery LEDs light up if it is not installed in the pedelec.
3. If necessary, wake the battery from deep sleep by pressing the button on the
battery.
4. Now insert the charger plug into the battery.
5. The charging process starts and the LED of the battery, which corresponds to the current
state of charge, starts to flash.
6. If the charging process does not start immediately, press the capacity button on the
battery to check and wait until the capacity indicator lights up.
7. Only in conjunction with an optionally available 7A charger: If the battery is almost
fully charged (3 LEDs light up and the 4th flashes), the charger fan may not start
because the charger immediately switches to the so-called constant voltage phase .
Here the power consumption of the charger is very low and it is not necessary to run
the fan.
The fan will also switch off towards the end of the charging process, as this is no
longer required in the constant voltage charging phase.

Manual for Power Pack compatible for Yamaha* PW Series drive system
* Yamaha is a trademark of the YAMAHA CORPORATION Page 7 of 12
Names of the LEDs on the capacity indicator
Legend of the LED display
Anzeige
Beschreibung
LED off
LED on
LED flashes slowly (0,5 s interval)
LED flashes quickly (0,2 s interval)

Manual for Power Pack compatible for Yamaha* PW Series drive system
* Yamaha is a trademark of the YAMAHA CORPORATION Page 8 of 12

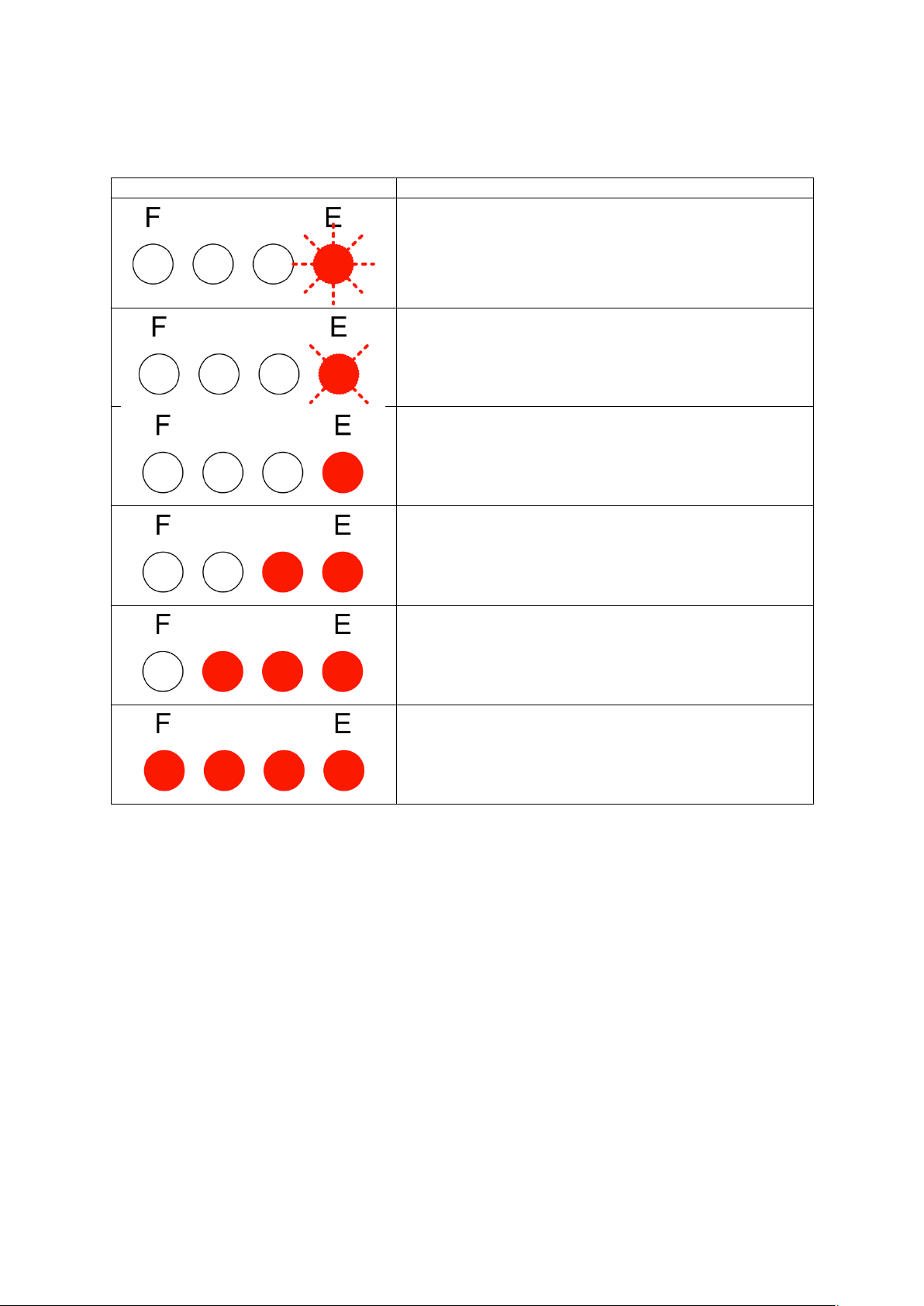

During the charging process, the capacity is indicated by the lighting and flashing of
the LEDs on the battery as follows:
Display
Description
Charging 0 – 24%
Charging 25 – 49%
Charging 50 – 74%
Charging 75 – 99%
Battery fully charged (100%)
Finishing charging
1. To complete the charging process, pull the plug of the original charger on the unlocking
ring straight out of the battery. Then pull the charger plug out of the socket.
The charging process with your original charger is finished (charge status 100%)
when all LEDs of the battery have gone out.
Charging times
The battery with a capacity of 17.1 Ah (624 Wh) requires approx. 5 hours for a full charge
with the original standard charger 4A and approx. 3 hours with the optionally available quick
charger 7A from E-Bike Vision GmbH .
The battery with a capacity of 20.7 Ah (745 Wh) takes approx. 6 hours for a full charge with
the original standard charger 4A and approx. 4 hours with the optionally available quick
charger 7A from E-Bike Vision GmbH .

Manual for Power Pack compatible for Yamaha* PW Series drive system
* Yamaha is a trademark of the YAMAHA CORPORATION Page 9 of 12
Battery usage
Your power pack automatically goes into so-called deep sleep mode after approx. 14
days to keep self-discharge as low as possible. Before the next use (charging or using
the pedelec), the battery must be awakened from deep sleep by pressing the button on
the battery. Waking up is symbolized by turning on the LEDs in sequence.
The drive system is also switched off (by the battery) after approx. 5 minutes if the
Pedelec is not used. It is irrelevant whether the light of your pedelec is activated or
not!
When inserting the battery, make sure that it is correctly positioned before you snap it
into the lock. Otherwise the battery case may be damaged!
Do not press the capacity button several times in quick succession, otherwise you will
immediately activate and deactivate the battery again.
Have you correctly installed your new E-Bike Vision Power Pack in your pedelec and locked
it with the lock (don't forget to remove the key!)? Then switch on the drive system using the
on / off switch on your display. The drive system now reads the current capacity from the
battery and your motor will calculate the approximate remaining range based on your
previous driving profile. The battery has no influence on the range calculation of the drive
system.
Do not remove the battery from the pedelec while the drive system is activated. Switch
this off beforehand!

Manual for Power Pack compatible for Yamaha* PW Series drive system
* Yamaha is a trademark of the YAMAHA CORPORATION Page 10 of 12
The LED status display on the battery:
The battery status is displayed by pressing the button on the battery once.
Display
Description
State of Charge 0%
State of Charge 1 – 10%
State of Charge 11 – 25%
State of Charge 26 – 50%
State of Charge 51 – 75%
State of Charge 76 – 100%
By pressing the button on the battery for a longer time, further information can be displayed.

Manual for Power Pack compatible for Yamaha* PW Series drive system
* Yamaha is a trademark of the YAMAHA CORPORATION Page 11 of 12
Display of charge cycles
By pressing and holding the button for a period of approx. 20 seconds, the full cycles are
displayed for the entire operating time:
LED 1 flashes 0 - 100 full cycles
LED1 lit: 100 - 200 full cycles
LED1 lit, LED2 flashing: 200 - 300 full cycles
LED1, LED2 illuminated: 300 - 400 full cycles
LED1, 2 illuminated, 3 flashing: 400 - 500 full cycles
LED1, 2, 3 illuminated: 500 - 600 full cycles
LED1, 2, 3 lit, 4 flashing: 600 - 700 full cycles
LED1, 2, 3, 4 illuminated: 700+ full cycles
Health status display (SOH)
By pressing and holding the button for a period of approx. 30 seconds, the health status of
the battery is displayed:
LED 1, 2, 3, 4 illuminated: 100 - 75% SOH
LED 1, 2, 3 illuminated: 74 - 50% SOH
LED 1, 2 illuminated: 49 - 25% SOH
LED 1 illuminated: 24 - 0% SOH
Manually put battery into deep sleep mode
By pressing and holding the button for a period of approx. 40 seconds, the battery is put into
deep sleep (deep sleep mode). This is signaled by the LEDs being switched off in sequence,
starting with the 4th LED.
The battery wakes up again by pressing the button once.
Please note that your battery automatically goes into deep sleep after a period of approx. 14
days when not in use.
Light support
Your new Power Pack has the latest and safest battery management system technology to
protect you and yourself from incorrect operation. Before the cells of the battery are deeply
discharged, the battery switches off the motor of your drive system. However, there is
enough energy left in the battery to safely drive home with the lighting switched on if you
operate the lighting via the drive battery. Electrical circuits that are operated via the drive
battery also continue to work.

Manual for Power Pack compatible for Yamaha* PW Series drive system
* Yamaha is a trademark of the YAMAHA CORPORATION Page 12 of 12
Maintenance
The life span of your Power Pack depends mainly of your carefully usage.
Never use the complete capacity, but use it regular and store it at 17° C. That way, your
battery will thank you will longer life span.
With increasing aging your battery will loose capacity, anyway.
Do not try to refresh or exchange the cells on your own!
Get in contact with our service department. They can also rate and exchange single
components after the warranty time.
An essential shorte usage time after fully charged the battery indicates that the battery is
dissipated, however. Replace it!
Troubleshooting
If your drive system can not be activated, please check the contacts of the discharge plug to
make sure that they are clean, straight and undamaged and that there is a safe contact
between battery and connector box.
If the drive system can still not be activated, please try to charge your battery.
If charging does not start, please check the polarity of the charge plug.
Please test the battery by pushing the capacity indicator button.
Is the power cord of the charger connected properly and performs the wallet socket?
Is the green LED of the charger flashing? If this is flashing red, there can be a short circuit.
Charger and battery must be returned to the E-Bike Vision service center.
If the battery is damaged, defective or exits any liquids or smell? Please do not use your
Power Pack further and contact your dealer or our service center.
Recycling
Do not dispose lithium batteries in the household waste!
Return defective or used batteries to the battery dealers or to the municipal waste
collection centers. Turn back the battery in discharged state. Also prevent short-
circuits by covering the terminals.
With the proper disposal of your battery, you make an important contribution to protect our
environment.
