E-Broh Spuma Li Instruction manual

1
Manual for quick start
Manual for electrical motorcycles SPUMA li.
MANEBROH003-EN

2

3
Notice for user
Warnings
1. Please read carefully this Manual before using the motorcycle for a correct use.
2. Check please carefully whether parts are complete as indicated in the Manual of the product before your ride for the sake of safety.
3. Please follow trafc laws. Slow down on rainy or snowy days, on slippery roads.
4. The scooter Ebroh can operate on rainy or snowy days, on slippery roads. Increase the braking distance for the sake of safety.
5. Do not dismantle the scooter on your own.
6. Please contact the after-sales service for replacement or purchase of original parts.
7. Do not lend your Spuma Li to those who can´t operate an Ebroh scooter for the safety of the others and for preventing unnecessary
damage to your scooter.
8. Please keep this Manual and the Guarantee Card properly.
9. Do not connect nor disconnect the battery when the switch is on.
1. 1. Rider and passenger
Spuma Li is not designed for a ride of more than 2 persons.
2. 2. Road conditions
Spuma Li is only suitable for riding on asphalt.
3. 3. Please read carefully this Maintenance Manual.
Warning: failure to follow the instructions herein may lead to serious casualties.
Caution: Failure to follow the instructions herein may lead to personal injury or damage of parts.
Note: Provide useful information.
4. This product Manual should be deemed as a permanent document of Spuma Li scooter. If this scooter is transferred to others, this Manual
should be handed over to the new owner as well. Without the written consent of the Company Ebroh, reproduction or reprint of any part of
this Manual is prohibited.

4
1. Using safety clothes is very important. Use a quality safety helmet.
2. Know your Spuma Li. Your riding skills and mechanical knowledge are the basis for safe riding. You are advised to practice your riding on
open, quiet roads, and to know the mechanical performance and operation methods at rst.
3. Be aware of your riding skills. Always ride the scooter within your skill range. Knowing your riding skills and the operation methods of the
scooter will prevent accidents.
4. Pay attention on our driving. It should be noted that the braking distance on rainy days should be twice of that on sunny days. Always avoid
the roads with paint markers, manhole covers and oil stains to prevent slipping. Pay extra attention when riding through railway crossings,
iron fences and bridges. Slow down if road conditions are unclear.
5. Do not use the high beam light indiscriminately.
Continuous use of the high beam light on urban roads and pedestrian roads may disturb the visibility of the drivers and pedestrians and affect
normal, safe driving. Do not use the high beam light when the road is well lighted.
6. Do not make or receive calls while riding.
Making or receiving calls while riding is one of the main reasons for inattention and will easily cause accidents. Please stop the scooter before
you make or receive calls.
7. Do not change the lane indiscriminately.
Changing the lane indiscriminately is one of the main reasons of accidents. When you need to change the lane, remember to switch on the turn
indicator rst. Check the scooters approaching for behind and change the lane when it´s safe.
Safety notes

5
Contents
1. Notice for User.................................................................................................................................................................................................................................................................................... 3
2. Cautions .................................................................................................................................................................................................................................................................................................. 3
3. Safety Notice....................................................................................................................................................................................................................................................................................... 4
4. Parts Information............................................................................................................................................................................................................................................................................. 6
5. Operational Guide for Ebroh scooter Spuma Li.................................................................................................................................................................................................... 8
6. Dos and Don´ts in Riding.............................................................................................................................................................................................................................................................13
7. Maintenance, Repair and Storage ....................................................................................................................................................................................................................................15
8. Guarantee Policy.............................................................................................................................................................................................................................................................................. 19
9. Technical Information .................................................................................................................................................................................................................................................................. 20

6
19
PARTS INFORMATION
1. Head light led
2. Front shock absorber.
3. Battery
4. Rear carrier
5. Rear light.
6. Intermittent Back Indicator led.
7. Motor brushless
8. Intermittent Front Indicator led
9. Back Reector (LR)
10. Brake levers (LR)
11. Support Side Stand.
12. Front disc brake.
13. Central easel
14 Rear tyre
15 Front tyre
16 Mirrors.
17 Rear fender.
18 Stand of switch.
19 Plug for battery charging.

7
Según modelo
1. Left turn 7. Battery percentage.
2. Right turn 8. Throttle handle failure.
3. High beam light 9. Brake fault.
4. Stop or parking indicator (according to model) 10. Motor fault.
5. Gear shift indicator. (according to model) 11. Low battery warning (<10%)
6. Total of kilometres travelled. 12. Battery charge status indicator
Indicador de batería H-L barra vertical de la izquierda
1. 81-100%: ve lines. 5. 11%-20%: one line
2. 61-80%: four lines. 6. 6%-10%: ash line.
3. 41-60%: three lines. 7. 0%-5%: non line.
4. 21-40%: two lines.
Display information

8
Start the scooterOpen the trunk
Lock the
steering
handlebar
Open the trunk
O󰀨
On
Insert the key into the lock hole and
turn it.
Apagado y encendido para abrir y
bloquear el maletero.
Turn to to lock the steering
handlebar.
Operational Guide

9
Operational Guide
Left Combination
High/Low Beam Light: Press the upper part to turn on the high beam light; press
the lower part to turn on the low beam light.
Turn Indicator: Push the button left to turn on the Left Turn (2) Indicator; push the
button right to turn on the Right Turn Indicator. Press the button to reset the
Left/Right Turn.
High/Low Beam Light
High Beam Light
Low Beam Light
Press the button to reset/switch
off.
Push the button left/right to turn
on the Left/Right Turn Indicator.
Turn Indicator
Horn.

10
Right Combination
Double ash. Parking
light
Motor Switch.
Reverse Gear.
Steering Handlebar
Front Brake.
Change.
Maintenance switch
(upon model)
Operational Guide

11
Operations Guide
BATTERY USE ENVIRONMENT
The battery is to be used at the environmental temperature range between -10 C and 45 C.
Do not expose the battery to water, beverages or corrosive liquids to prevent possible leakage, overheat, smoking, re or explosions.
Do not keep the battery close to a heat source, open re, inammable and explosive gases and liquids. Metal objects in the battery
compartment may lead to leakage, overheat, smoking or explosions.
In case of undesirable odour, overheat or deformation of the battery, please stop using the battery immediately, keep away from the battery
and contact the after-sales service.
WARNING: The battery is not a repairable part by the user. In case of battery fault, please contact
the after-sales service.
Users dismantling the battery may lead to leakage, overheat, smoking, re or explosions.
BATTERY USE ENVIRONMENT
Charging on the scooter Ebroh.
1. Plug the charging plug into the charging socket (front of seat pos. 19). After the charging indicator turns from green to red, charging is
started.
2. Insert the key and unlock the scooter Ebroh during charging to see the current battery level on the meter panel.
Charging the battery out of the scooter Ebroh
1. Remove the battery from the scooter Ebroh.
2. Plug the charging plug into the charging socket. When the charging indicator turns from red to green, charging is
nished.

12
Attention:
If the battery is not full after charging for over than 24 hours, please stop charging and contact the after-sales service. To maximize battery
life, users are advised to keep the battery percentage within the range of 20% to 80% as practicably as possible. Please use the accelerator
handlebar gently in a normal ride.
Do not keep the battery at environmental temperatures over than 40 C so as to prevent irreversible capacity loss of the battery. At low
temperatures, the lithium battery capacity will lose at varying degrees. To be more specic, the usable capacity at -10 C is 70%, at 0 C 85%
and at 25 C 100%. The best battery capacity for storage is 50%. Storage of battery less than 10% full or more than 90% full over a long period
of time will cause irreversible capacity loss of the battery.
For storage over a long period of time, please keep the battery at an ambient temperature from -20 C to 40 C, and have a charge and a
discharge at least once a month so as to minimize battery capacity loss in storage.
Operational Guide

13
Checks before Riding
CHECK DESCRIPTION KEYS
Steering Handlebar 1. Steadiness.
2. Flexible steering.
3. No axial displacement or loosening.
Braking 1. Braking handlebar has a 5 to 9 mm idle travel
2. The air pressure range of the front tyre is between
1,38 and 1,72 bars (20 and 25 psi); the air pressure range
of the rear type is between 1,79 and 2,20 bars (26 to 32
psi).
Tyres 1. Normal air pressure.
2. Proper tyre tread depth.
3. No cracks or openings.
Battery Adequate for planned distance to travel
Lights Check all the high beam light, low beam light, turn
indicator and brake light.
Horn Check whether the horn can work.
Dos and Don´ts in Riding

14
Dos and Don´ts in Riding
BREAKING PRECAUTIONS
Always balance the scooter Ebroh before braking. If the tyres are locked resulting from excessive braking force, loosen the grip on the
braking handlebar and the tyres will be working again and the scooter Ebroh will be stabilized. If the front tyre is locked, the scooter Ebroh
will lose the steering power. Try to maintain a 1:1 ratio of front and back braking force on slippery roads.
Attention:
The inexperienced drivers tend to use the rear brake only, which will accelerate the wear of the brake and as a result of this
loss of the ground adhesion, the braking will need a longer stopping distance.
Warning:
Using the front brake or rear brake only is dangerous because of a loss of asphalt adhesion or control loss. Pay extra attention
and use the brakes gently when riding on damp, slippery roads and around the curves. Riders slamming on the brakes will be
exposed to great danger.

15
Maintenance, Repair and Storage
To extend the service life of the scooter Ebroh and for a safe, comfortable ride, users are advised to have the scooter checked and
maintained on a regular basis. A scooter Ebroh not used for a long period of time also needs to be checked on a regular basis.
REGULAR MAINTENANCE.
The rst maintenance should be conducted one month after the purchase or after a travelling distance of 500 km. An overall check and
maintenance should be conducted in our after-sales service every 6 months or 3000 Km thereafter. Regular check and maintenance are
aimed for the safety of the scooter Ebroh and the rider.
Attention:: If the scooter is frequently subject to such use conditions as overload, high-speed, bumpy roads, uphill and downhill
riding, the maintenance cycle should be shortened. Original parts made from quality materials and rigorously tested are
recommended for guaranteed quality and service life, and for best scooter Ebroh conditions and riding safety. Parts are
under guarantee standards.
DAILY MAINTENANCE
If anomalies are found during checks and the scooter Ebroh needs cleaning, maintenance or parts replacement, users may have checks and
maintenance in reference to the Home Repair Instruction or send the scooter Ebroh to the dealer´s for checks and maintenance.
Warning:
If you are not able to repair or adjust on your own, the scooter has to be sent to the dealer´s for maintenance and adjustment
for the sake of safety. Always choose a smooth surface road for repair and adjustment and unfold the central stand before
repair and adjustment. If it were necessary to repair the scooter Ebroh during a ride, please mind the trafc.
A. Brake Adjustment.
If any anomaly is found during checks and the scooter Ebroh needs cleaning, maintenance or parts replacement, users may have checks and
maintenance in reference to the Home Repair Instruction or send the scooter to the dealer´s for checks and maintenance.
B. Battery Switch
The scooter is equipped with battery switch. If the switch is disconnected, remember to identify the cause before connecting the switch.

16
SCOOTER WASHING
Please use a hose and wash the scooter Ebroh with running water and neutral detergent. Wipe the scooter Ebroh after washing with a piece
of soft cloth to prevent scratching.
WARNING:
Never use a pressure water to wash the scooter Ebroh. Do not wash the sides, the rear and the
inner of the battery compartment with a pressure washer. Do not ush the upper side cover
on the rear wheel where the charger, controller and other parts are installed, so as to prevent
damage by water. If the scooter Ebroh falls to the ground by accident, the AC high-voltage
charger may be wet. In that case, do not charge before the charger dries to prevent an electric
shock. Repair into the service centre is recommended. Do not use it before it´s properly checked.
STORAGE METHOD
Advices for storage:
1. Keep the scooter Ebroh on at, steady surface in a well-ventilated and dry place.
2. Charge the battery to 50% full before storage to ensure the service life of the battery.
3. Avoid exposing scooter to the sun and rain as much as possible to reduce damage or aging of the parts.
4. Charge the battery to 100% full for long-term storage.
5. If the scooter Ebroh installed with battery is stored indoor or in safe places like showrooms or packed for short-distance transport in
transportation vehicles, the battery switch should be disconnected to prevent potential electrical fault.
LONG-TERM STORAGE
1. Please disconnect the battery switch in the storage compartment and the battery power supply circuit before long-term storage to prevent
excessive discharge of the battery.
2. Remember to have a charge and a discharge at least every two months for long-term storage, and charge the battery to 50% full before
storage to ensure the service life of the battery.
3. Please charge the battery to 100% full before use of Ebroh scooter after long-term storage.
4. Check all the parts carefully and make sure that there is no anomaly before taking in ride on the road with Ebroh scooter. In case of any
problem, send the scooter Ebroh to the dealer´s for maintenance or repair.

17
REGULAR MAINTENANCE CHECKLIST
REGULAR SAFETY AND
PERFORMANCE CHECK
BRAKES
STRUCTURAL CHECK
WHEEL BEARING
LIGHTS VIBRATION DAMPER
HORN CENTRAL STAND
ELECTRIC PARTS STEERING BEARING
FUSE
MAJOR PARTS CHECK
BATTERY
TYRES MAIN WIRING HARNESS
STRUCTURAL CHECK LUBRICATION CONTROL SYSTEM
REGULAR MAINTENANCE CHECKLIST
FAULT DESCRIPTION FAULT CAUSE TROUBLESHOOTING METHOD
No output after the power
is on.
1. Dead Battery.
2. Switch disconnected.
1. Charge the battery.
2. Connect the switch.
Motor failure when turning
the steering handlebar
after the power is on.
1. Low battery voltage.
2. The power of ON switch is enabled resulting from
grasping the braking handlebar.
3. The scooter Ebroh is not started.
1. Charge the battery.
2. Do not grasp the braking
handlebar when starting the
scooter.
3. Refer to the “Start the scooter
Ebroh” section of this Manual.
Battery charge failure 1. The plug of the battery is not properly connected with the
battery socket.
1. Check whether the plug is
loosened.

18
REGULAR MAINTENANCE CHECKLIST
FAULT DESCRIPTION FAULT CAUSE TROUBLESHOOTING METHOD
Ebroh scooter does not
have power.
1. Low battery.
2. Under-ination of tyres.
3. Frequent braking and overload.
4. Battery aging or normal capacity loss.
5. Low battery capacity resulting from low environmental
temperature.
1. Charge the battery and check whether the plug is
properly plugged in and whether the charger is
damaged.
2. Check the tyre ination before each use.
3. Develop good riding habits.
4. Replace the battery.
5. Use in normal ambient temperature.
Sudden stop during a ride Dead battery. Charge the battery.
Identify the fault cause in reference to the panel fault codes.
Displayed in the panel
control.
1. Wires loosened.
2. Damage to the communication device.
1. Check whether the wire is loosened.
2. Please send the scooter Ebroh to the service centre
for professional checks.
Communication fault of the controller. Please send the scooter Ebroh to the service centre for
professional checks.
Communication fault of the battery management system. Please send the scooter Ebroh to the service centre for
professional checks.
Controller fault Please send the scooter Ebroh to the service centre for
professional checks.
Displayed in the panel
control.
Suspended operation of the controller (possibly caused
by overcurrent, locked rotor, overvoltage, over-
temperature)
Stop the scooter and restart it later.
Verication failure of controller start identication.
Turn off and turn on the main switch again.
Please send the scooter Ebroh to the service centre for
professional checks.
Motor failure Please send the scooter Ebroh to the service centre for
professional checks.

19
REGULAR MAINTENANCE CHECKLIST
FAULT DESCRIPTION FAULT CAUSE TROUBLESHOOTING METHOD
Displayed in the panel
control.
Motor over-temperature Stop the scooter Ebroh and restart it later
Steering handlebar failure
Please check the wires of the steering handlebar or
send the scooter Ebroh to the service centre for
professional checks.
Battery overcharge Stop charging the battery.
Battery over-discharge. Stop riding and charge the battery.
Charge overcurrent Stop charging the battery and check whether the
charger is damage.
GUARANTEE POLICY.
All our scooters Ebroh are guaranteed for manufacturing faults during 24 months from submission date. The substitution during the guarantee
is subordinated to restitution of the damaged parts.
For any subject of claim during the established period, a form available in our web page www.amasoluciones.com, should be ll in according to
the buying invoice of product.
The guarantee will be cancelled whenever any one of these following cases occurs:
When it is demonstrated that there is a dysfunction due to human mistake, or negligence of the scooter user.
When getting over the scooter use limit, whatever reached due to pressure, ow, weight or revolutions of la toma de fuerza.
When during repairs parts not original from Ebroh are used or when a maintenance operation or repairing in a technical service not
authorised by Ebroh is made.

20

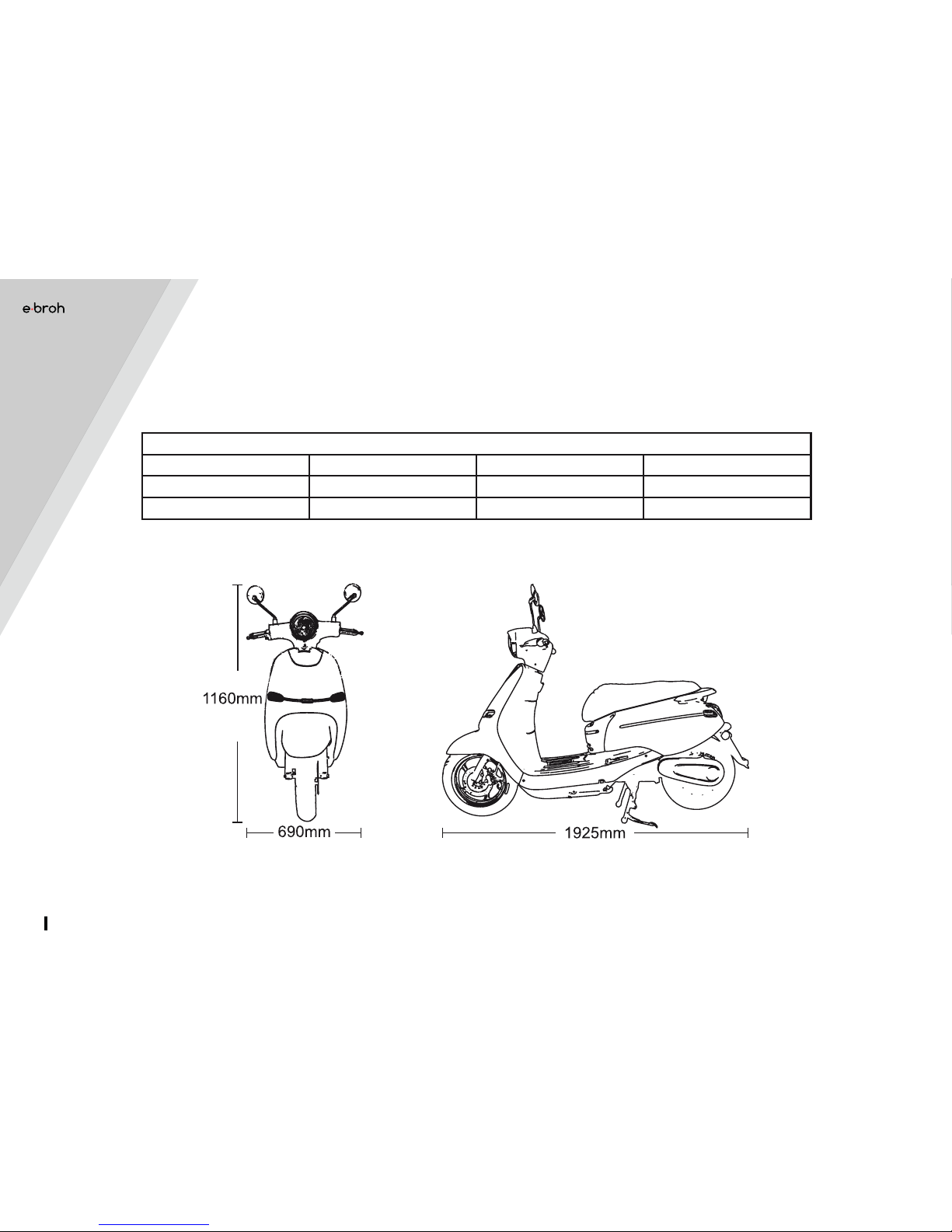

KEY FEATURES
Weight 80 Kg. Maximum Designed Speed 45 km/h.
Rated Voltage 60 V. Maximum Load 200 Kg.
Designed Capacity 2 persons homologated
Technical information
