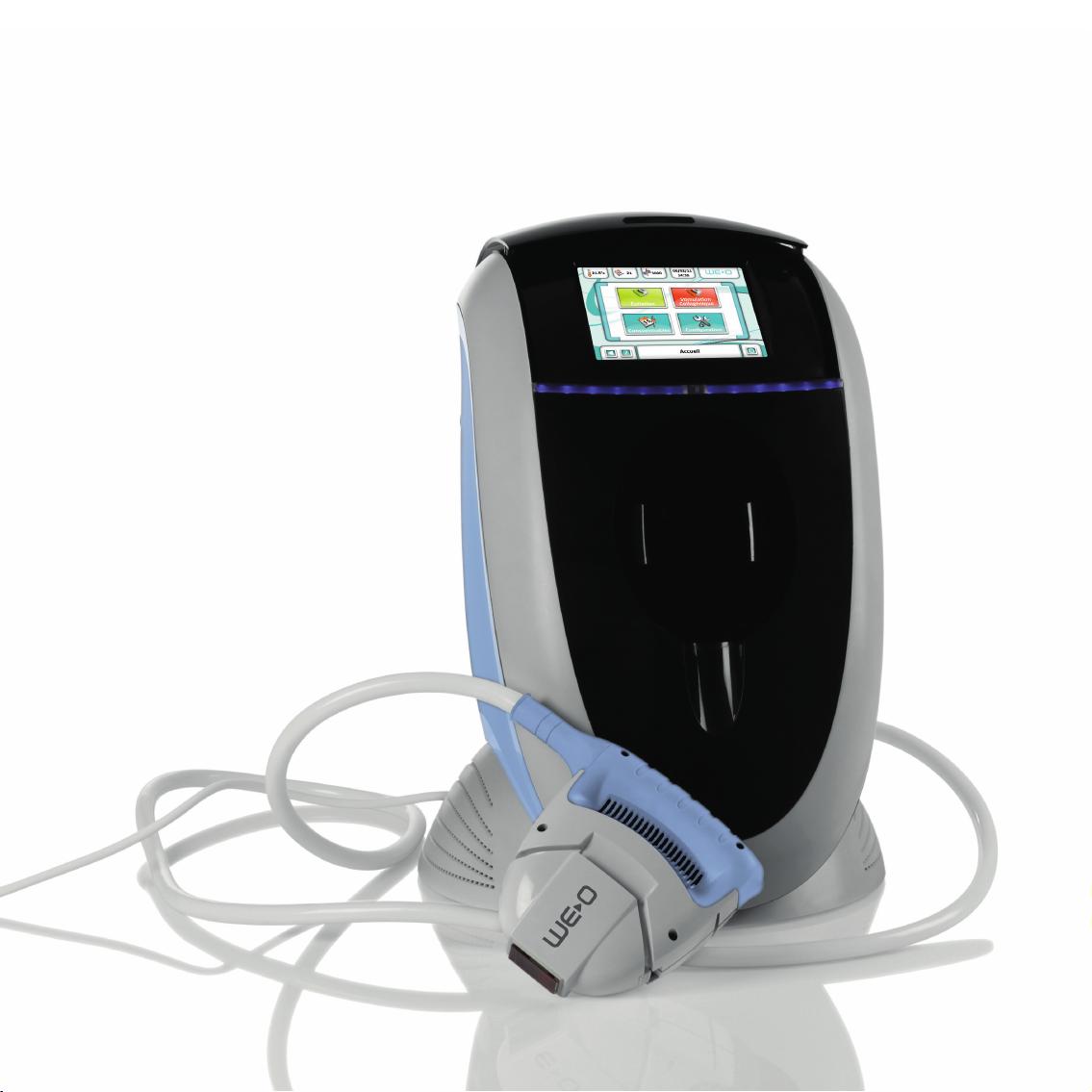

E-Swin WE-O User manual

User Manual

PROHIBITED HANDLING
USING THE ACCESSOIRES
MAINTENANCE
SUPPORT
TECHNICAL CHARACTERISTICS
STANDARDS
WARRANTY CONDITIONS
CONTACT
PACKAGE CONTENTS
PRECAUTIONS FOR USE
GLOSSARY
INFORMATION PROVIDED BY TOUCH SCREEN
USING
REMOVING HAIR WITH
STIMULATING COLLAGEN SYNTHESIS
WITH
REPLACING THE OPTIC CARTRIDGE
SOFTWARE OPTIONS
TABLE OF CONTENTS
20
40
46
48
50
52
54
56
61
62
63
4
6
12
14
32
24

Dear Customer,
You have just purchased a and I thank you for
your trust.
Habits change, and is one concrete example. You
can now access a combined depilation and collagen sti-
mulation treatment in a single device. uses the
latest generation of pulsed light, and offers complete
safety of use in a compact format.
I have personally ensued that the utmost attention has
been paid to the implementation of each ; you will
appreciate that is an exceptional product.
I hope that your device will provide full satisfaction and
that you will share your experience on our company’s
website at www.e-swin.com
Yours sincerely,
Yves Vincent Brottier
Creator of .

4

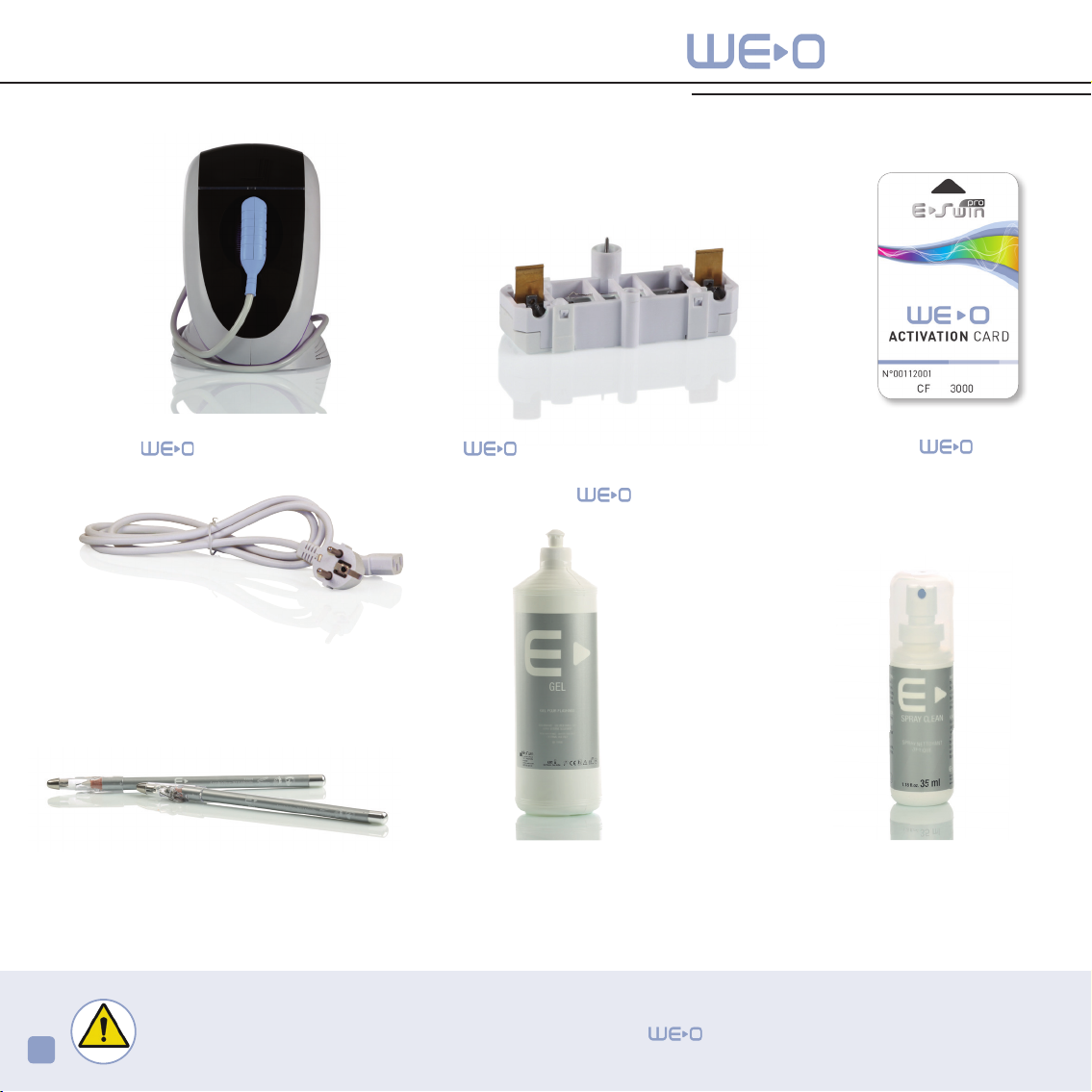

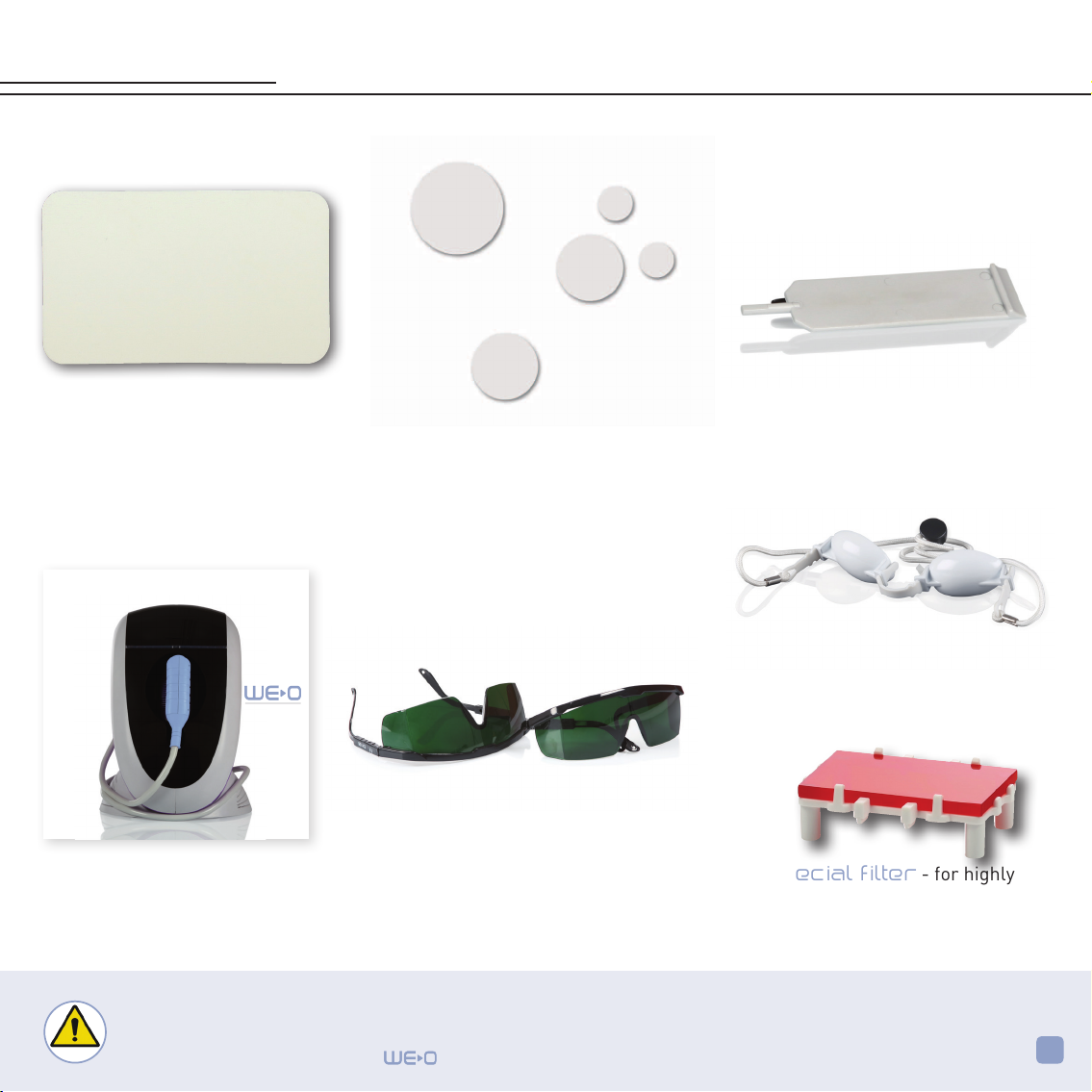

1 Optic consumable cartridge
(included in the applicator of your
).
2 Pen - pencil of work
and sharpener.
1 gel - flashing intended gel
(1000 ml).
1 Clean - optical spray.
Only E-Swin and authorised distributors are allowed to market and its accessories: optic, stop,
clean, patches, pen, gel, mask, Eye mask, etc.
1 base and applicator. 1
activation card.
1 power cord.
PACKAGE CONTENTS

5
2 Mask - safety glasses.
1 stop - guide plate.
1 Clean - optical spray.
2 Patches - self-adhesive patches
(220 self-adhesive patches on each
plate).
1 user manual.
1 extractor
extraction tool for the moveable head.
1 special filter - for highly
pigmented skins - Prototype V
(specifically designed for
depilation mode).
WARNING: You must keep all the elements of the original packaging (boxes, padding, etc.). The manufacturer’s warranty for
parts and labour will only be valid if the device is returned complete with all elements of its original packaging. All elements of
the original packaging in which your was delivered should therefore be stored carefully.
Manuel d’utilisation
1 pair of protector Eye Mask
protective shells for the patient (spe-
cifically designed for collagen stimu-
lation mode).
PACKAGE CONTENTS

6
USAGE PRECAUTIONS
y FOR YOUR SAFETY
BEFORE USING YOUR , PLEASE READ THE FOLLOWING INFORMATION CAREFULLY:
• Service voltage: 100 - 240 V~.
• Nominal frequency: 50-60 Hz.
• Maximum power consumption: 540 VA.
• Make sure that this voltage corresponds to that of your installation. Improper connection may cause permanent damage which is
not covered by the warranty.
• Make sure that the power outlet to which your is connected is undamaged, in perfect working order, and does not interfere
with the proper use of your (the power outlet must be easily accessible).
• This device is designed for professional use only.
• Do not unplug by pulling on the cable of .
• Do not use an extension lead with .
• Never use with wet hands.
• must not be used in any location in which water might be projected onto the device (applicator or base).
• The base of , its applicator or the Optic cartridge must never be immersed in water.
• Never use if damaged, never use in case of a functional anomaly appearing on the touch screen, or after dropping (non-visible
damage may be detrimental to your safety and to that of your patient).
• This device can be repaired only with special tools. For any problem after delivery, please contact us on our website www.e-swin.
com hrough your client account or from your
authorised distributors .
y SCOPE OF USE OF
device is designed and manufactured by E-Swin (France).
may be used under the following circumstances:
In “depilation” mode:
• Hair removal in relation to hormonal or idiopathic hirsutism.
• Depilation for purely aesthetic purposes on all parts of the body,
excluding the peri-ocular region.
In “collagen stimulation” mode:
• Decrease of unwanted effects connected to the post-surgical
scar process.
• Treatment for loss of skin elasticity, wrinkles and fine lines,
dull skin and dilated pores.
NEED HELP? To contact our sales department or technical support, please visit your client account on www.e-swin.com or contact
your
authorised distributors .

7
USAGE PRECAUTIONS
• Optic cartridges and, more generally, all accessories can be ordered on our website at www.e-swin-pro.com in the
“Accessories and cartridges” section or from your
authorised distributors . We cannot accept any liability for the use of optic
consumable cartridges and accessories from another manufacturer.
• When using the device, make sure to place it on a flat surface, in a secure position, in order to prevent the risk of falling.
• E-Swin SAS cannot accept liability for any damage resulting from the improper use of the device, or from any use other than that
described in the present manual.
• Attention - Using controls or setting or performance of procedures others than those specified in this user manual may result in
exposure to dangerous optical radiation.
• 2 pairs of Mask safety glasses are supplied with the device. These glasses must be worn by the treatment professional throu-
ghout the use of the device, and must also be worn by the patient. Any other person who is close to you during the operation of
the , must also wear these glasses.
• For facial treatment in “collagen stimulation” mode, you must provide each of your patients with a pair of Eye Mask protective
shells. These shells must be worn by the patient throughout the operation of the device.
• When is running, it must not come into contact with any of the items listed below, in order to prevent any risk of injury,
obstruction or deterioration:
- Clothing or any other object.
- Hair.
- The peri-ocular region defined by the Mask glasses (for example, the eyebrows and eyelashes will be excluded from depilation
by ), or by the Eye Mask protective shells, in the case of operation in “collagen stimulation” mode.
• The tip of the applicator must not contact the Mask or the Eye Mask at the time of the flash.
• Never use near an aerosol, a heat source or any other electronic devices.
• Do not stack on other electronic devices.
• Your is supplied with a mains lead (2 metres long) and an applicator lead (2 metres long). Do not use any extension leads
or any cable other than those supplied by E-Swin, as this could render the device electromagnetically non-compliant.
• Wireless communication equipment must be kept at a distance (approximately 3 metres), as this equipment may interfere with
the correct operation of the device.
• The device must be installed in an environment which is uncontaminated by electromagnetic interference (computers, electrical
treatment appliances, etc.).
• Earth conductor is only used as functional earth.
You must only use the Pen work pencil, the Gel gel, the Patches self-adhesive patches, the Stop guide plate, the
Mask safety glasses, and the Eye Mask protective shells supplied with your . The use of any other products
may cause skin burns.

8
y COMPATIBILITY CRITERIA
Do not use on persons who are unsuitable for depilation or collagen stimulation by pulsed light, and specifically those who fulfil
one of the following criteria:
• To pregnant women.
• On very dark or black skins.
• On injured, burned or infected skin.
• On sun-burned skin which has healed within the last month.
• In case of a previous history of sunlight allergy.
• On skin which has been exposed to high-pressure UV within the last ten days.
• In case of the use of a self-tanning agent (cream or food supplement) within the last 2 weeks.
• On skin lesions of unusual appearance – your practitioner should be consulted beforehand.
• On high-risk areas (blemishes, birthmarks, warts, unhealed wounds, etc.).
• On moles: if these are located within the zone to be depilated, they must be concealed beforehand, e.g. by covering with the self-
adhesive Patches supplied with .
• On tattooed areas: permanent make-up (for example, lip tattoos) or cosmetic tattoos, of whatever colour. In this case, use the Stop
delimitation plate supplied with your .
• Persons suffering from skin conditions (eczema, inflammations, acne, etc.).
• Persons undergoing photo-sensitizing treatment (a medical opinion must be sought).
• In case of a previous history of cutaneous pathology.
• Diabetics, haemophiliacs epileptics, persons suffering from late onset cutaneous porphyria.
• Persons wearing a pace-maker or cardiac defibrillator.
• On animals.
• For the treatment of white or red hair. More specifically, some people are born with phototype I red (“redheads”). In adulthood, these
persons may have lost this fundamentally orange colour. However, the melanin structure of these hairs retains characteristics which
render light technologies ineffective for depilation.
IMPORTANT: The treatment professional must ensure that only persons who fulfil the criteria for application described in
the present manual receive depilation or collagen stimulation treatment using .
USAGE PRECAUTIONS

9
y COMPATIBILITY WITH OTHER TREATMENTS
• Before starting a session, the patient must not apply any cosmetic treatments which are aggressive to the skin. In the case of
non-aggressive cosmetic treatments, however, a time interval of 24 hours should be allowed between these treatments and the
treatment session using .
• In case of other treatments, including hyaluronic acid and/or botox injections, treatment by pulsed light, laser or radio-frequency
treatment, etc., the patient must consult the professional who has administered the treatment concerned, in order to establish
the time interval to be allowed before starting treatment with .
• On the day of the session itself, no cosmetic treatment should be applied beforehand. You are responsible for checking the
cleanliness of the skin.
• Fragrance-free micellar water will be used for the removal of any cosmetic residues from the skin.
• After flash treatment, the application of cosmetic products is possible.
y PRECAUTIONS REGARDING UV
ARTIFICIAL UV ADMINISTERED IN BEAUTY SALONS
Care must be taken with regard to the inordinate use of artificial UV radiation.
More specifically in the case of high-pressure UV administered by high-powered machines, it is recommended that an interval of
several days should be allowed before or after any such session, before starting treatment with .
NATURAL UV
In case of exposure to sunlight after a flash treatment session with , it is imperative to recommend the application of a very
high protection factor sunscreen on the zones which have received flash treatment throughout the duration of the treatment pro-
gramme, and for a period of 3 weeks following the end of the treatment programme.
y SELF-TANNING
Do not use on persons who have applied a self-tanning product to the zone to be treated. The effects of the self-tanning
product must be allowed to disappear completely before using .
USAGE PRECAUTIONS

10
USAGE PRECAUTIONS
y METHOD OF TREATMENT
BEFORE THE SESSION
• Explain the technology and the principle of depilation and/or collagen stimulation to the patient.
• Identify any counter-indication to the application of pulsed light.
• Specify the costs for a session, and other charges.
• Obtain signature of the informed consent form.
• Request that the patient comes to the session with no cosmetic products on their skin (insofar as possible).
DURING THE SESSION
• Confirm the continuing absence of any counter-indication for the patient (specifically the absence of any new treatment in progress).
• Confirm the absence of any cosmetic products on the skin, which may need to be removed using a fragrance-free micellar water solution.
In “depilation” mode
• Moisten, then shave the skink to be depilated using a mechanical
razor.
• Mark out the zone to receive flash treatment using the Pen.
• Mask any beauty spots and other brown marks using the
Patches.
• Fit the Mask (protective glasses) to your patient).
• Apply the Gel in a thick layer to small zones in succession
(particularly on the legs)
• Check that the filter used is appropriate to the skin colour.
• Set the parameters for : gender, zone, skin colour, hair
thickness, power level (always start on power level 1, which may
be increased progressively, depending upon skin tolerance).
In “collagen stimulation” mode:
• Mark out the zone to receive flash treatment using the Pen.
• Mask any beauty spots and other brown marks using the
Patches.
• Fit the Eye Mask protective shells to your patient, and check
their correct positioning.
• Apply the Gel in a thick layer over small areas.
• Set the parameters for : gender, zone, skin colour, power
level (always start on power level 1, which may be increased
progressively, depending upon skin tolerance).
• Check that all safety functions have been correctly observed, and release these functions.
• Fit your Mask protective glasses.
• Protect any zones which are not to receive flash treatment (e.g. tattoos) using the stop protection plate.
• Apply flash treatment to the zone.
• Increase the power level if needed, depending upon the sensation reported by the patient and the absence of any skin reaction.
• Turn off the machine at the end of the session (wait 10 minutes before disconnecting the machine, in order to allow it to cool).
• Remove the Gel and rinse the skin (a moisturizing cream may be applied, if required).
• Clean optical head using a soft cloth dampened with fresh water, and disinfect.
• Clean the internal and external optical components after each session using the Clean spray supplied (wait until the fans in the
applicator have shut down).
ATTENTION: Use of is restricted to professional purposes only.

11
USAGE PRECAUTIONS
AFTER THE SESSION
• Alert the patient to the potential occurrence of redness.
• Recommend the application of sun screen to zones which have received flash treatment, in case of exposure to UV.
In “depilation” mode:
• Schedule the second session 6 weeks later, then further
sessions at two-month intervals.
In “collagen stimulation” mode:
• Instruct the patient not to apply any other treatment to zones
which have received flash treatment during the entire cycle of
12 sessions.
• Schedule 1 session per week for 8 weeks, then 1 session per
month for 4 months, making a total of 6 months’ treatment in
the initial phase.
• A top-up treatment of 1 session every 2 months may then
be scheduled, in order to ensure the maintenance of results
achieved.
SIDE EFFECTS ASSOCIATED WITH
In normal use, the risk of adverse effects such as skin redness or burning is extremely low, but nevertheless exists. If these effects
occur, the use of the device should be discontinued immediately.
A simple solution involves the testing of the device on a small area of skin. If no skin reaction occurs, device may be used in complete
safety.
Where is used in accordance with instructions, secondary effects and complications are rare. However, all cosmetic
treatments, involve certain risks. It is therefore important that your client should understand and accept these risks and potential
complications, where a pulsed light depilation or collagen stimulation system is used.
NOTE: In order to ensure the optimum effectiveness of treatment, the recommended intervals between each session should
be observed.
NOTE: Optimum results are achieved after an average of 8 –
10 sessions, scheduled at two-month intervals. If, for personal
reasons, the patient wishes sessions to be conducted more
frequently, you may accept that, provided that you observe a
minimum interval of 4 weeks, and explain to your patient that
this will not result in any increased effectiveness. The total
number of sessions required will be increased accordingly.
NOTE: If the patient wishes to apply other types of beauty
treatments (excluding the use of cosmetic moisturizing and/
or anti-wrinkle creams), it is recommended that they should
consult a dermatologist beforehand, in order to allow the
appraisal of skin quality and the waiting time to be observed
between these two types of treatment.

12

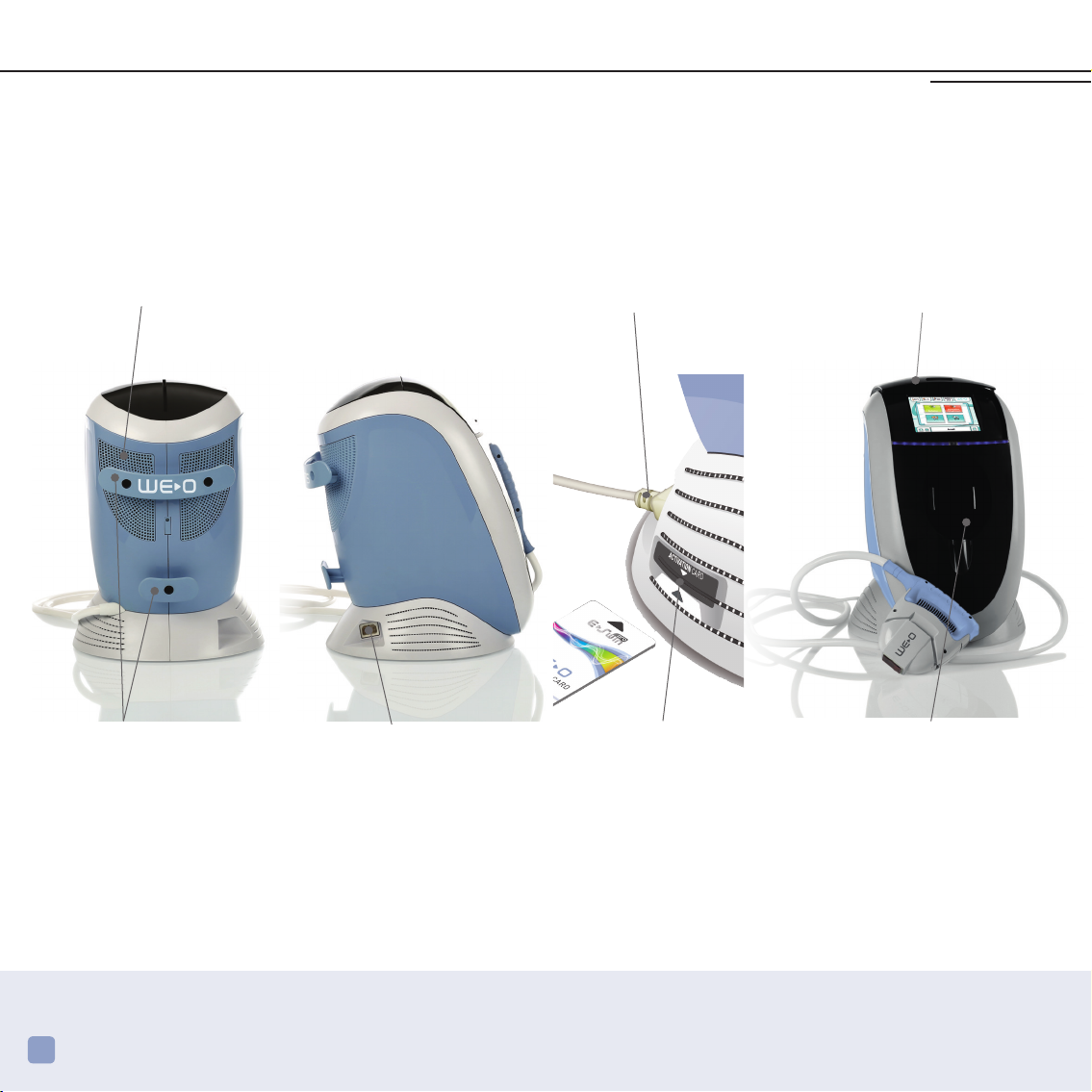

GLOS SARY
y BASE
Power cord connection Activation card slot Applicator holding area
Visor to protect touchscreen
Applicator cord support
Ventilation grid Power cord connection

13
GLOS SARY
y APPLICATOR
Mobile head Release clips for
mobile head
Mobile head
Applicator zone
Applicator zone
Air vents Trigger button Flash-ready indicator
Fixed side
casing

14
A
The HOME menu (screen A) enables you to access the following four
menus:
1 HAIR REMOVAL MENU
This menu enables you to select the parameters for depilation
treatment and to start the flash treatment session.
2 COLLAGEN STIMULATION MENU
The menu enables you to select the parameters for collagen
stimulation treatment and to start the flash treatment session.
3 CONSUMABLES MENU
This menu displays the number of flashes remaining.
4 CONFIGURATION MENU
This menu enables you to set various parameters on the device.
Other information is displayed automatically and continuously:
5 System temperature (applicator).
6 Icon not available on this device model.
7 Number of flash credits remaining, represented by the symbol .
8 Date and time.
9 Return icon to previous menu. This icon permits the modification of
any selection entered previously.
10 Icon not available on this device model.
11 Device start/stop icon.
The HAIR REMOVAL menu (screen B) summarizes the parameters
selected, on successive screens.
12 Gender required.
13 Main treatment zone required.
14 Specific part of main treatment zone.
15 Skin colour required.
16 Hair thickness required.
17 Power level gauge: level of light energy required.
18 All mandatory precautions to be observed prior to each use.
19 Pause icon to pause the flash treatment session. Pressing this
icon switches to pause mode. The mode prohibits any flash
emission by the applicator. To exit pause mode, simply press this
icon again.
Iy “HOME” MENU
INFORMATIONS PROVIDED BY TOUCH SCREEN
4
6
1 2
3
8
10
9 11
75
y “HAIR REMOVAL“ MENU
B
12
13
14
15 16
17
18
19

15
y “COLLAGEN STIMULATION” MENU
y “CONSUMABLES” MENU
The COLLAGEN STIMULATION menu (screen C) summarizes the
parameters selected, on successive screens.
12 Gender required.
14 Specific part of main treatment zone.
15 Skin colour required.
17 Power level gauge: level of light energy required.
18 All mandatory precautions to be observed prior to each use.
19 Pause icon to pause the flash treatment session. Pressing this
icon switches to pause mode. The mode prohibits any
flash emission by the applicator. To exit pause mode, simply
press this icon again.
The CONSUMABLES menu (screen D ) displays the number of
flashes still available on the activation card and its Optic cartridge.
The device operates by means of an activation card which is specific
to each Optic cassette. Each Optic cassette is supplied with a
unique activation card.
20 Number of flashes remaining.
C
D
INFORMATIONS PROVIDED BY TOUCH SCREEN
20
12
14
15
17
18
19

16

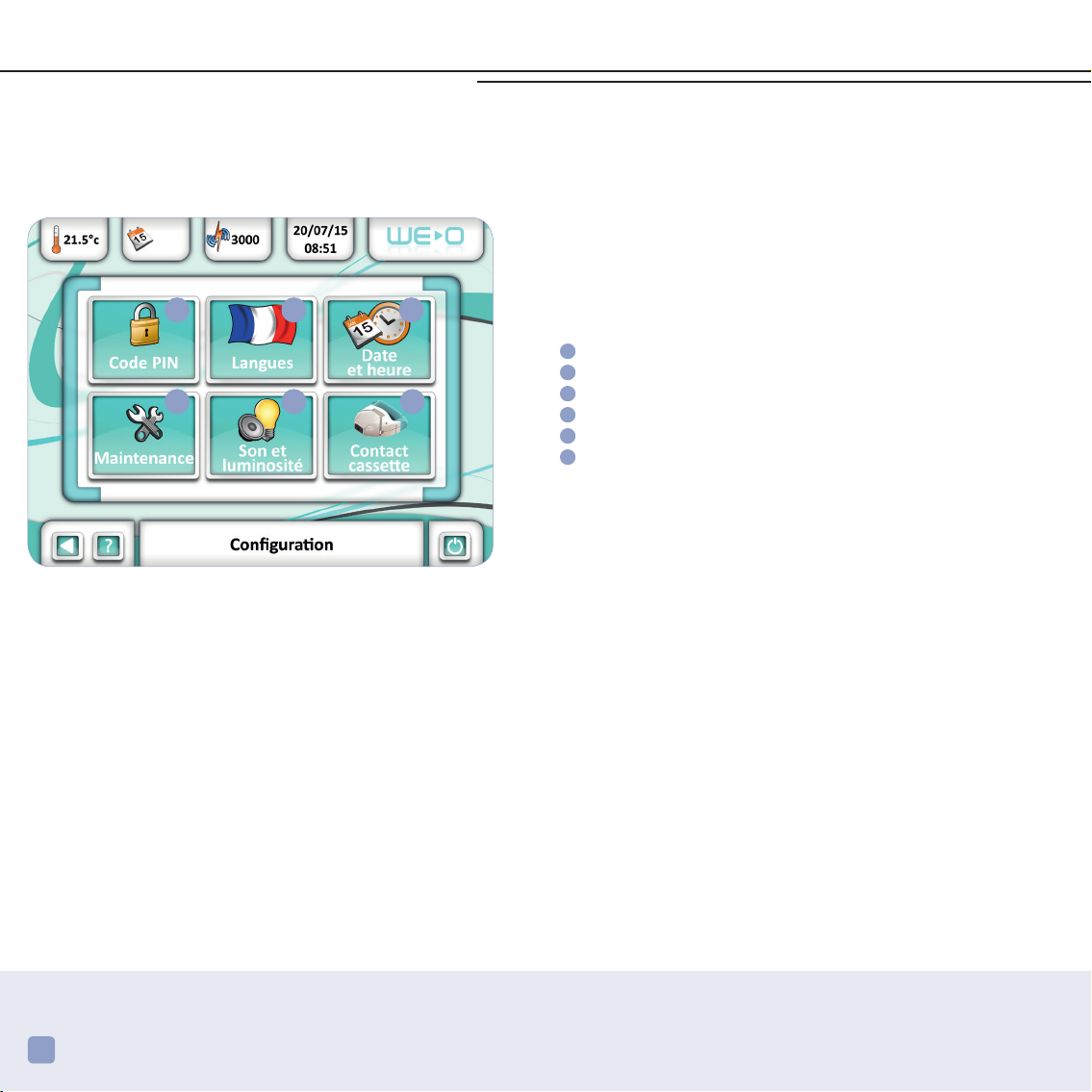

y “CONFIGURATION” MENU
The CONFIGURATION menu (screen E) displays the sub-menus
(see chapter on software options):
21 PIN code.
22 Language
23 Date and time.
24 Maintenance.
25 Volume and brightness.
26 Cartridge contact.
E
21 23
25
22
24 26
INFORMATIONS PROVIDED BY TOUCH SCREEN

17
17
INFORMATIONS PROVIDED BY TOUCH SCREEN

20
USING
y START-UP
• Upon the initial start-up of , “activation codes” (5 characters, followed
by a further 5 characters) may be requested. Once entered, these codes will
not be requested a second time.
• Connect using the mains lead.

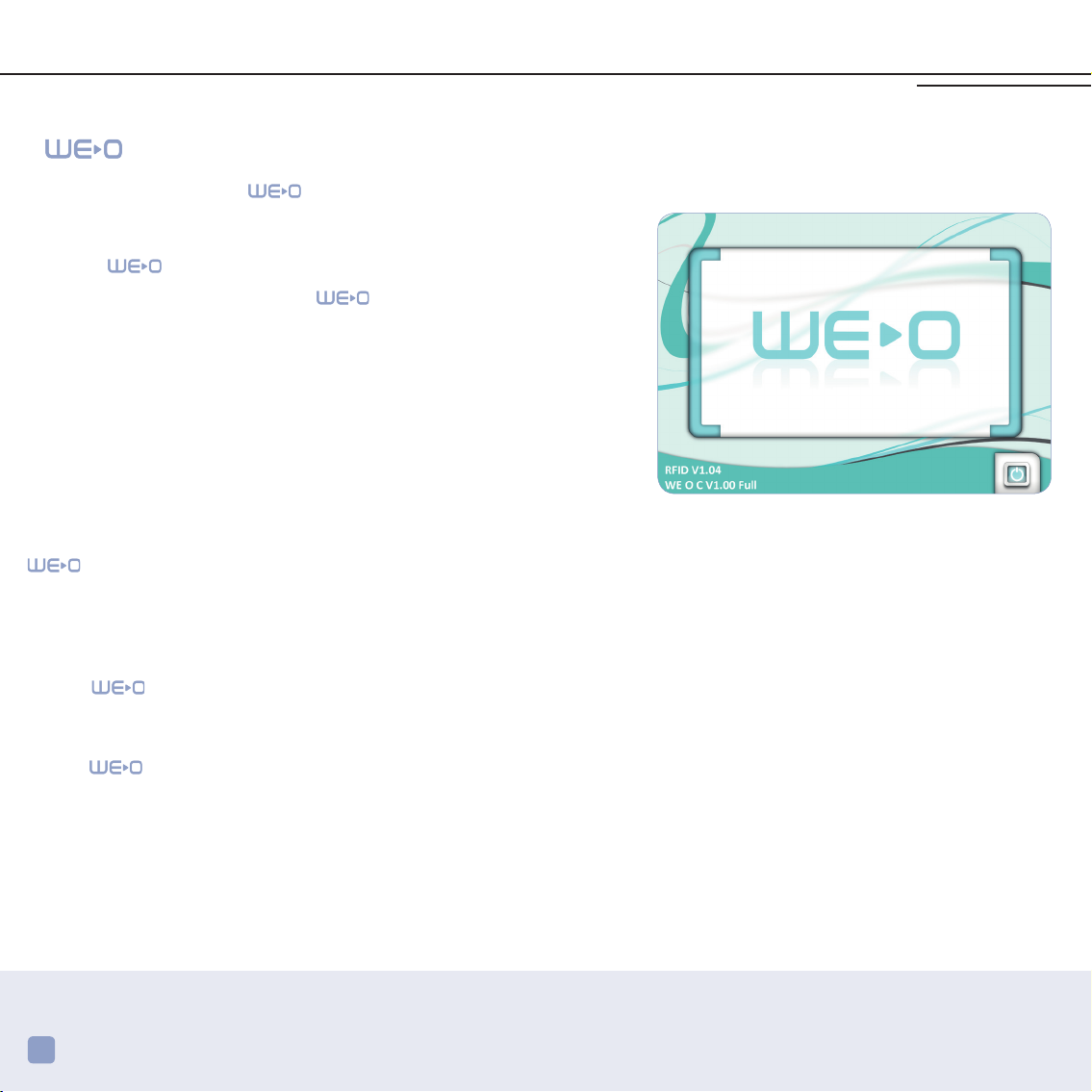

• The internal testing procedure of will commence, and will last a
few seconds. Upon the completion of this phase, screen F will be displayed
automatically.The software version of the device is displayed at the bottom left
of the screen and, below this, the name of the device and its version number.
• A personalized 4-digit PIN code may also be entered (see chapter on software
options in the present manual).
y IMPORTANT
operates using an activation card. This arrangement will apply whenever
an Optic cartridge (and its associated activation card) are replaced. Once the
new Optic cartridge is fitted, simply insert the new activation card into the base
to obtain a further 3,000 flashes.
• When is used in “hair removal” mode, the number of flashes will
decrease 1 by 1.
• When is used in “collagen stimulation” mode, the number of flashes
will decrease 3 by 3.
F
