Eagle P178 User manual

EAGLE COPTERS USA INC.
19717 62nd Avenue South, Suite E101, Kent WA 98032 | Phone: [phone]
FAX [phone] www.eaglecopters.com
P178
AUDIO MIXER
PART 27
INSTALLATION MANUAL
MDL 7001-ML-001 Rev -- STC SR02445SE

LEGAL NOTICE
The information contained in this document is provided solely under the
condition that the Recipient of this document agrees to the terms and
conditions of the Non-Disclosure and Proprietary Rights Agreement listed
below. By accessing this document past this page, you are agreeing to be
bound by this Non-Disclosure and Proprietary Rights Agreement.
Non-Disclosure and Proprietary Rights Agreement
Recipient recognizes and acknowledges that Eagle Copters USA and its affiliates (“Eagle”) possess
certain Proprietary information and materials, which constitute a valuable, special, and unique asset
of Eagle. As used herein, the term “Proprietary information and materials” includes, without
limitation, all information and materials belonging to, used by, or in the possession of Eagle relating
to its products, processes, technology, inventions, patents, developments, and trade secrets of
every kind and character, but shall not include:
(1) Information that was already in the public domain,
(2) Information that subsequently becomes public domain through no act or omission by the
Recipient.
Recipient hereby acknowledges that all of the Proprietary information and materials are and shall
continue to be the exclusive property of Eagle, whether or not disclosed to or entrusted to the
custody of Recipient. Recipient further hereby acknowledges that all Proprietary information and
materials have been disclosed or made available to him solely for the purpose of assisting him in
incorporating, using, or maintaining equipment provided by Eagle.
Recipient hereby agrees not to disclose, or allow to be disclosed, any Proprietary information or
material of Eagle, in whole or in part, to any person or entity, for any reason or purpose
whatsoever. Recipient further agrees that Recipient shall not use any Proprietary information or
materials of Eagle for Recipient’s own purposes or for the benefit of any other person or entity
except Eagle, whether such use consists of duplication, removal, oral use or disclosure, the
transfer of any Proprietary information or materials in any manner, or any other unauthorized use,
unless given prior written consent by Eagle.
Recipient further agrees that Recipient will not allow the reverse engineering of any Eagle
products.
Recipient further agrees that Recipient shall use information provide, for installation or application,
to one aircraft only for each product purchased, unless the purchase agreement specifically
authorizes the use on more than one aircraft.
Continuing past this page constitutes acceptance of the above agreement.
(End of Agreement)

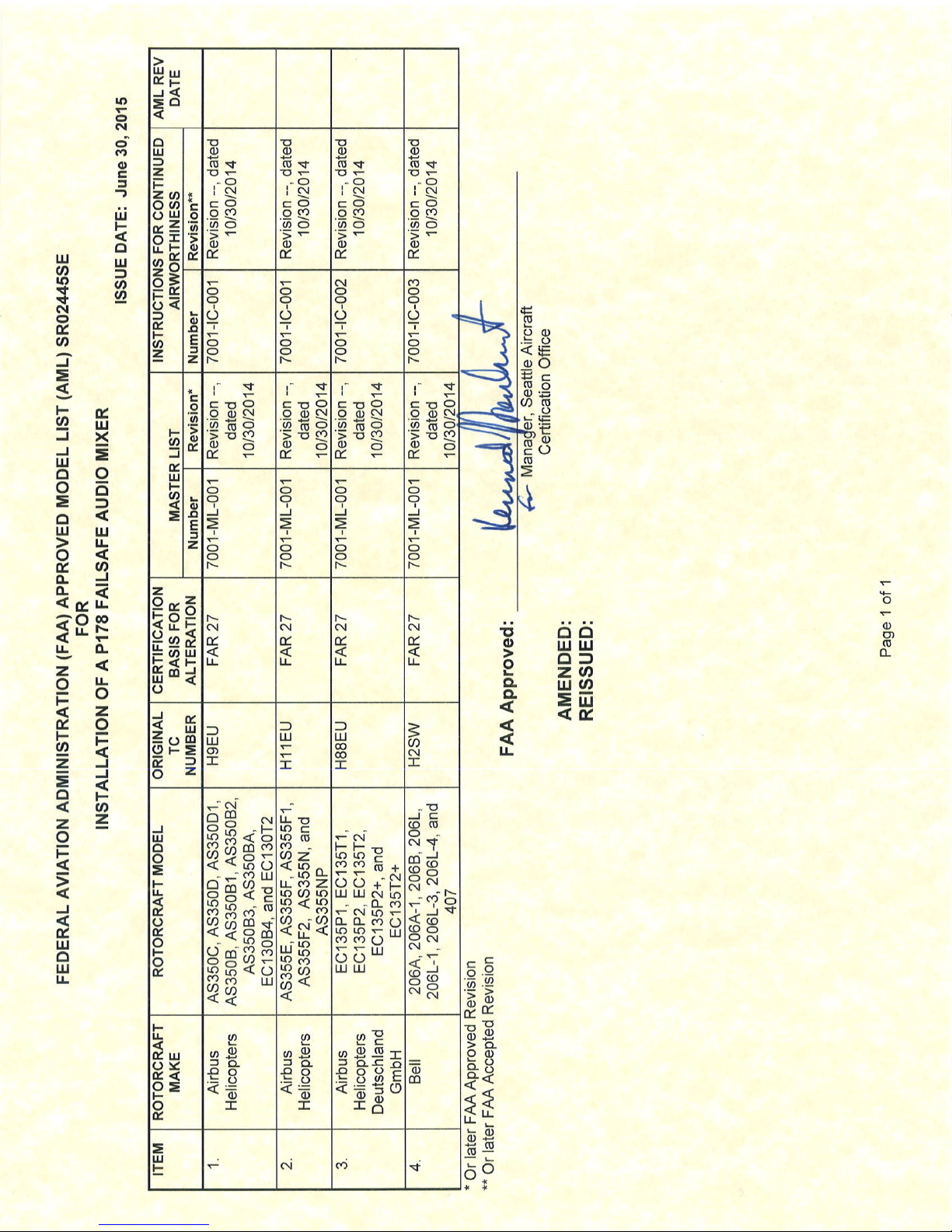

Page 1 of 1

7001-ML-001
Revision --
Page 2 of 3
Record of Revisions
Revision
Date
Description
--
30 OCT 2014
Initial Release

7001-ML-001
Revision --
Page 3 of 3
Master List
DRAWING NO.
TOTAL
SHT
REV
DATE
DESCRIPTION
7001-MI-001
11
--
10/30/14
Modification Instructions
7001-TP-001
8
--
10/30/14
EMI Test Procedure
G13120
1
--
1/13/14
Audio Mixer

7001-MI-001
Revision --
Page 2 of 11
Record of Revisions
Revision
Date
Description
--
30 OCT 2014
Initial Release

7001-MI-001
Revision --
Page 3 of 11
Table of Contents
1. Scope................................................................................................................................................ 4
2. Abbreviations................................................................................................................................... 4
3. References ....................................................................................................................................... 4
4. General Information ........................................................................................................................ 4
5. Installation ....................................................................................................................................... 5
6. System Wiring .................................................................................................................................. 6
7. System Testing ................................................................................................................................. 9
8. Kit Parts List.................................................................................................................................... 10
9. Specifications ................................................................................................................................. 11
10. Weight and Balance ....................................................................................................................... 11

7001-MI-001
Revision --
Page 4 of 11
1. Scope
These modification instructions are for the installation of the Eagle Copters P178 Failsafe Audio Mixer.
2. Abbreviations
EMI ............ Electro-Magnetic Interference
3. References
7001-TP-001 EMI Test Procedure
4. General Information
4.1 The Audio Mixer provides 3 composite outputs from up to 8 input signals. Channel 1 and
Channel 2 composite outputs are failsafe relay protected for Master Caution or Essential Tones
to ensure that no fault in the system or an electrical bus failure can prevent pass through of
Essential Warnings or Tones. Channels 3 through 8 are for non-essential tones and will drop off
line in case of fault or Avionics Bus failure.
4.2 The P178 Failsafe Audio Mixer removes the need for external relays to ensure Essential Tones
are passed to unswitched inputs on any audio system. The mixer also has internal fault
detection. Upon fault, the relays go to their normally closed (Failsafe) position.
4.3 There are no restrictions as to the quantity of Audio Mixers that are installed. However, it is the
installer’s responsibility to verify that the installation of this device does not interfere with other
installed equipment and to perform an electrical load analysis to verify that the aircraft electrical
buss can support the installation of the Audio Mixer.

7001-MI-001
Revision --
Page 5 of 11
5. Installation
5.1 The Audio Mixer is designed to be mounted in a variety of locations within the airframe,
provided it is protected from the environment. It may be mounted to a deck, bulkhead, tray,
avionics shelf or other structure rated to carry a 0.50 lb load. The exact mounting location is left
to the installer’s discretion provided that the installation of the Audio Mixer does not interfere
with other installed equipment.
5.2 Mount the Audio Mixer using (4) #8-32 screws, washers and locknuts or nutplates.
5.3 When mounting into composite structure, #8-32 potted inserts (not included in kit) should be
used.
5.4 Unless otherwise specified, follow aircraft manufacturer’s standard practices and maintenance
manuals for installation of all hardware.
5.5 Maintain a minimum 2 e/d edge margin for all installed fasteners.
5.6 Refer to Figure 1 for Audio Mixer reference dimensions that may be used when planning the
installation.

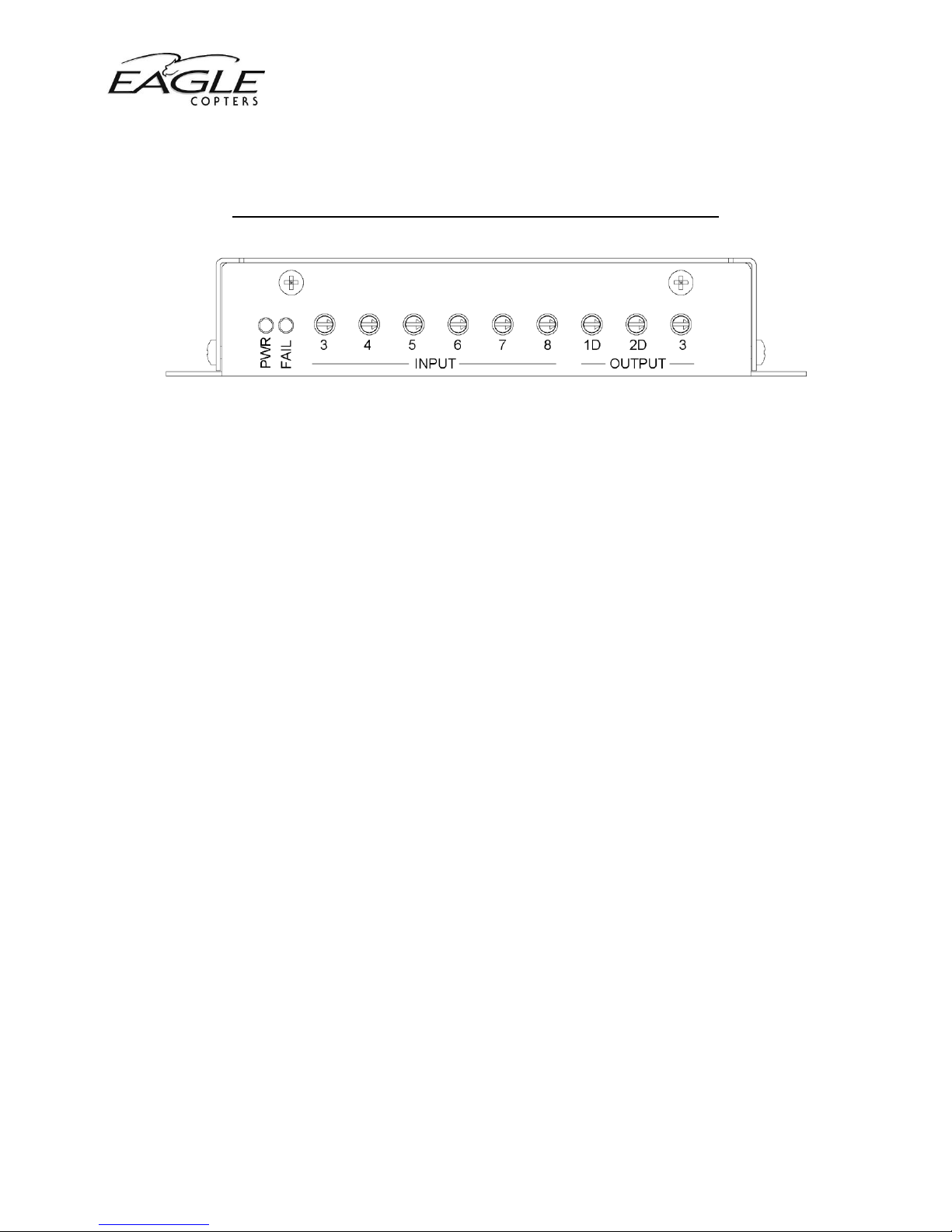

Figure 1 Audio Mixer Dimensions

7001-MI-001
Revision --
Page 6 of 11
6. System Wiring
6.1 Unless otherwise specified, follow the aircraft manufacturer’s electrical wiring practices and
maintenance manuals for installation of all system wiring.
6.2 Refer to Figure 2 for cable harness fabrication instructions to connect to the Audio Mixer.
6.3 Ground Audio Shields at ONE end only.
6.4 Unless otherwise noted, all shielded wire is M27500-(ga)TG(n)T14 and all unshielded wire is
M22759/16-(ga)-9, where (ga) is the wire gauge and (n) is the number of wires inside the shield.
6.5 Unless otherwise noted, all wire is 22 GA.
6.6 Route all system cabling through existing cable runs.
6.7 Secure all cabling using nylon cable ties and/or cable clamps using standard practices.
6.8 Cable lengths are dependent on Audio Mixer installation location.
6.9 Notes for Figure 2:

7001-MI-001
Revision --
Page 7 of 11

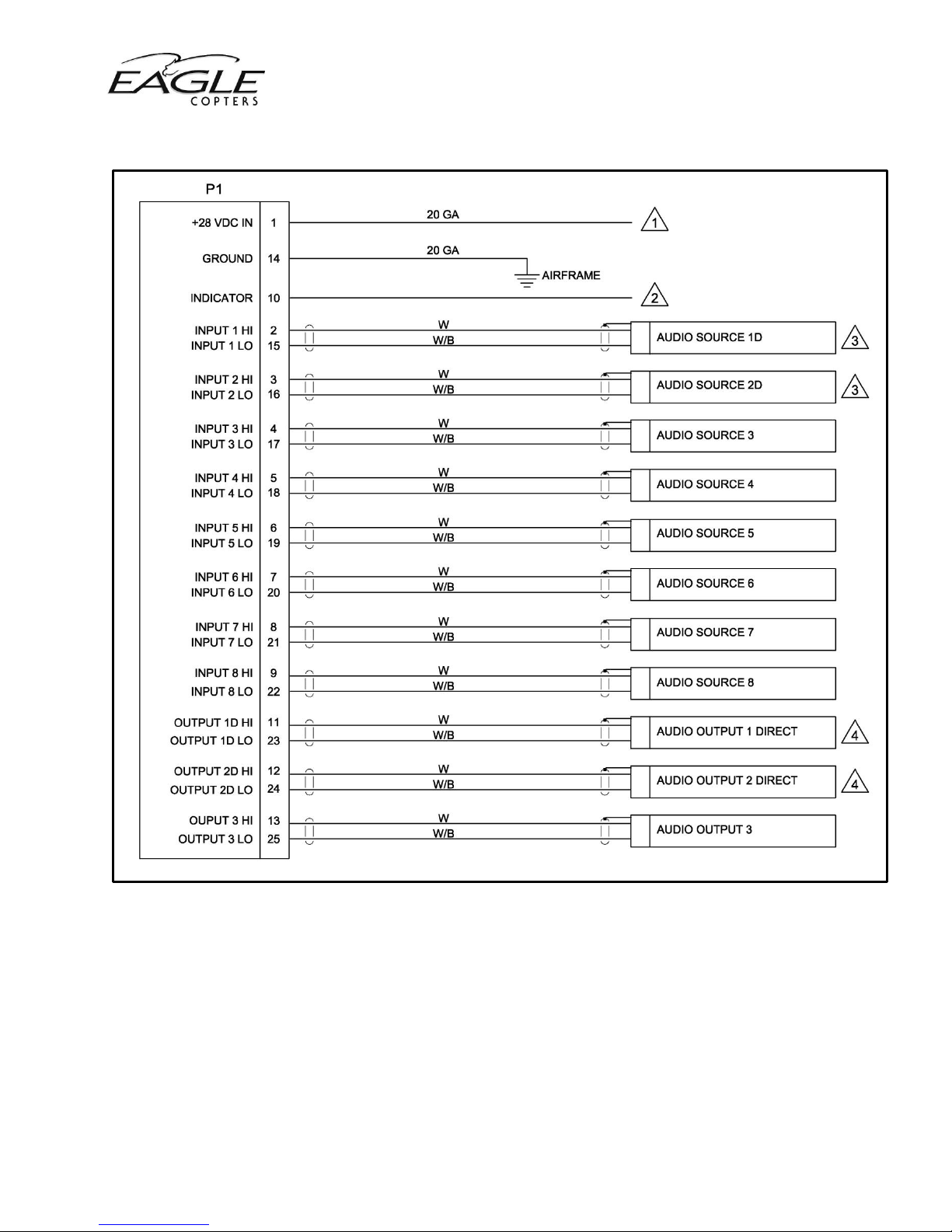

Figure 2 Cable Wiring

7001-MI-001
Revision --
Page 8 of 11
6.10 Refer to Figure 3 for Audio Mixer pin designation.
Figure 3 Pin Designation

7001-MI-001
Revision --
Page 9 of 11
7. System Testing
Failure to follow these instructions will result in improper operation.
7.1 If the mixer is not powered or is in fault mode (Essential), Input 1 will be connected directly via
relay closure to Output 1D, and Input 2 will be connected directly to Output 2D. It is important
to follow the setup instructions exactly in order for the mixer to work properly in the Essential
Mode.
7.2 The mixer has internal fault detection. Upon fault, the relays go to their normally closed
(Failsafe) position and the FAIL indicator light will illuminate. Optionally, the installer may
connect Pin #10 (pull low) to an external fault indicator (see note #2 in Section 6.9). There are
no internal adjustments, jumpers or user serviceable parts. If the mixer fails, return it to Eagle
Copters USA, Inc. for repair or replacement.
7.3 The direct inputs in essential mode are non-adjustable. The level that is present at Inputs 1 and
2 will be present at 1D and 2D respectively.
7.4 Output 3 is not relay direct protected and therefore will drop off line in unpowered or fail mode.
This output is designed to be a monitor port to a non-critical device.
7.5 Before applying power, perform a continuity check of all leads to confirm they are connected
properly.
7.6 With the circuit breaker to the mixer pulled (Off) and the audio system on, adjust the source to
Audio Source 1D and 2D so that the proper level is heard at both the Pilot and Co-Pilots
Headsets when the source is triggered, i.e. Master Caution. DO NOT adjust the 1D or 2D outputs
of the mixer; instead, adjust the source to the mixer.
7.7 With all other avionics off, push the mixer's circuit breaker In (On). Verify visually that the power
indicator (PWR) is on, and the FAIL indicator is off. The mixer is now in powered mode. Trigger
the source for Inputs 1D and 2D. Adjust the mixer Output Adjustments 1D and 2D so that the
proper level is heard in the Pilot and Co-Pilot Headsets. It should be the same as in the
unpowered mode. Pull the circuit breaker to the mixer in order to verify this operation.
7.8 Once steps 7.6 and 7.7 are completed, turn on all avionics or other sources connected to Audio
Sources 3 through 8. Adjust the levels as required at Inputs 3 through 8 on the mixer. DO NOT
change the adjustments on Outputs 1D, 2D or 3.
7.9 After Completion of Steps 7.6 through 7.8, adjust Output 3 to the desired level required by the
device connected to Output 3.
Conduct EMI test in accordance with EMI Test Procedure 7001-TP-001.

7001-MI-001
Revision --
Page 10 of 11
8. Kit Parts List
P178 Failsafe Audio Mixer Kit
QTY
PART NUMBER
DESCRIPTION
1
G13120
Audio Mixer
8
CCR264SS-3-02
Pull Rivet
4
MS21042-08
Lock Nut, #8-32
4
MS21059L08
Nut Plate, #8-32, Floating
4
MS35206-245
Screw, #8-32 x 1/2", Phil Pan
8
NAS1149FN832P
Flat Washer, #8
25
205090-1
Contacts
1
205165-1 **
Connector, D25F
1
165X10159XE **
Backshell
** Optional: use Connector Kit M2430812-8F in place of these items
