Introduction

The Earthlite® Warming Drawer has been built directly into your treatment

table or trolley to provide you with convenient, discreet access to perfectly

heated towels and stones while helping you maintain the smallest possible

footprint in an environmentally conscious age.

This warming drawer is designed for licensed therapists and is intended

to be used in a professional spa, massage studio, or similar commercial

environment. While no special training is needed to operate the warming

drawer, for safety reasons it is important that the instructions contained in

this manual are reviewed in detail before the rst use of the warming drawer.

This manual should be read in its entirety by each professional who will be

operating the warming drawer to ensure the safety of both operator and

client. This manual should be saved for future reference.

The warming drawer should not be used in any other manner than described

in this manual. Please read, understand, and follow all safety warnings,

labels, and instructions. Misuse, use of unnecessary force, or using the

warming drawer for unintended or unauthorized procedures can result in

injury to operator, client, and/or equipment.

Detailed instructions for use and maintenance can be found in this user

manual. If you have further questions, please contact us via email or by

phone at (800) 872-0560, or (760) 599-1112 Int’l.

Table of Contents

Section 1: Safety Instructions

Safety Symbols

Warnings

General Precautions

Section 2: Product Overview

Product Diagram

Basic Specications

Product Features

Section 3: Operating Instructions

Electronic Control Panel

Warming Drawer Operation

Heat Guidelines

Section 4: Care & Maintenance

Cleaning Instructions

Ongoing Maintenance

Removing the Drawer

Re-installing the Drawer

Troubleshooting

Warranty Information

back cover

Section 1: Safety Information

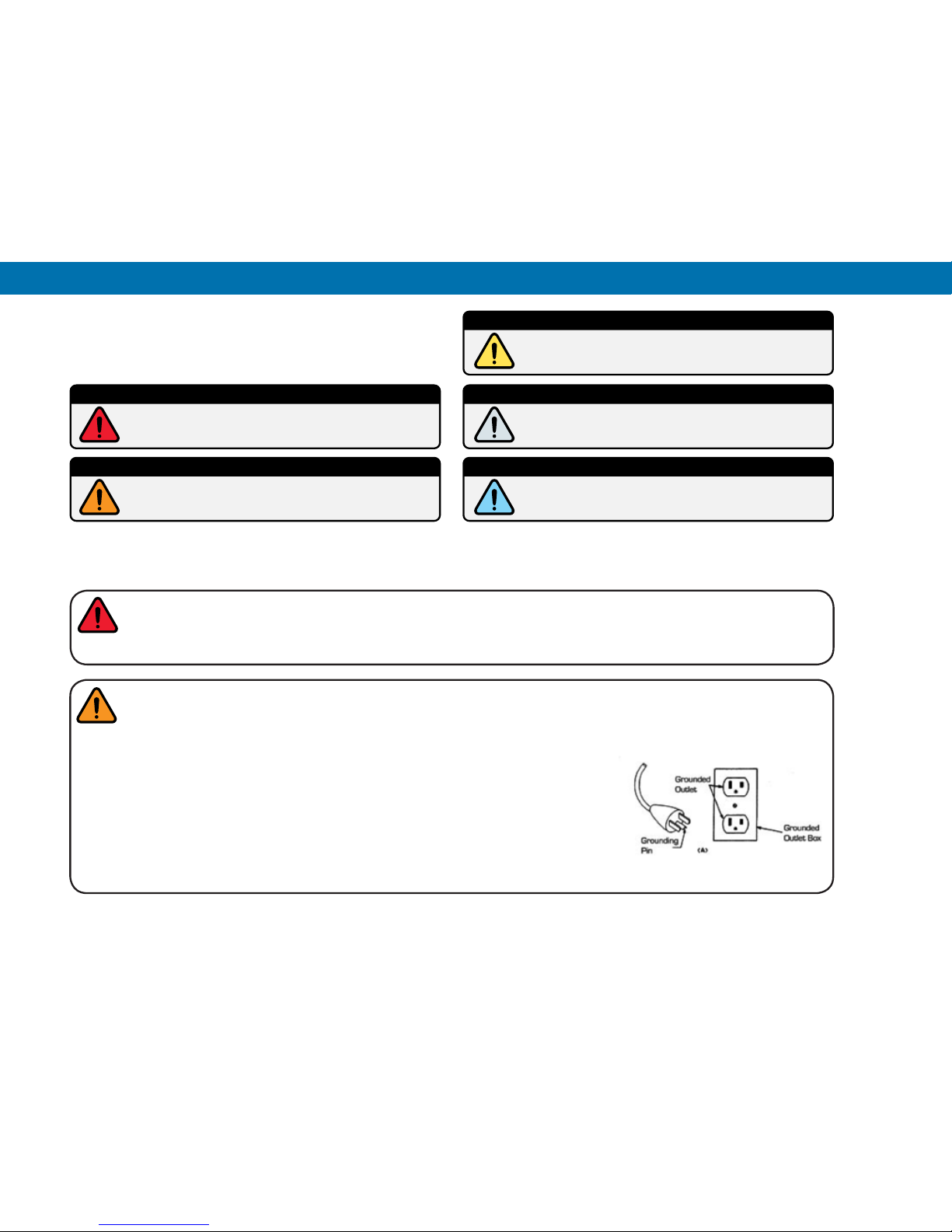

Safety Symbols

DANGER

Indicates an imminently hazardous situation which will result

in serious or fatal injury. This symbol is used only in the most

extreme conditions.

WARNING

Indicates a potentially hazardous situation which could

result in serious injury.

ALERT

Indicates a potentially hazardous situation which could

result in equipment damage and/or injury.

CAUTION

Indicates a potentially hazardous situation which may result

in minor or moderate injury. This may also be used to alert

against unsafe practices.

ATTENTION

Consult accompanying documents.

Familiarize yourself with the following Safety & Warning symbols. They

are designed to prevent damage and injury to you, your clients, and your

new Living Earth Crafts product.

Important Information About Safety Instructions

The important safety instructions and warnings in this manual cannot cover all possible problems and conditions that can occur. Use common sense and caution

when installing (if applicable), operating, or maintaining this appliance.

DANGER: RISK OF ELECTRIC SHOCK, FIRE, AND EXPLOSION

Do not store or use ammable or explosive vapors and liquids inside or in the vicinity of this or any other appliance. Keep items that could

explode, such as aerosol cans, away from the warming drawer. Do not store ammable or explosive materials in adjacent cabinets or areas.

Before cleaning, always uplug the table/trolley (where the warming drawer is embedded into) from the electrical outlet.

WARNING: NEVER use this warming drawer as a space heater to heat or warm a room.

WARNING: DO NOT use water on a grease or electrical re - smother re or ame or use dry chemical or foam-type extinguisher.

WARNING

IMPORTANT: GROUNDING INSTRUCTIONS

If embedded in a treatment table: Ensure you follow grounding instructions in the table user manual.

If embedded in a trolley, follow these instructions:

• This appliance is equipped with a three prong grounding electric plug. It must be plugged into an

appropriate outlet that is properly installed and grounded in accordance with all local codes.

• Improper connection of the equipment-grounding conductor can result in electric shock. Check with

qualied electrician if you are in doubt as to whether the product is properly grounded. Do not modify the

plug provided with the product - if it will not t the wall outlet, have a proper outlet installed.

• This product is for use on a nominal 120-volt circuit and has a grounding plug that looks like the plug

illustrated in sketch (A). Product must be connected using this conguration - no adapter should be used.

READ AND SAVE THESE INSTRUCTIONS

SECTION 1: SAFETY INFORMATION

GENERAL SAFETY PRECAUTIONS

WARNING: To reduce risk of re, electric shock, serious injury, or death when using this appliance, follow basic precautions, including:

• Read this manual completely before operating this appliance.

• Use this appliance only for its intended use as described in this manual.

Use it only to warm robes, dry linens, moist towels, and/or stones for

massage and/or other spa treatments.

• Ensure the recommended heat settings are followed when warming

different materials and/or objects. (See Operating Instructions)

• When warming towels, robes, and/or linens, the warming drawer must

have the supplied wire rack installed in the drawer.

• Do not install or operate a product that is damaged, has a damaged

power cord or plug, or is malfunctioning in any way. Call customer

service immediately for evaluation.

• If the warming drawer has not been pre-installed, ensure that the

installation is properly performed by a qualied installer according to the

installation instructions included in this manual.

• Do not repair or replace any part of the warming drawer unless

specically recommended in this user manual. All other service should

be done by a qualied technician.

• Use of accessory attachments not recommended by the manufacturer

may cause injuries.

• Before cleaning or performing any type of service, ensure that the table

or trolley is disconnected from the electrical outlet, and the warming

drawer is completely cool.

• Keep the electrical cord away from heated surfaces.

• DO NOT TOUCH ANY HOT SURFACES IN OR ON THE WARMING

DRAWER DURING OR IMMEDIATELY AFTER USE. Always use the

attached handle. After use, allow sufcient time for the surfaces to cool

before touching them. Heating elements may be hot, even though they

are dark in color.

• To avoid the possibility of re or burns, do not allow clothing or other

material to come into contact with any part of the warming drawer dur-

ing and immediately after use. Use caution if wearing loose or hanging

apparel while using this appliance.

• Never use a power cord that is frayed or damaged.

• Ensure the power cord does not create a tripping hazard.

• Never immerse the power cord or plug in water or other liquid.

• If materials inside the warming drawer ignite, keep the drawer closed and shut

off the power at the circuit breaker panel or fuse box.

• Exercise caution when opening the drawer - allow hot air and/or steam to

escape before looking or reaching into the drawer.

• Do not put any sealed containers inside the drawer - they may explode when

heated, causing injury.

• Do not place more than 18 pounds in the drawer. If installed in a trolley, ensure

weight is distributed in the back half of the drawer to ensure trolley does not

tip over.

• Properly clean and maintain the unit regularly as instructed in this manual.

Clean only those parts listed in this manual, in the manner specied.

• Do not use abrasive scrubbers or abrasive/caustic cleaners or detergents.

They may permanently damage the nishes. Do not use aerosol cleaners,

because they may be ammable or cause corrosion of metal parts.

• Make sure the warming drawer is used only by trained and capable individuals.

• Do not tamper with the controls.

• Preheat the warming drawer before use.

• Never allow anyone, including children, to sit, stand or climb on any part of

the warming drawer unit, including the drawer when open. Do so may cause

tipping, damage, serious injury, or death.

• Do not leave children alone or unattended in the area around the warming

drawer. Do not allow children to operate it, play with the controls, pull on the

handle, or touch other parts.

• Do not store items of interest to children above the warming drawer. Children

could be burned or injured if climbing on the appliance.

• Do not overstuff the warming drawer with an oversized robe or dry linens.

READ AND SAVE THESE INSTRUCTIONS

SECTION 1: SAFETY INFORMATION

SECTION 2: PRODUCT OVERVIEW

Basic Specications Features

Drawer Dimensions 4.5” H x 17” W x 15.5” D Construction Sturdy and attractive stainless steel

Basket Dimensions 3.75” H x 15” W x 13.8” D Control Panel Fully electronic control and thermoswitch

automatically adjust and maintain temperatures

Drawer Capacity 18 lbs maximum Drawer Glides Heavy duty glides for quiet and smooth operation

Included Accessories Wire basket and silicone pad Timer Silent auto-shutoff after the chosen length of time

Wire Basket

To hold moist towels and dry linens

Silicone Pad

To protect the drawer when warming stones

Drawer Face

Drawer

Handle

Drawer Glide

Electronic

Control Panel

Drawer

Gasket

Warming Drawer

SECTION 3: OPERATING INSTRUCTIONS

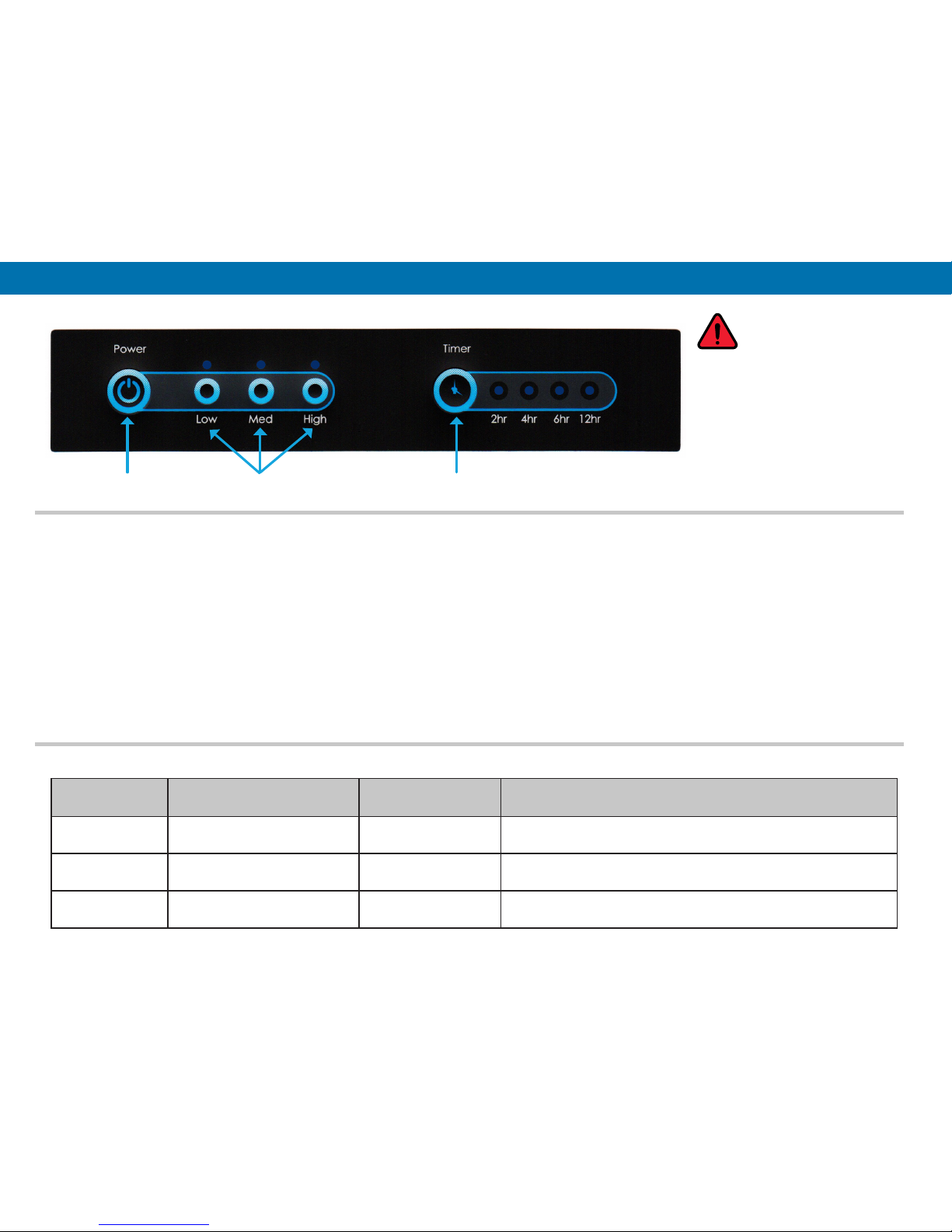

Electronic Control Panel Follow recommended heat settings

below. Overheating stones and dry

linens may cause re and/or injury.

Ensure wire basket is used for

moist towels and dry linens/robe.

Failure to do so may lead to

scorching and/or re.

Ensure silicone pad is used for

stones. Failure to do so may result

in damage to your drawer.

Warming Drawer Operation

Setting Recommended Item(s) Temperature

Ranges* Heating Tips

Low Robe, Dry Linens 80°F - 100°F Do not overstuff - robes and/or dry linens should t loosely in the basket to heat

evenly and avoid scorching.

Medium Stones 100°F - 120°F For best results, pre-oil stones with unscented massage oil - no water needed.

Do not stack stones in the drawer. Place larger stones in the back of the drawer.

High Moist Towels ONLY 120°F - 145°F For best results, pre-moisten towels with hot water. Do not overstuff.

Heat Guidelines

* Temperature ranges are approximate

For best results, preheat the empty warming drawer for at least 20 minutes before use.

1. Turn on the warming drawer by pushing the Power button.

2. Set the desired heat setting by pushing either the Low, Med, or High button. (See Heat Guidelines below)

3. Set the timer by pushing the Timer button until the desired number of hours lights up on the control panel.

4. Ensure the drawer is closed completely to heat quickly and maintain temperature once heated.

5. When ready to place items in the drawer, ensure you use the correct drawer insert:

• Use the wire basket if heating moist towels, dry linens, or a robe.

• Use the silicone pad if heating stones.

Power Button Heat Settings Timer Button

SECTION 4: CLEANING & MAINTENANCE

CAUTION

- To prevent permanent damage to the warming drawer surfaces, do not use abrasive cleaners or scrubbers.

- Do not allow acids or acidic products to remain on the warming drawer’s surfaces. The nish may stain.

- Always wipe stainless steel surfaces in the direction of the grain.

Category Cleaning Recommendation

Electronics/

Control Panel

Anti-static electronic aerosol dusters can be used to keep the surfaces of electronic components, power cables, and plugs free of dust. Exercise

caution to avoid introduction of liquids into the area behind the control panel. Do not use abrasive cleaners or scrubbers. They may permanently

damage the nish or damage the letters and/or graphics.

Drawer Face/

Drawer Handle

Clean the drawer face/handle with a solution of mild detergent and hot water. Rinse and dry with a soft cloth. You may also use a stainless steel

cleaner. Use stainless steel cleaner according to the directions on the package. Always wipe stainless steel surfaces in the direction of the grain.

Drawer Interior Clean the drawer interior with a solution of mild detergent and hot water. Rinse and dry with a soft cloth. Do not use any ammable cleaners

inside the warming drawer.

Painted surfaces Clean any painted surfaces with a solution of mild detergent and hot water. Rinse and dry with a soft cloth. Do not use abrasive cleaners or

scrubbers. They may permanently damage the nish.

Gasket

The gasket is located around the edge of the drawer opening, below the control panel. Gently clean the gasket with a solution of mild detergent

and hot water. Rinse and dry with a soft cloth. The gasket material is soft, so be careful not to crush or damage it. Damaging the gasket will

cause a poor heat seal and result in poor warming drawer performance.

When heating moist towels, condensation can build up inside the warming drawer. If not regularly wiped down, this can lead to small amounts of water dripping

from the warming drawer when opened.

To minimize any water dripping, ensure you perform the following maintenance tasks as needed throughout the day:

1) Ensure any condensation and/or moisture (inside and outside the drawer) is wiped dry with a soft cloth as needed.

2) Ensure any condensation and/or moisture on the surrounding wood and/or laminate is wiped dry with a soft cloth as needed.

Ongoing Maintenance

DANGER: RISK OF ELECTRIC SHOCK

Before cleaning, always uplug the table/trolley (where the warming drawer is embedded into) from the electrical outlet.

SECTION 4: CLEANING & MAINTENANCE

Push in locking tab

(on both sides of drawer)

Pull up on

drawer face

Removing the Drawer

1. Pull the drawer out to the fully open position.

2. Push in the locking tab on one side, and pull up on the drawer face.

3. Once the drawer is loose, repeat process on the opposite side.

4. Grip the drawer on both sides and pull it up and out from the glides.

5. For safety reasons, push both drawer glides back into the drawer until ready

to re-install the drawer.

Allow the warmer to cool for a minimum of 30 minutes before

attempting to remove it the drawer.

Before cleaning, always uplug the table/trolley (where the

warming drawer is embedded into) from the electrical outlet.

Re-Installing the Drawer

1. Pull the drawer glides out to the fully open position.

2. Gently lower the drawer between the extended glides, until it is resting on the glides.

3. Push the drawer towards the back of the glides, until it fully engages the stopping

tab (on both sides).

4. Push down the front end of the drawer, engaging the locking tabs.

5. Gently close and open the drawer to make sure it is properly installed.

Ensure the drawer fully en-

gages the stopping tab

(on both sides of drawer)

This helpful troubleshooting guide will provide you with information about how to recognize a problem with the warming drawer, determine possible causes, and nd a solution.

In the event your specic situation is not covered in this guide, please contact Earthlite so our technical support department can assist you. Beyond the troubleshooting guide below,

do not attempt to repair the warming drawer yourself. This can void your warranty.

Unauthorized service will not be covered. Please be sure to contact Earthlite Customer Service rst.

Earthlite Customer Service: (800) 872-0560, (760) 599-1112 Int’l

Troubleshooting

SECTION 4: CLEANING & MAINTENANCE

Problem Probable Cause Solution

Nothing works

Table power cord or trolley power cord may be disconnected. Plug into a grounded and dedicated electrical outlet.

Timer is not set. Select time duration according to the Operating Instructions section.

Tripped circuit breaker or blown fuse. Check the circuit breaker panel or fuse box for a tripped breaker or blown fuse.

Drawer does not slide

smoothly or drags

Drawer is incorrectly mounted into drawer glides. Reinstall drawer into drawer glides, per instructions on page 7.

Drawer is overloaded or the load is unbalanced. Reduce the weight to less than 18 pounds and/or redistribute drawer contents.

Excessive condensation

Warming drawer not preheated. Preheat the warming drawer before each use.

Towels pre-moistened with cold water. Pre-moisten the towels with hot water for best results.

One or more of the

indicator lights on the

control panel blink on and off

The control panel computer has detected an error:

#1 - Temperature error

#2 - Sensor error

#3 - Key pad error

#4 - Control error

Try resetting the computer. Disconnect the power cord, wait 20 seconds, then

reconnect it. Check the control panel. If the indicator light still ashes, call for

service (see number above).

See your table and/or trolley manual for complete warranty information. The warming drawer is covered under the section for motors, controls, and electronics, which are warranted

for two (2) years. Earthlite may repair or replace defective components at our discretion. Earthlite will return the warranted product, standard shipping pre-paid, to customers in the

continental US. International customers are responsible for any applicable duties and taxes, as well as all shipping charges inbound and outbound. Normal wear and tear, and costs

associated with maintenance procedures, and damage caused by accident, misuse, improper maintenance, harsh operating environments or neglect (which includes damage caused

by harsh chemical-based cleaners) are not covered under this warranty. All warranties are limited to repair or replacement, at Earthlite’s discretion, unless otherwise stated.

Warranty
