EASTCOLIGHT 8007 User manual

User Instructions Item no. 8007
Planetarium with Wireless Bluetooth®Speaker

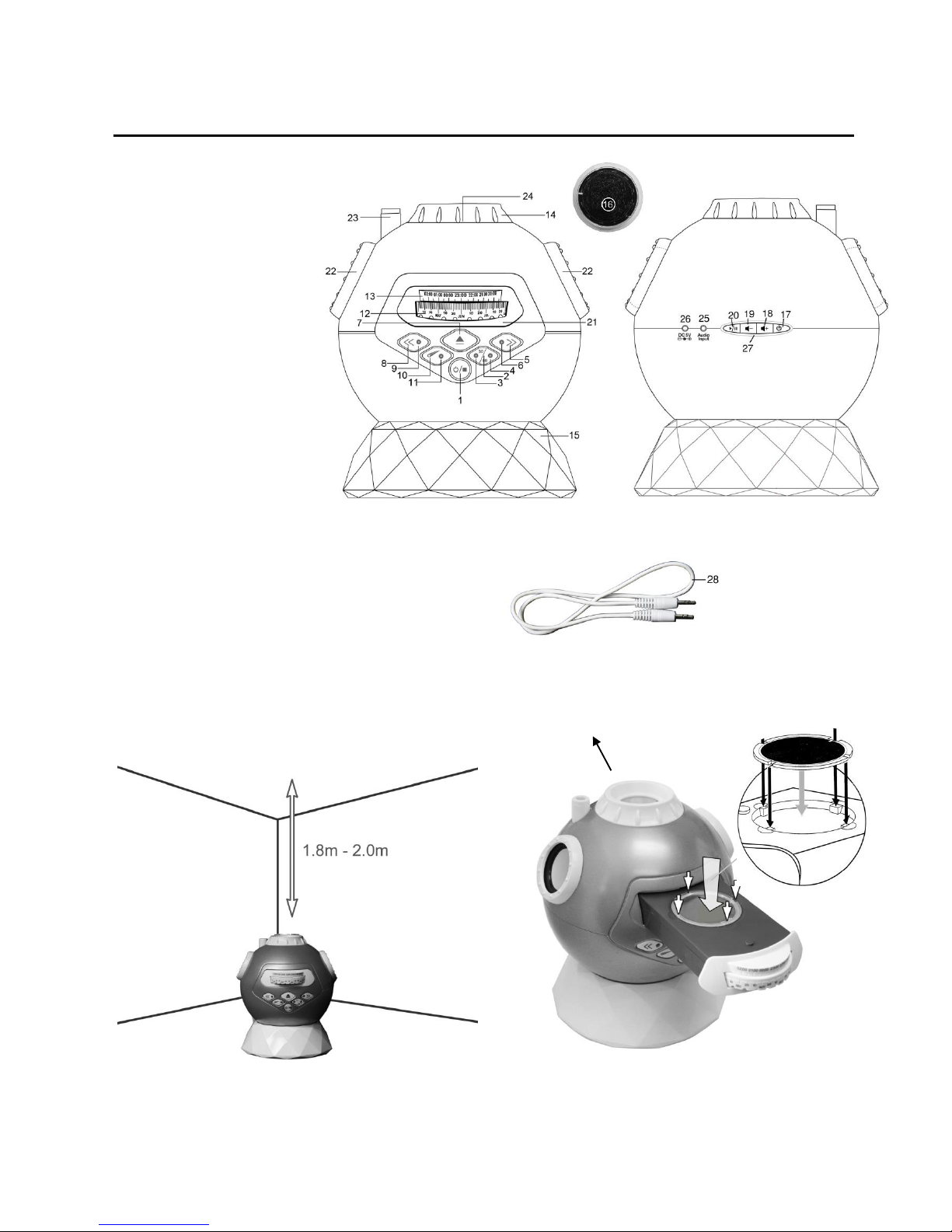

COMPONENTS
1 ON/STOP/OFF switch
2 Sleep Timer Button
3 30 Minute Sleep Indicator
4 60 Minute Sleep Indicator
5 Rotate Right Button
6 Rotate Right Indicator
7 Slide Tray Eject Button
8 Rotate Left Button
9 Rotate Left Indicator
10 Shooting Star Button
11 Shooting Star Indicator
12 Date Dial
13 Time Scale
14 Focus Dial
15 Stand
16 Star Disc (2 pieces)
17 Speaker ON/OFF/Pairing Button
18 Vol + /Next Song Button
Quickpress = Next Song
Press & Hold = Volume Up
19 Vol –/Previous Song Button
Quickpress = Previous Song
Press & Hold = Volume Down
20 Play/Pause Button
21 Star Disc tray
22 Speakers
23 Shooting star projection lens
24 Main projection lens
25 Audio IN Connector
26 5V DC IN Connector
27 Speaker Status LED
28 Audio cable
Setting up the Planetarium
1. Open the battery cover at the bottom of the unit and insert
3 pieces of AA size batteries. Please refer to the “Battery
Installation Section”below. Replace battery cover firmly.
2. Place the unit over the stand(15) on a flat and stable
platform (e.g. a table), the optimum project distance is about
1.8m to 2m.
3. Press the Slide Tray Eject Button (7) to open the tray and
install the star disc (16). Note the keys on the disc have to
match the ridges on the tray.
N

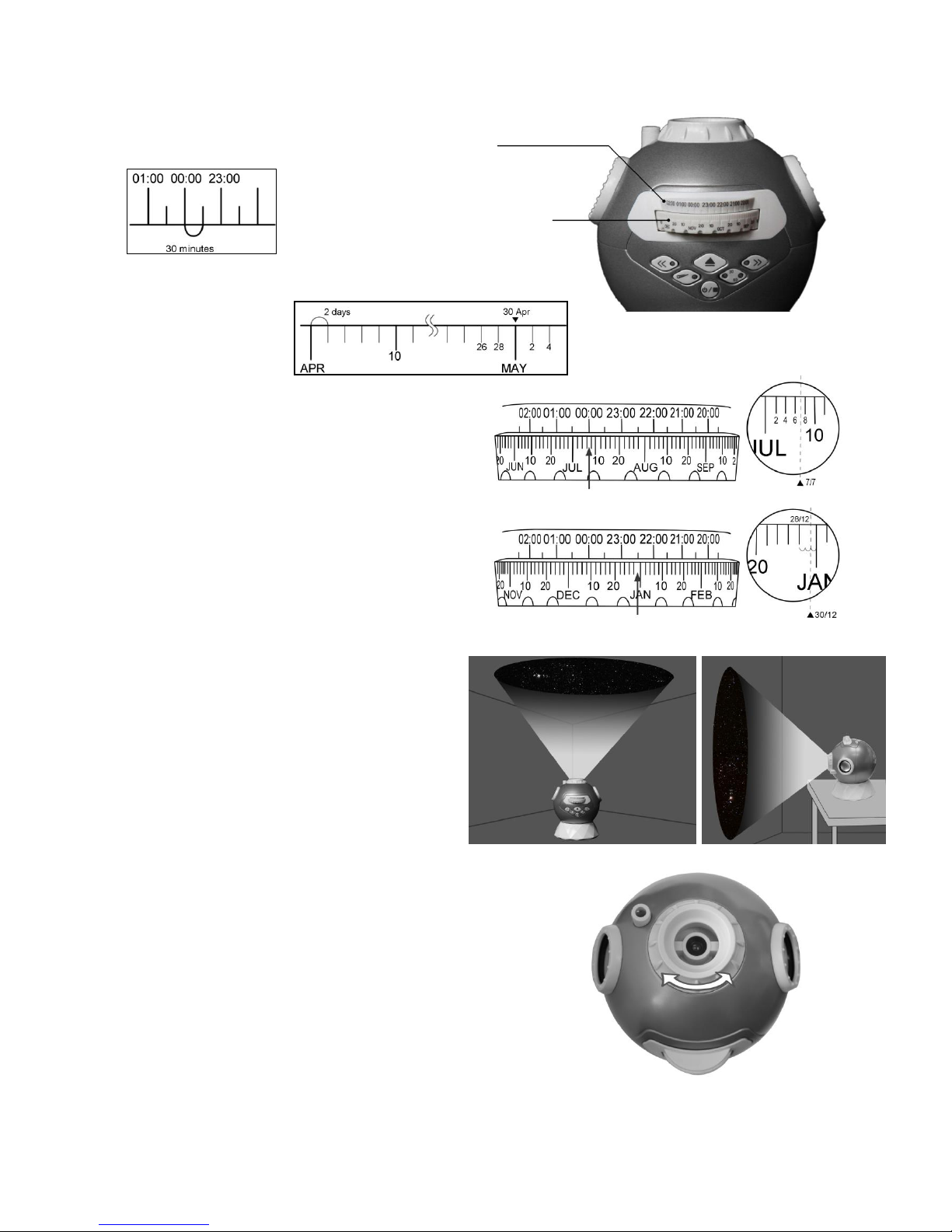

Time Scale (fixed): Time from 20:00 (8 p.m.) to 02:00 (2 a.m.)
is shown. Align the Date Dial with it to project stars at a
particular time. (Each subdivision equals 30 minutes.)
Date Dial (Adjustable): The Date Dial has
365 days. Adjust the dial to project stars you
want to see on a particular date. (Each
subdivision equals to 2 days. The long mark
corresponds to the last day of the previous
month.)
Example 1: If you want to see the star pattern at mid-
night (00:00) on 7th July, align 00:00 on the time scale
with 7th July. Position of the date 7th is between 6th and 8th.
Example 2: If you want to see the star pattern at 22:30
(10:30 p.m.) on 30th December, align 22:30 on the time
scale with 30th December. As shown in the figure, the
small marking represents 3 days. Therefore the day 30th
would be at 2/3 of the marking. (The same setting
applies to January, March, May, July, August and
October.) Note that 28th and 29th of February are at the
same mark.
Using the Star Motion Function
1. Press the Rotate Left Button (8) to rotate the night sky
anticlockwise, which is the motion of the stars in the northern
hemisphere. Press the button again to increase the rotation
speed. A total of five speed is available. Each press will
select the next higher speed. The Rotate Left Indicator (9)
will blink according to the speed. Press the “ON/STOP/OFF”
button to stop.
2. Similarly, press the Rotate Right Button (5) to rotate the
stars clockwise, which is the motion of the stars in the
southern hemisphere. A total of five speed is also selectable.
4. While the slide tray is still opened, set the time and date of the night sky you want to view by aligning the desired date on Date
Dial with the desired hour on the Time Scale.
6. Press the ON/STOP/OFF switch (1) once to turn on the Projector
Light. Dim or turn off the light in the room for best visual experience.
Note that the unit cannot be turned on when the tray is opened.
7. You can freely adjust the projection angle of the projection head
over the stand (15) to suit viewing on the ceiling or sidewall.
8. Adjust the focus dial (14) until the projected star field is sharp.
The optimum project distance is 1.8m to 2m, image will become
blur if the distance is too near or too far.
5. Close the tray. Note that you are looking to the north when you
face the star projector from the front. Please do not turn the Date
Dial when the tray is closed. You need to open the tray again if you
want to set the date, or you can use the Rotate Left (8) or Rotate
Right button (5) while the unit is turned on.

Technical Specifications
Projection method: Optical
Viewing Location: N35O
Constellations: 61
Stars: 8000
Light Source: High Brightness White LED
Star field orientation adjustment: Date, Hour
Projection Area: 1.8 x 2.2m at 2.0m distance
Number of stars: 8000 (each star disc)
Auto Off Timer: 30, 60, 120 minute
Power: 5V DC / 3 x 1.5V AA/LR6
Speaker Power: 1.5W x 2
Bluetooth: Version 3.0+EDR A2DP
Using the Shooting Star Function
When the night sky is in the rotating state, press the
Shooting Star Button (10) to enable the shooting star function.
A shooting star will appear in the night sky at regular time
interval. It will appear more frequently if the rotating speed is
set higher. Press the same button again to disable shooting
star.
Using the Timer Function
Press the Sleep timer button (2) to enable 30 or 60 minute
sleep timer, the corresponding LED indicator will show the
current selected timer. To disable sleep timer, press the timer
button until both timer indicator light (3,4) are off. However,
the projector will still turn off automatically in 2 hours to save
battery.
Powering OFF
Press and hold the ON/STOP/OFF (1) button to turn off the
projector.
Set up the Bluetooth speaker
Note: Ensure the audio cable is removed from the “Audio
Input” jack (25) of the speaker in order to use the
Bluetooth function..
Pairing the speaker and a device
1. Make sure the speaker is turn off and keep it within 30 feet of the device it is paired to. Now press and hold the On/Off/Pairing button until
a second tone is emitted. The status LED (27) will flash in RED and BLUE alternatively, indicating it is in pairing mode.
2. On your device (smartphone or tablet), locate your Bluetooth setting and turn on Bluetooth.
3. In Bluetooth Settings, scan for devices if necessary, then select “Planetarium Spkr”from your device’s list. The status LED will change to
blinking twice (in BLUE) every 5 seconds if the connection is successful. Your device and speaker are paired and your speaker is ready to
use.
Pairing another device
Turn off the speaker by pressing and holding the On/Off/Pairing button until a second tone is emitted. The status LED (27) will turn off. Repeat
step 1 –3 above to connect to a new device.
Reconnecting to a paired device
1. Turn on the speaker by pressing and holding the On/Off/Pairing button until a first tone is emitted. The status LED (27) will flash BLUE
quickly indicating it is in device searching mode.
2. Turn on Bluetooth function of your device within 45 seconds. Connection is established automatically and a double tone will sound.
However, if Bluetooth is turned on after this period or automatic connection is unsuccessful, you can still connect manually by selecting
“Planetarium Spkr” from your device’s list.
Play Music
Select the desired music and press "Play" button on your paired device. The speaker will automatically start playing back the music.
1. On the speaker, press and hold the “+” or ”-“ button (18,19) to increase or decrease volume.
2. Quickpress the “+” or ”-“ button to skip forward or backward a track.
3. Press “/” button (20) to pause or resume play.
Status LED
Pairing mode
RED and BLUE LED blinks alternatively every second
Searching connection
BLUE LED blinks once every half second
Disconnected
BLUE LED blinks once every 5 seconds
Connected
BLUE LED blinks twice every 5 seconds
Playing music
RED and BLUE LED blinks every 5 seconds
Power on / Power off
RED and BLUE LED blinks 3 times
Connect with Audio Cable
Connect a music player’s audio output or smartphone’s earphone output to the Audio IN connector (25) at the back of the unit with a 3.5mm
audio cable (included). The speaker automatically disconnects from Bluetooth. Press and hold the “+” or ”-“buttons to adjust the volume.
Troubleshooting
Problem
Check the following points
Power does not come on
Check the battery.
The speaker won't pair
Move the speaker and your device close together.
Pairing mode is disabled automatically after about 45 seconds. Turn the speaker off, then
long press the On/Off/Pairing button until a second tone is emitted to enter pairing mode.
Forget the "Planetarium Spkr" device in your device list. Scan for new bluetooth device.
Then try pairing again.
The sound is too quiet or too loud
Adjust the volume on your device. It should be about 50%.
Adjust the speaker volume.
The speaker is powered off automatically.
The battery is exhausted. Replace the battery or connect the AC adapter (not included)
If at any time in the future you should need to dispose of this
product please note that waste electrical products should not
be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for
recycling advice.(Waste Electrical and Electronic Equipment
Directive)

No sound output.
Check if the volume level of the speaker is set to the minimum.
Check if the volume level of your Bluetooth device connected to the system is set to
minimum or set to mute.
Check if your audio cable is connected to the Audio In jack of the speaker. Unplug the cable.
I hear cracking noises
For best audio quality, keep the speaker close to your device.
No sound output via Bluetooth
or Bluetooth connection cannot
be restored automatically.
The speaker may be powered off and powered on when playing back a track over Bluetooth
connection. You need to make the connection again.
Speaker does not power off with the
planetarium
The speaker and planetarium functions are independent and operate separately. Power
on/off the speaker using the ON/OFF/Pairing button.
Using AC/DC adapter
This unit can be powered by an AC/DC adapter (not included). Connect an AC/DC adapter (5V 1000mA Output, 3.5mm Center Positive
Plug ) into the Planetarium’s 5V DC IN connector (26) and plug it into an AC wall outlet.
Battery Installation
Uses 3 AA (LR6) batteries (not included)
1. Twist and open the battery compartment door at the bottom.
2. Remove the battery cover with a screwdriver.
3. Insert three AA (LR6) batteries into the unit with polarity as indicated
on the battery compartment.
4. Replace the battery cover and battery door.
5. Replace a new battery when the light becomes dim.
6. Insert new batteries according to the polarity marks.
IMPORTANT: Keep these instructions. DO NOT DISCARD.
Only adults should install and replace batteries. Alkaline batteries are
recommended. If the unit has not been used for a long time, remove the batteries.
Non-rechargeable batteries are not to be recharged. Rechargeable batteries are to
be removed from the unit before being charged. Rechargeable batteries are only to
be charged under adult supervision. Do not mix old and new batteries. Do not mix
alkaline, standard (carbon zinc) or rechargeable (nickel cadmium) batteries.
Exhausted batteries are to be removed from the unit. The supply terminals are not
to be short-circuited. Only batteries of the same or equivalent type as
recommended are to be used. Batteries are to be inserted with the correct polarity.
WARNING
Choking hazard. Never try to dismantle the product yourself, or push objects of any kind into the product, as this may cause short circuits which
could result in a fire or electric shock. Do not expose this product to rain or moisture.
FCC Information
This device complies with Part 15 of the Federal Communications Commission (FCC) Rules. Operation is subject to the following two
conditions:
•This device may not cause harmful interference.
•This device must accept any interference received, including interference that may cause undesired operation.
CAUTION:
Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate
this equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instructions, may cause
interference harmful to radio communications.
There is no guarantee, however, that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio or TV technician for help.
Model No.: 8007
Input: 3 X 1.5V LR6 / DC 5V 1000mA
Made in China
© 2014 Eastcolight (Hong Kong) Limited. All rights reserved.
