Easy wave neo RCP20 User manual

Safety Advice
- The plug-in receiver is only de-energized
when it is disconnected from the mains sup-
ply.
- The outlet in which the unit is operated must
be easily accessible.
- Have faulty units checked by the manufactu-
rer!
- Do not open the unit housing!
- Do not make any unauthorized alterations or
modications to the unit!
Function
The RCP20 plug-in socket receiver is used to
control an electric device via radio transmitter or
locally using the I/O button.
The operating modes ON/OFF, LOGIC, DEAD
MAN and TIMER are available (see section “Ope-
rating modes“).
32 transmission codes can be programmed into
the receiver.
For local operation the device is controlled using
the I/O button in ON/OFF 1-button operating
mode.
The integrated POTA (Programming Over The
Air) remote programming function can be used to
reprogram an already-installed and no longer ac-
cessible receiver. A detailed POTA programming
specication is available on our website:
https://www.eldat.de/pota_en.pdf
or you can request support from our customer
service.
Operation
Briey press button P to begin programming
mode for the required operation type. Any Easy-
wave transmitter can then be programmed under
this operation type.
A separate operation type can be assigned to
each transmitter / transmitter button.
When in 2-button operation (2-TB), transmitter
buttons A and C switch ON. Transmitter buttons
B and D switch OFF. Only one transmitter button
must be taught-in to the receiver, as the code of
the second button is automatically assigned.
In 1-button operation (1-TB), each function is
triggered with just one transmitter button. Each
button must be programmed individually into the
receiver, there is no automatic assignment.
The receiver can be switched ON and OFF locally
with the I/O button.
Timeout
(1)
If no button is pressed within 30 seconds, the
RCP20 automatically switches to standby. The
settings are not saved.
Setting up the Receiver
1. Plug the plug-in receiver into a properly func-
tioning earthed outlet.
2. With the programming button P, you can start
the programming mode for the required ope-
ration type (see “Operating modes”) and as-
sociate the transmitter.
3. Plug the mains plug of the device to be swit-
ched into the mains output of the receiver.
Make sure there is no interference with
the wireless connection! Do not mount the
device in a distribution box, in metal casings
and in direct proximity to large metal objects.
P
I/O
RCP20EN5001A01
Technical Details
Frequency: 868.30 MHz
Modulation: FSK
Coding: Easywave neo,
POTA
Power supply: 230 V AC, 50 Hz
Device type: switch
Output: 1x potential-loaded
output (normaly open)
Power consumption: 0.4 W standby
0,8 W max. w/o load
Connected load max.: 10 A / 230 V AC
Operating temperature: -20 °C to +35 °C
Dimensions (H/W/D): 71.4/71.4/75.5 mm
Weight: approx. 120.0 g
Scope of Delivery
Plug-in socket receiver RCP20,
operating manual, quick start guide
Intended Use
This unit may only be used as radio controller to-
gether with mains-powered devices and only in-
doors! It is operated using Easywave radio trans-
mitters or a button on the RCP20.
The manufacturer will not be liable for damage
caused by improper or inappropriate use.
Safety Advice
Before installing the device, carefully
read through this operating manual!
Failing to observe these instructions
may result in re or other hazards.
- The circuit on which the device is operated
must be protected with a circuit breaker
in accordance with EN60898-1 (tripping
characteristic B or C) with a maximum rated
current of 10 A.
- Caution: Do not plug in any plug-in device!
- We will not accept any liability for personal
injury or damage to property caused by
failure to observe the operating instructions
and in particular the safety advice!
- Observe the applicable laws, standards and
regulations as well as the manufacturer’s
instructions for the devices to be operated!
RCP20 Plug-in socket receiver
EN
Models
Programming button P
and
Red/green LED
PON/OFF button
I/O
Operating modes
2-button operation
ON/OFF
Transmission code A or C switches ON.
Transmission code B or D switches OFF.
LOGIC
All taught-in transmission codes are linked in ac-
cordance with AND/OR logic.
OR linkage
If one of the programmed transmitters trans-
mits an ON telegram (A/C), the receiver swit-
ches ON.
AND linkage
If all programmed transmitters which have pre-
viously transmitted an ON telegram (A/C) have
transmitted an OFF telegram (B/D), the recei-
ver switches OFF.
This operating mode is subordinate to all other
operation types! This means that any command
from a transmitter under another operation type
will disable this operation type! If another opera-
tion type switches ON or OFF while logic is ON,
the logic function is reset but can be restarted at
any time.
1-button operation
ON/OFF
Each transmitter code A/B/C/D can switch ON
and OFF alternately.
If the transmitter button is pressed for longer than
2 seconds, all receivers being programmed with
the code of the button are switched OFF (status
of switching is synchronized).
DEAD MAN
The output switches as long as the transmitter
button is pressed, but for a maximum of 36 se-
conds.
TIMER
adjustable, retriggerable
The receiver switches ON and automatically OFF
again after the set time (factory setting: 7 minu-
tes). Any transmission code A/B/C/D can be used.
Pressing the transmission button again before the
timer nishes extends the switching time again to
the set switching time. The TIMER function can
be set by the user in a range from 1 second to 30
hours (see “Set TIMER”).

P
Tx
P
I/O
2
Program transmitter
The RCP20 only responds to associated Easywave transmitters. In order to teach-in a transmitter,
switch the RCP20 to programming mode for the required operation type, then press the transmitter but-
ton to be programmed. If a transmitter which has already been taught-in is then taught-in again, the pre-
vious operation type is overwritten by the new selections. 32 transmission codes can be programmed in.
Operation
(1)
[Press button] Display Note
ON/OFF 2-TB
P1x briey LED P ashes red Operating mode ON/OFF 2-TB selected
Tx Transmitter
button
1x briey
LED P lights
2 seconds red
Transmission code is programmed.
If the LED goes out, the receiver
is ready for operation.
LOGIC 2-TB
P
P
1x briey
1x long
LED P ashes red
LED P ashes green
Operating mode ON/OFF 2-TB
Operating mode LOGIC selected
Tx Transmitter
button
1x briey
LED P lights
2 seconds green
Transmission code is programmed.
If the LED goes out, the receiver
is ready for operation.
ON/OFF 1-TB
P2x briey LED P ashes red Operating mode ON/OFF 1-TB selected
Tx Transmitter
button
1x briey
LED P lights
2 seconds red
Transmission code is programmed.
If the LED goes out, the receiver
is ready for operation.
DEAD MAN 1-TB
P
P
2x briey
1x long
LED P ashes red
LED P ashes green
Operating mode ON/OFF 1-TB
Operating mode Dead Man selected
Tx Transmitter
button
1x briey
LED P lights
2 seconds green
Transmission code is programmed.
If the LED goes out, the receiver
is ready for operation.
TIMER 1-TB
P3x briey LED P ashes red Operating mode TIMER 1-TB selected
Tx Transmitter
button
1x briey
LED P lights
2 seconds red
Transmission code is programmed.
If the LED goes out, the receiver
is ready for operation.
TIMER einstellen
P
P
3x briey
1x long
LED P ashes green
LED P lights green
Operating mode TIMER selected
Set TIMER (see Page 3)
PROGRAMMING
A programming process can be cancelled by quickly pressing the Pprogramming button several
times. Once the LED goes out, the receiver returns to standby.
Select operating mode
Send transmission code
Programming structure
Ready for operation
P < 2 s
ON/OFF 2-TB
P > 2 s
P < 2 s LOGIC 2-TB
ON/OFF 1-TB
P > 2 s
P < 2 s DEAD MAN 1-TB
TIMER 1-TB
P > 2 s
P < 2 s Set TIMER
Ready for operation
LED displays Button press
briey (<2 s) = Press button for less than 2 seconds
long(> 2 s) = Press button longer than 2 seconds
waiting time
Operation
1-TB = 1-button operation
2-TB = 2-button operation
ILLUSTRATION
Symbols
ashes quickly
light
o
ashes

Base time
[Sec.]
Multiplier
1 10 60 600 1,800 3,600
Convert seconds with multiplier to time (hours:minutes:seconds)
10:00:01 0:00:10 0:01:00 0:10:00 0:30:00 1:00:00
20:00:02 0:00:20 0:02:00 0:20:00 1:00:00 2:00:00
30:00:03 0:00:30 0:03:00 0:30:00 1:30:00 3:00:00
40:00:04 0:00:40 0:04:00 0:40:00 2:00:00 4:00:00
50:00:05 0:00:50 0:05:00 0:50:00 2:30:00 5:00:00
60:00:06 0:01:00 0:06:00 1:00:00 3:00:00 6:00:00
70:00:07 0:01:10 0:07:00 1:10:00 3:30:00 7:00:00
80:00:08 0:01:20 0:08:00 1:20:00 4:00:00 8:00:00
90:00:09 0:01:30 0:09:00 1:30:00 4:30:00 9:00:00
10 0:00:10 0:01:40 0:10:00 1:40:00 5:00:00 10:00:00
11 0:00:11 0:01:50 0:11:00 1:50:00 5:30:00 11:00:00
12 0:00:12 0:02:00 0:12:00 2:00:00 6:00:00 12:00:00
13 0:00:13 0:02:10 0:13:00 2:10:00 6:30:00 13:00:00
14 0:00:14 0:02:20 0:14:00 2:20:00 7:00:00 14:00:00
15 0:00:15 0:02:30 0:15:00 2:30:00 7:30:00 15:00:00
16 0:00:16 0:02:40 0:16:00 2:40:00 8:00:00 16:00:00
17 0:00:17 0:02:50 0:17:00 2:50:00 8:30:00 17:00:00
18 0:00:18 0:03:00 0:18:00 3:00:00 9:00:00 18:00:00
19 0:00:19 0:03:10 0:19:00 3:10:00 9:30:00 19:00:00
20 0:00:20 0:03:20 0:20:00 3:20:00 10:00:00 20:00:00
21 0:00:21 0:03:30 0:21:00 3:30:00 10:30:00 21:00:00
22 0:00:22 0:03:40 0:22:00 3:40:00 11:00:00 22:00:00
23 0:00:23 0:03:50 0:23:00 3:50:00 11:30:00 23:00:00
24 0:00:24 0:04:00 0:24:00 4:00:00 12:00:00 24:00:00
25 0:00:25 0:04:10 0:25:00 4:10:00 12:30:00 25:00:00
26 0:00:26 0:04:20 0:26:00 4:20:00 13:00:00 26:00:00
27 0:00:27 0:04:30 0:27:00 4:30:00 13:30:00 27:00:00
28 0:00:28 0:04:40 0:28:00 4:40:00 14:00:00 28:00:00
29 0:00:29 0:04:50 0:29:00 4:50:00 14:30:00 29:00:00
30 0:00:30 0:05:00 0:30:00 5:00:00 15:00:00 30:00:00
3
Conversion table
Operation
(1)
[Press button] Display Note
P1. 3x briey
2. 1x long
LED P ashes red
LED P lights green
Operating mode TIMER selected
Set TIMER
P1x briey LED P ashes alternately red|green Start base time measurement
between 1 and 30 seconds
1 to 30 s LED P ashes alternately red|green Wait for required base time
(30 seconds max)
Pbriey
1 to 6 times
within 5 s
LED P ashes green Stop base time measurement and
select required multiplier.
1x briey multiplier 1 selected
2x briey multiplier 10 selected
3x briey multiplier 60 selected
4x briey multiplier 600 selected
5x briey multiplier 1,800 selected
6x briey multiplier 3,600 selected
Wait 5 s LED P lights 2 seconds green The measured base time is multiplied
by the selected multiplier and saved
as the new switching time for the
TIMER.
PROGRAMMING
Set TIMER
The user can set any switching time for the TIMER function. Here, the base time measured during set-
ting of the TIMER is multiplied by the selected multiplier. The maximum base time is 30 seconds; the
measurement then ends automatically. The switching time set applies to all transmitters programmed in
TIMER operation type, even if they have already been programmed before the setting of the TIMER .
P
P
I/O
P
P
I/O
P
P
I/O
The base time measurement (point ) is
automatically canceled after 60 seconds.
Breaking o the TIMER setting is NOT pos-
sible at any other point!
Wait for required
base time (1-30 s)
Start base time
measurement
Select operating
mode “Set TIMER“
Wait 5 seconds
Select multiplier
(1 to 6x)

TxP
P
I/O
Deleting the Transmitter
In delete mode, individual transmitters can be specically deleted from the memory of the RCP20.
Operation
(1)
[Press button] Display Note
P1x long
LED P ashes quickly red
Receiver in delete mode.
Tx 1x briey LED P lights
2 seconds red
Transmitter has been deleted.
PROGRAMMING
Reset
With RESET, all settings are reset to the factory settings. All programmed transmitters are deleted and
the TIMER is reset to 7 minutes.
BI-DIRECTIONAL FUNCTIONS (Easywave neo)
An APC01 server can be taught-in to the RCP20 in order to use the bi-directional functions. The available functions are automatically detected, so no specic
operation type needs to be selected when programming a server. Teach-in the APC01 server to the receiver according to the instructions in the Easywave
app, by adding an ELDAT actuator as an “Easywave neo” device. After it is taught-in, the server receives feedback about each switching operation performed,
even where this is triggered by another transmitter or manually via the I/O button on the RCP20. The current receiver state is therefore always displayed in
the relevant app.
Program server
Add an actuator in the Easywave app as an Easywave neo device and follow the instructions in the app.
Only one server can be programmed into the receiver. Any server that may have already have been
taught-in is overwritten.
Delete the server
A server can be removed from the RCP20 by deleting the relevant device in the Easywave app. To dele-
te the server, the receiver must be powered and within range of the server. As an alternative to deleting
it via the app, the server can also be deleted by resetting the receiver.
Delete the receiver or relevant Easywave neo actuator in the app while the receiver is powered
and within range of the server.
Operation
(1)
[Press button] Display Note
Start the programming process via the Easywave app.
P1x briey LED P ashes red
Receiver in programming mode
any operating mode possible
Complete the learning process via the Easywave app.
Operation
(1)
[Press button] Display Note
P1x long LED P ashes quickly red
Receiver in delete mode.
P 1x long LED P lights
4 seconds red
All transmission codes have been deleted and
the factory settings have been restored.
UM181109_1222 EN
P
P
P
I/O
P
I/O
P
P
I/O
>2 s
>2 s>2 s
Once a server is taught-in to the RCP20, an acknowledgement for each switching operation
is transmitted via radio. If the server is not in use, delete it from the receiver to prevent unne-
cessary radio transmissions.
Start programming in
the Easywave app
Put the receiver in learning mode
Finish the learning
process in the
Easywave app
Disposal
Waste electrical products should not be
disposed of with household waste!
Dispose of the waste product via a
collection point for electronic scrap or
via your specialist dealer.
Put the packaging material into the
recycling bins for cardboard, paper
and plastics.
Warranty
We will remedy defects on the device based on
material or production errors or exchange the de-
vice within the statutory warranty period.
Any unauthorized tampering with, or modica-
tions to, the product shall render this warranty
null and void.
Conformity
Hereby, ELDAT EaS GmbH declares that the ra-
dio equipment type RCP20 is in compliance with
Directive 2014/53/EU. The full text of the EU de-
claration of conformity is available at the following
internet address: www.eldat.de
Customer Service
If the device does not work properly despite
proper handling or in case of damage, please
contact the manufacturer or your retailer.
ELDAT EaS GmbH
Schmiedestraße 2
15745 Wildau
Germany
Phone: + 49 (0) 33 75 / 90 37-0
Fax: + 49 (0) 33 75 / 90 37-90
Internet: www.eldat.de
E-mail: [email protected]
GENERAL INFORMATION

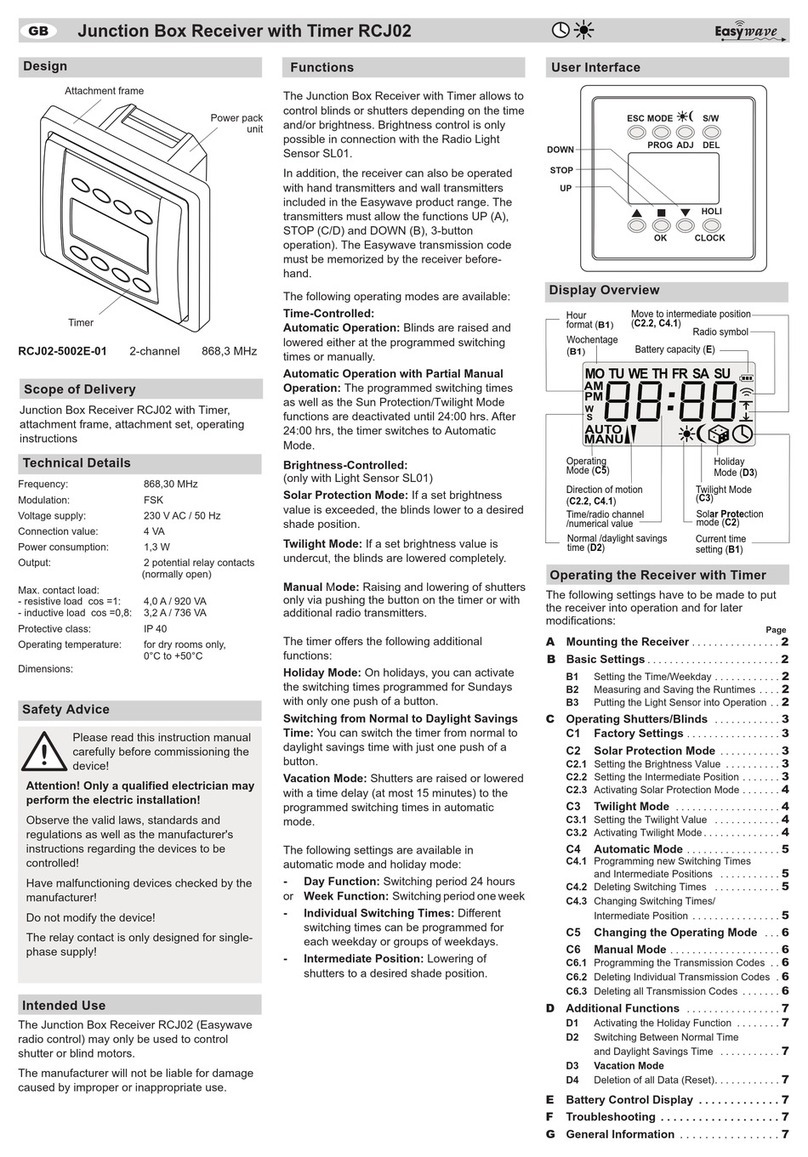

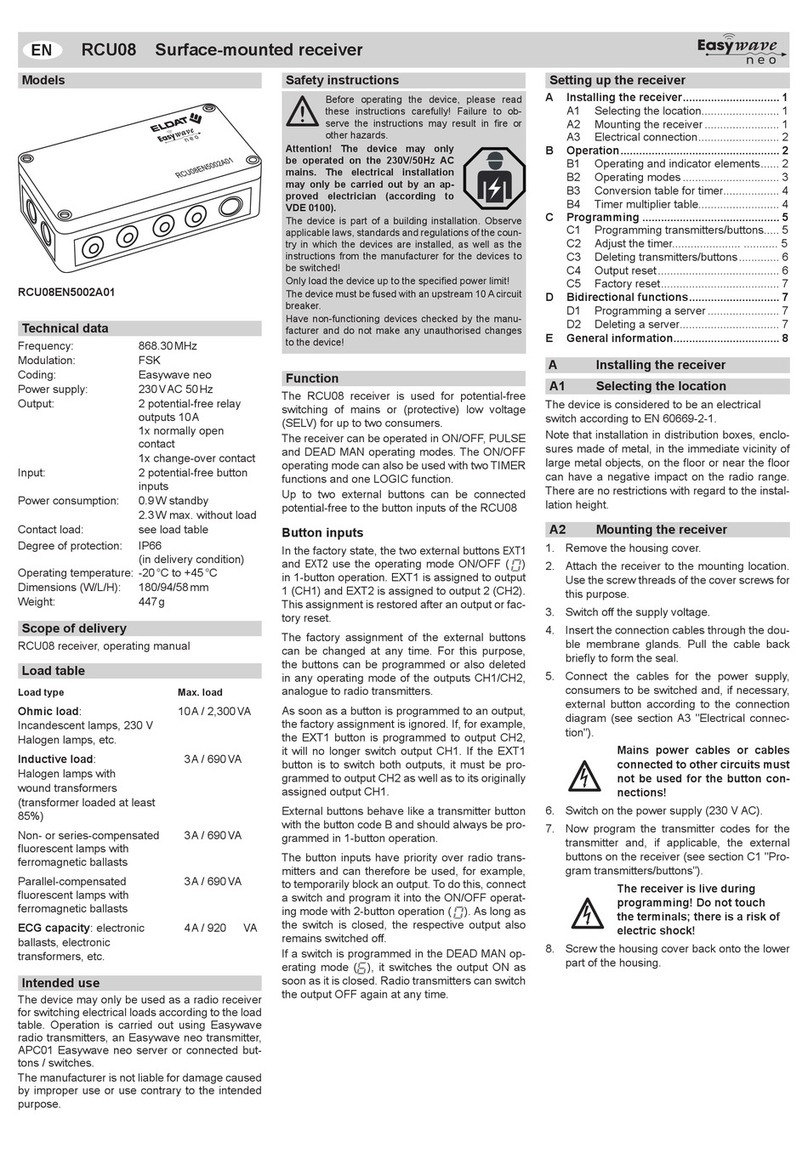

Other Easy wave Receiver manuals
