EASYFOUNTAIN Whiskey Barrels User manual

PRODUCT SUPPORT |helpline: 01405 869333 | email: [email protected]
INTRODUCTION
This product has been manufactured to the highest standards of performance
and safety, assuring your complete peace of mind.
IN THE UNLIKELY EVENT THAT YOU NEED TO REPORT AN ISSUE CONTACT
OUR HELPLINE DIRECT BEFORE RETURNING YOUR PRODUCT TO STORE.
Product code: HB643837
User Instructions
Height: 670mm
Width: 500mm
Depth: 480mm
Power Pump Supply: 12V - 50Hz
Power Pump Rating: 6.6W
Pump Ingress Protection Rating: IPX8
Whiskey Barrels
HB643837_Whiskey Barrels_User Guide_V1
HB643837_Whiskey Barrels_IM.indd 1HB643837_Whiskey Barrels_IM.indd 1 14/11/2022 12:2114/11/2022 12:21

PRODUCT SUPPORT |helpline: 01405 869333 | email: [email protected] PRODUCT SUPPORT |helpline: 01405 869333 | email: pr[email protected]
SAFETY INFORMATION
• The water pump must always be connected though a portable residual-
current device (RCD), or a built-in residual current circuit breaker (RCCB),
having a rated residual operating current not exceeding 30mA. (This level
of electrical protection was rst incorporated into UK homes built after
2001.) If in doubt consult a certied electrician.
• The pump must always be operated in a minimum level of water (head)
as marked on the pump after the letters ‘Hmin’. Never operate the pump
when it’s not submersed in water as this could cause it to burn out.
• Always isolate the electical supply to the pump before cleaning or making
any adjustments to the ow rate.
DO NOT route the electrical cable:
• Across any walkways
• Across any grassed area that requires periodic cutting
• Over any areas where it could cause a trip hazard
• On, or across, rough or sharp surfaces that could sever or cause abrasions
to the cable.
DO NOT:
• Allow children to play with the cable or touch the pump
• Drink from the reservoir or owing water
• Cut the cable, to shorten, lengthen or join it, or to change the plug
type: this is extremely dangerous and will invalidate the manufacturer’s
warranty
• Repair the pump’s electrical cable the complete pump appliance must be
replaced with one of identical characteristics.
DISPOSAL
This symbol means that waste electrical and electronic
equipment (WEEE) should not be mixed with general
household waste. For proper treatment, recovery and
recycling, please take this product(s) to designated collection
points where it will be accepted free of charge. Please
contact your local authority for further details of your nearest
designated collection point.
HB643837_Whiskey Barrels_IM.indd 2HB643837_Whiskey Barrels_IM.indd 2 14/11/2022 12:2114/11/2022 12:21

PRODUCT SUPPORT |helpline: 01405 869333 | email: pr[email protected] PRODUCT SUPPORT |helpline: 01405 869333 | email: pr[email protected]
PARTS LIST
PLEASE FOLLOW THE STEPS BELOW BEFORE UNPACKING
• Unpack with care onto a smooth surface to avoid scratching
• Check for any parts that may be hidden within the packaging
• Refer to the assembly instructions to set up your fountain
• Retain your purchase receipt and attach it to this leaet. In the event that
a part needs to be replaced under warranty, it will require your proof of
purchase.
REPLACEMENT PARTS
Pump code: JR-450LV
Replacement parts are available from La Hacienda Ltd.
1. Fountain part (x1) 2. Water Pump (x1)
*Actual pump may differ from images shown
HB643837_Whiskey Barrels_IM.indd 3HB643837_Whiskey Barrels_IM.indd 3 14/11/2022 12:2114/11/2022 12:21

PRODUCT SUPPORT |helpline: 01405 869333 | email: [email protected]
Connect the tube (F) to the
nozzle under the upper barrel
(D). Then feed through the
small hole in the lower board
(E). Attach barrels together
by matching up the slots and
twist clockwise.
Attach the tube (F) to the
nozzle on the pump (H). Then
place pump into the lower
barrel (G). Be sure to route the
power cord of pump through
the notch on the lower board.
Fit the groove on the lower
board (E) onto the edge of the
lower barrel (H) and attach
the two pieces.
Connect the long water tube
(B) to the nozzle inside the
pitcher pump (A). Then feed
the tube through the hole of
the upper board (C). Attach
pitcher pump onto the upper
board by matching up the
slots and twist clockwise to
lock into place.
Fit the groove on the upper
board (C) onto the edge of the
upper barrel (D) to attach the
two pieces. Then, connect the
tube (B) to the outlet nozzle
on the upper barrel.
Fill with enough water to
ensure the pump (G) is fully
submerged. Then, connect the
plug to your mains outlet.
PRODUCT SUPPORT |helpline: 01405 869333 | email: pr[email protected]

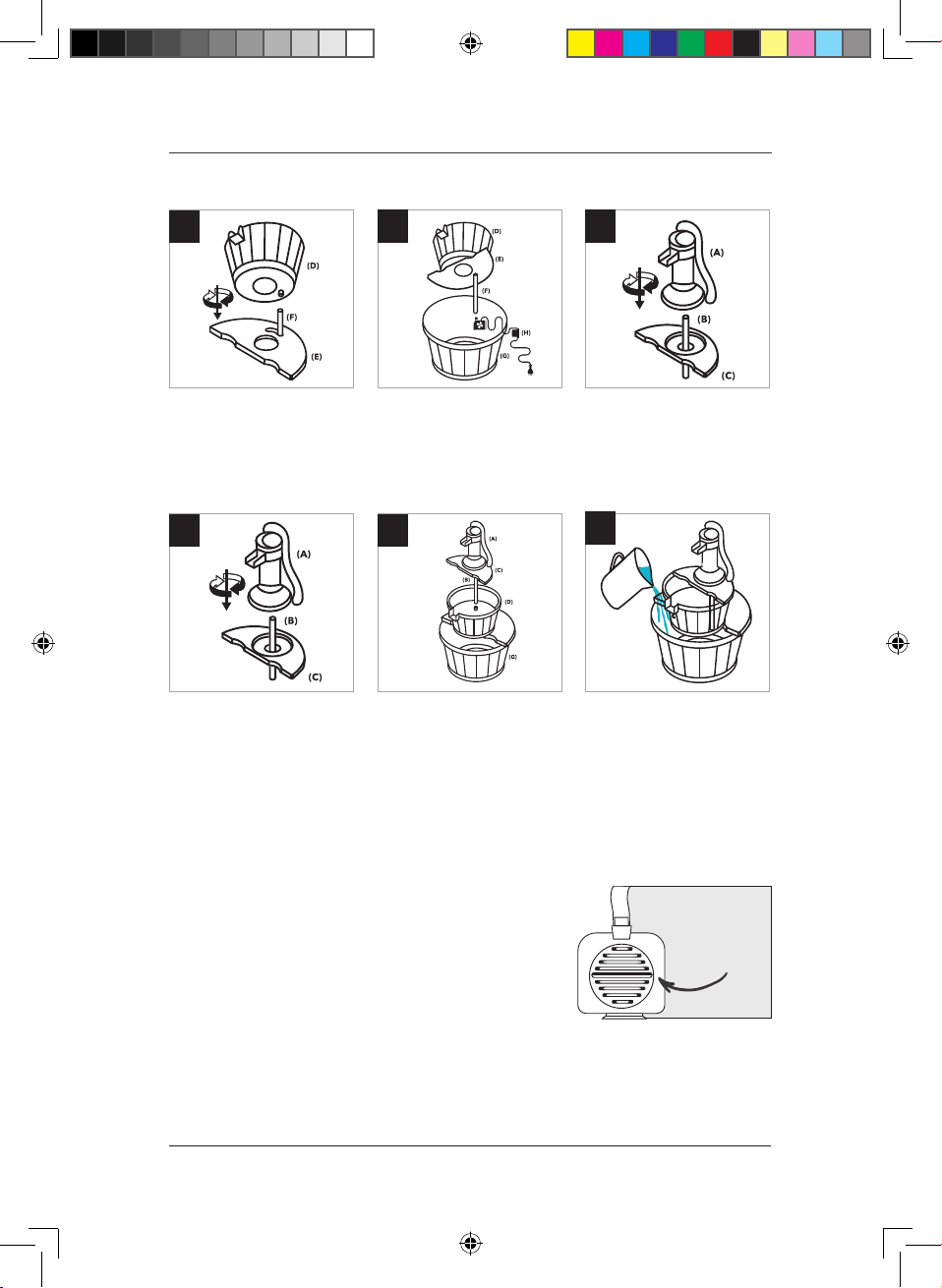

ASSEMBLY INSTRUCTIONS
12 3
45
PUMP FLOW
Always isolate the electrical mains supply before
touching or adjusting the pump. The pump ow
can be adjusted with the regulator, this is found
on the inlet of the pump. We recommend starting
with the ow regulator fully open and then
adjusting down if required.
Turn... Clockwise for
full ow
Anti-clock-
wise for
reduced ow
6
HB643837_Whiskey Barrels_IM.indd 4HB643837_Whiskey Barrels_IM.indd 4 14/11/2022 12:2114/11/2022 12:21

PRODUCT SUPPORT |helpline: 01405 869333 | email: pr[email protected]
PRODUCT SUPPORT |helpline: 01405 869333 | email: [email protected]
TROUBLE SHOOTING
WINTERCARE
• If possible, bring your water
feature indoors for example in a
garage or shed during the winter
or periods of extreme weather
conditions.
• Drain the fountain of all water. If
water freezes within the fountain
this can cause damage.
• Protective covers are available
to purchase to cover the entire
water feature, however we cannot
guarantee that this will protect it
from winter damage.
PUMPS
• Check the water is covering the
pump by at least 5cm.
• Check the ow dial on the pump
to ensure that an adequate ow
rate is set.
• Clear the pipe and impeller of any
blockages.
• Check the fuse in the plug.
LEAKS/LOSS OF WATER
• Overlled - make sure the water
reservoir is not overlled. Remove
water if necessary.
• Pump Flow Rate - check the
pump and reduce the ow rate if
required.
• Level - ensure the fountain is
completely level.
• Natural evaporation, weather
elements and wildlife will also
affect the fountain water level on
a daily basis. Top up your fountain
as required.
MAIN BODY & PAINTWORK
• Do not confuse limescale residue
with fading paint - this is not
a fault and in most cases the
fountain needs cleaning.
• Paint peeling will occur if the
fountain has been left outside in
the frost and will not be covered
by the warranty.
• Parts broken off the main body
while in use are usually caused by
bad weather conditions and not
covered by the warranty.
HB643837_Whiskey Barrels_IM.indd 5HB643837_Whiskey Barrels_IM.indd 5 14/11/2022 12:2114/11/2022 12:21

PRODUCT SUPPORT |helpline: 01405 869333 | email: [email protected] PRODUCT SUPPORT |helpline: 01405 869333 | email: pr[email protected]
WARRENTY CONDITIONS
COVERED UNDER WARRANTY
• If it has a crack or leak and has
been reported within 28 days
from purchase it is under warranty
and should be returned complete
with electrics and accessories in
the original packaging.
• If the paint on the fountain has
peeled during normal use and the
winter care procedure has been
followed, it is under warranty.
• If the fountain has been delivered
damaged it must be reported
straight away for this to be
covered by the warranty.
• If the proof of purchase shows the
product was bought within 1 year,
a free of charge replacement part
can be supplied.
• Please be aware La Hacienda
will ask for proof of purchase. You
will be required to provide the
following information:
–Your contact details - name,
address, contact number, email.
–Replacement part detail or part
number required.
NOT COVERED UNDER
WARRANTY
• Flickering lights caused by build-
up of algae and limescale on the
connectors
• Swelling or blistering on the
casing of the pump.
• Pump smells of a burning residue.
• Discolouring that looks like rust.
• If the pump has a visible algae or
limescale build up.
• Any damage to the plug or
moulded inserts.
• Any damage caused by misuse or
severe weather conditions.
• Cracks / leaks that have formed
and not reported within 28 days
from purchase.
• Paint and/or surface damage/
discolouration due to limescale or
frost damage.
If any of the conditions above are
found, it is likely that this is due
to incorrect maintenance and the
warranty will be void. Do not dispose
of any components as further
inspection by La Hacienda Ltd may
be requested.
If proof of purchase is not available or the product is out of the warranty
period, a replacement parts can be purchased from La Hacienda Ltd.
HB643837_Whiskey Barrels_IM.indd 6HB643837_Whiskey Barrels_IM.indd 6 14/11/2022 12:2114/11/2022 12:21

PRODUCT SUPPORT |helpline: 01405 869333 | email: pr[email protected] PRODUCT SUPPORT |helpline: 01405 869333 | email: pr[email protected]
MAINTENANCE & CARE
CLEANING YOUR FOUNTAIN
• Clean and top-up the water on a regular basis.
• To empty the fountain of water for cleaning or for winter care:
–Smaller fountains (that are light enough to be lifted) - water can be
emptied by simply inverting the fountain and letting the water pour
away through a suitable drain or sink.
–Larger (heavier) fountains - water can be removed by using a large
sponge or by purchasing a simple syphon pipe available from aquatic
supply stores.
• Always isolate the power before cleaning the fountain or pump.
AFTER CARE
To get the best out of your fountain we recommend the following products
Fountain Algae Stopper 385g
4597
• Easy to use
• Removes and prevents
algae and bacteria
• Will not harm animals and
birds
Fountain Citronella Water
Scent 125ml
4594
• Easy to use
• Clean and fresh scent
• Helps to repel insects
Fountain Grime and Lime
Cleaner 500ml
4595
• Easy to use
• Removes dirt from your
water feature
• Limescale buster
Fountain Shine Spray 500ml
4592
• Easy to use
• Helps preserve radiance
• Leaves a smear free
shine
Fountain One Shot Algae
Remover 100g
4596
• Easy to use
• Removes algae and
bacteria
• Stops slime build up
Please note: the easyfountain®aftercare range
is only available in the UK and Republic of
Ireland.
Please check with your nearest stockist for
availability.
HB643837_Whiskey Barrels_IM.indd 7HB643837_Whiskey Barrels_IM.indd 7 14/11/2022 12:2214/11/2022 12:22

PRODUCT SUPPORT |helpline: 01405 869333 | email: [email protected]
PROOF OF PURCHASE
YOUR DETAILS
Name:
Address:
Tel:
Email:
Date of purchase:
Purchased from:
ATTACH PROOF OF PURCHASE HERE
