User Manual &
Wiring Diagram of EASYGUARD EC003
V2.5

Safety warning
Installation guide
1.Before starting the installation
2.Deciding on components locations
3.Alarm antenna mount position
4.PKE antenna mount position
Making your wire connections
Main wire harness introduction & note 1-13
Engine start button size & color introduction
Key FOB buttons introduction & function description
2-3
3-4
4
4
5-6
6-7
7-10
10
10-11
Index
1.Arm/lock
2.Disarm/unlock
3.Mute alarm turn on/off setting
4.Remote trunk release
5.Panic mode
6.PKE-passive keyless entry
7.To enable or disable PKE function
8.Remote engine start/stop
9.Push button start/stop
10.Start the car in cold weather or other special situations
11.Shock alarm warning (optional)
12.18 minutes timer cut off once the car is remote started
13.Illegal door opening or ACC trigger
14.Central door locking automation
15.Emergency override
16.Emergency disarm & start the car
17.Programming method
Wiring diagram
Central door locking installation
Manual for releasing steering lock
Installation for chip immobilizer
Technical parameter
FAQS of EC003
Warranty information
Function description
11
11-12
12
12
12
12
12
12-13
13
13
14
14
14
14
14
14
14
15-16
16-21
22
23-24
24
25-26
26
Thank you for purchasing our products. This alarm is combining with PKE (passive keyless entry),
remote engine start and smart push start/stop functionally all into one. Please read the user manual and
wiring diagram carefully before you start installation. Once the alarm is properly installed, it can protect
your vehicle and improve the safety of your vehicle.
Dear Customer,
The item can work with most DC12V vehicles on the market, including gasoline (petrol) and diesel vehicles.
User Manual &
Wiring Diagram of EASYGUARD EC003
WARNING:
Keep the whole kits away from children under 3 years old!
IMPORTANT:This product is intended to be installed by a professional car alarm installer only! Any
attempt to install this product by any person who is not a trained professional car alarm installer may
result in severe damage to the vehicle or the components.
If you want a DIY installation, please study this entire user manual and all the wiring diagram carefully
before you start installation and only make sure you understand everything then beginning. You may
need to search the internet for your specific vehicle wiring diagram to learn how to find the related wires
and how to connect them properly.
Once you find correct wires, please solder them well or use crimp connectors to connect them together
to avoid the possibility of them becoming disconnected and causing the unit to fail. If there are any
questions, please contact EASYGUARD authorized dealer or contact EASYGARD electronics directly for
help.
Safety Warning!
The following safety warnings must be observed at all the time:
Due to the complexity of this system, installation of this product must be finished by a professional car
alarm installer or trained alarm installer.
This item is not fit for vehicles with push start button already, double locking or unlocking pulse
signals.
If your vehicle is diesel, which typically require longer engine starting/cranking time (more than 3
seconds), you can turn on the vehicle first to pre-warm the spark plug, then start the car or add an extra
timer delay switch when installing this item. Please consult with your alarm installer or contact
EASYGUARD electronics directly for advice before you start the installation.
IMPORTANT:
-02-
© EASYGUARD Electronics. All right reserved.

1.Never operate the system in an enclosed or partially enclosed area without ventilation (like a garage).
Once the product is properly installed, this system can remote start the vehicle by a command signal
from the remote control. Therefore, never operate the system in an area that does not have adequate
ventilation. The following precautions are the sole responsibility of the user; however, authorized
EASYGUARD Electronics dealers should make the following recommendations to all users of this
system:
3.It is the user's sole responsibility to properly handle and keep out of reach from children all remote
controls and other accessories in the kit to assure that the system does not remote start the vehicle
occasionally.
Use of this product in a manner contrary to its intended mode of operation may result in property
damage, personal injury, or death. Except when performing the safety checking indicated in this
installation guide:
(2) Never remote start the vehicle with the keys in the ignition. If the vehicle starts in gear, cease remote
start operation immediately and consult with the user or the alarm installer to fix the problem immediately.
ZhongshanEASYGUARD Electronics Co.,ltd WILL NOT BE HELD RESPONSIBLE OR PAY FOR ANY
INSTALLATION OR REINSTALLATION COST.
USER MUST INSTALL A CARBON MONOXIDE DETECTOR IN OR ABOUT THE LIVING AREA
ADJACENT TO THE VEHICLE. ALL DOORS LEADING FROM ADJACENT LIVING AREAS TO THE
ENCLOSED OR PARTIALLY ENCLOSED VEHICLE STORAGE AREA MUST REMAIN CLOSED AT ALL
THE TIMES.
2.When parking in an enclosed or partially enclosed area or when having the vehicle serviced, stop using
the remote start function.
(1) Never remote start the vehicle with the vehicle in gear, and
(3). When use remote engine start function, the gear selector should be in Neutral(N) Or Parking(P)
position.
Remote start function for manual transmission pose significant risks if not properly installed and operated.
When testing to ensure the installation is working properly, only remote start the vehicle in neutral gear,
on a flat surface and with a functional, fully engaged parking brake. Do not allow anyone to stand in front
of or behind the vehicle.
Before Starting the Installation
Please read all the installation guide before starting the installation. The installation of this item requires
interfacing with many of the vehicle’s systems. Many new vehicles use low voltage or multiplexed systems
that can be damaged by low resistance testing devices, such as test lights and logic probes (computer safe
test lights). Test all circuits with a high quality digital multi-meter before making connections.
Installation Guide
Some things to remember about where to mount the control module:
Deciding on Control Module Locations
Never put the control module in the engine compartment!
When mounting the control module, try to find a secure location that will not require you to extend the
harnesses’ wires. Keep it away from the heater core (or any other heat sources) and any obvious leaks.
Some good control module locations are: Above the glove box, inside the center console, above the
under-dash fuse box, or above the radio.
The first step in hot-wiring a vehicle is removing the driver's side under-dash panel to access the starter
and ignition wires. If the control module is placed just behind the driver's side dash it can easily be
disconnected.
In order to have a maximize PKE induction range, the following antenna mounting options should be
discussed with the customer to better suit need.
Do not disconnect the battery if the vehicle has an anti-theft coded radio. If equipped with an air bag,
avoid disconnecting the battery if possible. Many airbag systems will display a diagnostic code through
their warning lights after they lose power. Disconnecting the battery requires this code to be erased,
which can require a trip to the car dealer.
To avoid accidental battery drainage, turn off the interior lights or remove the dome light fuse.
-04-
© EASYGUARD Electronics. All right reserved.
-03- © EASYGUARD Electronics. All right reserved.
2.Mount the alarm antenna to the upper inside of the front windshield (see photo for example)
1.Assembly the alarm antenna (If equip with external antenna)
3.Fix the antenna with sticker and the plastic cap
4. Try your best to keep the antenna away from any metal product to avoid interference.

Some suggestions about the PKE antenna mount position for different vehicles:
IMPORTANT:
For sub compact, compact & sedan:
For optimal performance, mount the 4M PKE antenna in the headliner or below the rear deck.
Pickup (without cab):
Convertible:
Mount the 2M PKE antenna in front windshield pillar on driver side and the 4M PKE antenna behind the
rear seats.
Pickup (with cab) & cargo:
Mount the 4M PKE antenna in the bumper, behind the license plate.
Note: On vehicle with fiberglass bodies or convertibles, the PKE induction range will be increased.
Recommend the PKE antenna on position C. the PKE antennas should be mounted on the driver and
passenger side as the tailgate does not require to be controlled.
Mount the PKE antenna in the trunk will greatly affect and reduce the PKE induction range and overall
system working performance.
Making Your Wiring Connections
Before making your connections, plan how your wires will be routed through the vehicle. For instance,
the red 12V constant input wire and the ignition wires will often be routed together to the ignition switch
harness. In order to keep the wiring neat and make it harder to find, you may wish to wrap these wires
together in electrical tape or conceal them in tubing similar to what the manufacturer used.
There are two acceptable ways of making a wire connection - solder connections and crimp connector
connection. When properly performed, either type of connection is reliable and trouble free.
PKE antenna
4M PKE antenna 2M PKE antenna
Vertical range Horizontal range
As the PKE antenna is a directional antenna, the PKE induction range will be affected by the antenna
placement/mounting position.
PKE antenna mount position
Position B is the most common and widely used one.
-06-
© EASYGUARD Electronics. All right reserved.
-05- © EASYGUARD Electronics. All right reserved.
All the recommend mount position is for reference only and can adjust the mount position to get a
maximum antenna working range
Important:
PKE antenna mount position
IMPORTANT:
Never mount the PKE antennas on any metallic surface as this will decrease the PKE induction range
obviously
In order to have a stable PKE induction range, secure the PKE antenna & make sure they will not
move or dangle
The PKE antennas are fragile & easy to break, please handle with care when mounting them or
plug/unplug them when installation. Please also make sure they are mounted on a solid (non-flexible)
surface.
Recommended PKE antenna mount position
The recommended PKE antenna mount position is for reference only. And we’d like to recommend you
to adjust the PKE antenna mount position to get a maximum PKE induction range.
Alarm antenna mount position
(if equip with external antenna,
remember to assembly the
antenna first, then mount the
antenna & fix with sticker &
plastic caps on it)
P2 4M PKE antenna mount position
(inside the left upper rear windshield)
P1 2M PKE antenna mount position
(inside the front windshield)

Regardless of whether you solder your connections or you use mechanical type crimp on connections,
ensure that all connections are mechanically sound and that they are insulated.
Cheap electrical tape, especially when poorly applied, is not a reliable insulator. It often falls off in hot
weather. Use good quality electrical tape or heat shrink.
Never twist and tape the wires together without soldering.
Never use “fuse taps”, as they can damage fuse box terminals.
Main Wiring Harness Introduction
1.6-Pin ignition wire harness
Wire colors
Yellow
Brown
Red
White
Blue
Black
Wire usage
Connect with starter wire
Connect with ignition 2 wire
Connect with constant +12V
Connect with ignition 1 wire
Connect with Accessory(ACC)
Connect with chassis ground
Remark
See note 6
See note 3,4
See note 1
See note 2,4
See note 5,7
See note 8
NOTE (1-7):
1.Connect all the +12V wire in your vehicle ignition wire harness with the +12V red wires in ec003;
2.White ignition 1 wire: When turn the key to ACC or ON position, this wire with electricity, when
starting the car, this wire still with electricity;
3.Brown ignition 2 wire: When turn the key to ACC or ON position, this wire with electricity, when
starting the car, this wire will cut off power suddenly at the moment of starting the vehicle;
Once the vehicle is started, both white & brown wires are with electricity.
4.If there is only one ignition wire in your ignition wire harness, connect it with the white ignition 1 wire
in ec003, no need to connect the brown ignition 2 wire
5.If there are 2 ACC wire in your ignition harness, connect both ACC wires with blue ACC wire in ec003
6.If there are 2 starter wires in your ignition harness, connect both starter wires with yellow starter wire
in ec003.
7. If your car is newer cars that’s no ACC (only ON & OFF), connect the ignition 1 wire in your vehicle
with ACC wire & ignition 1 wire from ec003.
We recommend that you do not use a factory ground. Ground all your components including the siren, to
the same point in the vehicle, (preferably the kick panel). Scrape away any paint and use a factory bolt or
make your own ground with a self-tapping screw and a star washer.
Please use a factory bolt or screw to attach all the black chassis ground wires securely as the photo
show as below:
Note 8
Wiring method of black chassis ground wire
Factory bolt chassis ground wire

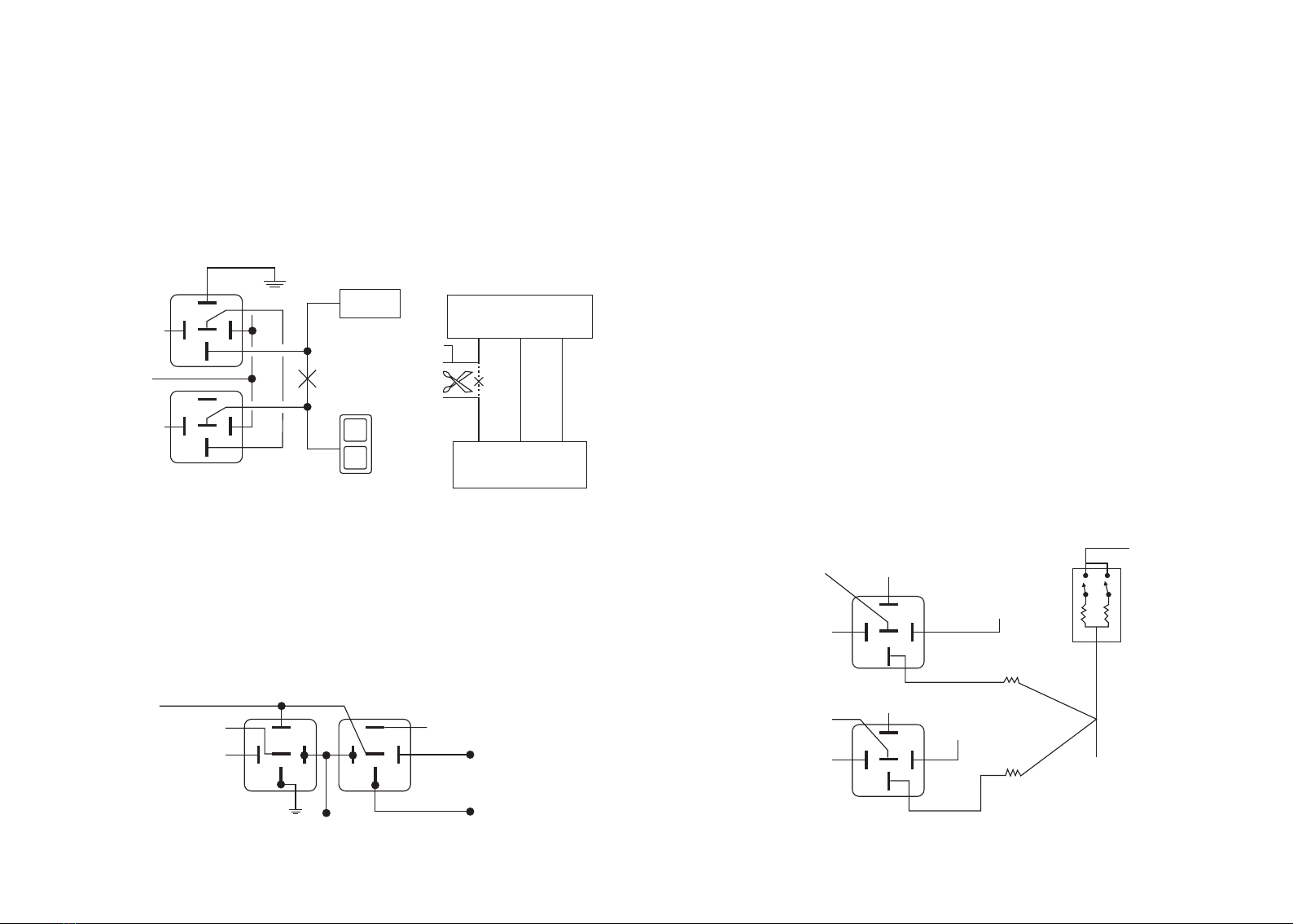

GWR(-)( Ground while running) wire connection
If there is chip immobilizer in your factory OEM key fob, you should also need to add an extra bypass
module in order to make this device work properly. For most of the bypass module, which require a
GWR(-) (ground while running wire), and you can use an extra SPST relay to generate a GWR wire.
Method is as below:
Note 9:
connect with GWR(-) from bypass module
Connect with EC003
ACC or ignition 1
(ACC is recommend)
connect with chassis ground(GND)
You can also use a SPDT relay to generate
but no need to connect 87a on SPDT relay.
a GWR wire and wiring method is the same
-08-
© EASYGUARD Electronics. All right reserved.
-07- © EASYGUARD Electronics. All right reserved.
10P wire harness
Wire colors
The first row 5-pin wire
White/black
Brown
Brown
Orange
Blue
The 2nd Row 5-pin wire harness
White
Red/black
Green
Pink
Gray
Wire usage
Lock wire(-300mA)
Turn signal light/parking light(+)
Turn signal light/parking light(+)
Foot brake wire(+)
Negative door trigger switch(-)
Unlock control wire(-300mA)
Trunk release(-300mA)
Fuel pump wire(+)
Siren(-)
Hand brake wire(-)
Remark
Type B, see note 10 & central door locking connection
Type B, see central door locking connection
See note 11
See note 13
See note 12

Note 10
To use a window closer module with EC003, connect the module to the white/black lock control wire on
EC003 .
Using a window closer module with EC003
Note 11
Wiring method for fuel pump wire
The fuel pump wire is connecting with fuel pump or oil pump wire. If you can't find this wire in your car,
please connect it with constant 12V wire or tach wire in your car.
Wiring method for gray parking/hand brake wire.
If your car is manual transmission, connect the gray parking/hand brake wire with parking/hand brakewire
in the car
Note 12
If your car is automatic transmission, connect the gray parking/hand brake wire with chassis ground
If you connect with an electricity siren, such as 6 tone or 1 tone siren. Connect the pink wire with the
black wire from the siren and connect the other wire (usually a red wire) from siren to 12V wire.
Note 13
The pink wire for horn default is negative(-) output.
If your vehicle factory horn is negative, you can connect the pink wire with your factory car horn wire
directly.
If your car horn is positive output. Please add a SPST relay to change the polarity first, here is the
method:
When possible, place the siren on the same side of the vehicle as the control module, where its wires will
reach the control module’s wires without extending them. Always run the wires through the center of a
grommet, never through bare metal!
When installation the siren, please make sure which is downward for waterproof consideration
We do not recommend grounding the siren to its mounting screws. Instead, we recommend running both
the red and black wires into the passenger compartment and grounding to one common point for all
devices. Both wires are the same length and come already bonded together to make it easier. Whenever
possible, conceal your wires in the factory harnesses or in the same style loom as the factory.
Mount it where a thief cannot easily disconnect it, whether the hood is open or shut. Both the siren and
its wires should be difficult to find. This usually involves disguising the wire to look like a factory harness.
Engine start button color changes explanation
Operation
When armed
When disarmed
Turn on ACC
Turn ON
When engine started
When engine off
Button size(mm)
Engine start button reaction
Light turn off
Light turn off
Light is flashing
Light keeps flashing
Light stays on
Light turns off
Buttons introduction & function description:
LED indicator
Arm
Start button/panic
Disarm/trunk release
Spare key
1.Lock/Arm: press lock button once
6.Remote trunk release: keep pressing the unlock
button for 5 seconds
3.Remote engine start: In arm status, keep pressing
the start button for around 5 seconds.
5.Panic mode: short press start button once
4.Remote engine cut off: keep pressing the start
button for around 5 seconds.
2.Unlock/disarm: press unlock button once
7.Spare key( default is without, and we recommend
you to equip one for future emergency usage)
Blue color
Red color
Yellow color
28mm
40mm
52mm ∅52 (with rubber) ∅40(no rubber)
-10-
© EASYGUARD Electronics. All right reserved.
-09- © EASYGUARD Electronics. All right reserved.
Connect with horn or siren 12V+
pink wire of EC003
Connect with
Connect with fused 12V+
connect 87A terminal on the SPDT relay.
Note: you can also use a SPDT relay, wiring method is the same as above, but no need to

3. Remote engine start: In arm status, keep pressing
the start button for around 5 seconds.
1. Lock/Arm: press lock button once
2. Unlock/disarm: press unlock button once
4. Remote engine cut off: keep pressing the start
button for around 5 seconds.
5. Panic: short press start button once
6. Remote trunk release: keep pressing the trunk
button for 5 seconds
7. Spare key( default is without, and we recommend
you to equip one for future emergency usage)
LED indicator
Arm
Disarm
Disarm/trunk release
Start button/panic
Spare Key
Spare Key
LED indicator
Arm
Start button/Panic
Disarm/trunk release
1. Lock/Arm: press lock button once
2. Unlock/disarm: press unlock button once
4. Remote engine cut off: keep pressing the start
button for around 5 seconds.
5. Panic: short press start button once
6. Remote trunk release: keep pressing the trunk
button for 5 seconds
7. Spare key( default is without, and we recommend
you to equip one for future emergency usage)
3. Remote engine start: In arm status, keep pressing
the start button for around 5 seconds.
Function description:
1.Arm/lock
B.When PKE function is turn off: Short pressing lock button on key fob once will lock the car
door. When this happens, turn signal light flashes once and siren beeps once.
A.When PKE function is turned on: Short pressing lock button once on key fob will lock the car door. At
the same time, turn signal light flashes once and siren beeps once. When doing this, please make sure
you are not in PKE induction range (should be at least 5 meters/15 feet away from the car) or will trigger
the PKE fenction and cause the door automatically unlock again.
Short press unlock button once will unlock the car door.
A.When PKE function is turn on: Short pressing unlck button on key fob once will unlock the car door.
At the same time, the turn signal light flashes twice & siren beeps twice (siren not beep if the device is in
mute arm status). When doing this, please make sure you are not in PKE induction range (should be at
least 5 meters/15 feet away from the car) or the alarm will automatically unlock the car door if in the PKE
induction range.
2.Disarm/unlock
When you are out of PKE induction range (5 meters / 15 feet away from the car) and press unlock button
once to unlock the car door, you only have 3 seconds to get in the car as the device will automatically
lock after 3 seconds.
C.You have 3 seconds to get in the car if manual unlock the car door when you are out of PKE induction
range and the door will be automatically lock again after 3 seconds.
B.When PKE function is turn off: Short press unlock button once will unlock the car door. At the same
time, turn signal light flashes twice and siren beeps twice.
3.Mute alarm turn on/off setting
Under disarm/unlock status, hold lock button & start button at the same time for around 5 seconds,
siren beeps twice means the device is exited mute arm status.
Under arm/lock status, hold lock button & start button at the same time for around 5 seconds, siren
beeps once means the device is set into mute arm status. Once the device is set into mute arm status,
when locking or unlock the device, siren not beep.
Keep pressing unlock button for 5 seconds on key fob will remote release car trunk & siren beeps once
to confirm.
Please make sure there is trunk motor or trunk release solenoid kit in your vehicle when operate this
function.
4.Remote trunk release
While armed, press panic button once, siren beeps and turn signal light flash for 25 seconds at the same
time to indicate the vehicle location. press any button on key fob to pause the panic mode.
5.Panic mode
Shutoff the vehicle, close all the doors well and walk away from the car for 2-3 meters/6-9 feet away with
the key fobs, the device will lock the door & arm automatically. At the same time, the siren beeps once
and turn signal light flashes once.
Note:
When key fob is in PKE induction range, the led indicator on the key fob will blink slowly. You can use
this info to judge whether the key fob is in or out of PKE induction range.
6. PKE-passive keyless entry
When you approach the vehicle in 1-2 meters / 3-6 feet with key fob, the vehicle will automatically unlock
car door, turn signal light flashes twice & siren beeps twice at the same time.
Disarm/unlock the car, keep holding lock button on key fob for 5 seconds, siren beeps twice means
disable/turn off the PKE feature and siren beeps once means enable/turn on the PKE feature.
7.To enable or disable PKE feature
The PKE feature default is turn on/enable. You can disable it with below instructions:
To use remote engine start function, the gear selector should be in N(Neutral) or P(parking) position. To
use remote engine start/stop feature, the device should be in arm/lock status. It's recommended that you
keep at least 5 meters/15 feet away from your vehicle as you can't use remote engine start function
when in PKE induction range.
8. Remote engine start/stop
-12-
© EASYGUARD Electronics. All right reserved.
-11- © EASYGUARD Electronics. All right reserved.

Remote engine start method is keep pressing the start button on key fob for 5 seconds, once the car is
started,siren beeps twice& the car door will be lock automatically.
Note:
A.Once the car is remote engine started, engine will keep running for 18 minutes. If you do not step the
foot brake pedal in 18 minutes, engine will shut off automatically.
B.Once the car is remote engine started, you can keep pressing the start button for 5 seconds to remote
shut off the engine. And you should do this in 18 minutes before the engine automatically shut off.
C.Once the car is remote started, and user approach the vehicle with key fob to automatically unlock the
car or press unlock button on key fob to unlock the car door, you can't use remote engine cut off
method to shut off the car. And you can step on foot brake pedal and short press the push start button
once to shut off the engine.
D.If you connect the foot brake wire from EC003 with constant 12V wire in your vehicle, or when you're in
PKE induction range, you can't use remote engine start function.
Once the device is equipped with shock sensor and in arm status, any hit or force on the vehicle will
trigger the alarm and siren will beep and turn signal light will flash 5 times at the same time.
This feature only available when the device is equipped with shock sensor in the device.
11. Shock alarm warning(optional)
A.The vehicle will automatically shut off the engine if you do not step the foot pedal in 18 minutes once
the car is remote started.
12. 18 minutes time cut off once the car is remote started.
C.Press unlock button on key fob once to unlock the vehicle will cancel the countdown the
automatically engine cut off in 18 minutes feature.
B.If you step the foot pedal in 18 minutes once the car is remote started, the car will not automatically
shut off the engine.
D.Once the car is remote started, you can use the push start button to shut off the car as well.
When the car is in arm status, if the car door is opened illegally or the ACC is triggered illegally, it will
trigger the alarm and siren will beep 25 seconds and turn signal light flashes at the same time
13.Illegal door opening or ACC trigger
14.Central door locking automation
Once the car is started for 15 seconds and not step on the foot pedal any more, the central door will
automatically lock the car door. Once the car is stopped, the central door will automatically unlock the car
door.
If the remote control is lost, you need to perform an emergency override to use the car. Step is as below:
use mechanical key to unlock the car door (will trigger the alarm), then keep pressing the reset switch for
5 seconds will disarm the alarm system. Now you can start the car.
16.Emergency disarm & start the car
In arm status, keep pressing the reset switch for 5 seconds will disarm the car, turn signal light flashes 3
times and siren beeps 3 times to confirm.
If the push start button was broken, the reset switch can act as push start button usage & you can use it
to start the car. The method is stepping on foot brake pedal and press the reset switch once will start the
car.
15.Emergency override
17.Programming method
The alarm can do programming for 4 key fobs maximum.
Note: the key fob included with the alarm control module are already programmed and you no need to
program them.
keep pressing the programming switch for 10 seconds till turn signal light keep lighting on, then release it,
turn signal light will keep lighting on, at this time, press any button on key fob once, siren beeps twice at
the same time, this means the first key is succeed programmed.
Press any button on next key fob to do programming on it and repeat same operation to program the
other key fob.
If there is no programming for 3 seconds, the device will exit programming status and siren beeps once
and turn signal light will turn off.
EC003 Wiring diagram
-14-
© EASYGUARD Electronics. All right reserved.
-13- © EASYGUARD Electronics. All right reserved.
unit
While disarmed, stepping on foot brake pedal and short press the start button 1 second, the car will be
started. Car starting time is around 0.8 second. The LED indicator will stay light on once the car is
started.
C.Push button to stop
Once the car is started, stepping on foot brake pedal and short press the push button 1 second will shut
off the car. At the same time, the led indicator on the push button will turn off.
B.When the foot brake pedal is not depressed
9.Push button start/stop
A.When stepping on foot brake pedal
While disarmed, with foot brake pedal is not depressed and short press the push button once will turn on
ACC. Press the push button once again will turn on ON dashboard and press it once again will turn it
OFF. Repeat same operation will shift among ACC—ON—OFF. The engine start button will keep flashing
when turn on ACC & ON.
a.When the car is running and remote control (key fob) is taken away, the alarm will be automatically set
to arm status once the car is stop and open car door then close. After that, the car will be unable to start
except the alarm detect the key fob (remote control) is bought nearby.
In cold winter or other special situation, you can keep stepping on foot brake pedal and keep pressing
the push button to start the car till the car is started. The maximum time you can keep pressing start
button time is 3 seconds. If pressing 3 seconds but still unable to start the car, please try again.
Notes:
c.In normal condition, when stepping on foot brake pedal and push the button to start the car, the led on
the push button is turn on. If the LED is turn on but the car is unable to start, need to check if the starter
wire & foot brake wire are correct connected and the alarm control module is working well or not.
10.Start the car in cold weather or other special situation.
b.You can also use remote engine start function for backup purpose to start the car.
d.For some diesel cars that need to pre-warm the spark plug & engine starting time is more than 3
seconds, you can turn the car to ON position first to pre-warm the spark plug, then start the car or add an
extra timer delay switch.

There are 8 different types of door lock systems (Type A - H). Please search the vehicle specific wiring
instructions online and the chart below to help determine which door lock system your vehicle uses. Most
vehicle factory door lock wires is smaller gauge and located in the driver’s kick panel or under the driver’s
dash.
Note: The most common type of door lock systems are Type A positive trigger, Type B negative trigger
and Type C reverse Polarity.
Type G: Positive (+) multiplex. One wire controls lock and unlock using resistor(s).
Type A: Positive trigger with three-wire (+) pulse controlling factory lock relays.
Type B: Negative trigger with three-wire (-) pulse controlling factory lock relays.
Type C: Reverse polarity, positive triggered
Type D: Adding one or more aftermarket actuators. These include central locking systems without an
actuator in the driver’s door, but with factory actuators in all the other doors. Type D also includes
vehicles without power locks, which will have actuators added.
Type E: Electrically-activated vacuum systems. The vehicle must have a vacuum actuator in each door.
Making sure that locking the doors from the driver’s or passenger side using the key activates all the
actuators in the vehicle. This requires a slight modification to the door lock wire harness.
Type F: One-wire system: cut to lock, ground to unlock.
Type H: Negative (-) multiplex. Same as Type G system, but uses (-) pulse instead.
The alarm default setting is type B negative (-) for locking and unlocking, if your car is with type B
negative central door locking, you can connect the white/black locking wire and white unlocking wire from
EC003 with your car locking and unlocking wire directly, or follow with the Type B negative trigger as
below diagram shows to connect with the car central door locking system.
Central door locking installation
-16-
© EASYGUARD Electronics. All right reserved.
-15- © EASYGUARD Electronics. All right reserved.
EC003 Wiring diagram
If your car trunk is positive (+),
refer to below wiring method:
Please add an extra SPST relay if
you conne ct red/ bl ack trunk
release(-300mA) wire with your
trunk motor.
12V+
red/
black wire
Trunk motor(+)
12V+
Chassis ground
black wire
red/
Trunk motor(-)
12V+
If your car trunk is negative (-),
refer to below wiring method:
red/black trunk release (-300mA)
IMPORTANT TIPS:
1.Connect the black chassis ground wire first when making wire
connection to avoid damage on the device.
2.Once you finish all wire connection, test the function first and
remember to use the electrical tapes or strips to tighten all the wire
connection to avoid any poor connection between the control
module & wire harness.

L
UL
SWITCH
(-)LOCK
(-)UNLOCK
LOCK/UNLOCK
SWITCH
white/black lock
wire from EC003
white unlock
wire from Ec003
DOOR LOCK
RELAYS
TYPE B NEGATIVE TRIGGER
Type B: Negative trigger with three-wire (-) pulse controlling factory lock relays.
Two wires resting open circuit, one pulses ground for lock and the other pulse for unlock.
For this kind of trigger, the vehicle switch will have three wires on it, one wire will test ground all the
time. One wire will pulse (-) when the switch locks the doors, and the other wire will pulse (-) when
the switch unlocks the doors. This type of system is difficult to mistake for any other type.
There are 3 wires(+) pulse controlling factory locking relays, one pulses 12v for lock, one pulse 12V
for unlock, the last one is for constant 12V. Extra 2 SPDT relay are required.
Type A: positive trigger with three-wire (+) pulse controlling factory lock relays.
TYPE A POSITIVE TRIGGER
FACTORY LOCK
SWITCH
LOCK UNLOCK
LUL
+12
L
UL
SWITCH
(+)LOCK
(+)UNLOCK
LOCK/UNLOCK
SWITCH
white/black lock
wire from EC003
+12V
white unlock
wire from Ec003
DOOR LOCK
RELAYS
87
86 85
87
86 85
30
FACTORY LOCK
SWITCH
LOCK UNLOCK
LUL
30
Not use
87a
87a
Not use
Motor interrupt central locking:
Type C Reverse polarity, positive triggered
Two wires resting at ground, one pulse 12V for lock, the other pluses 12V for unlock
Direct-wired reversing-polarity switches. The switches are wired directly to the motors. This type of
system has no factory relays. Extra 2 SPDT relay are required.
L
UL
SWITCH
LOCK/UNLOCK
SWITCH
87
86 85
87a
30
87
86 85
87a
30
+12V
white unlock
wire from Ec003
white/black lock
wire from EC003
CUT
CUT
Factory door motor
up
down
Type D: Adding one or more aftermarket actuators
For this type of vehicle, there isn’t a motor in the driver’s door (central locking only operates from
the driver’s door). An extra door actuator is required.
Vehicles without factory power door locks require the installation of one actuator on each door. This
require mounting the door lock actuator inside the door. Other vehicles may only require one
actuator installed in the driver’s door if all door locks are operated when the driver’s lock is used.
These include central locking systems without an actuator in the driver’s door, but with factory
actuators in all the other doors. Type D also includes vehicles without power locks, which will have
actuators added.
87
86 85
87a
30
87
86 85
87a
30
+12V
white/black lock
wire from EC003
white unlock
wire from Ec003
After market actuators
-17- © EASYGUARD Electronics. All right reserved. -18-
© EASYGUARD Electronics. All right reserved.

Type E: Electrically-activated vacuum systems.
Polarity reverses on a single wire to lock and unlock. Please set the door lock time to 3.5 seconds
by a timer delay switch (not included).
The door locks are controlled by an electrically activated vacuum pump. The control wire will show
+12v when doors are unlock and (-) ground when locked.
The vehicle must have a vacuum actuator in each door. Making sure that locking the doors from
the driver’s or passenger side using the key activates all the actuators in the vehicle. This requires
a slight modification to the door lock wire harness.
NOTE: For this kind of central door locking, must program the lock pulse time to be 3.5 seconds.
L
UL
SWITCH
LOCK/UNLOCK SWITCH
87
86 85
87a
30
87
86 85
87a
30
+12V
white/black lock
wire from EC003
white unlock
wire from Ec003
CUT
VACUUM PUMP
Inside pneumatic
lock main engine
Main wire
green/blue
Brown
Negative wire
Red/blue
positive wire
Door lock/unlock switch
This types of central door locking system mainly for Japanese driven
Single wire in series negative trigger.
Type F: One-wire system: cut to lock, ground to unlock.
Single wire that pulses negative to unlock, and open circuit to lock.
This type of door lock system usually requires a negative pulse to unlock, and cutting the wires to
lock the door. (for some vehicles, these are reversed). 2 extra SPDT relays are used to interface to
this type of system.
87
86 85
30
white unlockwire
fromEc003 86 85
87a
30
Single wire (open=lock/ground=unlock)
Door lock module
side cut wire
fused (+) 12V
Door switch side of cut wire
Unlock relay
LOCK relay
white/black lock
wire (-) from ec003
Not use
87a
87 Not use
Type G: Positive (+) multiplex. One wire controls lock and unlock using resistor(s).
4.Once the resistor value(s) is determined, refer to the wring diagram for proper wiring.
Single-resistor style: if one resistor is used in the door lock switch/key cylinder, the wire will pulse
(+) 12V in one direction and less than +12V when operated in the opposite direction.
1.Cut the output ire from the door lock switch/key cylinder in half;
Determining the proper resistor values: to determine the resistor values, the door lock
switch/key cylinder must be isolated from the factory door lock system. For testing, use a calibrated
digital multi-meter that is set to ohms.
Single wire positive central locking
IMPORTANT: to ensure an accurate resistance reading, do not touch the resistor or leads during
testing.
Two resistor type: if two resistors are used in the factory door lock switch/key cylinder, the
switch/key cylinder will read less than +12V in both directions.
2.Test with the meter from the switch side of the cut door lock switch/key cylinder wire to a reliable
constant +12V source. Some good constant +12V references are the power input source to the
door lock switch/key cylinder, the ignition switch power wire, or the (+) terminal of the battery.
3.Operate the door lock switch/key cylinder in both directions to determine the resistor values. If the
multi-meter displays zero resistance in one direction, no resistor is need for that direction.
Single wire, positive lock, positive unlock.
Two potential (resistor may require) positive trigger.
fused (+) 12V
LOCK relay
fused (+) 12V
white/black lock
wire (-) from Ec003 87
86 85
87a
30
not used
87
86 85
87a
30
UNLOCK relay
fused (+) 12V
white unlock
wire (-) from Ec003
not used
fused (+) 12V
Door lock switch/
key cylinder 12V constant fused
Lock Unlock
Positive lock output to car
via resistor (if required)
Positive unlock output to car
via resistor (if required)
BCM
-19- © EASYGUARD Electronics. All right reserved. -20-
© EASYGUARD Electronics. All right reserved.

4.Once the resistor value(s) is determined, refer to the wring diagram for proper wiring.
To ensure an accurate resistance reading, do not touch the resistor or leads during testing.
Single wire, negative lock, negative unlock.
IMPORTANT:
Single-resistor style: if one resistor is used in the door lock switch/key cylinder, the wire will pulse
ground in one direction and resistance to ground when operated in the opposite direction.
Two resistor type: if two resistors are used in the factory door lock switch/key cylinder, the
switch/key cylinder will read resistance to ground in both directions.
Type H: Negative (-) multiplex. Same as Type G system, but uses (-) pulse instead.
1.Cut the output ire from the door lock switch/key cylinder in half;
Two potential (resistor may require) negative trigger.
2.Test with the meter from the switch side of the cut door lock switch/key cylinder wire to a reliable
ground source. Some good ground references are the ground input source to the door lock
switch/key cylinder, or the battery ground.
Single wire negative central locking
3.Operate the door lock switch/key cylinder in both directions to determine the resistor values. If the
multi-meter displays zero resistance in one direction, no resistor is need for that direction.
Determining the proper resistor values: to determine the resistor values, the door lock
switch/key cylinder must be isolated from the factory door lock system. For testing, use a calibrated
digital multi-meter that is set to ohms.
LOCK relay
fused (+) 12V
white/black lock
wire (-) from Ec003 87
86 85
87a
30
not used
87
86 85
87a
30
UNLOCK relay
fused (+) 12V
white unlock
wire (-) from Ec003
not used
Door lock switch/
key cylinder chassis ground
Lock Unlock
negative lock output to car
via resistor (if required)
negative unlock output to car
via resistor (if required)
BCM
Manual for Releasing Steering Lock
turn the key to
“ON” position.
Inside the lock
So that the steering lock can be turn round. Then cut and keep 1mm
length of the copied key outside of the lock. See the picture:
Cut the key
Outside the lock
Inside the lock
Cut & keep 1mm outside
Use a screw driver and push it into the hole of the ignition
cylinder (see photo on the left), turn the ignition key to
ACC position, then pull out the key with force will take out
the ignition cylinder.Then remove wires from ignition
switch and put the push start button over the empty key
cylinder slot.
Method 2:
Only a qualified staff can do this as there is risk to lock
the steering lock again if the operation is not correct. If
you are not a qualified staff, we recommend you to use
the method 1 to release the steering lock.
Important:
push here
then pull out
the cylinder
1. Please check whether there is steering lock in your vehicle or not, if yes, follow with the next step.
3. When finish matched, put the copied key blade into the ignition cylinder of car, as the picture shows:
2. Copy a key blade with your factory original key blade and match them so that the copied key blade can start
the car.
5. Attention: If there is chip immobilizer in factory
original key or remote control, need to take out the
chip immobilizer and hide it inside or near the
ignition cylinder. Please refer to installation for chip
immobilizer. If you can’t find the chip by yourself.
Just hide the original key or remote control in or
near the ignition cylinder. (Please remember to take
out the battery of the remote if you do so).
Stick on
the lock
4. Stick the push start button on the lock.
(That is the reason for cutting the key.)
6.Everything finish like
the picture:
7. If you don’t want to cut the key
for releasing the steering lock, you
can drill a hole in the car which
near the steering and install the
push start button .Like the picture,
but it will not convenient for you
as you need to use the original
key to release the steering lock
every time you start the car.
8. Un-plug the
factory ignition
wire harness to
avoid which
consume the
vehicle battery
power.
-21- © EASYGUARD Electronics. All right reserved. -22-
© EASYGUARD Electronics. All right reserved.

If there is chip immobilizer in original key fobs, please follow below method
2.Put the car original remote control(include the chip immobilizer) into the coil, make sure the induction
of the chip immobilizer and the coil is good.
Method 1:
1.Take out the original induction coil from the ignition lock.
1.Take out the chip immobilizer from the car OEM remote control.
Method 2:
2.Take out the original induction coil from the ignition lock.
Installationfor chip immobilizer
Reminder: Some chips with weak signal are hard to start the car when put on the car original coil.
Then need to add a coin or other metal pad underneath the chip to enlarge the signal of it (see above
drawing)
Car original
induction coil
3.Stick the chip immobilizer on the induction of car coil, make sure the induction of chip and coil is good.
Chip
Foam or other materials
Induction coil of original car
Coin or other metal pad
Car original
induction coil
Starting current: 30A
Frequency: 433.92Mhz
ON current: 30A
Technical Parameter:
Static current: <10mA
Working Voltage: DC12V±2V
ACC current: 30A
Method 3:
Use an extra bypass module to bypass it, installation steps as below:
1. Put the whole remote control( please take out the battery from remote first) include the chip immobilizer
into the bypass module.
Note: if size of remote control is big, user can put PCB or chip inside the bypass module.
2.Taping induction wires 2-3 circles on the ignition lock header
Important: Please fix the car OEM remote control and induction wire well
around the ignition lock header to make sure that the car can be started.
Bypass module
Car OEM remote
control must fix well
in induction coil
Induction wire taping on the ignition lock
Fix the induction
wire well on the ignition
lock with electrical tape
Induction coil
-24-
© EASYGUARD Electronics. All right reserved.
-23- © EASYGUARD Electronics. All right reserved.

C.If there is chip immobilizer in your vehicle factory key fob, you should add an extra bypass module,
please make sure the bypass module is well installed so that you can start your vehicle.
D.The start time is not enough. If your car is diesel car need a longer engine starting/cranking time (more
than 3 seconds), you can turn on ON dashboard first then wait for a few seconds to pre-warm the spark
plug, then start the car or add an extra timer delay switch.
The hand brake should be in neutral position when use the remote start function.
FAQs of Ec003
Dear Customer,
There are possible 4 reasons:
2.I am not able to use remote engine start function, what's the reason?
a.Please check if the green fuel pump wire in 10 Pin wire harness is correctly connected. For wiring
method of this wire, please refer to Note 11 fuel pump wire in the user manual.
B.Please check whether the 6P ignition wire harness are well connected or not, especially the ignition
wire & starter wire.
1.When I attempt to start the vehicle, it starts but shut off a few seconds, what's the reason?
b.Please check whether the gray hand brake wire is well connected. For automatic gear car, the gray
hand brake wire should connect with chassis ground; for manual gear car, this wire should connect with
hand brake wire in the car.
c.When use remote engine start function, please keep a distance at least 5 meters away from the car as
you can't use remote engine start function when in PKE induction range.
4.Is there a GWR (ground while running) wire? Or how to connect with a GWR wire to the alarm?
Please refer to note 9 GWR (Ground while running) (-) wire connection
A.The green fuel pump wire in 10 Pin wire harness is not connect well & which lead there is no electricity
when you want to start the vehicle. For wiring method of this wire, please refer to Note 11 fuel pump wire
in the user manual.
Thank you for purchasing our products. Here is some FAQs for your reference, if there is question when
install/ use the products, we recommend you to read the FAQs to find answer and solutions. If those
FAQs still not able to help you fix the problem, you can also contact us and we will help you till everything
is working well.
5.How to connect a window closer module with your alarm?
If there is window closer module need to connect with EC003 alarm, connect the wire from window closer
module with white/black locking wire in central door locking wire.
3.How to do programming?
Please refer to programing method in the user manual.
7.The PKE function sometimes work sometimes not work, why?
The problem should due to the blue door trigger wire (-) not well connected.
6.I turn on PKE function then start the car, but when I stop and cut off the engine, the PKE
function is automatically turn off and I have to turn it on again, what's the reason?
It should due to the PKE antenna not mount well lead there is PKE induction blind spot, if so, please
adjust the PKE antenna mount position to get a maximum PKE induction range. You can refer to PKE
antenna mount position in user manual to mount the PKE antenna position till you get a maximum PKE
induction range.
The quality of this product is strictly controlled before out of the factory, which ensure its well performance
under normal utilization. EASYGUARD electronics provide 1 year quality guarantee. If there is any failure
due to product quality issue, please contact us for free repair or replacement. Any incorrect
operation/installation/using lead the product failed to work is not in cover of free quality guarantee service.
This device can improve the vehicle safety level, but could not prevent the vehicle from being stolen or the
occurrence of unexpected accidents. EASYGUARD Electronics will not be liable for any resulting from the
damage of this product cause by direct or indirect losses.
IMPORTANT:
Warranty information
-26-
© EASYGUARD Electronics. All right reserved.
-25- © EASYGUARD Electronics. All right reserved.
