Ebmpapst CBC000-AF08-01 User manual

ebm-papst Mulfingen GmbH & Co. KG
Bachmühle 2
D-74673 Mulfingen
Tel.: [phone]
Fax: [phone]
[email protected]
www.ebmpapst.com
Article No.: CBC000-AF08-01
Status: 15.03.2012
Version 1.0
CONTENT
USE 4
1. SAFETY 4
1.1 Staff qualification 4
1.2 Basic safety rules 4
1.3 Storage 4
1.4 Disposal 4
2. PROPER USE 4
2.1 Proper use also includes: 4
2.2 Improper use 4
3. PRODUCT SPECIFICATIONS 4
3.1 Delivery specification 4
3.2 Product photo 5
4. COMMISSIONING AND OPERATION 5
4.1 Connecting ESM programmer to fan 5
4.2 Programming 5
4.2.1 Switching the unit on 5
4.2.2 Main menu 5
4.2.3 Navigation in the main menu 6
4.2.4 Options 6
4.2.5 Resetting ESM programmer 6
4.2.6 Switching the unit off 6
4.3 Ending programming, starting fan operation 6
4.4 Software upgrade 6
USE
The ESM programmer allows two speed settings to be programmed.
The programming unit can be used with most fans of the ESM range (fan range
based on ESM energy-saving motor, exceptions could be customized models).
1. SAFETY
1.1 Staff qualification
Only specialised electrical personnel may install the unit, perform the test run and
work on the electrical system.
1.2 Basic safety rules
CAUTION
Electrical charge on the unit
Risk of injury
>Before programming, disconnect the fan from the power supply.
1.3 Storage
Store the unit in a dry and weatherproof manner in a clean environment. Avoid
impacts and direct sunlight.
1.4 Disposal
When disposing of the unit, please comply with all relevant requirements and
regulations applicable in your country.
2. PROPER USE
2.1 Proper use also includes:
– Using the unit in conjunction with ebm-papst fans of the ESM range.
– Using the unit in dry environement.
2.2 Improper use
Using the unit in the following ways is particularly prohibited and may cause
hazards:
– Operating the unit close to flammable materials or components.
– Any other applications not agreed with ebm-papst.
If you have specific questions, contact ebm-papst for support.
3. PRODUCT SPECIFICATIONS
The ESM programmer is used for programming the speed of ebm-papst ESM fans.
Its compact design means that it is especially suitable for applications in the field.
3.1 Delivery specification
– ESM programmer
– Protective cover (blue)
– AA alkaline batteries, 1.5 V (2x)
– Connector cable (article No.: 29005-4-1040)
4/6
Operating instructions
Programming unit for ESM range
EN
(HX0C-003-000-02)

3.2 Product photo
Fig. 1: ESM programming unit with protective cover and connector cable
4. COMMISSIONING AND OPERATION
4.1 Connecting ESM programmer to fan
CAUTION
Electrical charge on the unit
Risk of injury
>Before programming, disconnect the fan from the power supply.
>Open the cap on the fan, see Figure 2.
>To do this, use a broad flat-blade screwdriver.
>Turn the cap a quarter of a turn counter-clockwise.
NOTE
Sealing damage to the fan
The cap could be damaged and the fan is not sealed properly
>Turn the cap only for one-quater turn when opening or closing.
Fig. 2: Opening the cap
Connecting the ESM programmer
The connection on the ESM programmer is located on the top of the unit, see
Figure 3.
>Plug the RJ45 connector into the matching socket.
Be sure that the connector clicks into place, otherwise there may not be a proper
connection.
Fig. 3: Connecting the ESM programmer
Connecting the fan
The black connector is intended as the connection to the fan.
>Plug the connector into the socket according to its coding, see Figure 4.
>Plug the connector so far into the socket that the flat part of the connector
completely disappears in the opening.
>Make sure that the connector is not tilted when you do this. Never use force to
plug in the connector.
Fig. 4: Connecting the fan
4.2 Programming
4.2.1 Switching the unit on
>Switch the ESM programmer on by pressing the "On/Off" button and holding it
until a tone is emitted.
The message "ESM PROGRAMMER – POWER ON" appears briefly before
the ESM programmer changes to the main menu, to "CHANGE SPEED 1".
The ESM programmer is now ready for use.
4.2.2 Main menu
The following options are available in the main menu:
- CHANGE SPEED 1
- CHANGE SPEED 2
- BACKLIGHT
- BATTERY
- VERSION
5/6
On/Off button
Connector cable
Display
Navigation
Connector for fan

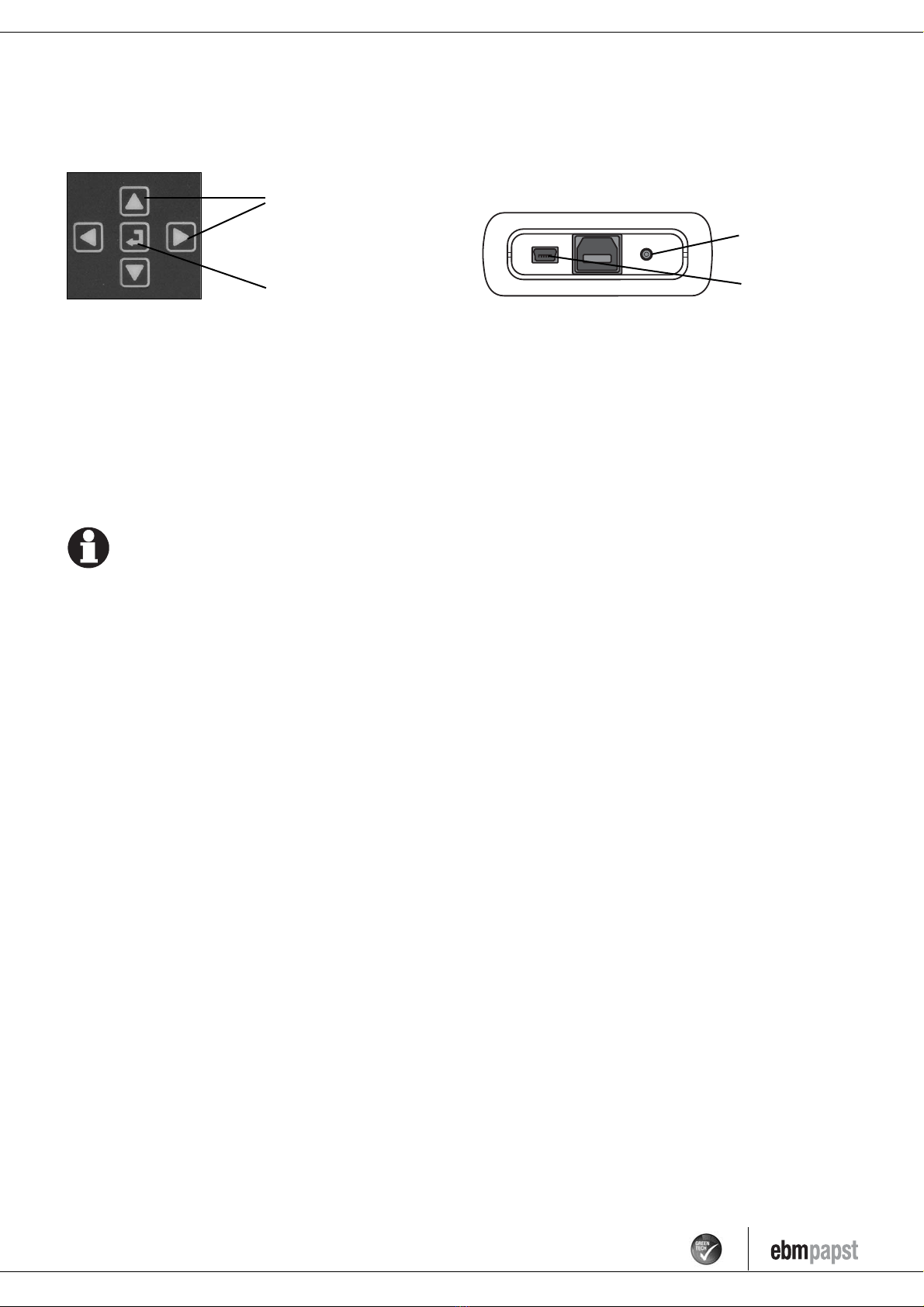

4.2.3 Navigation in the main menu
Fig. 5: ESM programmier controls
>Use the "Arrow up" and the "Arrow down" buttons to navigate to the required
option, or to change between options.
>Activate the option with the "Select" button.
4.2.4 Options
-Change speed 1
Speed 1 is the speed at which the fan operates when the 3rd (brown) lead is not
connected.
When this option is selected with the „Select“ button, the currently programmed
speed is displayed (in rpm).
This speed can be adjusted in steps of 100 rpm.
>Set the required speed with the "Arrow right" and "Arrow left" buttons.
During programming, ensure compliance with the speed limit values
stated in the product documentation for the fan.
>Confirm this value with the "Select" button.
The fan is programmed within the space of a few seconds.
After successful programming, the message "PROGRAMMING COMPLETE" appears.
In the event of a communications error, an error message will be displayed.
As a rule, this will be caused by a poor connection between the fan and the ESM
programmer.
>Check the connection / plug and restart the procedure.
Change speed 2
Speed 2 is the speed at which the fan operates when the 3rd (brown) lead is con-
nected to L or N.
When this option is selected with the "Select" button, the currently programmed
speed is displayed (in rpm).
The programming procedure is the same as that for CHANGE SPEED 1.
Backlight
>Press the "Select" button to switch the backlighting on or off. The lighting
remains on until it is switched off again, also with the "Select" button.
Battery
>Press the "Select" button to read off the battery state.
When a measured value of 2.2 V is reached, the two 1.5 V AA alkaline batteries
must be changed. Higher values (in the range 2.3-3.3 V) are absolutely acceptable.
>Press the "Arrow up" and "Arrow down" buttons to return to the main menu.
Version
Shows the current software version.
4.2.5 Resetting ESM programmer
>Press the small white button on the top of the unit (see Figure 6) to reset the
ESM programmer.
Fig. 6: Resetting ESM programmer
4.2.6 Switching the unit off
>To switch the ESM programmer off, press the "On/Off" button and keep this
pressed until the message "ESM PROGRAMMER - POWER OFF" appears. The
display is then switched off.
If no button is pressed for 3 minutes, the unit will power down automatically.
4.3 Ending programming, starting fan operation
>Before you reconnect the power supply to the motor/fan, unplug the connector
cable and re-insert the cap.
NOTE
Sealing damage to the fan
The cap could be damaged and the fan is not sealed properly
> Replace the cap after programming.
> Turn the cap only for one-quater turn upon opening or closing.
4.4 Software upgrade
Should future software upgrades be necessary, a mini-USB connection is included
on the device (cable not included) for this purpose. The software would be made
available as a download to a personal computer which could then be uploaded to
the programmer.
6/6
Arrow buttons
Select button
Resetting program-
ming unit
Mini USB port for
uploading firmware
upgrades
