EC LIVING SIRA L-1 User manual

QUICK START GUIDE
SIRA L-1
EN
WIRELESS
ACTIVE
SUBWOOFER
L

2
INTRODUCTION
Welcome to the world of Electrocompaniet! Through more than 40 years of ceaseless practice, we
learned how to combine timeless Scandinavian design and innovative thinking to give you the purest
possible experience of music and sound. EC Living not only combines all of that into one small pack-
age, it also embeds in itself the technologies of tomorrow, granting you access to all your favourite
Music Streaming Services at your fingertips.
PACKAGE CONTENT:
• 1pc. SIRA L-1 Wireless subwoofer
• 1pc. Power cable (220V or 110V)
• 1pc. Quick Start Guide
UNPACKING
Immediately after receiving the SIRA L-1, inspect the carton for possible damage during shipment. The
carton and packaging have been designed to provide the safest possible protection for transport of
your SIRA L-1 wireless subwoofer. Unpack the unit carefully. Save all packaging materials for possible
future shipments.
QUICK
START
GUIDE

3
SET UP PROCEDURE: PAIRING THE SUBWOOFER
To complete this procedure you will need a streamer, for example TANA SL-1/SL-2 or RENA.

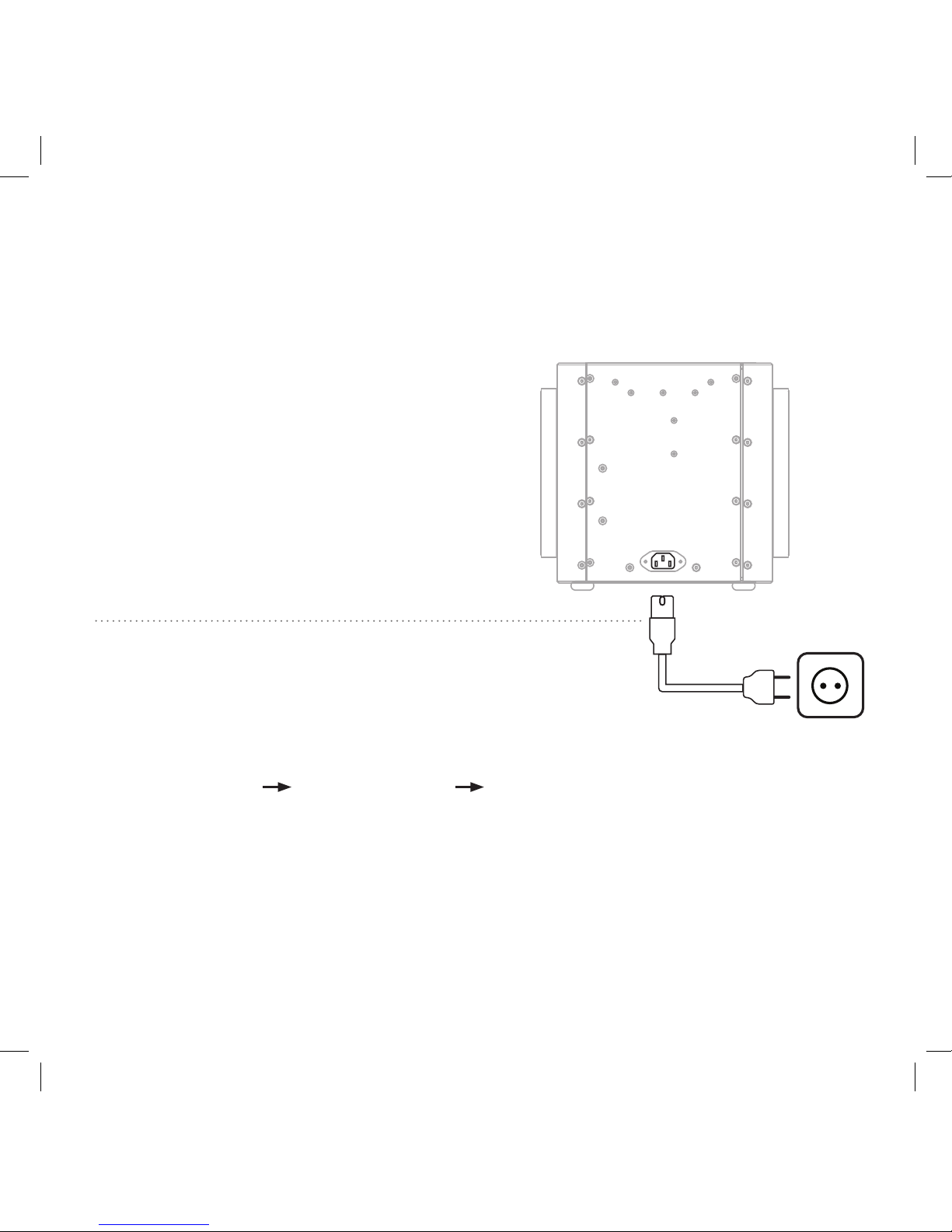

1. CONNECT THE POWER CABLE
Power up the SIRA L-1 by connecting the power cable
included in the box. Before continuing, check that you
have a yellow led lit on top in the middle of the unit.
If the yellow LED is not lit, please follow the factory reset
procedure on page 6.
2. PAIR SIRA L-1 WITH EC LIVING STREAMERS
1. Start your preinstalled “EC Remote” App.
2. Go to SETTINGS OUTPUT SETTINGS SPEAKER CONFIGURATION.
Check if the subwoofer is shown in this dialog. You may tap on any speaker to play a test
tone. If the subwoofer is not shown, press SCAN in order to search for it and pair.

4
TECHNICAL SPECIFICATIONS
AMPLIFIER & POWER
• 200W CLASS D amplifier
• Auto on/off universal input:
100-240V, 50-60Hz AC.
FREQUENCY RESPONSE
• Plays down to 26Hz (±3dB),
with extension down to 22Hz (±6dB)
• Adjustable lowpass frequency
(30-200Hz, 1Hz increment)*
• Adjustable phase response
(0-180º, 1º increment)*
278mm / 10.94 inches
256mm / 10.08 inches
260mm/ 10.23 inches
Front
Left
ACOUSTIC DESIGN
• two 7“ high-output woofers
• one 7” vibration canceling
passive radiator
ENCLOSURE
• Rigid metal enclosure for zero
cabinet rattle.
• Changeable decorative
speaker grills
WIRELESS CONNECTION
• 96 kHz/24bit HD Audio
• WiSA™ Certified.
AUTO ADJUSTMENT
• Automatic sound integration
with all EC Living speakers.
DIMENSIONS:
• ( W x D x H )
278mm x 260 mm x 256 mm
10.94 x 10.23 x10.08 inches
• Weight: 13kg / 28.66 lbs
STANDBY LED
STATUS LEDs
*Requires pairing with a streamer from Electrocompaniet. Fixed phase with lowpass at 80Hz when in strict WiSA compliance mode.

5
STATUS INDICATORS
There are three status LEDs indicating the status of your subwoofer. ( see illustration at page 4)
WIRELESS CONNECTION
• 96 kHz/24bit HD Audio
• WiSA™ Certified.
AUTO ADJUSTMENT
• Automatic sound integration
with all EC Living speakers.
DIMENSIONS:
• ( W x D x H )
278mm x 260 mm x 256 mm
10.94 x 10.23 x10.08 inches
• Weight: 13kg / 28.66 lbs
1- 2 - 3 Colour Led state System state
Green Solid System started in normal operation. This should be shown for 10
seconds after powering on the subwoofer.
Green Flashing slow Not assigned to a position (muted).
Please open the app, navigate to Settings -> Output Settings ->
Speaker configuration and verify that the SIRA is in the
“subwoofer” position.
Yellow Solid System not paired.
SIRA is not assigned to any master. Please follow the set-up
procedure on page 3 to pair SIRA to a streamer.
Yellow Flashing fast
(rhythm of errors)
Poor network quality.
If this is shown frequently, please refer to the FAQ on our website for
tips on how to improve signal quality.
Yellow Flashing slow Connecting to master.
SIRA is not able to find the streamer. Verify that the streamer is
powered on and in-range of SIRA. If this does not resolve the
issue, perform a factory reset (page 6) and then perform the
set-up procedure on page 3 again.
Yellow Heartbeat Updating...
The streamer has found new software for the SIRA and is in
progress of updating it to the latest version. This is performed
in the background and may take up to 2 hours, depending on
signal conditions.
Red Flashing slow Amplifier fault or overtemperature.
If this led keeps blinking, check to feel if the unit is very hot. If so,
please move SIRA to a cooler area and out of direct sunlight.
