Echo Radiolink User manual
RadioLinkTM
Television Radio System – Universal Radio
Transmitter & Receiver
Please read and follow the safety instructions
before using the product
CONTENT
1. Accessories Picture
2. Features
3. Safety Instructions and Precautions
4. Setup and User Instructions
5. Replacement Parts
6.TechnicalSpecications
7. Conformity
Accessories Picture:

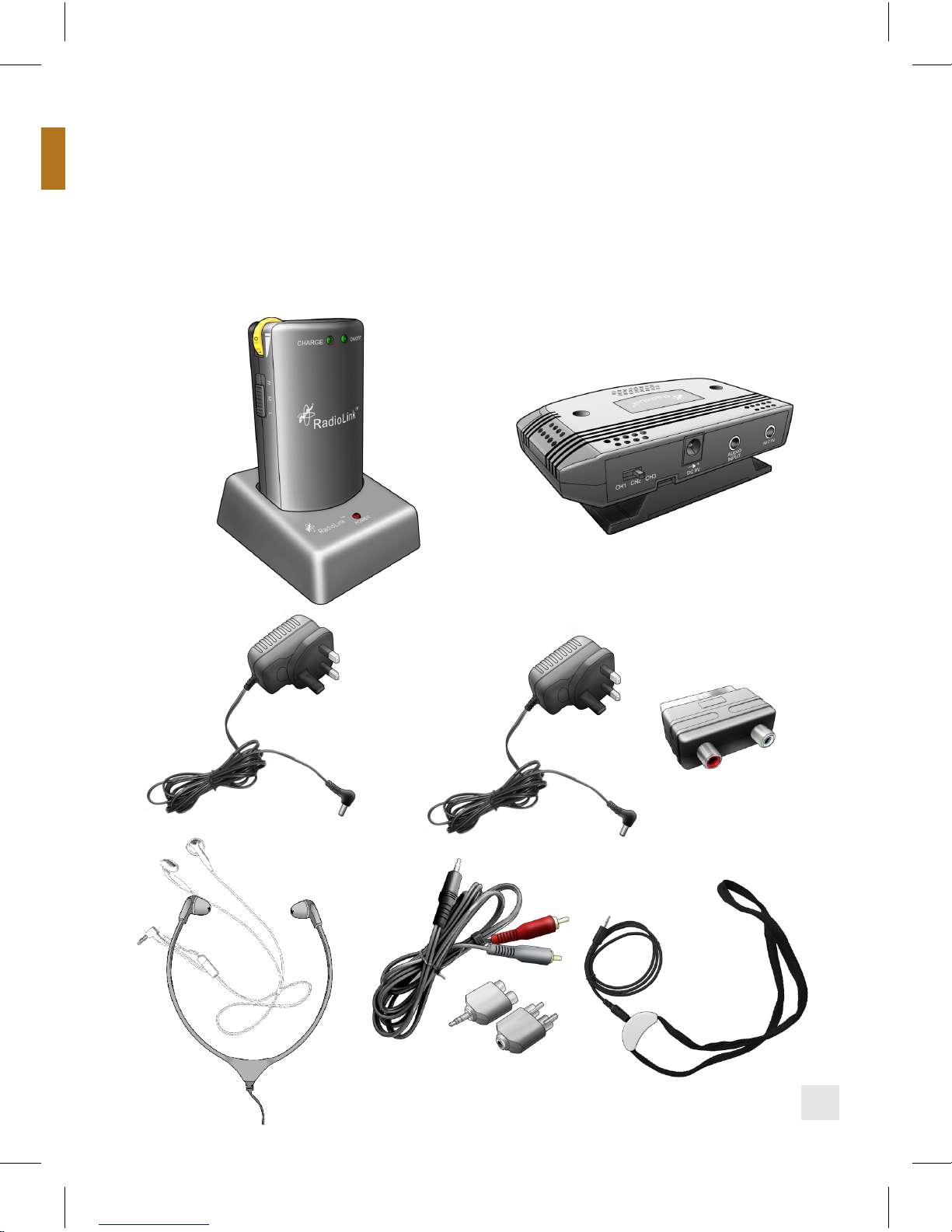

①Receiver ②Charger ③Transmitter ④SCART\Adapter
⑤ ⑥Power adapter ⑦Headset ⑧Phono plugs
⑨Neckloop
Power adapter
1
①
②
③
⑤
⑥
⑦
⑧
⑨
④
2
FEATURES:
1. Active noise reduction system for crystal clear sound
2. Operation distance up to 50 meters open air
3. Transmits through walls at home
4. Tone Control (Low/Mid/High) can be set independently.
Receiver has auto channel search tuning
6. Li-ion battery technology ensures a long operating time
5.
Safety Instructions and Precautions:
Listening to uncomfortable sound levels for prolonged periods
could adversely affect your hearing.
If using a microphone, line input, headset or neck loop the plug
MUST be fully inserted into the correct socket and the volume
turned to the lowest level before turning the unit on. Failure to do
so can result in high sound levels that could adversely affect your
hearing.
Using this product inappropriately could adversely affect your
hearing. Please follow the step-by-step instructions carefully!
Do not use in an environment that is damp, wet, very hot or very cold.
To clean the RadioLinkTM and its accessories, use only a soft cloth
and an inorganic cleaner.
Only use the Hearing Products approved mains adapter. Do not
use any other type of mains adapter.
When using the RadioLinkTM basic safety precautions as below
should always be followed to avoid the risk of electrical shock or
personal injury.
Install the RadioLinkTM Transmitter securely on a stable surface
and install the unit where the power cord will not be subject to
damage or cause a tripping hazard.
The RadioLinkTM Transmitter may get warm when being used.
Ensure the unit has adequate ventilation.
Please refer all servicing to qualified personnel only. Do not
attempt to open the unit, this will invalidate the warranty.
The batteries must be fully charged before use.
It will take about 5 to 7 uses and recharges before the batteries
will have their full capacity.
3
4
Setup and User Instructions:
1.Place the RadioLinkTM transmitter near
to the TV.(see Fig 1)
2.Plug the 12V DC Power Adapter into a
standard electrical wall socket, then
connect the end of output lead into the
transmitter DC12V socket.
(see Fig 2)
3.Plug the other 12V DC Power Adapter
into a standard electrical wall
socket, and then plug its power lead
into the RadioLinkTM charging cradle
socket . The red power LED on the
Charger Base will light up.
Fig 1
Fig 2
①
②
4.Rotate the volume wheel ON/OFF switch until the ON/OFF LED is
OFF on the receiver and place the receiver on the charging base.
When fully charged the charge LED will turn to green.

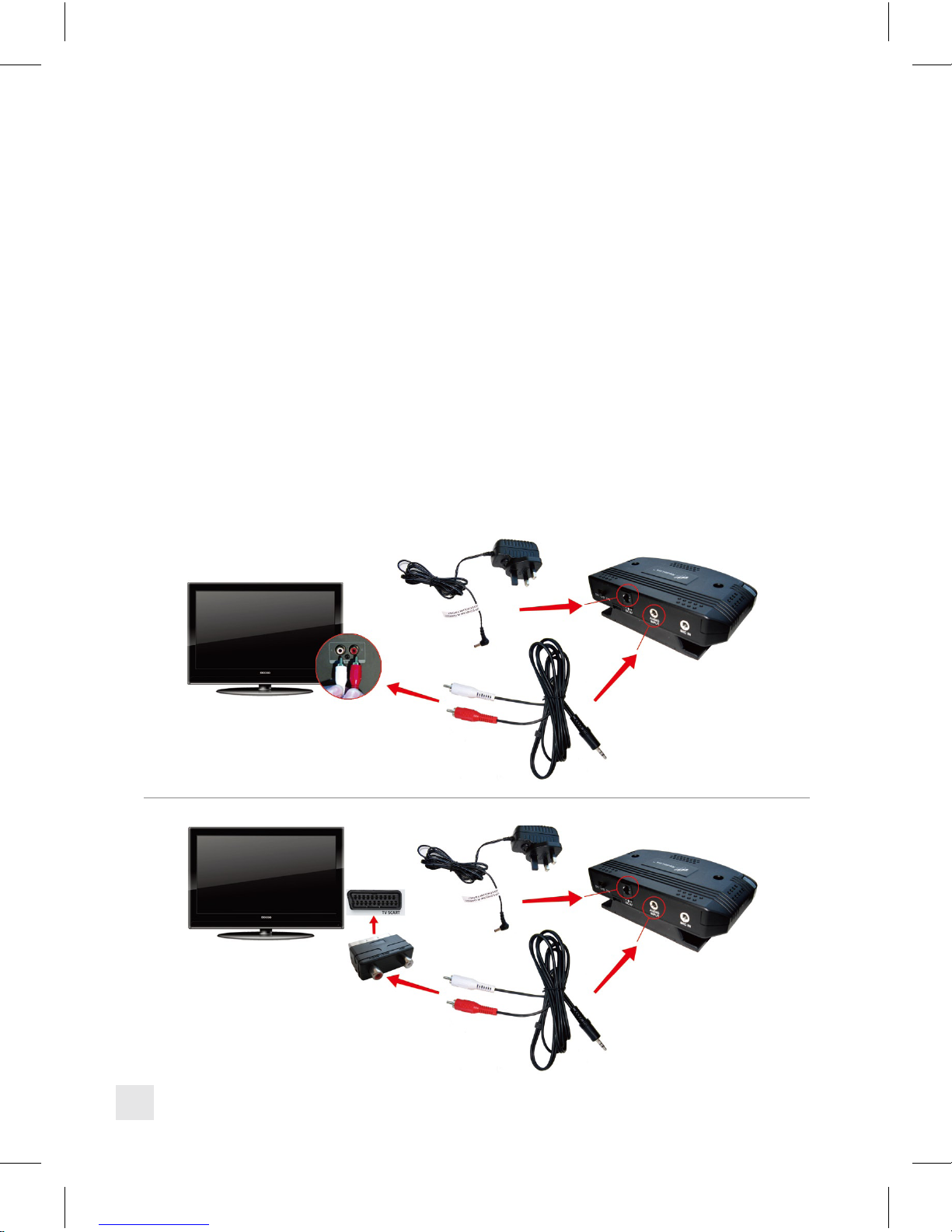

5.If your TV has phono audio output sockets connect the 2 x phono
plugs of the phono to 3.5mm lead to these sockets and plug the
3.5mm jack plug end of the lead into the RadioLinkTM Transmitter
Audio input socket (see Fig 3).
6.If your TV has no audio output sockets but has a spare SCART
socket, plug the scart adapter into the TV and connect the two
phono connectors of the phono to 3.5mm plug lead. Then
connect the 3.5mm jack plug end into the Audio Input socket of
the transmitter (see Fig 4).
Fig 3
Fig 4
5
6
7.If the SCART connection is not successful,
connect the microphone. Simply plug the
3.5mm plug of the microphone cable into
the Mic socket on the transmitter (see Fig
5) and then the microphone onto the TV
speaker, using the Velcro.
8.Remove the receiver from the base (or
from the Y patch lead) and fully insert the
Headset or Neckloop plug into the phone
jack .
9.Put on Headset or Neckloop; ensure the
yellow volume control is at ZERO The ON/
OFF LED will be off.
10.To listen to TV, turn the yellow volume
wheel to volume Number 1 and wait for
the sound to come through and then
adjust to a comfortable listening level (ON/
OFF LED will be green).
11.If the sound is not clear, change channel
using the switch at the back of the
transmitter.
12.When you are finished using the system,
turn the receiver off (the ON/OFF LED will
turn off).
13.Place the universal receiver back into the
charging cradle (see Fig 2). Or plug into
the Y patch lead to recharge.
Fig 5
14.TheredchargeLEDonthereceiverwilllightupredandwhen
the batteries are fully charged again it will turn green.
Note: TheredLEDonthechargingbasewillalwaysbered
when connected to the mains. This indicates only that it is
connected to mains.
15.Whenthebatterylevelislow,theON/OFFLEDonthereceiver
willflashRED.Thenafterafewminutesthereceiverwill
automatically turn off to protect the batteries. The receiver must
be recharged if this occurs.
16.Therearenouserserviceablepartsintheuniversalreceiver.Do
not attempt to replace the batteries. Contact Hearing Products
InternationalLimitedifyouhaveanyserviceissues.
17.Iftheserialnumbersorlabelsareremovedyourwarrantyis
invalid.
7
Help and advice for connecting to TV with analogue audio output.
When connecting a MegaLoop , EchoLink or RadioLink to a TV.
It is usually best not to use the SCART sockets as this can result in
picking up the wrong sound or sound that is out of sync with the picture.
Step 1. When connecting to a TV the rst thing to look for is red
and White Audio out sockets these are usually at the back of the
TV. and usually indicated by a circle with an arrow pointing out of it.
Connecting from audio out will always provide the correct sound for
the program that is being watched. Note the red white and yellow
sockets that are normally on the front or side of TVs are for
sound and picture in and not sound out. On some of the newer
screen TVs the sockets may be covered by a removable panel
at the rear of the TV.
Step 2. If the TV. has no audio out sockets or they are not working
the next thing to try is the headphone socket simply switch the TV.
on and insert the 3.5mm jack plug into the headphone socket, if the
sound is not cut from the speakers then connect from this and into
the line in/Audio in on the loop or Transmitter . You will then have
to adjust the headphone volume level on the TV. this is done by
pressing the menu button on the TV. remote, selecting sound and
then moving the headphone volume to about two thirds full.
Step 3. If the TV. has no audio out and the headphone connection
cuts the sound from the TV speakers simply pick up sound by
the microphone provided to the speaker of the TV. To provide the
best results adjust the TVs bass and treble levels to of max bass
and of max treble and if possible set the sound to mono.
L
R
Aerial Audio out SCART sockets
8
TM TM TM
Help and advice for connecting to a TV. that has Digital Optical
Audio Output
Many of the newer TV. models no longer have analogue audio
output, they have Digital Optical Audio Out or Digital Coaxial Audio
Out. The picture below shows the type of socket to look for. To
connect your equipment from this socket you will require an optional
Digital to Analogue Converter available from Hearing Products
International Ltd.
The picture below shows the front and rear of a typical Digital to
Analogue converter. Set up is easy the converter is connected
from the TV to the (in) socket on the converter and the MegaLoop ,
EchoLink , or other analogue device is then connected to the
phono out sockets. The converter is supplied with a mains adapter
and Optical connecting cable as this is the most common. If the
Coaxial connecting cable is required this will have to be purchased
separately.
For further details about the Digital to analogue converter please
contact Hearing Products International on 01614808003 or visit
www.hear4you.com
DIGITAL AUDIO OUT
COAXIAL
OPTICAL
TM
N COAX OPTICAL OUT R L
9
TM
10
Replacement Parts
P/N Qty Description
465TX 1 RadioLinkTM Transmitter (TX)
465RX 1 RadioLinkTM Receiver (RX)
465base 1 Charger Base for RadioLink RX
570-1000-01 2 12V DC power supply positive centre
575-1000-01 2 UK Plug
490-1013-01 1 RadioLinkTM Carton/Instructions
306/B 1 phono phono combi lead
201/B 1 Scart/phono plug
202/M 1 Mic on lead (mono plug)
101 1 Headset under chin
910-1003-01 1 Neckloop
1
102 Earbuds
TM
11
T
1 System VHF/RF
2 Carrier frequency 174.0MHz; 174.5MHz; 175.0MHz
3 Modulation VHF
4 Mode stereo
5 Transmit power 7dBm(maximum)
6 S/N ratio 65dB
7 Channel separation 50dB(minimum)
8 Distortion 1.5%
9 Frequency response 30 - 20,000Hz
10 Power supply of transmitter
DC 12V Positive Centre min 200mA
11 Optional TX can also be powered by
2 x AAA Alkaline batteries
12 Power supply of receiver Li-ion rechargeable battery
13 Operating Distance Approx.50m (Outdoor);
Approx.20m (Indoor)
Conformity
UK: Waste electrical products and batteries should not be
disposed of with household waste. Separate disposal facilities
exist, for your nearest facility see www.recycle-more.co.uk or
Hearing Products International Limited for full details www.
hear4you.com
Hearing Products International Limited
Echo House, 26/27 Haigh Park, Stockport, SK4 1QR, England
Tel. +44 (0) 161 480 8003
Fax +44 (0) 161 480 8006
www.hear4you.com
31/07/12
Hearing Products International Ltd. reserve sole right to alter prices, design and/or
technical or colours without prior notice. RadioLink Universal Instructions
© Copyright Hearing Products International Limited.
RoHS
E & O.E
