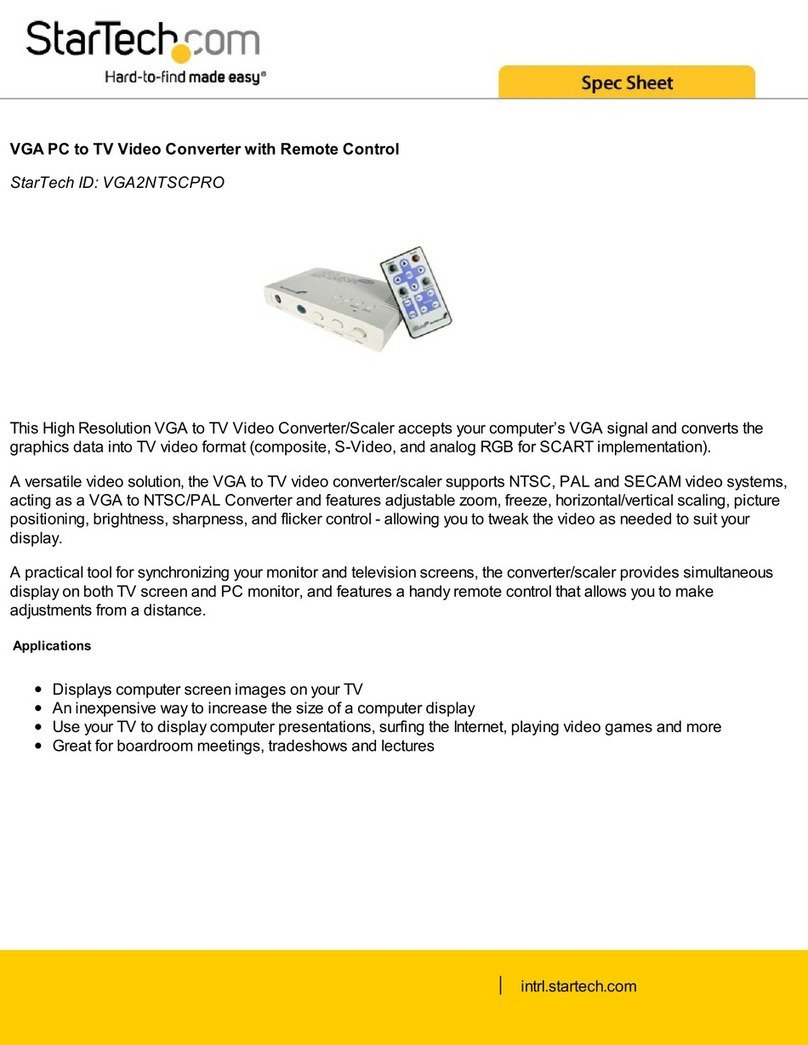

StarTech.com VGA2NTSCPRO System manual

Adaptador Conversor de Vídeo VGA Vídeo Compuesto S-Video - Composite - PC a TV
StarTech ID: VGA2NTSCPRO
This High Resolution VGA to TV Video Converter/Scaler accepts your computer’s VGA signal and converts the
graphics data into TV video format (composite, S-Video, and analog RGB for SCART implementation).
A versatile video solution, the VGA to TV video converter/scaler supports NTSC, PAL and SECAM video systems,
acting as a VGA to NTSC/PAL Converter and features adjustable zoom, freeze, horizontal/vertical scaling, picture
positioning, brightness, sharpness, and flicker control - allowing you to tweak the video as needed to suit your
display.
A practical tool for synchronizing your monitor and television screens, the converter/scaler provides simultaneous
display on both TV screen and PC monitor, and features a handy remote control that allows you to make
adjustments from a distance.
Applications
Displays computer screen images on your TV
An inexpensive way to increase the size of a computer display
Use your TV to display computer presentations, surfing the Internet, playing video games and more
Great for boardroom meetings, tradeshows and lectures
intrl.startech.com

Features
True color quality
Simultaneous display on both TV screen and PC monitor
Supports NTSC, PAL and SECAM video systems. SECAM systems display by analog RGB output port
4 times zoom function support
Handy remote control allows you to make adjustments from a distance
Provides output in both composite and S-Video formats
Adjustable zoom, freeze, horizontal/vertical scaling, picture positioning, brightness, sharpness, and flicker
control
intrl.startech.com

Technical Specifications
Warranty 2 Years
Converter Type Escalador
Soporte de Audio No
Conector A 1 - VGA (15 pin; High Density D-Sub) Macho
Conector B 1 - Composite Video (1 x RCA) Hembra
Conector B 1 - S-Video (4 pin; Mini-DIN) Hembra
Conector B 1 - VGA (15 pin; High Density D-Sub) Hembra
Resolución Analógica Máxima 1152 x 864
Resoluciones Admitidas 1152x864(=60Hz), 1024x768(=75Hz), 800x600(=85Hz), 640x480(=100Hz)
Alcance de la Frecuencia Vertical 50Hz - 100Hz
Horizontal 25KHz - 58.464KHz
Color Beige
Longitud del Producto 6.5 in [165 mm]
Ancho del Producto 4.1 in [105 mm]
Altura del Producto 1 in [26 mm]
Peso del Producto 7.7 oz [217 g]
Adaptador de Corriente Incluido Sí
Tensión de Entrada 115 AC
Tensión de Salida 9 DC
Alimentación de Salida 0.6A
Polaridad Central Positivo
Tipo de Enchufe M
Peso (de la Caja) del Envío 2.2 lb [1 kg]
Incluido en la Caja 1 - VGA to NTSC/PAL Converter w/ Remote
Incluido en la Caja 1 - CR2025 3V Battery
Incluido en la Caja 1 - 4 pin M/M cable
Incluido en la Caja 1 - RCA cable M/M
Incluido en la Caja 1 - VGA cable 15 pin M/F
Incluido en la Caja 1 - 9V DC Adapter
Incluido en la Caja 1 - Manual
intrl.startech.com

Certifications, Reports and Compatibility
