Evolio Smart TV Box User manual

Evolio Smart TV Box
User Manual

EVOLIO SMART TV BOX User
Manual
i
FCC Information and Copyright
This equipment has been tested and found to comply with
limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in
residential installations. This equipment generates, uses,
and can radiate radio frequency energy, and if not
installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation.
The symbol means that the unit complies with
European safety and electrical interference directives.
The vendor makes no representations or warranties with
respect to the contents here and specially disclaims any
implied warranties of merchantability or fitness for any
purpose. Further the vendor reserves the right to revise
this publication and to make changes to the contents here
without obligation to notify any party beforehand.
Duplication of this publication, in part or in whole, is not
allowed without first obtaining the vendor’s approval in
writing.
The content of this user manual is subject to be changed
without notice and we will not be responsible for any
mistakes found in this manual. All the brand and product
names are trademarks of their respective.

EVOLIO SMART TV BOX User
Manual
ii
Safety Precautions
1. Don’t use the TV box near water.
2. Clean only with a dry cloth.
3. Don’t block any of the ventilation openings, install
according to the manufacturer’s instructions.
4. Don’t install near any heat sources such as radiators,
heat registers, stoves, or other apparatus(including
amplifiers) that produce heat.
5. Don’t defeat the safety purpose of the polarized or
grounding - type plug. When the provided plug does
not fit into your AC power outlet, consult an
electrician for replacement of the obsolete outlet.
6. Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
7. Only use attachments/accessories specified by the
manufacturer.
8. Unplug this apparatus during lightning storms or
unused for long periods of time.
9. Refer all servicing to qualified service personnel.
Servicing is required when the unit has been
damaged in any way.
Accessories
AC adapter/Power cable
Remote control
TV Box
User Manual

EVOLIO SMART TV BOX User
Manual
iii
Contents
FCC INFORMATION AND COPYRIGHT............................. I
SAFETY PRECAUTIONS .................................................. II
CONTENTS ...................................................................... III
CHAPTER 1 BASICS...................................................... 1
PARTS AND CONTROL...............................................................1
REMOTE CONTROL ...................................................................1
POWER SUPPLY.........................................................................5
CONNECTIONS..........................................................................5
TRANSFERRING CONTENTS.......................................................6
HOME SCREEN..........................................................................8
MAIN MENU .............................................................................8
BUTTONS...........................ERROR!BOOKMARK NOT DEFINED.
ONSCREEN KEYBOARD .............................................................9
CHAPTER 2 GETTING STARTED ................................ 16
WEB BROWSER....................................................................... 11
WATCHING VIDEOS................................................................ 12
PLAYING MUSIC..................................................................... 15
VIEWING PHOTOS ................................................................... 17
SHARECENTER ..................ERROR!BOOKMARK NOT DEFINED.
FILE EXPLORER .................ERROR!BOOKMARK NOT DEFINED.
MANAGING THIRD PARTY APPLICATIONS ................................ 19
CHAPTER 3 SETTINGS................................................ 37

EVOLIO SMART TV BOX User
Manual
iv
WIRELESS &NETWORKS ........................................................ 21
SOUND ................................................................................... 22
DISPLAY................................................................................. 22
SCREEN.................................................................................. 22
STORAGE................................................................................ 22
APPS ...................................................................................... 22
SECURITY............................................................................... 22
LANGUAGE &INPUT............................................................... 23
BACKUP &RESET ................................................................... 23
ADD ACCOUNT ....................................................................... 23
DATE&TIME.......................................................................... 23
ACCESSIBILITY....................................................................... 23
DEVELOPER OPTIONS.............................................................. 23
ABOUT DEVICE ...................................................................... 23
CHAPTER 4 TROUBLESHOOTING.............................. 40
CHAPTER 5 APPENDIX ............................................... 41
UPGRADING FIRMWARE.....ERROR!BOOKMARK NOT DEFINED.
MAINTENANCE....................................................................... 25
PRODUCT SPECIFICATIONS ..................................................... 25
DISPOSAL AND RECYCLING INFORMATION ............................. 26

Chapter 1 Basics
1
EVOLIO SMART TV BOX is a smart TV box based on
Android v4.2.2 operating system. It supports HDTV,
network function, and third party software. User can get
access to over 450,000 apps, share and enjoy TV shows,
movies, music and much more.
Parts and Control
1. DC-In jack –for connecting power cable to power
adapter.
2. LAN port –to connect Ethernet network via RJ45
cable.
3. HDMI port –to connect HDTV via HDMI cable.
4. USB jack –for connecting with external USB device.
5. AV jack –to connect TV/monitor via AV cable.

Chapter 1 Basics
2
6. Standby button –Press to go to standby or wake-up
mode.
7. IR window –To receive IR signal from IR remote
control.
8．Memory card slot –supports SD card
9．Status indicator –blue light for working mode, red
light for standby mode.

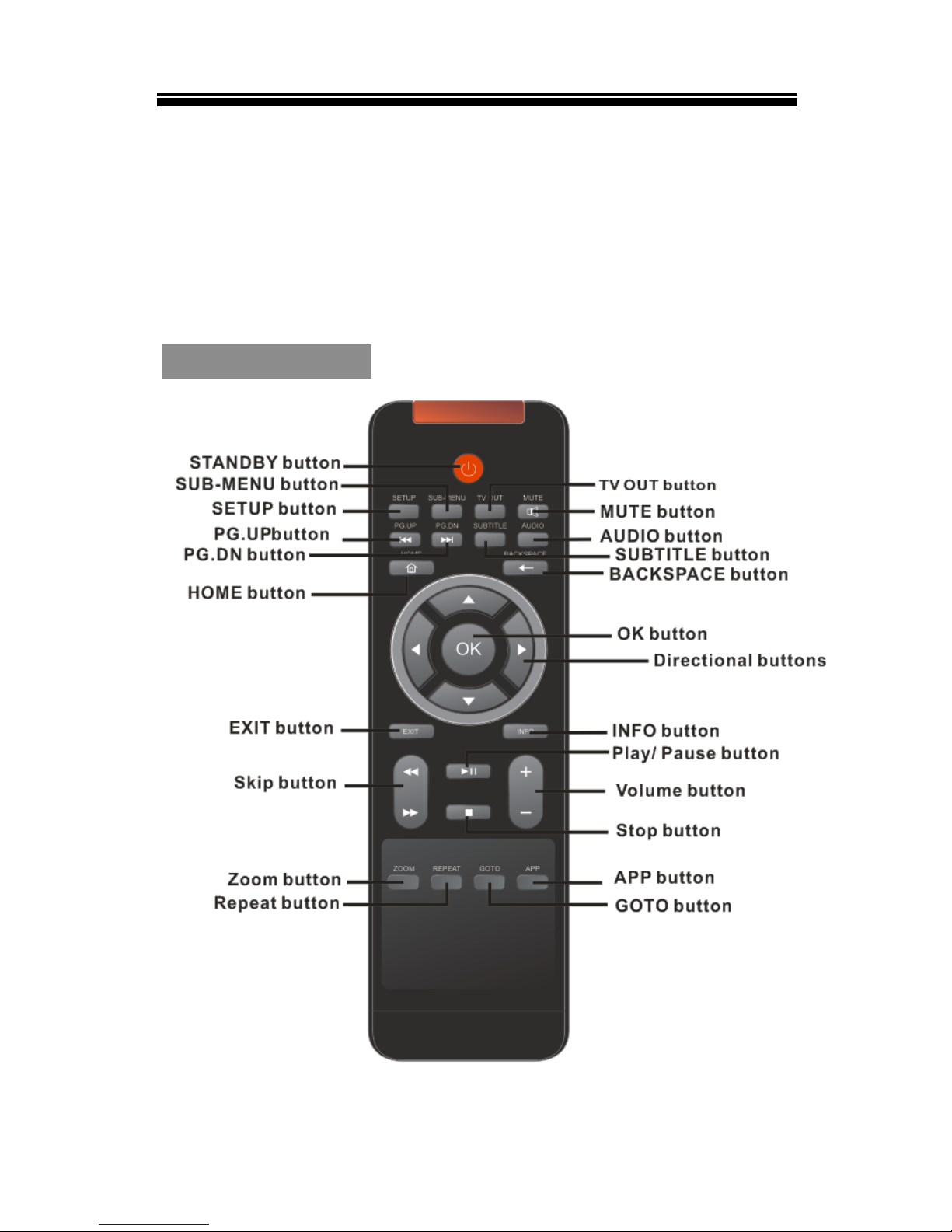

Remote Control

Chapter 1 Basics
3
STANDBY button
–press to go to standby/wake-up mode
SUB MENU button
–press to display the option menu
SETUP button
–press to enter into settings
PG.UP/DN button
–press to go to previous/next song/video
HOME button
–press to return to home screen
Exit button
–return button, to return the previous screen
Skip button
–press to fast rewind/ fast forward
Zoom button
–press to Zoom in/out
Repeat button
–press to set repeat mode
MUTE button
–press to mute the TV box.
TV OUT button
–press to select TV out mode.
AUDIO button
–press to select Audio mode.
SUBTITLE button
–press to change subtitle.

Chapter 1 Basics
4
BACKSPACE button
–press to delete a character
OK button
–press to confirm the selection
Directional buttons
–press to move the cursor left/right/up/down.
INFO button
–press to display the media file information.
PLAY/PAUSE button
–press to play or pause the playback
Volume button
–press to increase or decrease the volume.
STOP button
–press to stop the playback
APP button
–press to display the main menu
GOTO button
–press to go to the desired playback
Using the remote control
Remove the plastic sheet before using the remote
control.
To use the remote control, point the remote control at
the IR window located on the unit and press the
buttons.
The recommended effective distance for remote
operation is about 5 meters.

Chapter 1 Basics
5
Battery Replacement
When the battery become weak, the operating distance is
greatly reduced and you will need to replace them.
1. Take out the Lithium battery at the bottom of the unit
cover.
2. Insert a new identical Lithium battery.
Note: you can also use the wireless remote control
with mouse and keyboard (not included) for quick
operation and more control on TV screen.
Power supply
Using the AC adapter
The supplied 5V/2A adapter operates on AC 100-240V,
50/60HZ.
Connect the AC adapter to DC-in jack, and then plug
the AC adapter into AC outlet.
Note: While the AC adapter is connected and the unit is
on standby, power will still be consumed.
Connections
Connecting to HDTV using HDMI cable
1. Use the HDMI cable to connect the TV box to the
HDTV.
2. Use the AC adapter to connect a suitable wall outlet.
3. Turn on your HDTV.
Connecting to a TV using AV cable

Chapter 1 Basics
6
1. Use the AV cable to connect the unit to TV/Monitor.
2. Use the AC adapter to connect a suitable wall outlet.
3. Turn on your TV.
Connecting to the internet
Wi-Fi connection: if the unit detects Wi-Fi signal, in
Settings < Wi-Fi to set (See page 37) .
LAN connection: connect RJ45 cable, in Settings <
Wireless and network< More < Ethernet to set.
Transferring Contents
From USB Device
The TV box supports USB Mass Storage Device
function.
To import contents (video, audio, photo etc) into the
TV box, insert the USB device.
Upon successful connection to TV box, go to [File
Explorer], click to open.
From memory card
This unit supports SD card up to 32 GB
To insert a Memory card
Insert the card correctly with its label facing up until it
clicks into the place. You may damage the card and the
TV box if SD card is not inserted correctly.

Chapter 1 Basics
7
To remove SD card, push the card once again until it
clicks.
When a SD card is inserted in or ejected from the TV
box, it may take few seconds for the TV box to update
the content.
Please avoid inserting or ejecting SD card when other
operation is running as this may cause the system
hang.
Do not remove the card if the content inside the card is
being played. This will halt the operation of the TV box
and cause the TV box to restart.

Chapter 1 Basics
8
Home screen
When the TV box is turned on, it will enter into the Home
screen.
Use the Directional buttons and press OK button or
use Wireless Mouse key to press any icon on the home
screen to get started.
Press anytime to return to the Home screen.
Uninstalling the apps
Long press on the desired applications icon to show an
option menu, select Uninstall (The apps in “APP”“All”
can’t be uninstalled.).
Setting wallpaper for home screen
Go to the photo folder, then press the desired picture (full
screen mode), then Press Set picture as
wallpaper.
Main menu
All application icons are on the Main menu.
On home screen, press the App button on the remote
control or on TV screen to show the Main menu.
The Apps main menu is made into a series of categories.
Press All to show all the applications,
Press Ungrouped to enter the ungrouped
applications list.
Use the Directional buttons and press OK button or use

Chapter 1 Basics
9
Wireless Mouse key to press an desired application icon
to launch the application.
Press on remote control or on TV screen to
return to home screen.
Adding icons on category
You can add shortcuts or widgets to the media category.
On Home screen, press the Apps icon 
Ungrouped to show all the applications ungrouped, long
press on the desired applications icon to show an option
menu, select Move to.
Moving icons
Long press on the desired applications icon of the media
category to show an option menu, select move to.
Uninstalling the apps
Long press on the desired applications icon to show an
option menu, select Uninstall (The apps in “APP”“All”
can’t be uninstalled.).
Onscreen keyboard
Use the onscreen keyboard to enter text, such
as web addresses.
Press on the text field to bring up the keyboard.
Uppercase key Backspace key
Enter key Input options

Chapter 1 Basics
10
Numeric/punctuation/symbol key

Chapter 2 Getting Started
11
Web browser
View a webpage
From Home screen or APPS, press the Browser
icon to open web browser.
On address bar, type the web address and press or
OK button on the remote control to open the webpage.
Press the link on the webpage to open a new
webpage.
Use the Directional buttons to scroll around the
webpage.
To return to the previous page, press the Exit or ESC
button.
Add bookmark
Press to add the current visited webpage as
bookmark.
Bookmarks List
Press to show bookmarks list, press a bookmark
to open the webpage. Touch and hold the bookmark to
display the option menu for bookmark.
History
Access to view history lists. To remove these
lists, press Menu then select Clear history.
Settings

Chapter 2 Getting Started
12
Press to use more available function, including
Privacy & security, Accessibility and so on.
Refresh/Stop
Press to refresh on the current page, press Xto stop
loading the current page.
Forward
Press ←/→go to previous/next webpage screen.
Using the option menu
Press Menu to display the browser
option menu. Press on the desired
item to use webpage viewing control.
Watching Videos
Playing videos
On the Home screen or APPS, press
VideoVideo folder to open video player.
Drag up and down to scroll through the file list.
Press to select a video file for playback.
Press and hold on the selected video file to delete it.

Chapter 2 Getting Started
13
Controlling Video Playback
When playing video, press Menu button on the remote
control to pop up control toolbar.
Play or Pause a
video
Press / .
Play previous/next
video
Press / .
Fast rewind or fast
forward
Press and hold /
.
Skip to any point in
a video
Press anywhere or drag
the playhead on the
progress bar.
Adjust the volume
level.
Press /
or use the buttons on the
side of TB2004A.
Adjust screen
brightness
Press .

Chapter 2 Getting Started
14
Adjust the screen
size: full
screen,16:9,4:3
Press .
Display video
playback menu
Press .
Return to the video
browser screen
Press .
Notices：
By default, the bookmark will be added automatically,
it allows you to continue playing from the bookmark
when you open the video file next time.
Video player supports subtitle file, please load the
subtitle file to be displayed on the current video,
unless the subtitle is integrated into the video itself.
The TV box supports subtitle of sub, ssa, srt, lrc
format,encoded in UTF8 format.
The file name of the subtitle must be identical to that of
the video file. The subtitle will be loaded automatically
during video playback.

Chapter 2 Getting Started
15
Playing Music
About music library
On the Home screen or APPS, press Music icon
to enter into music library.
Sorting by artist Sorting by album
All songs Sorting by Playlist
Return to Now playing screen
Playing songs
1. In music library, press on a desired tab to enter song
