EcoFlow WAVE Add-On Battery User manual

 

Read all safety tips, warning messages, terms of use, and disclaimers carefully. Refer to the
terms of use and disclaimer at https://ecoflow.com/pages/terms-of-use and stickers
on the product before use. Users take full responsibility for all usage and operations.
Familiarize yourself with the related regulations in your area. You are solely responsible
for being aware of all relevant regulations and using EcoFlow products in a way that is
compliant.

（以下简称）
DISCLAIMER

3.1 Description of Product Appearance
3.2 Installation Guide
3.3 Description of Indicator
2
2
3
3
8
9
9
2.1 Use
2.2 Disposal
1
CONTENTS
4. Packaging Contents
5. Maintenance
1. Parameters and Specifications
2. Safety Guidelines
3. Start Guide

1
General Info
Net weight
Dimensions
Capacity
Battery Specifications
Battery cell material
Cycle life
Operating Temperature
Optimal ambient temperature for use
Discharging ambient temperature
Charging ambient temperature
Ambient temperature for storage

17.4lbs
18.9 x 12.1 x 2.9 in

NCM ternary lithium battery
80%+ capacity after 800 cycles




1. Parameters and Specifications

2
2.1 Use
2.2 Disposal
1. It is strictly prohibited to place this product near heat sources, such as fire or heating furnaces.
2. It is strictly prohibited for this product to come into contact with any liquid. Do not immerse this product in
water or allow it to get wet. Do not use this product in the rain or in damp environments.
3. It is prohibited to use this product in strong static or strong magnetic field environments.
4. It is prohibited to disassemble this product in any way or puncture this product with sharp objects.
5. It is prohibited to use wires or other metal objects to cause this product to short circuit.
6. Do not use unofficial components or accessories. If replacements are necessary, please visit EcoFlow’s
official sales channel for the relevant purchase information.
7. When using this product, please strictly follow the ambient temperature for use in this user manual. Overly
high temperatures may cause the battery to catch fire or even explode; while overly low temperatures will
seriously degrade product performance to the point that it can no longer meet normal use requirements.
8. It is prohibited to stack other heavy objects on this product.
9. Please avoid impacts, falling, dropping or strong vibrations. In the case of severe external impact, please
turn off the power immediately and stop using the product. Please keep the product properly secured
during transport to avoid vibration and impact.
10. If the product accidentally falls into water during use, place it in a safe open area, and keep away from the
product until it has completely dried. Once dried, the product must not be used again, and should be
properly disposed of according to the method described in Section 2.2 "Disposal." If the product catches
fire, please use a fire extinguisher or fire-fighting equipment in the following recommended order: water or
mist, sand, fire blanket, dry powder, carbon dioxide fire extinguisher.
11. If the interface of this product becomes dirty, wipe it off with a dry cloth.
12. Handle this product with care to prevent it from being damaged due to overturning. In the event that the
product is overturned and seriously damaged, immediately turn off the power and place the battery in an
open area, being sure to keep it away from combustible materials and people; and dispose of it in
accordance with the requirements of local laws and regulations.
13. Keep this product out of reach of children and pets.
14. Store the product in a dry and ventilated place.
15. If the product is immersed in or exposed to water, please take anti-electric shock measures before
touching the product, place it in a safe, open area, and keep away from the product until it has completely
dried. Once dried, the product must not be used again.
1. When conditions permit, be sure to fully discharge the battery of this product before placing the product
in a designated battery recycling box. This product contains a battery, which is a hazardous chemical and
is strictly prohibited from being placed in an ordinary garbage can. For relevant details, please comply with
the local laws and regulations regarding battery recycling and disposal.
2. If the battery cannot be fully discharged due to the fault of the product itself, do not dispose of the battery
in a battery recycling box directly. Contact a specialized battery recycling company for further disposal.
3. An over-discharged battery cannot be started. Please dispose of it as waste.
2. Safety Guidelines

3
3.1 Description of Product Appearance
3.2 Installation Guide
Installing the add on battrery








1. Installation Guide







5



6

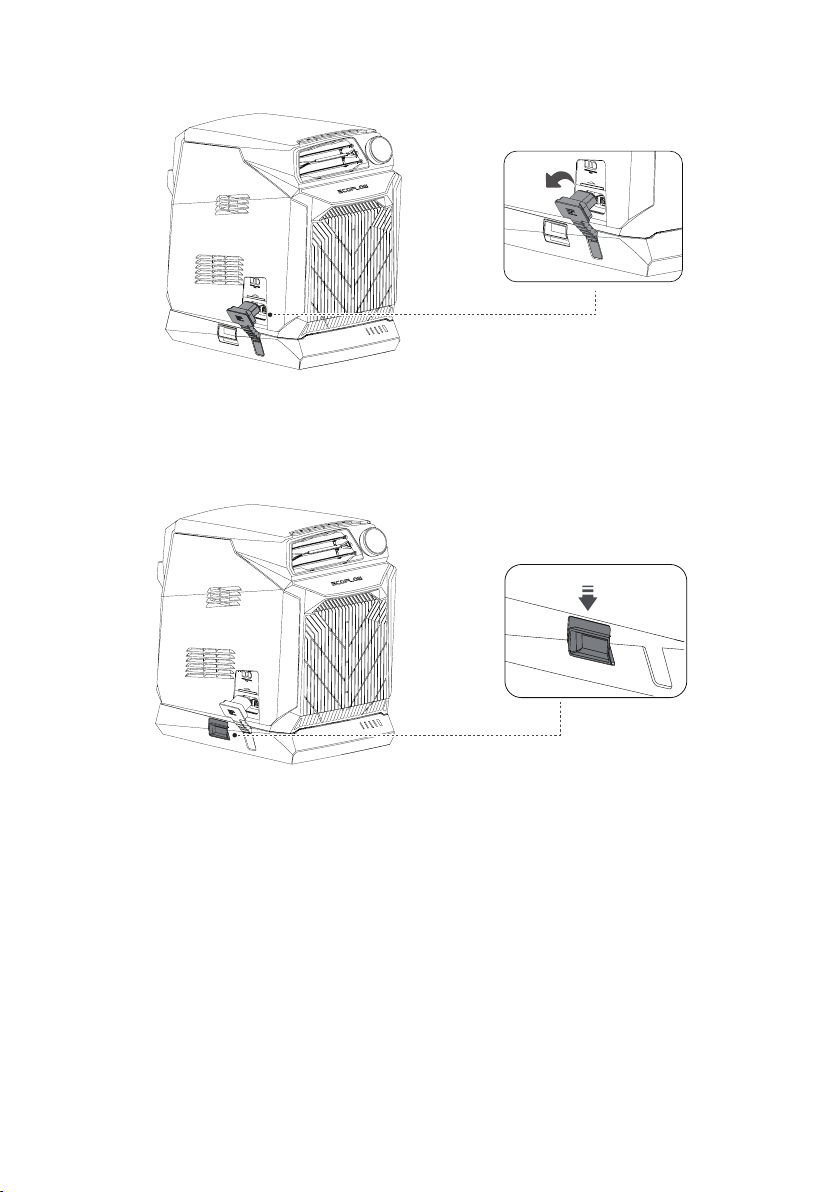

Removing the add on battery



7
Step three: Push Wave forward while pressing the release latch to separate Wave from

This product cannot be used on its own.
It needs to be used together with Wave.
Step four: Raise Wave

8
3.3 Description of Indicator
Diagram of indicators
1 
2 
3 
  
5
0%
1~25%
26~50%
51~75%
76~100%





6
0~25%
26~50%
51~75%
76~99%
100%





7 
Indicator 1 Indicator 2 Indicator 3 Indicator 4

9
Wave Add On  User Manual & Warranty Card
1. 
water, heat sources and other metal objects.
2. For long-term storage, the product should be charged and discharged once every three months (i.e.

3. 
4. 
long period of time with a severely low charge, irreversible damage to the battery cell will occur, reducing
the service life of the product.
5. If the battery level reaches 0% and the product is left idle for too long, it will enter deep sleep mode and will
need to be recharged before it can be used again.
4. Packaging Contents
5. Maintenance and Servicing
