ECONO HOME XD-Y User manual

INSTRUCTION MANUAL
Model no.: XD-Y
120V 1500W
ASSEMBLY & OPERATION INSTRUCTION
Please read carefully and Save this instruction for future reference

Introduction
The infrared heater contains a gold halogen lamp formed reflector heating system that provides even heat distribution.
The infrared heater saves 30%-40% of electricity in comparison to traditional heaters. The infrared heater is commonly
used for indoor or outdoor spot heating. Perfect for garages, outdoor patios, indoor pools or workshops.
Warning
READ CAREFULLY- The infrared heater is designed for safer operation. Nevertheless, the installation, maintenance
and operation of the heater can be dangerous. Observing the following procedures will reduce the risk of fire, electric
shock, and injury to person and keep installation time to minimum. Save these instructions for future use.
1. Read all instruction before using thisheater.
2. Remove the unit from its packaging and check to make sureit is in good condition before using.
3. Do not let children play with parts of package (such as plasticbags).
4. Check the household voltage to ensure it matches the heater’s rated specification.
5. Check the power cord and plug carefully before use, to make sure that they are notdamaged.
6. Before unplugging the power cord, be sure to turn off the power, when energizing the unit.
7. Do not use flammable objects near or point the heater towards furniture, pillows, bedding, paper, cloths and
curtains and maintain at least 3 feet (1meter) from the front of the heater and keep them always near the sides
andrear.
8. Do not use near or in the immediate vicinity of a bath or swimming pool or any source of liquid.
9. To protect against electric shock, do not immerse cord or plug in water or any otherliquid.
10. Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an electric
shock, fire or damage to the heater.
11. Always unplug the heater when not in use.
12. Do not allow cord to overhang the counter top where children can easily pull it.
13. Do not put fingers or foreign objects into the grill while in operation.
14. Do not leave the appliance unattended when inuse.
15. This heater is not intended for use in bathrooms, laundry and similar indoor locations and never leave heater
where it may fall into a bathtub or other areas filled with water.
16. No liability can be accepted for any damage caused by non-compliance with these instructions or any other
improper use or mishandling.
17. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities or lack of experience and knowledge unless they have been given supervision or instruction
concerning the use of the appliance by a person responsible for their safety. Children ad vulnerable people
should be supervised to ensure they do not play with the appliance.
18. If supply cord is damaged in any way, it must be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
19. To prevent overheating of this appliance, keep the air inlets and outlets clean and free of anything that may
cause blockage. Check all inlets and outlets from time to time to ensure it is clear of any dirt or dust
accumulation.
20. Parts of the heater may exceed 200℃,Contact with the heating tube, reflector, or metal parts near the heating
tube, may cause severe BURNS. To avoid burns, do not let bare skin touch hotsurface.
21. ALWAYS allow heating element to cool at least 10 minutes before touching the heating tube or adjacentpart.
22. This product contains recyclable materials. Do not dispose this product as unsorted municipal waste. Please
contact your local municipality for the nearest collectionpoint.
WARNING : NEVER place hands under the heating elements.

Introduction
The XD-Y halogen heater produces instant and comfortable heat like the sun. These robust and weatherproof heaters
are designed for domestic and commercial heating applications within outdoor areas; it is mostly used for outdoor use
only.
Model
XD-Y
Voltage(V)
110-120V AC
Wattage(W)
1500W
Hertz(Hz)
60
Dimensions W×H×D(mm)
67.5*10.5*7.2cm
Weight(KG)
2.03KG

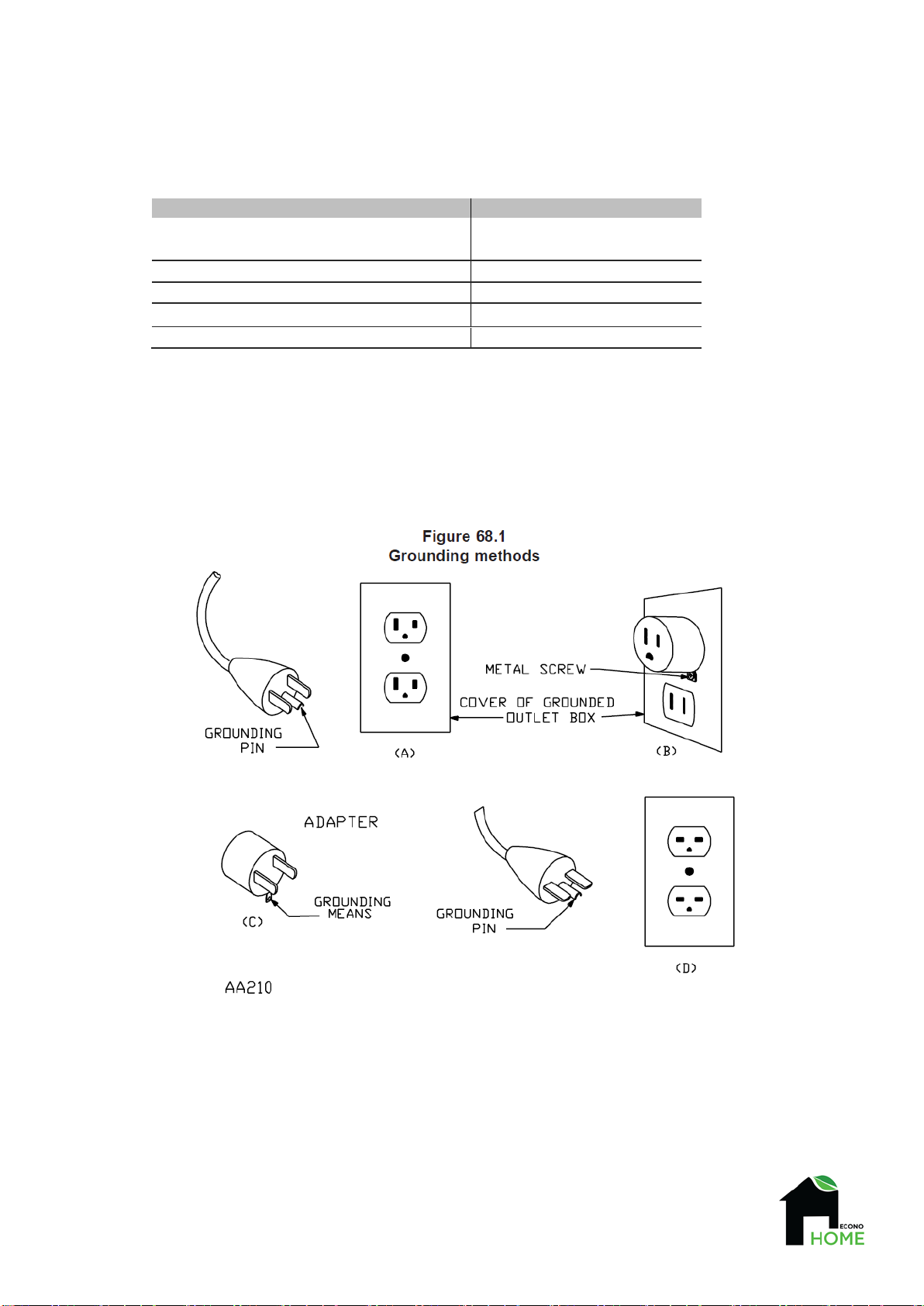

This heater is for use on 120 volts. The cord has a plug as shown at A in Figure 68.1. An adapter as shown at C is
available for connecting three-blade grounding-type plugs to two-slot receptacles. The green grounding lug extending
from the adapter must beconnected to a permanent ground such as a properly grounded outletbox. The adapter should
not be used if a three-slot grounded receptacle is available.

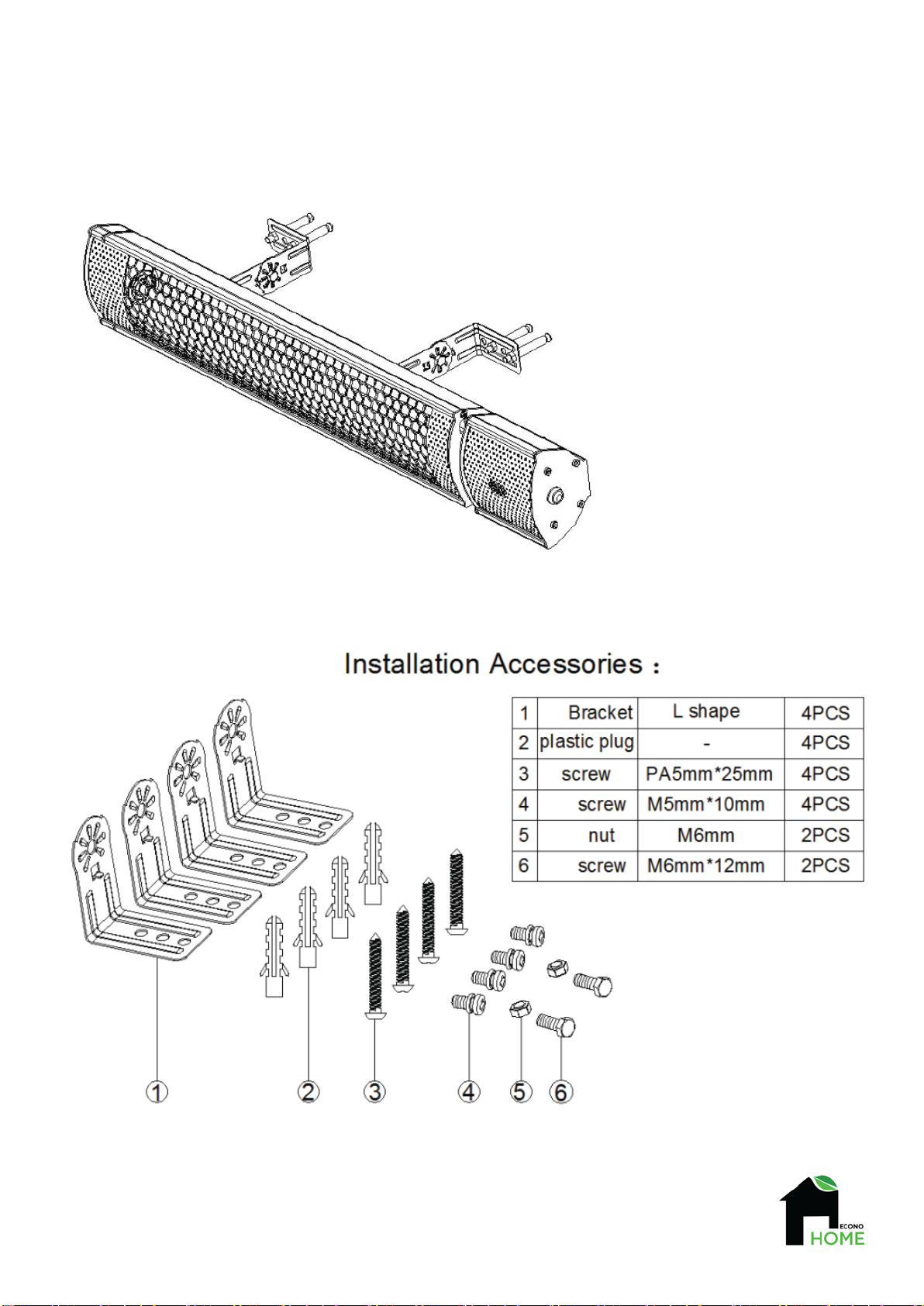

ASSEMBLY INSTRUCTIONS

Tools Needed:
* Pencil *Hammer *Level *Screw Driver *Power Drill and drill bits
A wall-mounting bracket is provided with the heater which has been specifically designed to allow this product to be
fitted to a wall or ceiling before drilling the holders for the wall/ceiling is solid and that there are no hidden water pipes
or electric wires. The heater must be installed no less than 16’’ from sidewalls and no less than 6”’ off the floor.
Important: Ensure that the supply cables are well mounted and that it does not come into contact with reflector of the
heater or that is does not trail into heated area, the supply cable can be fixed to the metal mounting bracket behind
heater with plastic zip ties.

The heater must be installed at least 1.8 m above the floor

INSTALLATION WITH TRIPOD STAND-(optional)
Noted: L shape bracket packed in heater carton box
Accessories:
Screw:N5*10mm 4pcs
L shape bracket 2pcs
REMOTE CONTROL INSTRUCTION
OPERATING
Product Key Function:
1. Turn ON/OFF the power
2. Press key function: press the button, and then press the heat levels (L1-L2-standby - off)

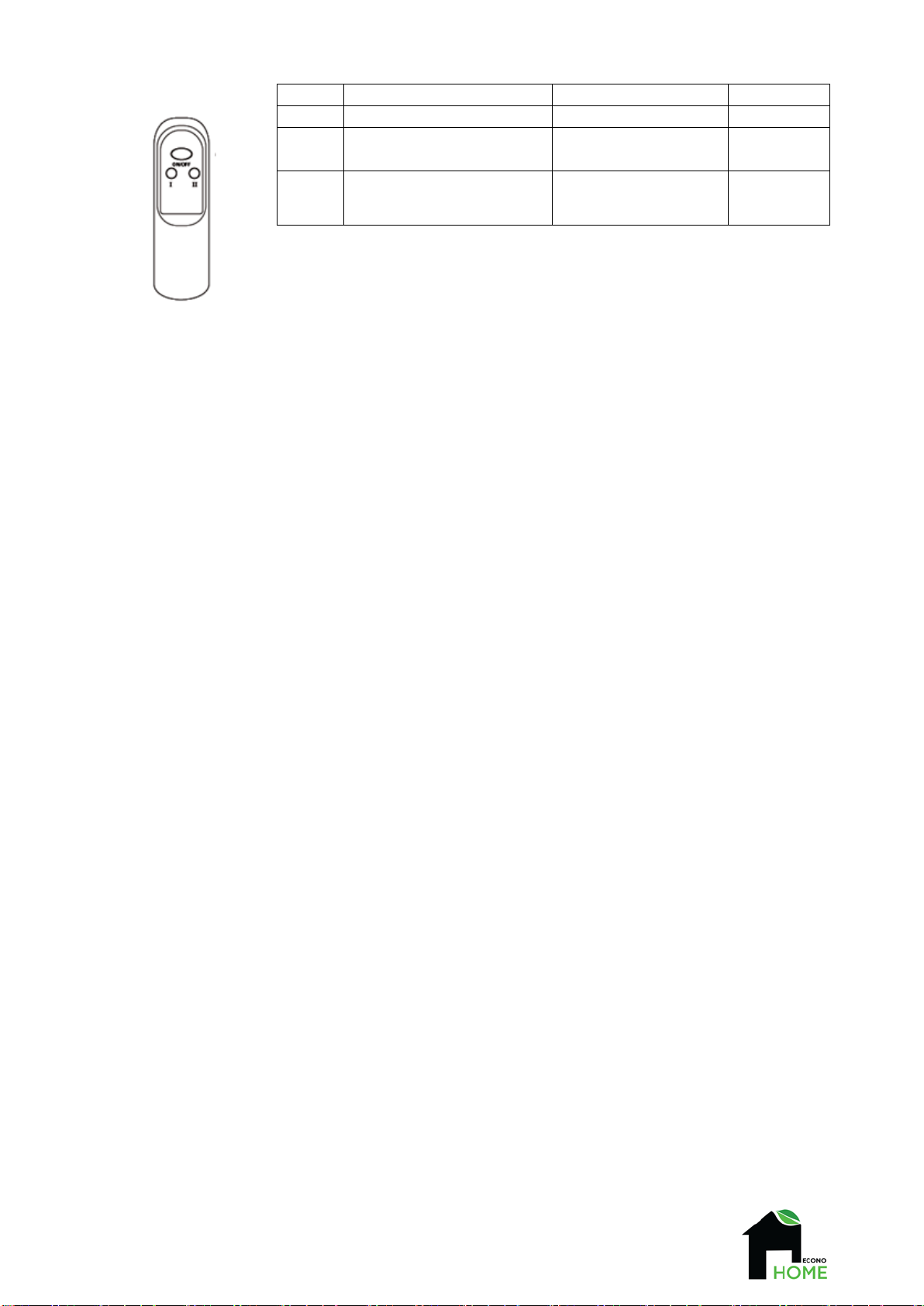

Remote Control Function
Button
Function (Heater On)
Function (Heater Off)
LEDDisplayon

Note: All ECONOHOME PATIO heaters and their remote controls have the same frequency, so it is
possible to control several heaters with just one remote.
PUSH BUTTON: on the right of heater, it could be manual operated without remote control.
Inserting Batteries (not included).
Insert 2 AAA/ Alkaline type batteries into your remote control.
1. Flip the backside of your remote control and pull out battery cover. Insert the batteries in accordance with the
instructions and polarity the batteries.
2. Change the batteries in the same way depicted above.
FUNCTION & OPERATION
1. PLUG the unit into a plug socket, make sure the power supply is the same as rated.
2. PRESS the power button on the right side of heater.
3. TURN ON the heater by remote control, or off the heater.
4. DOWN & UP BUTTON, setting the power level.
CLEANING AND MAINTENANCE
Regular and careful cleaning helps your infrared heater operate efficiently for many trouble free years. To
clean your heater follows steps below:
1. Unplug the power cord for your safety before cleaning yourappliance.
2. Make sure the heater is cool beforecontinuing.
3. To keep the heater clean, the outer shell maybe cleaned with a soft, damp cloth. You may use a mild
detergent if necessary. After cleaning, dry the unit with a soft cloth. (CAUTION: DO NOT let liquids enter the
heater).
4. DO NOT use alcohol, gasoline, abrasive powders, furniture polish or rough brushes to clean the heater. This
may cause damage or deterioration to the surface of the heater.
5. DO NOT immerse the heater in water.
6. Wait until the heater is completely dry before use.
Storage: Store the heater in a cool, dry location when not in use to prevent dust and dirt build up. Use
packaging carton to store.
Troubleshooting
1. Check if the power cord is plugged into an electrical outlet, if not, plug in.
2. Check if electricity to the main fuse isworking.
Heater
O
Turns heater on or off
I
Power setting
Turns heater onto
Level1(50%*power)
II
Power setting
Turns heater on to
Level 2 (100%*power)

3. Light display, but no heat: Bulb is damaged. Arrange for replacement bulb with local Dealer.
