Edge ADVANCED LOC44-PRO User manual

ADVANCED LINE OUTPUT CONVERTER
The LOC44-PRO can be used to add amplifiers to an audio system that does not have RCA out-
puts or when replacing an OEM radio and retaining the factory amplified system. Variable Gain
Controls with Clipping Indicators, Selectable Ground Isolation and Load Select features ensure a
pure, noise-free signal for any type of audio system.
This Quick Start Guide will get you going, but if you need additional help or information, please
visit our website or contact Technical Support.

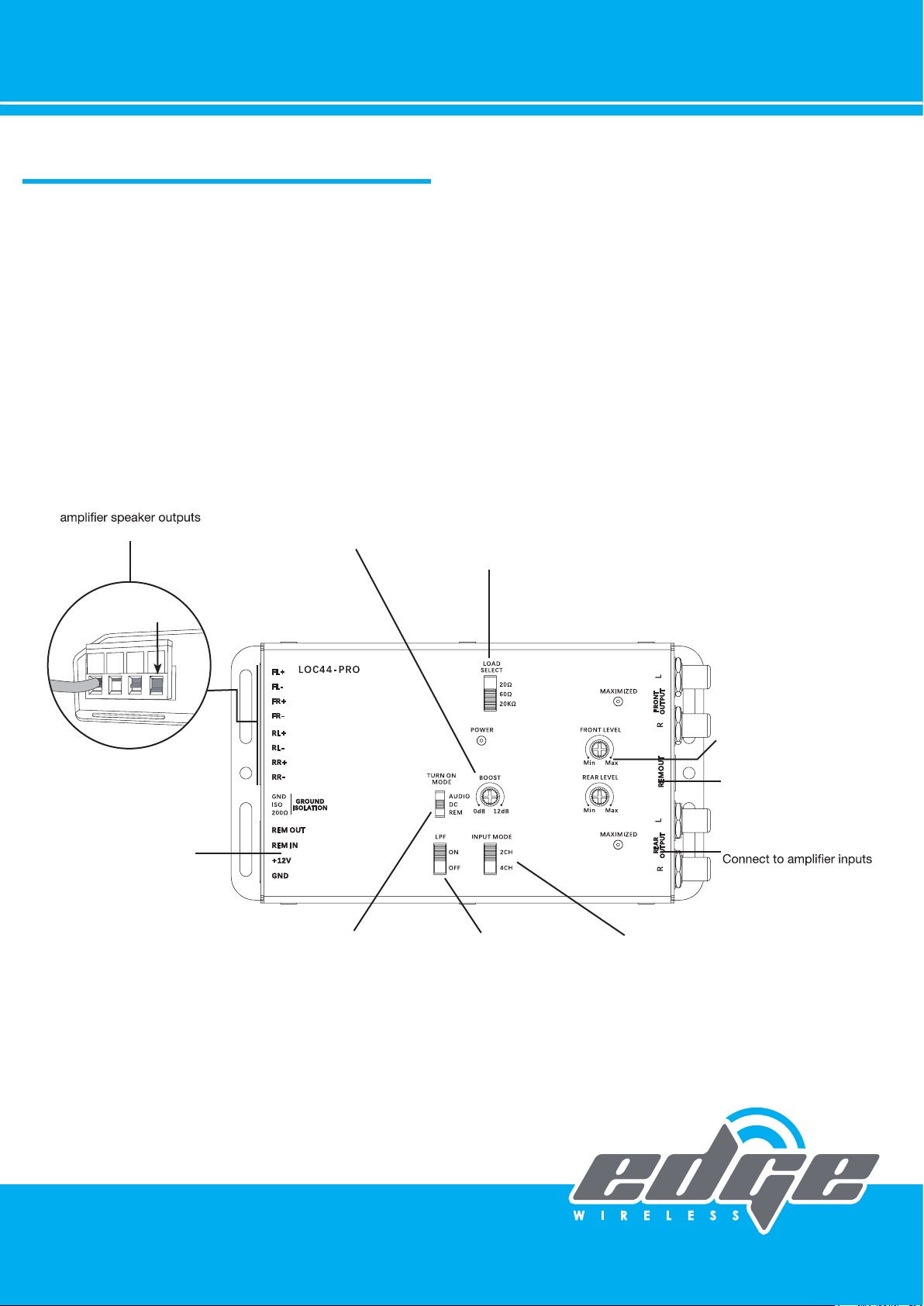

Quick Start Guide
REMOTE- lt is always optimal to adjust the gain at the output side of the amplifier, thus it's recom-
mended to use the Amplifier's Remote Knob when available.
LOC44-PRO 4 Channel Line Output Converter
7TH BUILDING, NO.59 CHUANGFU ROAD, XIAO GANG
INDUSTRIAL ZONE, NINGBO 315800, CHINA
Tel [phone] Fax [phone] www.edgeholdings.com
X
FULLY OPEN TERMINALS
BEFORE INSERTING WIRE
12V
Connect to a fused
+12V constant source
GND
Connect to a good
chassis ground
REM IN
Remote turn on input (+)
REM OUT
Remote turn on output (+)
The LOC44-PRO will provide a
+9V Remote Output using
DC Signal Sense from the
Right channel inputs RCA SIGNAL OUTPUTS
GAIN
Variable: -28dB—+1dB
Allows gain adjustment of
the output signal
LOAD SELECT
Selectable: 20Ω / 60Ω / 20kΩ
Default: 20kΩ
For factory audio systems requiring
a resistance load to output audio.
(See NOTES below)
TURN ON MODE
Selectable: DC / REM / AUDIO
Default: DC
Select DC if using speaker inputs
for turn on, or REM if using REM IN
LPF
Low Pass Filter
Allows 250Hz low pass
filter for Rear Channels
BOOST
Variable: 0dB — 12dB
When LPF is ON, provides
Bass Boost (45Hz) for
Rear Channels
REMOTE
Optional Remote Level Control
Knob (RM-1) for Rear
Channels. (See NOTES below)
INPUT MODE
Selectable: 2CH / 4CH
Set to 2CH if only using FL
and FR inputs. Set to 4CH
if using all inputs
SPEAKER SIGNAL INPUTS
Connect to head unit or
Use FR and FL for 2CH mode

Speaker level input from a radio to RCA level output for an aftermarket amplifier is the most com-
monly used configuration for the LOC44-PRO. This will create RCA level outputs from a radio that
only has speaker level outputs.
In the example below, the Positive(+) and Negative(-) wires of two speakers are tapped and
connected to the SPEAKER SIGNAL INPUTS of the LOC44-PRO. The speakers will continue to play as
normal. The REM OUT is connected to the amplifiers turn-on. When the radio is turned on the
LOC44-PRO will automatically turn on the amplifier. Lastly, the RCA SIGNAL OUTPUTS from the
LOC44-PRO are connected to the aftermarket amplifiers inputs.
Example Installation
ADVANCED LINE OUTPUT CONVERTER
7TH BUILDING, NO.59 CHUANGFU ROAD, XIAO GANG
INDUSTRIAL ZONE, NINGBO 315800, CHINA
Tel [phone] Fax [phone] www.edgeholdings.com
CHASSIS GROUND (-)
12V CONSTANT POWER (+)
REMOTE AMP TURN-ON
1 2 3 4 5 6 SET
SEEK SEEK AM/FM DISC AUX RW FF

DC Signal Sense
DC offset is a high falutin technical term that means the LOC44-PRO
can sense when the head unit is on, not necessarily when audio is
being sent to the LOC44-PRO. Use DC Signal Sense mode when your
factory sound system Dutputs a DC offset when it is on.
Audio Sense
When this mode is selected, the LOC44-PRO will ONLY turn on when
you start playing a source from the head unit. Whether it be the radio,
CD player or streaming via Bluetooth from a mobile device. If you turn
the head unit on, but DON'T play audio, the LOC44-PRO will not turn
on.
ADVANCED LINE OUTPUT CONVERTER
Remote Input
This is the traditional way to turn on the LOC44-PRO and gives you
more control of exactly when the unit will turn on. Most common
places to connect the remote input are from the ignition of the vehi-
cle, fuse box, or some other 12V source (such as a cigarette lighter).
7TH BUILDING, NO.59 CHUANGFU ROAD, XIAO GANG
INDUSTRIAL ZONE, NINGBO 315800, CHINA
Tel [phone] Fax [phone] www.edgeholdings.com
REM In
DC
Audio
Trigger Mode
REM In
DC
Audio
Trigger Mode
REM In
DC
Audio
Trigger Mode
Model
Channels
Max Input Level (20kOhm)
Operating Voltage
Trigger Selection
Turn On Trigger (DC)
Output [email protected]
Input Impedance Selection (Speaker Level)
Input mpedance (RCA Level)
Ground Selection
Gain Adjustment
Input Sensitivity
Signal to Noise
THD+N
Frequence Response
Low Pass Filter
Clip Indicator
Bss Boost
LOC44-PRO
4 IN-4 OUT
40V / 400W @ 20K Ohm
9V - 16V
REM/DC/ AUDIO
3V-7V
9.5VRMS
20/ 60 / 20k Ohm
N/A
GND / ISO / 200Ohm
-28dB to +1dB
O.5V- 20V
> 110dB @6.4V Output
<0.01%
20Hz - 20kHz
< 250Hz (Rear Channels)
YES
OdB + 12dB (Rear Channels)
