Edimax WP-4500K User manual

WP-4500K
User Manual
03-2021 / v1.0

Contents
I. Product Information ................................................1
I-1. Package Contents...................................................................2
I-2. System Requirement*............................................................2
I-3. Hardware Interface ................................................................3
I-3-1. RX Overview ..............................................................................3
I-3-2. TX Overview...............................................................................4
I-4. LED Status ..............................................................................5
I-5. Applications & Operation.......................................................6
II. Hardware Installation ...........................................12
II-1. RX Installation ......................................................................12
II-2. TX Installation ......................................................................13
II-3. Share the Screen ..................................................................14
II-4. Adding/Pairing TX and RX ....................................................14
III. WP-4500K Web UI (Base User) ..............................15
III-1. Network Management.........................................................16
III-1-1. Connect to 5GHz Wi-Fi............................................................. 16
III-1-2. Remember Wi-Fi......................................................................18
III-2. Device Management ............................................................19
III-2-1. Language .................................................................................19

III-2-2. Resolution................................................................................20
III-2-3. Resolution Mode .....................................................................20
III-2-4. Maximum Connections............................................................21
III-2-5. Android Audio Streaming ........................................................22
III-2-6. Display Mode...........................................................................22
III-2-7. Reboot Timer...........................................................................23
III-2-8. One Touch Play settings ..........................................................23
III-3. About Device........................................................................24
IV. WP-4500K Web UI (Administrator) ........................25
IV-1. Wi-Fi Channel.......................................................................26
IV-2. LAN IP Settings .....................................................................27
IV-3. SSID ......................................................................................28
IV-4. Password..............................................................................29
IV-5. Sketch...................................................................................29
IV-6. Central Management System...............................................30
IV-7. Conference Control..............................................................30
IV-8. My Screen ............................................................................31
IV-9. Wallpaper Switch .................................................................31
IV-10. Dynamic Wallpaper.......................................................32
IV-11. Host Control..................................................................32

IV-12. Airview ..........................................................................33
IV-13. Airplay Support .............................................................34
IV-14. Admin Password ...........................................................34
IV-15. Screen Saver..................................................................35
IV-16. Wi-Fi Enterprise ............................................................35
IV-17. Fixed Host .....................................................................36
IV-18. Google Cast ...................................................................37
IV-19. Castcode Control...........................................................37
IV-20. Upgrade ........................................................................38
IV-21. Wi-Fi Diagnostic Tool ....................................................38
IV-22. Multicast .......................................................................44
IV-23. Download Pairing File ...................................................44
IV-24. Reboot ..........................................................................44
IV-25. Reset to Factory Default ...............................................45
V. Connecting the WP-4500K via Smatrphone App.....45
IV-1. Android OS ...........................................................................45
IV-2. iOS........................................................................................46
VI. Applications & Operation ......................................47

1
I. Product Information
The WP-4500K Wireless Projection System offers efficiency and creativity with
unprecedented Native 4K HD wireless presentation solution for business
meetings, wedding or hug conference room.
Easy plug-and-play makes group presentations possible with just one click,
users can cast, interact and receive high-quality imagery over multiple types
of devices (desktop, laptop, tablet and mobile).
You can find all supporting documents from the link below or via QR Code:
https://www.edimax.com/download
(Once you’ve visited the Edimax official website, please enter model no.
“WP-4500K”into the search box to search for your product.)

2

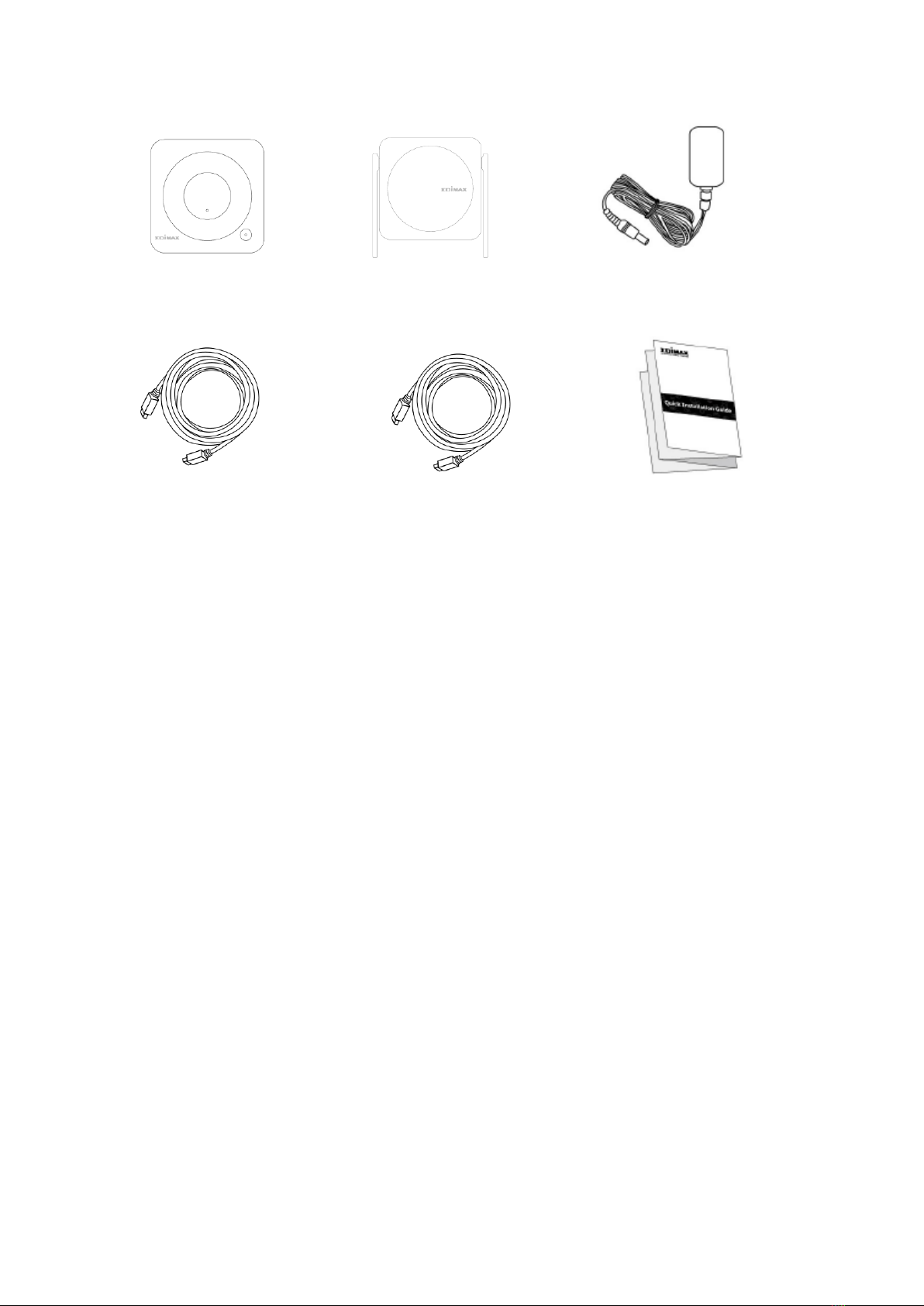

I-1. Package Contents
I-2. System Requirement*
-Windows 7/8/10 32bit/64bit
-Mac 10.9
-iOS 9
-Android 5
*Additional version information will be announced on the EDIMAX website.
Quick Installation Guide
WP-4500K (TX)
(USB power cable included)
HDMI Cable (100 cm)
Power Adapter Kit
(For WP-4500RX)
WP-4500K (RX)
HDMI Cable (30 cm)

3
I-3. Hardware Interface
I-3-1. RX Overview
1
2
3
4
5
6
7

4
I-3-2. TX Overview
No.
Description
1
Antenna
2
Power Jack
3
Power Button
4
USB Port
5
Ethernet Port
6
HDMI Out Port
7
Reset Button
5
4
1
2
3

5
I-4. LED Status
No.
Description
1
Main Button
2
LED
3
Side Button & LED
4
HDMI In Port
5
USB Power Cable
LED Status
LED Color
Side Button LED Color
Description
Off
N/A
Green
TX is in Host mode and
not projecting.
Off
N/A
Red
TX is in Guest mode and
not projecting.
On
White
Green
TX is in Host mode and
projecting.
On
White
Red
TX is in Guest mode and
projecting.
On
Red
Red
TX is in Guest mode and
standby. Not projecting.
On
Red
Green
TX is in Host mode and
standby. Not projecting.
Flashing
Red
Red
TX is in Guest mode and
sending request.
Flashing
Red
Red and flashing
1. Under connection
2. Paring and in OTA
3. Connection failed
Flashing
Red
Off
TX OTA fails.
Flashing
White
Off
Paring is done.
Flashing
White
Off
TX OTA completes.

6
I-5. Applications & Operation
1. When Host has projected on screen, and Guest required sharing the
screen.
Host can grant permission to the Guest.
Host
Guest
Indicator 1
LED

7
Indicator 2
Single click to allow, double
click to deny the request.
Indicator 3
Combination
s
When host grant permission to the guest:
(Share Screen)

8
2. Host grants permission to the Guest in full screen when share screen
mode is on.
When host deny the request:
(Keep full screen)
Host
Guest
Indicator 1
Long press the main button.

9
Indicator 2
Single click the side button.
Indicator 3
Combinations
Guest projects the screen in full screen size:

10
3. Host retrieves share screen request when Guest in full screen mode.
Host
Guest
Indicator 1
Single click the main button.
Indicator 2
Combination
s
Host Guest

11
4. Host retrieves full screen request when Guest in full/share screen mode.
Host
Guest
Indicator 1
Long press the main button.
Indicator 2
Combination
s
Host

12
II.Hardware Installation
Please follow the steps below to install your WP-4500K projection system,

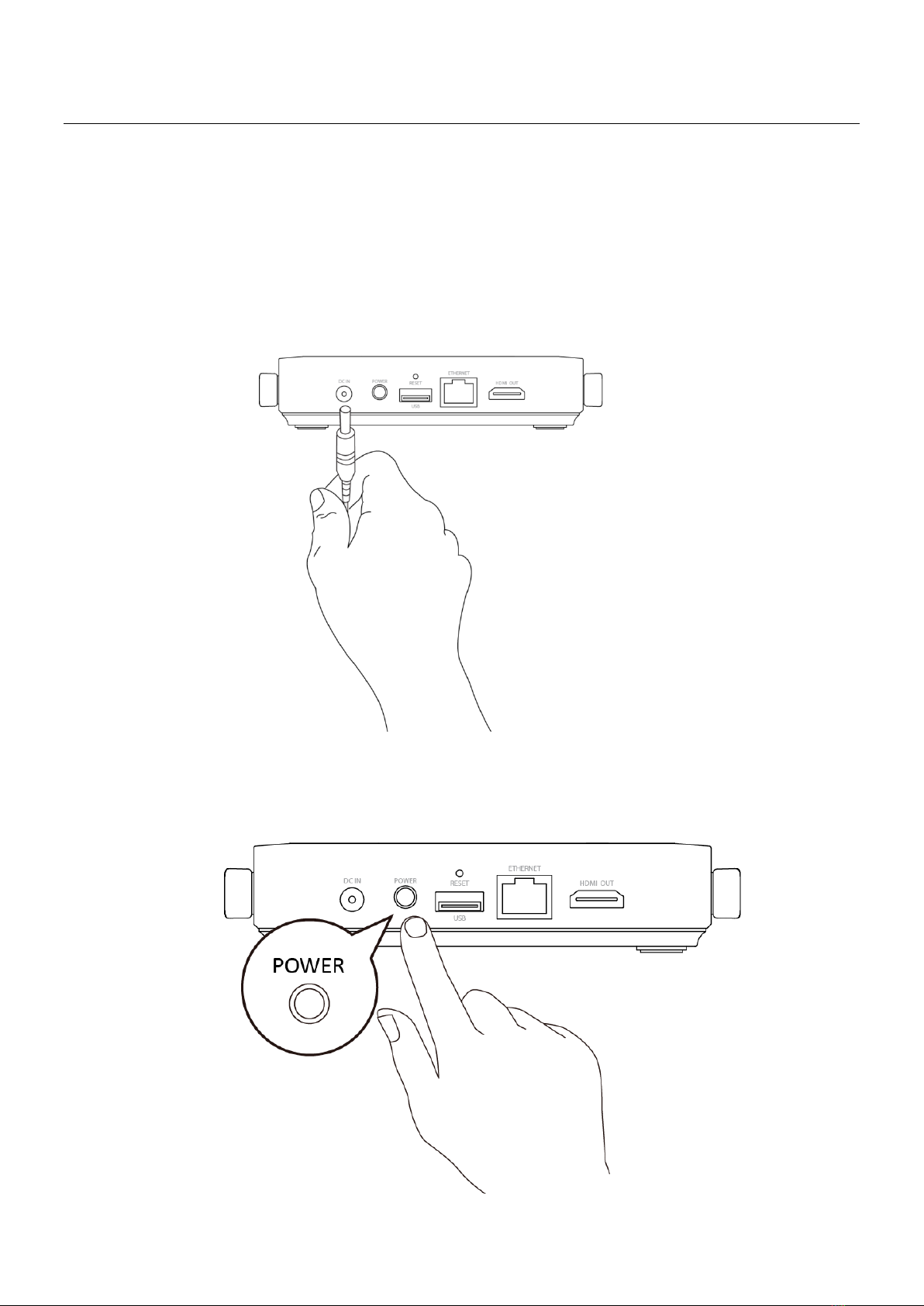

II-1. RX Installation
1. Attach the power supply to the RX.
2. Press the Power Button at the back of the RX

13
3. Plug HDMI cable into both your RX and projector’s, TV's or monitor’s
HDMI ports.
II-2. TX Installation
1. Plug TX USB cable into your laptop USB port.
2. Plug HDMI cable into both your TX and laptop.

14

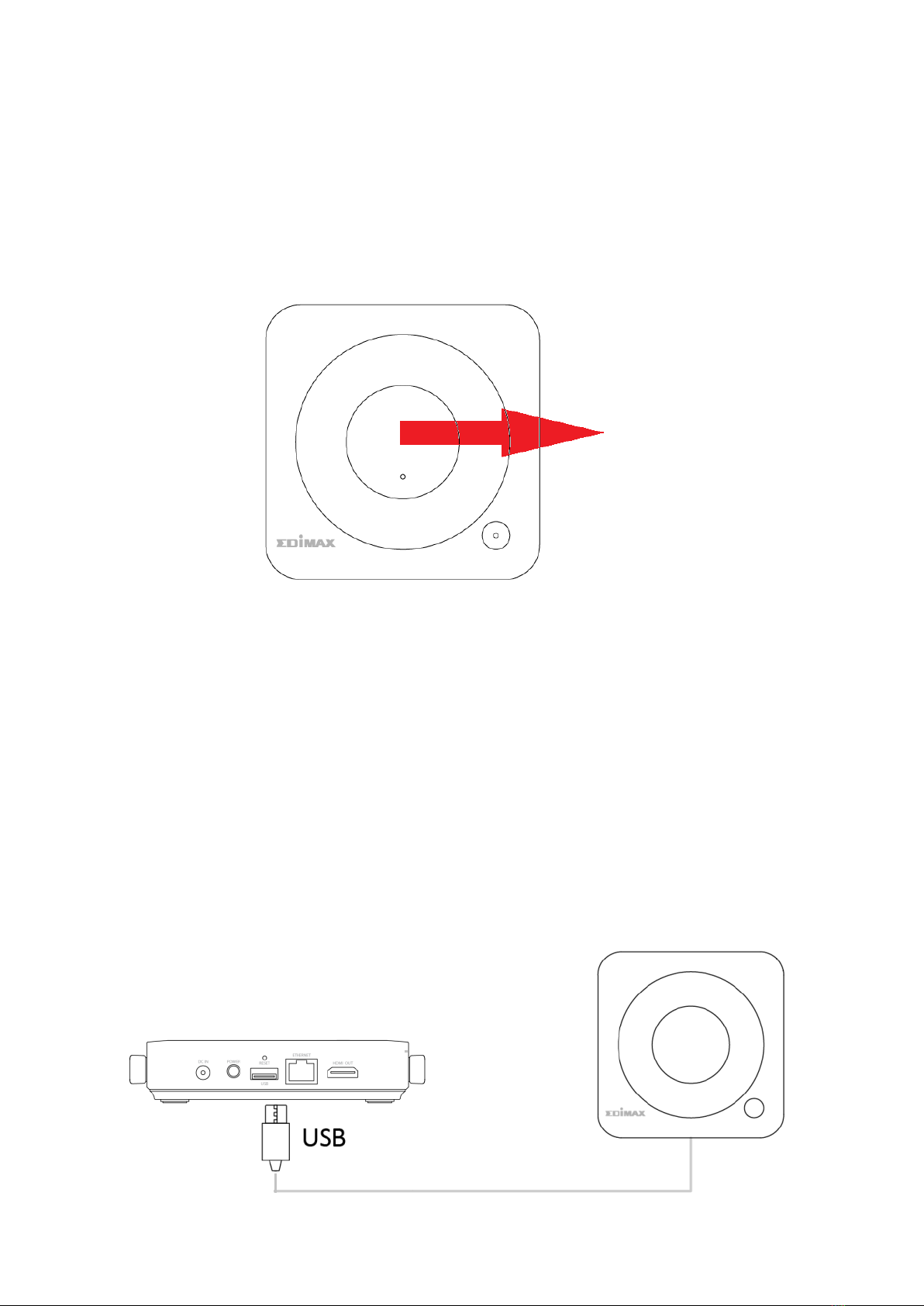

II-3. Share the Screen
1. Press the main button on the TX to share your laptop screen to the, TV or
monitor.
2. Press again the main button to disconnect.
For more details, please refer to the I-5 Applications & Operation.
II-4. Adding/Pairing TX and RX
When you purchase another TX or RX and you try to pair the devices, please
plug the TX USB cable to the RX USB port
NOTE: When the SSID or secure type from RX is changed, TX and RX will be
unpaired.
2
Main button

15

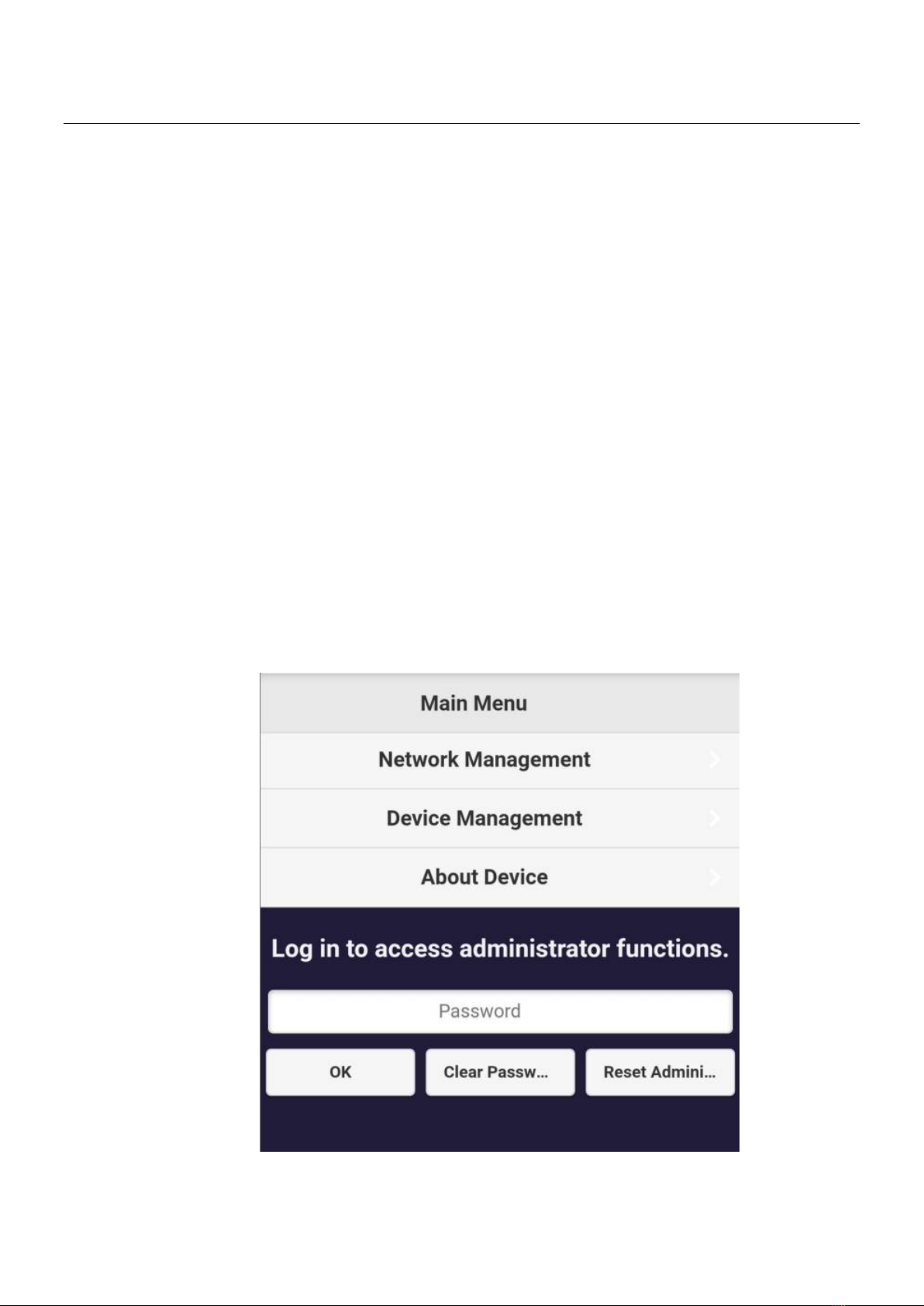

III.WP-4500K Web UI (Base User)
WP-4500K comes with two standard access levels: Administrator and Base
User.
NOTE: Please login as administrator for higher level of access control.
Please follow the steps below to access the WP-4500K Web UI.
1. Connect the SSID “Edimax_WHDMI”from your laptop network Wi-Fi and
find the password via RX landing page.
2. Turn on web browser and enter “192.168.168.1” in the address bar.
This page allows users to edit some basic settings such as Network
Management, Device Management and check the WHDMI status in About
Device.

16

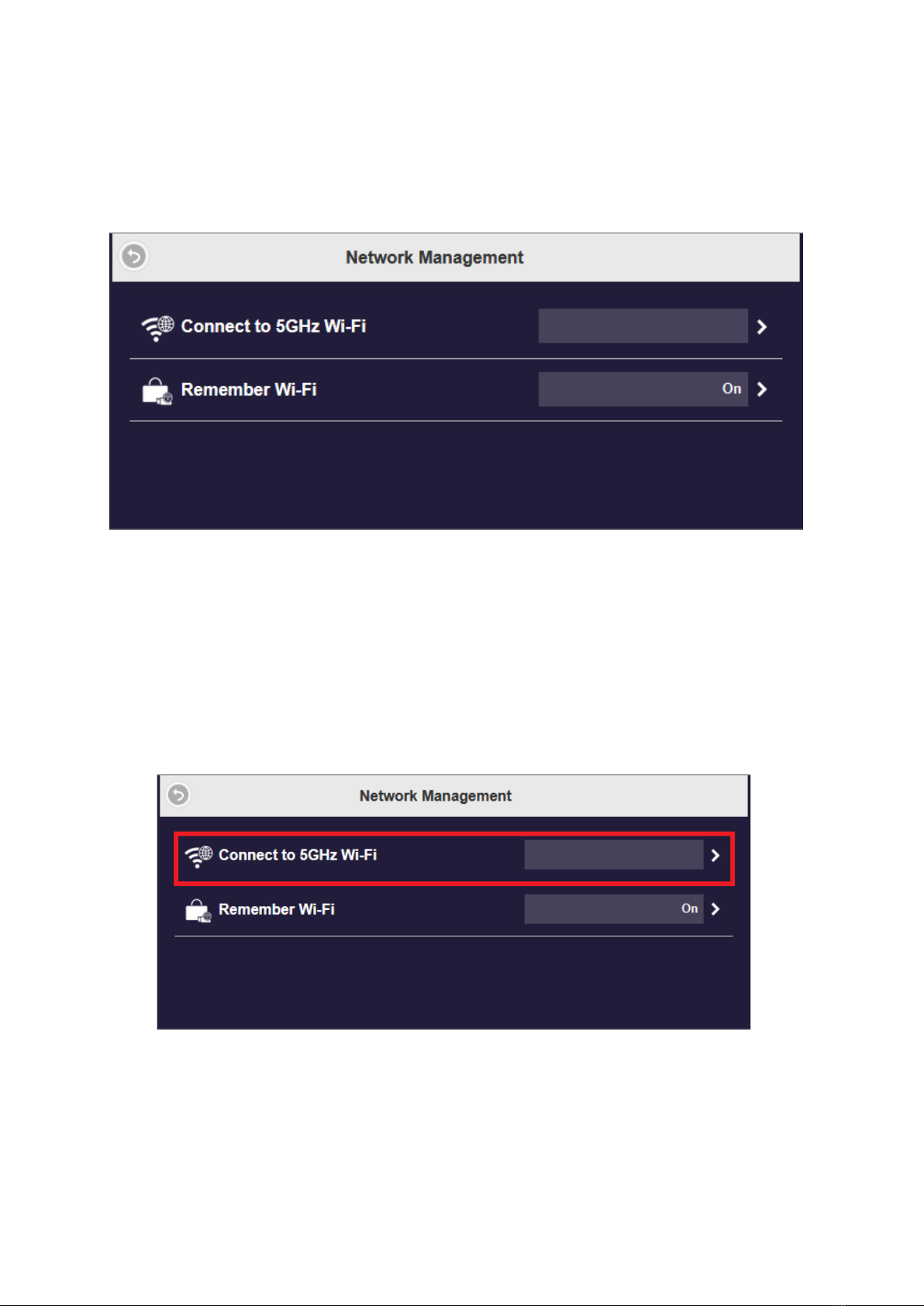

III-1. Network Management
Use the Network Management page to configure Wi-Fi settings for the
WP-4500K and encryption.
III-1-1. Connect to 5GHz Wi-Fi
In this page you can connect WP-4500K to the internet via external Wi-Fi from
the list or manually add network.
Connect WP-4500K to the available SSID from the list and enter the Wi-Fi
password.
