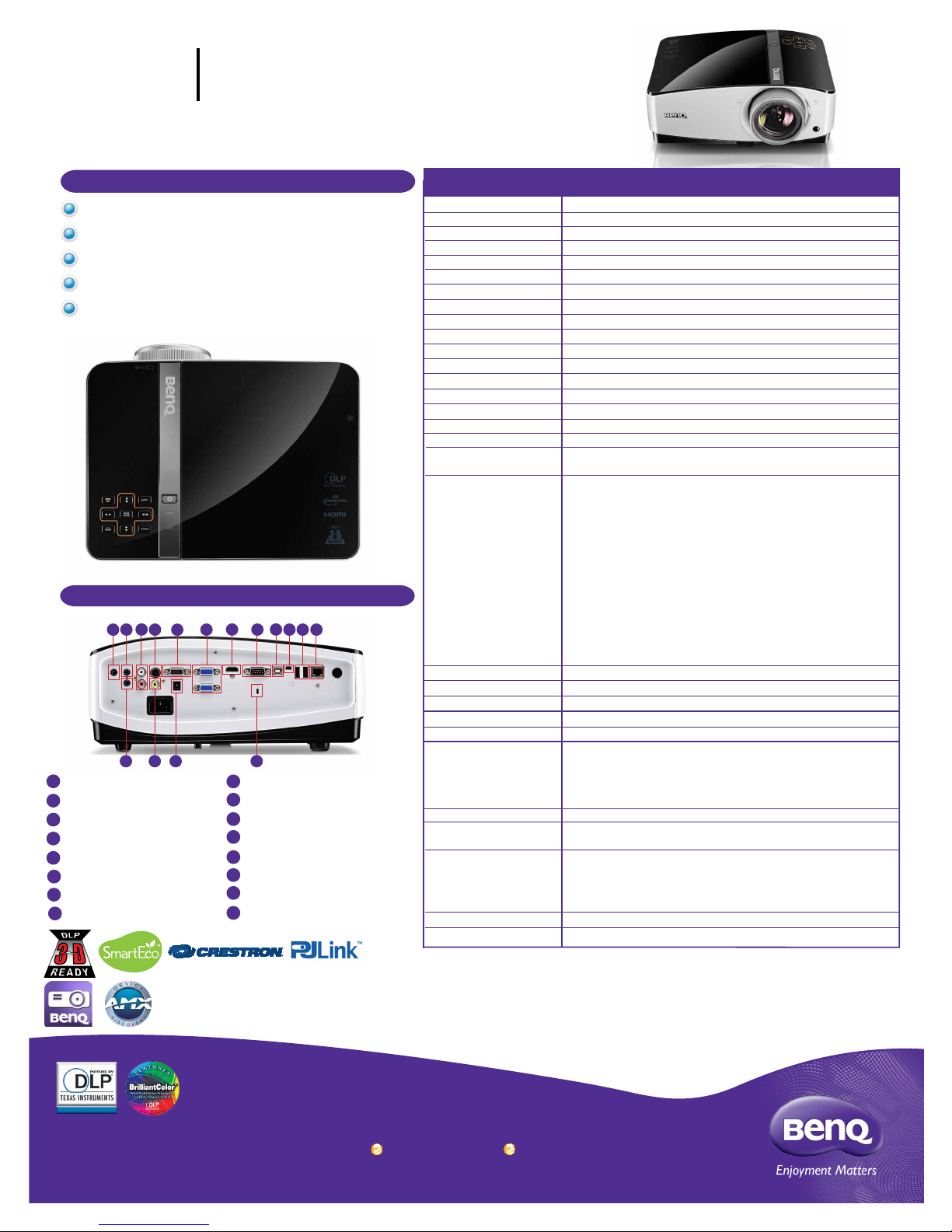

BenQ MX766 User manual

BenQ America Corp.
15375 Barranca Parkway. Suite A-205. Irvine, CA 92618 Tel: [phone] www.BenQ.us
BenQ is a registered trademark of BenQ Corp. DLP®is a registered trademark of Texas Instruments. All rights reserved.
Product names, logos, brands, and other trademarks featured or referred to in this materials are the property of their respective trademark holders.
Specifications subject to change without notice.
1
2
3
4
5
6
7
Audio Out (Mini Jack)
Audio In (Mini Jack)
Audio In L/R (RCA)
S-Video In (Mini DIN 4pin)
Monitor Out (D-sub 15pin)
Computer In 1 & 2 (D-sub 15pin)
HDMI
RS232 (DB-9pin)
USB (Type B)
USB (Type Mini B)
USB (Type A)
LAN (RJ45)
Microphone in (Mini Jack)
Composite Video in (RCA)
12V Trigger
Security Lock
123456789
151413
10 11 12
16
8
9
10
11
13
12
14
15
16
I
Native XGA (1024 x 768) Resolution
4,000 ANSI Lumens, 13,000:1 Contrast Ratio
SmartEco™ Power SavingTechnology
Various 3D Format Support,Wireless Display (Opt)
LAN Display/Control,USB Reader/Display
MX766
DIGITAL
PROJECTOR
Features Specications
Projection System
Native Resolution
Brightness
Contrast Ratio
Display Color
Lens
Aspect Ratio
Throw Ratio
Image Size (Diagonal)
Zoom Ratio
Lamp Type
Lamp Life
Keystone Adjustment
Projection Offset
Resolution Support
Horizontal Frequency
Vertical Scan Rate
Compatibility
Interface
Dimensions (WxHxD)
Weight
Power Supply
Power Consumption
Audible Noise
On-Screen Display
Languages
Picture Modes
Accessories (Standard)
Accessories (Optional)
Limited Warranty
UPC Code
DLP®
XGA(1024x768)
4000AL
13,000:1
1.07 Billion Colors
F=2.42-2.98, f=20.7-31.13mm
Native 4:3 (5 aspect ratio selectable)
1.83-2.81 (53”@2m)
40”-300”
1.5:1
310W
2500/3000/3500 hours
1D, Vertical +/- 40 degrees
130% ±5%
VGA(640 x 480) to UXGA(1600 x 1200)
27K~102KHz
23~120Hz
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility: NTSC, PAL, SECAM
Computer in (D-sub 15pin) x 2 (Share with component)
Monitor out (D-sub 15pin) x 1
HDMI x 1
Composite Video in (RCA) x 1
S-Video in (Mini DIN 4pin) x 1
Audio in (Mini Jack) x 2
Audio L/R in (RCA) x 1
Audio out (Mini Jack) x 1
Microphone in (Mini Jack) x 1
Speaker 20W x 1
LAN (RJ45) x 1 (LAN Control & LAN Display & Audio)
USB (Type A)
x 2 (USB Reader & Wireless Display & Remote Desktop)
USB (Type mini B) x 1 (USB Display & Download)
RS232 (DB-9pin) x 1
IR Receiver x 2 (Front & Top)
12.9” x 5.4” x 10.1”
8.59lbs (3.9 kg)
AC100 to 240 V, 50 to 60 Hz
340W(typical), Standby<0.5W
38/36 dBA (Normal/Economic mode)
Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/
French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/
Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/
Russian/ Simplied Chinese/Spanish/ Swedish/ Turkish/ Thai/
Traditional Chinese (28 Languages)
Dynamic/Presentation/sRGB/Cinema/User 1/User 2
Remote Control w/ Battery, Power Cord, User Manual CD,
Quick Start Guide, Warranty Card, VGA(D-sub 15pin) Cable
Spare Lamp Kit P/N: 5J.J6R05.001
Ceilling Mount P/N: 5J.J4N10.001
3D Glasses P/N: 5J.J7K25.001
Carry bag P/N: 5J.J2V09.011
3-Year Parts & Labor / 1-Year or 2000 hours of lamp life
8400460-2486-4
MX822ST 01-21-13v2-BQus
*Lamp life results will vary depending on environmental conditions and usage. Actual product’s features and specications are
subject to change without notice.
Input and Output Terminals

5.4”
12.9”
10.1”
Dimensions
Unit: inch
Unit: inch
Ceiling mount screw: M4
(Max L = 25 mm; Min L = 20 mm)
Distance Chart
MX766 Digital Projector
Screen Size Distance from screen (inch) Vertical
offset
(inch)
Diagonal W
(inch)
H
(inch)
Min length Average Max length
Inch mm (Max zoom) (Min zoom)
30 760 24 18 .42 .54 .67 2.7
40 1020 32 24 .57 .73 .89 3.6
60 1520 48 36 .87 1.1 1.4 5.4
80 2030 64 48 1.2 1.5 1.8 7.2
100 2540 80 60 1.5 1.9 2.3 9.1
120 3050 96 72 1.8 2.2 2.7 10.8
150 3810 120 90 2.2 2.8 3.4 13.5
200 5080 160 120 2.9 3.8 4.5 17.9
250 6350 200 134 3.7 4.7 5.6 22.5
300 7620 240 180 4.5 5.6 6.9 27.1
Wall Mount Chart
