Edisons mtm MBX300 User manual
3 in1 Back Pack Pole Trimmer and Brush Cutter
i
Table of Contents
Safety.................................................................................................................................................................1
Included Items...................................................................................................................................................3
Safety Wear..................................................................................................................................................3
Tools.............................................................................................................................................................4
Accessories...................................................................................................................................................4
Set-Up ................................................................................................................................................................5
Quick Start Guide............................................................................................................................................11
Maintenance ....................................................................................................................................................12
Spark Plug ..................................................................................................................................................12
Compatible Spark Plugs........................................................................................................................12
Spark Plug Specifications......................................................................................................................12
Air Filter.......................................................................................................................................................12
Specifications..................................................................................................................................................13
General Specs ............................................................................................................................................13
Brush Cutter Specs.....................................................................................................................................13
3 in1 Back Pack Pole Trimmer and Brush Cutter
1
Safety
•It is important you read and understand the instruction manual before first use and keep this manual
in a safe place for future reference.
•Safety precautions must be observed to reduce the risk of personal injury when operating this
machine.
•DANGER! Keep clear of power lines, contact can cause death.
•Like all power equipment this unit must be handled carefully.
•Keep clear of blade area.
•Beware of flying objects ejected from the cutting area.
•Keep children, bystanders and animals away.
•Stope the engine and let it cool before refuelling.
•2-stroke engine: Use fresh petrol mixed with a high-quality 2-stroke oil; 25:1 ratio.
•DANGER! Using an engine indoors CAN KILL YOU IN MINUTES. Engine exhaust contains carbon
monoxide. This is a poison you cannot see or smell.
•NEVER use inside a home or garage, EVEN IF doors and windows are open.
•Only use OUTSIDE and far away from windows, doors, and vent
•Do not operate in a hazardous location. Such areas include where there is a risk of explosion of petrol
fumes, leaking gas or explosive dusts.
•Do not operate in a confined area where exhaust gases, smoke or fumes could reach dangerous
concentrations.
•This machine is not weatherproof and should not be exposed to direct sunlight, high ambient temperatures
or damp, wet or high humidity conditions.
•Do not expose yourself or others to danger.
•Do not permit others to use this machine unless they have read this manual and are trained in its operation.
•Do not operate if the equipment is damaged or in an excessively worn state.
•To reduce fire hazards keep the engine and silencer free of debris, leaves or excessive lubricant.
•Do not use any attachments or accessories with the equipment other than the ones recommended by the
supplier.
•Serious injury to the operator or bystanders can result as well as cause damage to the machine.
•Always use proper handles and / or shoulder strap when using the equipment.
•Do not use the unit if it is damaged or poorly adjusted.
•Never remove the machine’s guards.
3 in1 Back Pack Pole Trimmer and Brush Cutter
2
•Serious injury to the operator or bystanders could result as well as damage to the machine.
•Never leave the machine running and unattended.
•Do not use this unit for any job other than those for which it is intended as described in this manual.
•During or after operation of the engine, never touch hot parts such as the muffler, the high voltage wire or
the spark plug.
•Do not operate the machine in the rain or under wet conditions.
•Always ensure all handles and guards are fitted when using the machine.
•Always keep the machine away from naked flame or sparks.
•Always stop the engine before cleaning/clearing a blockage or checking, maintenance or working on the
machine.
•Always use a scissor lift, never work on a ladder or in a tree, never work on an insecure support and never
operate your unit with one hand. Always be sure of a safe and secure operating position especially when
working at heights.
•Dress properly. Do not wear loose clothing or jewellery which can be caught in moving parts. Use of sturdy
gloves, non-skid footwear, and safety glasses is recommended.
•Always wear ear protection. Loud noises for an extended period of time may damage your hearing (Noise:
98dB).
•Total face and head protection must be worn to reduce injury from falling branches.
•Wear no-slip heavy duty work gloves to improve your grip on the brush cutter handle. Gloves also reduce the
transmission of machine vibration to your hands.
•The dust, vapour and smoke produced during operation may be dangerous to health. If the work area is very
dusty or smoky, wear a respirator.
•The engine should be turned off when the machine is moved between areas and when transporting or
storing the machine. Always turn off the engine. Always fit the blade covers before carrying your tool. When
transporting in a vehicle: properly secure your machine to prevent turnover, fuel spillage and damage.
•Petrol is an extremely flammable fuel. Keep clear of naked flames.
•Do not spill any fuel. Do not smoke near fuel or the machine. Always shut off the engine before refuelling. Do
not fuel a hot engine – fuel may spill and cause a fire. Open the fuel cap carefully to allow any pressure
build-up in the tank to release slowly and avoid fuel spillage. Fuel your machine only in well ventilated areas.
If you spill fuel, wipe the machine immediately – if fuel gets on your clothing, change immediately. To reduce
the risk of serious or fatal burn injuries, check for fuel leakage. If fuel leakage is found, do not start or run the
engine until leak is fixed.
•Make sure you always have good balance and secure footing. Always be aware of your surroundings and
stay alert for possible hazards that you may not hear due to the noise of the machine. Never allow children
to access the machine. Avoid operating while people, especially children are nearby. To reduce the risk of
injury, do not allow any other persons within a radius of 25 meters of your own position. To reduce the risk of
damage to property, also maintain this distance from other objects (vehicles, windows).
•Always clean dust and dirt off the machine – do not use any grease solvents. Always keep the machine
clean, especially, the fuel tank, its surroundings, and the air cleaner. After the engine has stopped, the
muffler will still be hot. Never place the machine in any places where there are flammable materials such as
dry grass, combustible gases or combustible liquids etc. Replace cutting tool covers.
•Service the machine regularly. Do not attempt any maintenance or repair work not described in the
instruction manual. Have all other work performed by a servicing dealer. We recommend that you have
servicing and repair work carried out exclusively by an authorised service person. Before proceeding to
adjust or repair the machine, be sure to stop the engine and detach the spark plug lead. Never attempt to
3 in1 Back Pack Pole Trimmer and Brush Cutter
3
make engine adjustments while the unit is strapped to the operator. Always make engine adjustments with
the unit resting on a flat, clear surface.
Included Items

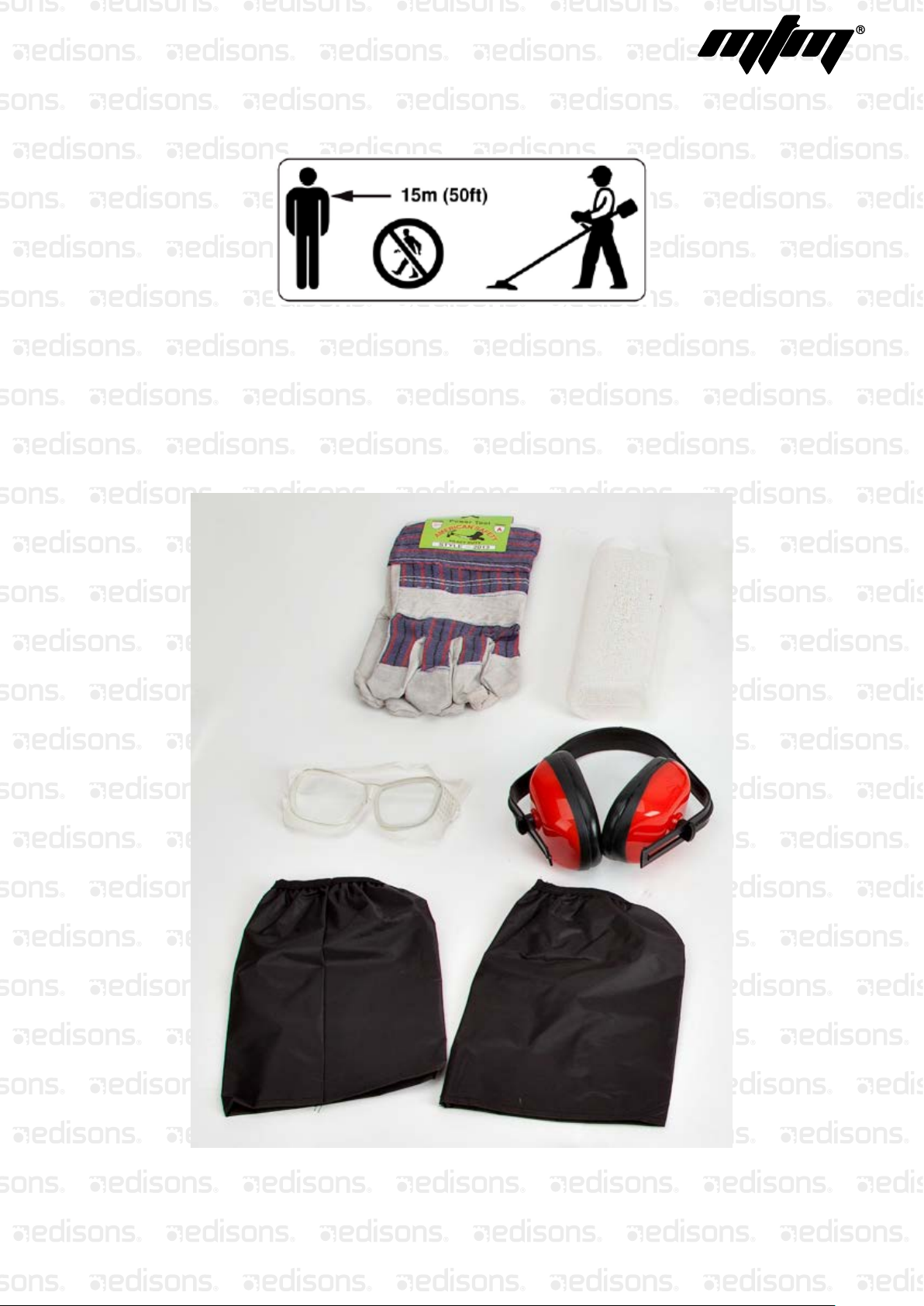

Safety Wear
1x Pair of gloves
1x Pair of ankle sleeves
1x Pair of googles
1x Pair of ear muffs
3 in1 Back Pack Pole Trimmer and Brush Cutter
4
Tools
1x Multi-tool
1x Wrench (8mm & 10mm)
3x Allen keys
2x Screws (M6 x 16mm)
4x Screws (M6 x 20mm)
4x Screws (M6 x 35mm)
4x Nuts
Accessories
1x Bump head whipper snipper
1x Fixed line whipper snipper
1x Tri wing blade
3 in1 Back Pack Pole Trimmer and Brush Cutter
5
Set-Up

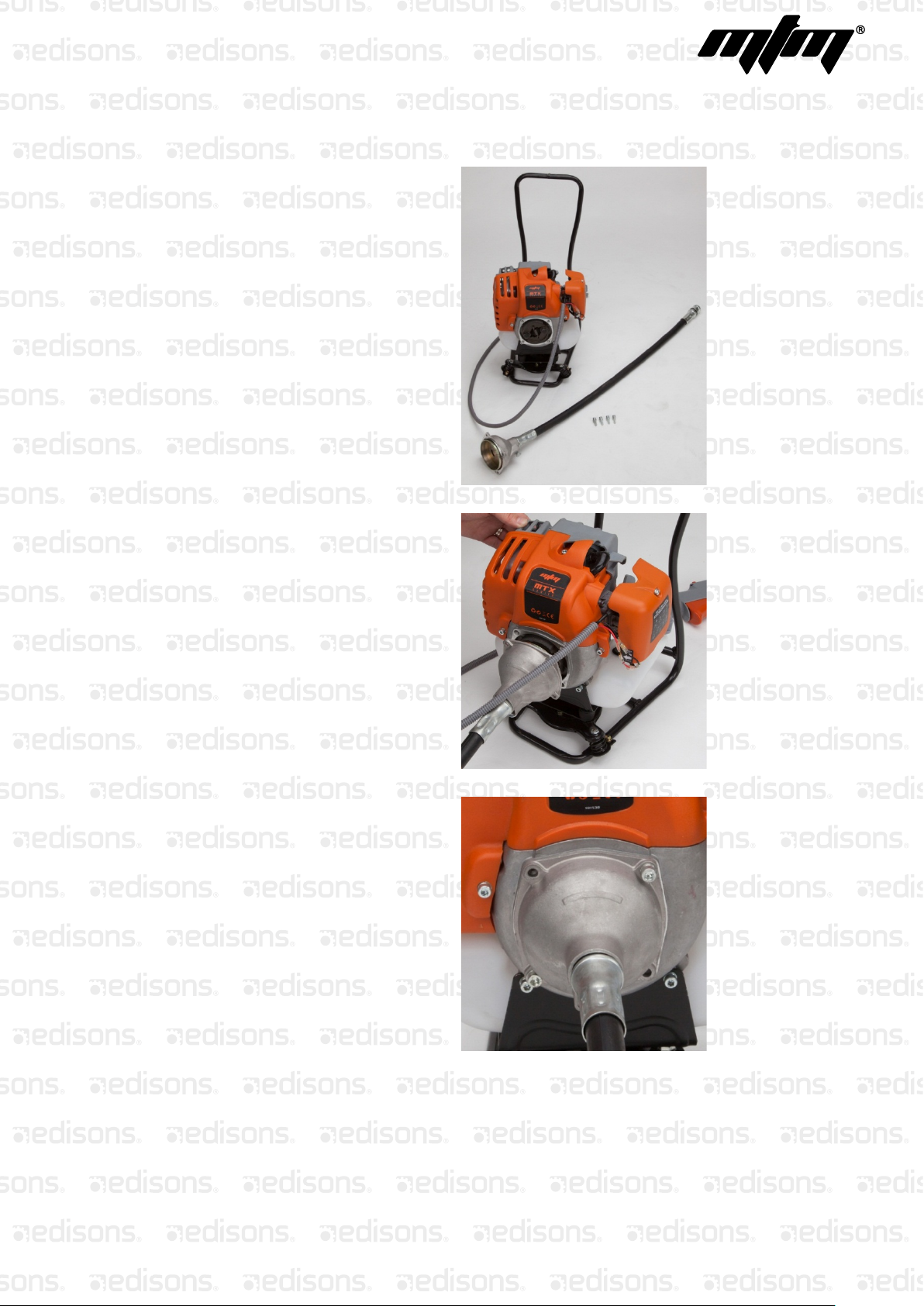

Step 1: Attaching the flexi shaft
1.1 Locate the motor base, flexi shaft and 4x M6 x
20mm screws.
1.2 Align the coupler of the flexi shaft to the motor.
1.3 Screw alternate diagonals, then the remaining
two.
3 in1 Back Pack Pole Trimmer and Brush Cutter
6

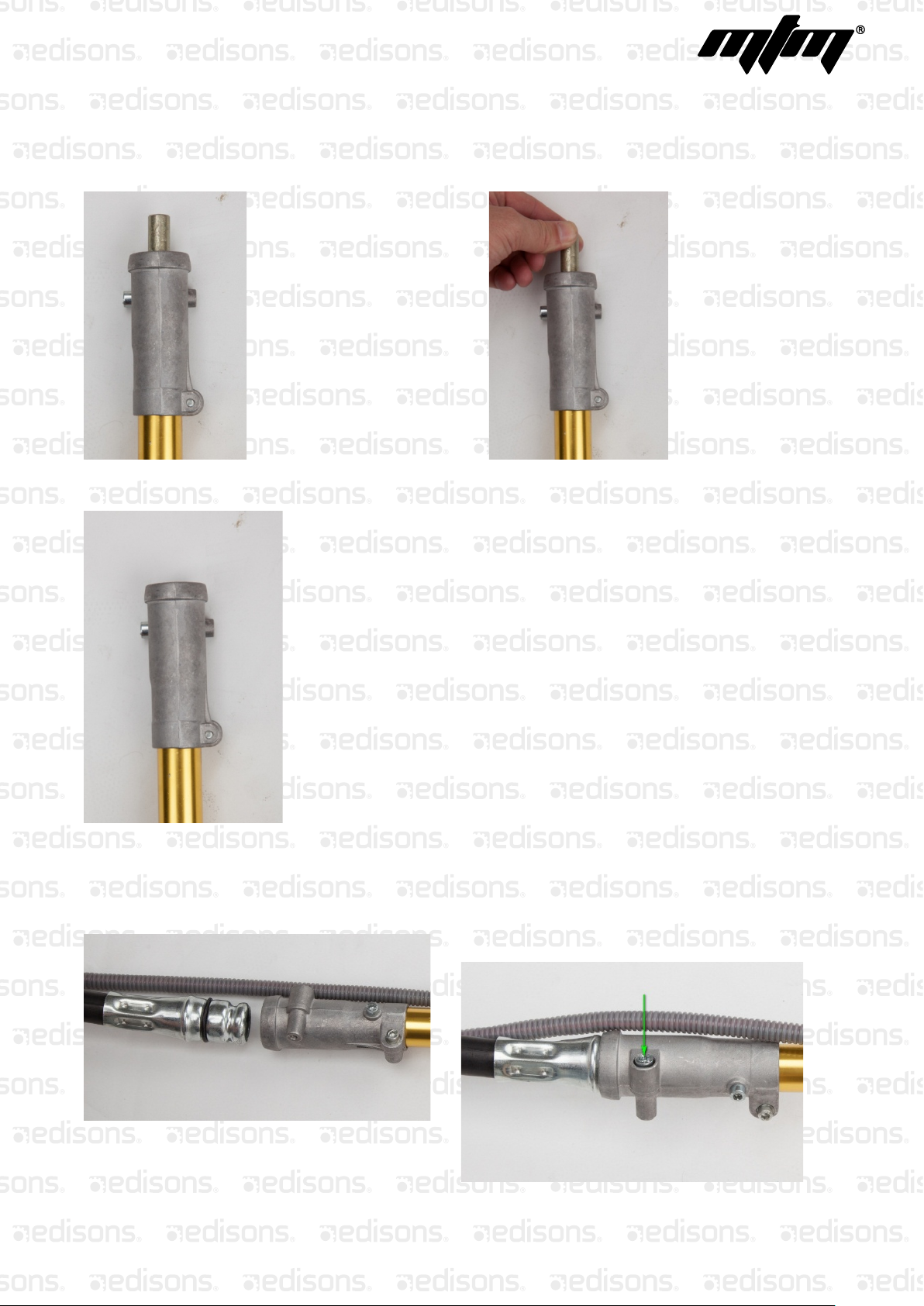

Step 2: Aligning the internal square flexi shaft
2.1 If the internal square shaft is protruding at the
end, it has to be aligned.
2.2 Remove flexi shaft by releasing the locking pin.
Pull internal square flexi shaft roughly an inch
out.
2.3 Align square shaft to the base, ensuring that the
locking pin is secured correctly.
2.4 The internal square shaft should no longer
protrude.
Step 3: Attaching the throttle handle
3.1 Locate the solid extension shaft and remove the 3x screws (keeping them in a known place to be
screwed back in later on).
3 in1 Back Pack Pole Trimmer and Brush Cutter
7
3.2 Remove coupler.
3.3 Slide throttle handle onto solid extension shaft.
3.4 Place the coupler back onto the solid shaft, ensuring that the holes align. Screw the 2 screws on the
right back in as indicated below. Leave the longest screw out until step 5.
3 in1 Back Pack Pole Trimmer and Brush Cutter
8
Step 4: Aligning the internal solid shaft
4.1 If the internal shaft is protruding it has to be
aligned.
4.2 Slightly turn the internal shaft while also trying
to push it inwards.
4.3 Ensure the internal shaft it pushed all the way in.
Step 5: Attaching the flexi shaft to the solid shaft
5.1 Align the 2 ends together.
5.2 Ensure that the rubber ring is covered and
screw in the remaining screw from step 3.
3 in1 Back Pack Pole Trimmer and Brush Cutter
9
Step 6: Attaching the handle
6.1 Locate the 2 piece handle, 4x nuts and 4x M6 x
35mm screws. Move the rubber piece up or
down to desired position.
6.2 Place the nuts into the lower piece of the
handle.
6.3 Screw the 2 pieces together.
Step 7: Attaching the guard
7.1 Locate the metal piece and guard.
7.2 Locate the 2x self-tapping screws and screw
down the metal piece.
7.3 Locate the 2x M6 x 16mm screws and attach the guard to the shaft.
3 in1 Back Pack Pole Trimmer and Brush Cutter
10

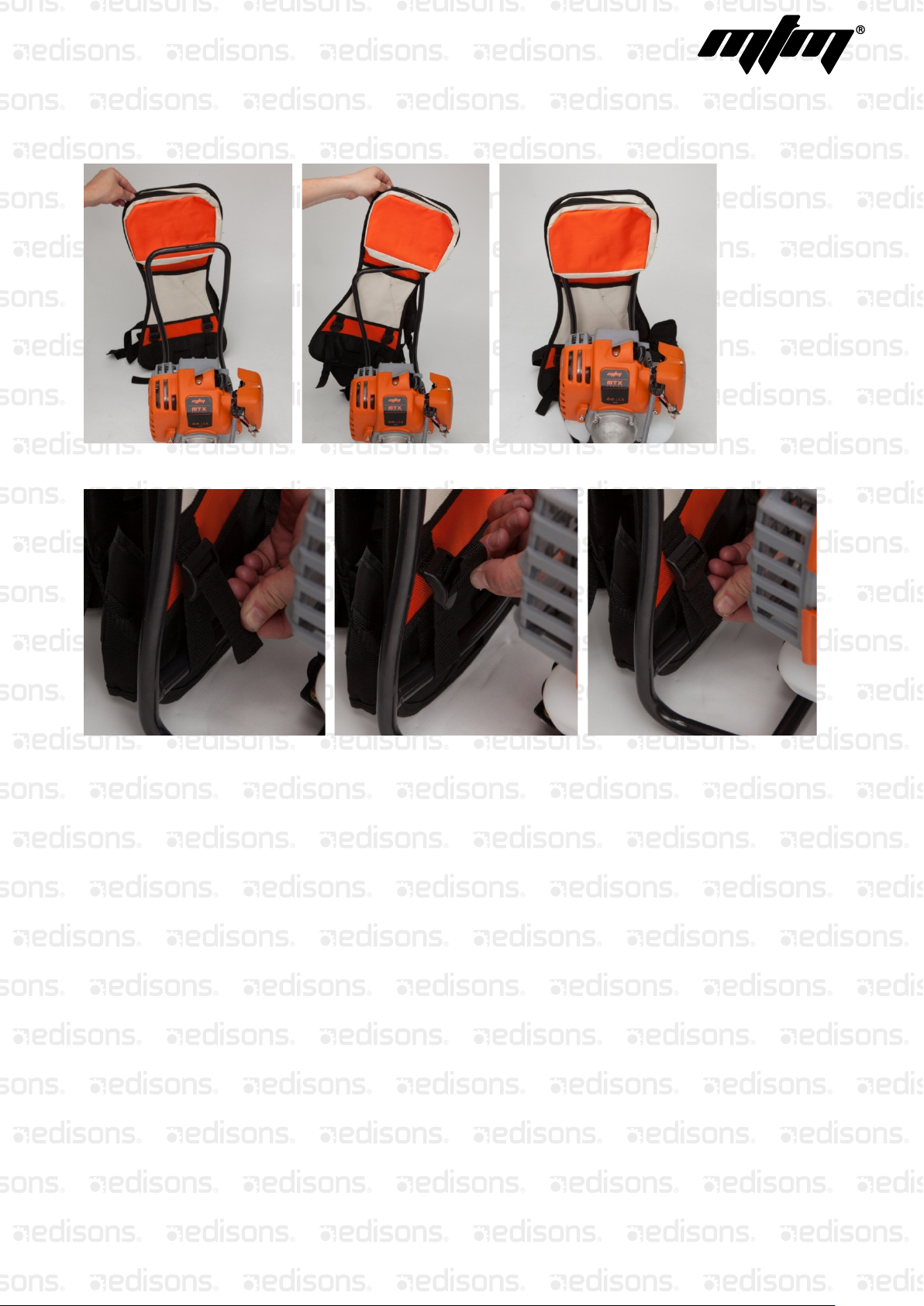

Step 8: Attaching padded shoulder straps
8.1 Locate the padded shoulder straps and insert over frame.
8.2 Tie down the straps.
3 in1 Back Pack Pole Trimmer and Brush Cutter
11

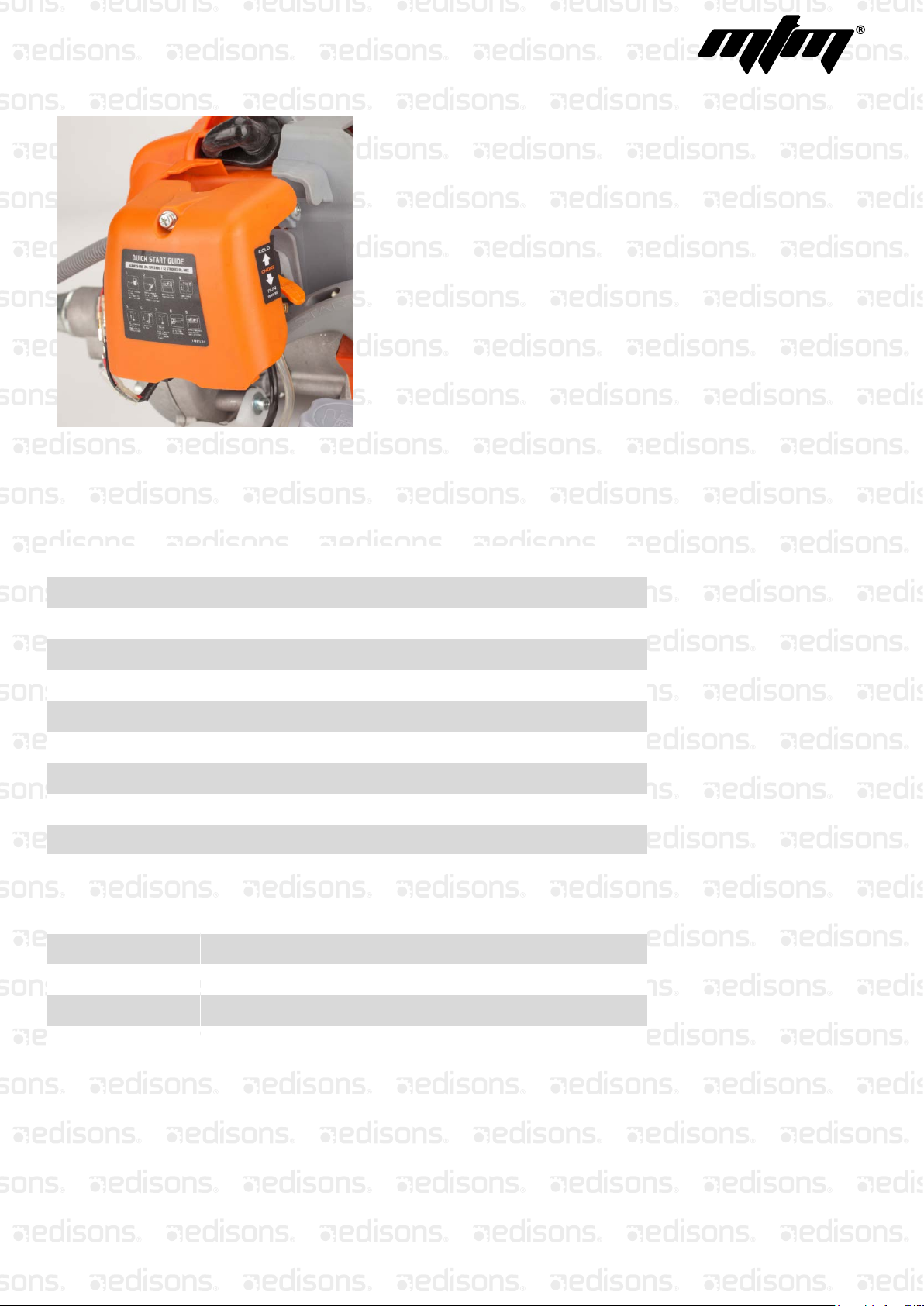

Quick Start Guide
NOTE: When starting engine for the first time, please refer to the full manual for further details if the steps below
does not work. Always use 25:1 petrol / (2-stroke) oil mix.
Ensure that enough petrol /
(2-stroke) oil mixture is in the
tank.
Press the primer bulb 2 – 3
times (fuel should flow
through the clear tube).
Press the ON/OFF switch
to ‘ON’.
Turn the choke to “COLD”.
Pull the starter cord 3 – 4
times (engine should start).
Turn the choke to “RUN”.
If the engine stalls, pull the
starter cord again until engine
starts.
Lift throttle up to turn
blades/drill.
3 in1 Back Pack Pole Trimmer and Brush Cutter
12
Maintenance

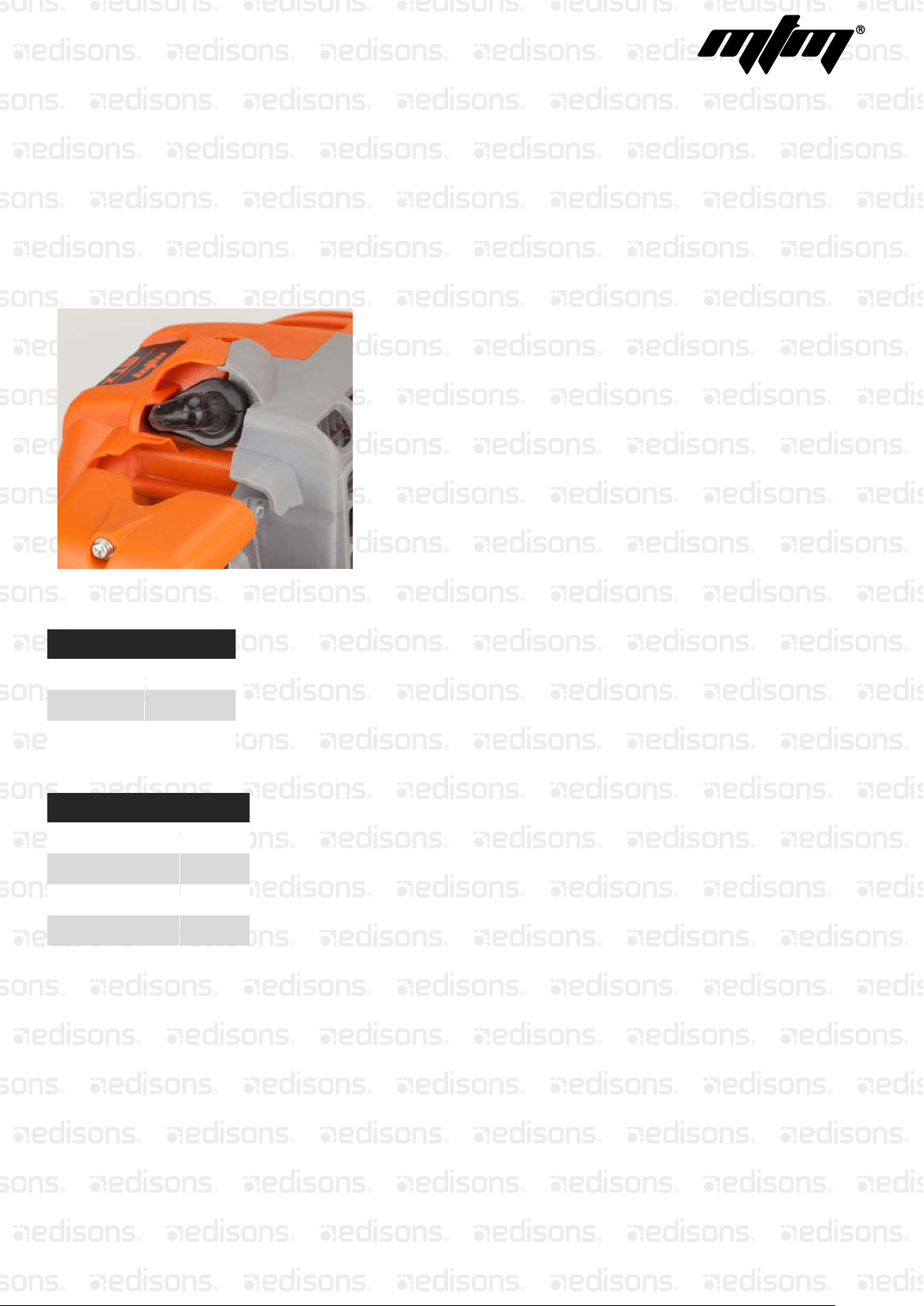

Spark Plug
Clean or replace the spark plug as needed to ensure proper operation.
The spark plug becomes very hot during operation and remains hot for a while after stopping the engine. Do not
touch the spark plug while it is hot.
1. Remove black rubber boot
2. Remove spark plug with a 19mm socket (or provided multi tool)
3. Remove the spark plug and inspect it.
4. Clean the spark plug electrodes with a wire brush.
5. Tighten the spark plug securely.
Note:
•
If spark plug needs replacing, please do so.
•
Set the electrode gap 0.6 – 0.7 mm
Compatible Spark Plugs
Brand Model
Torch L7T
NGK BPMR7A
Champion CJ8Y
Spark Plug Specifications
Point Size
Thread diameter 14mm
Thread reach 9.5mm
Gap 0.7mm
Hex/Socket 19mm
Air Filter
NOTE: NEVER run the engine without the air cleaner. Severe engine damage will occur.
Under normal operating conditions, the elements should be cleaned once every week. Under severe, dry and
dusty conditions, the elements should be maintained daily. Replace an element when it is saturated with dirt that
cannot be removed.
3 in1 Back Pack Pole Trimmer and Brush Cutter
13
1. Remove screw and orange air filter cover (image to the left)
2. Remove air filter and grill
3. Place nylon gloves on your hands and clean the filter it kerosene
4. Squeeze the remaining kerosene out and sit to dry
5. Pour roughly 5ml of oil (the 2-stoke oil that you use with your fuel
mix) and squeeze the oil through. TIP: Place the filter into a bag
and pour the oil in. Squeeze the bag, ensuring the filter soaks
the oil
6. Place the filter back into the engine and screw orange cover
back on.
Note:
•
If filter is deteriorating, please replace!
•
Filter size is 85mm x 70mm x 13mm
Specifications
General Specs
Brand MTM
Model MBX300
Engine Type Petrol EURO 2 - Two Stroke Commercial
Displacement / Maximum Power 62CC / 3.4Hp (4.1 peak)
Max. Engine Speed 10,000 RPM w/Centrifugal clutch
Fuel Tank Capacity 1 Litre
Fuel Mix 25:1 (25 parts fuel to 1 part two stroke oil)
Fuel Type Regular Unleaded 95 +RON
Gearcase Ratio 1:06:1
Dual Weighted Crank / Double Ringed Piston
Brush Cutter Specs
Gearbox Type XB - Ball Bearing Commercial - Greasable
Drive Direction Anti-clockwise
Arbor Size 25.4mm (1 Inch)
Included Blades Bump Feed Head, 3T Slasher, Metal 4 Line
Grease type GP General multi-purpose
Note: Minimal Assembly required
Some experts believe that the incorrect or prolonged use of almost any product may
cause serious injury or death. To help reduce your risk of serious injury or death, refer
to the information below. For more information, see www.datastreamserver.com/safety
Consult all documentation, packaging and product
labelling before use. Note that some products feature
documentation available online. It is recommended to
print and retain the documentation.
Before each use, check the product for loose/broken/
damaged/missing parts, wear or leaks (if applicable).
Never use a product with
loose/broken/damaged/missing parts, wear or leaks.
Products must be inspected and serviced (if
applicable) by a qualified technician every 6 months.
This is based on average residential use by persons of
average size and strength, and on a property of
average metropolitan size. Use beyond these
recommendations may require more frequent
inspections/servicing.
Ensure that all users of the product have completed a
suitable industry recognised training course before
being allowed access to the product.
If this product has been purchased in error when
considering the information presented here, contact
the retailer directly for details of their returns policy, if
required.
The product has been supplied by a general
merchandise retailer that may not be familiar with your
specific application or description of application. Be
sure to attain third-party approval from a qualified
specialist for your application before use, regardless of
any assurances from the retailer or its representatives.
This product is not intended for use where fail-safe
operation is required. As with any product (for
example,automobile, computer, toaster), there is the
possibility of technical issues that may require the
repair or replacement of parts, or the product itself. If
the possibility of such failure and the associated time it
may take to rectify could in any way inconvenience the
user, business or employee, or financially affect the
user, business or employee, then the product is not
suitable for your requirements. This product is not
intended for use where incorrect operation or a failure
of any kind, including but not limited to, a condition
requiring product return, replacement, parts
replacement or service by a technician may cause
financial loss, loss of employee time or an
inconvenience requiring compensation.
This manual suits for next models
1
Table of contents
