Ego Power+ LT1000 User manual

OPERATOR’S MANUAL
56V LITHIUM-ION
PORTABLE AREA LIGHT
MODEL NUMBER LT1000/ LT1000-FC
Español p. 43
Français p. 21
WARNING: To reduce the risk of injury, the user must read and understand the
Operator’s Manual before using this product. Save these instructions for future reference.
LIGHT

56V LITHIUM-ION PORTABLE AREA LIGHT — LT1000/LT1000-FC2
TABLE OF CONTENTS
FCC Statement...........................................3
Safety Guidelines.........................................4
Important Safety Instructions .............................5-7
Introduction .............................................7
Specications ...........................................8
Packing list .............................................8
Description ..........................................9-11
Operation ...........................................12-15
Maintenance ........................................16-17
Troubleshooting .........................................18
Warranty ...........................................19-20

56V LITHIUM-ION PORTABLE AREA LIGHT — LT1000/LT1000-FC 3
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that
may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTICE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures: Reorient or relocate the receiving antenna. Increase
the separation between the equipment and receiver. Connect the equipment into an
outlet on a circuit different from that to which the receiver is connected. Consult the
dealer or an experienced radio/TV technician for help.

56V LITHIUM-ION PORTABLE AREA LIGHT — LT1000/LT1000-FC4
READ ALL INSTRUCTIONS!
READ & UNDERSTAND
OPERATOR'S MANUAL
SAFETY GUIDELINES
SAFETY SYMBOLS
The purpose of safety symbols is to attract your attention to possible dangers. The
safety symbols and the explanations with them deserve your careful attention and
understanding. The symbol warnings do not, by themselves, eliminate any danger. The
instructions and warnings they give are no substitutes for proper accident prevention
measures.
WARNING: Be sure to read and understand all safety instructions in this
Operator’s Manual, including all safety alert symbols such as “DANGER,” “WARNING,”
and “CAUTION” before using this tool. Failure to following all instructions listed below
may result in electric shock, fire, and/or serious personal injury.
DAMAGE PREVENTION AND INFORMATION MESSAGES
These inform the user of important information and/or instructions that could lead
to equipment or other property damage if they are not followed. Each message is
preceded by the word “NOTICE”, as in the example below:
NOTICE: Equipment and/or property damage may result if these instructions are not
followed.

56V LITHIUM-ION PORTABLE AREA LIGHT — LT1000/LT1000-FC 5
IMPORTANT SAFETY INSTRUCTIONS
This page depicts and describes safety symbols that may appear on this product. Read,
understand, and follow all instructions on the machine before attempting to assemble
and operate.
Safety Alert Precautions that involve your safety.
Read &
Understand
Operator’s Manual
To reduce the risk of injury, user must read and
understand the operator’s manual before using
this product.
Light Beam Do not stare into the light beam.
Hot Surface Risk of burns. Do not touch hot surface.
Recycle Symbols
This product uses lithium-ion (Li-ion) batteries.
Local, state, or federal laws may prohibit disposal
of batteries in ordinary trash. Consult your
local waste authority for information regarding
available recycling and/or disposal options.
Direct Current Type or a characteristic of current
IPX4 Ingress Protection
Degree Protection from splashing water
V Volt Voltage
min Minutes Time
A Amperes Current
mm Millimeters Length of size
lm Lumens Luminous flux
h Hours Time

56V LITHIUM-ION PORTABLE AREA LIGHT — LT1000/LT1000-FC6
SAFETY INSTRUCTIONS FOR CORDLESS AREA LIGHT
WARNING! When using lights or lanterns, additional precautions should always
be followed, including the following:
◾To reduce the risk of injury, close supervision is necessary when a product
is used near children.
◾Do not contact hot parts.
◾Only use attachments recommended or sold by the manufacturer.
◾Do not use in the rain.
◾To reduce the risk of electrical shock, do not put the product in water or
other liquid. Do not place or store product where it can fall or be pulled into
a tub or sink.
◾To reduce the risk of injury, do not stare at operating lamp. Serious eye injury
could occur.
◾The lens gets very hot during use. To reduce the risk of burns, do not touch hot
lens.
◾To reduce the risk of re, keep away from combustible materials while in
operation.
◾Use only with battery packs and chargers listed below:
BATTERY PACK CHARGER
BA1400, BA1400-FC, BA2800, BA2800-FC,
BA4200, BA4200-FC, BA1400T, BA1400T-FC,
BA2240T, BA2240T-FC, BA2242T, BA2242T-FC,
BA2800T, BA2800T-FC, BA4200T, BA4200T-FC,
BA5600T, BA5600T-FC, BA6720T, BA6720T-FC
CH2100, CH2100-FC,
CH3200, CH3200-FC,
CH5500, CH5500-FC,
CH2800D, CH2800D-FC,
CH7000, CH7000-FC
◾Refer to the battery pack instruction manual for precautions about battery
packs.
◾Do not use a battery pack or appliance that is damaged or modied.
Damaged or modified batteries may exhibit unpredictable behavior resulting in
fire, explosion or risk of injury.
◾Do not expose a battery pack or appliance to re or excessive temperature.
Exposure to fire or temperature above 265°F (130°C) may cause explosion.

56V LITHIUM-ION PORTABLE AREA LIGHT — LT1000/LT1000-FC 7
◾Follow all charging instructions and do not charge the battery pack or
appliance outside of the temperature range specied in the instructions.
Charging improperly or at temperatures outside of the specified range may
damage the battery and increase the risk of fire.
◾Have servicing performed by a qualied repair person using only identical
replacement parts. This will ensure that the safety of the product is maintained.
◾Do not modify or attempt to repair the appliance or the battery pack (as
applicable) except as indicated in the instructions for use and care.
◾Save these instructions. Refer to them frequently and use them to instruct
others who may use this tool. If you loan this tool to someone else, also loan
these instructions to them to prevent misuse of the product and possible injury.
SAVE THESE INSTRUCTIONS!
INTRODUCTION
Congratulations on your selection of the new EGO 56V LITHIUM-ION AREA LIGHT.
It has been designed, engineered, and manufactured to give you the best possible
dependability and performance.
Should you experience any problem you cannot easily remedy, please contact EGO
customer service center 1-855-EGO-5656.
This manual contains important information on to the safe assembly, operation and
maintenance of your product. Read it carefully before using the product. Keep this
manual handy so you can refer to it at any time.
SERIAL NUMBER _____________________ DATE OF PURCHASE _________________
YOU SHOULD RECORD BOTH SERIAL NUMBER AND DATE OF PURCHASE AND KEEP IN A SAFE
PLACE FOR FUTURE REFERENCE.

56V LITHIUM-ION PORTABLE AREA LIGHT — LT1000/LT1000-FC8
SPECIFICATIONS
Voltage 56 V
Brightness Level 1 2 3 4 5 “Boost”
Luminous Flux/
Brightness (4 panels
combined)
600lm 1,600lm 3,200lm 4,800lm 6,400lm 10,000lm
Approximate run time
(4 panels with EGO
56V 5.0 Ah Battery)
36h 16h 8h 5h 4h 3h*
Recommended
Operating
Temperature
5°F – 104°F (-15°C – 40°C)
Recommended
Storage Temperature -4°F – 158°F (-20°C – 70°C)
Weight
(without battery pack) 9.48 lbs. (4.3 kg)
*The light will illuminate at 10,000lm in ambient temperature 77° F (25° C) for about
1 hour and will run for 2 more hours in brightness level 5. Please note that the 1 hour
run time is entirely dependent on ambient temperature. In a cooler environment the
“Boost” mode (10,000lm) will have longer run time, but in a very hot environment the
“Boost” mode (10,000lm) will have a shorter run time.
PACKING LIST
PART NAME QUANTITY
Portable Area Light 1
Operator’s manual 1

56V LITHIUM-ION PORTABLE AREA LIGHT — LT1000/LT1000-FC 9
DESCRIPTION
KNOW YOUR AREA LIGHT (Fig. 1)
The safe use of this product requires an understanding of the information printed on
the tool and in this instruction manual, as well as knowledge of the project you are
attempting. Before use of this product, familiarize yourself with all operating features and
safety rules.
Top Handle
Side Panels
Tripod
Mounting Holes
Hooks
Base
Lower Panel
Lens (Transpartent
Cover) on each
panel
Lock-Knob
Brightness Adjustment Button
USB Port
Panel Selection Button
Main Handle
Battery-Release Button
Latch
Battery Ejection
Mechanism
Power Button
Upper Panel
1

56V LITHIUM-ION PORTABLE AREA LIGHT — LT1000/LT1000-FC10
TOP HANDLE
Allows the user to carry the light when it is unfolded.
SIDE PANEL
Both side panels can pivot outward, directing light within a range of 240° each in the
horizontal plane.
UPPER PANEL
Upper panel can pivot upward, directing light within a range of 210° in the vertical
plane.
LOWER PANEL
Lower panel is fixed and illuminates the area in front of the light.
BASE
Provides support for the light.
LOCK-KNOB
Locks upper panel at a desired angle.
MAIN HANDLE
Allows the user to carry the light when it is folded.
BATTERY-RELEASE BUTTON
Releases battery pack from the light.
LATCH
Secures a battery pack to the light.
BATTERY EJECTION MECHANISM
Aids in battery removal.

56V LITHIUM-ION PORTABLE AREA LIGHT — LT1000/LT1000-FC 11
USB PORT
Provides charging power of 5 Volts DC at up a combined draw of 1.5 Amperes for your
USB devices.
BRIGHTNESS ADJUSTMENT BUTTON
Allows user to select suitable brightness.
PANEL SELECTION BUTTON
Allows user to turn some of the panels off.
TRIPOD MOUNTING HOLES
The 5/8”-11 and 1/4”-20 threaded holes in the base are designed to mount the light
onto most of available tripods.
HOOKS
Allow the light to be hung.

56V LITHIUM-ION PORTABLE AREA LIGHT — LT1000/LT1000-FC12
OPERATION
WARNING: Do not use any attachments or accessories not recommended by the
manufacturer of this product. The use of attachments or accessories not recommended
can result in serious personal injury.
Before each use, inspect the entire product for damaged, missing, or loose parts, such
as screws, nuts, bolts, caps, etc. Tighten securely all fasteners and caps and do not
operate this product until all missing or damaged parts are replaced.
APPLICATION
You may use this product for flood lighting and area lighting.

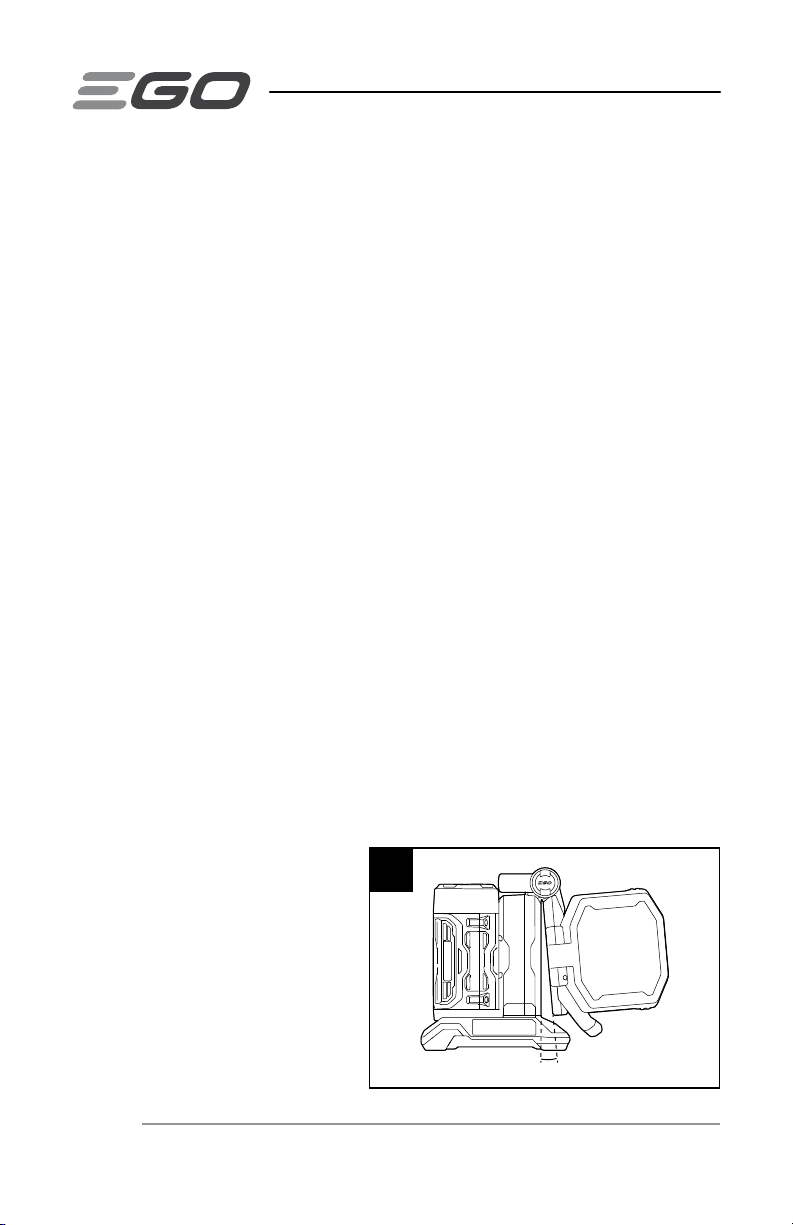

PIVOTING THE LIGHT PANELS
(Fig. 2)
The portable area light features four
panels, of which three panels can be
pivoted to provide the maximum light
area coverage.
NOTICE: The lower panel is fixed to
the base.
When you use the light for the first
time:
1. Unfold the side panels.
2. Turn the lock-knob counterclockwise to release the upper panel.
3. Pivot the upper panel to desired angle. The upper panel can pivot within a 210°
range.
4. Rotate the lock-knob clockwise to secure the upper panel in place.
5. Pivot the side panels to desired angles. Each side panel can pivot sideways within
a 240° range.
2

56V LITHIUM-ION PORTABLE AREA LIGHT — LT1000/LT1000-FC 13
TO INSTALL/REMOVE BATTERY
PACK (Fig. 3)
Fully charge the battery pack
before first use!
To install
◾Align the ribs of the battery
pack with the mounting slots in
the light’s battery port.
◾Press the battery pack into the battery port until it snaps into position.
To remove
◾Press the battery-release button. The battery pack will disengage from the latch
and the ejection mechanism will assist with removal.
◾Remove the battery pack from the light.
TURNING THE LIGHT ON AND OFF
NOTICE: When the area light is turned on, it remembers the last active panel selection
and reverts to it upon restart. However, the brightness setting always resets to the
default lowest brightness level,1 (600lm).
Power button (Fig. 4)
◾Press the power button briefly
to turn the light ON.
◾Press the power button briefly
again to turn the light OFF.
BRIGHTNESS ADJUSTMENT
(Fig. 4)
There are five brightness levels: 1 – 5
(600lm – 6,400lm) and a temporary,
“Boost” (10,000lm) brightness mode.
4
Brightness Adjustment Button
Power Button Panel Selection Button
3Battery-Release Button
Battery Rib
Mounting Slot

56V LITHIUM-ION PORTABLE AREA LIGHT — LT1000/LT1000-FC14
◾Press the “+” button to increase brightness and press the “–” button to decrease
the brightness.
◾Press and hold the “+” button for 2-3 seconds and the brightness will switch into
“Boost” mode, i. e. the maximum brightness.
◾When in “Boost” mode:
- Press the “–” button and the brightness will return to the previous level.
- To prevent overheating, the light will automatically shift down to the
brightness level 5 (6,400lm) after about an hour of operation in “Boost” mode.
If this happens, allow the light to cool down and try to activate the “Boost”
mode again.
PANEL SELECTION (Fig. 4)
The panels (or combination of panels) can be turned on and off as desired.
◾Press the “panel selection” button to toggle between:
- All four panels are on,
- Only the side panels and the upper panel are on,
- Only the upper panel is on.
◾Press and hold the “panel selection” button for 2-3 seconds and the light will
switch into flashing, “Emergency” mode.
◾When in “Emergency” mode, press any button (power button excluded) and the
light will resume previous brightness setting and panel selection.
NOTE: In “Emergency” mode, all FOUR panels will be flashing, even if before the
“Emergency” mode activation only some of the panels were active.
AUTOMATIC SHUTOFF (Fig. 5)
This area light features an automatic
shutoff switch that will turn the light
off if upper panel is folded within
10±5° from the lower panel.
5
10±5°

56V LITHIUM-ION PORTABLE AREA LIGHT — LT1000/LT1000-FC 15
USING THE LIGHT (Fig. 6a – 6c)
WARNING: Ensure the light is
securely installed to prevent falling
object hazard. Failure to follow the
instruction can result in serious
personal injury.
◾To hang the light, pull out
the hooks located in the base
of the unit and hang the light
upside down. The hook spacing
is 5.8"(147mm). Make sure
the object that the light is
hung on is sturdy enough to
support the combined weight
of the light and the battery
pack.
◾To mount the light to a tripod
(not included), secure the tripod
screw to one of the tripod
mounting holes on the bottom
of the base. The base features a
5/8”-11 and 1/4”-20 threaded
holes. Make sure the tripod is
placed on a at level surface.
WARNING: Make sure the
tripod is sturdy enough to support the
combined weight of the light and the
battery pack.
◾For portable illumination,
carry the light by top handle
(Fig. 6c).
6a 5.8"(147mm)
6b
1/4"-20
5/8"-11
6c

56V LITHIUM-ION PORTABLE AREA LIGHT — LT1000/LT1000-FC16
MAINTENANCE
WARNING: When servicing, use only identical replacement parts. Use of any
other parts may create a hazard or cause product damage. To ensure safety and
reliability, all repairs should be performed by a qualified service technician.
WARNING: To avoid serious personal injury, always remove the battery pack
from the product when cleaning or performing any maintenance.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to
damage from various types of commercial solvents and may be damaged by their use.
Use a piece of clean cloth to remove dirt, dust, oil, grease, etc.
WARNING: Do not at any time let brake fluids, gasoline, petroleum-based
products, penetrating oils, etc. come in contact with plastic parts. Chemicals can
damage, weaken or destroy plastic which may result in serious personal injury.
TRANSPORT
1. Turn the light off and remove
the battery pack.
2. Fold the hooks (if used) back
into the base of the light.
3. Release the lock-knob and fold
the upper panel into storage
position, then secure the lock-
knob.
4. Fold the side panels.
5. Carry the light by the main handle. Main handle can be pivoted within 215° range
and fixed at a desired angle by the lock-knob if necessary (Fig. 7).
STORAGE
1. Turn the light off and remove the battery pack.
2. Fold the hooks (if used) back into the base of the light.
7

56V LITHIUM-ION PORTABLE AREA LIGHT — LT1000/LT1000-FC 17
3. Release the lock-knob and fold the upper panel into storage position, then secure
the lock-knob.
4. Fold the side panels.
5. Store the light in a dry, well-ventilated area, out of the reach of the children.
Do not store the light on or adjacent to fertilizers, gasoline, or other chemicals.

56V LITHIUM-ION PORTABLE AREA LIGHT — LT1000/LT1000-FC18
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
The light does
not work.
◾Low battery capacity. ◾Charge battery pack.
◾Battery pack is not correctly
attached to the light.
◾Attach battery pack to
light correctly.
◾The light features an automatic
shutoff switch that prevents
the light from being turned on
when the upper panel is folded.
◾Unfold the upper panel
to an angle over 15°.
◾Other unidentified causes. ◾Contact a qualified service
technician for repair.
The light in
“Boost” mode
shifts down to a
lower brightness
over time.
◾This is a safety feature
to prevent the light from
overheating.
◾Allow the light to
cool down and try to
reactivate the “Boost”
mode by pressing and
holding the “+” button
for 2-3 seconds.
The USB device
cannot be
charged via the
USB port.
◾The user didn’t turn on the
light before charging the USB
device.
◾Briefly press the power
button to turn on the
light – this will activate
the USB port. Even if the
light is turned off during
USB charging process,
the connected USB device
will continue charging for
about 2 hours.
The light turns
off suddenly
during use.
◾The light features an automatic
shutoff switch that will turn the
light off if upper panel is folded
10±5° from the lower panel.
◾Make sure the upper
panel is unfolded to an
angle over 15°.
The main handle
could not be
rotated.
◾The handle is fixed by the
lock-knob.
◾Rotate the lock-knob
counterclockwise to
loosen the main handle.

56V LITHIUM-ION PORTABLE AREA LIGHT — LT1000/LT1000-FC 19
WARRANTY
EGO WARRANTY POLICY
5-year limited warranty on EGO POWER+ outdoor power equipment and portable power
for personal, household use.
3-year limited warranty on EGO POWER+ System battery packs and chargers for
personal, household use. An additional 2-year extended warranty applies for the
10.0Ah/12.0Ah battery whether sold separately (Model# BA5600T/BA6720T) or
included with any tool, if it is registered within 90 days of purchase. 5-year limited
warranty on CHV1600 charger, designed for use with Zero Turn Riding Mower for
personal, household use.
2 year/1year limited warranty on EGO outdoor power equipment, portable power,
battery packs, and chargers for professional and commercial use.
The detailed warranty periods by products can be found online at
http://egopowerplus.com/pages/warranty-policy.
Please contact EGO Customer Service Toll-Free at 1-855-EGO-5656 any time you
have questions or warranty claims.
LIMITED SERVICE WARRANTY
EGO products are warranted against defects in material or workmanship from the date
of original retail purchase for the applicable warranty period. Defective product will
receive free repair.
a) This warranty applies only to the original purchaser from an authorized EGO
retailer and may not be transferred. Authorized EGO retailers are identified online
at http://egopowerplus.com/pages/warranty-policy.
b) The warranty period for reconditioned or factory certified products used for
residential purpose is 1 year, for industrial, professional or commercial purpose is
90 days.
c) The warranty period for routine maintenance parts, such as, but not limited
to, blades, trimmer heads, chain bars, saw chains, belts, scraper bars, blower
nozzles, and all other EGO accessories is 90 days for residential purpose, 30 days
for industrial, professional or commercial purpose. These parts are covered for
90/30 days from manufacture defects in normal working conditions.

56V LITHIUM-ION PORTABLE AREA LIGHT — LT1000/LT1000-FC20
d) This warranty is void if the product has been used for rental purpose.
e) This warranty does not cover the damage resulting from modification, alteration
or unauthorized repair.
f) This warranty only covers defects arising under normal usage and does not cover
any malfunction, failure or defect resulting from misuse, abuse (including overloading
of the product beyond capacity and immersion in water or other liquid), accidents,
neglect or lack of proper installation, and improper maintenance or storage.
g) This warranty does not cover normal deterioration of the exterior finish, including
but not limited to scratches, dents, paint chips, or to any corrosion or discoloring
by heat, abrasive and chemical cleaners.
HOW TO OBTAIN SERVICE
For warranty service, please contact EGO customer service toll-free at
1-855-EGO-5656. When requesting warranty service, you must present the original dated
sales receipt. An authorized service center will be selected to repair the product according
to the stated warranty terms. When bringing your product to the authorized service center,
there may be a small deposit that will be required when dropping off your tool. This
deposit is refundable when the repair service is deemed to be covered under warranty.
ADDITIONAL LIMITATIONS
To the extent permitted by applicable law, all implied warranties, including warranties
of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE, are disclaimed. Any
implied warranties, including warranties of merchantability or fitness for a particular
purpose, that cannot be disclaimed under state law are limited to the applicable
warranty period defined at the beginning of this article.
Chervon North America is not responsible for direct, indirect, incidental or consequential
damages.
Some states do not allow limitations on how long an implied warranty lasts and/or do
not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
For customer service contact us toll-free at: 1-855-EGO-5656 or EGOPOWERPLUS.COM.
EGO Customer Service, 769 SEWARD AVE NW / Suite 102 Grand Rapids, MI 49504
