EHIGH EH100606A04-X User manual

ForThink Technology Co., Ltd.
1
Social Distance Watch User Manual

ForThink Technology Co., Ltd.
2
1. Introduction to Social Distance Watch .................................................................................. 3
1.1 Introduction ....................................................................................................................... 3
1.2 Exterior ............................................................................................................................... 4
1.3 Product List ....................................................................................................................... 4
1.4 Specification ...................................................................................................................... 5
2. User Instructions ........................................................................................................................ 7
2.1 Product Components ..................................................................................................... 7
2.2 Wearing Method ............................................................................................................. 7
2.3 Charging Instructions ................................................................................................... 10
2.4 Interactive Instructions .................................................................................................. 11
3. FCC Statement ......................................................................................................................... 12

ForThink Technology Co., Ltd.
3
1. Introduction to Social Distance Watch
1.1 Introduction
System is a set of ranging system based on Ultra-Wideband Technology, which
has the characteristics of high precision, large capacity, strong multi-path resistance
and low power consumption.
Watches worn on the person consistently monitor the distance to the
surrounding watches. When the distance is less than the safe value, an alarm signal
will be generated immediately. The sound and light alarm reminds to prevent the
person from being too close and reduce the risk of virus spreading.
Figure 1-1 Schematic diagram of application

ForThink Technology Co., Ltd.
4
1.2 Exterior
Figure 1-2 Front/Back views of Watch
Figure 1-3 Left/Right views of Watch
1.3 Product List
The product list is shown in the figure1-4. From left to right, there are the watch,
charger, charging cable.

ForThink Technology Co., Ltd.
5
Figure1-4 Product list
1.4 Specification
Watch Specifications
Product type：EH100606A04-X
Dimensions：51×48×19.5mm
Weight：≤85g
Maximum battery life：≥10h
Charge/Power Interface：Pogo Pin-4
Charging time：≤2h
Low battery indicator：Yes
Key interaction：Yes

ForThink Technology Co., Ltd.
6
Vibration indicator：Yes
LED indicator：Yes
Working temperature: -20°C ~ 60°C
Storage temperature: -20°C ~ 85°C
Working humidity: 0~95% non-condensing
Protection level: IP67
Material：PC+ABS ，TPU
Battery type: lithium polymer battery
Battery level: 800mAh
Charging voltage/current：5V/430mA
Ranging wireless standard: 802.15.4_2011UWB
Ranging antenna gain：≤0.5dbi
Ranging method：TOF

ForThink Technology Co., Ltd.
7
Typical transmitting power of ranging：-41.3dbm/MHz
Acceleration sensor: 3 axis
2. User Instructions
2.1 Product Components
As shown in the figure below, the watch provides two buttons, indicator lights and
charging interface.
Figure 2-1 Product components
2.2 Wearing Method
2.2.1 Schematic Diagram of Wearing

ForThink Technology Co., Ltd.
8
Figure 2-2 Front view
Figure 2-3 Back view
2.2.2 Wearing Method
Watchband through arm

ForThink Technology Co., Ltd.
9
Watchband passes through the metal buckle, then make the
watchband adjusted to the proper position. And the buckle needle
passes through the watchband hole
After the buckle needle passes through the watchband, fasten
the buckle with the fixing ring

ForThink Technology Co., Ltd.
10
2.3 Charging Instructions
2.3.1 Charging with Charger
Use the charger and charging cable to complete the charging, as
shown in the figure below.

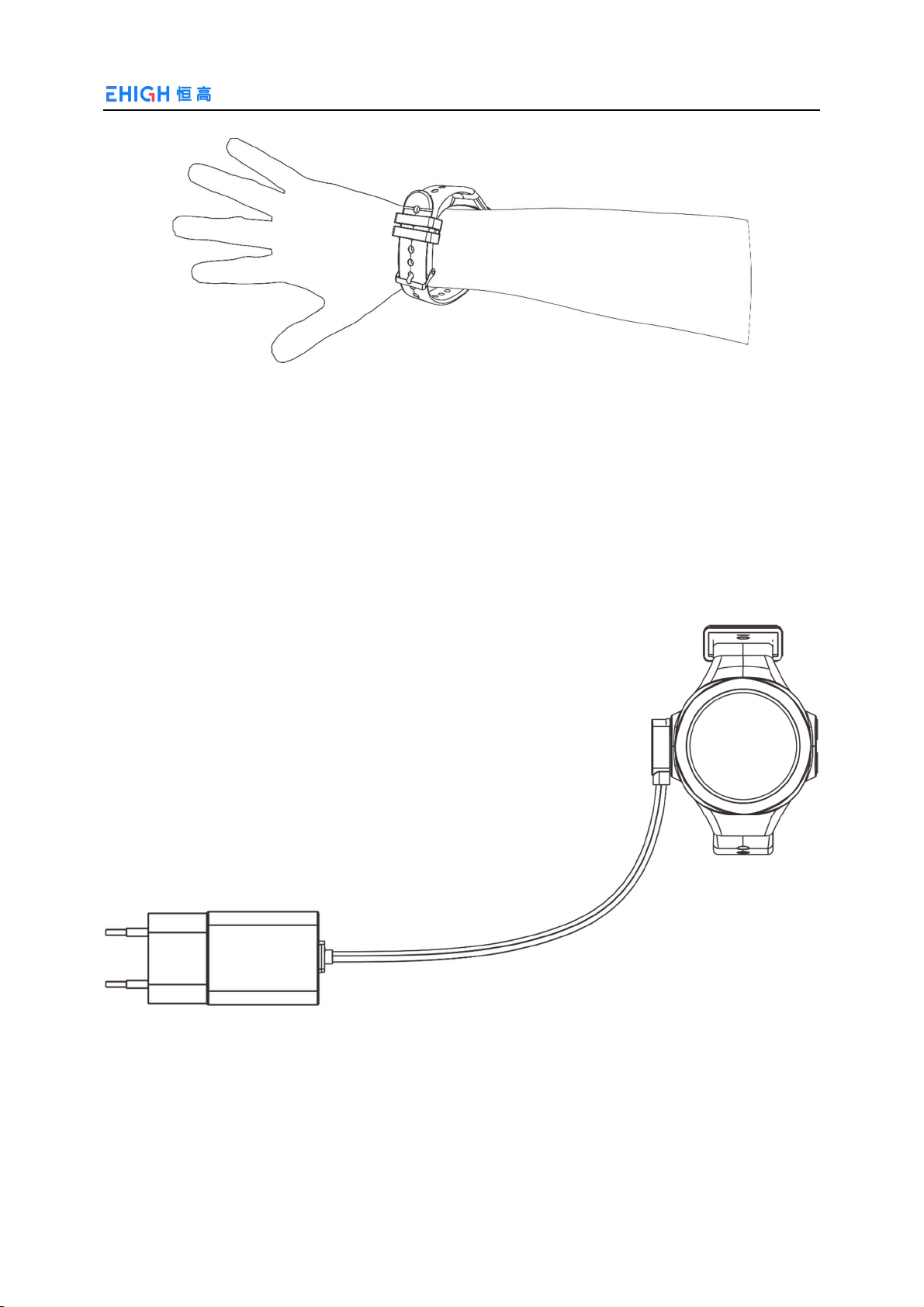

Figure2-4 Schematic diagram of charging

ForThink Technology Co., Ltd.
11
2.4 Interactive Instructions
2.4.1 Operating Instructions

Power On: If product is in the power-off state, press and hold the
right(red) button for more than 3 seconds. When you feel the
vibration and see the LED flash, it means product is power-on
successfully.
Power Off: If product is in the power-on state, press and hold the
right(red) button for more than 3 seconds. When you feel the
vibration and see the LED flash, it means product is power-off
successfully.

Power Test: Press the left(green) button (less than 1s) and release. If
the product still has power, the vibrator will work and the LED flash;
If there is no power left, there will be no response.
2.4.2 Alarm Instructions
Warning: When the distance between the watches is less than the
safe distance, the watches will continue vibrating and the red LED
will flash until the distance between t watches is greater than the
safe distance.
Working Status Indicator: When the watch is working normally, the
LED flashes twice every 2s.
Low Power Indicator：When the watch is in low power, the LED
flashes twice every 5s.
Charging: The LED flashes when the watch is charging, and the
LED light is always on when it is fully charged.

ForThink Technology Co., Ltd.
12
3. FCC Statement
Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
FCC ID：2AWQO-EH100606A04-X
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The
device can be used in poor
table exposure condition without restriction
.

ForThink Technology Co., Ltd.
13
The device must not be co-located or operating in conjunction with any other
antenna or transmitter.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions : (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
ForThink Technology Co., Ltd
Address：No. 898, Baicao Road, High-tech West Zone, Chengdu
Web：hg.ehighuwb.com
Telephone：[phone]
