EK-Quantum Momentum 2 ROG Maximus Z690 Hero D-RGB User manual

USER GUIDE
MONOBLOCK
EK-Quantum
Momentum2ROG Maximus Z690 Hero D-RGB

This product is intended for installation only by expert users. Please
consult with a qualified technician for installation. Improper installation
may result in damage to your equipment. EK Water Blocks assumes no
liability whatsoever, expressed or implied, for the use of these products,
nor their installation. The following instructions are subject to change
without notice. Please visit our website at www. ekwb.com for updates.
Before installation of this product please read the important notice,
disclosure, and warranty conditions printed on the back of the box.
Before you start using this product, please follow these basic guidelines:
Please carefully read the manual thoroughly before beginning
the installation process!
The EK- Fittings require only a small amount of force to
screw them firmly in place since the liquid seal is ensured by
the rubber O-ring gaskets.
The use of corrosion inhibiting coolants is always
recommended for liquid cooling systems, and mandatory for
nickel plated water blocks.
Do not use pure distilled water! For best results EK
recommends the use of EK-Cryo Fuel coolants.
Make sure to thoroughly bleed air out of your water block, or
you will not reach optimal performance.

- 3 -
TABLE OF CONTENTS
GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY 4
BOX CONTENTS 5
WATER BLOCK DIMENSIONS 6
TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS 7
PREPARING THE MOTHERBOARD 8
I/O LIGHT COVER ASSEMBLY 10
PREPARING THE WATER BLOCK FOR INSTALLATION 11
CUTTING AND PLACING THERMAL PADS 12
APPLYING THERMAL COMPOUND 13
ATTACHING THE WATER BLOCK 13
FITTINGS AND TUBING 16
CONNECTING THE D-RGB LED STRIP 17
TESTING THE LOOP 17
WARRANTY 18
SUPPORT AND SERVICE 19
SOCIAL MEDIA 19

- 4 -
GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY
This CPU liquid cooling unit is pre-assembled for use with modern
Intel desktop socket type motherboards. By default (out of the box)
this water block supports the following CPU sockets:
- Intel LGA-1700

- 5 -

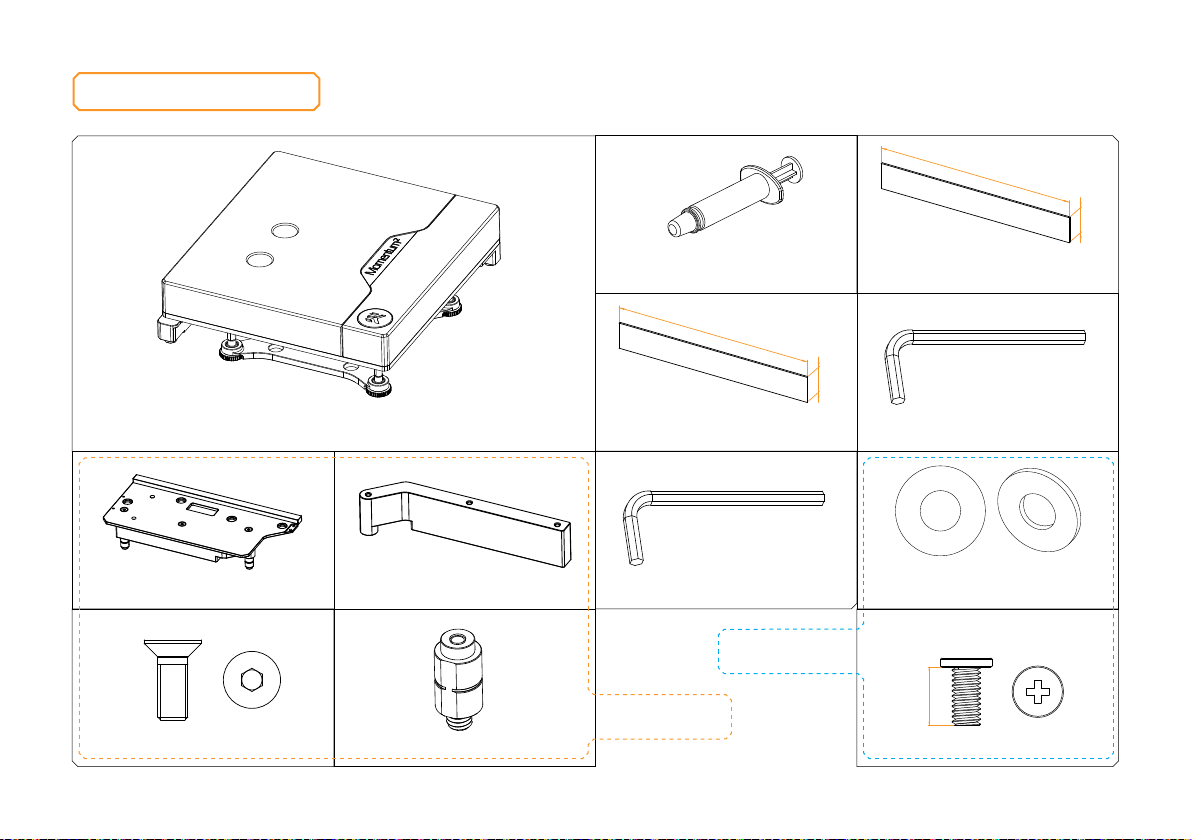

BOX CONTENTS
Allen key 2 (1 pc) (8901)
Thermal PAD F 1.0 mm
(120 x 16 mm) (4 pcs)
PASTE Thermal Grizzly
Hydronaut (1g)
I/O Cover (1pc) (104781) I/O Cover Stand (1pc) (104682)
Standoff M4-M2.5 x 12 (2pcs)
120 mm
16 mm
120 mm
16 mm
EK-Quantum Momentum2 Maximus XIV Hero D-RGB - Plexi
(3831109892381)
Thermal PAD F 0.5 mm
(120 x 16 mm) (2 pcs)
Allen key 2.5 (1 pc) (8902)
Screw M3 x 8 DIN7991 (3pcs)
5 mm
Polyamide Washer M2.5
0.5 mm (8 pcs)
M2.5 x 5 AX1 Screw (8 pcs)
EAN: 105306
EAN: 105292

- 6 -

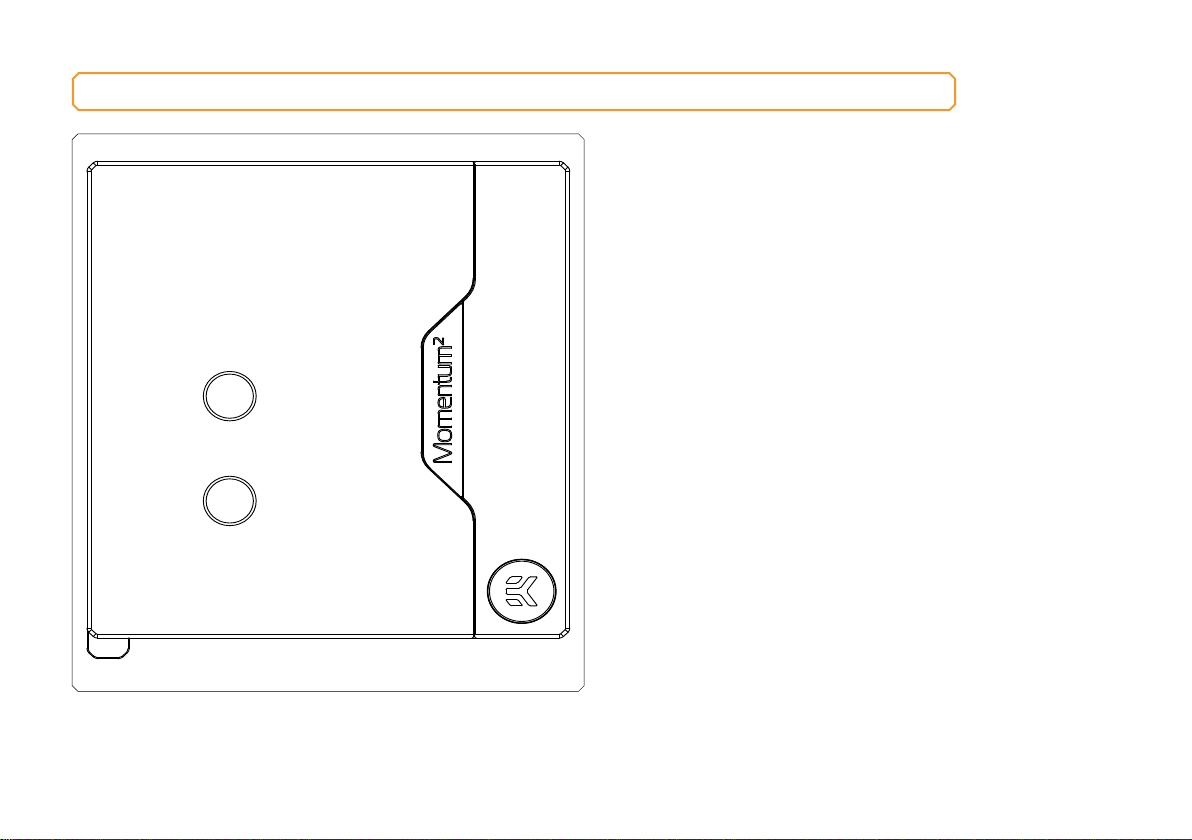

WATER BLOCK DIMENSIONS
CPU WB:
Backplate:
35.7 mm
36.7 mm
64.7 mm
119.6 mm
127.4 mm
30.9 mm
20.5 mm
6 mm
78 mm
78 mm
3.5 mm
9.1 mm

- 7 -
TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS
Position EAN Description Quantity
1104679 Monoblock 1
2104028 Coldplate (Nickel) 1
3104532 Lock Washer DIN6799 4
4104913 Mounting Screw 4
5100747 Spring M3x10 mm, 8 kg 4
6104029 Jet Plate 1
7104674 Coldplate Mosfet N (Nickel) 1
8104676 Coldplate Mosfet W (Nickel) 1
9104677 TOP Plexi 1
10 104678 TOP Acetal Stickout 1
11 104444 Mylar sticker 1
12 8252 Screw M3x10 DIN7991 Inox 7
13 100500 Screw M4x12 4
14 8521 Standoff M4/M2.5 x 2.1 4
15 100663 EK Badge 2
16 104777 OR - MOSFET N 1
17 104778 OR - MOSFET W 1
18 104773 OR - Coldplate 1
19 104683 OR - Monoblock 1
20 104776 OR - Island 1
21 104774 OR - Small 1
22 104771 Screw M3x20 DIN7991 Inox 4
23 104650 Exact Mount 1
24 101946 LED Strip 1
24 9
1
8
7
11
19
17
16
22
14
20
6
15
12
18
2
4
5
13
21
23
10
3

- 8 -
For this step, you will need:
Phillips Head Screwdriver
PREPARING THE MOTHERBOARD
STEP 1
Important! Before starting, make sure to have a clean, flat
surface to work on. It is recommended that you put a foam
or a soft material to lay the motherboard and the water
block on.
STEP 1
Turn over the motherboard and unscrew five (5) screws M2x2.5.
STEP 2
Disconnect the I/O Light screen cable from the motherboard. Pull the
Heatsink straight up. Put the Heatsink on the clean flat surface. Be
careful not to damage the I/O Light screen!
STEP 2
M2x2.5
SCREW (5x)
I/O LIGHT
SCREEN
HEATSINK

- 9 -
For this step, you will need:
Phillips Head Screwdriver
STEP 4
STEP 3
Remove all the remaining stock thermal pads from the motherboard.
STEP 4
Turn the Heatsink upside down. Unscrew four (4) M2x2.5 screws
from I/O Light screen. To detach the I/O Bracket 1 unscrew two (2)
M2x4 screws. Store all the screws and I/O Bracket 1 for later use.
For this step, you will need:
Phillips Head Screwdriver
STEP 5
Turn the Heatsink upside down again and pull the I/O Light screen
straight up. Unscrew two (2) M2x4 Screws and detach the I/O
Bracket 2. Store all the screws, I/O Light screen and I/O Bracket 2
for later use.
STEP 5
SCREW
M2x4
SCREW
M2x4
HEATSINK
I/O BRACKET 1 I/O BRACKET 2
I/O BRACKET 2
I/O HEATSPREADER
SCREW M2x2.5
I/O LIGHT
SCREEN

- 10 -
I/O Cover (1pc) I/O Bracket 1 (1pc)
Screw M2x4 (4 pcs) Phillips Head Screwdriver
I/O Bracket 2 (1pc)

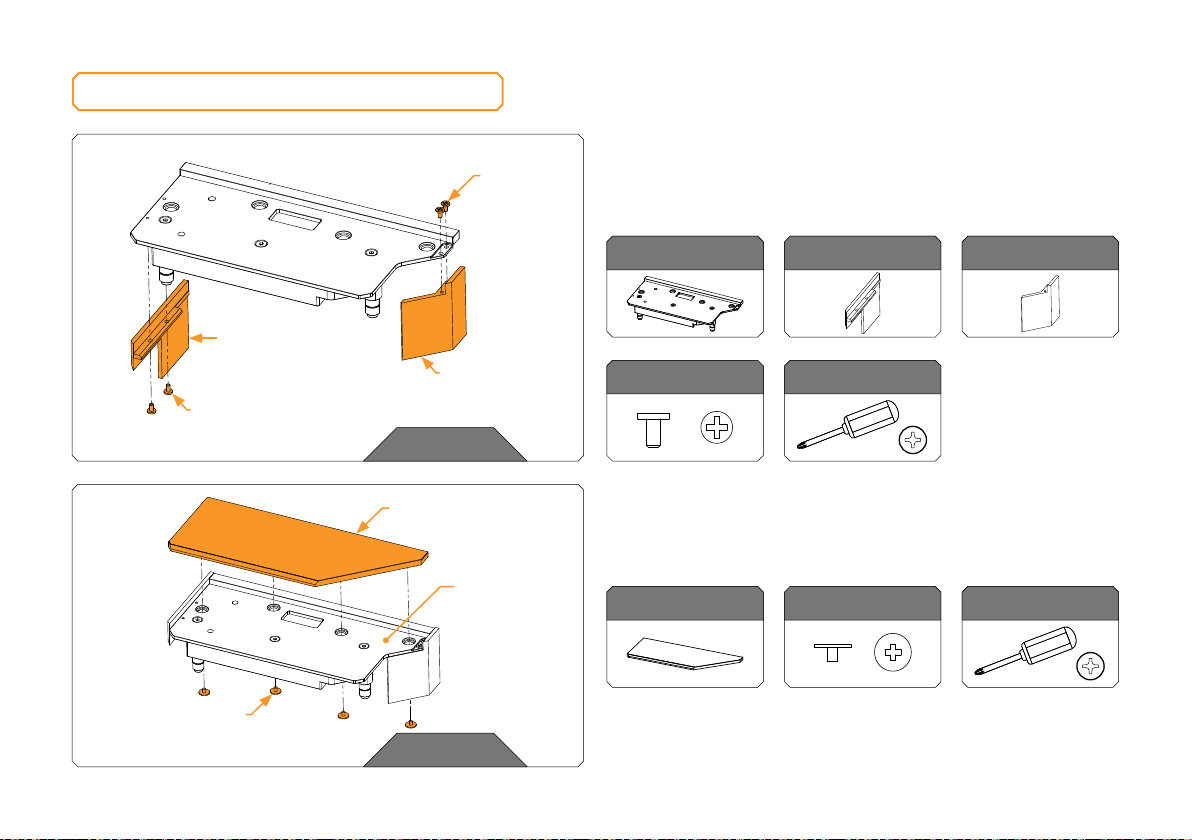

STEP 1
Tighten the I/O Bracket 1 and the I/O Bracket 2 on the I/O Cover
using four (4) M2x4 screws.
STEP 1
I/O LIGHT COVER ASSEMBLY
For this step, you will need:
SCREW M2x2.5
SCREW
M2x2.5
I/O BRACKET 1
I/O BRACKET 2
I/O LIGHT SCREEN
I/O COVER
SCREW
M2x4
I/O Light screen Screw M2x2.5 (4pcs)
STEP 2
Put the I/O Light screen onto the I/O Cover and tighten it with four
(4) M2x2.5 screws.
STEP 2
For this step, you will need:
Phillips Head Screwdriver

- 11 -

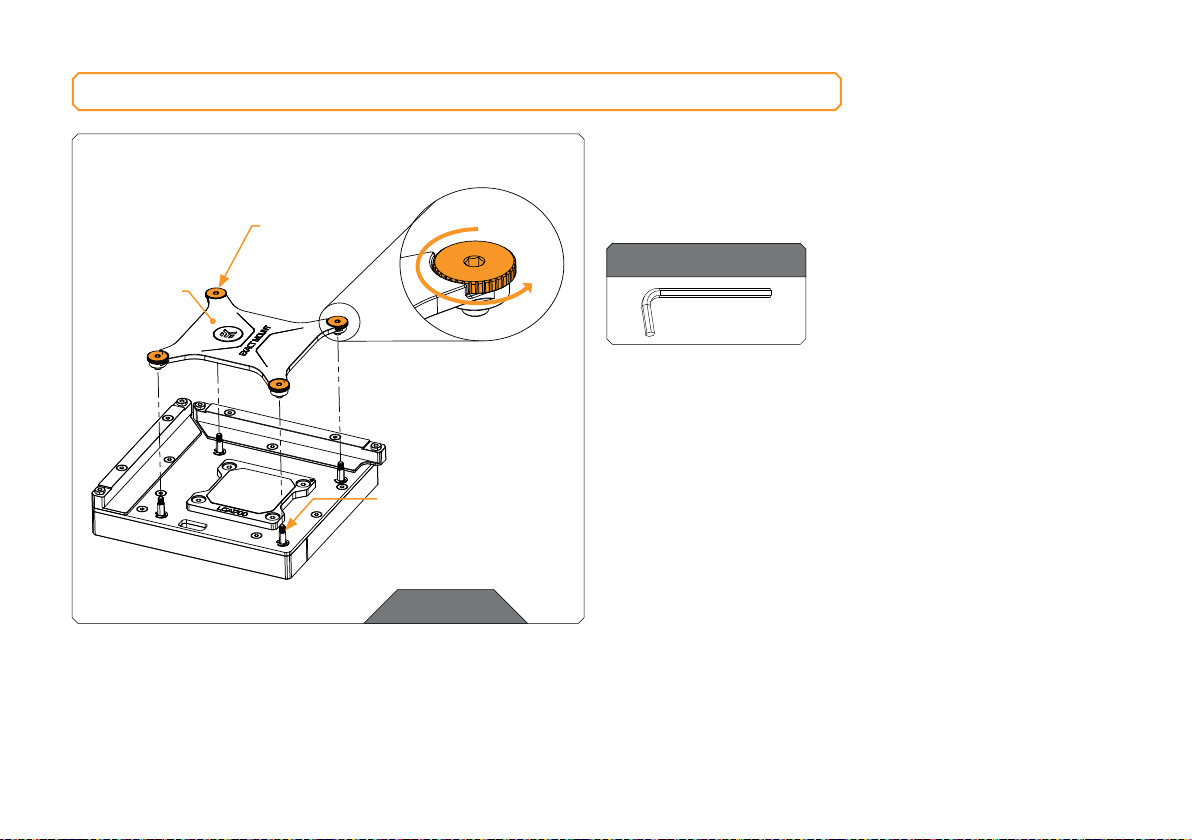

PREPARING THE WATER BLOCK FOR INSTALLATION
STEP 1
Unscrew four (4) mounting nuts (turn them in an anti-clockwise
direction to unscrew). Remove the Backplate.
STEP 1
MOUNTING SCREW
(4x)
MOUNTING
NUT (4x)
TURN
ANTI-CLOCKWISE
TO UNSCREW
BAC KP L ATE
For this step you will need:
Allen Key 2.5mm

- 12 -
STEP 1

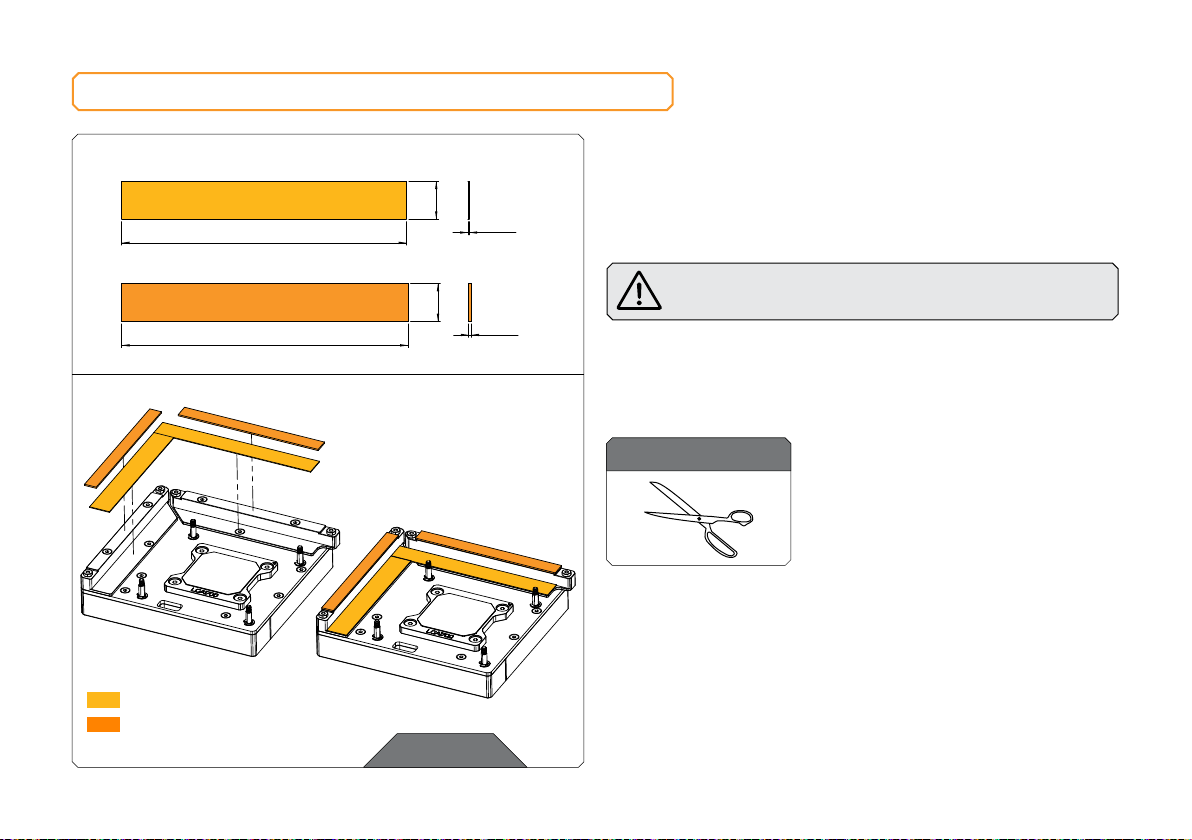

CUTTING AND PLACING THERMAL PADS
Thermal Pad F – 0.5 mm (120 x 16 mm)
120 mm
16 mm
0.5 mm
Thermal Pad F – 1.0 mm (120 x 16 mm)
120 mm
16 mm
1 mm
STEP 1
EK-Momentum2 ROG Maximus XIV Hero D-RGB water block comes
with thermal pads that have to be cut into smaller pieces to cover
all the regulation area (Mosfet) on the water block. EK made sure to
provide you with more than an adequate quantity of thermal pads to
complete this Step.
Please remove the protective foil from both sides of the
thermal pads prior to installation!
Replacement thermal pads:
Thermal PAD F 0.5 mm - (120 x 16 mm) – 3830046996725
Thermal PAD F 1.0 mm - (120 x 16 mm) – 3830046996732
For this step, you will need:
Scissors
Thermal Pad - 120 x 16 x 1.0 mm
F1
Thermal Pad - 120 x 16 x 0.5 mm
F0.5
F1 F1
F0.5
F0.5

- 13 -
Thermal Grease
STEP 1
Apply the enclosed EK-TIM Ectotherm thermal grease (thermal
compound) on the CPU heat spreader – IHS – as shown in the
image. The layer of the thermal compound must be thin and even
in thickness over the entire surface of the IHS.
The excessive or uneven application of thermal grease
may lead to poor performance!
STEP 1
APPLYING THERMAL COMPOUND
For this step, you will need:
ATTACHING THE WATER BLOCK
STEP 1
Carefully place the CPU water block onto the motherboard and align
four (4) mounting screws with four (4) holes on the motherboard.
Hold the water block and motherboard and turn them upside down.
STEP 1
MOUNTING SCREW (4x)
WATER BLOCK

- 14 -

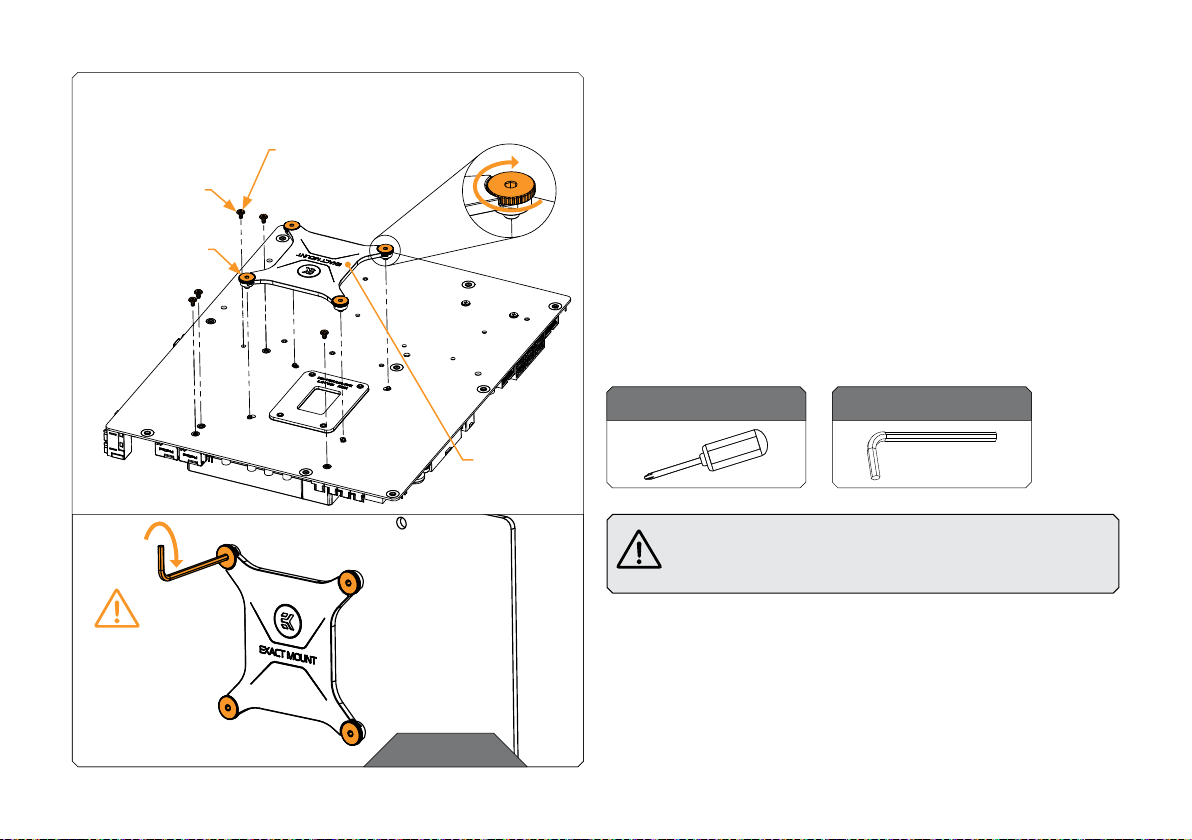

STEP 2
STEP 2
After placing the water block, the Backplate must be attached on the
backside of the motherboard using Allen Key 2.5 mm (shown in the image).
While holding the water block and the motherboard with one hand,
align the Backplate with Mounting Screws of the water block. Turn
the mounting nuts using Allen Key 2.5 mm in the clockwise direction
according to the numerical order shown in the image. Do not tighten
fully until all of the nuts are partially screwed in. After the Backplate
is tightened, put five (5) M2x2.5 screws and washers in holes of the
water block and tighten them.
EK recommends using the EK-Loop Torque Screwdriver - 0.6Nm:
https://www.ekwb.com/shop/ek-loop-torque-screwdriver-0-6nm
MOUNTING
NUT (4x)
M2.5 POLYAMIDE
WASHER
M2x2.5 SCREW
(5x)
BAC KP L ATE
TURN
CLOCKWISE TO
SCREW
For this step you will need:
The Allen Key 2.5 mm must be used in standing position!
Otherwise, the mounting screws may crack during
tightening.
Allen Key 2.5mm Phillips Head Screwdriver
MAX TORQUE:
0.6 Nm
1
2
3
4
1
2
3
4

- 15 -
For this step, you will need:
Phillips Head Screwdriver
STEP 3
STEP 3

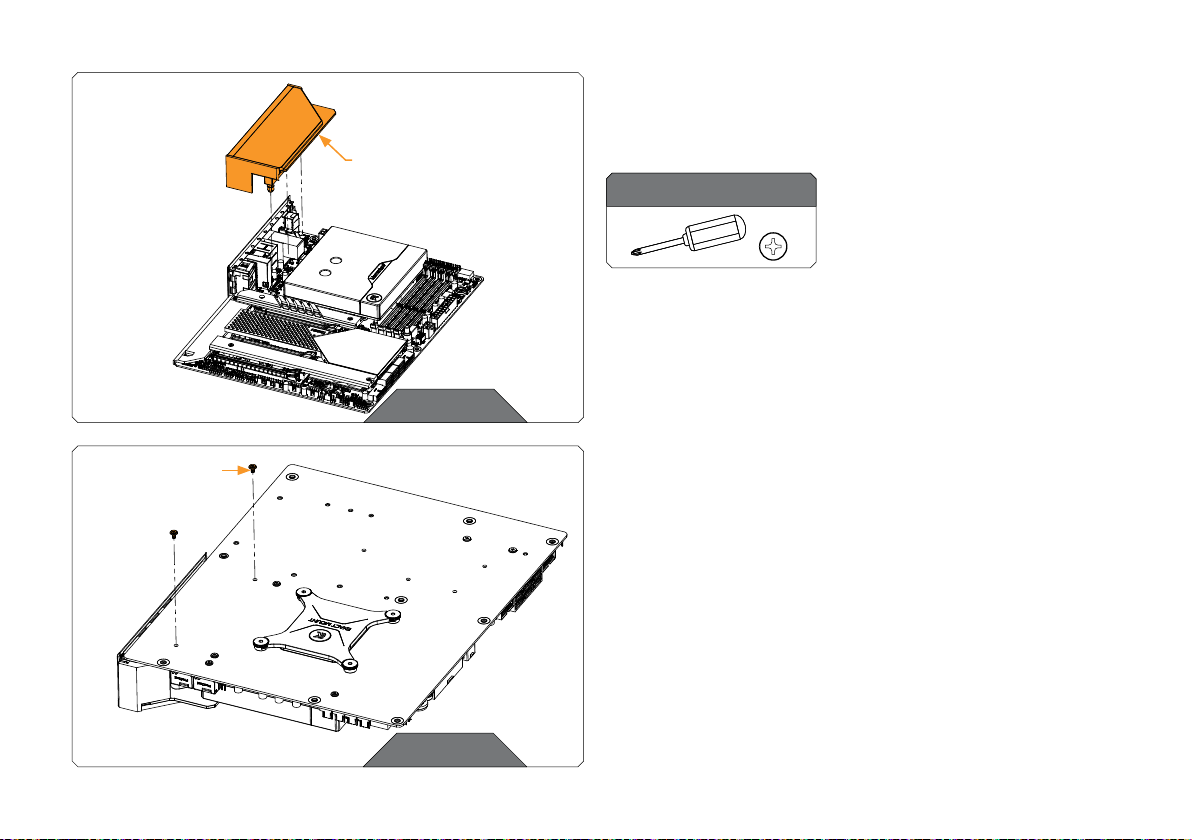

Carefully place the I/O Light Cover onto the motherboard. Align the
I/O Light Cover standoff holes with the holes on the motherboard.
STEP 4
Tighten two (2) M2.5 x 5 AX1 screws and washers to secure the I/O
Light cover onto the motherboard.
STEP 4
M2.5x5
SCREW (2x)
I/O LIGHT
COVER

- 16 -
FITTINGS AND TUBING
STEP 1
Screw-in two (2) G1/4 threaded male fittings. Attach the liquidcooling
tubes and connect the water block to the cooling loop. Tighten the
fittingsinclockwisedirection untilthe gasketunderneathiscompressed.
The installation of the Momentum2 water block is complete.
EK recommends using EK fittings with all EK water blocks.
Do not forget to plug the remaining two openings with
enclosed EK-Plug G1/4 or its equivalent.
CAUTION: When using connectors other than EK fittings,
pay special attention to the length of the fittings’ male G1/4”
thread – 5mm is the maximum G1/4” thread length allowed!
STEP 1
TUBING IN
OUT
EK-FITTING
For this step, you will need:
The installation of the Momentum2 water block is complete.
EK-Loop Multi Allen Key

- 17 -
CONNECTING THE D-RGB LED STRIP
STEP 1
Plug the 3-pin connector of the distribution plate D-RGB LED
light to the D-RGB HEADER on the motherboard. The LED will
work if the pin layout on the header is as follows: +5V, Digital,
Empty, Ground.
Please ensure that the arrow indicated on the connector is
plugged into the +5V line as indicated on your motherboard.
If you put the LED Diode to the 12V RGB HEADER you
can damge the LEDs. Failure to do so will damage your
motherboard or LED strip.
STEP 1
D-RGB HEADER
RGB HEADER
To make sure the installation of EK components was successful, we
recommend you perform a leak test for 24 hours. When your loop
is complete and filled with coolant, connect the pump to a PSU
outside of your system. Do not connect power to any of the other
components. Turn on the PSU and let the pump run continuously.
It is normal for the coolant level to drop during this process as air
collects in the distribution plate. Inspect all parts of the loop, and
in the eventuality that coolant leaks, fix the issue and repeat the
testing process. Ensure that all hardware is dry before the system is
powered on in order to prevent any damage.
TESTING THE LOOP

- 18 -
Our products are warranted against defects of materials and
quality for a period of 24 months, starting with the date of delivery
to the end-user. During this period, products will be repaired
or have parts replaced at our discretion, provided that 1) the
product is returned to the agent from whom it was purchased;
2) the product has been purchased by the end-user and has not
been used for commercial purposes; 3) the product has not been
misused, handled carelessly, or used in a manner other than the
way described in the instructions manual. This warranty does not
confer rights other than those expressly set out above and does not
cover any claims for consequential loss or damage. This warranty
is offered as an extra benefit and does not affect your statutory
rights as a consumer. This warranty is voided if the product
comes in contact with aggressive UV additives or other improper
liquids. EK water blocks are sealed with a warranty-voiding circular
label, proving the water block has withstood a pressure leak test.
Removing the label will void the leak-free guarantee, but not the
guarantee on the product itself. Any other RMA issues can be
reported to EK Customer Support at www.ekwb.com/support
for further analysis.
WARRANTY

In case you need assistance or wish to order spare parts or a new
mounting mechanism, please contact:
https://www.ekwb.com/customer-support/
For spare parts orders, refer to the page with “TECHNICAL
SPECIFICATIONS AND WATER BLOCK PARTS” where you can find
the EAN number of each part you might need.
Include the EAN number with quantity in your request. Mounting
Mechanism EAN can be found under “BOX CONTENTS”
Thermal pads are readily available in the EK shop
EKWaterBlocks
@EKWaterBlocks
ekwaterblocks
ekwaterblocks
EKWBofficial
SUPPORT AND SERVICE
SOCIAL MEDIA
