EKL KHU-0401 User manual

ZWAY HDMI- KVM
◎No need to install any software, support control computer by hot key/ button/ remote
controll.
◎USB port KVM switch.
◎LED light shows work status.
◎Support add or remove units over plug and play without shut off the switch.
◎Apply to DVR, ect.

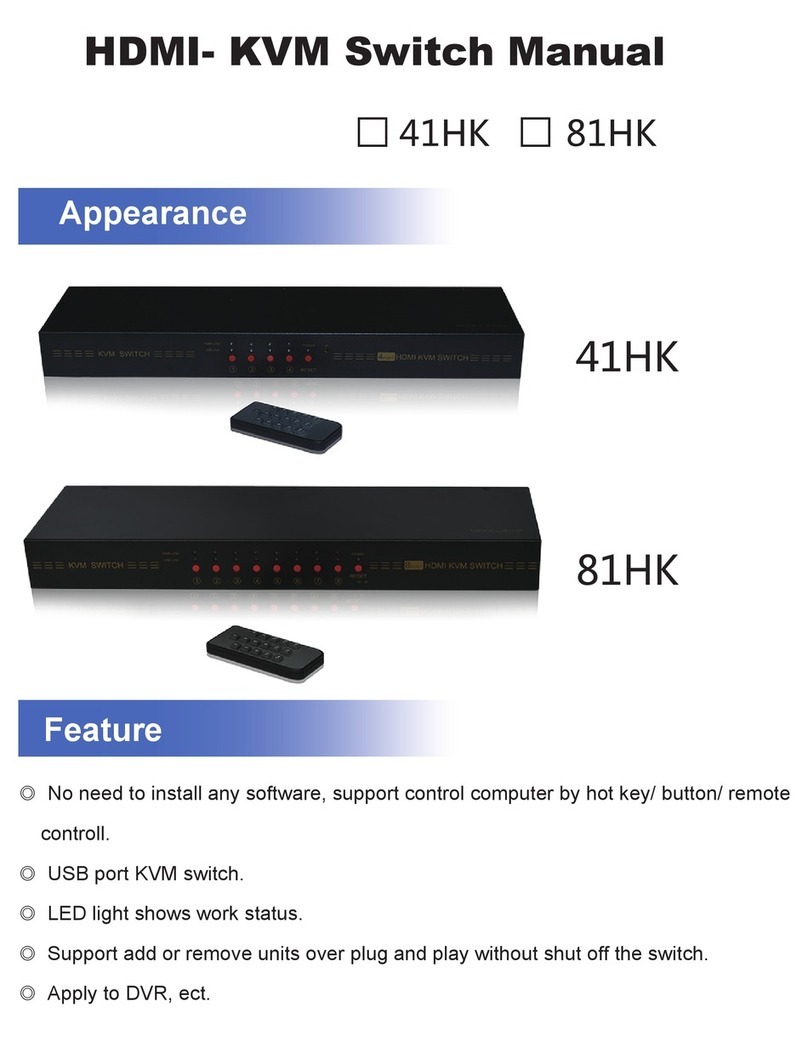

Appearance
Feature
KHU-0401
KHU-0801

Display Device
HDMI
Output
HDMI Input
HDMI Input
HDMI Input
HDMI
Input
HDMI
Input
HDMI Signal Sources
HDMI Signal Sources
Connection Diagram
USB Input USB Input
remote controller
keyboard & mouse
Power in
Maintenance instructions:
◎Do not put any heavy objects on the device, connect the device placed in secure places.
◎Do not block the ventilation holes, place the device in a dry and ventilated place.
◎Do not place the product in hot, cold, humid or dusty place used or stored.
Use Manual
◎Make sure all cables are properly connected before turning.
◎Please unplug when clean-up or long time no use.
◎Please use the product-specific power adapter and use in the range of the adapter marked.
◎Working Temperature:1-40℃， Humidity：≤85%
(Take KHU-0401 for example)

Scroll
Lock
Scroll
Lock
Hot Key :
1.Double Click Scroll Lock into Control state, at the same time, the switch make two
sounds “di...di...”
2.Input hot key order within 3 seconds.
+Space automatic scanning
adjust scan time
sounds on / off
previous port
next port
choose port directly
synchronous mode
Note: default scan time is 6 seconds, users can adjust scan time according to
the demands. Methods:
Increase or decrease time unit is 1 second for one time, support unlimited increase.
Scroll
Lock
Scroll
Lock ++-
or
Scroll
Lock
Scroll
Lock +F12
Scroll
Lock
Scroll
Lock +Page
Up
Scroll
Lock
Scroll
Lock +Page
Down
Scroll
Lock
Scroll
Lock +~
1 8
Scroll
Lock
Scroll
Lock +0
Note: number keys are small key pads. 4 ports switch is 1-4 keypad.
使用方法
Operation
1. Connect signal source , display device, keyboard and mouse correctly.
2. Switch method: directly switch by switch button or Hot Key.

性能参数
配件清单
NO. Name
1
2
HDMI port KVM switch
Remote control
Power adapter
User manual
Warranty card
Rack
1PC
1PC
1PC
1PC
1PC
2PC
3
4
5
6
1920*1440 or 1080P
2.55GHZ
DC 9V
Metal
430*118*45mm
4port KVM 1.2KG 8port KVM 1.4KG
Performance Parameter
Output Interface
Input Interface
Switch way
Keyboard mouse
Resolution
Bandwidth
Power
Shell
Size
Net Weight
Automatic scanning
interval
HDMI Video port,USB keyboard mouse port
4/8 way HDMI video port,4/8 way USB port
Button swich, hot key, remot control switch
USB port
6 seconds (settable)
Packing List
RemarkQty
