Elba Elba-272 Installation instructions

SER INSTR CTION

TOTAL NO-FROST FREEZER

MODEL:ELBA-272

&RQWHQW6DIHW\,QIRUPDWLRQ3DJHa

2YHUYLHZ3DJH!

,QVWDOODWLRQ3DJH"#$%

&'()*+,-()./0( 3DJH$1#$!

*'DLO\8VH3DJH$"#$2

!. Product Specification 34

afety information

In the interest of your safety and to ensure the correct use, before

installing and first using the appliance, read this user manual carefully,

including its hints and warnings. To avoid unnecessary mistakes and

accidents, it is important to ensure that all people using the appliance

are thoroughly familiar with its operation and safety features. Save

these instructions and make sure that they remain with the appliance if

it is moved or sold, so that everyone using it through its life will be

properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these ser’s

instructions as the manufacturer is not responsible for damages

caused by omission.

Children and vulnerable people safety

This appliance can be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities or

lack of experience and knowledge if they have been given super

vision or instruction concerning use of the appliance in a safe way

and understand the hazards involved.

Children aged from 3 to 8 years are allowed to load and unload this

appliance.

Children should be supervised to ensure that they do not play with

the appliance.

Cleaning and user maintenance shall not be made by children unless

they are aged from 8 years and above and supervised.

Keep all packaging well away from children. There is risk of

suffocation.

If you are discarding the appliance pull the plug out of the socket, cut

the connection cable (as close to the appliance as you can) and

remove the door to prevent playing children to suffer electric shock or

to close themselves into it.

If this appliance featuring magnetic door seals is to replace an older

appliance having a spring lock (latch) on the door or lid, be sure to

make that spring lack unusable before you discard the old appliance.

This will prevent it from becoming a death trap for a child.

General safety

WARNING! Keep ventilation openings, in the appliance enclosure

or in the built-in structure, clear of obstruction.

WARNING! Do not use mechanical devices or other means to

accelerate the defrosting process, other than those recommended

by the manufacturer.

WARNING! Do not damage the refrigerant circuit.



Safety information

WARNING! Do not use other electrical appliances (such as ice

cream makers) inside of refrigerating appliances, unless they are

approved for this purpose by the manufacture.

WARNING! Do not touch the light bulb if it has been on for a long

period of time because it could be very hot.1 )

!Do not store explosive substances such as aerosol cans with a

flammable propellant in this appliance.

The refrigerant isobutane (R-600a) is contained within the refrigerant

circuit of the appliance, a natural gas with a high level of

environmental compatibility, which is nevertheless flammable.

During transportation and installation of the appliance, be certain

that none of the components of the refrigerant circuit become

damaged.

- avoid open flames and sources of ignition

- thoroughly ventilate the room in which the appliance is situated

It is dangerous to alter the specifications or modify this product in any

way. Any damage to the cord may cause a short circuit, fire and/or

electric shock.

This appliance is intended to be used in household and similar

applications such as

- staff kitchen areas in shops, offices and other working

environments;

- farm houses and by clients in hotels, motels and other residential

type environments;

- bed and breakfast type environments;

- catering and similar non-retail applications.

WARNING! Any electrical components(plug, power cord,

compressor and etc.) must be replaced by a certified service agent

or qualified service personnel.

WARNING! The light bulb supplied with this appliance is a “special

use lamp bulb” usable only with the appliance supplied. This “special

use lamp” is not usable for domestic lighting.1 )

1) If there is a light in the compartment.

WARNING! When positioning the appliance, ensure the supply

cord is not trapped or damaged.

WARNING! Do not locate multiple portable socket-outlets

portable power suppliers at the rear of the appliance.



Safety information

1) If there is a freezer compartment.

2) If there is a fresh-food storage compartment.

!Power cord must not be lengthened.

!Make sure that the power plug is not squashed or damaged by the

back of the appliance. A squashed or damaged power plug may

overheat and cause a fire.

!Make sure that you can come to the mains plug of the appliance.

!Do not pull the mains cable.

!If the power plug socket is loose, do not insert the power plug. There

is a risk of electric shock or fire.

!You must not operate the appliance without the lamp.

!This appliance is heavy. Care should be taken when moving it.

!Do not remove nor touch items from the freezer compartment if you

hands are damp/wet, as this could cause skin abrasions or

frost/freezer burns.

!Avoid prolonged exposure of the appliance to direct sunlight.

!Do not put hot on the plastic parts in the appliance.

!Do not place food products directly against the rear wall.

!Frozen food must not be re-frozen once it has been thawed out.1 )

!Store pre-packed frozen food in accordance with the frozen food

manufacture,

s instructions.1 )

!Appliance,

s manufactures storage recommendations should be

strictly adhered to. Refer to relevant instructions.

!Do not place carbonated of fizzy drinks in the freezer compartment as

it creates pressure on the container, which may cause it to explode,

resulting in damage to the appliance.1 )

!Ice lollies can cause frost burns if consumed straight from the

appliance.1 )

To avoid contamination of food, please respect the following

instructions

!Opening the door for long periods can cause a significant increase

the temperature in the compartments of the appliance.

!Clean regularly surfaces that can come in contact with food and

accessible drainage systems.

!Clean water tanks if they have not been used for 48h; flush the

water

system connected to a water supply if water has not been drawn

for 5

days.

!Store raw meat and fish in suitable containers in the refrigerator, so

that it is not in contact with or drip onto other food.

!Two-star frozen-food compartments(if they are presented in the

appliance) are suitable for storing pre-frozen food, storing or

making

ice-cream and making ice cubes.





Safety information

1) If there is a freezer compartment.

2) If there is a fresh-food storage compartment.

Before maintenance, switch off the appliance and disconnect the

mains plug from the mains socket.

Do not clean the appliance with metal objects.

Do not use sharp objects to remove frost from the appliance. Use a

plastic scraper.1 )

Regularly examine the drain in the refrigerator for defrosted water. If

necessary, clean the drain. If the drain is blocked, water will collect in

te bottom of the appliance.2 )

Installation

Important! For electrical connection carefully follow the instructions

given in specific paragraphs.

Unpack the appliance and check if there are damages on it. Do not

connect the appliance if it is damaged. Report possible damages

immediately to the place you bought it. In that case retain packing.

It is advisable to wait at least four hours before connecting the

appliance to allow the oil to flow back in the compressor.

Adequate air circulation should be around the appliance, lacking this

leads to overheating. To achieve sufficient ventilation follow the

instructions relevant to installation.

Wherever possible the spacers of the product should be against a

wall to avoid touching or catching warm parts (compressor, con-

denser) to prevent possible burn.

The appliance must not be located close to radiators or cookers.

Make sure that the mains plug is accessible after the installation of

the appliance.

Any electrical work required to do the servicing of the appliance

should be carried out by a qualified electrician or competent person.

This product must be serviced by an authorized Service Center, and

only genuine spare parts must be used.

Don’t put hot food in the appliance;

Don’t pack food close together as this prevents air circulating;

Make sure food don’t touch the back of the compartment(s);

!One-, two- and three -star compartments (if they are presented in the

appliance) are not suitable for the freezing of fresh food.

!If the appliance is left empty for long periods, switch off, defrost,

clean, dry and leave the door open to prevent mount developing

within the appliance.





Safety information

If electricity goes off, don’t open the door(s);

Don’t open the door(s) frequently;

Don’t keep the door(s) open for too long time;

Don’t set the thermostat on exceeding cold temperatures;

Some accessaries, such as drawers, can be removed to get larger

storage volume and lower energy consumption.

This appliance does not contain gasses which could damage the

ozone layer, in either its refrigerant circuit or insulation materials. The

appliance shall not be discarded together with the urban refuse and

rubbish. The insulation foam contains flammable gases: the appliance

shall be disposed according to the appliance regulations to obtain from

your local authorities. Avoid damaging the cooling unit, especially the

heat exchanger. The materials used on this appliance marked by the

symbol are recyclable.

The symbol on the product or on its packaging indicates that this

product may not be treated as household waste. Instead it

should be taken to the appropriate collection point for the

recycling of electrical and electronic equipment. By ensuring this

product is disposed of correctly, you will help prevent potential

negative consequences for the environment and human health, which

could otherwise be caused by inappropriate waste handling of this

product. For more detailed information about recycling of this product,

please contact your local council, your household waste disposal

service or the shop where you purchased the product.

Packaging materials

The materials with the symbol are recyclable. Dispose the packaging in

a suitable collection containers to recycle it.

Disposal of the appliance

1. Disconnect the mains plug from the mains socket.

2. Cut off the mains cable and discard it.

WARNING! During using, service and disposal the

appliance, please pay attention to symbol as left side,

which is located on rear of appliance (rear panel or compressor

.

It’s risk of fire warning symbol. There are flammable materials in

refrigerant pipes and compressor.

Please be far away fire source during using, service and

disposal.





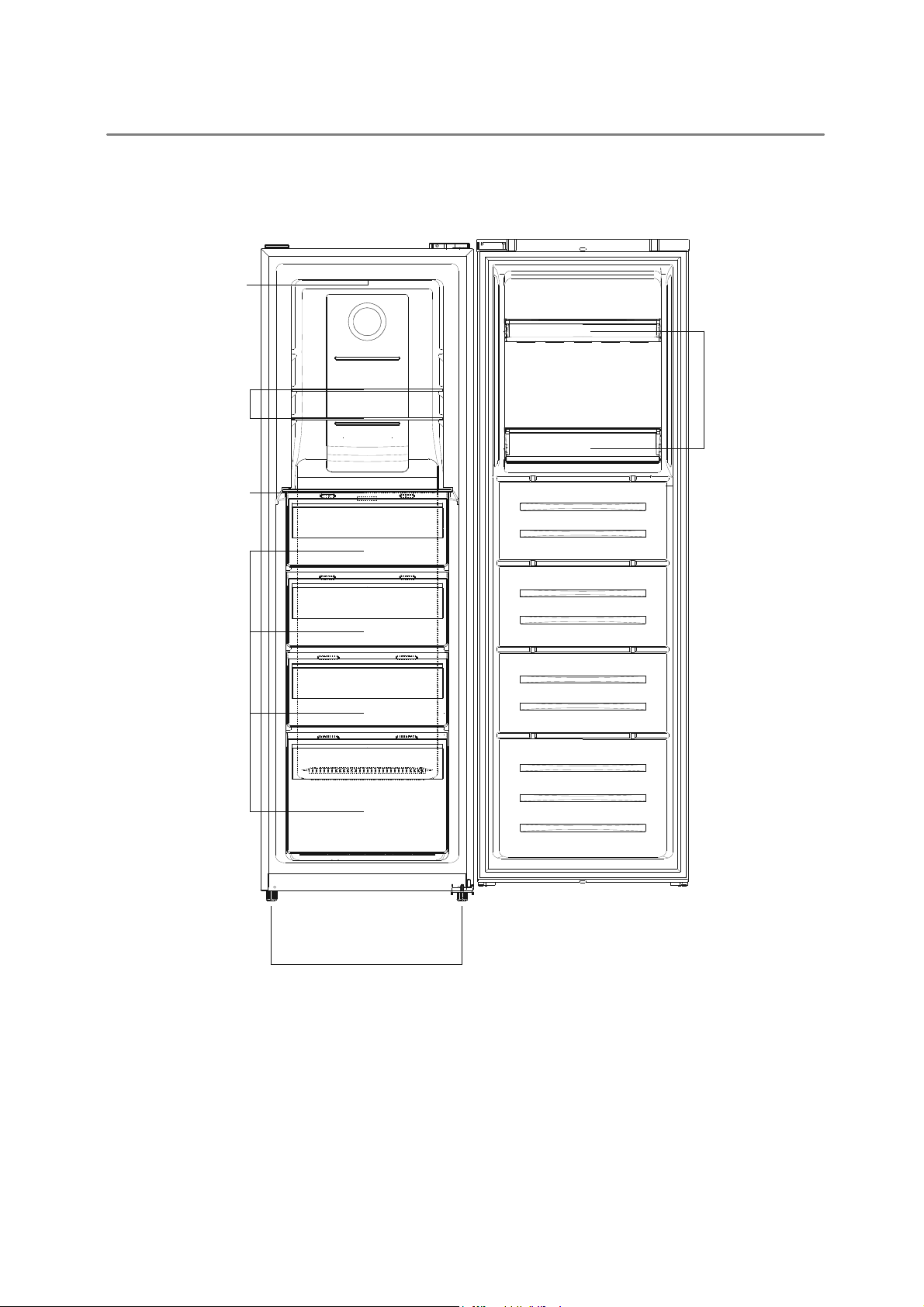

2YHUYLHZ

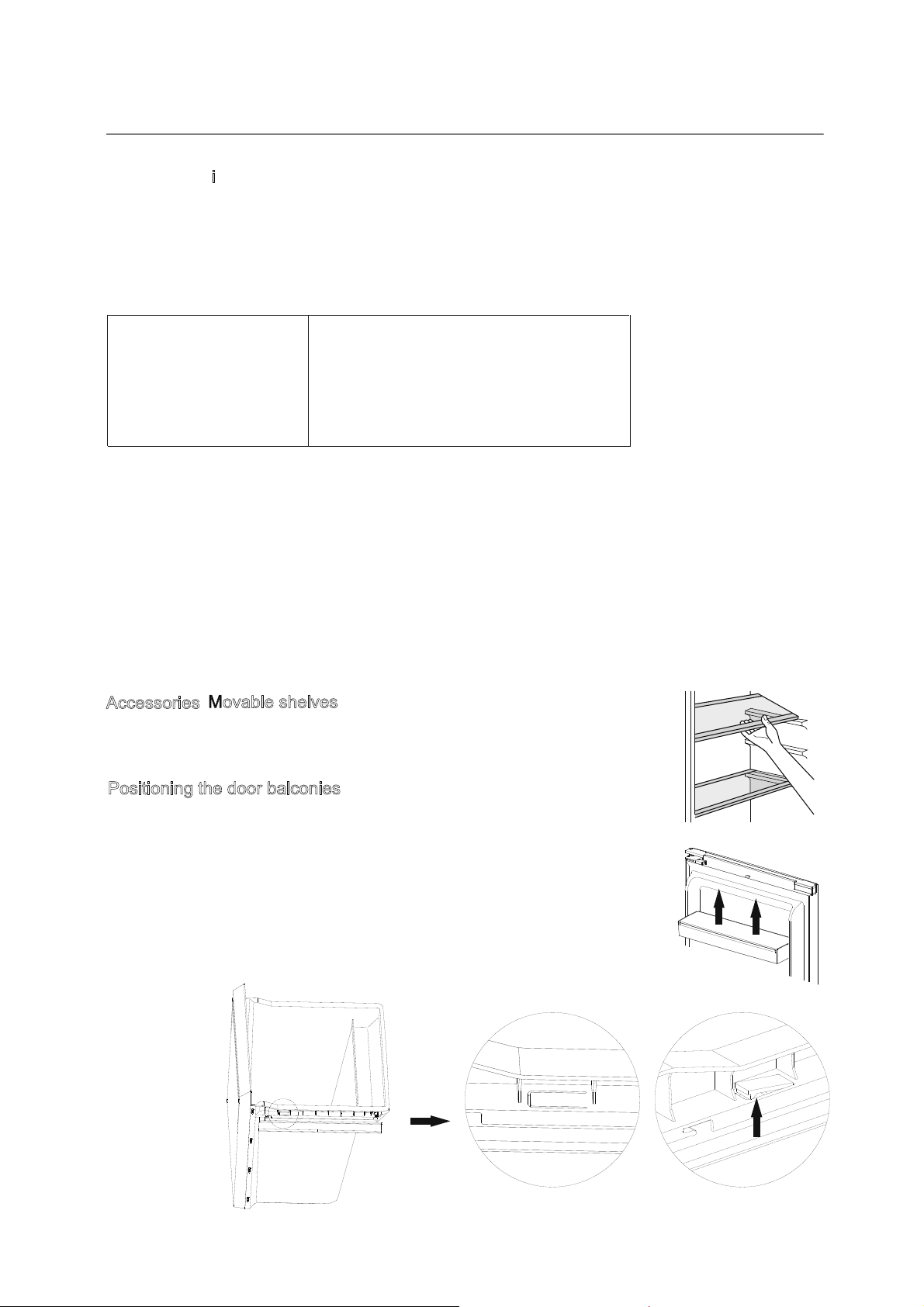

 Balconies CoverFreezer Drawers

Leveling Feet





,QVWDOODWLRQSpaceRequirement

!

! 

!

!

!



!It is advisable to keep at least 10mm gap at two sides.

Positioning





for refrigerating appliances with climate class:

- extended temperate: this refrigerating appliance is intended to be used at ambient

temperatures ranging from 10 °C to 32 °C;

- temperate: this refrigerating appliance is intended to be used at ambient

temperatures ranging from 16 °C to 32 °C;

- subtropical: this refrigerating appliance is intended to be used at ambient

temperatures ranging from 16 °C to 38 °C;

- tropical: this refrigerating appliance is intended to be used at ambient

temperatures ranging from 16 °C to 43 °C;

Warning! 

 















Electrical connection



 











Location



,QVWDOODWLRQDoor Reversibility





Easy andle ×1

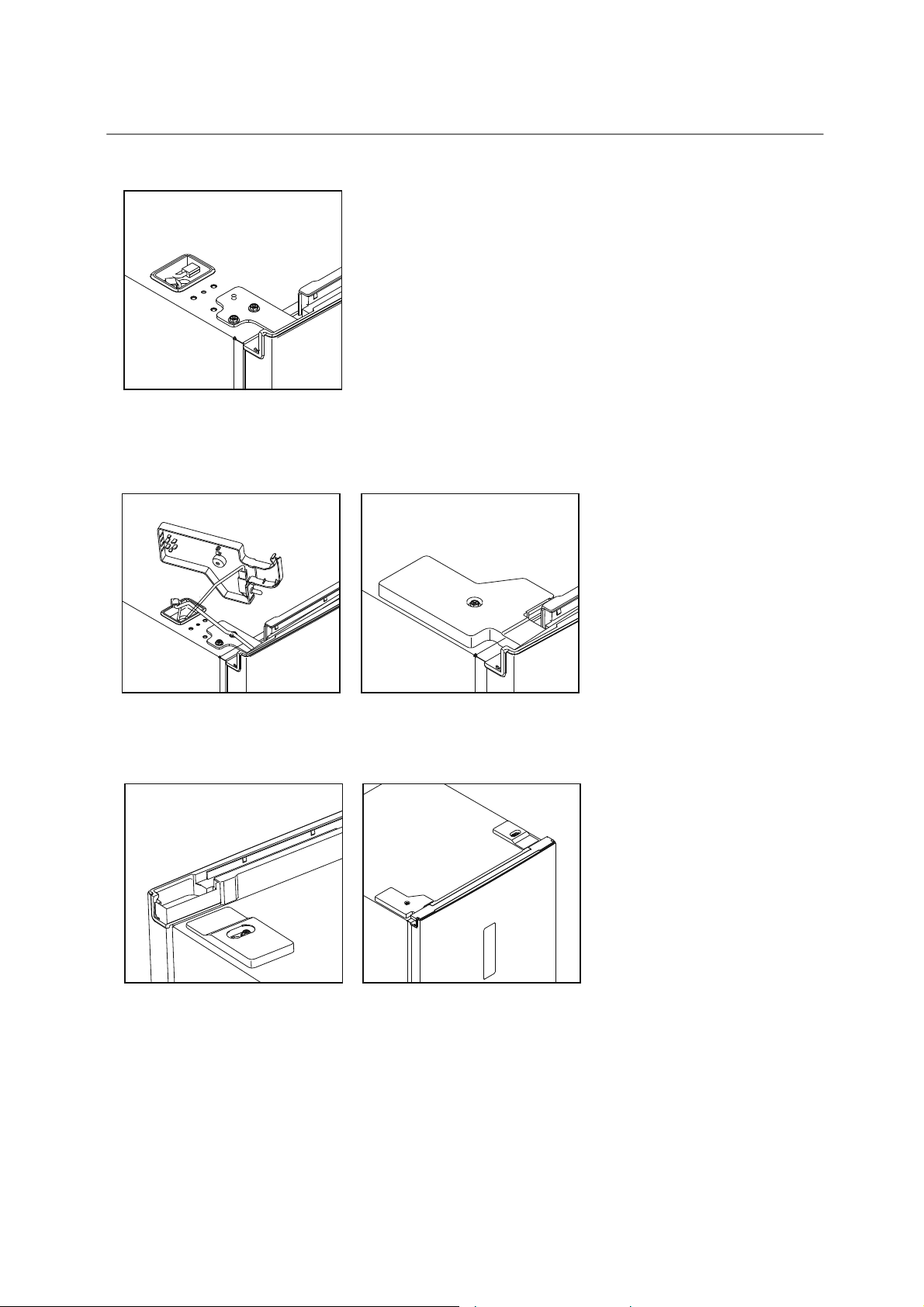

1.Remove upper wire box covers.

2.Unscrew right top hinge cover, and disconnect connectors of door switch and display.

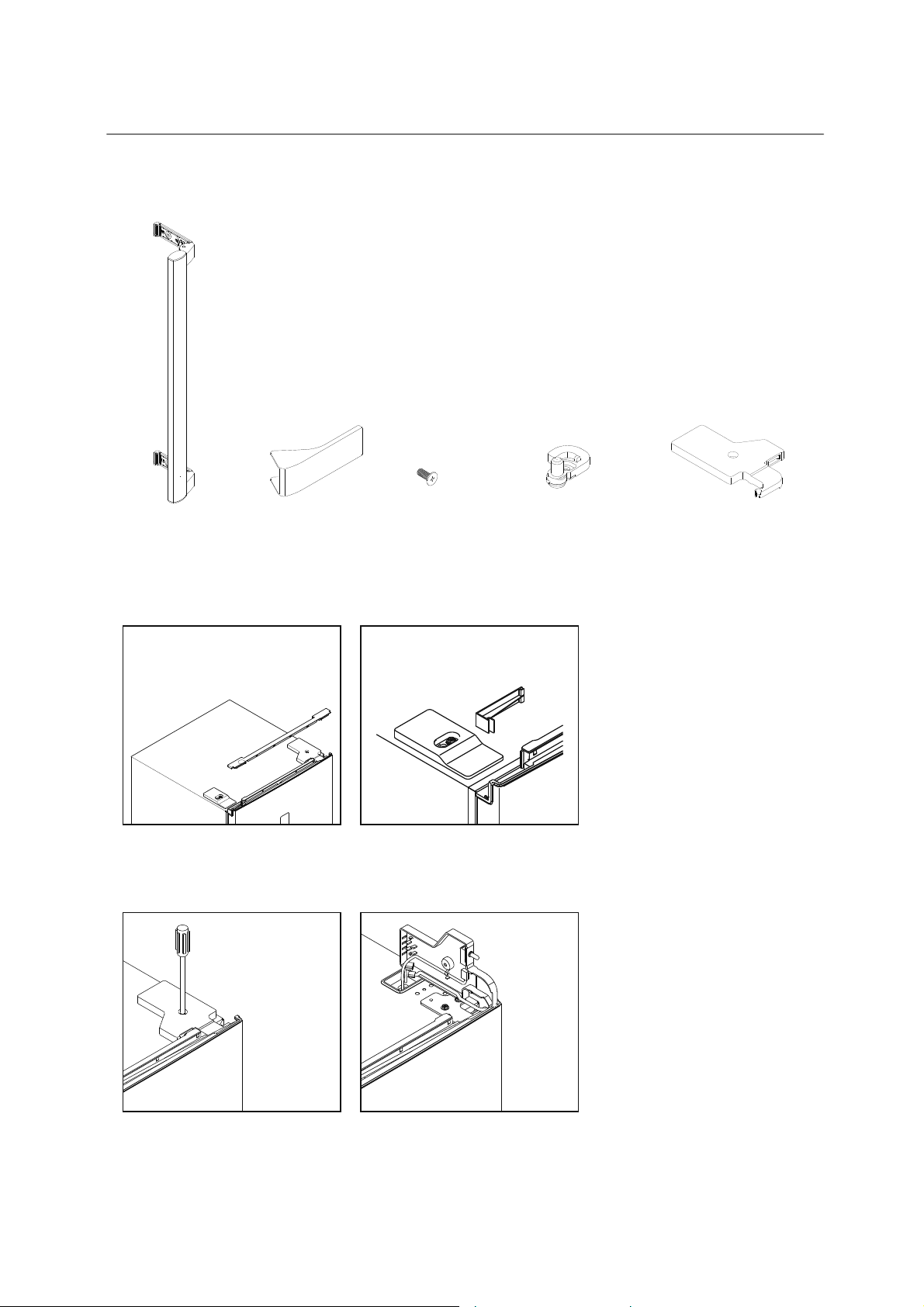

Handle Cover ×2 Screw ×2 Left Aid-Closer ×1 Left Top Hinge Cover ×1



3.Unscrew and remove the top hinge, and then remove the door.

4.Remove the right aid-closer, and 

5.

,QVWDOODWLRQ6.





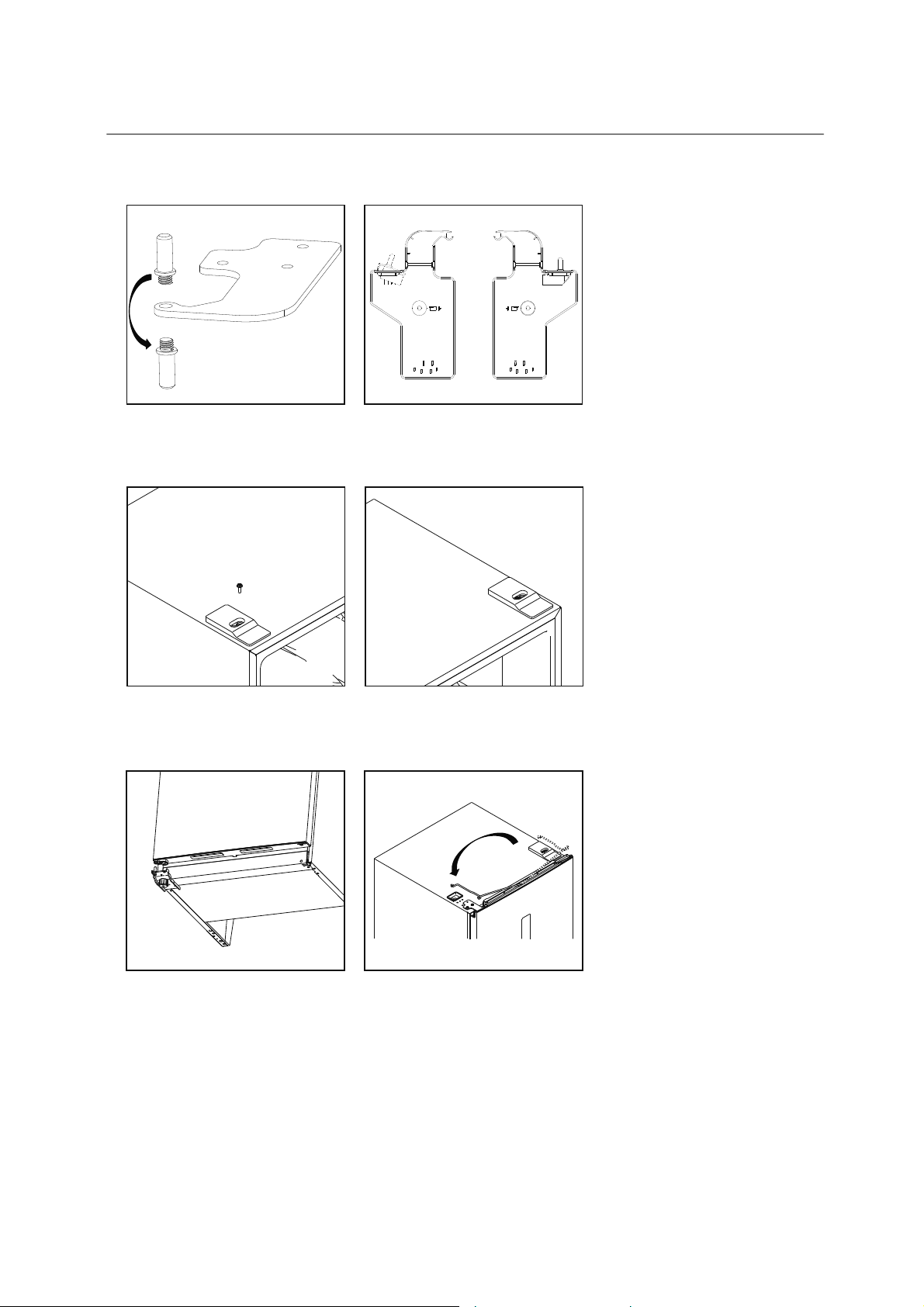

,QVWDOODWLRQ7.Unscrew and move the top hinge pin from bottom side to upper side.



8.Unscrew and move the top decorative cover on the left side, and install it on the right side.

9.



,QVWDOODWLRQ10.

11.

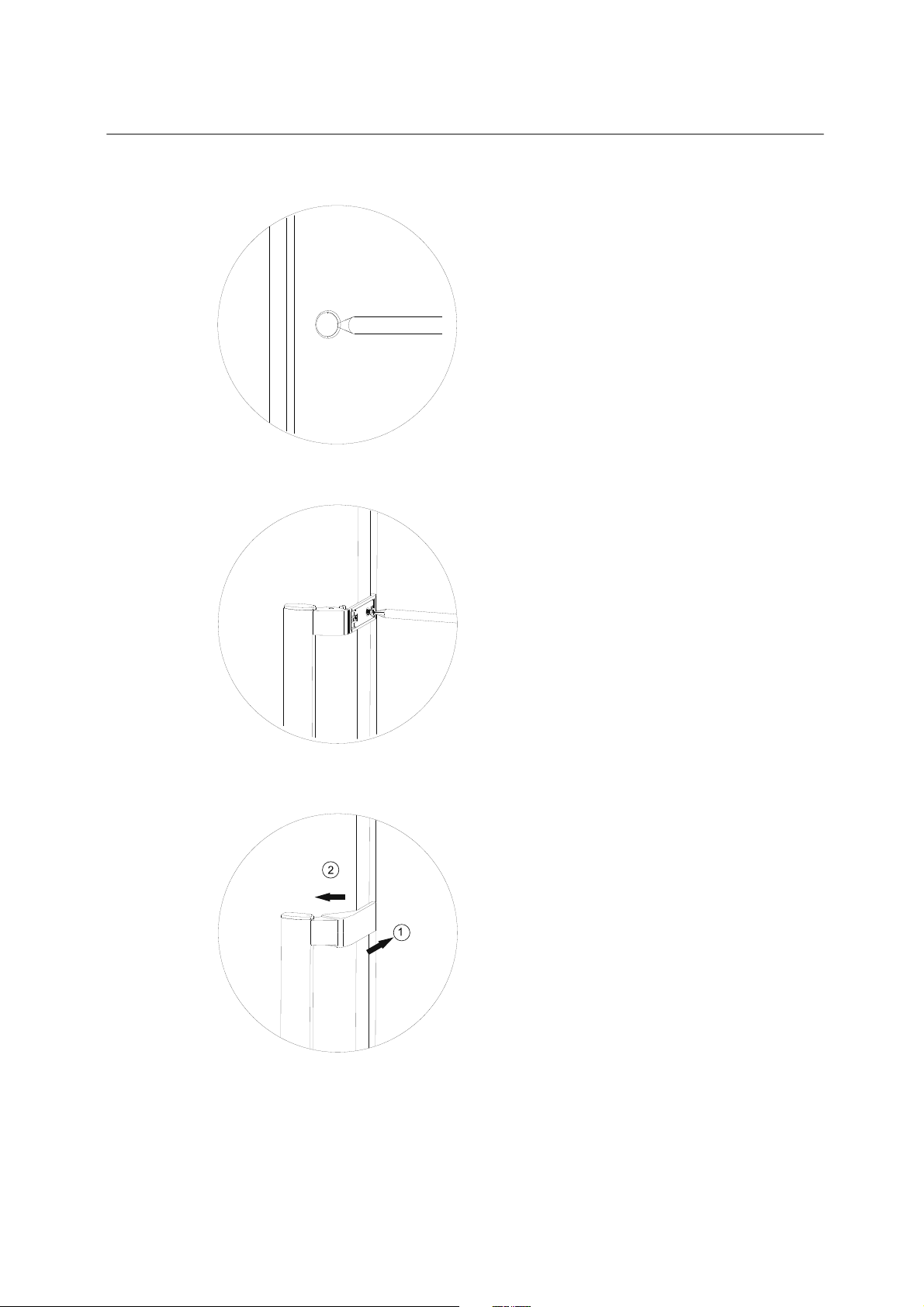

12.Install the upper wire box covers to the right side.



1.





step 

step 

,QVWDOODWLRQ,$+ &"!#/&%$/'(#&4/+)$(($)4"/

step 









/HYHOOLQJWKHXQLW,QVWDOODWLRQ6SDFH5HTXLUHPHQW 





595

660

1851

min=10

min=50

835

1323

115e

Lengthen Shorten



8VHULQWHUIDFHUsing the Control Panel

Using the Control Panel

1.0 User interface introduction

FREEZER: Temperature ontrol of the ppliance

67Display indow for reset emperature

All buttons are valid only in unlocking status.

Short beep after per touching of buttons

87Super ode con

97ECO ode con

:7Locking and nlocking con

SUPER: Select and eselect uper ode ontrol

ALARM/ECO: Clear oor pening larm, elect and eselect ECO Mode

LOCK: Locking and nlocking

8.0 Illustration of the buttons

1.2 LED Display

1.1 Operation Interface



8.1 FREEZER: )emperature ontrol of the ppliance vailable only for ser efined ode

Touching “FREEZER” button consecutively, the temperature will change in a circle from -14℃~-22℃,

stop touching and after 5 seconds flashing, temperature is set.

8.2 SUPER: elect and eselect uper ode

Press “SUPER” button to select super mode. After 5 seconds flashing of super mode icon,

super mode is selected.

When super mode is selected, super mode icon will light on, and display window will show -25℃.In super mode, touching “FREEZER” button, super mode icon will flash 3 times, freezer temperature

can not be changed.

To exit Super mode,

- Press “SUPER” button to deselect Super mode,

- Or after 50 hours of super mode without any operation, the refrigerator willautomatically stop it

and enter to previous setting.

;$-/4/<=

In super mode, noise of the appliance may be slightly higher than normal running.

8.3 ALARM/ECO:lear oor pening larm and igh emperature larm,

elect and eselect ECO ode

Short touching “ALARM/ECO” button to clear door opening alarm and high temperature alarm.

Touching “ALARM/ECO” button for 3 seconds to select ECO mode. After 5 seconds flashing of

ECO mode icon, ECO mode is selected.

When ECO mode is selected, ECO mode icon will light on, and display window will show different

preset temperatures, depending on the ambient temperature (Ta) of where the appliance placed,

as below.

In ECO mode, “.2,,>,2” button will not respond to any touching.

Touching “?@?2AB,CD” button for 3 seconds to deselect ECO mode.

Ambient

Temperature

(Ta)

Ta13ŭ 14ŭ᧸Ta20ŭ 21ŭ᧸Ta27ŭ 28ŭ᧸Ta34ŭ Ta᧺35

Preset

Temperature -18ć-18ć-18ć-16ć-15ć



8.4 LOCK: Locking and Unlocking

Touching “LOCK” button for 3 seconds to lock the control panel, then the locking and unlocking icon

will be .

In locking status, touch any button, the locking and unlocking icon will flash 3 times.

Touching “LOCK” button for 3 seconds to unlock the control panel, then the locking and unlocking icon

will be .

In unlocking status, all buttons are available.

If no operation in 25 seconds, the control panel will be locked automatically.

9.0 Door opening $larm

If the door keeps opening for 90 seconds, door opening alarm sounds.

:.0 High temperature alarm

Close the door to stop the door opening alarm.

Or short touching “ALARM/ECO” button to clear door opening alarm.

If high internal temperature of the appliance is detected, high temperature alarm will sound, "ht" and

detected temperature will display alternately on display window.

Short touching “ALARM/ECO” button to stop door opening alarm.

High temperature display will disappear automatically only if detected temperature goes back to normal.



'DLO\8VH'DLO\8VHFirst use







Important!

Daily use

Storing frozen food





Important! 





Thawing









2#+#">+####;,!?;,#;Disassemble the bottom drawer

1.Pull out the bottom drawer to stopper position.

2.Push up the elastic buckles on both sides of the bottom drawer.

3.Pull out the bottom drawer.
