Elba EUF-2217S User manual

Owner’s Manual
Please read this manual carefully before
opetating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the labei attached on the back cover
and quote this information to your dealer
when you require service.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate.

Guide to use the instruction book
Warnings
Tips and notes
Operating instructions
1
Operating Instructions
Dear customer,
To enable you to use your new freezer effectively and safely, please read this instruction book
carefully before you start the appliance, which contains important information for installation, safe
use and maintenance of this appliance. Please keep the book for future reference and remember
to pass it on to the new owner. The following symbol will be found in the book to guide you
through the instruction:
Warnings are stressed with a warning triangle or with signal words (Warning!, Important!), which
are provided in the interest of your safety. Ensure that you understand them all before installing
and using this appliance.
Tips and notes will inform you with necessary knowledge of how to use the appliance economically
and environmentally.
Operating instructions presented in the section of “Trouble shooting” contain instructions for
correction of possible malfunctions by users. If these instructions are not sufficient, contact your
supplier.

2
INDEX
Important safety instructions
Installation Instructions
.....................................
............................................
...........................................
..................................................
...............................................
...............................................
3
5
7
10
12
14
Using Your Appliance
Hints and Tips
Troubleshooting
...................................
6
Description of the Appliance
...........................................8
Thermostat Control
..
.
..
.
..

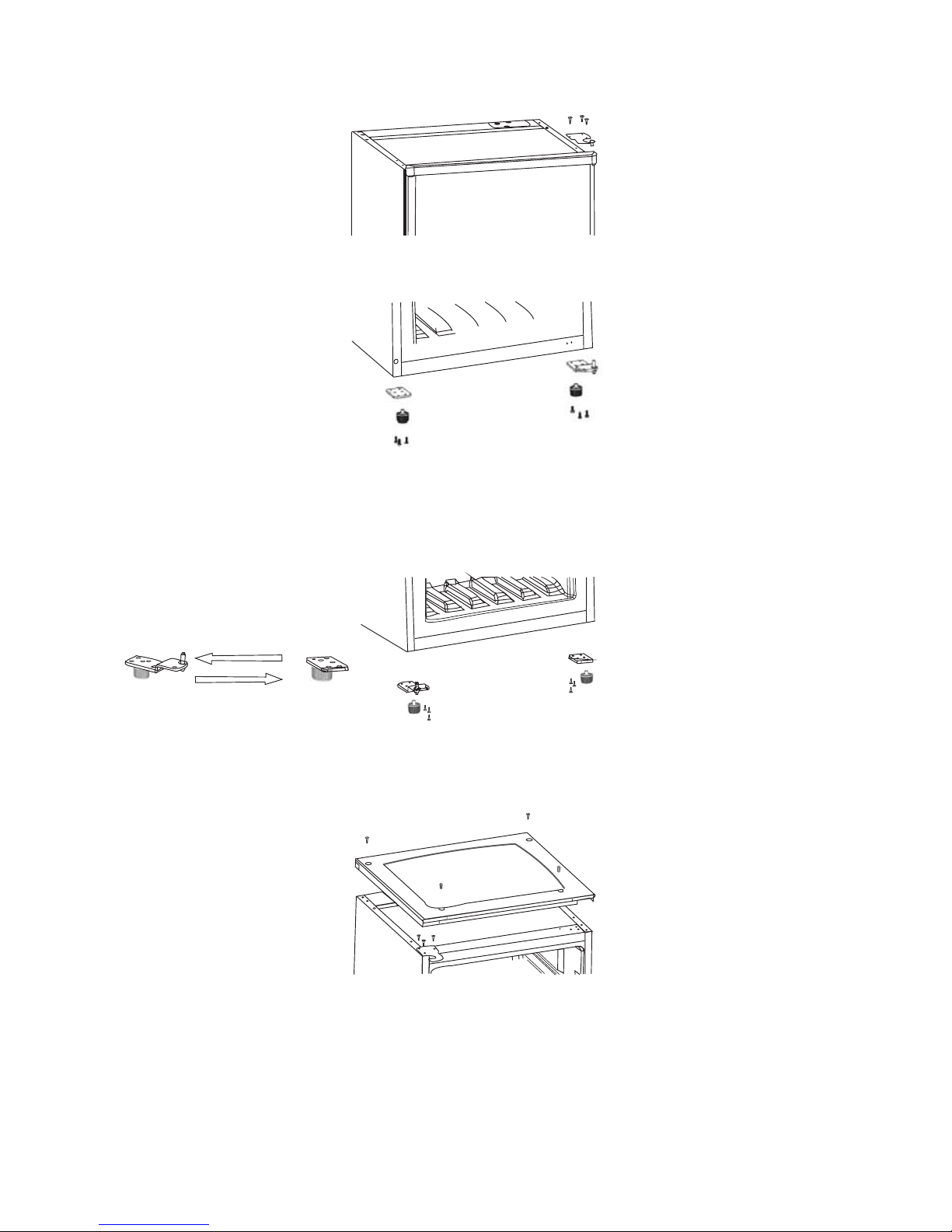

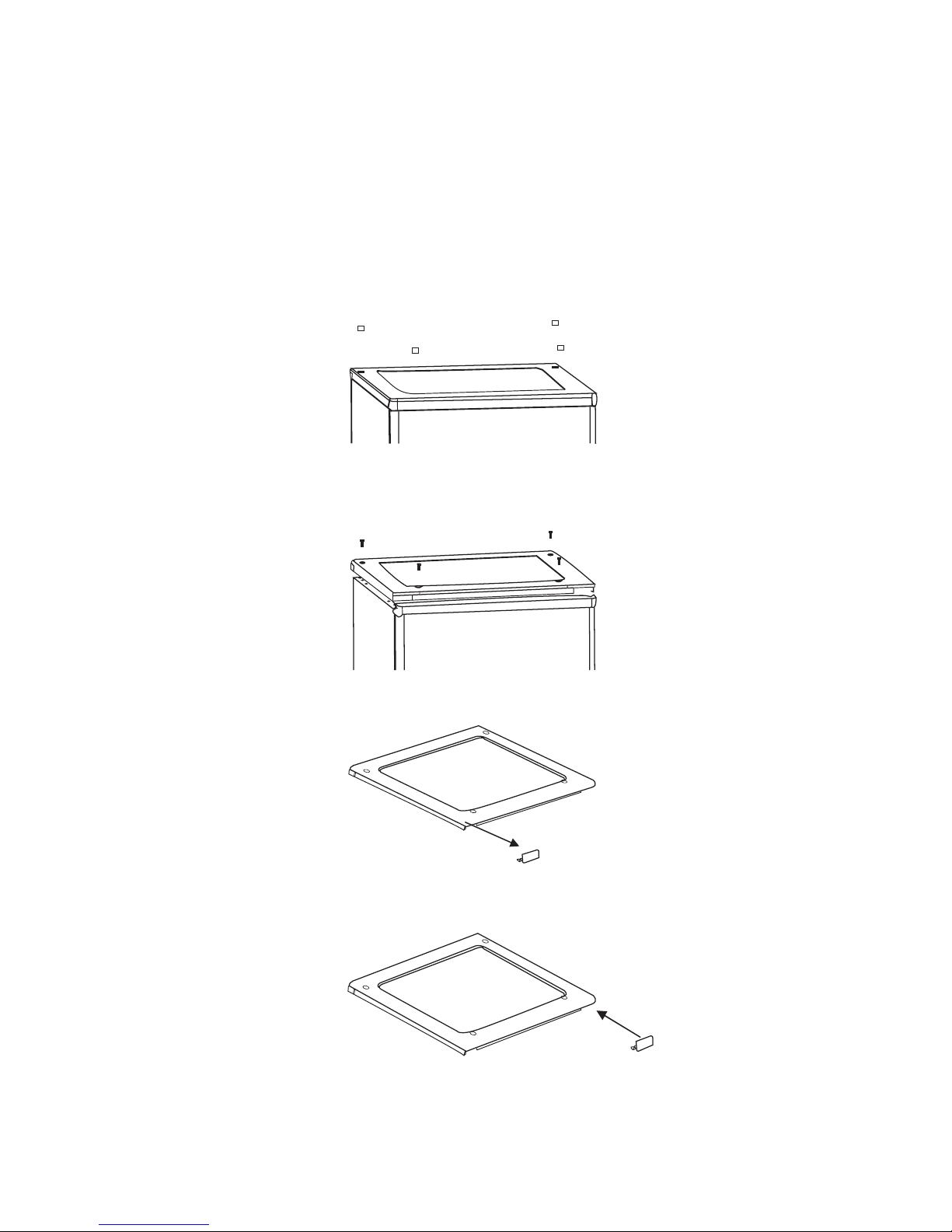

Reversing the door

3
Important safety instructions
These warnings are provided in the interests of your safety. Ensure that you understand them all
before installing or using this appliance.Your safety is of paramount importance. If you are unsure
about the meanings of these warnings, contact the Customer Care Department for assistance.
Intended to use
The refrigerator is intended for use in the home.It is suitable for the storage of food at low
temperature. If the appliance is used for purposes other than those intended or used incorrectly,
no liability can be accepted by the manufacturer for any damage that may be caused.
Alterations or changes to the freezer are not permitted for reasons of safety.
If you use the in a commercial application or for purposes other than the cooling of
foods, the manufacturer accepts no liability for any damages that may occur.
Prior to initial start-up
Check the appliance for transport damage.Under no circumstances should a damaged appliance
be plugged in. In the event of damage, please contact your supplier.
freezer
Caution: risk of fire
If the refrigerant circuit should become damaged:
Avoid open flames and sources of ignition.
Thoroughly ventilate the room in which the appliance is situated.
The instructions shall include the warnings:
WARNING!—Keep ventilation openings, in the appliance enclosure or in the built-in structure,clear
of obstruction.
WARNING!—Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
WARNING!—Do not damage the freezer circuit.
Refrigerant
The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance,a
natural gas with a high level of environmental compatibility, which is nevertheless flammable.
During transportation and installation of the appliance, ensure that none of the components of
the refrigerant circuit becomes damaged.
The refrigerant (R600a) is flammable.
WARNING!—Do not use electrical appliances inside the food storage compartments of the
recommended by the manufacturer.

4
Safety for children
Packaging (e.g. wraps, polystyrene) can be dangerous for children. There is a risk of suffocation!
Keep packaging material away from children! Make old appliances unusable prior to disposal.Pull
out the mains plug, cut off the mains cable, break or remove spring or bolt catches, if fitted. By
doing this you ensure that children cannot lock themselves in the appliance when playing (there is
risk of suffocation!) or get themselves into other dangerous situations. Often children cannot
recognize the hazards present in household appliances. It is therefore important that you ensure
adequate supervision and never let children play with the appliance!
Daily operation
Containers with flammable gases or liquids can leak at low temperatures.There is a risk of an
explosion! Do not store any containers with flammable materials such as spray cans,fire extinguisher
refill cartridges etc in the refrigerator and/or freezer.
Do not operate any electrical appliances in the refrigerator and/or freezer (e.g. electric ice cream
makers, mixers etc.).
Before cleaning the appliance,always switch off the appliance and unplug it,or pull the house fuse
or switch off the circuit breaker.
When unplugging always pull the plug from the mains socket, do not pull on the cable.
In case of malfunction
If a malfunction occurs on the appliance,please look first in the “Troubleshooting”section of these
instructions.If the information given there does not help, please do not perform any further repairs
yourself.
WARNING!—This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the appliance by a person responsible for
their safety
WARNING!—Young children should be supervised to ensure that they do not play with the appl-
iance
WARNING!—If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
WARNING!—The appliance is only applied with power supply of single phase alternating current of
220~240V/50Hz.If fluctuation of voltage in the district of user is so large that the voltage exceeds
the above scope, for safety sake, be sure to apply A.C.The must employ a special power
socket instead of common one with other electric appliances. Its plug must match the socket with
ground wire.
appliance

5
Remove transport packaging
The appliance and the interior fittings are protected for transportation. Pull off the adhesive tape
on the left and right side of the door. You can remove any remnants of adhesive using white spirit.
Remove all adhesive tape and packing pieces from the interior of the appliance.
Installation Instructions
Installation Location
Before installing, carefully read the instruction in order to avoid a certain number of problems.
Positioning
Position the appliance away from sources of heat such as stoves, radiators, direct sunlight etc.
Maximum performance and safety are guaranteed by maintaining the correct indoor temperature
for the class of unit concerned, as specified on the rating plate. The appliance may not work
properly if it is left for a longer period at a temperature above or below the indicated range.
IMPORTANT! -There is a need of good ventilation around the fridge for easy dissipation of heat,
high efficiency of freezer and low power consumption. For this purpose, sufficient clear
space should be available around the freezer. It is advisable for there to be 75mm separating
the back of the freezer to the wall, at least 100mm of space at its two sides, height of over 100mm
from its top and a clear space upfront to allow the doors to open 160°.
Appliances must not be exposed to rain. Sufficient air must be allowed to circulate in the lower
rear section of appliances, as poor air circulation can affect performance. Built-in appliances
should be positioned away from heat sources such as heaters and direct sunlight.
Under no circumstance should you attempt to repair the appliance yourself.Repairs carried out by
inexperienced persons may cause injury or serious malfunctioning.Contact your local service center.
Climate class Ambient temperature
SN to
10 C
+32 C +
N
ST
T
to
16 C
+32 C +
to
16 C
+38 C +
to
16 C
+43 C +
Leveling
The appliance should be level in order to eliminate rocking. To make the appliance level, it should

6
The supply cord
Care must be taken to ensure that the appliance does not stand on the electrical supply cable.
if the supply cord is damaged, it must be replaced by a special cord or assembly available from
the manufacturer or its service agent.
Description of the Appliance
View of the appliance
1. Control panel
2. Flap
3. Drawers
4. Ice tray (inside)
5. Lower drawer
6. Caster
7. Door
Note:
Due to unceasing modification of our products your refrigerator may be slightly different from this
Instruction Manual, but its functions and using methods remain the same.
IMPORTANT! – in order to make the most of the volume of the fresh food storage compartment
and frozen-food storage compartment, the user can removed one or more shelves, drawers, out
of the appliance, according to your daily use.
Freezer chamber
It is for freezing and storing frozen foods and making ice cream, etc.
be upright and both adjusters should be firmly contacted with the floor. You can also adjust the
level by screwing out the appropriate level adjuster at the front (use your fingers or a suitable
spanner), but much care should be taken when moving this appliance since it should be heavy.
1
2
3
4
5
6
7

7
Notes: Technical information
Because it takes a long time to make ice tubes, you can not hold the ice tray directly
when take out the ice cubes to avoid the ice tray sticking and hurting your hands.
Drawers in freezer
It is for freezing or storing foods. You must cut the big meat into small pieces to avoid hard
cutting when cook. The quick-freeze foods must be evenly placed in drawer, and put them
together to store after freezing.
Using Your Appliance
This appliance is designed for domestic use only, specifically for the storage of edible foods. And
it is designed to operate in ambient temperatures (surrounding air temperature) between 16℃and
38℃.If the temperature exceeds that designed, either colder or warmer, the appliance will not
work effectively and correctly. Should the ambient temperature be exceeded for long period, the
temperature in the freezer will rise above -18℃and food spoilage may occur.
Before use
Remove all securing tapes. Wash the inside of the appliance with lukewarm water added with a
little bicarbonate of soda (5ml to 0.5 liter of water). Do not use soap or detergent since the smell
may linger. After cleaning, dry the appliance thoroughly.
To start the appliance
Operating instructions
1.Allow the appliance to stand for 2 hours after installation.
2.Plug in the appliance and turn on the power.
3.Turn the thermostat control to the required setting. A midway setting is usually suitable for
normal operation.
4.Leave the appliance for approximately 4 hours to reach the correct temperature before placing
food inside.
Ice tray
It is for making ice, pour cool boiled water into ice tray up to 4/5 of its volume, place it in freezer
room for 2 hours and the ice can be made automatically. When you want to take ice tubes,
please twist the ice tray slightly, and the ice tubes are separated form the ice tray. But do not
bend it, otherwise it will crack.

8
Normal
Min Max
Thermostat control
The thermostat control situated in the control panel regulates the temperature of the freezer
compartment.
Position“MIN”–Cold.
Position“NORMAL”–Colder normally, setting at this position.
Position“MAX”–Coldest.
The temperature will be affected by:
Room temperature
How often the door is opened
How much food is stored
Position of the appliance
In determining the correct temperature control setting, all these factors have to be considered
and some experimentation may be necessary. Do not allow children to tamper with the controls
or play with the product.
The freezer compartment
The symbol means that your freezer will store frozen food at -18 ℃( F) or colder allow-
ing for long term frozen-food storage and freezing of fresh food. The freezer temperature is cont-
rolled automatically by the thermostat situated in the control panel. Due to the different installati-
ons, methods of usage and weather conditions, adjustments to the temperature settings may be
required.
These are best assessed against a temperature reading on a thermometer buried in the frozen
food. The reading must be taken quickly as the thermometer temperature will rise rapidly after
removal.
-4
Important!
Normally we advise you select setting of “Normal”, if you want the temperature warmer or colder
please turn the knob to lower or higher setting accordingly.
When you turn the knob to a colder setting which can lead to the more energy efficiency.
Otherwise, it would result the energy-consuming.
Important!
High ambient temperatures (e.g. on hot summer days) and a cold setting on the temperature
regulator (position “MAX”) can cause the compressor to run continuously or even non-stop.
Reason:when the ambient temperature is high,the compressor must run continuously to maintain
the low temperature in the appliance.

9
Place the fresh food in the top freezer drawer. Food may need rearranging to achieve this. During
the freezing process the temperature of fresh food should be reduced quickly so that ice crystals
are kept as small as possible to avoid damaging the structure of food. If freezing takes place slowly
large ice crystals form and these will affect the quality of food once it has defrosted.Existing frozen
food should be rearranged to leave space in the top two drawers for freezing. The packets to be
frozen should be placed in the drawer in contact with the drawer surface as far as possible and
spaced apart to allow cold air to circulate between them. They should not touch existing packets.
If there is enough room, transfer the food you have frozen to the baskets or drawers to allow you
to freeze a further load in the top drawer. Exceptionally large items can be stored by removing the
drawer. Frozen food should not be refrozen once it has thawed out. Do not remove items from the
freezer if your hands are damp/wet, as this could cause skin abrasions or “frost/freezer burns”.
For safety reasons, the freezer drawer are fitted with stops but are readily removed by pulling them
forward to the stop, then lifting the front and pulling all the way out. Refit by reversing this procedure.
Freezing fresh food
Frozen food storage
Pre-packed commercially frozen food should be stored in accordance with the manufacturer's
instructions for a 4 star frozen food compartment and should be put in the freezer as soon as
possible after purchase. Your freezer provides for long term storage which generally means up to
3 months but the length of the time can vary and it is important to follow the recommended times
shown on packets of commercially frozen food. Do not place sealed containers or carbonated
liquids such as fizzy drinks into the freezer as it creates pressure on the container which may
cause it to explode leading to damage to the freezer. Ice cubes and ice lollies should not be
consumed immediately after removal from the freezer as it may result in low temperature skin
abrasions.
