Electra DNG 100 User manual

DC Inverter 10.0 / 12.5 / 14.0 kW
NOVEMBER  2008
Outdoor Units Indoor Units
OU12 4HP DCI DNG 100
EMD 100
OU12 5HP DCI DNG 125
EMD 125
OU12 6HP DCI CD 140
REFRIGERANT R410A
HEAT PUMP
SM OU12HP 2-E.2GB
CONTENTS

A
LIST OF EFFECTIVE PAGES
SM OU12HP 2-E.2 GB
LIST OF EFFECTIVE PAGES
Note: Changes in the pages are indicated by a “Revision#” in the footer of each effected page
(when none indicates no changes in the relevant page). All pages in the following list represent
effected/ non effected pages divided by chapters.
Dates of issue for original and changed pages are:
Original ....... 0 ........ February 2007
Total number of pages in this publication is 215 consisting of the following:
Page
No.
Revision
No. #
Page
No.
Revision
No. #
Page
No.
Revision
No. #
Title .......................2
A ...........................2
i.............................2
1-1 - 1-3 ................2
2-1 - 2-5 ................2
3-1 ........................2
4-1 - 4-3 ................2
5-1 - 5-23 ..............2
6-1 - 6-3 ................2
7-1 - 7-4 ................2
8-1 ........................2
9-1 - 9-6 ................2
10-1 ......................2
11-1.......................2
12-1-12-26 ............2
13-1-13-23 ............2
14-1-14-20 ............2
15-1-15-18 ............2
16-1-16-6 ..............2
17-1-17-68 ............2
Zero in this column indicates an original page.
*Due to constant improvements please note that the data on this service manual can be modified with out notice.
** Photos are not contractual.
CONTENTS

i
TABLE OF CONTENTS
SM OU12HP 2-E.2 GB
Table of Contents
1. INTRODUCTION ...................................................................................................1-1
2. PRODUCT DATA SHEET......................................................................................2-1
3. RATING CONDITIONS..........................................................................................3-1
4. OUTLINE DIMENSIONS .......................................................................................4-1
5. PERFORMANCE DATA & PRESSURE CURVES ................................................5-1
6. AIRFLOW CURVES ..............................................................................................6-1
7. SOUND LEVEL CHARACTERISTICS ..................................................................7-1
8. ELECTRICAL DATA..............................................................................................8-1
9. WIRING DIAGRAMS .............................................................................................9-1
10. REFRIGERATION DIAGRAMS.............................................................................10-1
11. TUBING CONNECTIONS......................................................................................11-1
12. CONTROL SYSTEM .............................................................................................12-1
13. TROUBLESHOOTING ..........................................................................................13-1
14. SERVICING ...........................................................................................................14-1
15. EXPLODED VIEWS AND SPARE PARTS LISTS.................................................15-1
16. OPTIONAL ACCESSORIES .................................................................................16-1
17. APPENDIX A .........................................................................................................17-1

1-1
INTRODUCTION
SM OU12HP 2-E.2 GB
1. INTRODUCTION
1.1 General
The new 4-5-6HP DC INVERTER ducted split unit range comprises the following RC
(heat pump) models:
• DNG 100
• DNG 125
• EMD 100
• EMD 125
• CD 140
Remote control compatibility
The units are compatible with remote controls RC3, RC4, RCW1, RCW2, RC7.
Inverter description
Unlike standard units (fix RPM) that are selected according to their nominal capacity to
overcome the maximum required load, DC Inverter units can be selected to a smaller
nominal capacity range unit.
It made possible due to the ability of inverters to reach a much higher capacity level
(indicated as Maximum Capacity) which is around 115-130% of the nominal capacity.
1.2 Main Features
High Technology
•Sine wave DC Compressor drive.
•DC-BL-SL (DC Brush-Less Sensor less) Inverter Compressor.
•DC-BL Inverter Outdoor Fan.
•Fuzzy Logic Adaptive Control.
System Features
•Variable cooling and heating capacity from 30% to 115% (of rated capacity).
•High COP “A-B” class energy rating (Most units).
•Low noise levels.
•Pre-charged system up to 30m.
•Tubing up to 70m length / 30m height difference.
•Networking connectivity.
•Current limitation setting for circuit breaker size reduction (if required).
•Dry contact inputs:
Standby.
Night mode (for silent operation in cooling).
 Power Shedding (to control maximum power consumption).
•Dry contact output:
Alarm
 Base Heater
Crank Case Heater
CONTENTS

1-2
INTRODUCTION
SM OU12HP 2-E.2 GB
•HMI Display consists of 7-segments shows system diagnostics and setup.
•Monitoring software (PC port for high level service).
•Cooling operation at outdoor temperature down to -10°C.
•Heating operation at outdoor temperature down to -15°C.
•Up to 100Pa (4-5HP) and 200Pa (6HP) External static pressure.
1.3 Indoor Unit
The DNG DCI indoor unit is a low silhouette ducted unit, and can be easily fitted to many
type of residential and commercials applications.
•Low silhouette units 300 mm height.
•High technology plastic fan and fan housing.
•Drain pool at bottom of unit with internal downward slope.
•Over-flow switch, stops compressor operation in case of a blocked drainage.
•Bended coil hydrophilic coated aluminum fins.
•3-speed fan motor and an extra speed in case a higher external static pressure re-
quired.
•Tubing connections at the back of the unit to allow easy outlet to both sides of the
unit.
•Easy installation and service access.
•Infrared remote control with liquid display unit (LCD).
•Field options:
(1) External water pump.
(2) Airconet connection.
(3) Plenum kit for connection of flexible duct hoses at air outlet.
1.4 Filtration
•The unit is equipped with pre filters.
•Easy and versatile access, rear or bottom, can be easily adjusted by the installer.
1.5 Control
The micro processor indoor controller, and an infrared remote control, supplied as
standard, provides complete operating function and programming.
For further details, please refer to the Operation Manual, Appendix A.
1.6 Outdoor Unit
The DCI outdoor units can be installed as floor or wall mounted units by using a wall-
supporting bracket. The metal sheets are protected by anti- corrosion paint work allowing
long life resistance. All outdoor units are pre-charged. For further information, please
refer to the Product Data Sheet, Chapter 2.
•Compressor mounted in a soundproofed compartment.
•Improved 3-blades axial fans for noise reduction.
•Outdoor coil with hydrophilic fins optimized for operation with R410A refrigerant.
CONTENTS

1-3
INTRODUCTION
SM OU12HP 2-E.2 GB
•Fan grill air outlet.
•Service valves” flare” type connection.
•Service ports for high/ low pressure measurement.
•Interconnecting wiring terminal blocks.
1.7 Tubing Connections
Flare type-interconnecting tubing to be produced on site.
Units can be installed with 70-meter pipe length and 30 meter height difference without
oil traps.
For further details, please refer to the Installation Manual, Chapter 17.
1.8 Accessories
No. Item
1. RCW Wall Mounted Remote Control
2. RCW2 (BMS) Wall Mounted Remote Control
3. Base Heater
4. Crank case Heater
5. Room thermostat
For further details, please refer the Optional Accessories, Chapter 16.
1.9 Inbox Documentation
Each unit includes its own installation and operation manuals.
1.10 Matching Table
1.10.1 R410A
OUTDOOR
UNITS
INDOOR UNITS
MODEL DNG 100
DCI
DNG 125
DCI
EMD 100
DCI
EMD 125
DCI CD140 DCI
DCI 4HP 
DCI 5HP 
DCI 6HP 
CONTENTS

2-1
PRODUCT DATA SHEET
SM OU12HP 2-E.2 GB
2. PRODUCT DATA SHEET
2.1 DNG 100 DCI / OU12 4HP DCI
Model Indoor Unit DNG 100 DCI
Model Outdoor Unit OU12 4HP DCI
Installation Method DUCTED
Characteristics Units Cooling Heating
Capacity - Nominal (Minimum ~ Maximum) (1) Btu/hr 34100(10900÷39200) 38200(9200 ÷ 42650)
kW 10.0(3.8 ÷ 11.5) 11.2(2.6 ÷ 12.5)
Power input - Nominal (Minimum ~ Maximum)(1) kW 3.125(1.400 ÷ 4.400) 3.390(1.000 ÷ 4.450)
EER (Cooling) or COP(Heating) (1) W/W 3.2 3.3
Energy Efficiency Class “A” “C”
Power supply V/Ph/Hz 230 / 1 / 50
Rated current (Nominal) A 14.0 15.2
Starting current A 10
Circuit breaker rating A 25
INDOOR
Fan type & quantity Centrifugal x 1
Fan speeds H/M/L RPM 890 / 800 / 670
Air flow (2) H/M/L m3/hr 2170 / 1880 / 1440
External static pressure Min-Max Pa 20 -100
Sound power level (3) H/M/L dB(A) 71 / 67 / 62
Sound pressure level (4) H/M/L dB(A) 52 / 49 / 47
Moisture removal (Nominal) l/hr 3.3
Condensate drain tube I.D mm 19
Dimensions WxHxD mm 854/297/816
Weight kg 33
Package dimensions WxHxD mm 1010/342/917
Packaged weight kg 38
Units per pallet units 6
Stacking height units 6
OUTDOOR
Refrigerant control Electronic Expansion Valve
Compressor type, model Scroll
Motor type DCBL Inverter
Fan type & quantity Axial 2 x 493 Ømm
Fan speeds H/L RPM 900 – 100 (Continuous)
Airflow Max m3/hr 5.200
Sound power level(3) Nom C/H dB(A) 67 / 69
Sound pressure level(4) Nom C/H dB(A) 56 / 57
Dimensions WxHxD mm 900 / 1255 / 340
Weight kg 110
Package dimensions WxHxD mm 985 / 1395 / 435
Packaged weight kg 120
Units per pallet Units 1
Stacking height units 1
Refrigerant type R410A
Refrigerant charge(standard connecting tubing
length) Kg(m) 2.9 / 30
Additional charge per 1 meter g/m 38
Connections between
units
Liquid line In.(mm) 3/8" (9.52)
Suction line In.(mm) 5/8" (15.875)
Max.Tubing Length m. 70
Max.Height Difference m. 30
Operation control type LCD Remote control
Heating elements kW —
Others
(1) Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units).
(2) Airflow in ducted units; at nominal external static pressure.
(3) Sound power in ducted units is measured at air discharge.
(4) Sound pressure level measured at 1.0 meter distance from unit.
CONTENTS

2-2
PRODUCT DATA SHEET
SM OU12HP 2-E.2 GB
2.2 DNG 125 DCI / OU12 5HP DCI
Model Indoor Unit DNG 125 DCI
Model Outdoor Unit OU12 5HP DCI
Installation Method Ducted
Characteristics Units Cooling Heating
Capacity - Nominal (Minimum ~ Maximum) (1) Btu/hr 42650(16050÷47750) 47750(15000÷54600)
kW 12.5 (4.7 ÷ 14.0) 14.0 (4.4 ÷ 16.0)
Power input - Nominal (Minimum ~ Maximum) (1) kW 4.170 (1.500 ÷ 5.700) 4.300 (1.100 ÷ 5.500)
EER (Cooling) or COP(Heating) (1) W/W 3.0 3.25
Energy efficiency class “B” “C”
Power supply V/Ph/Hz 230 / 1 / 50
Rated current (Nominal) A 19.7 19.0
Starting current A 10
Circuit breaker rating A 32
INDOOR
Fan type & quantity Centrifugal x 1
Fan speeds H/M/L RPM 935 / 855 / 760
Air flow (2) H/M/L m3/hr 2160 / 1950 / 1620
External static pressure Min-Max Pa 30-100
Sound power level (3) H/M/L dB(A) 71 / 67 / 62
Sound pressure level (4) H/M/L dB(A) 52 / 49 / 47
Moisture removal (Nominal) l/hr 4.6
Condensate drain tube I.D mm 19
Dimensions WxHxD mm 854 / 297 / 816
Weight kg 33
Package dimensions WxHxD mm 1010 / 342 / 917
Packaged weight kg 38
Units per pallet units 6
Stacking height units 6
OUTDOOR
Refrigerant control Electronic Expansion Valve
Compressor type, model Scroll
Motor type DCBL Inverter
Fan type & quantity Axial 2 x 493 Ømm
Fan speeds H/L RPM 900 – 100 (Continuous)
Air flow H/L m3/hr 5,700
Sound power level(3) Nom C/H dB(A) 69 / 70
Sound pressure level(4) Nom C/H dB(A) 56 / 58
Dimensions WxHxD mm 900 / 1255 / 340
Weight kg 110
Package dimensions WxHxD mm 985 / 1395 / 435
Packaged weight kg 120
Units per pallet Units 1
Stacking height units 1
Refrigerant type R410A
Refrigerant charge(standard connecting
tubing length) Kg(m) 3.1 / 30
Additional charge per 1 meter g/m 38
Connections
between units
Liquid line In.(mm) 3/8" (9.52)
Suction line In.(mm) 3/4" (19.0)
Max.Tubing Length m. 70
Max.Height Difference m. 30
Operation control type LCD Remote control
Heating elements kW
Others
(1) Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units).
(2) Airflow in ducted units; at nominal external static pressure.
(3) Sound power in ducted units is measured at air discharge.
(4) Sound pressure level measured at 1.0 meter distance from unit.
CONTENTS

2-3
PRODUCT DATA SHEET
SM OU12HP 2-E.2 GB
2.3 EMD 100 DCI / OU12 4HP DCI
Model Indoor Unit EMD 100 DCI
Model Outdoor Unit OU12 4HP DCI
Installation Method DUCTED
Characteristics Units Cooling Heating
Capacity - Nominal (Minimum ~ Maximum) (1) Btu/hr 34,100 (10,250-40,950) 39,250 (12,000-42,650)
kW 10.0 (3.0-12.0) 11.5(3.5-12.5)
Power input - Nominal (Minimum ~ Maximum) (1) kW 3.05 (1.30-4.20) 3.10 (1.10-3.60)
EER (Cooling) or COP(Heating) (1) W/W 3.30 3.70
Energy efficiency class “A” “A”
Power supply V/Ph/Hz 230 / 1 / 50
Rated current (Nominal) A 14.0 14.2
Starting current A 10
Circuit breaker rating A 25
INDOOR
Fan type & quantity Centrifugal x 1
Fan speeds H/M/L RPM 1060 / 1000 / 840
Air flow (2) H/M/L m3/hr 1980 / 1820 / 1390
External static pressure Min-Max Pa 20-100
Sound power level (3) H/M/L dB(A) 73 / 71 / 65
Sound pressure level (4) H/M/L dB(A) 52 / 50 / 45
Moisture removal (Nominal) l/hr 3.1
Condensate drain tube I.D mm 19
Dimensions WxHxD mm 790X400X600
Weight kg 36
Package dimensions WxHxD mm 825X425X610
Packaged weight kg 38
Units per pallet units 8
Stacking height units 4
OUTDOOR
Refrigerant control Electronic Expansion Valve
Compressor type, model Scroll
Motor type DCBL Inverter
Fan type & quantity Axial 2 x 493 Ømm
Fan speeds H/L RPM 900 – 100 (Continuous)
Airflow Max m3/hr 5,200
Sound power level(3) Nom C/H dB(A) 67 / 69
Sound pressure level(4) Nom C/H dB(A) 56 / 57
Dimensions WxHxD mm 900X1255X340
Weight kg 110
Package dimensions WxHxD mm 985X1395X435
Packaged weight kg 120
Units per pallet Units 1
Stacking height units 1
Refrigerant type R410A
Refrigerant charge(standard connecting
tubing length) Kg(m) 2.9 / 30
Additional charge per 1 meter g/m 38
Connections
between units
Liquid line In.(mm) 3/8" (9.52)
Suction line In.(mm) 5/8" (15.875)
Max.tubing length m. 70
Max.height difference m. 30
Operation control type LCD Remote control
Heating elements kW —
Others
(1) Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units).
(2) Airflow in ducted units; at nominal external static pressure.
(3) Sound power in ducted units is measured at air discharge.
(4) Sound pressure level measured at 1.0 meter distance from unit.
CONTENTS

2-4
PRODUCT DATA SHEET
SM OU12HP 2-E.2 GB
2.4 EMD 125 DCI / OU12 5HP DCI
Model Indoor Unit EMD 125 DCI
Model Outdoor Unit OU12 5HP DCI
Installation Method DUCTED
Characteristics Units Cooling Heating
Capacity - Nominal (Minimum ~ Maximum)(1) Btu/hr 42,650 (11,940-47,770) 47,770 (12,280-54,590)
kW 12.5 (3.5-14.0) 14.0 (3.6-16.0)
Power input - Nominal (Minimum ~ Maximum)(1) kW 4.1 (1.65-5.5) 4.1 (1.1-5.2)
EER (Cooling) or COP(Heating) (1) W/W 3.05 3.4
Energy efficiency class B B
Power supply V/Ph/Hz 230 / 1 / 50
Rated current A 18.8 18.6
Starting current A 10
Circuit breaker rating A 32
INDOOR
Fan type & quantity Centrifugal x 1
Fan speeds H/M/L RPM 930 / 830 / 740
Air flow (2) H/M/L m3/hr 2500 / 2100 / 1600
External static pressure Min-Max Pa 20-100
Sound power level (3) H/M/L dB(A) 72 / 68 / 64
Sound pressure level (4) H/M/L dB(A) 54 / 51 / 45
Moisture removal (Nominal) l/hr 3.8
Condensate drain tube I.D mm 19
Dimensions WxHxD mm 1150X400X700
Weight kg 46
Package dimensions WxHxD mm 1195X440X730
Packaged weight kg 50
Units per pallet units 8
Stacking height units 4
OUTDOOR
Refrigerant control Electronic Expansion Valve
Compressor type, model Scroll
Motor type DCBL Inverter
Fan type & quantity Axial 2 x 493 Ømm
Fan speeds H/L RPM 900 – 100 (Continuous)
Air flow Max m3/hr 5,700
Sound power level(3) Nom C/H dB(A) 69 / 70
Sound pressure level(4) Nom C/H dB(A) 56 / 58
Dimensions WxHxD mm 900X1255X340
Weight kg 110
Package dimensions WxHxD mm 985X1395X435
Packaged weight kg 120
Units per pallet Units 1
Stacking height units 1
Refrigerant type R410A
Refrigerant charge(standard connecting
tubing length) Kg(m) 3.3 / 30
Additional charge per 1 meter g/m 38
Connections
between units
Liquid line In.(mm) 3/8" (9.52)
Suction line In.(mm) 3/4" (19.0)
Max.tubing length m. 70
Max.height difference m. 30
Operation control type LCD Remote control
Heating elements kW —
Others
(1) Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units).
(2) Airflow in ducted units; at nominal external static pressure.
(3) Sound power in ducted units is measured at air discharge.
(4) Sound pressure level measured at 1.0 meter distance from unit.
CONTENTS

2-5
PRODUCT DATA SHEET
SM OU12HP 2-E.2 GB
2.5 CD 140 DCI / OU12 6HP DCI
Model Indoor Unit CD 140 DCI
Model Outdoor Unit OU12 6HP DCI
Installation Method DUCTED
Characteristics Units Cooling Heating
Capacity - Nominal (Minimum ~ Maximum)(1) Btu/hr 47,770 (15,700 - 56,300) 54,600 (12,600 – 63,100)
kW 14.0 (4.6 – 16.5) 16.0 (3.7 – 18.5)
Power Input - Nominal (Minimum ~ Maximum)( (1) W 4,200 (1,500 - 6,000) 4,400 (1,200 - 5,500)
COP(1) W/W 3.3 3.6
Energy Efficiency Class - A A
Power Supply V/Ph/Hz 220-240/1/50
Rated Current (Nominal) A 21.6 20.3
Starting Current A <10
Circuit Breaker Rating A 32
INDOOR
Fan Type & Quantity CENTRIFUGAL x2
Fan Speed H/M/L RPM 1,160 1,120 1,000
Airflow(2) H/M/L m3/hr 3,300 2,900 2,000
External Static Pressure
Min-
Nom-
Max
Pa 80-140-200
Sound Power Level(3) H/M/L dB (A) 73 71 66
Sound Pressure Level (4) H/M/L dB (A) 58 55 50
Moisture Removal (Nominal) L/hr 4.0
Condensate Drain Tube I.D. mm 19
Dimensions W/H/D mm 1350 400 640
Weight kg 75
Package Dimensions W/H/D mm 1510 440 785
Packaged Weight kg 82
Units per Pallet Units 5
Stacking Height Units 5
OUTDOOR
Refrigerant Control Electronic Expansion Valve
Compressor Type, Model Twin-Rotary
Motor type DCBL Inverter
Fan Type & Quantity Axial 2x 493mm
Fan Speed RPM 900-100 (continuous)
Airflow Max m3/hr 5,700
Sound Power Level Nom dB (A) 68 70
Sound Pressure Level (4) Nom dB (A) 56 58
Dimensions W/H/D mm 900 1255 340
Weight kg 110
Package Dimensions W/H/D mm 985 1395 435
Packaged Weight kg 120
Units per Pallet Units 1
Stacking Height Units 1
Refrigerant Type R410A
Refrigerant Chargeless Distance kg/m 3.8 / 30
Additional Charge Per 1 Meter g/m 80
Connections
Between Units
Liquid Line In 3/8”
Suction Line In 3/4”
Max. Tubing Length m 70
Max. Height Difference m 30
Operation Control Type LCD Remote Control
Heating Elements kW BH 70W - optional
Others
(1) Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units).
(2) Airflow in ducted units; at nominal external static pressure.
(3) Sound power in ducted units is measured at air discharge.
(4) Sound pressure level measured at 1.0 meter distance from unit.
CONTENTS

3-1
RATING CONDITIONS
SM OU12HP 2-E.2 GB
3. RATING CONDITIONS
Standard conditions in accordance with ISO 5151 and ISO 13253 (for ducted units) and
EN 14511.
Cooling:
Indoor: 27oC DB 19oC WB
Outdoor: 35 oC DB
Heating:
Indoor: 20oC DB
Outdoor: 7oC DB 6oC WB
3.1 Operating Limits
Indoor Outdoor
Cooling Upper limit 32oC DB 23oC WB 46oC DB
Lower limit 21oC DB 15oC WB -10oC DB
Heating Upper limit 27oC DB 24oC DB 18oC WB
Lower limit 10oC DB -15oC DB -16oC WB
Voltage 1PH 198 – 253V
CONTENTS

4-1
OUTLINE DIMENSIONS
SM OU12HP 2-E.2 GB
4. OUTLINE DIMENSIONS
4.1 Indoor Unit: DNG 100, DNG 125 DCI
Model A B C D E F G H I J K L
DNG 100, 125 854 715 815 822 861 297 235 770 663 749 193 282
CONTENTS

4-2
OUTLINE DIMENSIONS
SM OU12HP 2-E.2 GB
043 0
71
5201
400
187118
0211
0511
96
0901
063
264
007
350x995
046
52
076
4.2 Indoor Unit: EMD 100 DCI
4.3 Indoor Unit: EMD 125 DCI
t4.4 Indoor Unit: CD 140 DCI
325x610
075
094
006
264
5
2
52
045
557
96
076
166
400
097
187
017
003
352
640
500
352
25
690
69
1435
1350
1390
400
108 187
1303
CONTENTS

4-3
OUTLINE DIMENSIONS
SM OU12HP 2-E.2 GB
4.4 Outdoor Unit: DCI 100 / 125 / 140 (OU12 DCI 4-5-6HP)
CONTENTS

5-1
PERFORMANCE DATA & PRESSURE CURVES
SM OU12HP 2-E.2 GB
5. PERFORMANCE DATA & PRESSURE CURVES
5.1 DNG 100 DCI
5.1.1 Cooling Capacity (kW)
ID COIL ENTERING AIR DB/WB TEMPERATURE [qC]
OD COIL
ENTERING AIR DB
TEMPERATURE [qC]
DATA 22/15 24/17 27/19 29/21 32/23
-10 – 20
(protection range)
TC 80 - 110 % of nominal
SC 80 - 105 % of nominal
PI 25 - 50 % of nominal
25
TC 9.67 10.30 10.93 11.56 12.19
SC 7.67 7.83 7.99 8.14 8.30
PI 2.46 2.50 2.55 2.60 2.64
30
TC 9.20 9.83 10.47 11.10 11.73
SC 7.48 7.64 7.79 7.95 8.11
PI 2.74 2.79 2.84 2.88 2.93
35
TC 8.74 9.37 10.00 10.63 11.26
SC 7.29 7.44 7.60 7.76 7.91
PI 3.03 3.08 3.13 3.17 3.22
40
TC 8.27 8.90 9.54 10.17 10.80
SC 7.09 7.25 7.41 7.56 7.72
PI 3.32 3.37 3.41 3.46 3.51
46
TC 7.71 8.35 8.98 9.61 10.24
SC 6.86 7.02 7.17 7.33 7.49
PI 3.66 3.71 3.76 3.80 3.85
LEGEND
TC – Total Cooling Capacity, kW
SC – Sensible Capacity, kW
PI – Power Input, kW
WB – Wet Bulb Temp., (oC)
DB – Dry Bulb Temp., (oC)
ID – Indoor
OD – Outdoor
5.1.2 Capacity Correction Factors (Cooling)
Cooling Capacity Ratio Vs. Outdoor Temperature
0.50
0.60
0.70
0.80
0.90
1.00
1.10
1.20
20 25 30 35 40 45
Outdoor Temperature [deg C]
Capacity Ratio
CONTENTS

5-2
PERFORMANCE DATA & PRESSURE CURVES
SM OU12HP 2-E.2 GB
5.1.3 Heating Capacity
ID COIL ENTERING AIR DB TEMPERATURE [°C]
OD COIL ENTERING
AIR DB/WB
TEMPERATURE [°C]
DATA 15 20 25
-15/-16 TC 7.13 6.63 6.13
PI 2.03 2.24 2.45
-10/-12 TC 7.94 7.44 6.94
PI 2.45 2.66 2.87
-7/-8 TC 8.54 8.04 7.54
PI 2.77 2.97 3.18
-1/-2 TC 8.84 8.34 7.85
PI 2.92 3.13 3.34
2/1 TC 9.04 8.55 8.05
PI 3.03 3.23 3.44
7/6 TC 11.70 11.20 10.70
PI 3.18 3.39 3.60
10/9 TC 12.34 11.85 11.35
PI 3.37 3.58 3.79
15/12 TC 12.99 12.49 11.99
PI 3.56 3.77 3.98
15-24 TC 85 - 105 % of nominal
(Protection Range) PI 80 - 120 % of nominal
LEGEND
TH – Total Heating Capacity, kW
PI – Power Input, kW
WB – Wet Bulb Temp., (oC)
DB – Dry Bulb Temp., (oC)
ID – Indoor
OD – Outdoor
5.1.4 Capacity Correction Factors (Heating)
Heating Capacity Ratio Vs. Outdoor Temperature
0.50
0.60
0.70
0.80
0.90
1.00
1.10
1.20
-15 -10 -5 0 5 10 15
Outdoor WB Temperature [deg C]
Capacity Ration
CONTENTS

5-3
PERFORMANCE DATA & PRESSURE CURVES
SM OU12HP 2-E.2 GB
5.1.5 Pressure Curves (Cooling – Technician Mode)
5.1.5.1 Cooling
Suction Pressure - Cooling (Technician Mode)
500
600
700
800
900
1000
1100
1200
1300
1400
10 15 20 25 30 35 40 45
Outdoor DB Temperature [°C]
Suction Pressure [KPa(g)]
32/23
29/21
27/19
24/17
22/15

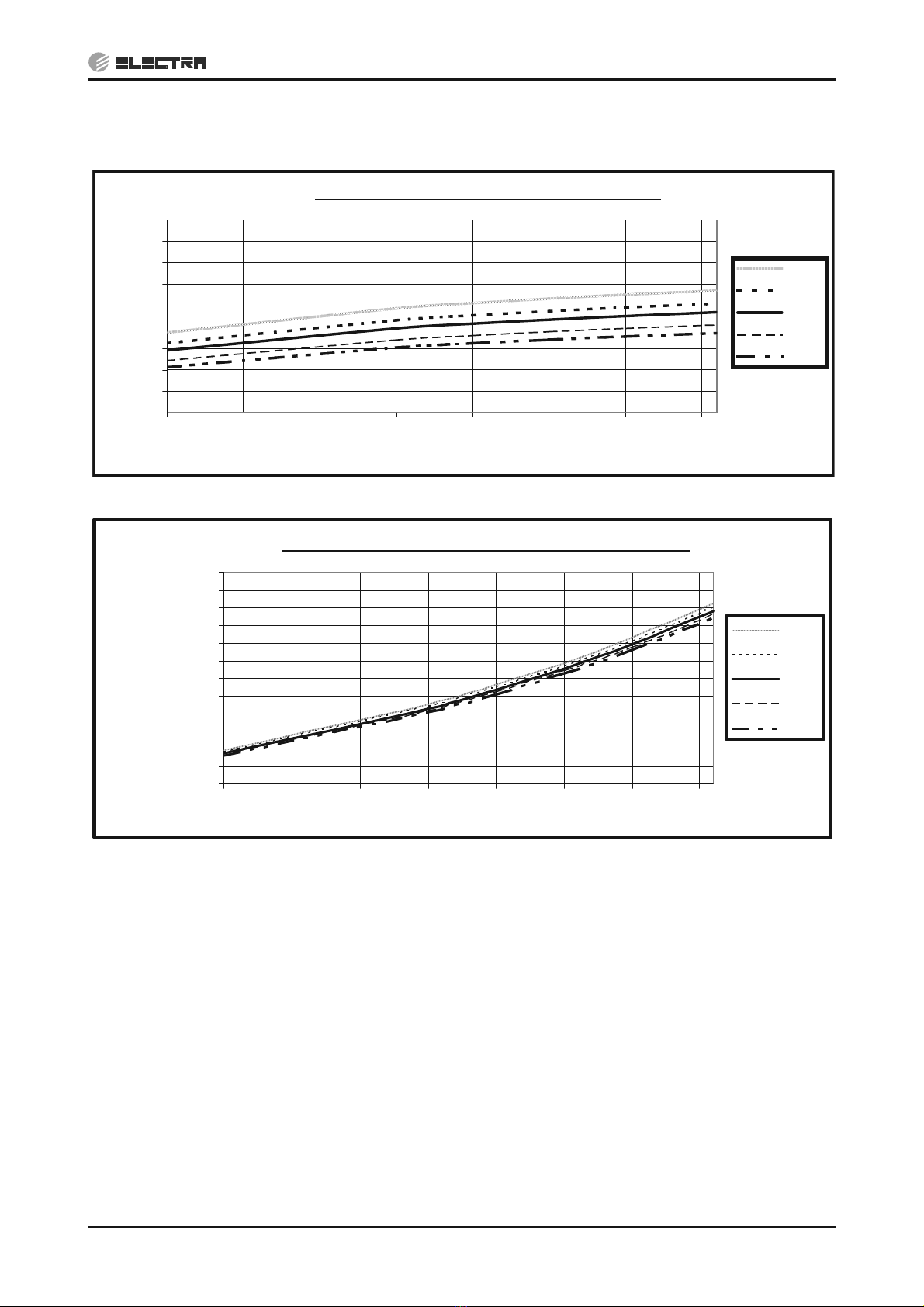

Discharge Pressure - Cooling (Technician Mode)
1000
1250
1500
1750
2000
2250
2500
2750
3000
3250
3500
3750
4000
10 15 20 25 30 35 40 45
Outdoor DB Temperature [°C]
Discharge Pressure
[KPa(g)]
32/23
29/21
27/19
24/17
22/15
CONTENTS

5-4
PERFORMANCE DATA & PRESSURE CURVES
SM OU12HP 2-E.2 GB
5.1.5.2 Heating

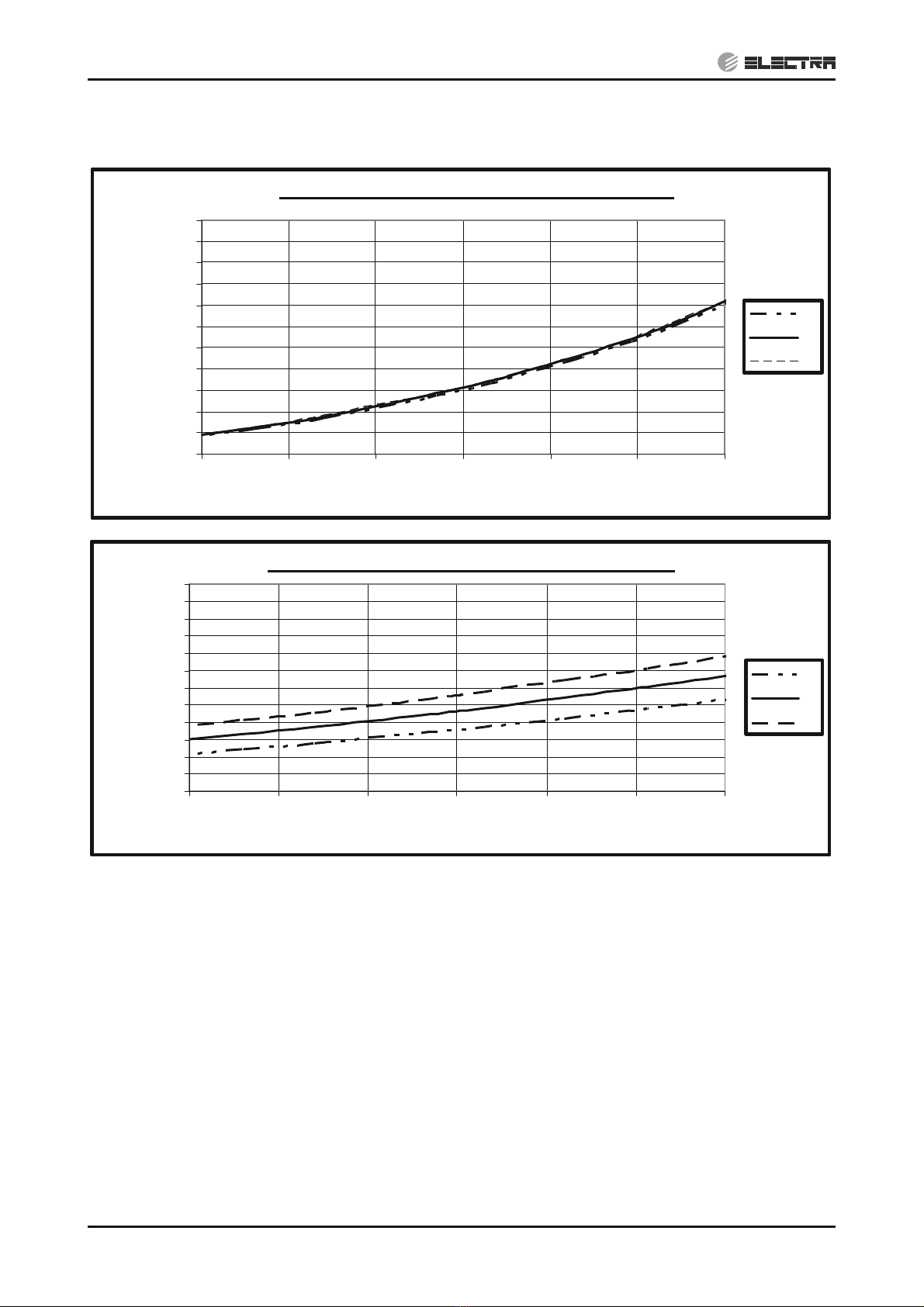

Suction Pressure - Heating (Technician Mode)
200
300
400
500
600
700
800
900
1000
1100
1200
1300
-15 -10 -5 0 5 10 15
Outdoor WB Temperature [°C]
Suction Pressure [KPa(g)]
15
20
25
Discharge Pressure - Heating (Technician Mode)
1000
1250
1500
1750
2000
2250
2500
2750
3000
3250
3500
3750
4000
-15-10-5 0 5 1015
Outdoor WB Temperature [°C]
Discharge Pressure
[KPa(g)]
15
20
25
CONTENTS

5-5
PERFORMANCE DATA & PRESSURE CURVES
SM OU12HP 2-E.2 GB
5.2 DNG 125 DCI
5.2.1 Cooling Capacity (kW)
ID COIL ENTERING AIR DB/WB TEMPERATURE [qC]
OD COIL
ENTERING AIR DB
TEMPERATURE [qC]
DATA 22/15 24/17 27/19 29/21 32/23
-10 – 20
(protection range)
TC 80 - 110 % of nominal
SC 80 - 105 % of nominal
PI 25 - 50 % of nominal
25
TC 12.08 12.87 13.66 14.45 15.24
SC 9.59 9.79 9.98 10.18 10.38
PI 3.28 3.34 3.40 3.47 3.53
30
TC 11.50 12.29 13.08 13.87 14.66
SC 9.35 9.55 9.74 9.94 10.13
PI 3.66 3.72 3.79 3.85 3.91
35
TC 10.92 11.71 12.50 13.29 14.08
SC 9.11 9.30 9.50 9.70 9.89
PI 4.04 4.11 4.17 4.23 4.30
40
TC 10.34 11.13 11.92 12.71 13.50
SC 8.87 9.06 9.26 9.45 9.65
PI 4.43 4.49 4.55 4.62 4.68
46
TC 9.64 10.43 11.22 12.01 12.80
SC 8.58 8.77 8.97 9.16 9.36
PI 4.89 4.95 5.01 5.08 5.14
LEGEND
TC – Total Cooling Capacity, kW
SC – Sensible Capacity, kW
PI – Power Input, kW
WB – Wet Bulb Temp., (oC)
DB – Dry Bulb Temp., (oC)
ID – Indoor
OD – Outdoor
5.2.2 Capacity Correction Factors (Cooling)
Cooling Capacity Ratio Vs. Outdoor Temperature
0.50
0.60
0.70
0.80
0.90
1.00
1.10
1.20
20 25 30 35 40 45
Outdoor Temperature [deg C]
Capacity Ratio
CONTENTS
