Electrolux 86070 VI User manual

FAVORIT 86070 vi
User manual Dishwasher
117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 1

Dear Customer
Thank you for choosing one of our high-quality products.
With this appliance you will experience the perfect combination of functional
design and cutting edge technology.
Our appliances are engineered to deliver the best performance and control -
indeed we are setting the highest standards of excellence.
In addition to this you find environmental and energy saving aspects as an
integral part of our products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes
perfectly and most efficiently. To refer to this manual any time you need to, we
recommend you to keep it in a safe place. And please pass it to any future
owner of the appliance.
We wish you much joy with your new appliance.
2
The following symbols are used in this manual:
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
General information and tips
Environmental information
117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 2

3
Contents
Contents
Operating Instructions 4
Safety information 4
Product description 6
Control panel 7
First use 10
Set the water softener 10

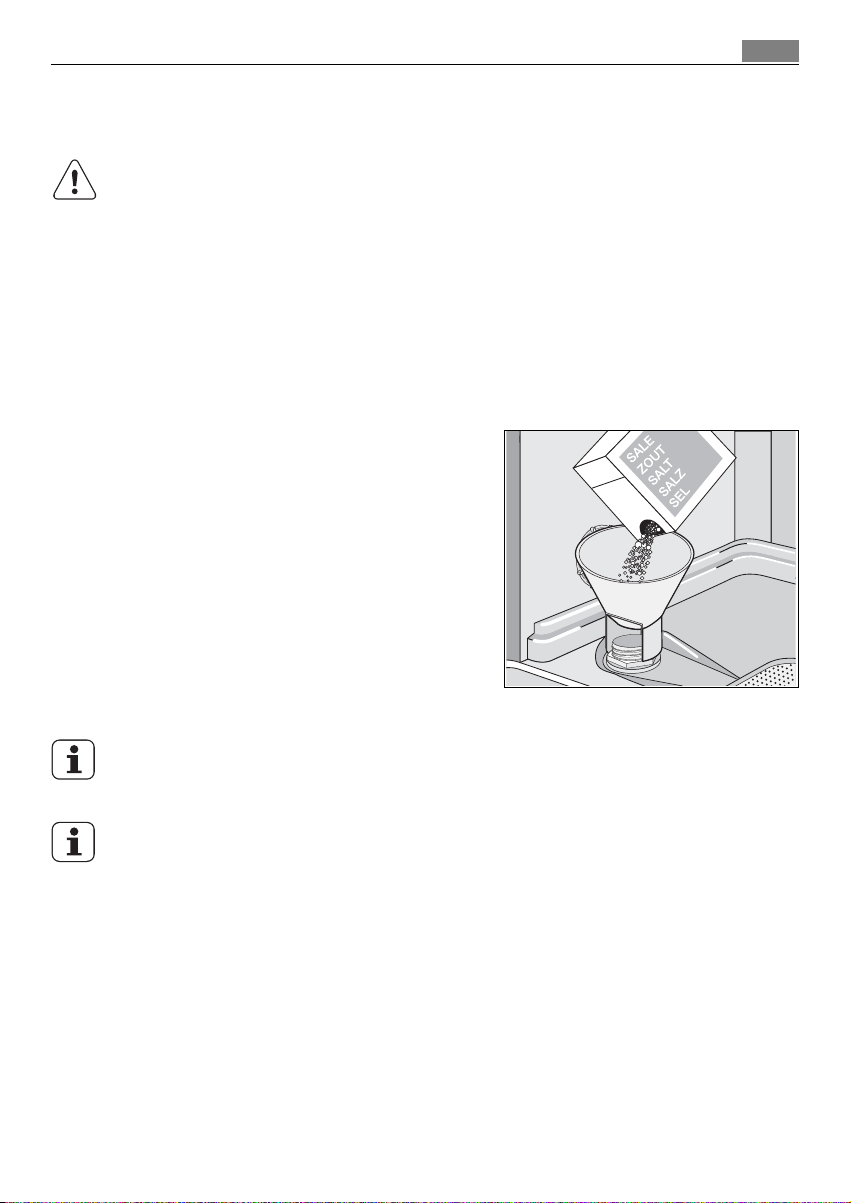

Filling with dishwasher salt 13
Filling with rinse aid 14
Daily use 16
Loading cutlery and dishes 16
The lower basket 18

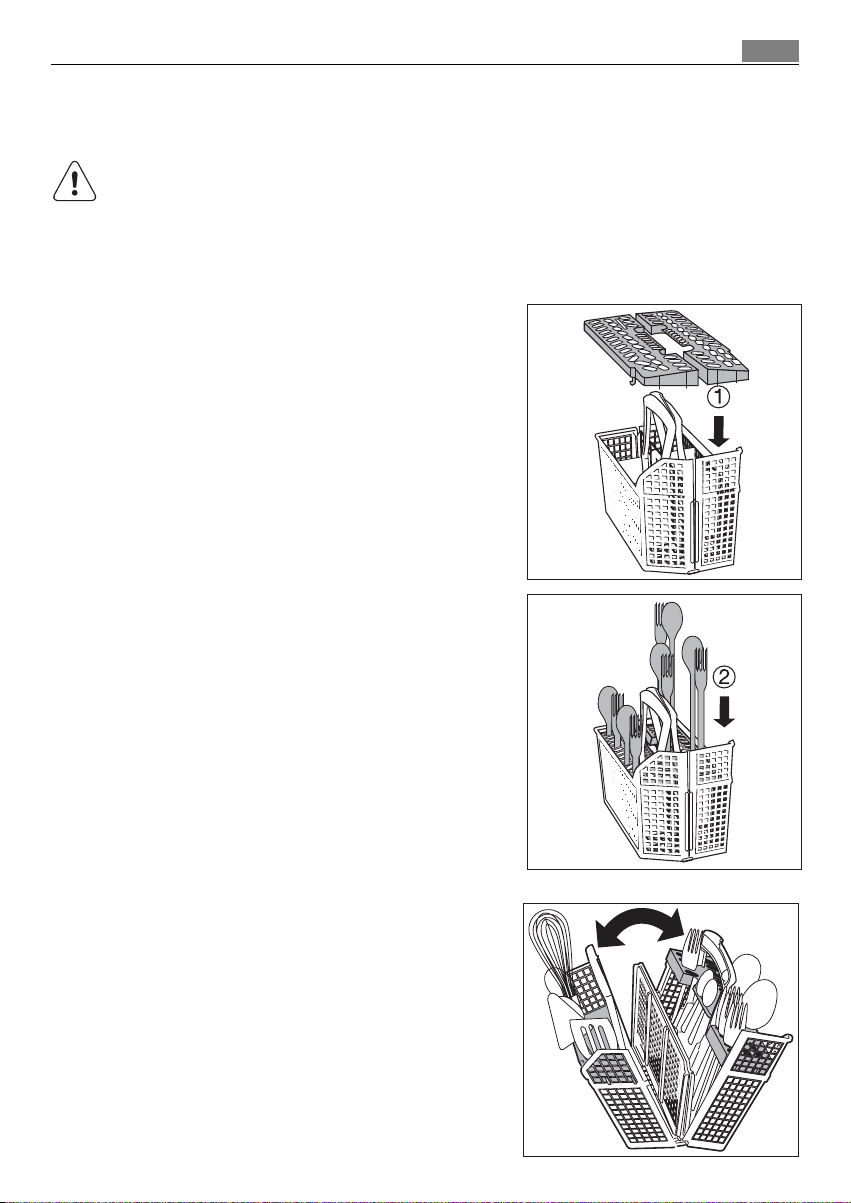

The cutlery basket 19

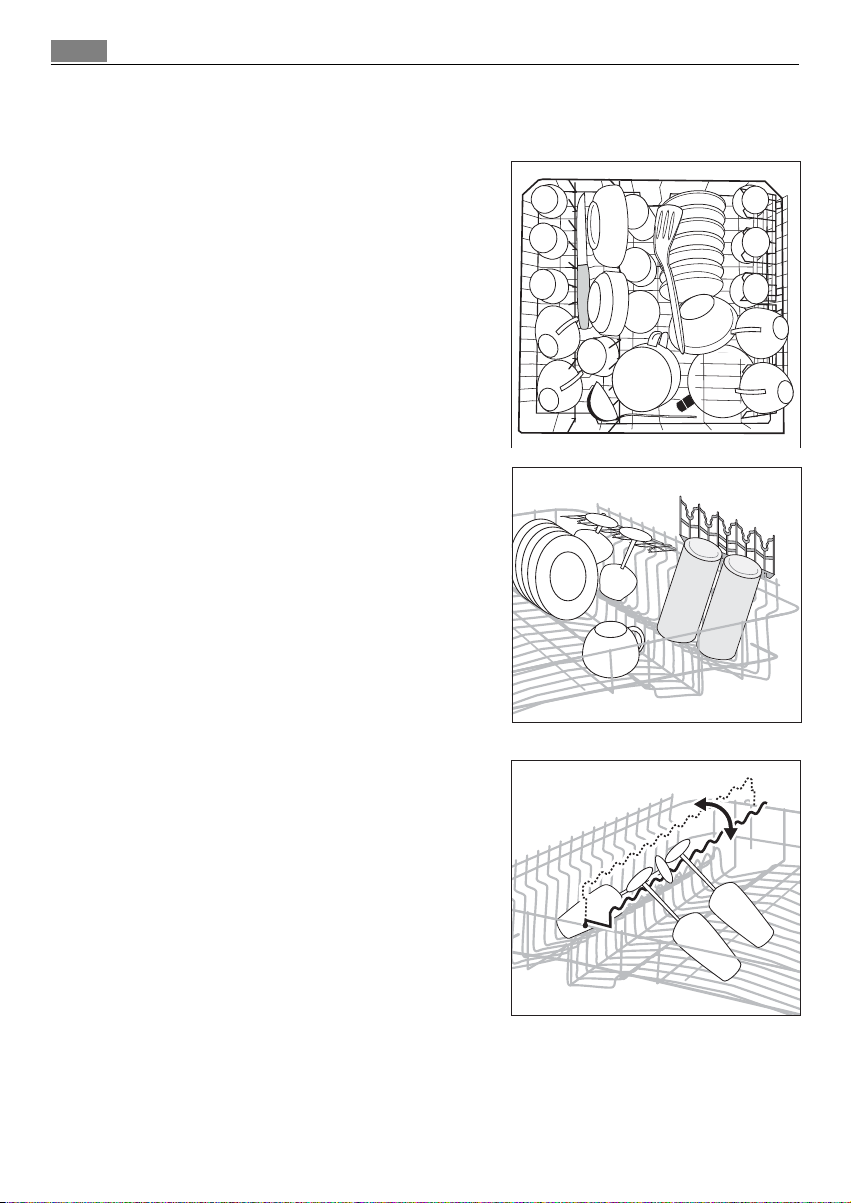

The upper basket 20
Adjusting the height of the upper basket 21
Use of detergent 22
Multi-tab function 23
Washing programmes 26
Select and start a washing programme 27
Care and cleaning 30
Something not working 32
The wash results are not satisfactory 34
Technical data 35
Hints for test institutes 36
Installation 37
Water supply connections 38
Water inlet hose with safety valve 39
Water outlet hose connection 40
Electrical connection 41
Environment concernes 42
Guarantee/Customer Service 43
117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 3

Operating Instructions
Safety information
In the interest of your safety and to ensure the correct use, before installing
and first using the appliance, read this user manual carefully, including its hints
and warnings. To avoid unnecessary mistakes and accidents, it is important to
ensure that all people using the appliance are thoroughly familiar with its
operation and safety features. Save these instructions and make sure that they
remain with the appliance if it is moved or sold, so that everyone using it
through its life will be properly informed on appliance use and safety.
Correct use
●This dishwasher is only intended for washing household utensils suitable for
machine washing.
●Do not put any solvents in the dishwasher. This could cause an explosion.
●Knives and other items with sharp points must be loaded in the cutlery basket
with their points down or placed in a horizontal position in the upper basket.
●Only use products (detergent, salt and rinse aid) suitable for dishwashers.
●Avoid opening the door whilst the appliance is in operation, hot steam may
escape.
●Do not take any dishes out of the dishwasher before the end of the
dishwashing cycle.
●When the appliance is not in use for an extended period or while on vacation,
isolate the appliance from the power supply and turn off the water supply.
●This product should be serviced only by an authorised service engineer, and
only genuine spare parts should be used.
●Under no circumstances should you attempt to repair the machine yourself.
Repairs carried out by inexperienced persons will cause injury or serious
malfunctioning. Contact your local Service Force Centre. Always insist on
genuine spare parts.
General safety
●This appliance is not intended for use by young children or infirm persons
unless they have been adequately supervised by a responsible person to
ensure that they can use the appliance safely.
4Safety informations
117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 4

●Dishwasher detergents can cause chemical burns to eyes, mouth and throat.
Could endanger life! Comply with the safety instructions of the dishwasher
detergent manufacturer.
●Dishwasher detergents are strongly alkaline. They can be extremely dangerous
if swallowed. Avoid contact with the skin and eyes and keep children away
from the dishwasher when the door is open. Check that the detergent
receptacle is empty after completion of the wash cycle.
●The water in your dishwasher is not for drinking. Detergent residues may still
be present in your machine.
●Ensure that the door of the dishwasher is always closed when it is not being
loaded or unloaded. In this way you will avoid anybody tripping over the
open door and hurting themselves.
●Do not sit or stand on the open door.
Child safety
●Young children should be supervised to ensure that they do not play with the
appliance. Make sure that children and pets don’t climb into the dishwasher.
●Keep all packaging well away from children. There is risk of suffocation.
●Keep all detergents in a safe place out of children’s reach.
●Keep children well away from the dishwasher when the door is open.
Installation
●Check your dishwasher for any transport damage. Never connect a damaged
machine. If your dishwasher is damaged contact your supplier.
●All packaging must be removed before use.
●Any electrical and plumbing work required to install this appliance must be
carried out by a qualified and competent person.
●For safety reasons it is dangerous to alter the specifications or attempt to
modify this product in any way.
●Never use the dishwasher if the electrical supply cable and water hoses are
damaged; or if the control panel, work top or plinth area are damaged such
that the inside of the appliance is freely accessible. Contact your local Service
Force centre, in order to avoid hazard.
●All sides of the dishwasher must never be drilled to prevent damage to
hydraulic and electric components.
For electrical and water connection carefully follow the instructions given in
specific paragraphs.
5
Safety informations
117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 5

6Product description

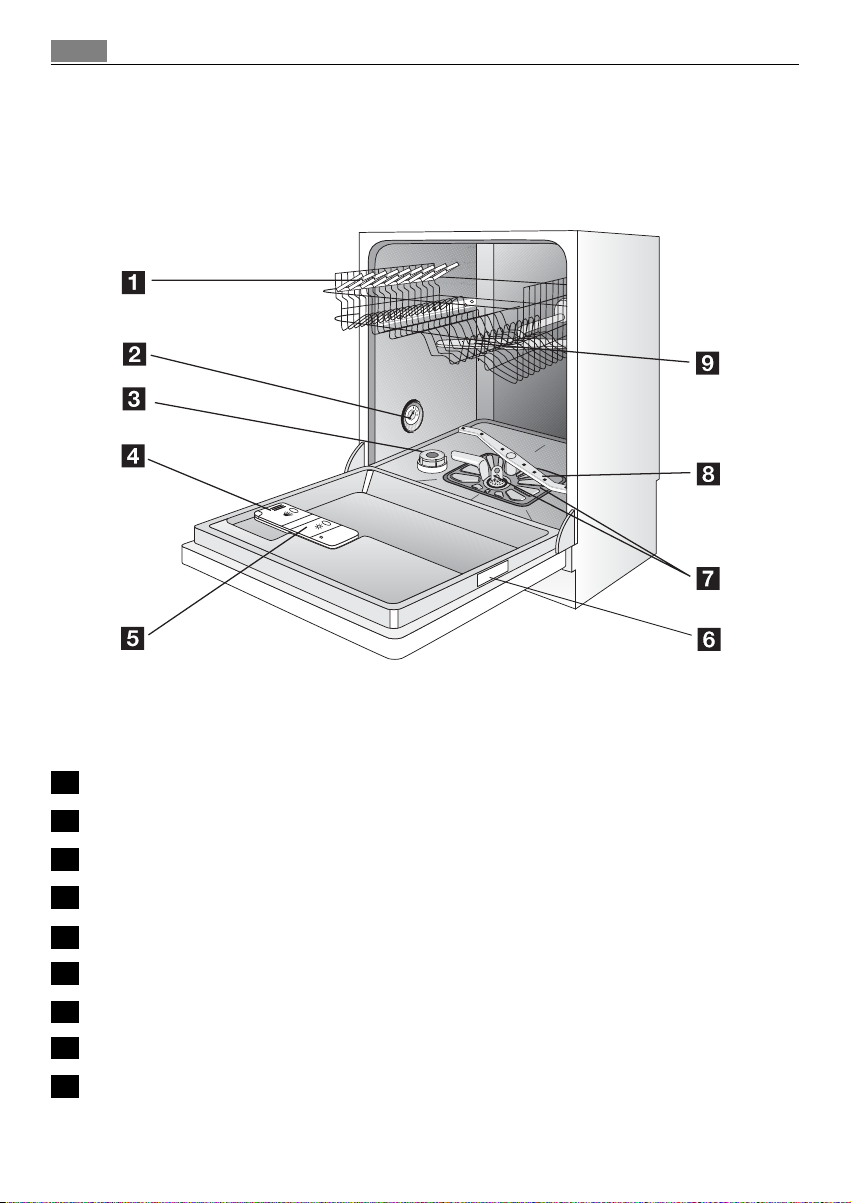

Product description
Upper basket
Water hardness dial
Salt container
Detergent dispenser
Rinse aid dispenser
Rating plate
Filters
Lower spray arm
Upper spray arm
1
2
3
4
5
6
7
8
9
TThhiissddiisshhwwaasshheerrhhaassaanniinntteerrnnaalllliigghhtttthhaatt
ttuurrnnssoonnwwhheenntthheeddoooorriissooppeenneedd..
IInntteerrnnaalllliigghhtteeqquuiippppeed
dwwiitthhlleeddllaammppCCLLAASSSS
11iinnaaccccoorrddaanncceewwiitthhIIEECC6600882255--11::11999933++
AA11::11999977++AA22::22000011..
IInnccaasseetthhaatttthhiissl
liigghhtthhaassttoobbeerreeppllaacceedd,,
pplleeaasseeccoonnttaaccttyyoouurrllooccaallCCuussttoommeerrCCaarree
CCeennttrree..
117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 6

7
Control panel
Control panel
Programme selection buttons
Control lights
Digital display
DELAY TIMER button
3 IN 1 button
Indicator lights
On/off button
Function buttons
1
2
3
4
5
6
7
8
117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 7

8Control panel
Indicator lights
The salt and rinse aid indicator lights are never illuminated while a washing
programme is running even if filling with salt and/or rinse aid is necessary.
WWAATTEERRIlluminates when the dishwasher does not fill with water.
FFuunnccttiioonnbbuuttttoonnss::in addition to the dishwashing programme selection, the
setting of the water softener and the activation/deactivation of the rinse aid
dispenser can also be set with the help of these buttons.
TThheeddiiggiittaallddiissppllaayyiinnddiiccaatteess::
- the level of hardness to which the water softener is set,
- the approximate remaining time of the running programme,
- activation/deactivation of the rinse aid dispenser (OONNLLYYwith 3 IN 1 function
active),
- the end of a washing programme (a zero will appear in the digital display),
- the countdown of the delay start,
- if the audible signals are activated/deactivated.
- fault codes concerning malfunction of the dishwasher.
FFIILLTTEERRIlluminates from time to time, apart from the amount of soil
on the filters. Check and if necessary clean the filters.
DDOOOORRIlluminates when the door has not been properly closed.
SSPPRRAAYYAARRMMIlluminates when the upper spray arm is blocked.
SSAALLTTIlluminates when the special salt has run out.
RRIINNSSEEAAIIDDIlluminates when the rinse aid has run out.
117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 8

9
Control panel
SSeettttiinnggmmooddee
Always remember that when:
- setting the water softener,
- activating/deactivating the audible signals,
- activating/deactivating the rinse aid dispenser
the appliance MMUUSSTTbe in setting mode:
●Press On/Off button, AALLLLprogramme button lights are illuminated =
appliance in setting mode.
●Press On/Off button, OONNLLYYa programme button light is illuminated = last
performed or selected programme still set.
In this case, to return to setting mode, the programme has to be cancelled.
TTooccaanncceellaasseettpprrooggrraammmmeeoorraapprrooggrraammmmeeiinnpprrooggrreessss
Simultaneously press and hold the two programme buttons positioned over the
word RREESSEETT, until all the programme button lights will illuminate. The
programme has been cancelled and the machine is now in setting mode.
AAuuddiibblleessiiggnnaallss
Audible signals have been introduced to help indicate which operations the
dishwasher is performing:
- setting of the water softener
- end of programme
- intervention of an alarm due to malfunction
It is possible to deactvate the audible signals, using some of the programme
buttons on the control panel.
Factory setting: audible signals activated.
Deactivation/activation of the audible signals
11..Press the On/Off button. The dishwasher must be in setting mode.
22..Press simultaneously and keep pressed buttons BBand C
Cuntil the lights of the
buttons AA, BBand CCstart flashing.
33..Press button CC, the lights of buttons AAand BBturn off while the light of button
CCgoes on flashing. The digital display indicates the current setting.
44To change the current setting, press again button CC, the digital display will
indicate the new setting.
55To memorise the operation, switch off the dishwasher by pressing the On/Off
button.
Audible signals deactivated
Audible signals activated (factory set)
117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 9

10 First use
First use
Before using your dishwasher for the first time:
●Ensure that the electrical and water connections comply with the installation
instructions
●Remove all packaging from inside the appliance
●Set the water softener
●Pour 1 litre of water inside the salt container and then fill with dishwasher
salt
●Fill the rinse aid dispenser
If you want to use combi detergent tablets such as: ‘3 in 1’, ‘4 in 1’, ‘5 in 1’ etc...
set the 3 IN 1 function (see 3 IN 1 function).
Set the water softener
The dishwasher is equipped with a water softener designed to remove minerals
and salts from the water supply, which would have a detrimental or adverse
effect on the operation of the appliance.
The higher the content of these minerals and salts, the harder your water is.
Water hardness is measured in equivalent scales, German degrees (°dH), French
degrees (°TH) and mmol/l (millimol per litre - international unit for the hardness
of water).
The softener should be adjusted according to the hardness of the water in your
area. Your local Water Authority can advise you on the hardness of the water in
your area.
The water softener must be set in both ways: manually, using the water
hardness dial and electronically, using some of the programme buttons on the
control panel
117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 10

11
First use
Setting manually
The dishwasher is factory set at position 2.
11..Open the dishwasher door.
22..Remove the lower basket from the dishwasher.
33..Turn the water hardness dial to position 1 or 2 (see table).
44..Replace the lower basket.
Water hardness
°dH °TH mmol/l manually electronically
Adjusting the water
hardness setting
Use of
salt
51 - 70 91 - 125 9,0 - 12,5 2 level 10 yes
43 - 50 76 - 90 7,6 - 8,9 2 level 9 yes
37 - 42 65 - 75 6,5 - 7,5 2 level 8 yes
29 - 36 51 - 64 5,1 - 6,4 2 level 7 yes
23 - 28 40 - 50 4,0 - 5,0 2 level 6 yes
19 - 22 33 - 39 3,3 - 3,9 2 level 5 yes
15 - 18 26 - 32 2,6 - 3,2 1 level 4 yes
11 - 14 19 - 25 1,9 - 2,5 1 level 3 yes
4 - 10 7 - 18 0,7 - 1,8 1 level 2 yes
< 4 < 7 < 0,7 1 level 1 no *
**no salt is necessary
117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 11

12 First use
Setting electronically
The dishwasher is factory set at level 5.
11..Press the On/Off button. The dishwasher must be in setting mode.
22..Press simultaneously and keep pressed buttons BBand CC, until the lights of
buttons AA, BBand CCstart flashing.
33..Press button AA, the lights of buttons BBand CCturn off while the light of button
A goes on flashing. In the digital display is visible the current level and a
sequence of intermittent audible signals are heard..
EExxaammpplleess::
displayed, 5 intermittent audible signals, pause, etc... = level 5
displayed, 10 intermittent audible signals, pause, etc...= level 10
44..To change the level, press button AA. Each time the button is pressed the level
changes. (For the selection of the new level see the chart).
EExxaammpplleess::
if the current level is 5, by pressing button AAonce, level 6 is selected.
if the current level is 10, by pressing button AAonce, level 1 is selected.
55..To memorise the operation, switch off the dishwasher by pressing the On/Off
button.
117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 12

13
First use
Filling with dishwasher salt
Only use salt specifically designed for use in dishwashers.
All other types of salt not specifically designed for use in a dishwasher,
especially table salt, will damage the water softener.
Only fill with salt just before starting one of the complete washing
programmes.
This will prevent any grains of salt or salty water, which may have been spilt,
remaining on the bottom of the machine for any period of time, which may
cause corrosion.
TTooffiillll::
11..Open the door, remove the lower basket and unscrew the cap of the salt
container by turning it anticlockwise.
22..Pour 1 litre of water inside the container
((tthhiissiissnneecceessssaarryyoonnllyybbeeffoorreeffiilllliinnggwwiitthh
ssaallttffoorrtthheeffiirrssttttiimmee)).
33..Using the funnel provided, pour in the salt
until the container is full.
44..Replace the cap making sure that there is
no trace of salt on the screw thread or on
the gasket.
55..Replace the cap tightly turning it clockwise
until it stops with a click.
Do not worry if water overflows from the unit when filling with salt, this is
quite normal.
The salt indicator light on the control panel can remain illuminated for 2-6
hours after the salt has been replenished, assuming the dishwasher remains
switched on. If you are using salts that take longer to dissolve then this can
take longer. The function of the machine is not affected.
117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 13

14 First use
Filling with rinse aid
Rinse aid ensures thorough rinsing, and spot and streak free drying.
Rinse aid is automatically added during the last rinse.
11..Open the container by pressing the release
button (A).
22..Add the rinse aid in the container. The
maximum level for filling is indicated by
‘max’.
The dispenser holds about 110 ml of rinse
aid, which is sufficient for between 16 and
40 dishwashing cycles, depending upon the
dosage setting.
117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 14

15
First use
According to the finish and drying results obtained, adjust the dose of rinse aid
by means of the 6 position selector (position 1 minimum dosage, position 6
maximum dosage).
The dose is factory set in position 4.
Increase the dose if there are drops of
water or lime spots on the dishes after
washing.
Reduce it if there are sticky whitish streaks
on the dishes or a bluish film on glassware
or knife blades.
33..Ensure that the lid is closed after every
refill.
Clean up any rinse aid spilt during filling with an absorbent cloth to avoid
excess foaming during the next wash.
Only use branded rinse aid for dishwashers.
Never fill the rinse aid dispenser with any other substances (e.g. dishwasher
cleaning agent, liquid detergent). This would damage the appliance.
117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 15

16 Daily use
Daily use
●Check if it’s necessary to refill with dishwasher salt or rinse aid
●Load cutlery and dishes into the dishwasher.
●Fill with dishwasher detergent .
●Select a wash programme suitable for the cutlery and dishes.
●Start the wash programme.
Loading cutlery and dishes
Sponges, household cloths and any object that can absorb water may not be
washed in the dishwasher.
●Before loading the dishes, you should:
- Remove all left over food and debris.
- Soften remnants of burnt food in pans
●When loading the dishes and cutlery, please note:
- Dishes and cutlery must not impede the rotation of the spray arms .
- Load hollow items such as cups, glasses, pans, etc. with the opening
downwards so that water cannot collect in the container or a deep base.
- Dishes and items of cutlery must not lie inside one another, or cover each
other.
- To avoid damage to glasses, they must not touch.
- Lay small objects in the cutlery basket.
●Plastic items and pans with non stick coatings have a tendency to retain
water drops; these items will not dry as well as porcelain and steel items.
●Light items (plastic bowls etc.) must be loaded in the upper basket and
arranged so they do not move.
117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 16

17
Daily use
For washing in the dishwasher the following cutlery and dishes
are not suitable: ●Cutlery with wooden, horn, china or mother-of-pearls
handles.
●Plastic items that are not heat resistant.
●Older cutlery with glued parts that are not temperature
resistant.
●Bonded cutlery items or dishes.
●Pewter or copper items.
●Lead crystal glass.
●Steel items prone to rusting.
●Wooden platters.
●Items made from synthetics fibres.
are of limited suitability: ●Only wash stoneware in the dishwasher if it is specially
marked as being dishwasher-safe by the manufacturer.
●Glazed patterns may fade if machine washed frequently.
●Silver and aluminium parts have a tendency to discolour
during washing: Residues, e.g. egg white, egg yolk and
mustard often cause discolouring and staining on silver.
Therefore always clean left-overs from silver immediately,
if it is not to be washed straight after use.
117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 17

18 Daily use

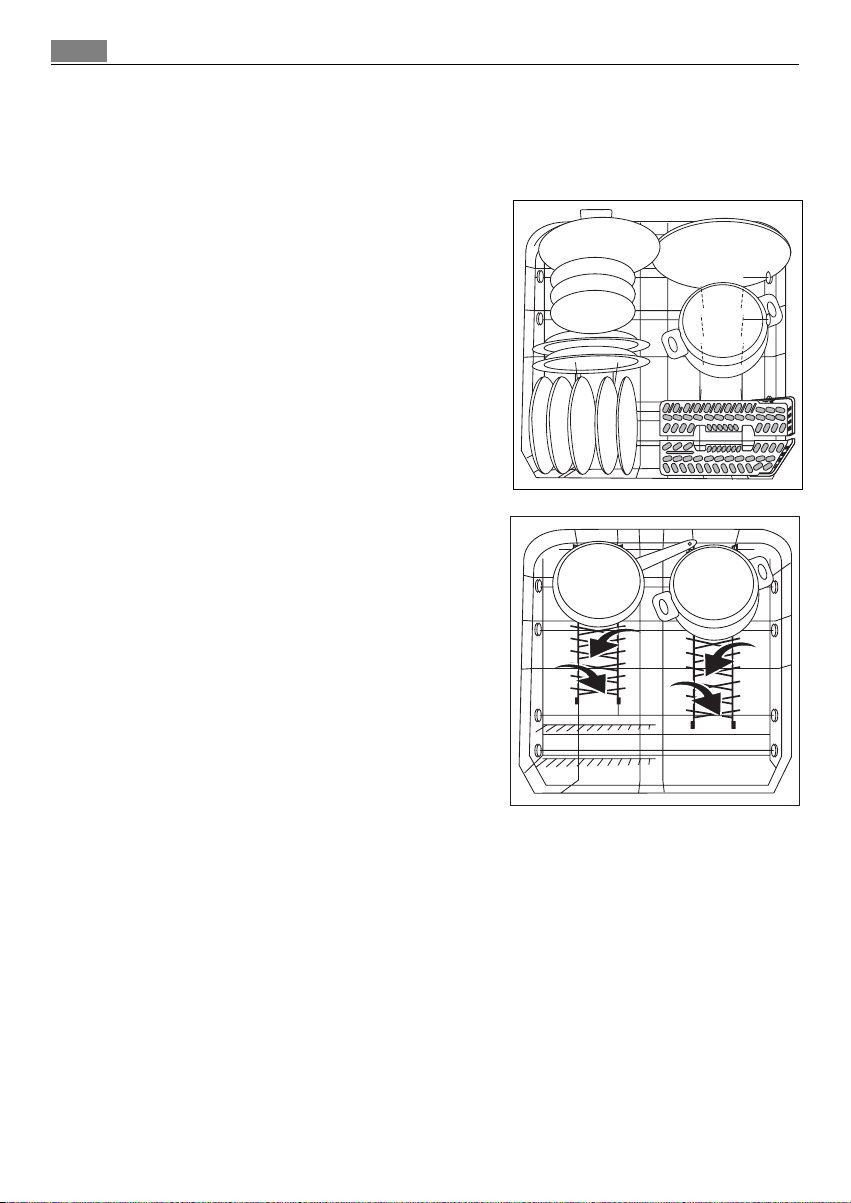

Open the door and slide out the baskets to load the dishes.
The lower basket
Load larger and heavily soiled dishes and
pans in the lower basket.
To make it easier to load larger dishes, the
rear plate racks on the right in the lower
basket can be folded down.
117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 18

19
Daily use
The cutlery basket
Long bladed knives stored in an upright position are a potential hazard.
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally in the upper basket.
Take care when loading or unloading sharp items such as knives.
To ensure that all items of cutlery in the cutlery basket can be reached by the
water, you should:
11..Place the grid insert on the cutlery basket.
22..Place forks and spoon in the cutlery basket
with their handles pointing downwards.
For larger utensils, such as whisks, leave off
one half of the cutlery grid.
The cutlery basket can be opened out.
Always make sure that you put your hand
around both parts of the two-part handle
when removing it from the dishwasher.
11..Place the cutlery basket on a table or work
surface.
22..Open out the two-part handle.
33..Remove cutlery.
117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 19

20 Daily use
The upper basket
Load smaller, fragile crockery and long,
sharp cutlery in the upper basket.
Arrange items of crockery on and under the
folding cup racks so that they are offset
from each other and water can reach all
items.
The cup racks can be folded up out of the
way for tall crockery items.
Lay or hang wine and brandy glasses in the
slots in the cup racks.
For glasses with long stems, fold the glass
rack to the right, otherwise fold it away to
the left.
117987640en_aus.qxp 5/9/2007 5:45 PM Pagina 20
