EDW5505EPS professional series
EDW5505EPS 04/06 © 2006 Electrolux Major Appliances, NA Printed in the U.S.A.

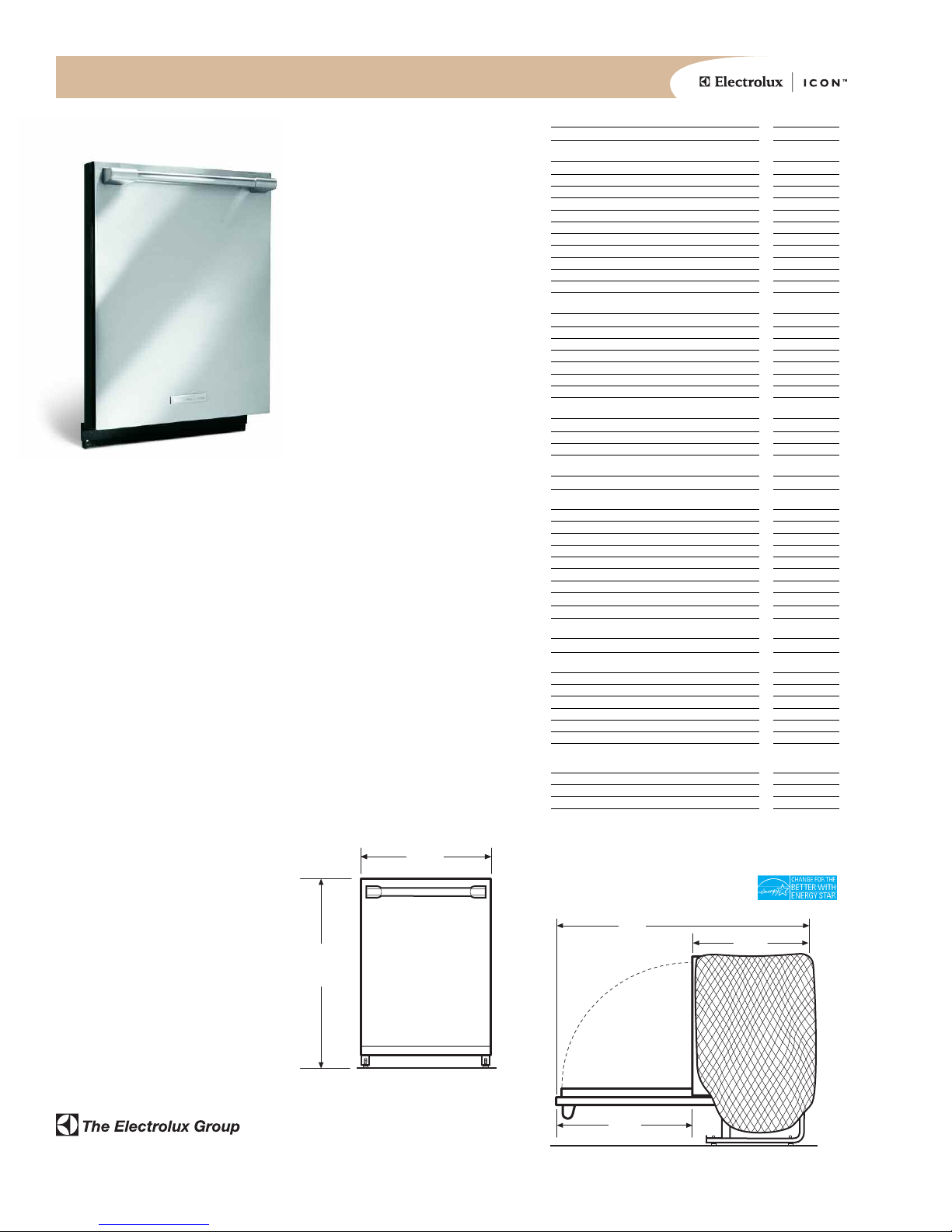

Tall-Tub Dishwasher Specifications
• Product Weight – 82 Lbs.
• Connected Load – 120V AC, 9 Amps
• Single phase, 2-wirewith separate equipment
grounding conductor. 60 Hertz AC electrical supply
only.
• Always consult local and /or national electric &
plumbing codes.
• Water Pressure – The hot water line to dishwasher
must provide water pressure between 15 and 120
pounds per square inch (psi).
• Make sure location has right drain, water and
electrical outlets to make connections.
• Keep back free of drain, water & electrical supply.
• Electrical and water supplies should enter cabinet
opening on floor,or through back or side walls.
• Connections preferably located towardleft side of
dishwasher. Do not cross drain, water or electrical
lines in front of motor, blower or frame.
• Minimum 32" drain loop, 1/2" minimum. Floor
drains require siphon break.
• When installing in corner, allow 2" clearance
between opened door and wall, to allow door
to open.
• When installing at end of cabinet line, sides must
be fully enclosed.
• Do not install unit under a cooktop, damage
may occur.
• Leveling legs supplied to adjust height.
NOTE: Refer to Product Installation Guide for detailed
instructions on the web at electroluxusa.com.
UltraQuiet Plus™Sound
Insulation Package
The dishwasher is wrapped in dense
insulation that envelopes the sides, top
and toe kick, then enclosed in a steel
shroud which reduces sound to a whisper.
Stainless Steel Interior
and Exterior
Smooth exterior sheen gives your kitchen
amodern, polished look and the interior
will retain its original luster.
Fully Integrated Control Panel
Control panel is located at the top of the
dishwasher door, so that the exterior
remains uncluttered when the door is
closed. Controls and digital display are
intuitive and easy to operate.
Smart Soil Sensor™
and 100% Filtered Water
Smart Soil Sensor continuously monitors
and purges food soils from wash water. In
addition, the dishwasher’s two-stage
filtration system removes food particles
from recirculation.
One-Touch Auto Wash Cycle
So simple that it may be the one button
used by the whole family.
NSF®Certified Rinse Option
National Sanitization Foundation
Certification assures that your dishware is
sanitized by reducing bacteria by 99.999%
when the sanitize option is selected.
Spot-Free Dishwashing
To complete the Electrolux experience,
Electrolux recommends filling the rinse aid
reservoir with Jet-Dry®
,the rinsing agent for
sparkling and spot-free dishware.
Panel-Ready
Can accept custom-made panels to
blend seamlessly with your cabinetry and
kitchen decor.
ENERGY STAR®
ENERGY STAR labeling ensures a high
level of energy efficiency, saving water
and reducing utility costs while preventing
pollution.
Jet-Dry is a registered trademark of Reckitt Benckiser Inc.
TALL-TUB DISHWASHER
Size 24"
FEATURES
Stainless Steel Interior Yes
Fully Integrated Control Panel Yes
Easy-Clean Pushbuttons 12
LED Indicator Lights Yes
Tall Tub Design Yes
Smart Soil Sensor™Yes
Sound Insulation Package UltraQuiet Plus™
Wash Levels 5
Direct Feed Wash System Yes
Detergent Dispenser Yes
Adjustable Rinse Aid Dispenser with Indicator Yes
CYCLES
Rinse Only Yes
Favorite Yes
Auto Wash Yes
Heavy Yes
Normal Yes
Short / Light Yes
China / Crystal Yes
OPTIONS
Hi-Temp Wash Yes
NSF®Certified Sanitize Rinse Yes
Delay Start 2, 4, 6 Hours
RACK SYSTEM
Rack Type Nylon
Splittable Silverware Basket Yes
Small Items Covers 3
Utensil Basket Yes
Upper Rack Premium
Adjustable Yes
Cup Clips 4
Stemware Holder 2
Fold-Down Tines 2Rows
Lower Rack Premium
Adjustable Tines 6 Rows
High Side Shelf Yes
SPECIFICATIONS
Cutout Dimensions –
Height 34" min.
35" max.
Width 24"
Depth 24" min.
Leveling Legs Yes
Water Usage – Normal Cycle 4 – 8Gallons
Water Pressure 15 – 120 PSI
Connected Load (kW Rating) – 120V 9.0 Amps
Electrical – Single phase, 2-wire with separate
equipment grounding conductor. UL Listed
50 Hertz AC electrical supply only.
Product Weight 82 Lbs.
Shipping Weight 92 Lbs.
UPC (0-12505-) 10896-9
*Separate 15-amp 3-wire grounded circuit required.
NOTE: Always consult local and /or national electric codes. Refer to Product
Installation Guide for detailed installation instructions on the web at
electroluxusa.com.
High standards of quality at Electrolux Major Appliances mean we are constantly working to improve
our products. We reserve the right to change specifications or discontinue models without notice.
USA •250 Bobby Jones Expressway •Augusta, GA 30907
1-877-4electrolux (1-877-435-3287) •
electroluxusa.com
CANADA •5855 Terry Fox Way •Mississauga, ON L5V 3E4
1-800-668-4606 •
electroluxca.com
511/2"
223/4"
Door in 90°
open position
283/4"
331/2"
Adjustable
to 351/4"
23 7/8"
23 7/8"
NOTE: Maximum height for standard
cabinetrycutout is 35".
