Use _ Care Guide
Built-ln Dishwasher
Guia de Uso y Cuidado
Lavavajil_as Empotrado
Guide d'utilisation et d'entretien
Lave-vaisse]me encastrd
i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!_iii_ii_ii_!_i!_ii_ii_ii_ii_il_!_i!_i!_i_!_i!_i_!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!'i_

Finding Information
______________________________________________________________________________________________________________________________________Table of Contents
Finding Information .................................... 2 DishwasherWon't Fill....................................... 21
MakeaRecordfor Future use ............................. 2 Dishwasher HasanOdor................................... 21
!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_Questions?.......................................................... 2 RemovingSpotsand Film ................................. 21
Internet...............................................................2
Tableof Contents ................................................ 2 Warranty Information ................................ 22
Safety..................................................... 3
ImportantSafetyInstructions..............................3 SpanishVersion...................................... 23
FrenchVersion........................................ 40
FeatureOverview....................................... 4
HowyourDishwasherCleans.............................4
Operating Instructions ................................. 5
GettingStarted.................................................... 5
Normal Operating Sounds .................................. 5
WashCycleSelections........................................ 6
CycleSelections.................................................. 6

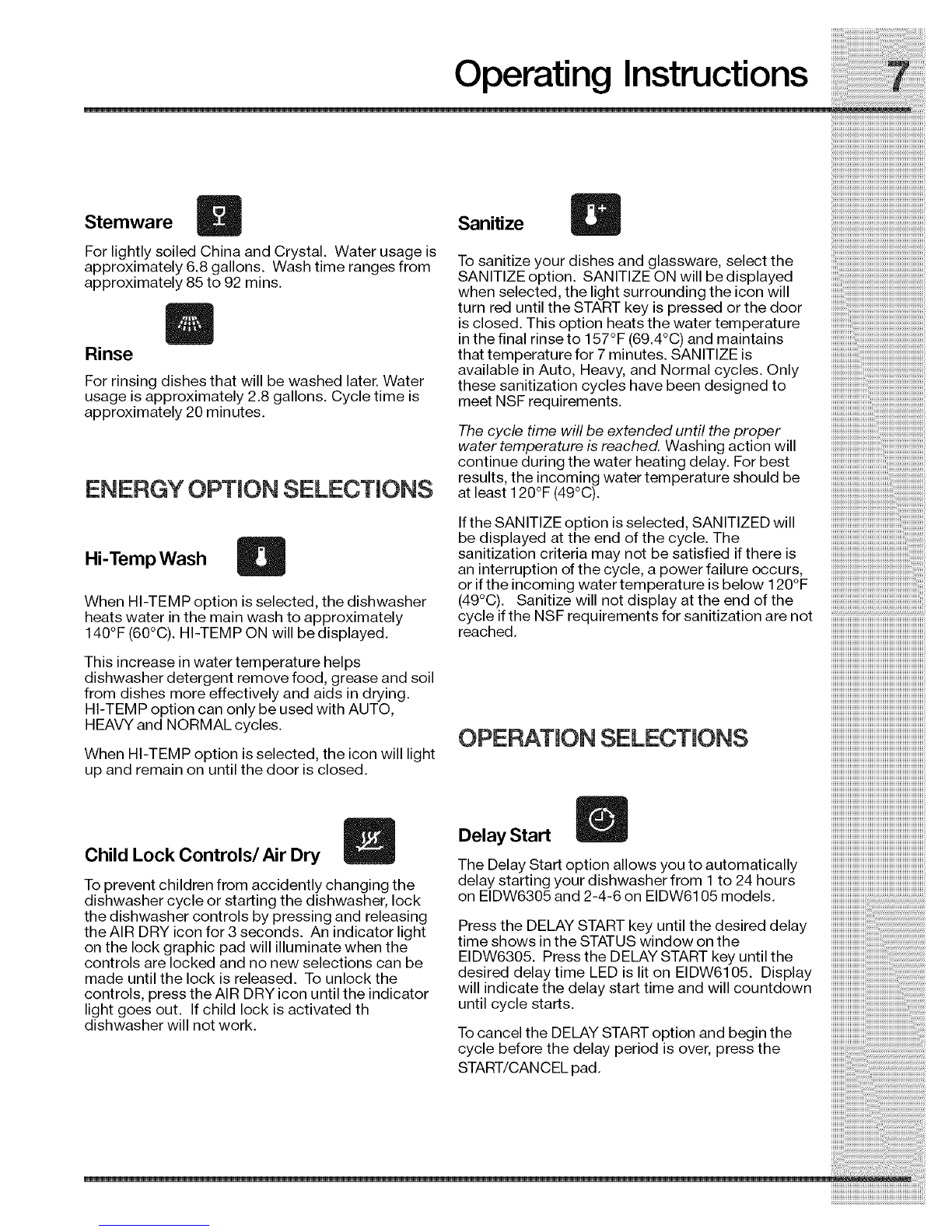

EnergyOption Selections.................................... 7
OperationSelections ........................................... 7
StatusWindow ................................................... 8

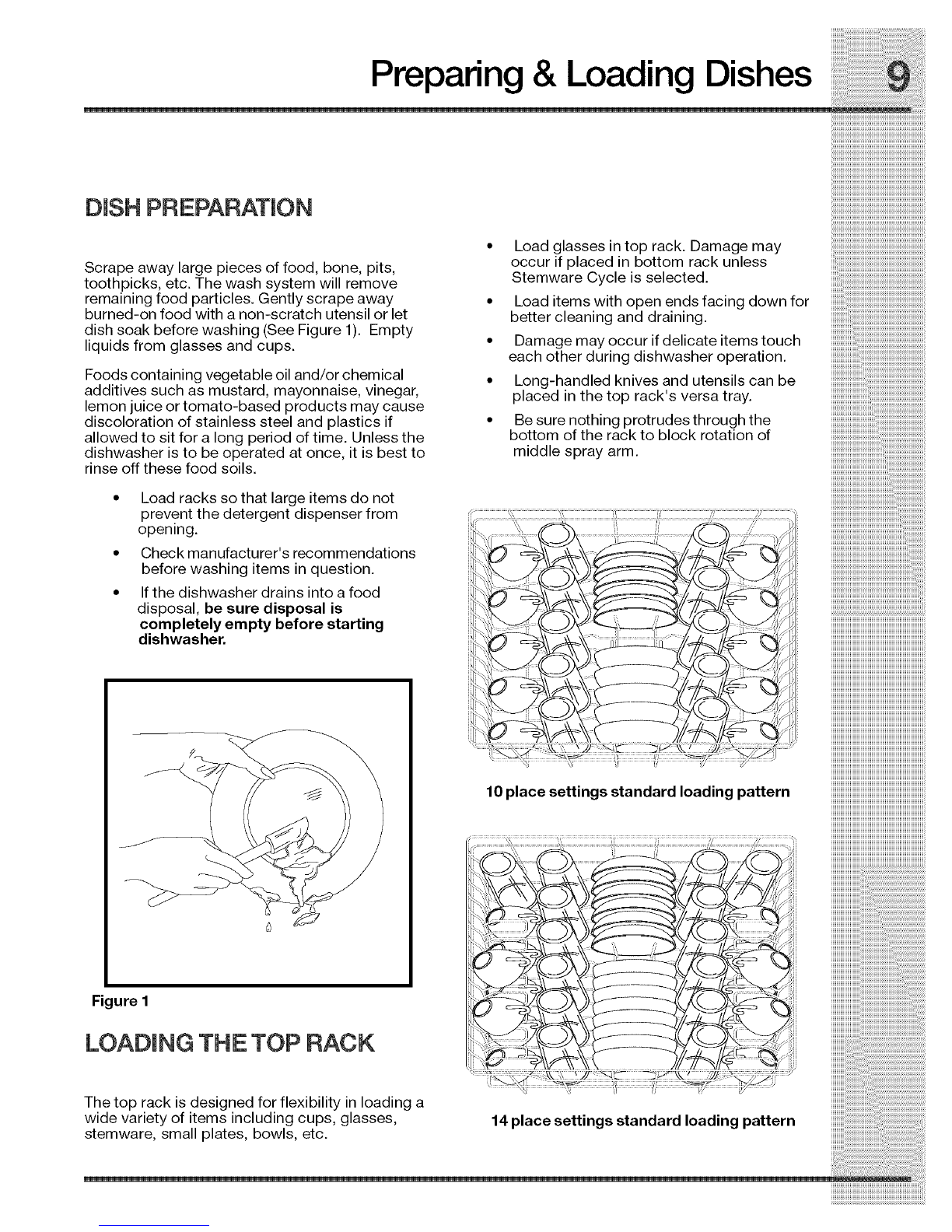

Preparing&LoadingDishes.......................... 9
DishPreparation.................................................9
LoadingtheTopRack.........................................9
LoadingtheBottomRack..................................10
AdjustingRackHeight......................................10
LoadingtheSilverwareBasket..........................11
Addingadish...................................................11
DishwasherDispenser&Detergents.............. 12
FillingtheDetergentDispenser.........................12
HowmuchDetergentto use..............................12

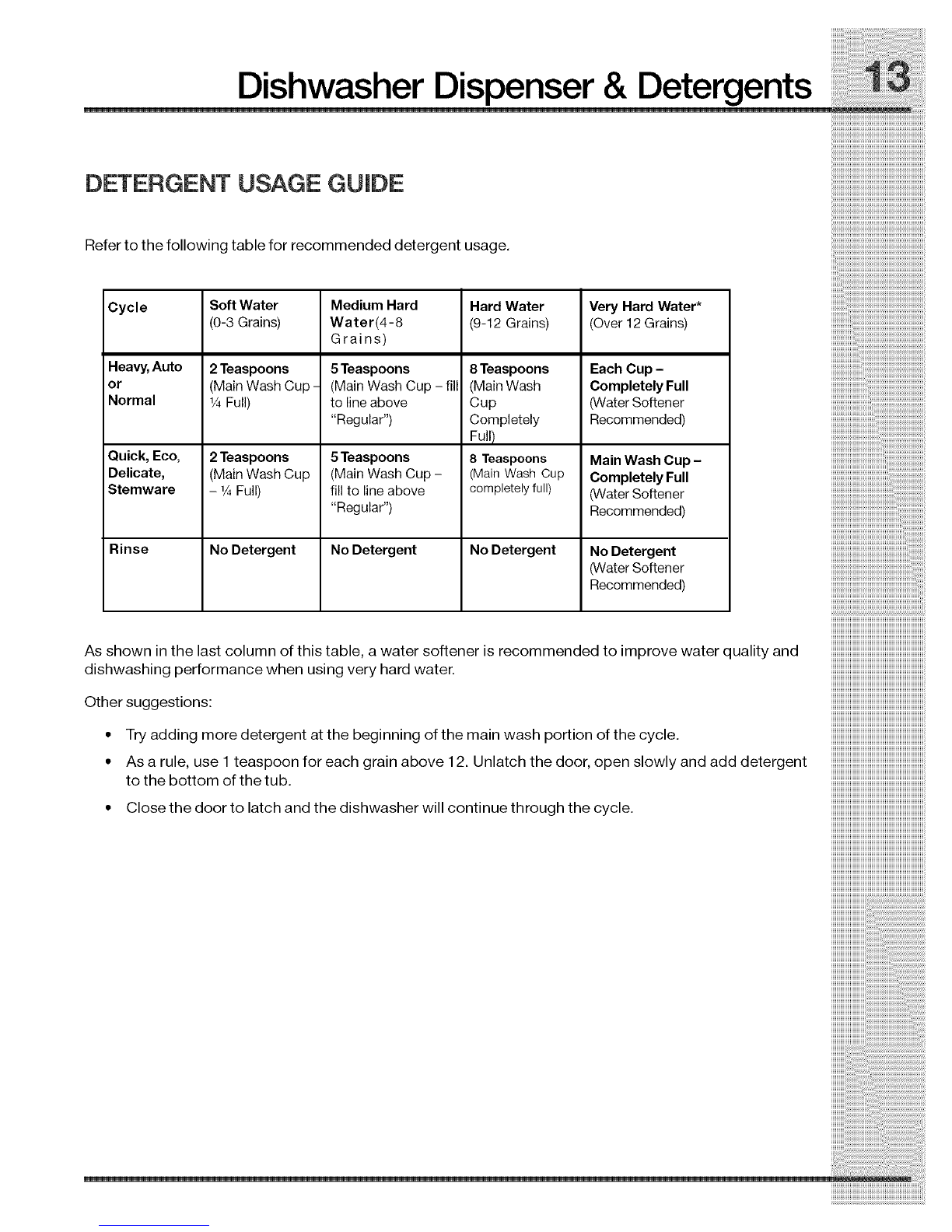

DetergentUsageGuide......................................13
RinseAid..........................................................14

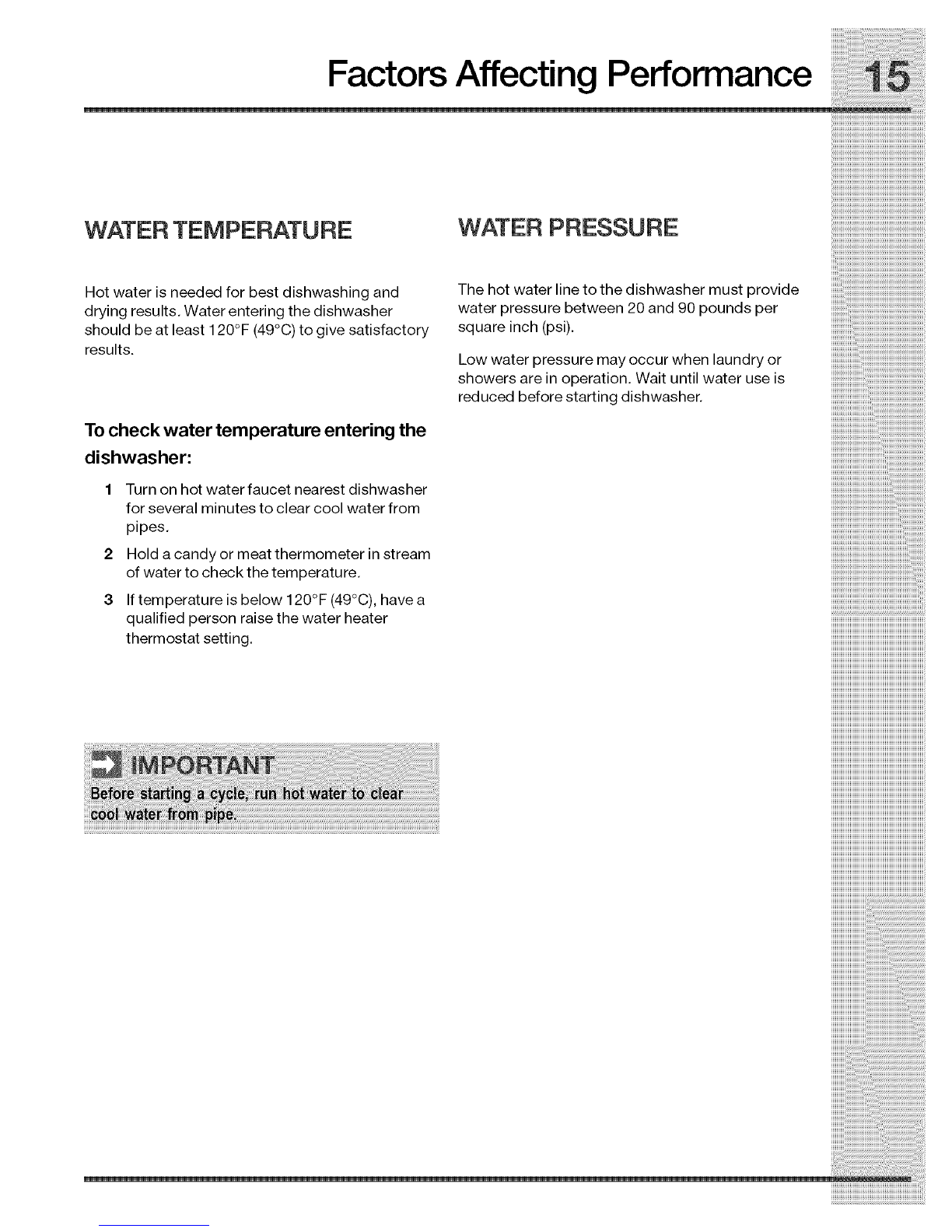

FactorsAffectingPerformance ..................... 15
WaterPressure ................................................. 15
WaterTemperature............................................ 15

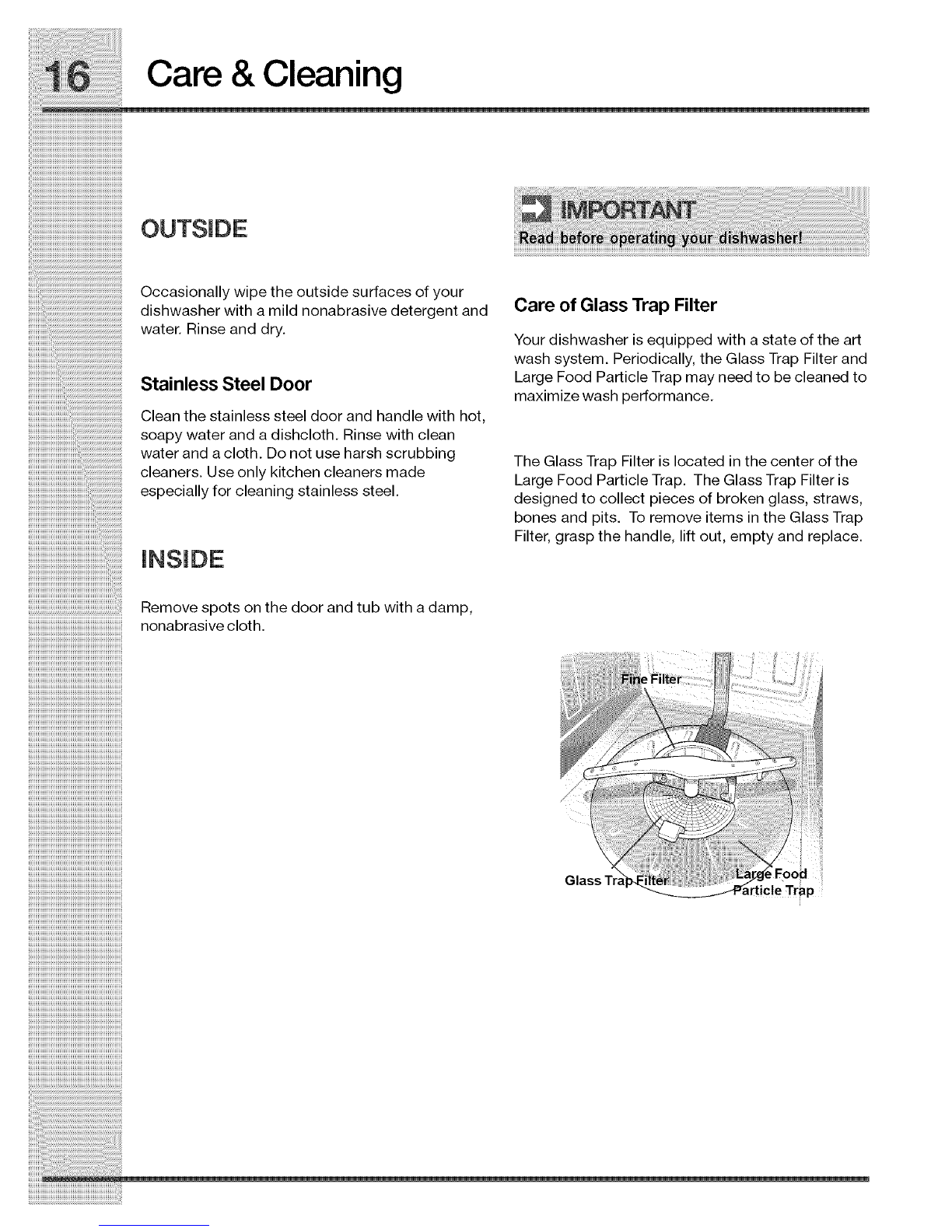

Care & Cleaning ...................................... 16
Outside ............................................................. 16
Inside................................................................ 16

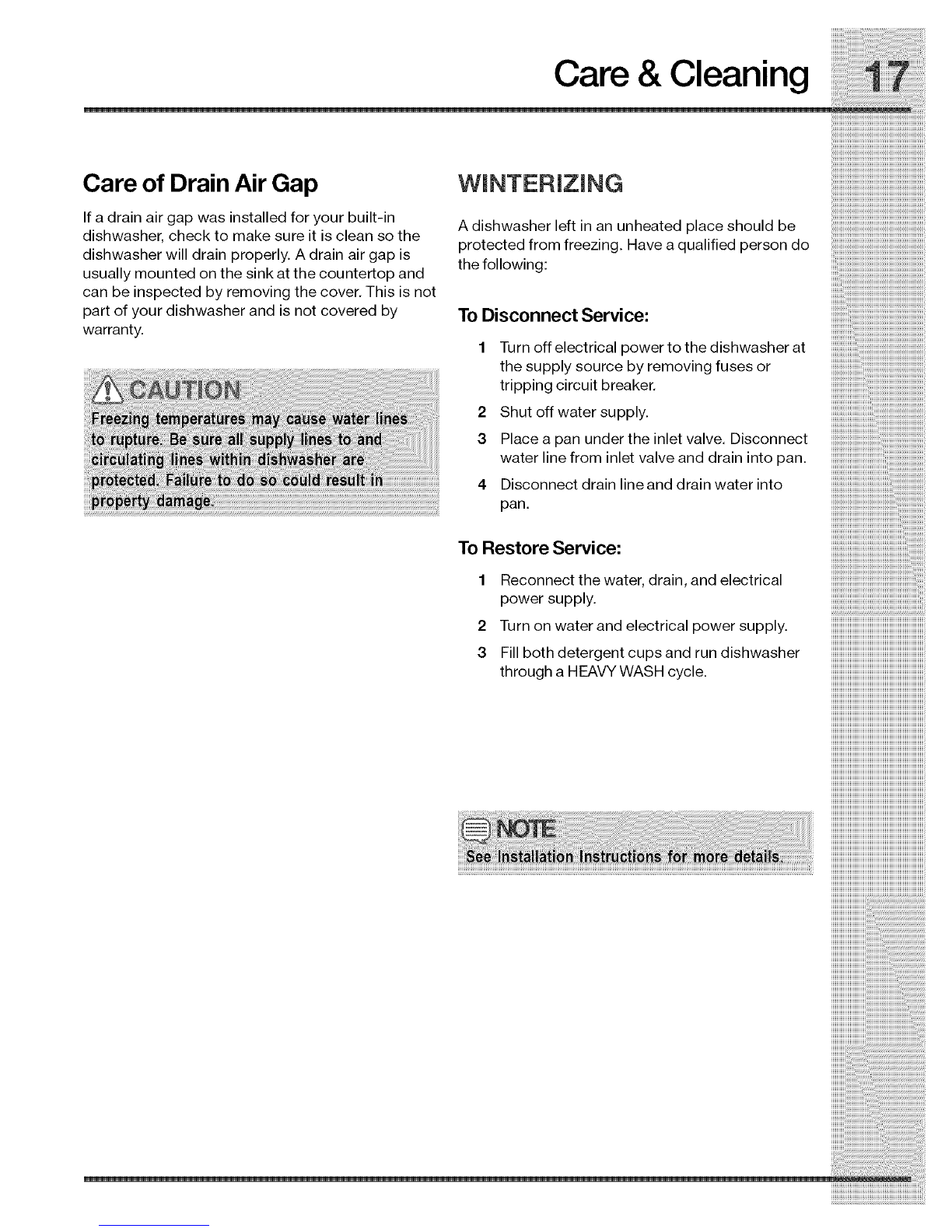

Winterizing ....................................................... 17
Solutions to Common Problems ................... 18
FoodSoils Lefton Dishes ................................. 18
DishesNotDry .................................................. 19
Glassware/FlatwareSpottedor Cloudy.............. 18
DishwareChipped............................................. 18
Dishware Stained or Discolored ....................... 19
Etching ............................................................. 19
Detergent Left in Cups ...................................... 19
DishwasherLeaks ............................................. 20
Normal Sounds You Will Hear.......................... 20
Waterin Bottom of Tub..................................... 20
DishwasherWon't Run ..................................... 20
DishwasherDoesNot Drain
Properly ............................................................ 20
CycleTakesaLong Time................................... 21
Please read and save this
guide
Thank you for choosing Electrolux, the new premium
brand in home appliances. This Use & Care Guide is part
of our commitment to customer satisfaction and product
quality throughout the service life of your new appliance.
We view your purchase as the beginning of a relationship.
Toensure our ability to continue serving you, please use
this page to record important product information.
Keep a record for quick
reference
Purchase date
Electrolux model number
Electrolux serial number
Questions?
For toll-free telephone support in the U.S. and
Canada:
1-877-4ELEOTROLUX (1-877-435-3287)
For online support and Internet production
information visit http://
www.electroluxappliances.com

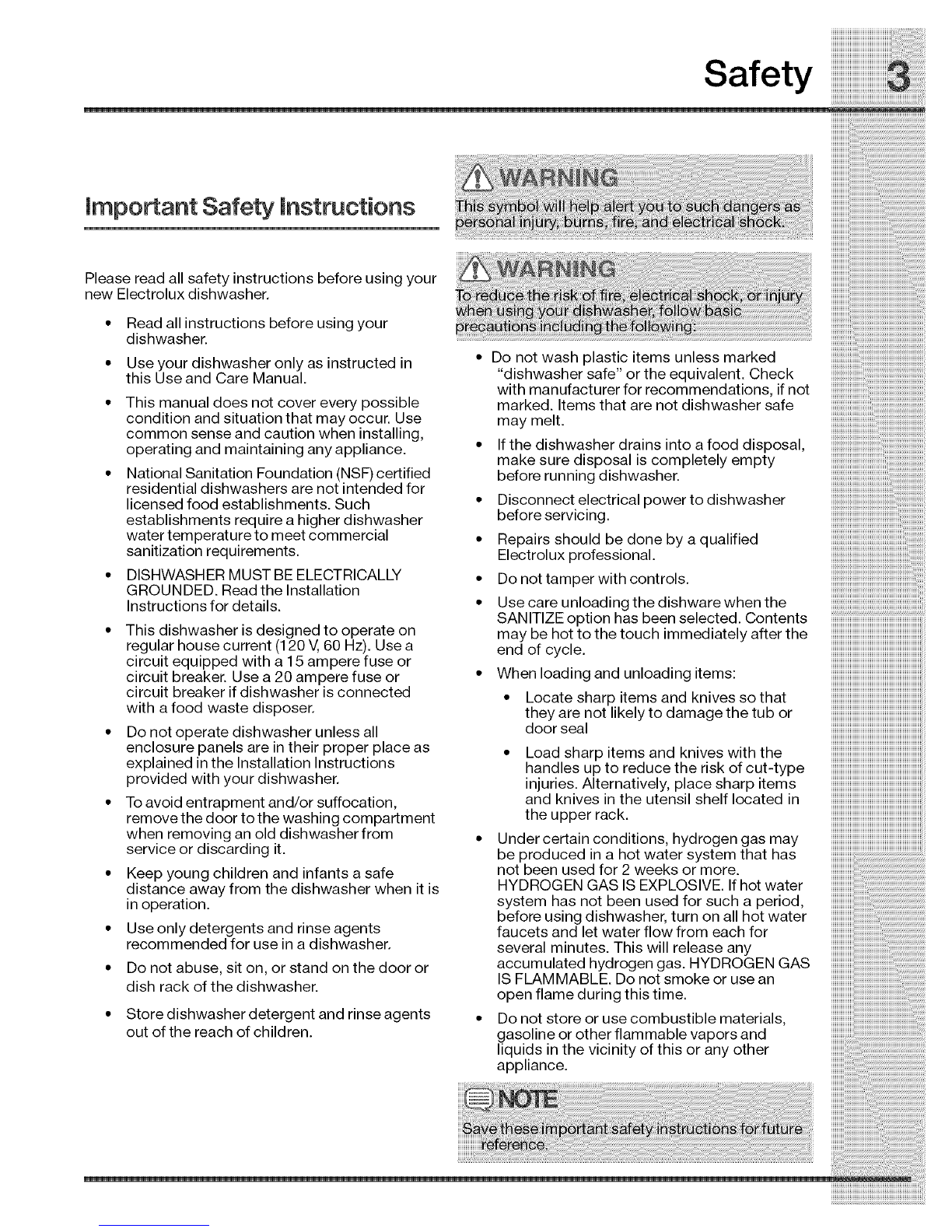

Safety 3
important Safety instructions
Please read all safety instructions before using your
new Electrolux dishwasher.
Read all instructions before using your
dishwasher.
Use your dishwasher only as instructed in
this Use and Care Manual.
This manual does not cover every possible
condition and situation that may occur. Use
common sense and caution when installing,
operating and maintaining any appliance.
National Sanitation Foundation (NSF)certified
residential dishwashers are not intended for
licensed food establishments. Such
establishments require a higher dishwasher
water temperature to meet commercial
sanitization requirements.
DISHWASHER MUST BE ELECTRICALLY
GROUNDED. Read the Installation
Instructions for details.
• This dishwasher is designed to operate on
regular house current (120 V,60 Hz). Use a
circuit equipped with a 15 ampere fuse or
circuit breaker. Use a 20 ampere fuse or
circuit breaker if dishwasher is connected
with a food waste disposer.
• Do not operate dishwasher unless all
enclosure panels are in their proper place as
explained in the Installation Instructions
provided with your dishwasher.
• To avoid entrapment and/or suffocation,
remove the door to the washing compartment
when removing an old dishwasher from
service or discarding it.
• Keep young children and infants a safe
distance away from the dishwasher when it is
in operation.
Use only detergents and rinse agents
recommended for use in a dishwasher.
Do not abuse, sit on, or stand on the door or
dish rack of the dishwasher.
• Store dishwasher detergent and rinse agents
out of the reach of children.
• Do not wash plastic items unless marked
"dishwasher safe" or the equivalent. Check
with manufacturer for recommendations, if not
marked. Items that are not dishwasher safe
may melt.
• If the dishwasher drains into a food disposal,
make sure disposal is completely empty
before running dishwasher.
• Disconnect electrical power to dishwasher
before servicing.
• Repairs should be done by a qualified
Electrolux professional.
• Do not tamper with controls.
• Use care unloading the dishware when the
SANITIZE option has been selected. Contents
may be hot to the touch immediately after the
end of cycle.
• When loading and unloading items:
• Locate sharp items and knives so that
they are not likely to damage the tub or
door seal
• Load sharp items and knives with the
handles up to reduce the risk of cut-type
injuries. Alternatively, place sharp items
and knives in the utensil shelf located in
thee pp er rack.
• Under certain conditions, hydrogen gas may
be produced in a hot water system that has
not been used for 2 weeks or more.
HYDROGEN GAS ISEXPLOSIVE. If hot water
system has not been used for such a period,
before using dishwasher, turn on all hot water
faucets and let water flow from each for
several minutes. This will release any
accumulated hydrogen gas. HYDROGEN GAS
IS FLAMMABLE. Do not smoke or use an
open flame during this time.
• Do not store or use combustible materials,
gasoline or other flammable vapors and
liquids in the vicinity of this or any other
appliance.

Feature Overview
Your dishwasher cleans by spraying a mixture of
hot water and detergent through the spray arms
against soiled surfaces.
The dishwasher fills with water covering the filter
area. Water is then pumped through the filter and
spray arms. Soil particles go down the drain as the
water is pumped out and replaced with clean water.
The number of water fills will vary with the cycle
being used.
Cup Shelf
Upper Spray Arm
(Not shown in image)
Versa Tray
(in some models)
Top Rack
Middle Spray Adjustable Rack
Lower Spray
Utility Tray
(
Champagne
Glass
Holder
(in some models)
Bottom Rack
Rinse Aid
Dispenser
Detergent
Dis
iiiii
Cabinet Seal
Side Kit
Silverware
Basket (Lids
may vary in
some models)
Serial Label

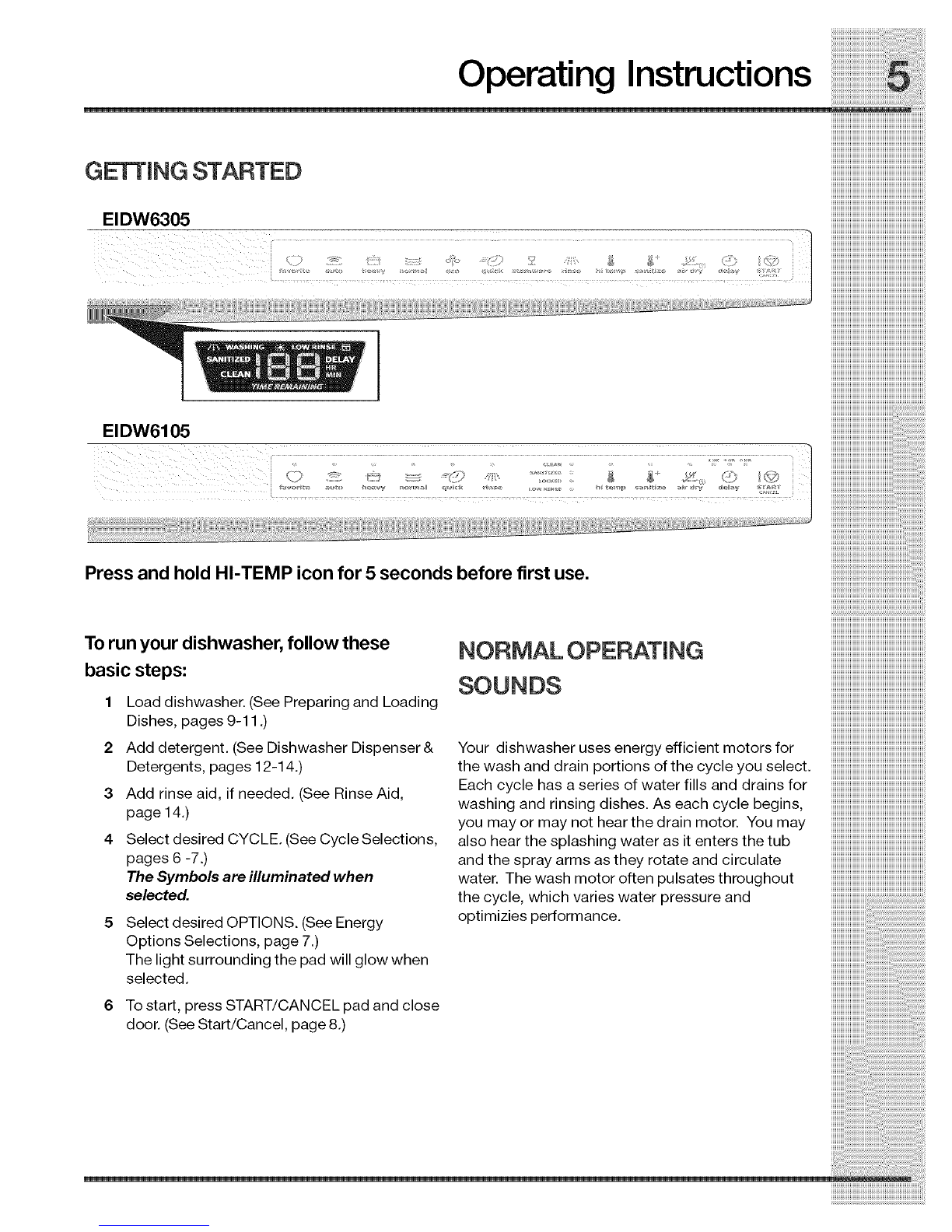

Operating Instructions
EIDW6305
...................... ......... _JJ
ElDW6105
Press and hold HI-TEMP icon for 5seconds before first use.
To run your dishwasher, follow these
basic steps:
1 Load dishwasher. (See Preparing and Loading
Dishes, pages 9-11 .)
2 Add detergent. (See Dishwasher Dispenser &
Detergents, pages 12-14.)
3 Add rinse aid, if needed. (See Rinse Aid,
page 14.)
4 Select desired CYCLE. (See Cycle Selections,
pages 6 -7.)
The Symbols are illuminated when
selected.
Select desired OPTIONS. (See Energy
Options Selections, page 7.)
The light surrounding the pad will glow when
selected.
6 To start, press START/CANCEL pad and close
door. (See Start/Cancel, page 8.)
NORMAL OPERATING
SOUNDS
Your dishwasher uses energy efficient motors for
the wash and drain portions of the cycle you select.
Each cycle has a series of water fills and drains for
washing and rinsing dishes. As each cycle begins,
you may or may not hear the drain motor. You may
also hear the splashing water as it enters the tub
and the spray arms as they rotate and circulate
water. The wash motor often pulsates throughout
the cycle, which varies water pressure and
optimizies performance.

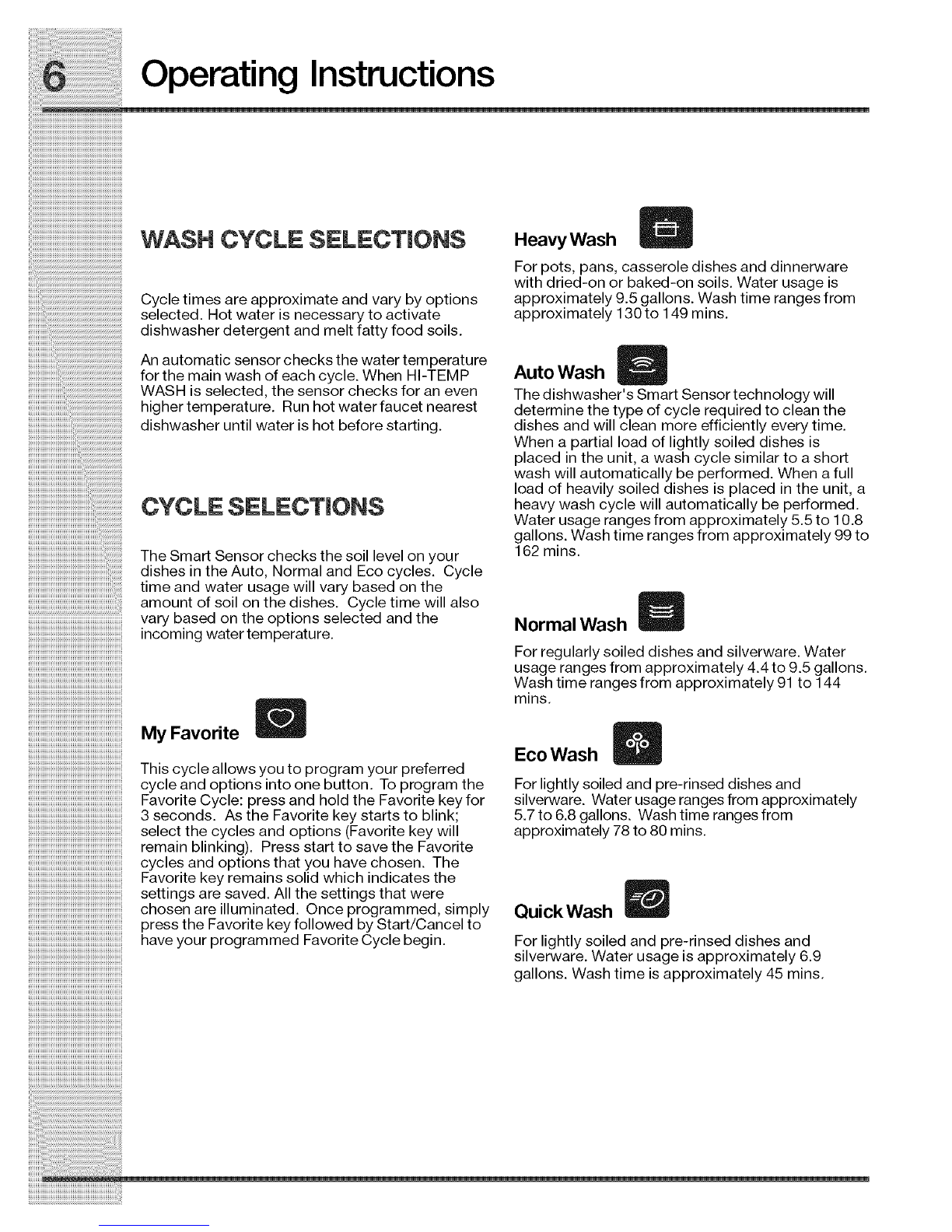

Operating Instructions
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
WASH CYCLE SELECTmONS HeavyWash
For pots, pans, casserole dishes and dinnerware
with dried-on or baked-on soils. Water usage is
Cycle times are approximate and vary by options approximately 9.5 gallons. Wash time ranges from
selected. Hot water is necessary to activate approximately 130 to 149 mins.
dishwasher detergent and melt fatty food soils.
An automatic sensor checks the water temperature
for the main wash of each cycle. When HI-TEMP
WASH is selected, the sensor checks for an even
higher temperature. Run hot water faucet nearest
dishwasher until water is hot before starting.
The Smart Sensor checks the soil level on your
dishes in the Auto, Normal and Eco cycles. Cycle
time and water usage will vary based on the
amount of soil on the dishes. Cycle time will also
vary based on the options selected and the
incoming water temperature.
My Favorite
This cycle allows you to program your preferred
cycle and options into one button. To program the
Favorite Cycle: press and hold the Favorite key for
3 seconds. As the Favorite key starts to blink;
select the cycles and options (Favorite key will
remain blinking). Press start to save the Favorite
cycles and options that you have chosen. The
Favorite key remains solid which indicates the
settings are saved. All the settings that were
chosen are illuminated. Once programmed, simply
press the Favorite key followed by Start/Cancel to
have your programmed Favorite Cycle begin.
Auto Wash
The dishwasher's Smart Sensor technology will
determine the type of cycle required to clean the
dishes and will clean more efficiently every time.
When a partial load of lightly soiled dishes is
placed in the unit, a wash cycle similar to a short
wash will automatically be performed. When a full
load of heavily soiled dishes is placed in the unit, a
heavy wash cycle will automatically be performed.
Water usage ranges from approximately 5.5 to 10.8
gallons. Wash time ranges from approximately 99 to
162 mins.
Normal Wash
For regularly soiled dishes and silverware. Water
usage ranges from approximately 4.4 to 9.5 gallons.
Wash time ranges from approximately 91 to 144
mins.
EcoWash
For lightly soiled and pre-rinsed dishes and
silverware. Water usage ranges from approximately
5.7 to 6.8 gallons. Wash time ranges from
approximately 78 to 80 mins.
QuickWash
For lightly soiled and pre-rinsed dishes and
silverware. Water usage is approximately 6.9
gallons. Wash time is approximately 45 mins.

Operating Instructions
Stemware
For lightly soiled China and Crystal. Water usage is
approximately 6.8 gallons. Wash time ranges from
approximately 85 to 92 mins.
Rinse
For rinsing dishes that will be washed later. Water
usage is approximately 2.8 gallons. Cycle time is
approximately 20 minutes.
ENERGY OPTION SELECTIONS
Hi-Temp Wash
When HI-TEMP option is selected, the dishwasher
heats water in the main wash to approximately
140°F (60°C). HI-TEMP ON will be displayed.
This increase in water temperature helps
dishwasher detergent remove food, grease and soil
from dishes more effectively and aids in drying.
HI-TEMP option can only be used with AUTO,
HEAVY and NORMAL cycles.
When HI-TEMP option is selected, the icon will light
up and remain on until the door is closed.
Child Lock Controls/Air Dry
To prevent children from accidently changing the
dishwasher cycle or starting the dishwasher, lock
the dishwasher controls by pressing and releasing
the AIR DRY icon for 3 seconds. An indicator light
on the lock graphic pad will illuminate when the
controls are locked and no new selections can be
made until the lock is released. To unlock the
controls, press the AIR DRY icon until the indicator
light goes out. If child lock is activated th
dishwasher will not work.
Sanitize
To sanitize your dishes and glassware, select the
SANITIZE option. SANITIZE ON will be displayed
when selected, the light surrounding the icon will
turn red until the START key is pressed or the door
is closed. This option heats the water temperature
in the final rinse to 157°F (69.4°C) and maintains
that temperature for 7 minutes. SANITIZE is
available in Auto, Heavy, and Normal cycles. Only
these sanitization cycles have been designed to
meet NSF requirements.
The cycle time will be extended until the proper
water temperature is reached. Washing action will
continue during the water heating delay. For best
results, the incoming water temperature should be
at least 120°F (49°C).
If the SANITIZE option is selected, SANITIZED will
be displayed at the end of the cycle. The
sanitization criteria may not be satisfied ifthere is
an interruption of the cycle, a power failure occurs,
or if the incoming water temperature is below 120°F
(49°C). Sanitize will not display at the end of the
cycle if the NSF requirements for sanitization are not
reached.
OPERATION SELECTIONS
Delay Start
The Delay Start option allows you to automatically
delay starting your dishwasher from 1 to 24 hours
on EIDW6305 and 2-4-6 on EIDW6105 models.
Press the DELAY START key until the desired delay
time shows in the STATUS window on the
EIDW6305. Press the DELAY START key until the
desired delay time LED is lit on EIDW6105. Display
will indicate the delay start time and will countdown
until cycle starts.
Tocancel the DELAY START option and begin the
cycle before the delay period is over, press the
START/CAN CEL pad.
iiiiiiiiiiiiii:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i

Operating Instructions
The STATUS window displays codes typically seen
during normal operation or programming of the
dishwasher. The STATUS window indicates the
following activity:
1-24
CL
hd
WASHING
CLEAN
Indicates number of delay start
hours for selected cycle.
Flashes once the program has
been entered and the START/
CANCEL key is pressed. It also
flashes if the door is opened during
a wash cycle. Close the
dishwasher door to begin or
continue a wash cycle.
Flashes to indicate a water heat
delay. Time remaining is displayed
in the center of the status window
when a cycle is being ran.
WASHING will be illuminated in the
upper left corner.
CLEAN will illuminate on the left
side of the display after a cycle is
ran and the dishes are clean.
SANITIZED SANITIZED will illuminate on the
left side of the display after the
cycle. If SANITIZE option was
selected.
To start a cycle, press the START/CANCEL key
once and close the door. To cancel when a cycle is
running, open the door and press the START/
CANCEL key once. Close the door again and the
dishwasher will drain and shut off.
Error Indications
Incertain situations which are critical to the ma-
chine function and safe operation, the control shall
shut down and indicate an error code 'Er' (See Error
Codes on page 21). On units without a display, all
indicator lights will flash.
If one of these codes are displayed contact the
Electrolux Customer Care Center at 1-877-435-
3287. They will be able to provide assistance in
troubleshooting the problem and/or locating an
authorized service technician, if needed.

Preparing & Loading Dishes
DISH PREPARATION
Scrape away large pieces of food, bone, pits,
toothpicks, etc. The wash system will remove
remaining food particles. Gently scrape away
burned-on food with a non-scratch utensil or let
dish soak before washing (See Figure 1). Empty
liquids from glasses and cups.
Foods containing vegetable oil and/or chemical
additives such as mustard, mayonnaise, vinegar,
lemon juice or tomato-based products may cause
discoloration of stainless steel and plastics if
allowed to sit for a long period of time. Unless the
dishwasher is to be operated at once, it is best to
rinse off these food soils.
• Load racks so that large items do not
prevent the detergent dispenser from
opening.
• Check manufacturer's recommendations
before washing items in question.
• Ifthe dishwasher drains into a food
disposal, be sure disposal is
completely empty before starting
dishwasher.
• Load glasses in top rack. Damage may
occur if placed in bottom rack unless
Stemware Cycle is selected.
• Load items with open ends facing down for
better cleaning and draining.
• Damage may occur if delicate items touch
each other during dishwasher operation.
• Long-handled knives and utensils can be
placed in the top rack's versa tray.
• Be sure nothing protrudes through the
bottom of the rack to block rotation of
middle spray arm.
,: :_:_ .....................................................
cOX.................:--- : :,4!
x' , }
_,+ '.......... ,/,J I
10 place settings standard loading pattern
iiiiiiiiiiiiii_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Figure I
LOADING THE TOP RACK
The top rack is designed for flexibility in loading a
wide variety of items including cups, glasses,
stemware, small plates, bowls, etc.
,_v
14 place settings standard loading pattern

Preparing & Loading Dishes
Fold-downTines
The fold-down tines in the lower rack and upper
rack make easy loading for those extra large and
......................................................................................................................................hard-to-fit items. The tines may be left up for
normal use or folded down for more flexible loading.
LOADING THE 8OTTOM RACK
Our adjusted rack space allows you to put items up
to 15" in the bottom rack.
Foldtines downforeaseinloadinglarge pots or
pans.
The bottom rack is designed for plates, saucers,
bowls, and cookware.
• Large items should be placed along the
edge so they do not block the middle
spray arm rotation.
• For best results, place bowls,
casserole dishes,and sauce pans
with soiled surface facing down or
toward the center. Tilt slightly for better
drainage.
• Make sure tall items do not block
middle spray arm rotation.
• Be sure pan handles do not
protrude through the bottom of the
rack and block the lower spray arm
rotation.
10 place settings standard loading pattern
14 place settings standard loading pattern
ADJUSTING RACK HEIGHT
The top rack height can be easily adjusted to
accommodate loading taller dishes in either rack.
Height should be adjusted without dishes in the
racks.
Toaccommodate taller dishes in the bottom rack,
there are 3 positions available:
To raise the rack to the middle or upper
position, simply lift the rack. The lever is
spring loaded to engage the middle or
upper position. To lower the rack to the
middle or lower position, push the lever
with your thumbs and pushing downward
simultaneously. Releasing the lever will all
the middle position to be engaged. To
ensure ease of adjustment when adjusting
the rack, ensure that the rack remains level
from front to back with both sides at the
same height.

Preparing & Loading Dishes
LOADING THE SILVERWARE
BASKEt
Load the silverware basket while it is in the bottom
rack or take the basket out for loading on a counter
or table.
• Place small items like baby bottle caps,
jar lids, corn cob holders, etc., in a
covered section. Close the cover to hold
small items in place.
• Be sure nothing protrudes through
bottom of basket or rack to block the
lower spray arm.
• Do not mix silver and stainless items to
avoid damaging the silver finish.
VersaTray
The versa tray can be used in the upper rack to
hold spatulas, large spoons and other large
utensils.
When covers are up, mix non-sharp items in each
section of the basket with some pointing up and
some down to avoid nesting. Water spray cannot
reach nested items.
ADDING A DISH
To add or remove items after wash cycle
starts:
1 Open door slightly and wait a few seconds
until wash action stops before completely
opening.
2 Add theitem.
3 Close door firmly to latch and cycle will
automatically resume.
iiiiiiiiiiiiiiii

Dishwasher Dispenser & Detergents
RLUNG THE DETERGENT HOW MUCH DETERGENT TO
USE
The detergent dispenser has one main wash and
one pre-wash cup. The covered cups open
automatically to release detergent.
• Use only automatic dishwashing detergent.
Other detergents will cause oversudsing.
• When using automaticdishwashing
detergent tabs, place one tab in main wash
cup and close.
• Add detergent just before starting cycle.
• Store detergent in a cool, dry location.
Moist or caked detergent will not dissolve
properly.
Cover MainWash
Cup
Latch
\
Pre Wssh Cup
The amount of detergent to use depends on the
water hardness. Water hardness ismeasured in
grains pergallon (gpg). "Hard water" contains large
amounts of harsh minerals in granulated form,
above 10-11 grains per gallon (gpg), which can
affect water quality.
Using too little detergent can result in poor cleaning
and hard water filming or spotting. Using too much
detergent in soft water can cause a permanent film
called "etching." (See Etching, page 19.)
Your local water company, water softener company
or county extension agent can tell you the water
hardness in your area.

Dishwasher Dispenser & Detergents
DETERGENT USAGE GUIDE
Refer to the following table for recommended detergent usage.
Cycle Soft Water Medium Hard Hard Water Very Hard Water*
(0-3 Grains) Water(4-8 (9-12 Grains) (Over 12 Grains)
Grains)
Heavy,Auto
or
Normal
Quick, Eco,
Delicate,
Stemware
Rinse
2Teaspoons
(Main Wash Cup -
1AFull)
2Teaspoons
(Main Wash Cup
-1AFull)
No Detergent
5Teaspoons
(Main Wash Cup -fill
to line above
"Regular")
5Teaspoons
(Main Wash Cup -
fill to line above
"Regular")
No Detergent
8 Teaspoons
(Main Wash
Cup
Completely
Full)
8Teaspoons
(Main Wash Cup
completely full)
No Detergent
Each Cup -
Completely Full
(Water Softener
Recommended)
Main Wash Cup -
Completely Full
(Water Softener
Recommended)
No Detergent
(Water Softener
Recommended)
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;,
_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i
iiiiii_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiii_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiii
As shown in the last column of this table, a water softener is recommended to improve water quality and
dishwashing performance when using very hard water.
Other suggestions:
• Try adding more detergent at the beginning of the main wash portion of the cycle.
• As a rule, use 1 teaspoon for each grain above 12. Unlatch the door, open slowly and add detergent
to the bottom of the tub.
• Close the door to latch and the dishwasher will continue through the cycle.

Rinse aid greatly improves drying and reduces
waterspots and filming. It causes the water to
"sheet" off of dishes rather than form water
droplets that cling and leave spots.
The rinse aid dispenser, located next to the
detergent cup, automatically releases a measured
amount of rinse aid during the last rinse. If spotting
and poor drying are problems, increase the amount
of rinse aid dispensed by rotating the dial to a
higher number. The dial is located under the
dispenser cap.
To add liquid rinse aid:
1 Turn dispenser cap 1/4 turn counterclockwise
and lift out.
2 Pour in rinse aid until liquid reaches the flat
surface marked MAX in the Rinse Aid
dispenser. Do not overfill since this can
cause oversudsing.
3 Replace cap.
4 Wipe up any spills with a damp cloth.
If the rinse aid is low, LOW RINSE displays at the
beginning and end of the cycle on the EIDW6305
model. If the rinse aid is low, the LOW RINSE LED
is illuminated at the beginning and end of the cycle
on the EIDW6105 model indicating that it is time to
refill.
The dispenser holds enough for 35 to 140 washes,
depending on setting.
Dispenser Opening indicator
RINSE AID
_<M_Mor e Se_ng
Adjustable
Dispenser Cap

Factors Affecting Performance _i _ i
iii:
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii:
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii:
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii:
WATERTEMPERATURE WATERPRESSURE iiiiiii:::
Hot water is needed for best dishwashing and
drying results. Water entering the dishwasher
should be at least 120°F (49°C) to give satisfactory
results.
To check water temperature entering the
dishwasher:
1 Turn on hot water faucet nearest dishwasher
for several minutes to clear cool water from
pipes.
2 Hold a candy or meat thermometer in stream
of water to check the temperature.
3 If temperature is below 120°F (49°C), have a
qualified person raise the water heater
thermostat setting.
The hot water line to the dishwasher must provide
water pressure between 20 and 90 pounds per
square inch (psi).
Low water pressure may occur when laundry or
showers are in operation. Wait until water use is
reduced before starting dishwasher.
iiiiiiiiiiiiiiii

Occasionally wipe the outside surfaces of your
dishwasher with a mild nonabrasive detergent and
water. Rinse and dry.
Stainless Steel Door
Clean the stainless steel door and handle with hot,
soapy water and a dishcloth. Rinse with clean
water and a cloth. Do not use harsh scrubbing
cleaners. Use only kitchen cleaners made
especially for cleaning stainless steel.
Care of Glass Trap Filter
Your dishwasher is equipped with a state of the art
wash system. Periodically, the Glass Trap Filter and
Large Food Particle Trap may need to be cleaned to
maximize wash performance.
The Glass Trap Filter is located in the center of the
Large Food Particle Trap. The Glass Trap Filter is
designed to collect pieces of broken glass, straws,
bones and pits. To remove items in the Glass Trap
Filter, grasp the handle, lift out, empty and replace.
Remove spots on the door and tub with a damp,
nonabrasive cloth.
ap

Care & Cleaning
Care of Drain Air Gap
If a drain air gap was installed for your built-in
dishwasher, check to make sure it is clean so the
dishwasher will drain properly. A drain air gap is
usually mounted on the sink at the countertop and
can be inspected by removing the cover, This is not
part of your dishwasher and is not covered by
warranty.
A dishwasher left in an unheated place should be
protected from freezing. Have a qualified person do
the following:
To Disconnect Service:
1Turn off electrical power to the dishwasher at
the supply source by removing fuses or
tripping circuit breaker,
2 Shut off water supply,
3 Place a pan under the inlet valve, Disconnect
water line from inlet valve and drain into pan.
4 Disconnect drain lineand drain water into
pan.
To Restore Service."
1 Reconnect the water, drain, and electrical
power supply.
2 Turn on water and electrical power supply.
3 Fill both detergent cups and run dishwasher
through a HEAVY WASH cycle.
_______i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i
_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i
_______________i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i
CCCCCCCCCCCCCCCCI,,,

Solutions to Common Problems
i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_D SHES NOT DRY
FOOD SO LS LEFT ON
• Check incoming watertemperature.(See
Getting Started, page 5.) It should be at least
120°F (49°C). (See Factors Affecting
Performance, page 15.)
• Choose another cycle for longer washing
time.
• Check rack loading section for proper
loading--avoid nesting items.
• Home water pressure may be too low--
should be 20 to 90 pounds per square inch
(psi).
• Check water hardness. For extremely hard
water, it may be necessary to install a water
softener. (See Detergent Usage Guide, page
13.)
• Usefreshdetergent.
• Make sure items are not blocking any of the
spray arms, preventing them from rotating.
DISPLAY NOT iN OPERATING
MODE
• Hold down HI-TEMP ICON for 5 seconds to
reset unit to Normal Operating Mode.
• Make sure the rinse aid dispenser is filled.
• Increase the amount of rinse aid (See Rinse
Aid, page 14).
• Check the incoming water temperature. Be
sure it is at least 120°F (49°C).
• Check for proper loading--avoid nesting
items.
• Plastic items may need to be towel dried.
More water collects on plastic items when
cycle is complete because they do not get as
hot as glass or metal items.
• Cups with a concave bottom will collect
water.
D SHWARE CH PPED
• Load with care and do not overload. (See
Preparing and Loading Dishes, pages 9-11 .)
• Place delicate items in top rack.
• Place glasses securely against pins and not
over pins.
• Load items so they are secure and don't jar
loose when moving racks in and out. Move
racks in and out slowly.
• Make sure tall glasses and stemware will
clear top of tub when rack is pushed in.
• It is recommeded to wash fine antique china
and crystal by hand.

Solutions to Common Problems
GLASSWARE /FLATWARE
SPOTTED OR CLOUDY
• Check water hardness. For extremely hard
water, it may be necessary to install a water
softener. (See Detergent Usage Guide, page
13.)
• Water temperature may be low. Avoid
extremely low or high temperatures. (See
Factors Affecting Performance, page 15.)
• Avoid overloading and improper loading. (See
Preparing and Loading Dishes, pages 9-11 .)
• Use fresh detergent. Old detergent is
ineffective.
• Make sure rinse aid dispenser is filled.
• Check to see that proper amount of detergent
is being used for cycle selected. (See
Detergent Dispenser, pages 12-14.)
• Home water pressure may be too low--it
should be 20 to 90 pounds per square inch
(psi).
• Tea and coffee can stain cups. Remove the
stains by hand washing in a solution of 1/2
cup (120 ml) bleach and one quart (1 L)of
warm water. Rinse thoroughly.
• Iron deposits in water can cause a yellow or
brown film. A water filter installed in-line with
your water supply will correct this problem.
• Aluminum utensils can leave gray/black
marks when they rub against other items.
Load properly.
• Certain high acid foods can cause
discoloration of stainless steel and plastics if
allowed to sit for a long period. Use the Rinse
cycle or rinse by hand if not operating
dishwasher at once.
Mixing stainless steel and silver utensils in
silverware basket can cause pitting on the
stainless steel utensils. Avoid mixing
stainless steel and silver.
_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i
_______i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i
_i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i
_______________i:iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::,,,
Using too much detergent in soft or softened
water causes this film that cannot be
removed.
• Adjust the amount of detergent based on the
water hardness. (Check Detergent Usage
Guide, page 13.)
• Lower the water temperature.
DETERGENT LEFT
D SPENSER CUP
• Detergent may be old. Discard and use fresh
detergent.
• Be sure water action can reach the dispenser.
• Check to see if cycle has been completed.
• Make sure items do not prevent the detergent
dispenser from opening.
• Make sure the upper rack is firmly engaged
to the nozzle on the back of the tub before
closing the door.

Solutions to Common Problems
DISHWASHERLEAKS DISHWASHERWON'TRUN
i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:i:
• Use only fresh detergent designed for
automatic dishwashers. Measure detergent
carefully. Try a different brand.
• Spilled rinse aid can cause foam and lead to
overflowing. Wipe up any spills with a damp
cloth.
Check to see that dishwasher is level (See
Installation Instructions).
Check to see if circuit breaker is tripped or if
a fuse is blown.
• Make sure water supply is turned on.
• Check to see if cycle is set correctly.
(See Operating Instructions, pages 5-8.)
• Check to see if the Delay Start option has
been selected.
Make sure door is closed and latched.
NORMAL SOUNDS YOU WiLL • Check to see if the dishwasher is in the Child Lock mode.
Normal sounds include water fill, water
circulation and motor sounds.
Pump pulsing will cause motor speed to
increase and decrease at regular intervals
during cycles.
WATER iN THE BOTTOM OF
THE TUB
It is not normal for water to remain in the
bottom of the tub at the end of a cycle. If
water remains in the bottom of the tub at the
end of a cycle, the dishwasher may not be
draining properly. (See Dishwasher Does Not
Drain Properly, page 21.)The filter may also
need to be cleaned. (See Care of Filter, page
16.) Note: It is normal to see a small amount
of water under the filter at the end of a cycle.
DISHWASHER DOES NOT
DRAIN PROPERLY
• If unit is hooked up to a garbage disposal,
make sure the disposer is empty.
• If unit is hooked up to a new food waste
disposer, check to see if the "knockout" plug
located inside the disposal inlet has been
removed.
• Check to see if drain hose is kinked.
• Make sure cycle is complete, not in a pause.
CYCLE TAKES A LONG TiME
• Check to see if cycle is in a water heating
delay.
• Check to see if the delay start option has
been selected.
Check to see if the sanitize option has been
selected.
