Operating instructions
Safety information
In the interest of your safety and to ensure the correct use, before installing and
first using the appliance, read this user manual carefully, including its hints and
warnings. To avoid unnecessary mistakes and accidents, it is important to ensure
that all people using the appliance are thoroughly familiar with its operation and
safety features. Save these instructions and make sure that they remain with the
appliance if it is moved or sold, so that everyone using it through its life will be
properly informed on appliance use and safety.
Correct use
• This dishwasher is only intended for washing household utensils suitable for
machine washing.
• Do not put any solvents in the dishwasher. This could cause an explosion.
• Knives and other items with sharp points must be loaded in the cutlery basket
with their points down or placed in a horizontal position in the upper basket.
• Only use products (detergent, salt and rinse aid) suitable for dishwashers.
• Avoid opening the door whilst the appliance is in operation, hot steam may
escape.
• Do not take any dishes out of the dishwasher before the end of the dishwashing
cycle.
• After use, isolate the appliance from the power supply and turn off the water
supply.
• This product should be serviced only by an authorised service engineer, and only
genuine spare parts should be used.
• Under no circumstances should you attempt to repair the machine yourself.
Repairs carried out by inexperienced persons will cause injury or serious mal-
functioning. Contact your local Service Force Centre. Always insist on genuine
spare parts.
Safety information 5

General safety
• Dishwasher detergents can cause chemical burns to eyes, mouth and throat.
Could endanger life! Comply with the safety instructions of the dishwasher de-
tergent manufacturer.
• The water in your dishwasher is not for drinking. Detergent residues may still be
present in your machine.
• Ensure that the door of the dishwasher is always closed when it is not being
loaded or unloaded. In this way you will avoid anybody tripping over the open
door and hurting themselves.
• Do not sit or stand on the open door.
Child safety
• This appliance is designed to be operated by adults. Don’t allow children to use
the dishwasher unsupervised.
• Keep all packaging well away from children. There is risk of suffocation.
• Keep all detergents in a safe place out of children’s reach.
• Keep children well away from the dishwasher when the door is open.
Installation
• Check your dishwasher for any transport damage. Never connect a damaged
machine. If your dishwasher is damaged contact your supplier.
• All packaging must be removed before use.
• Any electrical and plumbing work required to install this appliance must be
carried out by a qualified and competent person.
• For safety reasons it is dangerous to alter the specifications or attempt to modify
this product in any way.
• Never use the dishwasher if the electrical supply cable and water hoses are
damaged; or if the control panel, work top or plinth area are damaged such that
the inside of the appliance is freely accessible. Contact your local Service Force
centre, in order to avoid hazard.
• All sides of the dishwasher must never be drilled to prevent damage to hydraulic
and electric components.
6Safety information

WARNING!
For electrical and water connection carefully follow the instructions given in
specific paragraphs.
Product description

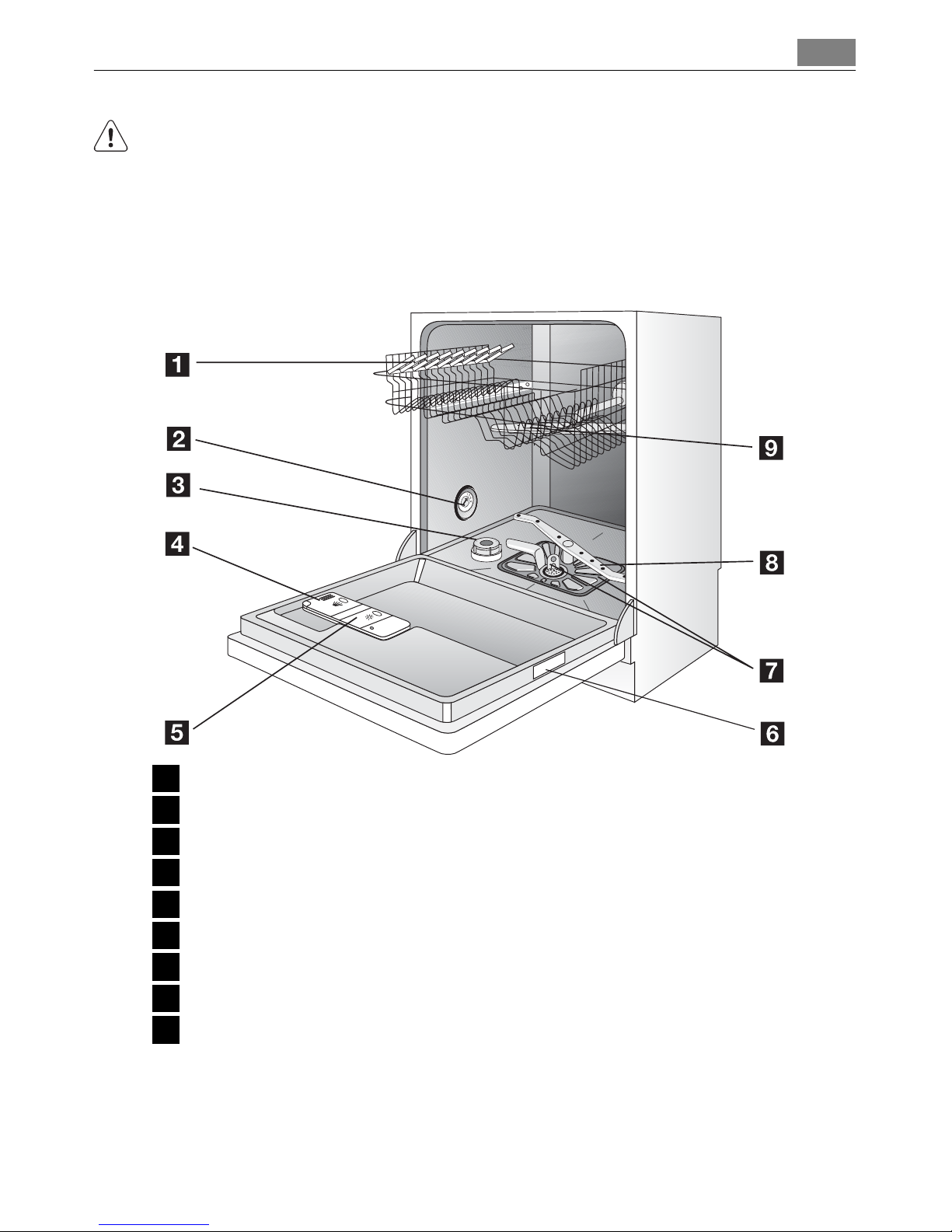

1Upper basket
2Water hardness dial
3Salt container
4Detergent dispenser
5Rinse aid dispenser
6Rating plate
7Filters
8Lower spray arm
9Upper spray arm
Product description 7

This dishwasher has an internal light that turns on and off when the opening and
closing of the dishwasher's door occurs.
Internal light is equipped with led lamp CLASS 1 in accordance with EN 60825-1:
1994 + A1: 2002 + A2: 2001.
In case that this light has to be replaced, please, contact your local Service Force
Centre.
Control panel
1ON/OFF button
2Display
3Up and down scrolling buttons
4OPTION button
5CANCEL button
6OK / START button
A sequence of displayed messages and audible signals will guide you in the setting
of the appliance and the selection of a washing programme and options.
Up and down scrolling buttons (+ -)
These two buttons have a double function:
8Control panel

• selecting within programme menu,
• selecting within option menu and submenu.
Display

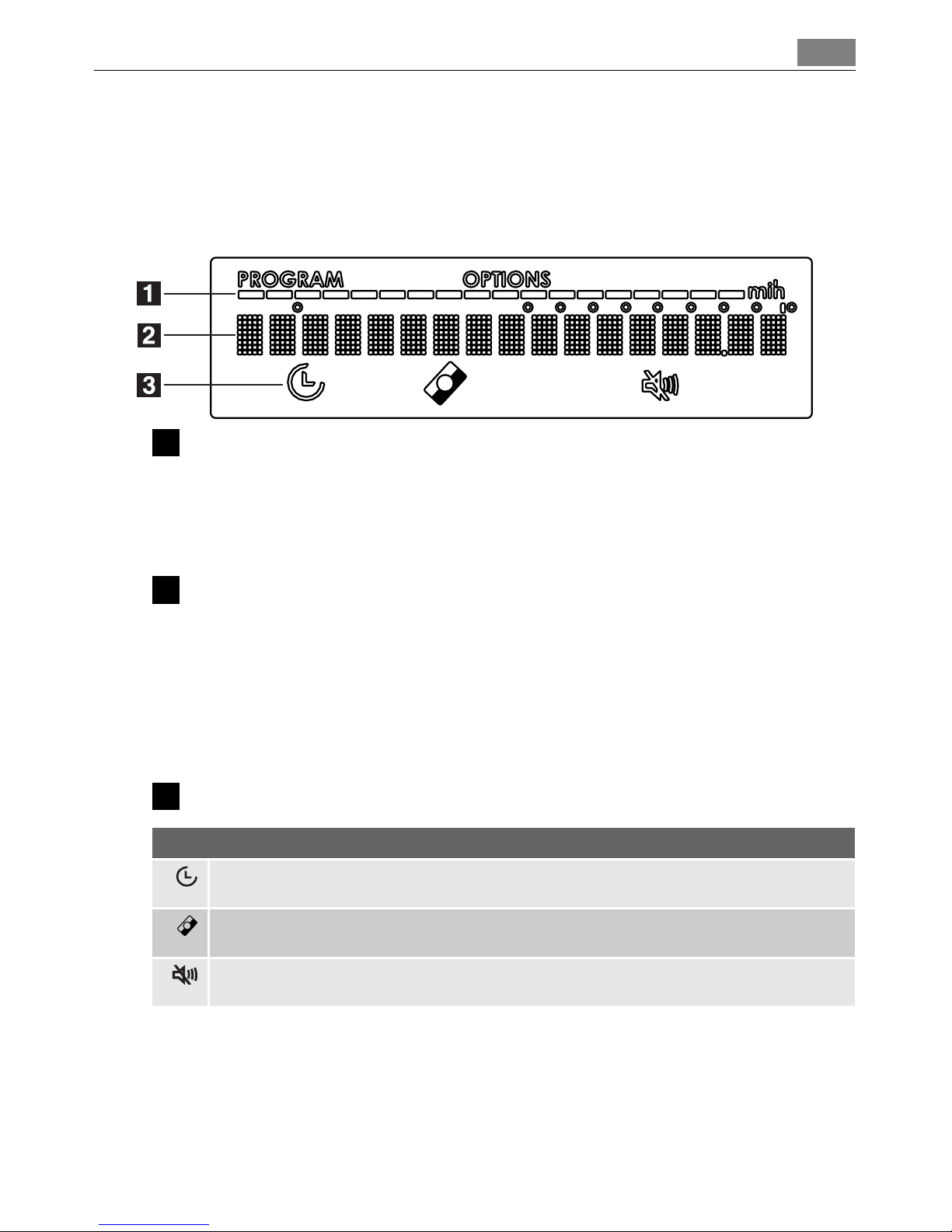

1This row of individual lamps is divided in two sections: Program menu and
Options menu.
Washing programmes: during the progress of the programme these little bars
indicate the phase of the washing programme: prewash - main wash - rinses
- drying.
2In this row several details are displayed:
–Setting mode guide to the selection of the washing programme - duration
time of the programme, options (when together with the washing pro-
gramme one or more options are set, the update of the programme duration
will occur automatically).
–Once the programme has started indicates the sequence of the running
phase and the running time of the programme in progress.
3Symbols: indicate the options (see chart).
The symbols have the following meaning:
DELAY START: fixed in setting mode; flashing when countdown in progress
MULTITAB: illuminated when the MULTITAB function is active.
SOUND VOLUME: exclusion of the acoustic signals.
OPTION button
Press this button to enter a menu of options; press again to exit from the menu.
Control panel 9

How to set the options
1. Press OPTION button.
2. Press one of the up and down scrolling buttons until desired option is dis-
played:
DELAY START
MULTITAB
SETTINGS
3. Press OK / START to confirm and enter submenu.
4. Press up and down scrolling buttons until required submenu is displayed.
5. Press OK / START to confirm.
6. To exit from the menu press OPTION button.
Option menu Option submenu
DELAY START Allows the start of the selected washing pro-
gramme to be delayed for between 1 and 19
hours. The countdown will decrease with steps
of 1 hour. Only in the last hour the decrease is
in minutes. Once the countdown has elapsed the
washing programme will start automatically.
MULTITAB Sets the dishwasher for the use of conventional
detergents or combi detergent tablets (3 in 1 -
4 in 1 - 5 in 1 etc...). See MULTITAB function.
–ON function activated. Use combi detergent
tablets. The symbol appears in the display.
–OFF function deactivated. Use conventional
detergents.
SETTINGS LANGUAGE
Allows you to view messages in the required
language.
WATER HARDNESS
Allows you to set electronically the water
softener.
RINSE AID
Allows you to activate or deactivate the rinse aid
dispenser.
–ON activated
–OFFdeactivated
10 Control panel

Option menu Option submenu
SOUND VOLUME
Allows you to adjust the volume of the acoustic
signals (from 0 to 5).
Level 0 means the deactivation of the acoustic
signals and the corresponding symbol ap-
pears in the display.
BRIGHTNESS
Allows you to increase or decrease the bright-
ness of the background of the display, 10 dif-
ferent levels can be selected.
Factory setting: level 10.
CONTRAST
Allows you to increase or decrease the contrast
of the display, 10 different levels can be selected.
Factory setting: level 5.
CANCEL button
Press it to:
• cancel a washing programme in progress
• cancel the setting of an option.
OK / START button
Press it to:
• confirm / memorize any option,
• start a washing programme.
Switching on for the first time - setting the language
1. Press the ON/OFF button.
2. In the display appears the default language message. If you want to confirm
the default language press OK / START.
3. If you want to set a different language use the up and down scrolling buttons
until the required language appears in the display. Press OK / START to confirm.
Control panel 11

First use
Before using your dishwasher for the first time:
• Ensure that the electrical and water connections comply with the installation
instructions
• Remove all packaging from inside the appliance
• Set the water softener
• Pour 1 litre of water inside the salt container and then fill with dishwasher salt
• Fill the rinse aid dispenser
If you want to use combi detergent tablets such as: "3 in 1", "4 in 1", "5 in 1" etc...
set the Multitab function (see "Multitab function").
Set the water softener
The dishwasher is equipped with a water softener designed to remove minerals and
salts from the water supply, which would have a detrimental or adverse effect on
the operation of the appliance.
The higher the content of these minerals and salts, the harder your water is. Water
hardness is measured in equivalent scales, Clarke degrees, French degrees (°TH) and
mmol/l (millimol per litre - international unit for the hardness of water).
The softener should be adjusted according to the hardness of the water in your
area. Your local Water Authority can advise you on the hardness of the water in
your area.
Water hardness Adjusting the water hardness
setting
Use of salt
Clarke °TH mmol/l manually electronically
64 - 88 91 - 125 9,1 - 12,5 2level 10 yes
53 - 63 76 - 90 7,6 - 8,9 2level 9 yes
46 - 52 65 - 75 6,51 - 7,5 2level 8 yes
36 - 45 51 - 64 5,1 - 6,4 2level 7 yes
28 - 35 40 - 50 4,0 - 5,0 2level 6 yes
23 - 27 33 - 39 3,3 - 3,9 2level 5 yes
18 - 22 26 - 32 2,61 - 3,2 1level 4 yes
12 First use

Water hardness Adjusting the water hardness
setting
Use of salt
Clarke °TH mmol/l manually electronically
13 - 17 19 - 25 1,9 - 2,5 1level 3 yes
5 - 12 7 - 18 0,71 - 1,8 1level 2 yes
< 5 < 7 < 0,7 1level 1 no
The water softener must be set in both ways: manually, using the water hardness
dial and electronically.
Setting manually
The dishwasher is factory set at position 2.
1. Open the dishwasher door.
2. Remove the lower basket from the
dishwasher.
3. Turn the water hardness dial to posi-
tion 1 or 2 (see table).
4. Replace the lower basket.
Setting electronically
The dishwasher is factory set at level 5.
Enter Option menu - SETTINGS - WATER HARDNESS .
Using the up and down scrolling buttons set the level of the water softener ac-
cording to the hardness of the water in your area (see chart).
Set the water softener 13

Use of dishwasher salt
WARNING!
Only use salt specifically designed for use in dishwashers. All other types of salt not
specifically designed for use in a dishwasher, especially table salt, will damage the
water softener. Only fill with salt just before starting one of the complete washing
programmes. This will prevent any grains of salt or salty water, which may have
been spilt, remaining on the bottom of the machine for any period of time, which
may cause corrosion.
To fill:
1. Open the door, remove the lower basket and unscrew the cap of the salt
container by turning it anticlockwise.
2. Pour 1 litre of water inside the container (this is necessary only before filling
with salt for the first time) .
3. Using the funnel provided, pour in
the salt until the container is full.
4. Replace the cap making sure that
there is no trace of salt on the screw
thread or on the gasket.
5. Replace the cap tightly turning it
clockwise until it stops with a click.
Do not worry if water overflows from the
unit when filling with salt, this is quite
normal.
The salt container will require topping up periodically.
You are reminded of this by a displayed message REFILL SALT.
This occurs only at the start and at the end of the washing programme; during the
running of the programme the indication for salt refilling is not active.
The refilling salt message can remain visible for 2-6 hours after the salt has been
replenished, assuming the dishwasher remains switched on. If you are using salts
that take longer to dissolve then this can take longer. The function of the machine
is not affected.
14 Use of dishwasher salt

Use of rinse aid
WARNING!
Only use branded rinse aid for dishwashers.
Never fill the rinse aid dispenser with any other substances (e.g. dishwasher clean-
ing agent, liquid detergent). This would damage the appliance.
Rinse aid ensures thorough rinsing, and spot and streak free drying.
Rinse aid is automatically added during the last rinse.

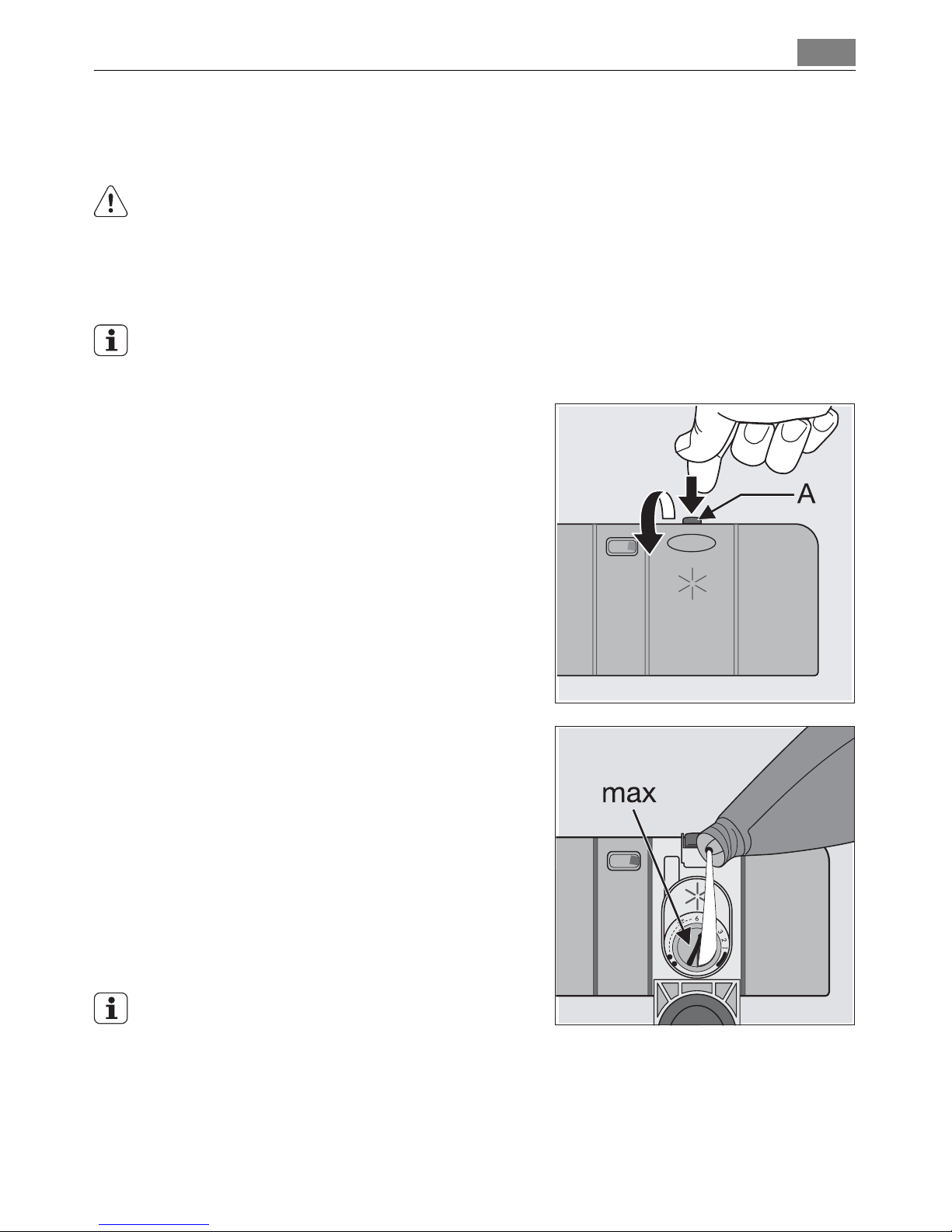

1. Open the container by pressing the
release button (A).
2. Add the rinse aid in the container. The
maximum level for filling is indicated
by "max".
The dispenser holds about 110 ml of
rinse aid, which is sufficient for be-
tween 16 and 40 dishwashing cycles,
depending upon the dosage setting.
3. Ensure that the lid is closed after every
refill.
Clean up any rinse aid spilt during filling
with an absorbent cloth to avoid excess
foaming during the next wash.
The rinse aid container will require topping up periodically.
You are reminded of this by a displayed message REFILL RINSE AID.
Use of rinse aid 15

This occurs only at the start and at the end of the washing programme; during the
running of the programme the indication for rinse aid refilling is not active.
Adjusting the dosage of rinse aid
According to the finish and drying results obtained, adjust the dose of rinse aid by
means of the 6 position selector (position 1= minimum dosage, position 6= maxi-
mum dosage).
The dose is factory set in position 4.
Increase the dose if there are drops of water
or lime spots on the dishes after washing.
Reduce it if there are sticky whitish streaks on
the dishes or a bluish film on glassware or
knife blades.
Daily use
• Check if it's necessary to refill with dishwasher salt or rinse aid.
• Load cutlery and dishes into the dishwasher.
• Fill with dishwasher detergent.
• Select a wash programme suitable for the cutlery and dishes.
• Start the wash programme.
Load cutlery and dishes
Sponges, household cloths and any object that can absorb water may not be washed
in the dishwasher.
16 Daily use

• Before loading the dishes, you should:
– Remove all left over food and debris.
– Soften remnants of burnt food in pans
• When loading the dishes and cutlery, please note:
– Dishes and cutlery must not impede the rotation of the spray arms.
– Load hollow items such as cups, glasses, pans, etc. with the opening down-
wards so that water cannot collect in the container or a deep base.
– Dishes and items of cutlery must not lie inside one another, or cover each
other.
– To avoid damage to glasses, they must not touch.
– Lay small objects in the cutlery basket.
• Plastic items and pans with non stick coatings have a tendency to retain water
drops; these items will not dry as well as porcelain and steel items.
• Light items (plastic bowls etc.) must be loaded in the upper basket and arranged
so they do not move.
For washing in the dishwasher the following cutlery and dishes
are not suitable: are of limited suitability:
• Cutlery with wooden, horn, china or mother-
of-pearls handles.
• Plastic items that are not heat resistant.
• Older cutlery with glued parts that are not
temperature resistant.
• Bonded cutlery items or dishes.
• Pewter or copper items.
• Lead crystal glass.
• Steel items prone to rusting.
• Wooden platters.
• Items made from synthetics fibres.
• Only wash stoneware in the dishwasher if it
is specially marked as being dishwasher-safe
by the manufacturer.
• Glazed patterns may fade if machine washed
frequently.
• Silver and aluminium parts have a tendency
to discolour during washing: Residues, e.g.
egg white, egg yolk and mustard often cause
discolouring and staining on silver. Therefore
always clean left-overs from silver
immediately, if it is not to be washed straight
after use.
Open the door and slide out the baskets to load the dishes.
Load cutlery and dishes 17

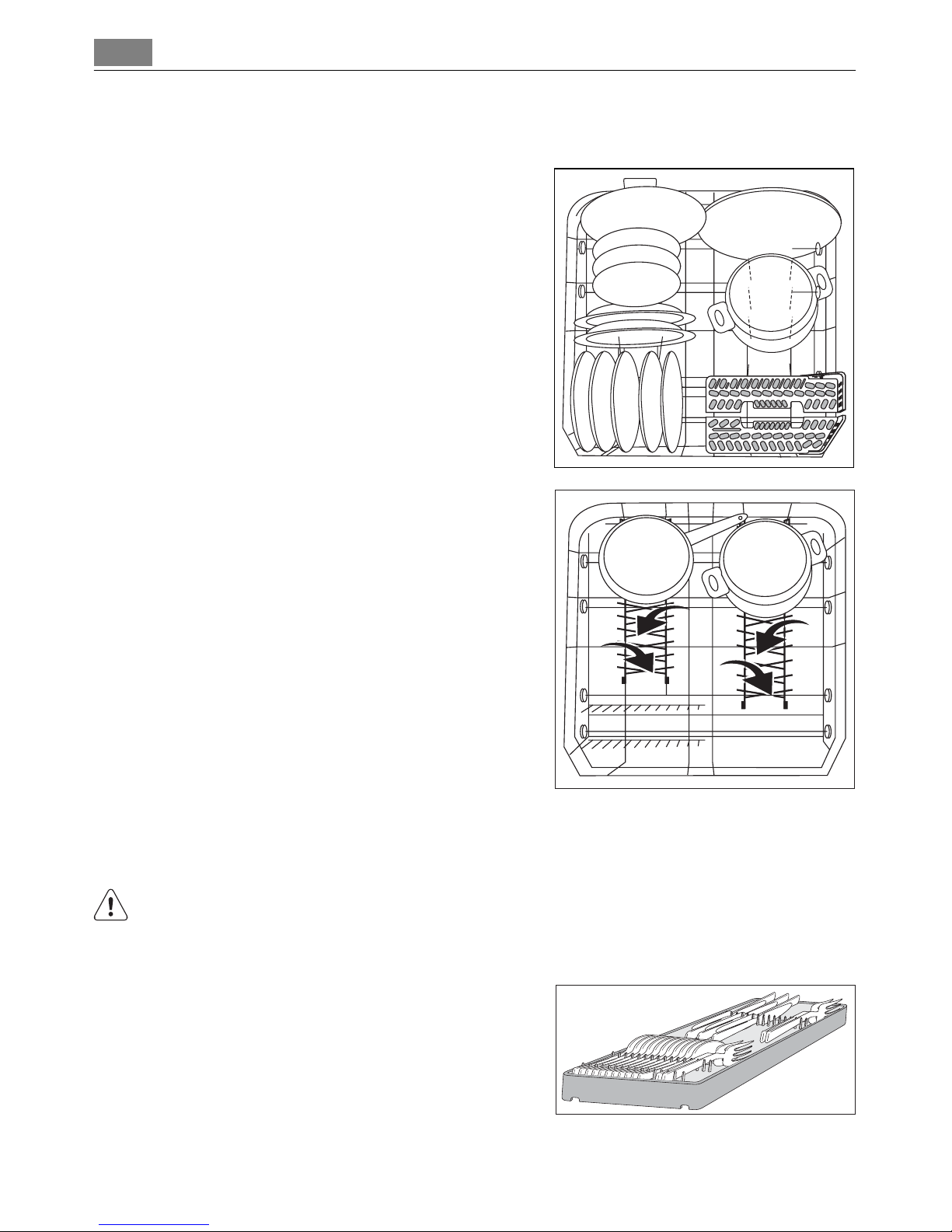

The lower basket
Load larger and heavily soiled dishes and pans
in the lower basket.
To make it easier to load larger dishes, all rear
plate racks in the lower basket can be folded
down.
The cutlery basket
WARNING!
Sharp knives and other items of cutlery with sharp edges must be laid in the cutlery
tray or in the upper basket because of the risk of injury.
Place knives, small spoons and small forks in
the cutlery tray which is in the upper basket.
Place forks and spoons that do not fit in the
cutlery tray in the cutlery basket.
To ensure that all items of cutlery in the cut-
lery basket can be reached by the water, you should:
18 Load cutlery and dishes

1. Place the grid insert on the cutlery
basket.
2. Place forks and spoon in the cutlery
basket with their handles pointing
downwards.
For larger utensils, such as whisks,
leave off one half of the cutlery grid.
The cutlery basket can be opened out.
Always make sure that you put your hand
around both parts of the two-part handle
when removing it from the dishwasher.
1. Place the cutlery basket on a table or work
surface.
2. Open out the two-part handle.
3. Remove cutlery.
Load cutlery and dishes 19

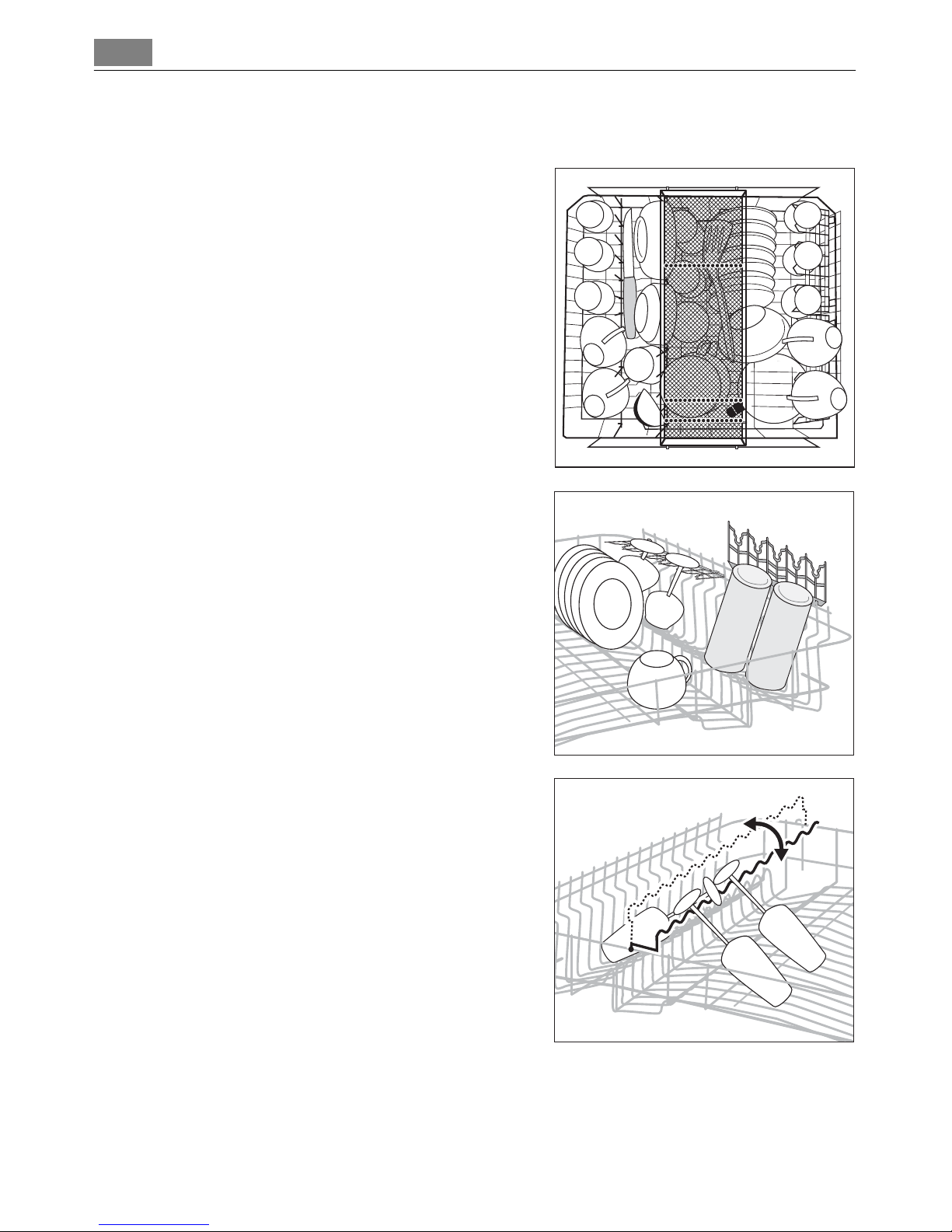

The upper basket
Load smaller, fragile crockery and long, sharp
cutlery in the upper basket.
• Arrange items of crockery on and under the
folding cup racks so that they are offset
from each other and water can reach all
items.
• The cup racks can be folded up out of the
way for tall crockery items.
• Lay or hang wine and brandy glasses in
the slots in the cup racks.
• For glasses with long stems, fold the
glass rack to the right, otherwise fold it
away to the left.
20 Load cutlery and dishes
