Dear Customer
Thank you for choosing one of our highquality products.
With this appliance you will experience the perfect combination of functional
design and cutting edge technology.
Convince yourself that our appliances are engineered to deliver the best per
formance and control  indeed we are setting the highest standards of excel
lence.
In addition to this you find environmental and energy saving aspects as an inte
gral part of our products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfect
ly and most efficiently.
To refer to this manual any time you need to, we recommend you to keep it in a
safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
The following symbols are used in this user manual:
1
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
3General information and tips
2Environmental information

3Contents
Contents
Operating Instructions 4
Safety 4
Diagram of appliance 5
Control panel 6
Prior to using for the first time 9
Setting the water softener 9
Adding special salt 11
Filling up with rinse aid 12
In daily use 15
Loading cutlery and dishes 15
Adjusting the height of the upper basket 22
Adding detergent 23
Using 3in1 detergents 25
Selecting the dishwashing cycle (Cycle Table) 26
Starting a dishwashing cycle 28
Setting the Delay Timer 29
Switching off the dishwasher 30
Care and cleaning 31
What to do if… 33
Remedying small malfunctions 33
If the dishwashing results are not satisfactory 36
Disposal 37
Technical data 37
Notes for Test Institutes 38
Installation and connection instructions 39
Safety information for the installation 39
Installing the dishwasher 40
Connecting the dishwasher 41
Guarantee/Customer Service 44
Service 47

Operating Instructions4
Operating Instructions
1Safety
Prior to using for the first time
•Follow the ”Instructions for installation and connection”.
Correct use
•The dishwasher is only intended for washing domestic dishes.
•Additions or modifications to the dishwasher are not permitted.
•Use only special salt, detergent and rinse aid suitable for domestic dishwash
ers.
•Do not put any solvents in the dishwasher. This could cause an explosion.
Child safety
•Keep packaging away from children. There is a risk of suffocation.
•Children often do not recognise the hazards associated with electrical appli
ances. Don’t allow children to use the dishwasher unsupervised.
•Make sure that children and pets don’t climb into the dishwasher. Could en
danger life!
•Dishwasher detergents can cause chemical burns to the eyes, mouth and
throat. Could endanger life! Comply with the safety instructions of the dish
washer detergent manufacturer.
•The water in the dishwasher is not for drinking. Risk of chemical burns.
General safety
•Repairs to the dishwasher are only to be carried out by qualified service engi
neers.
•When the dishwasher is not being used, switch it off and shut off the water
tap.
•Never unplug the appliance by pulling on the cable. Always pull the plug.
•Ensure that the door of the dishwasher is always closed when it is not being
loaded or unloaded. In this way you will avoid anybody tripping over the open
door and hurting themselves.
•Never sit or stand on the open door.
•If the dishwasher is located in a room where there may be a frost, remove the
connection hose from the tap after each use of the dishwasher.

5Diagram of appliance
Diagram of appliance
1This dishwasher has an internal light that turns on and off when the opening
and closing of the dishwasher’s door occurs.
Internal light equipped with led lamp CLASS 1 in accordance with EN 608251:
1994 + A1:2002 + A2:2001
In case that this light has to be replaced, please contact your local Service Force
Centre.
Ceiling spray arm
Upper basket spray arm
and floor spray arm
Water hardness
dial
Dispenser
for special salt
Dispenser
for detergent
Dispenser
for rinse aid
Rating plate
Filters
Interior lighting

Control panel6
Control panel
ON/OFF button Programme buttons
Function buttons
123

7Control panel
The ON/OFF button is used to turn the dishwasher on and off.
The Programme buttons are used to select the desired dishwashing cycle.
Function buttons: In addition to the preset dishwashing cycle, the following
functions can also be set using these buttons:
The rinse aid inflow is only affected, if the 3in1 function is selected.
Function button 1 Set the water softener
Function button 2 Activates/deactivates rinse aid inflow when 3in1 on
Function button 3  not programmed 
Set delay
timer
Multidisplay Programme progress display
Control
indicators
Select
3 in1 function

Control panel8
The multidisplay can indicate:
–the level of hardness to which the water softener is set.
–whether the rinse aid inflow has been activated/deactivated.
–the start delay that has been set.
–the estimated time remaining for the current dishwashing cycle.
–what type of error has occurred with the dishwasher.
Programme progress display: The current stage of the programme is always
shown in the programme progress display.

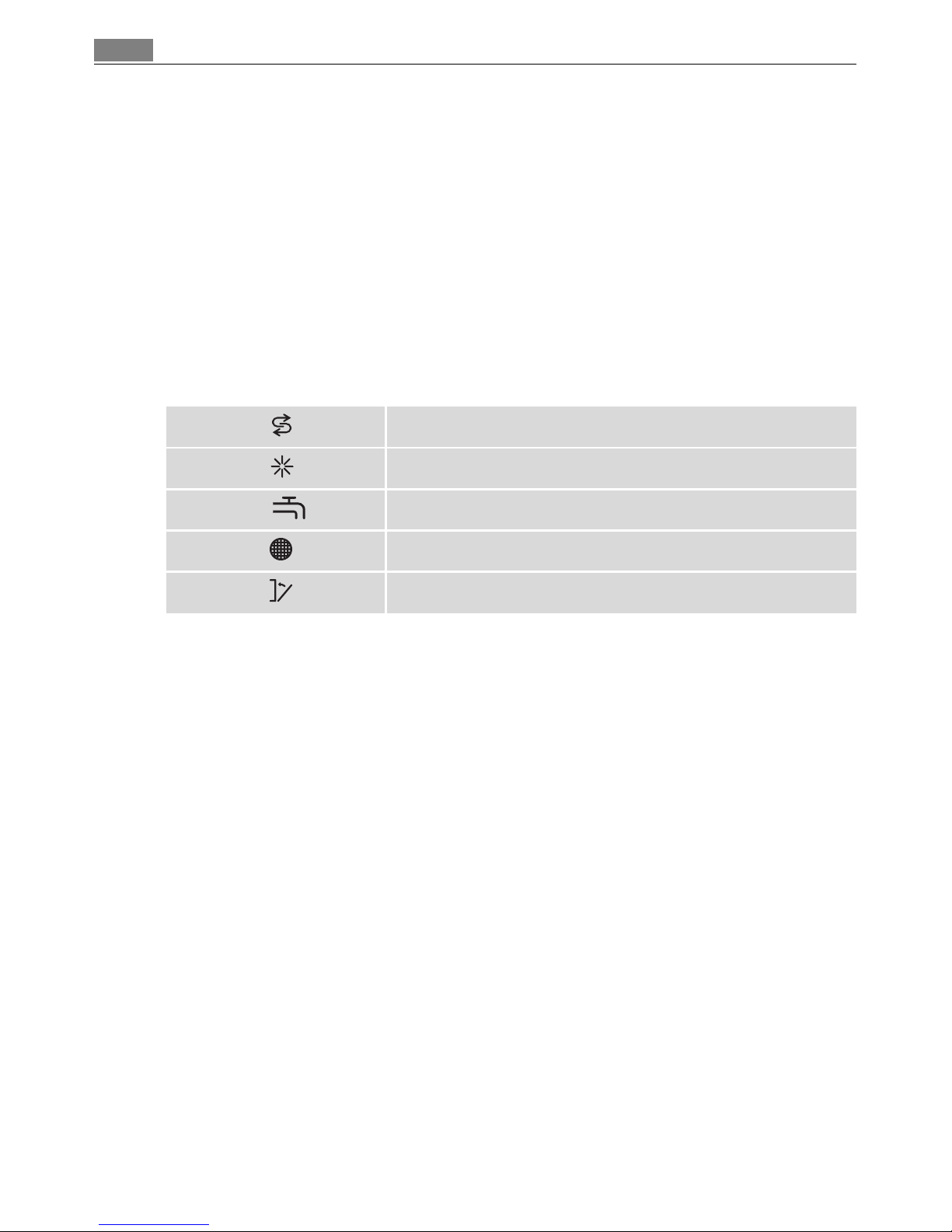

The control indicators have the following meanings:
1)
1) These control indicators are never illuminated while a dishwashing cycle is running.
Refill with special salt
1) Refill with rinse aid
Turn on the tap
Clean the dishwasher's filter system
The door of the dishwasher is open

9Prior to using for the first time
Prior to using for the first time
3If you wish to use 3 in 1 detergent:
– First read the section “Using 3in1 detergents”.
– Do not fill up with special salt or rinse aid.
If you do not use 3in1 detergent, before using for the first time
1. Set the water softener
2. Fill up with special salt for water softeners
3. Fill up with rinse aid
Setting the water softener
The water softener must be set manually and electronically:
3To avoid scale deposits on the dishes and in the dishwasher, the dishes must be
washed with soft water, i.e. water with a low lime content. The water softener
must be set according to the table to the water hardness in the area where you
live. Your local water company will be able to give you information about the
water hardness in your area.
The dishwasher must be switched off.
Setting manually:
1. Open the dishwasher door.
2. Remove the lower basket from the
dishwasher.
3. Turn water hardness dial on the left wall of
the dishwasher interior to 1 or 2 (see table).

Prior to using for the first time10
Setting electronically:
1. Press the ON/OFF button.
3If the only LED indicator illuminated is one that belongs to a programme button,
this means that this dishwashing cycle has been activated. The dishwashing
cycle must be deselected:
Press function buttons 1and 2 simultaneously for approx. 2 seconds.
The LED indicators of all the programme buttons that can be selected light up.
2. Press function buttons 1and 2simultaneously and keep them pressed.
The LED indicators for function buttons 1 to 3 will flash.
3. Press function button 1.
The LED indicator for function button 1 will flash.
The multidisplay will indicate the hardness setting.
4. Pressing function button 1increases the hardness setting by 1.
(Exception: hardness setting 1 follows hardness setting 10).
5. When the hardness setting is correct, press the ON/OFF button.
The hardness setting is now saved.
If the water softener is set electronically to “1”, this switches off the control in
dicator for special salt.
Water hardness Adjusting the hardness setting Indication on
the multidis
play
in °d1)
1) (°d) German degree, measure of the hardness of water
in mmol/l2)
2) [mmol/l] millimol per litre, international unit for water hardness
Range Manual Electronic
51  70
43  50
37  42
29  36
23  28
9,0  12,5
7,6  8,9
6,5  7,5
5,1  6,4
4,0  5,0
IV
2*
103)
9
8
7
6
3) On this setting the length of the dishwashing cycle may be slightly longer.
*) factory setting
10L .
9L
8L
7L
6L
19  22
15  18
3,3  3,9
2,6  3,2 III 5* 4
5L
4L
1
11  14 1,9  2,5 II 33L
4  10 0,7  1,8 I/II 22L
below 4 below 0.7 I
1
no salt
necessary
1L

11Prior to using for the first time
Adding special salt
To decalcify the water softener, it must be filled up with special salt. Use only
special salt suitable for domestic dishwashers.
If you do not use 3 in1 detergent, fill up with special salt:
–Before using the dishwasher for the first time.
–When the control indicator for special salt is illuminated on the control panel.
1. Open the door and remove the lower
basket.
2. Screw open the lid on the salt dispenser by
turning it anticlockwise.
3. Only when using the dishwasher for the
first time:
Fill the salt dispenser with water.

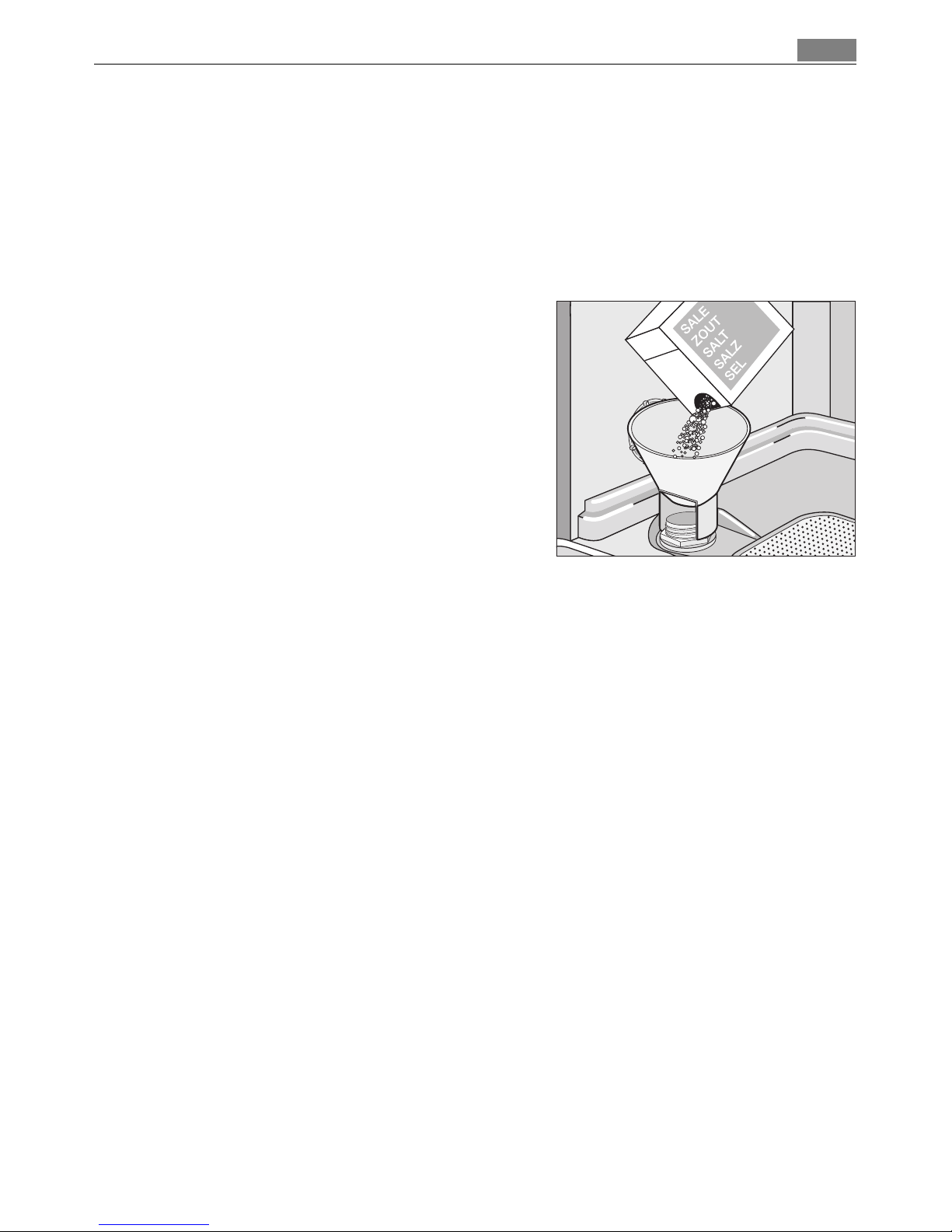

4. Place the funnel (supplied) over the dis
penser opening.
Fill the dispenser with special salt; the ca
pacity of the dispenser is approx. 1.01.5
kg, depending on the size of the grains. Do
not overfill the dispenser.
3If water overflows when filling up with special salt, this is completely harmless.
5. Clean away any salt remnants from the dispenser opening.
6. Screw the lid back on in a clockwise direction.
7. Run a dishwashing cycle after filling the salt dispenser with special salt.
This will wash away salt water and salt crystals that have been spilt.
3Depending on the size of the salt grains, it can take several hours for the salt to
dissolve in the water and for the control indicator for special salt to go out.

Prior to using for the first time12
Filling up with rinse aid
With rinse aid the rinsing water drains away better and so you get smearfree,
gleaming dishes and clear glasses.
If you do not use 3in1 detergent, fill up with rinse aid:
–Before using the dishwasher for the first time.
–When the control indicator for rinse aid is illuminated on the control panel.
Use only special rinse aid for dishwashers
and no other liquid detergents.
1. Open the door.
The rinse aid compartment is located on
the inside of the dishwasher door.
2. Press the release button on the rinse aid
compartment.
3. Open the cover.
4. Pour rinse aid in slowly right up to the bro
ken “max” line;
this corresponds to a volume of approx.
140 ml when full.
5. Press the lid shut until it clicks into place.
6. Wipe up any spilt rinse aid with a cloth.
Otherwise there will be too much foam
when rinsing.

13Prior to using for the first time
Setting the amount of rinse aid required
3Only change the amount dispensed, if smears, milky spots (reduce the amount)
or dried on water spots (increase the amount) can be seen on glasses and dishes.
(See section “If dishwashing results are not satisfactory”.) The dosage can be set
from 16. The dosage is preset to “4” in the factory.
1. Open the dishwasher door.
2. Press the release button on the rinse aid
compartment.
3. Open the cover.
4. Set the dosage level.
5. Press the lid shut until it clicks into place.
6. If rinse aid has leaked out, wipe it away
with a cloth.

Prior to using for the first time14
Activating rinse aid inflow when 3in1 function is selected
3If the 3in1 function is not selected, the rinse aid inflow is always activated.
If the 3in1 function is selected due to the use of 3in1 detergent, the rinse aid in
flow is deactivated. If the dishes then do not dry sufficiently, you should reacti
vate the rinse aid inflow (see also section “Using 3in1 detergents”).
1. Press the ON/OFF button.
3If the only LED indicator illuminated is one that belongs to a programme button,
this means that this dishwashing cycle has been activated. The dishwashing cy
cle must be deselected:
Press function buttons 1and 2 simultaneously for approx. 2 seconds.
The LED indicators of all the programme buttons that can be selected light up.
2. Press function buttons 1and 2simultaneously and keep them pressed.
The LED indicators for function buttons 1 to 3 will flash.
3. Press function button 2.
The LED indicator for function button 2will flash.
The multidisplay will indicate the current setting:
4. Pressing function button 2activates and deactivates the rinse aid dispensing
function.
5. Once the multidisplay is indicating the required setting, press the ON/OFF but
ton. The setting is now saved.
0d Rinse aid inflow deactivated when 3in1 on (factory setting)
1d Rinse aid inflow activated when 3in1 on

15In daily use
In daily use
Loading cutlery and dishes
1Sponges, cleaning cloths and any other objects that can absorb water must not
be washed in the dishwasher. Plastic and Tefloncoated dishes and pans tend to
retain water droplets. These dishes and pans therefore do not dry as well as
those made of china and stainless steel.
•Before loading the dishes, you should:
–Remove the worst of the food residues.
–Soak pans with burnton food residues.
•When loading the dishes and cutlery, please note:
–Dishes and cutlery must not impede the rotation of the spray arms.
–Load bowls, cups, glasses, pans, etc. with the opening downwards so that
water cannot collect in them
–Dishes and items of cutlery must not lie inside one another or cover one an
other
–To avoid damage to glasses, they must not touch one another
–Don’t put small items (e.g. lids) in the baskets for the dishes, but in the cut
lery basket, so that they can’t fall through the holes.
For washing in the dishwasher, the following cutlery/dishes/pots and pans
are not suitable: are of limited suitability:
•Cutlery with wooden, horn, china or
mother of pearl handles
•Plastic items that are not heat
resistant
•Older cutlery with cement
that is sensitive to temperature
•Dishes or cutlery with glued parts
•Pewter or copper items
•Lead crystal glass
•Steel items that rust
•Wooden boards/platters
•Items made from synthetic materials
•Only wash stoneware in the dishwasher if it is
specifically marked by the manufacturer as being
dishwashersafe.
•Glazed patterns may fade if washed very frequently
in the dishwasher.
•Silver and aluminium parts have a tendency to
discolour during washing. Food remains, e.g. egg
white, egg yolk and mustard often cause discolora
tion and staining on silver. Therefore always clean
food
residues from silver immediately, if it is not to be
washed straight after use.
•Glass can become dull after a large number of
washes.

In daily use16
Loading cutlery
1Warning: Sharp knives and other items of cutlery with sharp edges must be laid
in the cutlery rack or in the upper basket because of the risk of injury.
Place knives, small spoons and small forks in
the cutlery tray which is in the upper basket.
Place forks and spoons that do not fit in the
cutlery tray in the cutlery basket.
To ensure that all items of cutlery in the cut
lery basket can be reached by the water, you should:
For larger utensils, such as whisks, leave off one half of the cutlery grid.
The cutlery basket can be opened out.
Always make sure that you put your hand
around both parts of the twopart handle
when removing it from the dishwasher.
1. Place the cutlery basket on a table or work
surface.
2. Open out the twopart handle.
3. Remove cutlery.
1.Place the grid insert on the cutlery
basket
2.Place forks and spoons in the cutlery
basket's grid insert with their han
dles pointing downwards.

17In daily use
Loading / Unloading lower basket and upper basket
To load and unload, pull out or push in the
upper and lower baskets in the middle us
ing the handle on the front of the basket.
Pots, Pans, Large Plates
Load larger and heavily soiled dishes and
pans in the lower basket.
(Max. diameter for plates 29 cm).
To make it easier to load larger dishes, all
rear plate rests in the lower basket can be
folded down.

In daily use18

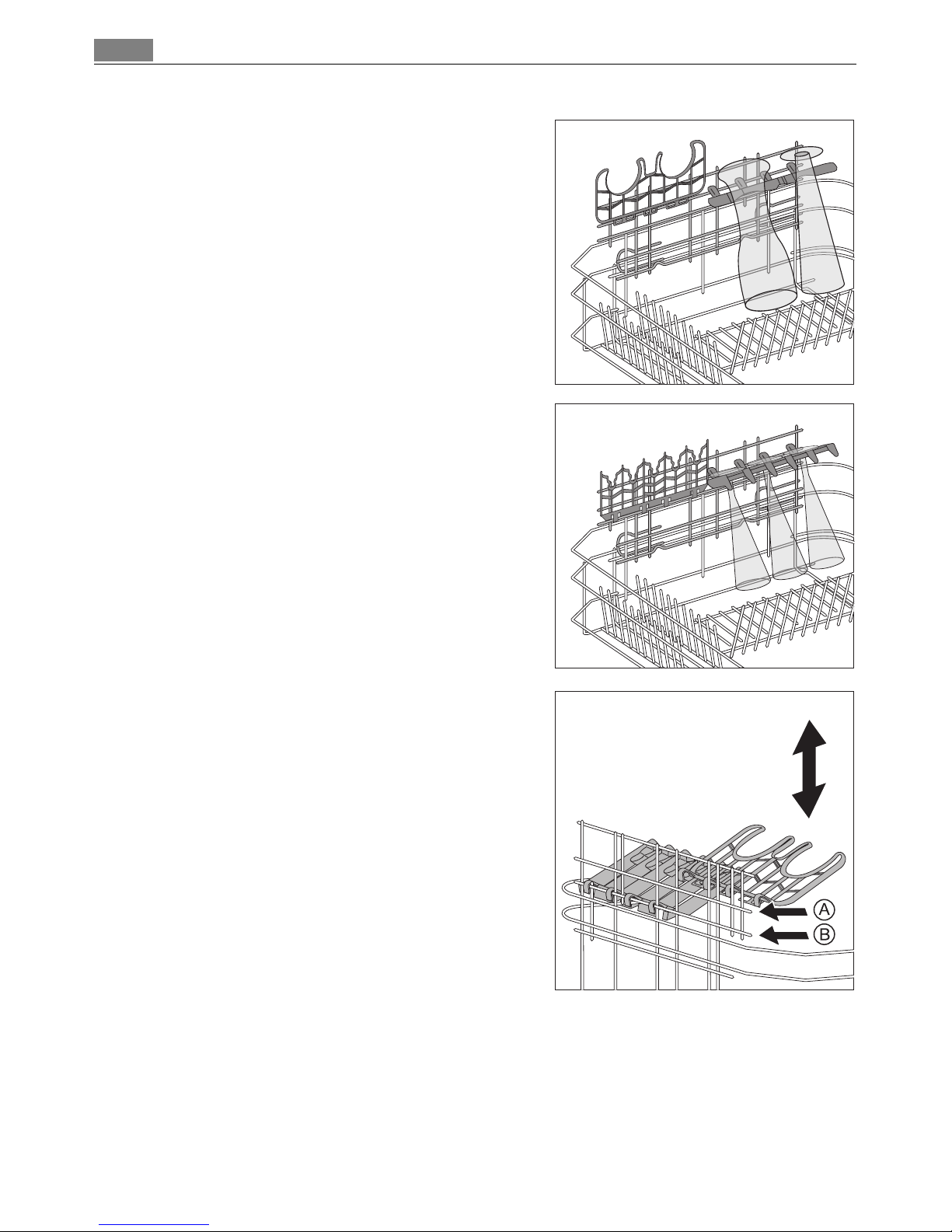

Beer glasses and champagne
glasses
Up to four wheat beer glasses, Pils glasses,
etc. can be hung in the beer glass holders
on the lefthand side in the bottom basket.
If necessary, the beer glass holders can be
folded up out of the way.
The beer glass holders can be replaced with
two cup racks supplied as extras, which
also serve as Prosecco glass or champagne
glass holders.
1. Remove beer glass holders by pulling up
wards and pressing lightly on the hooks
from below.
2. Attach cup racks onto the horizontal bars
Aor Busing the hooks. Press lightly to
snap onto the hooks.
3. Remove the cup racks in the same way as
for the beer glass holders.
4. For wheat beer glasses of normal size at
tach the beer glass holders to horizontal
bar A, for much shorter glasses on B.

19In daily use
The bars that fix the beer glass holders or
cup racks can be removed, if required.
1. Push the bars back using the thumbs (see
the picture).
1Important: Risk of injury:
Do not take hold of the bars with the hand;
place the hand under the bars on the cut
lery basket for support.
2. Fix the bars again by pushing them
forwards.

In daily use20
Cups, Glasses, Coffee Service
Load smaller, fragile crockery and long,
sharp cutlery in the upper basket.
•Arrange items of crockery on and under
the folding cup racks so that they are
offset from each other and water can
reach all items.
•The cup racks can be folded up out of the
way for tall crockery items.
•Lay or hang wine and brandy glasses in
the slots in the cup racks.
•For glasses with long stems, fold the
glass rack to the right, otherwise fold it
away to the left.
