Electrolux FRIGIDAIRE FDB125RH 2 Series User manual

:KLWH:HVWLQJKRXVH
(/(&752/8;+20(352'8&761257+$0(5,&$
SERVICE MANUAL
24" BUILT-IN DISHWASHERS
2001 MECHANICAL MODELS
PRECISION WASH SYSTEM
5995355186 June 2001

Page1
TABLE OF CONTENTS
SAFE SERVICING PRACTICES ................................................................................3
WHAT'S NEW .............................................................................................................4
MODEL TECHNICAL SPECIFICATIONS
Frigidaire .................................................................................................................................................. 5 - 8
Universal - Multiflex ................................................................................................................................... 9
Amana ..................................................................................................................................................... 10 - 11
Crown ...................................................................................................................................................... 11
Gibson ..................................................................................................................................................... 12
CONSTRUCTION AND OPERATION
Water Distribution System ...................................................................................................................... 13
WaterDistributionComponents ............................................................................................................... 13
Wash Pump ...................................................................................................................................... 13
Upper Spray Arm .............................................................................................................................. 14
Lower Spray Arm .............................................................................................................................. 14
Lower Spray Arm with Collapsible Tower ..........................................................................................14
Filter ................................................................................................................................................. 14
PolyproleneFilter.............................................................................................................................. 14
Stainless Steel Filter ........................................................................................................................ 14
DrainPump ...................................................................................................................................... 15
Drying System ........................................................................................................................................ 15
Static Dry System ............................................................................................................................ 15
Active Vent System ......................................................................................................................... 15
Power Vent System.......................................................................................................................... 15
Drying System Components ................................................................................................................... 16
LowerVentHousing.......................................................................................................................... 16
Vent Valve........................................................................................................................................ 16
Vent Actuator ................................................................................................................................... 16
Blower .............................................................................................................................................. 16
UpperVentHousing.......................................................................................................................... 16
Dispensing System ................................................................................................................................. 17
Detergent & Rinse Aid Dispenser...................................................................................................... 17
DispenserOperation ......................................................................................................................... 17

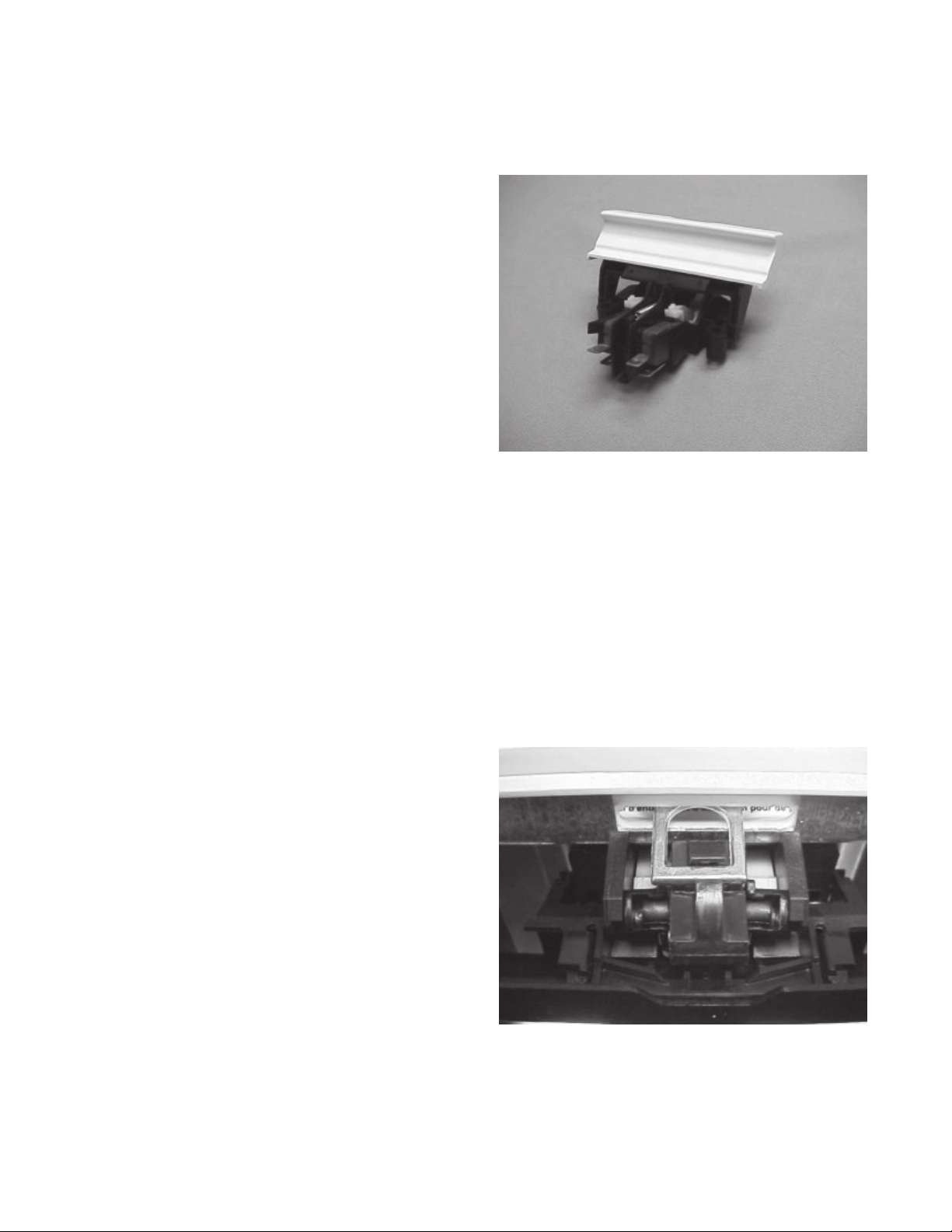

Door Latch Assembly.............................................................................................................................. 17
Selector Switch and Thermostats ........................................................................................................... 18
HeatedDry ....................................................................................................................................... 18
Hi-Temp Wash .................................................................................................................................. 18
Hi-Temp Rinse .................................................................................................................................. 18
High Limit Thermostat ...................................................................................................................... 18
DishwasherLeveling ............................................................................................................................... 19
DISASSEMBLY
Safety Precautions ................................................................................................................................. 20
ControlPanel .......................................................................................................................................... 20
Timer ...................................................................................................................................................... 20
Disassembly Tip ............................................................................................................................... 20
Selector Switch ....................................................................................................................................... 20
Door Panels (All Models)......................................................................................................................... 20

Page2
TABLE OF CONTENTS
Door Vent Assembly ............................................................................................................................... 20
Vent Valve .............................................................................................................................................. 21
Vent Actuactor ........................................................................................................................................ 21
VentBlower ............................................................................................................................................ 21
Door Latch Assembly.............................................................................................................................. 21
Detergent / Rinse Aid Dispenser ............................................................................................................. 21
InnerDoorPanel ..................................................................................................................................... 21
DoorSeal ................................................................................................................................................ 21
UpperRack ............................................................................................................................................. 22
UpperWaterTube ................................................................................................................................... 22
Upper Spray Arm .................................................................................................................................... 22
WaterDistributor ..................................................................................................................................... 22
Kick Plate ............................................................................................................................................... 22
HeatingElement ..................................................................................................................................... 22
Float Switch and Bracket ........................................................................................................................ 23
Water Valve ............................................................................................................................................ 23
DrainPump ............................................................................................................................................. 23
Lower Spray Arm .................................................................................................................................... 23
Glass Trap .............................................................................................................................................. 23
Lower Spray Arm Support ....................................................................................................................... 23
Filter ....................................................................................................................................................... 24
Pump and Motor Assembly ..................................................................................................................... 24
Motor Mounting Bracket .......................................................................................................................... 24
Motor and Impeller .................................................................................................................................. 24
Thermostats............................................................................................................................................ 25
High Limit Thermostat ............................................................................................................................. 25
IndicatorLamps ...................................................................................................................................... 25
TROUBLESHOOTING
TroubleshootingTips ........................................................................................................................ 26 - 27
APPENDIX A - Diagrams - Exploded Views .............................................................A - 1
APPENDIX B - Service Data Sheets (Wiring Diagrams & Timer Charts)................B - 1

Page3
ATTENTION!!!
This service manual is intended for use by persons having electrical and mechnical
trainingandalevelofknowledgeofthesesubjectsgenerallyconsideredacceptableinthe
appliancerepairtrade.Electrolux HomeProductscannotberesponsible,norassumeany
liability, for injury or damage of any kind arising from the use of this manual.
©2001 White Consolidated Industries
SAFE SERVICING PRACTICES - ALL APPLIANCES
To avoid personal injury and/or property damage, it is important that Safe
Servicing Practices be observed. The following are some limited examples of
safe practices:
1. DO NOT attempt a product repair if you have any doubts as to your ability to
complete it in a safe and satisfactory manner.
2. efore servicing or moving an appliance:
 Remove the power cord from the electrical outlet, trip the circuit breaker to
the OFF position, or remove the fuse.
 Turn off the gas supply.
 Turn off the water supply.
3. Never interfere with the proper operation of any safety device.
4. USE ONLY REPLACEMENT PARTS CATALOGED FOR THIS APPLIANCE.
SU STITUTIONS MAY DEFEAT COMPLIANCE WITH SAFETY
STANDARDS SET FOR HOME APPLIANCES.
5. GROUNDING: The standard color coding for safety ground wires is GREEN,
or GREEN with YELLOW STRIPES. Ground leads are not to be used as current
carrying conductors. It is EXTREMELY important that the service technician
reestablish all safety grounds prior to completion of service. Failure to do so
will create a hazard.
6. Prior to returning the product to service, ensure that:
 All electrical connections are correct and secure
 All electrical leads are properly dressed and secured away from sharp
edges, high-temperature components, and moving parts
 All non-insulated electrical terminals, connectors, heaters, etc. are
adequately spaced away from all metal parts and panels
 All safety grounds (both internal and external) are correctly and securely
connected
 All panels are properly and securely reassembled

Page4
WHAT'S NEW
ÖCOLLAPSIBLETOWER- Single wash arm on low end models with collaspsible tower that is molded into the
spray arm. This tower retracts completely into the lower arm giving added area in the lower rack.
ÖVENT COVER- The vent cover has the gasket molded into the cover to prevent water leaks.
ÖPUMPANDMOTORASSEMBLY-Thewashpumpandmotorareinonepieceandisnotrepairable.Thenew
design motor does not have nor need a seal to prevent water leaks. In the end of this motor is a small circuit
board that is designed to make sure that the motor will always start in the proper direction. This new motor is
mounted with a new mounting bracket that only requires two screws.
ÖSANITIZERINSE-On thehigherendmodels, asanitizerinsesetting hasbeenaddedand therinsetemperature
will reach 150°F.

Page5
FRIGIDAIRE
MODEL FDB125RH*2 FDB345LF*2 FDB421RF*6 FDB421RF*7 FDB435RFR*6
ELECTRICAL
Service Data Sheet 154395901 154400501 154370901 154405901 154385401
Voltage 120 VAC 120 VAC 120 VAC 120 VAC 120 VAC
Cycles 60 Hertz 60 Hertz 60 Hertz 60 Hertz 60 Hertz
Circuit Rating (Amps) 15 / 20 15 / 20 15 / 20 15 / 20 15 / 20
Motor (HP) 1/12th 1/12th 1/12th 1/12th 1/12th
Motor (Amps) 1.1 1.1 1.1 1.1 1.1
Heater (Watts) 900 900 900 900 900
Total Amps 10 10 10 10 10
Temp Assure 117°F ± 5°FN/A N/A 117°F ± 5°F
Temp Boost 127°F (53°C) 122°F (50°C) 122°F (50°C) 127°F (53°C)
Sanitize N/A N/A N/A N/A
Hi-Limit Thermostat 200°F (93°C) 200°F (93°C) 200°F (93°C) 200°F (93°C)
COMPONENT RESISTANCE (ohms)
Timer Motor 2357 2357 7700 7700 2357
Heating Element 13.5 9.28 9.28 9.28 9.28
Pump Motor
Vent Actuator N/A 1893 1893 1893 1893
Dispenser 1928 1928 1928 1928 1928
Drain Motor 28 28 28 28 28
Water Valve Solenoid 699 699 699 699 699
Blower N/A N/A N/A N/A N/A
WATER SUPPLY
Minimum Incoming
Water Temperature 120°F
(49°C) 120°F (49°C) 120°F (49°C) 120°F (49°C) 120°F (49°C)
Pressure
(min/max - psi) 20 / 120 20 / 120 20 / 120 20 / 120 20 / 120
Connection
(NPT) 3/8" 3/8" 3/8" 3/8" 3/8"
Normal Cycle Water
Consumption (gal.) 7.2 6 6 6 6
Water valve Flow Rate
(GPM) .83 .83 .83 .83
Water Recirculation
Rate (GPM) 12 12 12 12 12
Water Fill Time
(Seconds) 87 87 87 87
DIAGRAMS (Located in Appendix A or B)
Service Data Sheet B - 9 B - 16 B - 1 B - 21 B - 7
Control Panel A - 9 A - 10 * * *
Door A - 17 A - 18 * * *
Tub A - 20 A - 20 * * *
Motor & Pump A - 23 A - 24 * * *
Frame A - 29 A - 29 * * *
Racks A - 35 A - 32 * * *
* Information not available - Parts Catalogs not created as of this Publication date

Page6
FRIGIDAIRE
MODEL FDB435RFS*4 FDB634CF*4 FDB635RF*6 FDP635RF*5 FDB641RA*0
ELECTRICAL
Service Data Sheet 154385401 154396801 154396801 154396801 154403801
Voltage 120 VAC 120 VAC 120 VAC 120 VAC 120 VAC
Cycles 60 Hertz 60 Hertz 60 Hertz 60 Hertz 60 Hertz
Circuit Rating (Amps) 15 / 20 15 / 20 15 / 20 15 / 20 15 / 20
Motor (HP) 1/12th 1/12th 1/12th 1/12th 1/12th
Motor (Amps) 1.1 1.1 1.1 1.1 1.1
Heater (Watts) 900 900 900 900 900
Total Amps 10 10 10 10 10
Temp Assure 117°F ± 5°F117°F ± 5°F117°F ± 5°F117°F ± 5°FN/A
Temp Boost 127°F (53°C) 122°F (50°C) 122°F (50°C) 122°F (50°C) 122°F (50°C)
Sanitize N/A N/A N/A N/A N/A
Hi-Limit Thermostat 200°F (93°C) 200°F (93°C) 200°F (93°C) 200°F (93°C) 200°F (93°C)
COMPONENT RESISTANCE (ohms)
Timer Motor 2357 2357 2357 2357 7700
Heating Element 9.28 9.28 9.28 9.28 9.28
Pump Motor
Vent Actuator 1893 1893 1893 1893 N/A
Dispenser 1928 1928 1928 1928 1928
Drain Motor 28 28 28 28 28
Water Valve Solenoid 699 699 699 699 699
Blower N/A N/A N/A N/A N/A
WATER SUPPLY
Minimum Incoming
Water Temperature 120°F
(49°C) 120°F (49°C) 120°F (49°C) 120°F (49°C) 120°F (49°C)
Pressure
(min/max - psi) 20 / 120 20 / 120 20 / 120 20 / 120 20 / 120
Connection
(NPT) 3/8" 3/8" 3/8" 3/8" 3/8"
Normal Cycle Water
Consumption (gal.) 66666
Water valve Flow Rate
(GPM) .83 .83 .83 .83 .83
Water Recirculation
Rate (GPM) 12 12 12 12 12
Water Fill Time
(Seconds) 87 87 87 87 87
DIAGRAMS (Located in Appendix A or B)
Service Data Sheet B - 7 B - 15 B - 15 B - 15 B - 20
Control Panel * A - 11 A - 11 B - 11 *
Door * A - 18 A - 18 A - 18 *
Tub * A - 20 A - 20 A - 19 *
Motor & Pump * A - 24 A - 24 A - 24 *
Frame * A - 29 A - 29 A - 25 *
Racks * A - 32 A - 32 A - 32 *
* Information not available - Parts Catalogs not created as of this Publication date

Page7
* Information not available - Parts Catalogs not created as of this Publication date
FRIGIDAIRE
MODEL FDB641RJ*1 FDP641RA*0 FDB657RJ*1 FDB658RA*0
ELECTRICAL
Service Data Sheet 154403801 154403801 154396201 154396201
Voltage 120 VAC 120 VAC 120 VAC 120 VAC
Cycles 60 Hertz 60 Hertz 60 Hertz 60 Hertz
Circuit Rating (Amps) 15 / 20 15 / 20 15 / 20 15 / 20
Motor (HP) 1/12th 1/12th 1/12th 1/12th
Motor (Amps) 1.1 1.1 1.1 1.1
Heater (Watts) 900 900 900 900
Total Amps 10 10 10 10
Temp Assure N/A N/A N/A N/A
Temp Boost 122°F (50°C) 122°F (50°C) 122°F (50°C) 122°F (50°C)
Sanitize N/A N/A 137°F (58°C) 137°F (58°C)
Hi-Limit Thermostat 200°F (93°C) 200°F (93°C) 200°F (93°C) 200°F (93°C)
COMPONENT RESISTANCE (ohms)
Timer Motor 7700 7700 2357 2357
Heating Element 9.28 9.28 9.28 9.28
Pump Motor
Vent Actuator N/A N/A 1893 1893
Dispenser 1928 1928 1928 1928
Drain Motor 28 28 28 28
Water Valve Solenoid 699 699 699 699
Blower N/A N/A N/A N/A
WATER SUPPLY
Minimum Incoming
Water Temperature 120°F
(49°C)
120°F
(49°C)
120°F
(49°C)
120°F
(49°C)
Pressure
(min/max - psi) 20 / 120 20 / 120 20 / 120 20 / 120
Connection
(NPT) 3/8" 3/8" 3/8" 3/8"
Normal Cycle Water
Consumption (gal.) 6666
Water valve Flow Rate
(GPM) .83 .83 .83 .83
Water Recirculation
Rate (GPM) 12 12 12 12
Water Fill Time
(Seconds) 87 87 87 87
DIAGRAMS (Located in Appendix A or B)
Service Data Sheet B - 20 B - 20 B - 11 B - 11
Control Panel ****
Door ****
Tub ****
Motor & Pump ****
Frame ****
Racks ****

Page8
FRIGIDAIRE (Gallery Models)
MODEL GLDB653A*0 GLDB653J*2 GLDB656J*1 GPDB698J*1 GLDB756A*0
ELECTRICAL
Service Data Sheet 154402401 154396801 154396201 154396201 154402501
Voltage 120 VAC 120 VAC 120 VAC 120 VAC 120 VAC
Cycles 60 Hertz 60 Hertz 60 Hertz 60 Hertz 60 Hertz
Circuit Rating (Amps) 15 / 20 15 / 20 15 / 20 15 / 20 15 / 20
Motor (HP) 1/12th 1/12th 1/12th 1/12th 1/12th
Motor (Amps) 1.1 1.1 1.1 1.1 1.1
Heater (Watts) 900 900 900 900 900
Total Amps 10 10 10 10 10
Temp Assure 117°F ± 5°F 117°F ± 5°F N/A N/A 117°F ± 5°F
Temp Boost 122°F (50°C) 122°F (50°C) 122°F (50°C) 122°F (50°C) N/A
Sanitize N/A N/A 137°F (58°C) 137°F (58°C) 137°F (58°C)
Hi-Limit Thermostat 200°F (93°C) 200°F (93°C) 200°F (93°C) 200°F (93°C) 200°F (93°C)
COMPONENT RESISTANCE (ohms)
Timer Motor 2357 2357 2357 2357 2357
Heating Element 9.28 9.28 9.28 9.28 9.28
Pump Motor N/A
Vent Actuator N/A 1893 1893 1893 1893
Dispenser 1928 1928 1928 1928 1928
Drain Motor 28 28 28 28 28
Water Valve Solenoid 699 699 699 699 699
Blower N/A N/A N/A N/A 214
WATER SUPPLY
Minimum Incoming
Water Temperature 120°F
(49°C)
120°F
(49°C)
120°F
(49°C)
120°F
(49°C)
120°F
(49°C)
Pressure
(min/max - psi) 20 / 120 20 / 120 20 / 120 20 / 120 20 / 120
Connection
(NPT) 3/8" 3/8" 3/8" 3/8" 3/8"
Normal Cycle Water
Consumption (gal.) 6666 6
Water valve Flow Rate
(GPM) .83 .83 .83 .83 .83
Water Recirculation
Rate (GPM) 12 12 12 12 12
Water Fill Time
(Seconds) 87 87 87 87 87
DIAGRAMS (Located in Appendix A or B)
Service Data Sheet B - 17 B - 15 B - 11 B - 11 B - 18
Control Panel * A - 11 A - 3 A - 6 *
Door * A - 18 A - 18 A - 17 *
Tub * A - 21 A - 21 A - 21 *
Motor & Pump * A - 25 A - 25 A - 25 *
Frame * A - 30 A - 30 A - 31 *
Racks * A - 33 A - 34 A - 35 *
* Information not available - Parts Catalogs not created as of this Publication date

Page9
UNIVERSAL - MULTIFLEX
MODEL MDB122RF*2 MDB124BA*0 MDB124BJ*1 MDB124BH*1 MDB125RH*2
ELECTRICAL
Service Data Sheet 154396001 154407901 154396001 154396001 154395901
Voltage 120 VAC 120 VAC 120 VAC 120 VAC 120 VAC
Cycles 60 Hertz 60 Hertz 60 Hertz 60 Hertz 60 Hertz
Circuit Rating (Amps) 15 / 20 15 / 20 15 / 20 15 / 20 15 / 20
Motor (HP) 1/12th 1/12th 1/12th 1/12th 1/12th
Motor (Amps) 1.1 1.1 1.1 1.1 1.1
Heater (Watts) 900 900 900 900 900
Total Amps 10 10 10 10 10
Temp Assure N/A N/A N/A N/A N/A
Temp Boost 127°F (53°C) 127°F (53°C) 127°F (53°C) 127°F (53°C) N/A
Sanitize N/A N/A N/A N/A N/A
Hi-Limit Thermostat 200°F (93°C) 200°F (93°C) 200°F (93°C) 200°F (93°C) 200°F (93°C)
COMPONENT RESISTANCE (ohms)
Timer Motor 7700 7700 7700 7700 2357
Heating Element 9.28 9.28 9.28 9.28 9.28
Pump Motor N/A N/A N/A N/A N/A
Vent Actuator 1893 1893 1893 1893 N/A
Dispenser 1928 1928 1928 1928 1928
Drain Motor 28 28 28 28 28
Water Valve Solenoid 699 699 699 699 699
Blower N/A N/A N/A N/A N/A
WATER SUPPLY
Minimum Incoming
Water Temperature 120°F
(49°C)
120°F
(49°C)
120°F
(49°C)
120°F
(49°C)
120°F
(49°C)
Pressure
(min/max - psi) 20 / 120 20 / 120 20 / 120 20 / 120 20 / 120
Connection
(NPT) 3/8" 3/8" 3/8" 3/8" 3/8"
Normal Cycle Water
Consumption (gal.) 66667.2
Water valve Flow Rate
(GPM) .83 .83 .83 .83 .83
Water Recirculation
Rate (GPM) 12 12 12 12 12
Water Fill Time
(Seconds) 87 87 87 87 87
DIAGRAMS (Located in Appendix A or B)
Service Data Sheet B - 10 B - 22 B - 10 B - 10 B - 9
Control Panel A - 15 * A - 15 A - 15 A - 9
Door A - 19 * A - 18 A - 18 A - 18
Tub A - 21 * A - 21 A - 21 A - 21
Motor & Pump A - 25 * A - 25 A - 25 A - 24
Frame A - 28 * A - 28 A - 28 A - 30
Racks A - 32 * A - 32 A - 32 A - 37
* Information not available - Parts Catalogs not created as of this Publication date
