Electrolux E30MO65GSSA User manual

E30M065GSS cover.eps E30M065GSS cabinet.eps E30M065GSS controls.eps
E30M065GSS wiring.eps
Product No. E30MO65GSSA
Series convection
Market North America
Color stainless steel
Volts 120
Watts 900
Wiring Diagram 5304461201
Owner's Guide 5304461201

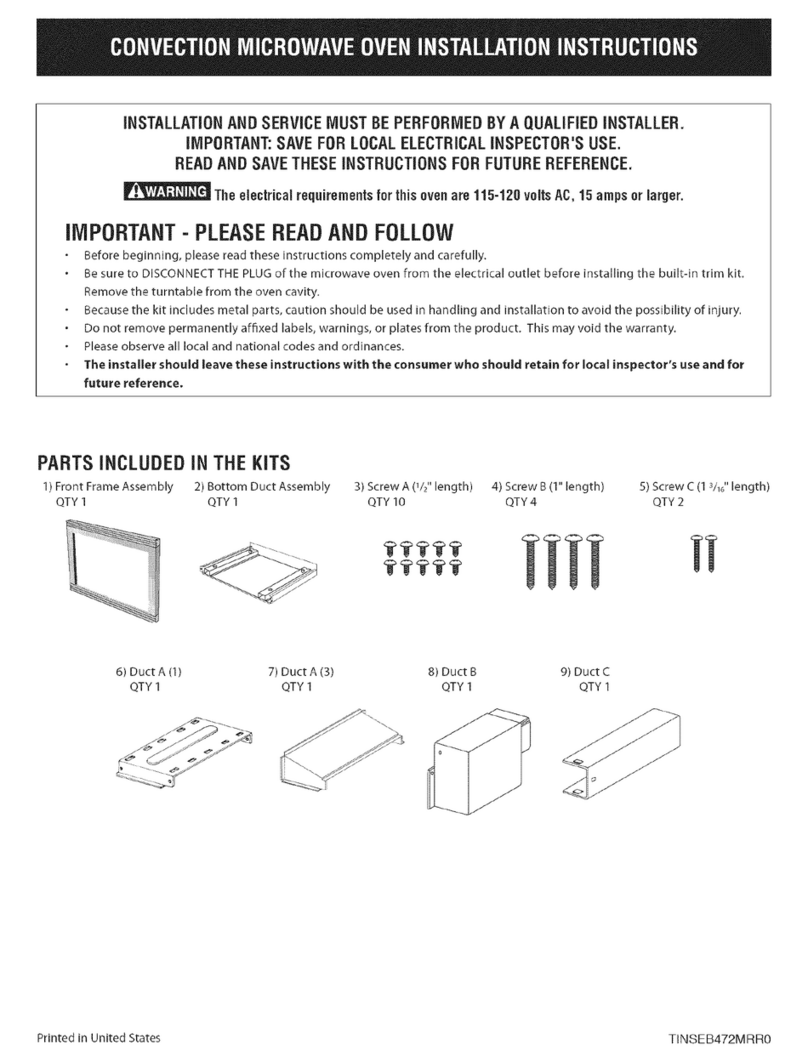

Installation Instructions 5304461201
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995489001
07/04/17
(EN/SERVICE/ECL)
099
COUNTER-TOP
MICROWAVE
Model No.
E30MO65G
Copyright ©2007 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995489001 E30MO65GSSA
04/07 2
OVEN,CABINET

E30MO65GSSA Publication No: 5995489001
# Functional Parts 3 04/07
* Non-Illustrated Parts
OVEN,CABINET
POS. NO PART NO. DESCRIPTION
1 # 5304461108 Cord, power
2 # 5304461109 Assembly, fuse & switch, monitor
3 # 5304461110 Filter, noise
4 # 5304461111 Switch, micro, (3)
5 # 5304461112 Thermistor
6 # 5303319558 Switch, damper, (1)
7 # 5304461113 Thermal Cut-Out, magnetron
8 # 5304461114 Thermal Cut-Out, convection/oven, (2)
9 # 5304461115 Motor, damper
10 # 5304461116 BULB, oven lamp
11 # 5304461117 Socket, oven lamp
12 # 5304461118 Motor, convection fan
13 # 5304461119 Motor, fan
14 # 5304461120 Element, convection
15 # 5304461121 Transformer, power
16 # 5303319549 Capacitor, high voltage
17 # 5304461122 Rectifier, high voltage
18 # 5304461123 Magnetron
19 # 5304461124 Motor, turntable
20 # 5304461125 Sensor Assembly, AH
21 5304461126 Cabinet, outer
23 5304461127 Foot, cabinet, (4)
25 5304461128 Holder, power cord
26 5304461129 Holder, capacitor
27 5304461130 Hinge, door, lower
28 5304461131 Hook, latch
29 5304461132 Lever, switch
30 5304461133 Cover, turntable motor
31 5304461134 Barrier, CSA
44 5304461144 Support, turntable
45 5304461145 Tray, turntable
46 5304461146 Bearing Assembly
47 5304461147 Plate, thermal protect, LH
48 5304461148 Plate, bearing mtg
49 5304461149 Holder, element
50 5304461150 Plate, bearing holder
51 5304461151 Fan Blade, convection
52 5304461152 Pulley, (2)
53 5304461153 Duct Assembly, heater
54 5304461154 Sheet, thermal protect, LH
55 5304461155 Frame, light lens
56 5304461156 Cushion, (2)
57 5304461157 Cushion
58 5304461158 Duct Assembly, steam release
59 5304461159 Cam, damper
60 5304461160 Shaft, damper
61 5304461161 Door Assembly, damper
62 5304461162 Duct, damper
63 5304461163 Cushion
64 5304461164 Coupling, turntable
65 5304461165 Cover, waveguide

Publication No: 5995489001 E30MO65GSSA
04/07 4
OVEN,CABINET

E30MO65GSSA Publication No: 5995489001
# Functional Parts 5 04/07
* Non-Illustrated Parts
OVEN,CABINET
POS. NO PART NO. DESCRIPTION
66 5304461166 Cushion, (4)
67 5304461167 Lens, light
68 5304461168 Sheet, thermal protect, RH
69 5304461169 Plate, thermal protect, RH
70 5304461170 Guide, air, bottom
71 5304461171 Guide, air, RH
72 5304461172 Plate, motor mtg, convection
74 5304461173 Blade, fan
75 5304461174 Duct, cooling fan
76 5304461175 Support, chassis
77 5304461176 Hinge, door, upper
78 5304461177 Belt, convection fan
79 5304461178 Angle, noise filter
81 5304461179 Cushion, damper duct
82 5304461180 Cushion
83 5304461181 Guide, air, magnetron
84 5304461182 Sheet, thermal protect
85 5304461183 Cover, thermo
97 5304461194 Rack Assembly, broiling trivit, low
98 5304461195 Rack Assembly, baking, high
99 # 5304461196 Harness, thermistor
100# 5304461197 Harness, wiring, main
101# 5304461198 Wiring, high voltage, B
102 5304461199 Wiring, ground, cooling fan
103 5304461200 Label, monitor caution
104 5304451533 Label, NHW caution
106 5304451529 Clip, wire harness, plastic, LL
108 5304451535 Label, height caution
109 5304440333 Label, Caution-DHHS
110 5304453941 Label, caution, UL screw
111 5304461203 Screw, 4mm x 10mm, (14)
112 5304440340 Screw, 4mm x 12mm
113 5304461204 Screw, 4mm x 8mm, (2)
114 5304440872 Screw, 4mm x 8mm
115 5303319641 Screw
116 5304461205 Washer, 6mm x .7mm
117 5304461206 Washer
118 5304461207 Screw, special, (6)
119 5304461208 Screw, 3mm x 14mm
120 5304461209 Screw, 4mm x 25mm, (2)
121 5304461210 Screw, 4mm x 6mm, (7)
122 5304461211 Screw, 4mm x 8mm, (7)
123 5304461212 Nut, special
124 5304461213 Screw, 4mm x 6mm, (2)
125 5304461214 Washer
126 5304461215 Screw, 4mm x 8mm, (6)
127 5304461216 Screw, 3mm x 6mm, (3)
128 5303319639 Screw, wrapper, back
129 5304461217 Screw, 4mm x 8mm, (3)
130 5304461218 Screw, 4mm x 6mm
131 5304461219 Screw, 3mm x 6mm, (4)
132 5304461220 Screw, 4mm x 8mm, (6)
133 5304461221 Screw, 6mm x 14mm, (2)
134 5303318767 Screw, 4mm x 12mm
135 5304461222 Screw, 3mm x 8mm, (2)
136 5304461223 Nut, 4mm x 3.2mm, (2)
137 5304451547 Nut, element, 4 mm x 3.2 mm, (4)
138 5304461224 Washer, 4mm x 1mm
139 5304440873 Screw, torx head, tamper proof
* 5304461201 Owners Manual

Publication No: 5995489001 E30MO65GSSA
04/07 6
CONTROL PANEL,DOOR,MISC.

E30MO65GSSA Publication No: 5995489001
# Functional Parts 7 04/07
* Non-Illustrated Parts
CONTROL PANEL,DOOR,MISC.
POS. NO PART NO. DESCRIPTION
32 # 5304461135 Control Board
33 # 5304461136 Frame, control panel, w/key unit
34 # 5304461137 Keying Unit
35 5304461138 Button, door
36 5304440831 Spring, door button
37 5304461139 Plate, control panel, back
38 5304461140 Lever, door button
39 5304461141 Shaft, door button
40 5303319584 Screw, control panel, 3 mm x 10 mm
41 5304461142 Screw, back plate mtg, (5)
42 5304461143 Screw, cntl panel mtg, (2)
86 5304461184 Frame Assembly, outer door
87 5304461185 Door Panel, inner
88 5304461186 Cover, choke
89 5304461187 Angle, latch
90 5304461188 Head, latch
91 5304461189 Spring, latch head
92 5304461190 Plate, thermal, upper
93 5304461191 Plate, thermal, RH
94 5304451561 Screw, 4 mm x 8 mm
95 5304461192 Screw, 3mm x 8mm, (12)
96 5304461193 Cushion
107 5304461202 Label, User Caution
114 5304440872 Screw, 4mm x 8mm
134 5303318767 Screw, 4mm x 12mm

Publication No: 5995489001 E30MO65GSSA
04/07 8
WIRING SCHEMATIC
TURNTABLE MOTOR
GRY
BRN
ORG
GRN
PNKBLK
DAMPER MOTOR
COOLING FAN MOTOR
PNK
RED
CONV. THERMAL CUT-OUT
MAGNETRON THERMAL CUT-OUT
BLK BLK
OVEN THERMAL CUT-OUT
RED
IC-1
RED
1 2 3 4 5 6
PNK RED
GRN
WHT
PPL
1 2 3 4 5 6 7 8 9
ORG
RY1
RY2
RY3
CN-F
CN-E
CN-A
CN-A
N.O.
COM
COM
CN-E
ORG
BLK
BLK AH SENSOR RED
WHT
1 2 3
CN-F
PRIMARY INTERLOCK SWITCH
G R Y
CONTROL PANEL
HEATING ELEMENT
MONITOR SWITCH
CONVECTION MOTOR
POWER SUPPLY CORD
NOISE FILTER AND FUSE
OVEN LAMP & SOCKET
N.O.
PNK
G R Y
R
E
D
THERMISTOR
1 2
RED RED
RED RED
BLK
BLK
WHT
WHT
GRN
MAGNETRON
RED
HIGH VOLTAGE COMPONENTS
HIGH VOLTAGE CAPACITOR
POWER TRANSFORMER
P P L
BRN
ORG
RY6
RY4
RY5
CN-G
RY1 (COM.) RY1 (N.O.)
RY2 (COM.)
ORG
RY2 (N.O.) RY3 (COM.)
RED PNK
RY3 (N.O.)
BRN
BRN RED
GRY
PNK
W
H
T
BLK
RED
GRY
G R Y
G R Y
O R GNOTE:
Hot (ORG) wire must be connected to the power transformer terminal nearest to the transformer mounting screw.
DOOR SENSING SWITCH
GRN GRN
COM
N.C.
WHT
ORG
BRN
T1
COM.
N.O.
COM.
N.O.
COM.
N.O.
1
1 3
3 6 2 4 5
1 3 5 7 9
WHT
PNK
PNK
DAMPER SWITCH
COM
N.O.
THIRD DOOR SWITCH
COM
N.O. WHT
GRY GRY
GRY
NOTE: Hot (YLW & PNK) wire must be connected to the terminal with blue mark on the oven light socket.
PNK PNK
BLUE MARK
WHT
N
RED
GRY
H
