Electrolux E30SO75FP User manual

Product No. E30SO75FPSA
Market North America
Color stainless steel
Volts 240
Watts 1000
Wiring Diagram 5995553749
Owner's Guide TINSEB470MRR0
Installation Instructions TINSEB424MRR0
E30SO75FPS cover.eps E30SO75FPSA-CAB-OVEN-1.eps E30S075FPS cdm.eps
E30SO75FPSA_Wiring-1.eps E30SO75FPSA_Wiring-3.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995553749
09/10/15
(EN/SERVICE/KC)
099
BUILT-IN MICROWAVE
Model No.
E30SO75FP
Copyright ©2009 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995553749 E30SO75FPSA
10/09 2

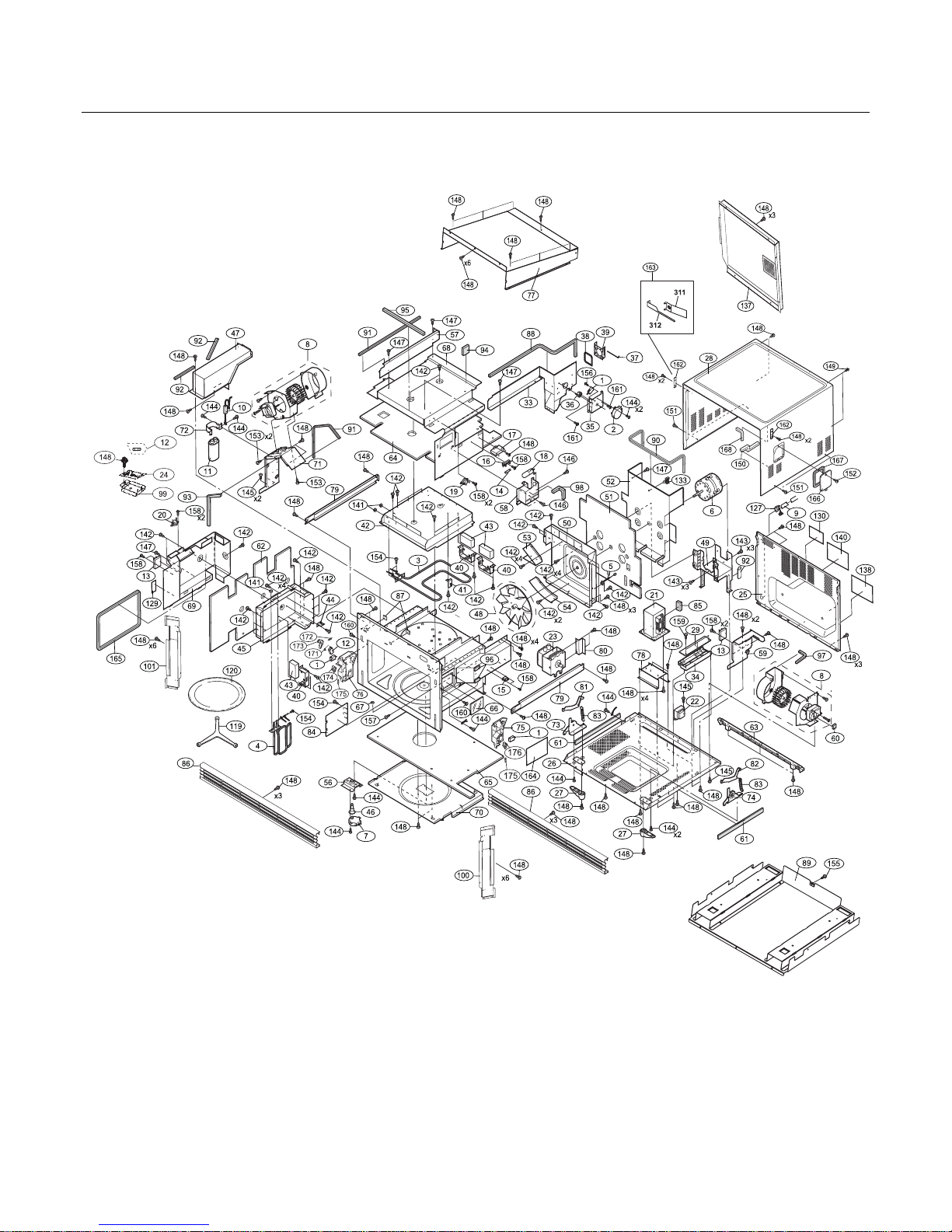

OVEN,CABINET
1
E30SO75FPSA-CAB-OVEN-1

E30SO75FPSA Publication No: 5995553749
# Functional Parts 3 10/09
* Non-Illustrated Parts
OVEN,CABINET
POS. NO PART NO. DESCRIPTION
1 # 5304440026 Switch, interlock, door sensor
2 # 5304451387 Motor, damper
3 # 5304451388 Element, heating, top
4 # 5304451389 Element, heating, side
5 # 5304451390 Thermistor
6 # 5304459004 Motor, convection fan
7 # 5304451392 Motor, turntable
8 # 5304451393 Motor, exhaust fan
9 # 5304451394 Power Cord, electric
10 # 5304451395 Rectifier, high voltage
11 # 5304451396 Capacitor, high voltage
12 # 5304451397 Switch/Fuse Assy, monitor
13 # 5304451398 Relay, solid state
14 # 5304451399 Fuse, F10A
15 # 5304440780 Fuse, cavity temp, 20 Amp, 250 V
16 # 5304451400 Holder, fuse F10A
17 # 5304451401 Capacitor, fan motor
18 5304451402 Lamp, oven light
19 # 5304451403 Thermal Cutout, top heater
20 # 5304451404 Thermal Cutout, side heater
21 # 5304451405 Transformer, power
22 # 5304451406 Transformer, low voltage
23 # 5304458933 Magnetron
24 # 5304451407 Filter, noise
25 5304451408 Panel, cabinet back
26 5304451409 Base, cabinet bottom
27 5304451410 Foot, cabinet support
28 5304451411 Cabinet, outer casing
29 # 5304451412 Power Unit, PWB
33 5304451437 Duct, damper
34 5304451438 Angle, power board mt.
35 5304451439 Angle, motor mount
36 5304451440 Cam, damper
37 5304451441 Shaft, damper
38 5304451442 Cushion, damper
39 5304451443 Damper
40 5304451444 Angle, catalyst mount
41 5304451445 Angle, heater mount, A
42 5304451446 Duct, heater, upper
43 5304451447 Catalyst, air/odor filter
44 5304451448 Angle, heater mount, B
45 5304451449 Duct, heater, left
46 5304451450 Coupler, turntable/motor
47 5304451451 Duct, exhaust
48 # 5304451452 Blade, convection fan
49 5304451453 Angle, fan motor mount
50 5304451454 Duct, convection fan
51 5304451455 Insulation, thermal, back panel
52 5304451456 Cover, thermal, back panel
53 5304451457 Plate, divider, A
54 5304451458 Plate, divider, B

Publication No: 5995553749 E30SO75FPSA
10/09 4
OVEN,CABINET
1
E30SO75FPSA-CAB-OVEN-1

E30SO75FPSA Publication No: 5995553749
# Functional Parts 5 10/09
* Non-Illustrated Parts
OVEN,CABINET
POS. NO PART NO. DESCRIPTION
56 5304451459 Bracket, turntable mount
57 5304451460 Separator, left
58 5304451461 Angle, lamp mount
59 5304451462 Separator, magnetron
60 5304451463 Cushion, blower motor, right
61 5304451464 Cushion, bottom plate
62 5304451465 Insulation, thermal, heater duct
63 5304451466 Separator, rear
64 5304451467 Insulation, thermal, upper
65 5304451468 Insulation, thermal, bottom
66 5304451469 Lens, lamp glass
67 5304451470 Packing, silicon
68 5304451471 Cover, thermal, upper
69 5304451472 Cover, thermal, left
70 5304451473 Cover, thermal, bottom
71 5304451474 Angle, fan motor mount
72 5304451475 Holder, capacitor clamp
73 5304451476 Hinge, oven door, left
74 5304451477 Hinge, oven door, right
75 5304466752 Latch Hook, right
76 5304466753 Latch Hook, left
77 5304451480 Duct, top
78 5304451481 Angle, transformer mt.
79 5304451482 Support, chassis, (2)
80 5304451483 Guide, magnetron
81 5304451484 Cam, door, left
82 5304451485 Cam, door, right
83 5304451486 Spring, door
84 5304451487 Cover, waveguide
85 5304451488 Cushion, pwr transformer
86 5304451489 Grille, exhaust vent, (2)
87 5304451490 Cushion, front panel, rear
88 5304451491 Cushion, damper duct
89 5304458934 Duct, bottom
90 5304451493 Cushion, back cover
91 5304451494 Cushion, angle/separator
92 5304451495 Cover, edge, (3)
93 5304451496 Cushion, motor mt. angle
94 5304451497 Cushion, upper cover, pad
95 5304451498 Cushion, upper cover, strip
96 5304451499 Cushion, cavity, right side
97 5304451500 Cushion, magnetron
98 5304451501 Cushion, lamp mt. angle
99 5304451502 Angle, noise unit mt.
100 5304451503 Trim, right side
101 5304451504 Trim, left side
119 5304451522 Support, turntable
120 5304451523 Tray, turntable
127 5304451527 Bushing, power cord

Publication No: 5995553749 E30SO75FPSA
10/09 6
OVEN,CABIN
1
E30SO75FPSA-CAB-OVEN-1

E30SO75FPSA Publication No: 5995553749
# Functional Parts 7 10/09
* Non-Illustrated Parts
OVEN,CABINET
POS. NO PART NO. DESCRIPTION
129 5304440334 Label, Caution-monitor
130 5304440333 Label, Caution-DHHS
133 5304451531 Clamp, power cord, back cover
137 5304458940 Duct, back
138 5304451533 Label, NHW caution
140 5304451535 Label, height caution
141 5304451547 Nut, element, 4 mm x 3.2 mm, (4)
142 5304451548 Screw, 4 mm x 8 mm
143 5304451549 Screw, 4 mm x 6 mm
144 5304451550 Screw, 4 mm x 8 mm
145 5304450253 Screw, 4 mm x 8 mm
146 5304451551 Screw, 4 mm x 8 mm
147 5304451552 Screw, 4 mm x 8 mm, white
148 5304451553 Screw, 4 mm x 12 mm
149 5304440873 Screw, Torx, tamper proof
150 5304451569 Cushion, side louver
151 5304451554 Screw, special
152 5304451570 Screw
153 5304451555 Screw, 4 mm x 8 mm
154 5304451556 Screw, special
155 5304451557 Screw, 4 mm x 12 mm
156 5304451558 Screw, special
157 5304451517 Screw, 4 mm x 8 mm
158 5304451560 Screw, 3 mm x 10 mm
159 5303319641 Screw
160 5304451561 Screw, 4 mm x 8 mm
161 5303319634 Screw, 4mm x 8mm
162 5304451562 Bracket, oven retainer, anti-tip
163 5304451563 Anti-tip Kit, w/brackets, tools, screws
164 5304451564 Wiring Diagram, schematic, label
165 5304451565 Cushion, thermal cover, left
166 5304451566 Cover, lamp
167 5304451567 Cushion, lamp cover
168 5304451568 Cushion
171 5304472816 Spring, torsion
172 5304472814 Spring, top
173 5304472815 Lever, switch, left, A
174 5304472820 Lever, switch, left, B
175 5304472819 Spring, bottom
176 5304472818 Lever, switch, right, B
311 318246000 Bracket, cabinet, anti-tip
311* 5303211311 Screw, 8-18 x 0.500
311* 5304438005 Screw, 6 x 1, black
312 318246702 Tool, oven release, RH key
312 318246703 Tool, oven release, LH key

Publication No: 5995553749 E30SO75FPSA
10/09 8
CONTROL PANEL,DOOR,MISC.

E30SO75FPSA Publication No: 5995553749
# Functional Parts 9 10/09
* Non-Illustrated Parts
CONTROL PANEL,DOOR,MISC.
POS. NO PART NO. DESCRIPTION
30 # 5304451413 Control Board, CPU
31 # 5304456394 Touch Control
32 5304451415 Screw
102 5304458935 Door, assembly
103 5304458936 Handle, door
104 5304451507 Screw
105 5304451508 Frame, inner door, choke cover
106 5304458937 Adapter, door handle, left side
107 5304458938 Adapter, door handle, right side
108 5304451511 Latch Head, right side
109 5304451512 Latch Head, left side
110 5304451513 Spring, handle
111 5304451514 Lever, handle
112 5304451515 Spring, latch, right side
113 5304451516 Spring, latch, left side
114 5304451517 Screw, 4 mm x 8 mm
115 5304458939 Screw, 4 mm x 20 mm
116 5304451519 Pin, handle
117 5304451520 Rack, high
118 5304451521 Rack, low
121 5304451524 Plate, splash guard
125# 5304451525 Wiring Harness, main
126# 5304451526 Wiring Harness, thermistor
128 5304451528 Clip, wire harness, plastic, L
131 5304440346 Label, User Caution
132 5304451530 Insulator, terminal
134 5304451529 Clip, wire harness, plastic, LL
139 5304451534 Label, User Caution, French
169 5304465264 Pan, pizza
170 5304461261 Rack, bacon

Publication No: 5995553749 E30SO75FPSA
10/09 10

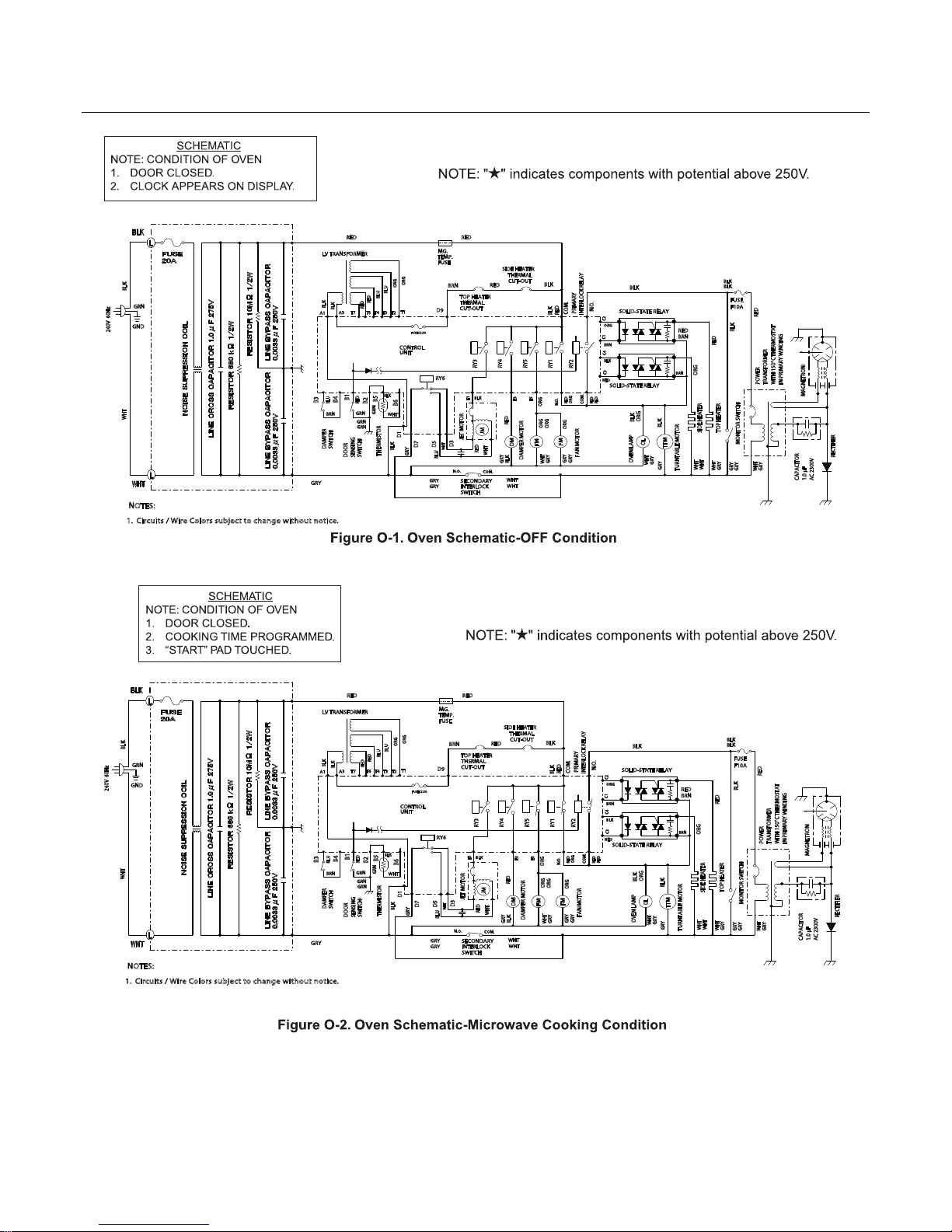

WIRING DIAGRAM
NOTES:
1. Circuits / Wire Colors subject to change without notice.
LV TRANSFORMER
C2
C1
C4
C3
T6
T7 T4
A3 T2
A1
D9
RY2
RY1 RY5 RY4 RY3
RY6
RECTIFIER
SOLID-STATE RELAY
INTERLOCK RELAY
PRIMARY
SECONDARY
INTERLOCK
SWITCH
FAN MOTOR
UNIT
CONTROL
MONITORSWITCH
1.0 F CAPACITOR AC 2300V MAGNETRON
RED
BLK
DAMPER SWITCH
SWITCH DOOR
SENSING
JET MOTOR
TURNTABLE MOTOR
N.O.
N.O.
DM
FM
FM
OL
TTM
THERMISTOR
SOLID-STATE RELAY
SIDE HEATER
TOP HEATER
COM.
COM.
DAMPER MOTOR
B3
B4
B1
B2
B6
D7
D5
D3
E3
E5
E1
SIDE HEATER
CUT-OUT
THERMAL
CUT-OUT
TOP HEATER
THERMAL
MG.
FUSE
TEMP.
OVEN LAMP
F10A
D1
WITH 150°C THERMOSTAT TRANSFORMER POWER IN PRIMARY WINDING
GND
240V 60Hz
RED
GRY
RED
BLK
BLK
RED
BRN
BLK
RED
BRN BLK
RED
RED
BLK
ORG
BRN
ORG
BRN
RED
BLK
ORG
BLK
ORG
BLK
ORG
RED
RED
RED
ORG
ORG ORG
BLK
RED
GRY
WHT
GRY
BLK
GRY
GRY
GRY
WHT
GRY
WHT
GRY
GRY
WHT
GRY
WHT
GRY
WHT
WHT
RED
BLU
GRY WHT
WHT
GRY
N.O. COM.
GRY
BLK
GRN
BLK
ORG
BLU
BLK
RED
BLK
BLU
BLU
RED
GRN
BLK
BRN GRN WHT
GRN
GRN
WHT
ORG
RED
T1
T3
FUSE12.5A
NOTES:
1. Circuits / Wire Colors subject to change without notice.
LVTRANSFORMER
C2
C1
C4
C3
T6
T7 T4
A3 T2
A1 D9
RY2
RY1 RY5 RY4 RY3
RY6
RECTIFIER
SOLID-STATE RELAY
INTERLOCK RELAY
PRIMARY
SECONDARY
INTERLOCK
SWITCH
FAN MOTOR
UNIT
CONTROL
MONITOR SWITCH
1.0 F CAPACITOR AC 2300V MAGNETRON
RED
BLK
DAMPER SWITCH
SWITCH DOOR
SENSING
JET MOTOR
TURNTABLE MOTOR
N.O.
N.O.
DM
FM
FM
OL
TTM
THERMISTOR
SOLID-STATERELAY
SIDE HEATER
TOP HEATER
COM.
COM.
DAMPER MOTOR
B3
B4
B1
B2
B6
D7
D5
D3
E3
E5
E1
SIDEHEATER
CUT-OUT
THERMAL
CUT-OUT
TOP HEATER
THERMAL
MG.
FUSE
TEMP.
OVENLAMP
F10A
D1
WITH 150°C THERMOSTAT
TRANSFORMER POWER IN PRIMARY WINDING
GND
240V 60Hz
RED
GRY
RED
BLK
BLK
RED
BRN
BLK
RED
BRN BLK
RED
RED
BLK
ORG
BRN
ORG
BRN
RED
BLK
ORG
BLK
ORG
BLK
ORG
RED
RED
RED
ORG
ORG ORG
BLK
RED
GRY
WHT
GRY
BLK
GRY
GRY
GRY
WHT
GRY
WHT
GRY
GRY
WHT
GRY
WHT
GRY
WHT
WHT
RED
BLU
GRY WHT
WHT
GRY
N.O. COM.
GRY
BLK
GRN
BLK
ORG
BLU
BLK
RED
BLK
BLU
BLU
RED
GRN
BLK
BRN GRN WHT
GRN
GRN
WHT
ORG
RED
T1
T3
FUSE12.5A
E30SO75FPSA-WIRING-1

E30SO75FPSA Publication No: 5995553749
# Functional Parts 11 10/09
* Non-Illustrated Parts
WIRING DIAGRAM
NOTES:
1. Circuits / Wire Colors subject to change without notice.
LVTRANSFORMER
C2
C1
C4
C3
T6
T7 T4
A3 T2
A1 D9
RY2
RY1 RY5 RY4 RY3
RY6
RECTIFIER
SOLID-STATE RELAY
INTERLOCKRELAY
PRIMARY
SECONDARY
INTERLOCK
SWITCH
FANMOTOR
UNIT
CONTROL
MONITOR SWITCH
1.0 F CAPACITOR AC 2300V MAGNETRON
RED
BLK
DAMPER SWITCH
SWITCH DOOR
SENSING
JETMOTOR
TURNTABLEMOTOR
N.O.
N.O.
DM
FM
FM
OL
TTM
THERMISTOR
SOLID-STATERELAY
SIDE HEATER
TOP HEATER
COM.
COM.
DAMPERMOTOR
B3
B4
B1
B2
B6
D7
D5
D3
E3
E5
E1
SIDE HEATER
CUT-OUT
THERMAL
CUT-OUT
TOP HEATER
THERMAL
MG.
FUSE
TEMP.
OVENLAMP
F10A
D1
WITH 150°C THERMOSTAT
TRANSFORMER POWER IN PRIMARY WINDING
GND
240V 60Hz
RED
GRY
RED
BLK
BLK
RED
BRN
BLK
RED
BRN BLK
RED
RED
BLK
ORG
BRN
ORG
BRN
RED
BLK
ORG
BLK
ORG
BLK
ORG
RED
RED
RED
ORG
ORG ORG
BLK
RED
GRY
WHT
GRY
BLK
GRY
GRY
GRY
WHT
GRY
WHT
GRY
GRY
WHT
GRY
WHT
GRY
WHT
WHT
RED
BLU
GRY WHT
WHT
GRY
N.O. COM.
GRY
BLK
GRN
BLK
ORG
BLU
BLK
RED
BLK
BLU
BLU
RED
GRN
BLK
BRN GRN WHT
GRN
GRN
WHT
ORG
RED
T1
T3
FUSE12.5A
E30SO75FPSA-WIRING-3

Publication No: 5995553749 E30SO75FPSA
10/09 12
WIRING DIAGRAM
E30SO75FPSA-WIRING-2
NOTES:
1. Circuits / Wire Colors subject to change without notice.
LVTRANSFORMER
C2
C1
C4
C3
T6
T7 T4
A3 T2
A1
D9
RY2
RY1 RY5 RY4 RY3
RY6
RECTIFIER
SOLID-STATE RELAY
INTERLOCK RELAY
PRIMARY
SECONDARY
INTERLOCK
SWITCH
FAN MOTOR
UNIT
CONTROL
MONITOR SWITCH
1.0 F CAPACITOR AC 2300V MAGNETRON
RED
BLK
DAMPER SWITCH
SWITCH DOOR
SENSING
JET MOTOR
TURNTABLE MOTOR
N.O.
N.O.
DM
FM
FM
OL
TTM
THERMISTOR
SOLID-STATERELAY
SIDE HEATER
TOPHEATER
COM.
COM.
DAMPER MOTOR
B3
B4
B1
B2
B6
D7
D5
D3
E3
E5
E1
SIDEHEATER
CUT-OUT
THERMAL
CUT-OUT
TOPHEATER
THERMAL
MG.
FUSE
TEMP.
OVEN LAMP
F10A
D1
WITH 150°C THERMOSTAT
TRANSFORMER POWER IN PRIMARYWINDING
GND
240V 60Hz
RED
GRY
RED
BLK
BLK
RED
BRN
BLK
RED
BRN BLK
RED
RED
BLK
ORG
BRN
ORG
BRN
RED
BLK
ORG
BLK
ORG
BLK
ORG
RED
RED
RED
ORG
ORG ORG
BLK
RED
GRY
WHT
GRY
BLK
GRY
GRY
GRY
WHT
GRY
WHT
GRY
GRY
WHT
GRY
WHT
GRY
WHT
WHT
RED
BLU
GRY WHT
WHT
GRY
N.O. COM.
GRY
BLK
GRN
BLK
ORG
BLU
BLK
RED
BLK
BLU
BLU
RED
GRN
BLK
BRN GRN WHT
GRN
GRN
WHT
ORG
RED
T1
T3
FUSE12.5A
NOTES:
1. Circuits / Wire Colors subject to change without notice.
LV TRANSFORMER
C2
C1
C4
C3
T6
T7 T4
A3 T2
A1
D9
RY2
RY1 RY5 RY4 RY3
RY6
RECTIFIER
SOLID-STATE RELAY
INTERLOCKRELAY
PRIMARY
SECONDARY
INTERLOCK
SWITCH
FAN MOTOR
UNIT
CONTROL
MONITOR SWITCH
1.0 F CAPACITOR AC 2300V MAGNETRON
RED
BLK
DAMPER SWITCH
SWITCH DOOR
SENSING
JET MOTOR
TURNTABLEMOTOR
N.O.
N.O.
DM
FM
FM
OL
TTM
THERMISTOR
SOLID-STATE RELAY
SIDEHEATER
TOP HEATER
COM.
COM.
DAMPERMOTOR
B3
B4
B1
B2
B6
D7
D5
D3
E3
E5
E1
SIDE HEATER
CUT-OUT
THERMAL
CUT-OUT
TOPHEATER
THERMAL
MG.
FUSE
TEMP.
OVENLAMP
F10A
D1
WITH 150°C THERMOSTAT TRANSFORMER POWER IN PRIMARY WINDING
GND
240V 60Hz
RED
GRY
RED
BLK
BLK
RED
BRN
BLK
RED
BRN BLK
RED
RED
BLK
ORG
BRN
ORG
BRN
RED
BLK
ORG
BLK
ORG
BLK
ORG
RED
RED
RED
ORG
ORG ORG
BLK
RED
GRY
WHT
GRY
BLK
GRY
GRY
GRY
WHT
GRY
WHT
GRY
GRY
WHT
GRY
WHT
GRY
WHT
WHT
RED
BLU
GRY WHT
WHT
GRY
N.O. COM.
GRY
BLK
GRN
BLK
ORG
BLU
BLK
RED
BLK
BLU
BLU
RED
GRN
BLK
BRN GRN WHT
GRN
GRN
WHT
ORG
RED
T1
T3
FUSE12.5A
