Electrolux EVL8E08WX User manual

EVL8E08WX
EVL8E08WZ
KVLBE08WX
VKL8E08WV
VKL8E08WX
VKL8E08WZ
EN Microwave combi-oven User Manual

WELCOME TO ELECTROLUX! THANK YOU FOR
CHOOSING OUR APPLIANCE.
In our drive to be sustainable, we are reducing paper assets and provide full user
manuals online. Access your full user manual at electrolux.com/manuals
Get usage advice, brochures, trouble shooter, service and repair information at
electrolux.com/support
CONTENTS
1. PRODUCT DESCRIPTION.......................... 3
1.1 General overview.............................3
2. HOW TO TURN OVEN ON AND OFF......... 3
2.1 Control panel................................... 3
2.2 Display............................................. 4
3. BEFORE FIRST USE...................................5
3.1 Initial Cleaning ................................ 5
3.2 First connection............................... 5
3.3 Wireless connection ........................5
3.4 Software licences.............................6
4. DAILY USE.................................................. 6
4.1 How to set: Heating functions.......... 6
4.2 How to set: Microwave
heating functions....................................7
4.3 How to use: Microwave quick start . 7
4.4 How to set: Assisted Cooking.......... 8
4.5 Heating functions............................. 8
5. CLOCK FUNCTIONS.................................10
5.1 Clock functions description............ 10
6. HINTS AND TIPS....................................... 10
6.1 Microwave suitable cookware and
materials ............................................. 10
6.2 Recommended power settings for
different kinds of food.......................... 11
7. CARE AND CLEANING.............................12
7.1 Notes on cleaning.......................... 13
8. TROUBLESHOOTING............................... 13
8.1 What to do if...................................13
8.2 How to manage: Error codes......... 14
8.3 Service data...................................15
9. TECHNICAL DATA....................................16
9.1 Technical data............................... 16
10. ENERGY EFFICIENCY............................ 16
10.1 Energy saving.............................. 16
11. MENU STRUCTURE................................16
11.1 Menu............................................16
11.2 Submenu for: Options..................17
11.3 Submenu for: Connections.......... 17
11.4 Submenu for: Setup.....................18
11.5 Submenu for: Service.................. 18
12. IT'S EASY!............................................... 19
Subject to change without notice.
2/24

1. PRODUCT DESCRIPTION

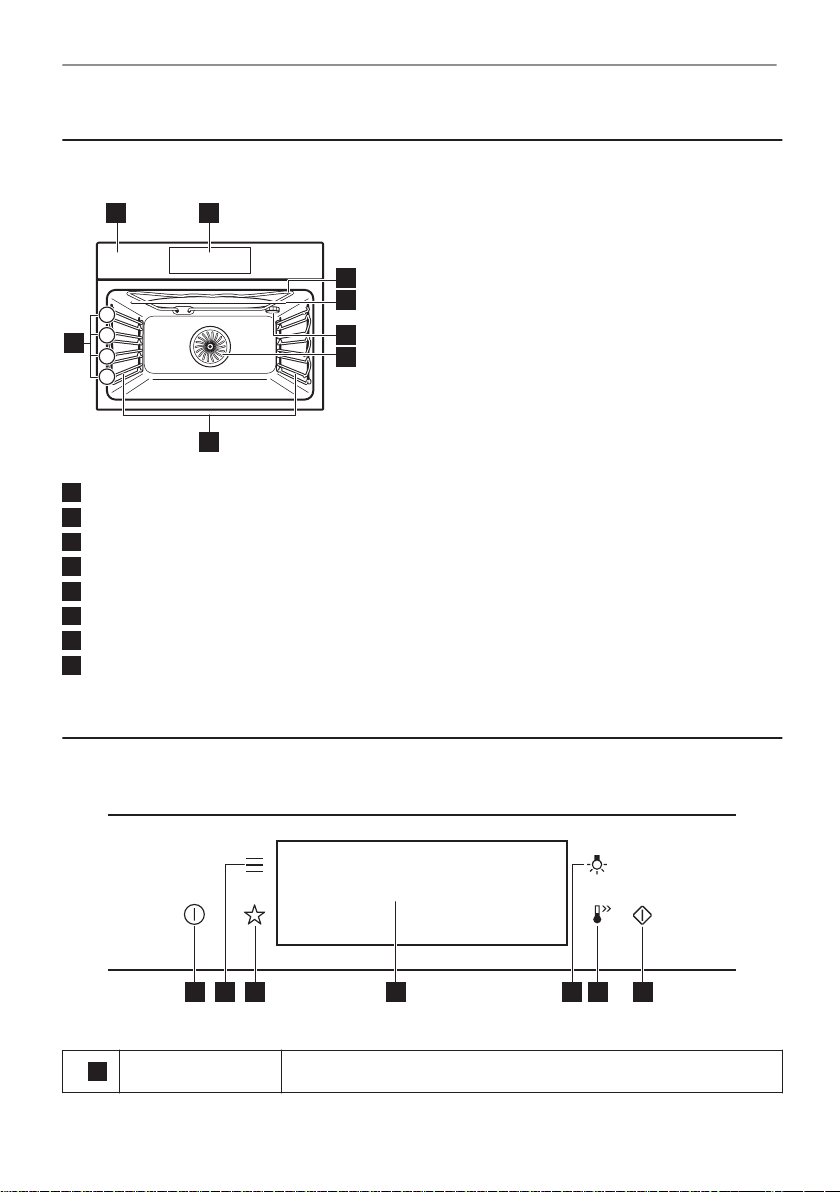

1.1 General overview
1 2
8
4
3
1
2
3
6
4
5
7
1Control panel
2Display
3Heating element
4Microwave generator
5Lamp
6Fan
7Shelf support, removable
8Shelf positions
2. HOW TO TURN OVEN ON AND OFF
2.1 Control panel
1 2 3 4 5 6 7
1ON / OFF Press and hold to turn the oven on and off.
3/24
PRODUCT DESCRIPTION

2Menu Lists the oven functions.
3Favourites Lists the favourite settings.
4Display Shows the current settings of the oven.
5Lamp switch To turn the lamp on and off.
6Fast Heat Up To turn on and off the function: Fast Heat Up.
7Microwave quick
start
To turn on microwave function (1000 W and 30 seconds).
Press Move
3s
Press and hold
Touch the surface with finger‐
tip.
Slide fingertip over the sur‐
face.
Touch the surface for 3 sec‐
onds.
2.2 Display
Display indicators
Basic indicators - to navigate on the display.
To confirm the selection / set‐
ting.
To go one
level back in
the menu.
To undo the
last action.
To turn the options on and
off.
Sound alarm function indicators - when the set time of cooking ends, the signal sounds.
The function is on. The function is on.
Cooking stops automatically. Sound alarm is off.
Timer indicators
To set the function: Delayed start. To cancel the setting.
4/24
HOW TO TURN OVEN ON AND OFF

Wi-Fi indicator - the oven can be connected to Wi-Fi.
Wi-Fi connection is turned on.
3. BEFORE FIRST USE
3.1 Initial Cleaning
Step 1 Step 2 Step 3
Remove all accessories and
removable shelf supports from
the oven.
Clean the oven and the ac‐
cessories with a soft cloth,
warm water and a mild deter‐
gent.
Place the accessories and the
removable shelf supports in
the oven.
3.2 First connection
The display shows welcome message after the first connection.
You have to set: Language, Display brightness, Key tones, Buzzer volume, Time of day.
3.3 Wireless connection
To connect the oven you need:
• Wireless network with the Internet connection.
• Mobile device connected to your wireless network.
Step 1 Download the mobile app My Electrolux Kitchen and follow the instructions for the
next steps.
Step 2 Turn on the oven.
Step 3 Press: . Select: Settings / Connections.
Step 4 - slide or press to turn on: Wi-Fi.
Step 5 The oven wireless module starts within 90 sec.
5/24
BEFORE FIRST USE

Frequency 2.4 GHz WLAN 5 GHz WLAN
2400 - 2483.5 MHz 5150 - 5350 MHz
Protocol IEEE 802.11b DSSS,
802.11g/n OFDM
IEEE 802.11 a/n OFDM
Max Power EIRP < 20 dBm (100 mW) EIRP < 23 dBm (200 mW)
Wi-Fi module NIU5-50
Frequency Bluetooth 2400 - 2483.5 MHz
Protocol LE: DSSS
Max Power EIRP < 4 dBm (2.5 mW)
EU member states covered by the provision of Directive 2014/53/EU: Belgium, Bulgaria, Czech
Republic, Denmark, Germany, Estonia, Ireland, Greece, Spain, France, Croatia, Italy, Cyprus,
Latvia, Lithuania, Luxemburg, Hungary, Malta, Netherlands, Austria, Poland, Portugal,
Romania, Slovenia, Slovakia, Finland, Sweden, Norway, Switzerland, United Kingdom, Turkey.
3.4 Software licences
The software in this product contains components that are based on free and open source soft‐
ware. Electrolux gratefully acknowledges the contributions of the open software and robotics com‐
munities to the development project.
To access the source code of these free and open source software components whose license
conditions require publishing, and to see their full copyright information and applicable license
terms, please visit: http://electrolux.opensoftwarerepository.com (folder NIU5).
4. DAILY USE
WARNING!
Refer to Safety chapters.
4.1 How to set: Heating functions
Step 1 Turn on the oven. The display shows the default heating function.
Step 2 Press the symbol of the heating function to enter the submenu.
Step 3 Select the heating function and press: . The display shows: temperature.
6/24
DAILY USE

Step 4 Set: temperature. Press: .
Step 5 Press: .
- press to turn off the heating function.
Step 6 Turn off the oven.
4.2 How to set: Microwave heating functions
Step 1 Remove all accessories and turn on the oven.
Insert microwave bottom glass plate.
Step 2 Press the symbol of the heating function to enter the submenu.
Step 3 Select the microwave heating function and press: . The display shows: micro‐
wave power.
Step 4 Set: microwave power. Press: .
Step 5 Press: .
- press to turn off the function.
Step 6 Turn off the oven.
Take a shortcut!
4.3 How to use: Microwave quick start
Step 1 Press and hold: . The microwave runs for 30 s.
7/24
DAILY USE

Step 2 To extend the cooking time:
Press on the running time value to go
to the time settings. Set the cooking
time.
Press +30 s.
The microwave can be switched on at any time with: Microwave quick start.

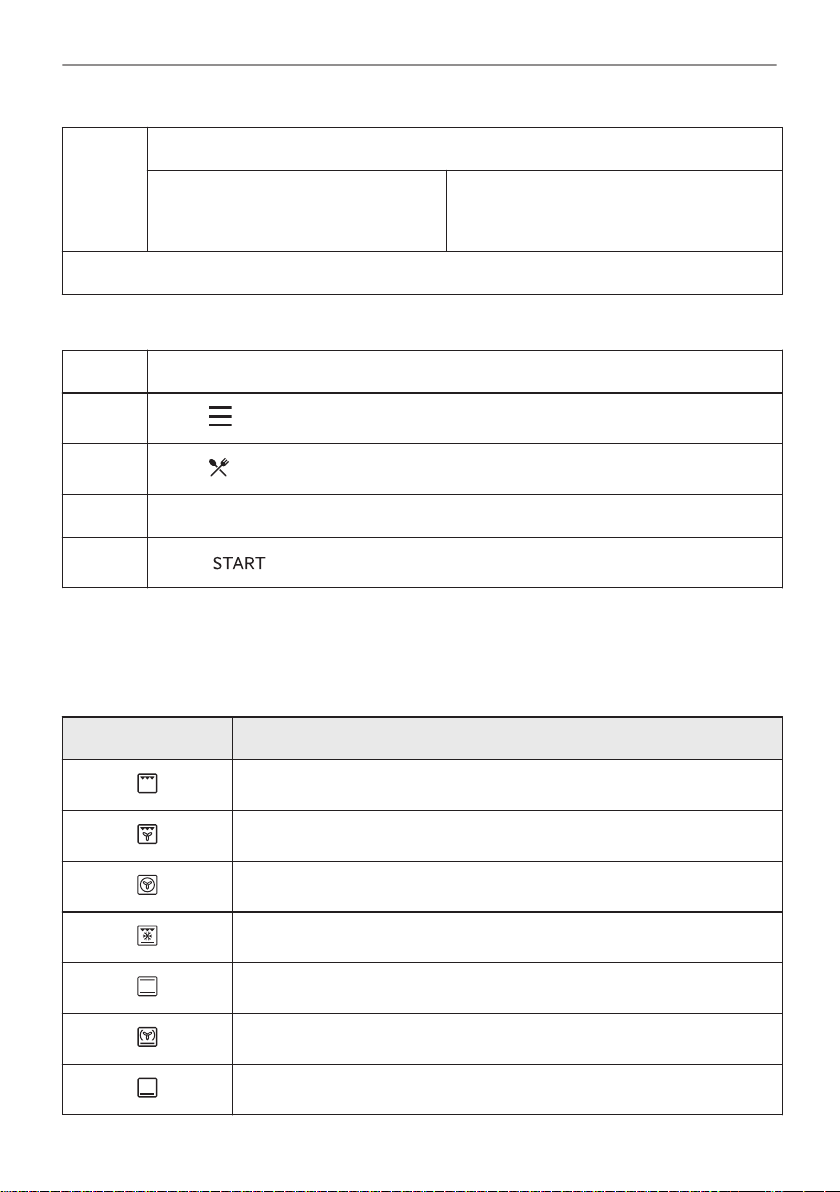

4.4 How to set: Assisted Cooking
Step 1 Turn on the oven.
Step 2 Press: .
Step 3 Press: . Enter: Assisted Cooking.
Step 4 Choose a dish or a food type.
Step 5 Press: .
4.5 Heating functions
STANDARD
Heating function Application
Grill: Toasting, grilling
Turbo Grilling: Roasting meat, browning
True Fan Cooking: Even baking, tenderness, drying
Frozen Foods: French fries, potato wedges, spring rolls
Conventional Cooking: Traditional baking
Pizza Function: Baking pizza
Bottom Heat: Baking cakes
8/24
DAILY USE

SPECIALS
Heating function Application
Preserving: Preserving vegetables
Dehydrating: Drying sliced fruit, mushrooms
Plate Warming: Preheating plates
Dough Proving: Proving yeast dough
Au Gratin: Making gratins, browning
Slow Cooking: Preparing tender roast
Keep Warm: Keeping food warm
Bread Baking: Bread, bread rolls
MICROWAVE
Heating function Application
Microwave: Heating up, cooking, power range: 100 - 1000 W
Defrost: Defrosting meat, fish, cakes, power range: 100 - 200 W
Reheat: Heating up pre-prepared meals and delicate food, power range:
300 - 700 W
Liquid: Heating up drinks and soups, power range: 800 - 1000 W
True Fan Cooking + MW: Baking
Conventional Cooking + MW: Baking, roasting
Grill + MW: Cooking, browning
Turbo Grilling + MW: Roasting large pieces, making gratins
9/24
DAILY USE

5. CLOCK FUNCTIONS
5.1 Clock functions description
Clock function Application
Cooking time To set the length of cooking. Maximum is 23 h 59 min.
Maximum for combined functions (microwave + standard) is 119 min
59 sec.
End action To set what happens when the timer ends counting.
Delayed start To postpone the start and / or end of cooking.
Time extension To extend cooking time.
Reminder To set a countdown. Maximum is 23 h 59 min. This function has no ef‐
fect on the operation of the oven.
Uptimer Monitors how long the function operates. Uptimer - you can turn it on
and off.
End action and Delayed start are not available for microwave functions.
6. HINTS AND TIPS

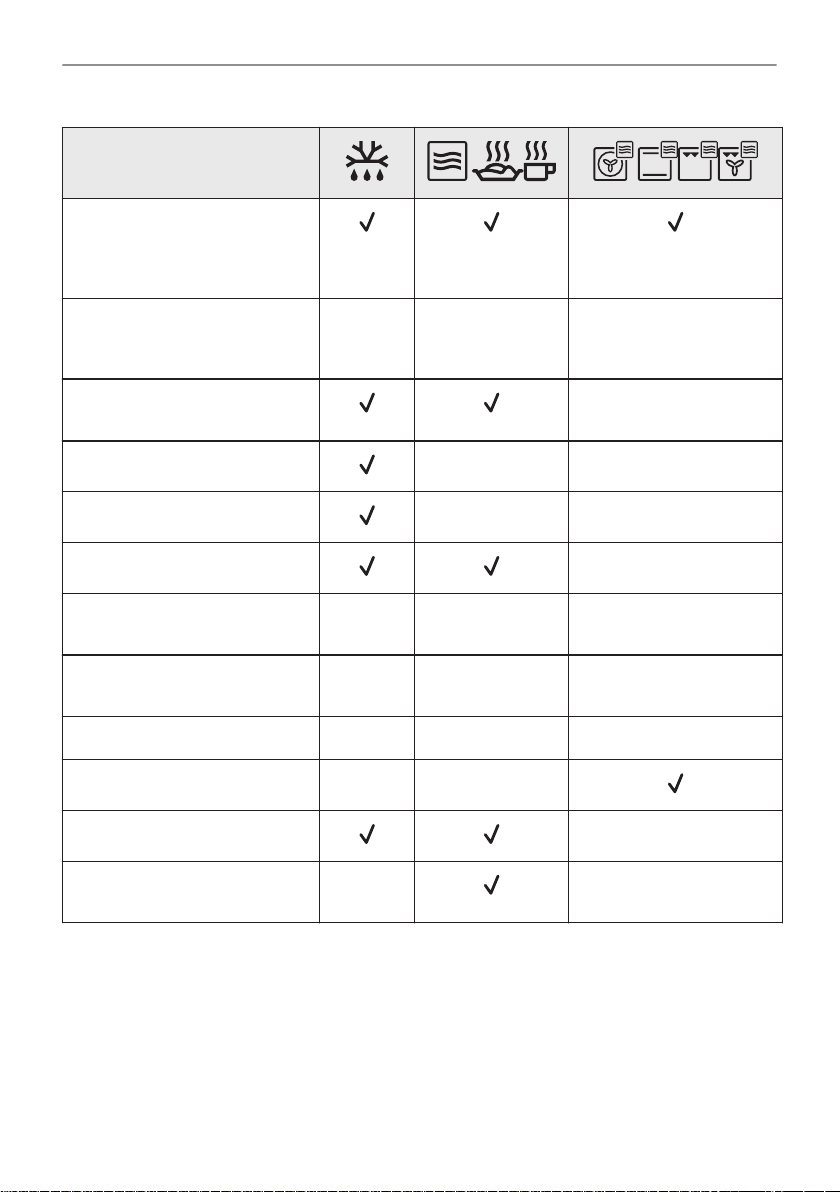

6.1 Microwave suitable cookware and materials
For the microwave use only suitable cookware and materials. Use below table as a reference.
Check the cookware / material specification before use.
Cookware / Material
Ovenproof glass and porcelain
with no metal components, e.g.
heat-proof glass
Non-ovenproof glass and porce‐
lain without any silver, gold, plat‐
inum or other metal decorations
X X
Glass and glass ceramic made
of ovenproof / frost-proof materi‐
al
10/24
CLOCK FUNCTIONS

Cookware / Material
Ovenproof ceramic and earthen‐
ware without any quartz or metal
components and glazes which
contain metal
Ceramic, porcelain and earthen‐
ware with unglazed bottom or
with small holes, e.g. on handles
X X X
Heat-resistant plastic up to
200 °C
X
Cardboard, paper X X
Clingfilm X X
Microwave clingfilm X
Roasting dishes made of metal,
e.g. enamel, cast iron
X X X
Baking tins, black lacquer or sili‐
con-coated
X X X
Baking tray X X X
Wire shelf X X
Microwave glass bottom plate X
Cookware for microwave use,
e.g. crisp pan
X X
6.2 Recommended power settings for different kinds of food
The data in the table is for guidance only.
11/24
HINTS AND TIPS

700 - 1000 W
Cooking vegetables Searing at the start of the cook‐
ing process Heating liquids
500 - 600 W
Cooking egg dishes Simmering stews Heating one-plate
meals
Defrosting and heat‐
ing frozen meals
300 - 400 W
Melting cheese,
chocolate, butter Simmering rice Heating baby food
Cooking / Heating
delicate food
Continuing
cooking
100 - 200 W
Defrosting bread Defrosting fruit and
cakes
Defrosting cheese,
cream, butter Defrosting meat, fish
7. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
12/24
CARE AND CLEANING

7.1 Notes on cleaning
Cleaning
Agents
Clean the front of the oven with a soft cloth with warm water and a mild deter‐
gent.
Use a cleaning solution to clean metal surfaces.
Clean stains with a mild detergent.
Everyday Use
Clean the cavity after each use. Fat accumulation or other residue may cause
fire.
Clean the oven ceiling carefully from residue and fat.
Do not store the food in the oven for longer than 20 minutes. Dry the cavity with
a soft cloth after each use.
Accessories
Clean all accessories after each use and let them dry. Use a soft cloth with
warm water and a mild detergent. Do not clean the accessories in a dishwash‐
er.
Do not clean the non-stick accessories using abrasive cleaner or sharp-edged
objects.
8. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
8.1 What to do if...
The oven does not turn on or does not heat up
Possible cause Remedy
The oven is not connected to an electrical sup‐
ply or it is connected incorrectly.
Check if the oven is correctly connected to the
electrical supply.
The clock is not set. Set the clock, for details refer to "Clock Func‐
tions" chapter, How to set: Clock functions.
The door is not closed correctly. Fully close the door.
13/24
TROUBLESHOOTING

The oven does not turn on or does not heat up
Possible cause Remedy
The fuse is blown. Make sure the fuse is the cause of the prob‐
lem. If the problem recurs, contact a qualified
electrician.
The oven Child Lock is on. Refer to "Menu" chapter, Submenu for: Op‐
tions.
Components
Description Remedy
The lamp is burnt out. Replace the lamp, for details refer to "Care and
Cleaning" chapter, How to replace: Lamp.
Problems with Wi-Fi signal
Possible cause Remedy
Trouble with wireless network signal. Check your wireless network and router.
Restart the router.
New router installed or router configuration
changed.
To configure oven and mobile device again, re‐
fer to "Before first use" chapter, Wireless con‐
nection.
The wireless network signal is weak. Move router as close to the oven as possible.
The wireless signal is disrupted by a micro‐
wave appliance placed near the oven.
Turn off the microwave appliance.
8.2 How to manage: Error codes
When the software error occurs, the display shows error message.
In this section, you will find the list of the problems that you can handle on your own.
14/24
TROUBLESHOOTING

Code and description Remedy
F240, F439 - the touch fields on the display do
not work properly.
Clean the surface of the display. Make sure
there is no dirt on the touch fields.
F601 - there is a problem with Wi-Fi signal. Check your network connection. Refer to "Be‐
fore first use" chapter, Wireless connection.
F604 - the first connection to Wi-Fi failed. Turn the oven off and on and try again. Refer to
"Before first use" chapter, Wireless connection.
F908 - the oven system cannot connect with
the control panel.
Turn the oven off and on.
When one of these error messages continues to appear on the display, it means a faulty
subsystem may have been disabled. In such a case contact your dealer or an Authorized
Service Centre. If one of these errors occurs, the rest of the oven functions will continue to work
as usually.
Code and description Remedy
F131 - the temperature of magnetron sensor is
too high.
Turn the oven off and wait until it cools down.
Turn the oven on again.
F602, F603 - Wi-Fi is not available. Turn the oven off and on.
8.3 Service data
If you cannot find a solution to the problem yourself, contact your dealer or an Authorised
Service Centre.
The necessary data for the service centre is on the rating plate. The rating plate is on the front
frame of the oven cavity. Do not remove the rating plate from the oven cavity.
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
15/24
TROUBLESHOOTING

9. TECHNICAL DATA
9.1 Technical data
Voltage 220 - 240 V
Frequency 50 Hz
10. ENERGY EFFICIENCY
10.1 Energy saving
The oven has features which help you save energy during everyday cooking.
Make sure that the oven door is closed when the oven operates. Do not open the oven door too
often during cooking. Keep the door gasket clean and make sure it is well fixed in its position.
Use metal cookware to improve energy saving (only when you use a non-microwave function).
When possible, do not preheat the oven before cooking.
Keep breaks between baking as short as possible when you prepare a few dishes at one time.
Cooking with fan
When possible, use the cooking functions with fan to save energy.
Residual heat
If a programme with the Duration or End Time selection is activated and the cooking time is
longer than 30 min, the heating elements automatically turn off earlier in some oven functions.
The fan and lamp continue to operate. When you turn off the oven, the display shows the
residual heat. You can use that heat to keep the food warm.
When the cooking duration is longer than 30 min, reduce the oven temperature to minimum 3 -
10 min before the end of cooking. The residual heat inside the oven will continue to cook.
Use the residual heat to warm up other dishes.
Keep food warm
Choose the lowest possible temperature setting to use residual heat and keep a meal warm.
The residual heat indicator or temperature appears on the display.
Cooking with the lamp off
Turn off the lamp during cooking. Turn it on only when you need it.
11. MENU STRUCTURE
11.1 Menu
Press to open Menu.
Menu item Application
Assisted Cooking Lists automatic programmes.
Favourites Lists the favourite settings.
16/24
TECHNICAL DATA

Menu item Application
Options To set the oven configuration.
Settings Connections To set the network configuration.
Setup To set the oven configuration.
Service Shows the software version and con‐
figuration.
11.2 Submenu for: Options
Submenu Application
Light Turns the lamp on and off.
Child Lock Prevents accidental activation of the oven. When the option
is on, the text "Child Lock" appears on the display when you
turn on the oven. To enable the oven use, choose the code
letters in the alphabetical order. Access to the timer, the re‐
mote operation and the lamp is available with the Child Lock
on.
Fast Heat Up Shortens heat up time. It is available only for some of the
oven functions.
Time indication Turns the clock on and off.
Digital clock style Changes the format of the displayed time indication.
11.3 Submenu for: Connections
Submenu Description
Wi-Fi To enable and disable: Wi-Fi.
Remote operation To enable and disable remote control.
Option visible only after you turn on: Wi-Fi.
17/24
MENU STRUCTURE

Submenu Description
Auto remote operation To start remote operation automatically after pressing
START.
Option visible only after you turn on: Wi-Fi.
Network To check network status and the signal power of: Wi-Fi.
Forget network To disable current network from auto connection with the
oven.
11.4 Submenu for: Setup
Submenu Description
Language Sets the oven language.
Display brightness Sets the display brightness.
Key tones Turns the tone of the touch fields on and off. It is not possi‐
ble to mute the tone for: .
Buzzer volume Sets the volume of key tones and signals.
Time of day Sets the current time and date.
11.5 Submenu for: Service
Submenu Description
Demo mode Activation / deactivation code: 2468
Software version Information about software version.
Reset all settings Restores factory settings.
18/24
MENU STRUCTURE

12. IT'S EASY!
Before first use you have to set:
Language Display bright‐
ness Key tones Buzzer volume Time of day
Familiarize yourself with the basic icons on the control panel and the display:
ON / OFF Menu Favourites Wi-Fi Timer
/
Start using the oven
Quick start Turn on the
oven and start
cooking with the
default tempera‐
ture and time of
the function.
Step 1 Step 2 Step 3
Press and hold:
.
- select
the preferred
function.
Press: .
Quick Off Turn off the
oven, any
screen or mes‐
sage at any
time.
- press and hold until the oven turns off.
MW quick start Start Microwave
at any time with
default settings:
30 sec / 1000W.
Press: .
Start cooking
Step 1 Step 2 Step 3 Step 4 Step 5
- press to turn
on the oven.
- select the heat‐
ing function.
- set the temper‐
ature.
- press to con‐
firm.
- press to start
cooking.
13. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol . Put the packaging in relevant containers to recycle it.
Help protect the environment and human health by recycling waste of electrical and electronic
19/24
IT'S EASY!

appliances. Do not dispose of appliances marked with the symbol with the household waste.
Return the product to your local recycling facility or contact your municipal office.
20/24
*
ENVIRONMENTAL CONCERNS
