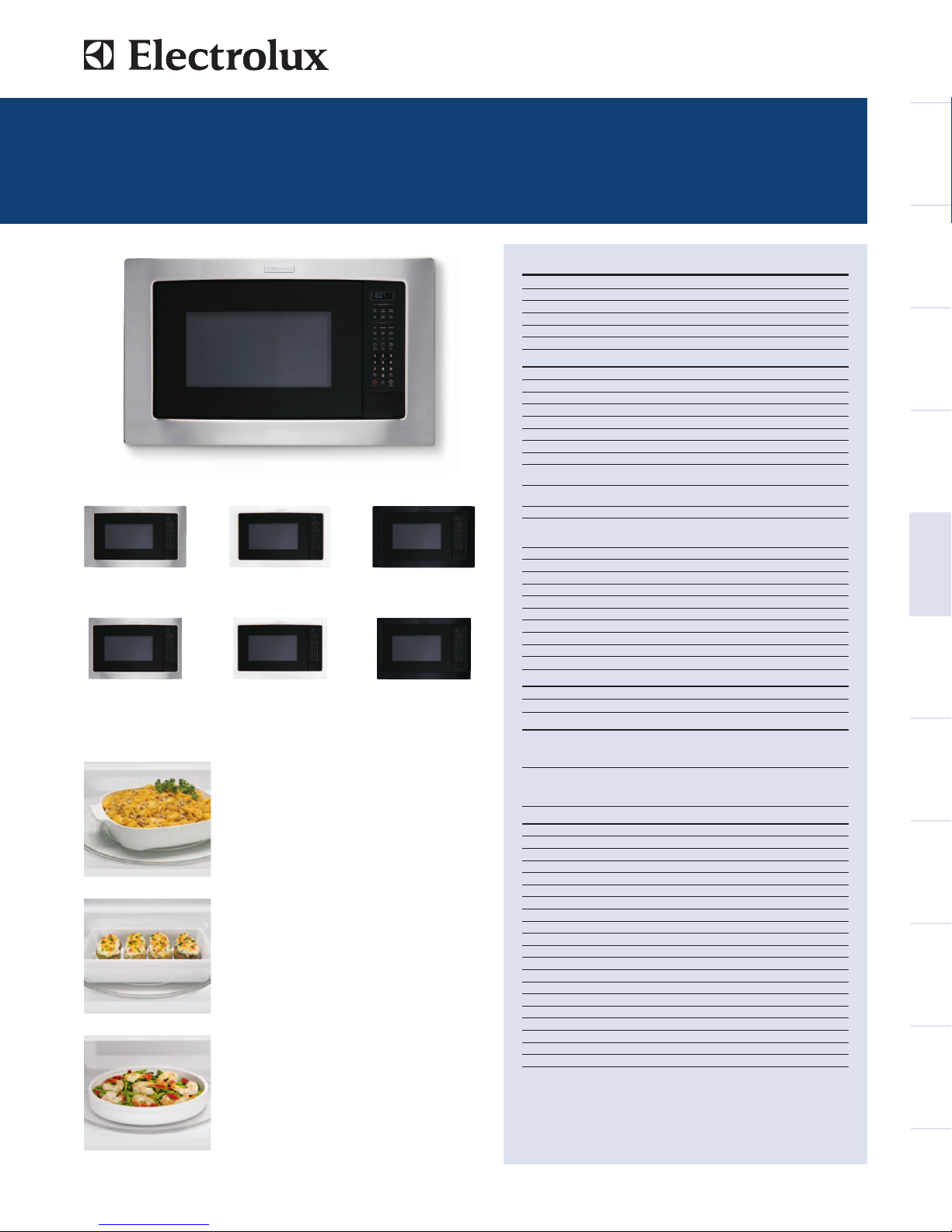

Electrolux EI24MO45IB - 2.0 cu. Ft. Microwave Installation instructions

Built-In Microwave
EI24MO45I B
BUILT-IN SIDE-SWING DOOR MICROWAVE
30" or 27" Trim Kit
Oven Cavity
Watts
Oven Interior
Interior Krypton Light
16" Glass Turntable
Control Panel Features
IQ-Touch™Electronic Controls
Front Display with Blue LED
Electronic Clock & Timer
Humidity Sensor
Power Levels
Touch Pad Controls
Auto-Start
Auto-Defrost Options
Auto-Cook Options –
Pizza (1), Snacks (3), Kid’s Meals (3), Soften/Melt (4)
Auto-Reheat Options –
Breads/Muffins (2), Pasta/ Casserole (1)
Beverage (0.5-2.0 Cups)
Sensor-Cook Options –
Cook (5), Reheat, Popcorn, Baked Potato,
Frozen Vegetables, Fresh Vegetables
Multi-Stage Cooking Options
Shorcut Options
Add 30 Seconds
Keep Warm
Custom Help Options
Panel Lock
Demo Mode
Adjustable Sound Level For Timers/Reminders
More/Less Function
Power Failure Indicator
Additional Features
Signature Soft-Arc Oven Door
Glass Window
Required Trim Kit Options*
30" Trim Kit –
Stainless Steel
White
Black
27" Trim Kit –
Stainless Steel
White
Black
Specifications
Color –
Black
Oven Cavity Dimensions –
Height
Width
Depth
Product Dimensions –
Height
Width (including Trim Kit - 30"/ 27")
Depth (to Center of Arc)
Approved for Under-Counter Installation
Approved for Electric Single Oven Combination Installation**
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @120 Volts‡
Amps@120 Volts
60" Electrical Cable
Shipping Weight (Approx.) – Microwave
Shipping Weight (Approx.) – 30" Trim Kit*
Shipping Weight (Approx.) – 27" Trim Kit*
‡For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate
ground wire. Appliance must be grounded for safe operation.
* Installation requires use of 30" or 27" Trim Kit (ordered by individual part number and shipped
separate). Includes Bottom Duct Assembly.
** Approved to be used in combination with any Electrolux Electric Single Wall Oven
and/or Warmer Drawer. (Not approved to be used above any gas wall oven.)
NOTE: Always consult local and national electric codes. Refer to Product Installation Guide
for detailed installation instructions on the web at electroluxappliances.com.
Specifications subject to change.
Included
2.0 Cu. Ft.
1,200
White
Yes
Yes
Yes
Yes
Yes
Yes
11
33
Yes
6
11
3
Yes
10
4
6
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
PN# EI30MO45TS
PN# EI30MO45TW
PN# EI30MO45TB
PN# EI27MO45TS
PN# EI27MO45TW
PN# EI27MO45TB
B
10-1/2"
17-3/8"
18-5/8"
18-1/16"
30"/ 27"
20-1/16"
Yes
Yes
Right Top Rear
120V/60 Hz/15 or 20A
1.5
13
Included
50 Lbs.
12 Lbs.
12 Lbs.
electroluxappliances.com
Cook-2-Perfection®Technology
Evenly distributes microwave cooking energy
throughout the oven’s interior for even cooking.
A 13" x 9" pan – with handles – can be
evenly heated.
Sure-2-Fit®Capacity
Our 2.0 cu. ft. extra-large microwaves
will hold nearly any dish.
High-Performance Power
With 11 power levels and 1,200 watts, our
microwaves are capable of handling even the
biggest cooking jobs.
Wall OvensRefrigerators Warmer DrawersCooktopsBuilt-In Ranges
Freestanding
Ranges
MicrowavesVent HoodsFreezersUnder CounterWashers / Dryers Dishwashers /
Kitchen Cleanup
Microwave includes choice of 30" or 27" Trim Kit available
in 3 colors (shown with 30" Stainless Steel Trim Kit).
Microwave EI24MO45I B
with 30" Stainless Steel
Trim Kit EI30MO45T S
Microwave EI24MO45I B
with 30" White Trim Kit
EI30MO45T W
Microwave EI24MO45I B
with 30" Black Trim Kit
EI30MO45T B
Microwave EI24MO45I B
with 27" Stainless Steel
Trim Kit EI27MO45T S
Microwave EI24MO45I B
with 27" White Trim Kit
EI27MO45T W
Microwave EI24MO45I B
with 27" Black Trim Kit
EI27MO45T B

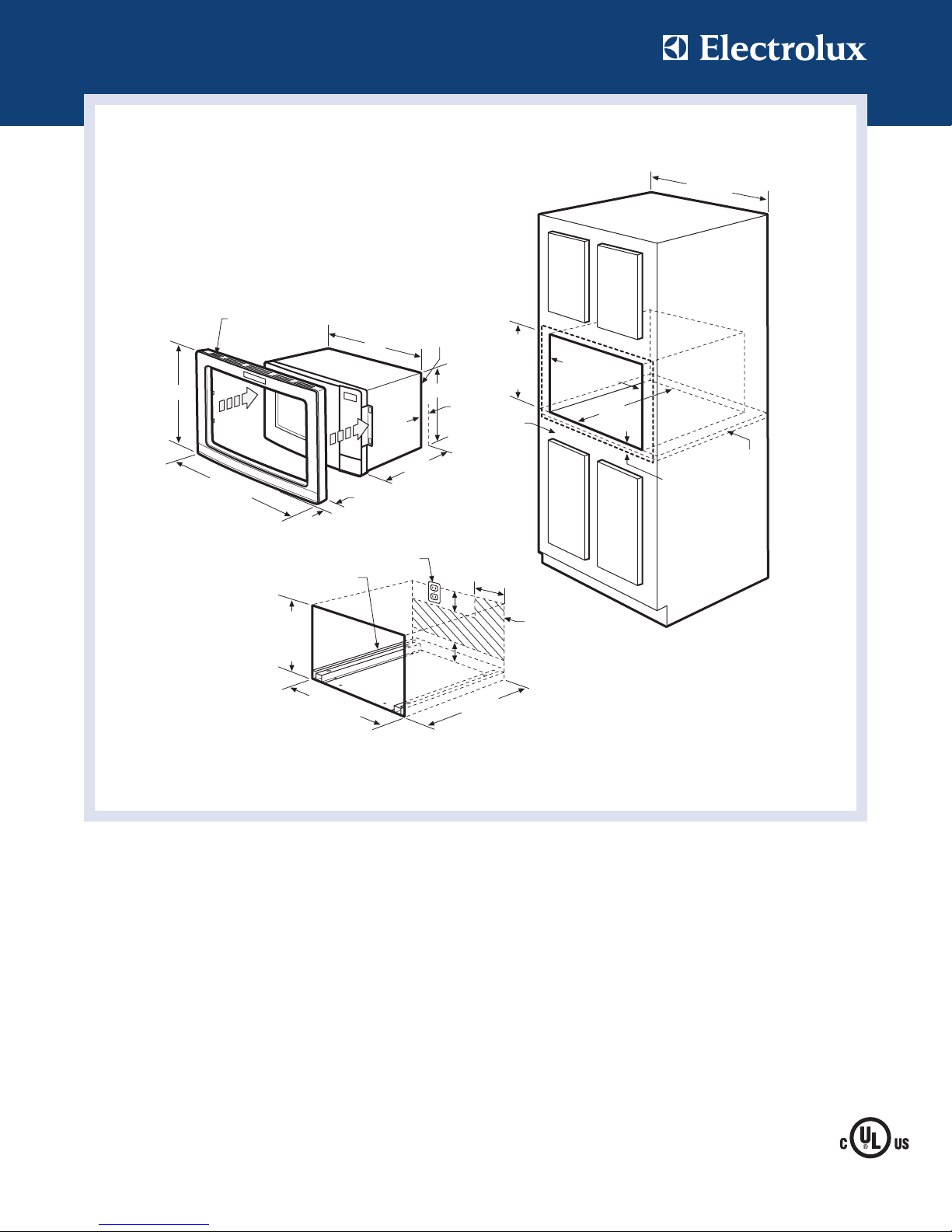

Built-In Microwave Specifications
•
Product Weight (Microwave with Trim Kit) – 51 Lbs.
•
Voltage Rating –120V/60Hz/15 or 20 Amps
•
Connected Load (kW Rating) @120 Volts =1.5kW (For use on
adequately wired 120V, dedicated circuit having 2-wire service with a
separate ground wire. Appliance must be grounded for safe operation.)
•
Amps @120 Volts =13 Amps
•
Always consult local and national electric codes.
•
Allow 21" minimum clearance for 90° door swing.
•
Installation requires use of 30" or 27" Trim Kit (ordered by individual part
number and shipped separate). Includes Bottom Duct Assembly.
•
Minimum 20" deep oven cutout dimension is critical for proper installation
for oven and faceplate to fit flush against cabinet front.
•
Consult local building code, in the event that cutout opening may be
required to be enclosed with sides, ceiling and rear partition.
•
Full oven base of solid plywood or similar material required, capable
of supporting 100 Lbs.
•
Base must be level and front of cabinet square for proper operation.
•
Grounded outlet should NOT be located in shaded area, as indicated,
unless cabinet depth is greater than 21".
•
Can NOT be installed above any gas wall oven.
•
Built-In Convection Microwave can be built in alone or is approved to be
used in combination with any Electrolux Electric Single Wall Oven and/or
Warmer Drawer. (Refer to model-specific Combination Installation
Specification pages on web.)
•
When used in combination with another Electrolux built-in product, a
minimum clearance of 2-7/8" required from bottom of Built-In Microwave
cutout to top edge of companion product’s faceplate, leaving a 2" visible
gap between both product faceplates.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Built-In Microwave
EI24MO45I B
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
EI24MO45I 07/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
*Note: When used in combination with
another Electrolux built-in product, a
minimum clearance of 27/8" required from
bottom of Built-In Microwave cutout to top
edge of companion product’s faceplate,
leaving a 2"visible gap between both
product faceplates
30"min.
20"
min.
7/8"
Faceplate
overlap
161/4"
min.
163/8"
max.
Full
plywood
base
required
to support
100 lbs.
251/4"min.
253/8"max.
2"
(visible
gap)*
Allow at least
21" clearance for door
depth when open
24 "
173/4"
Power cord
location (right
top rear)
133/8 "
rear
extrusion
120V/60Hz
grounded outlet
20" min.
4" 6"
4"
251/4"min.
253/8"max.
161/4"
min.
163/8"
max.
Bottom Duct Assembly
Outlet should NOT
be located within
shaded area UNLESS
cabinet depth is
greater than 21"
25/16"
30" or 27"
Trim Kit Faceplate
18 1/16"
(30") 30"
(27") 27"

30" Combination Installation Specifications
•
Always consult local and national electric codes.
(Refer to product-specific electrical specifications on this page.)
•
Minimum 23-1/2" deep cutout dimension is critical for proper
combination installation, to ensure that each built-in product’s faceplate
will fit flush against cabinet front.
•
Bases must be level and cabinet front must be square.
•
Minimum 4-1/2"required distance from bottom of Wall Oven cutout
to floor, 31"suggested.
•
Respect critical dimensions as noted for proper installation of built-In
products.
•
Minimum 21" clearance needed for Wall Oven door depth when open.
30" Built-In Microwave Specifications
•
Product Weight – 48 Lbs.
•
Voltage Rating –120V/60Hz/15 or 20 Amps
•
Connected Load (kW Rating) @120 Volts = 1.5kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts =13 Amps
•
Full oven base of solid plywood or similar material required, capable of
supporting 100 Lbs.
•
Minimum 2-7/8" clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.
30" Electric Single Wall Oven Specifications
•
Product Weight – 200 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 4.0/3.0kW
•
Amps @ 240/208 Volts =17.0/14.5 Amps
•
Full oven base of solid plywood or similar material required, capable of
supporting 200 Lbs.
•
To adapt oven to fit cutout height between 27-5/8" and 28-1/4", add
one 2"-wide wood shim of appropriate height to each side of opening
under oven side rails. Lifting oven will hide larger cutout opening at
top and oven’s 1"-high bottom trim will hide shims at bottom.
(Standard 1"-High Bottom Trim included.)
•
To adapt oven to fit cutout height between 28-1/4" and 30", optional
3"-High Bottom Trim available.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
30" Combination Installation –
Built-In Microwave/Single Wall Oven
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
MOSS_EW 30INST EL 07/11 © 2011 Electrolux Major Appliances, NA Printed in the U.S.A.

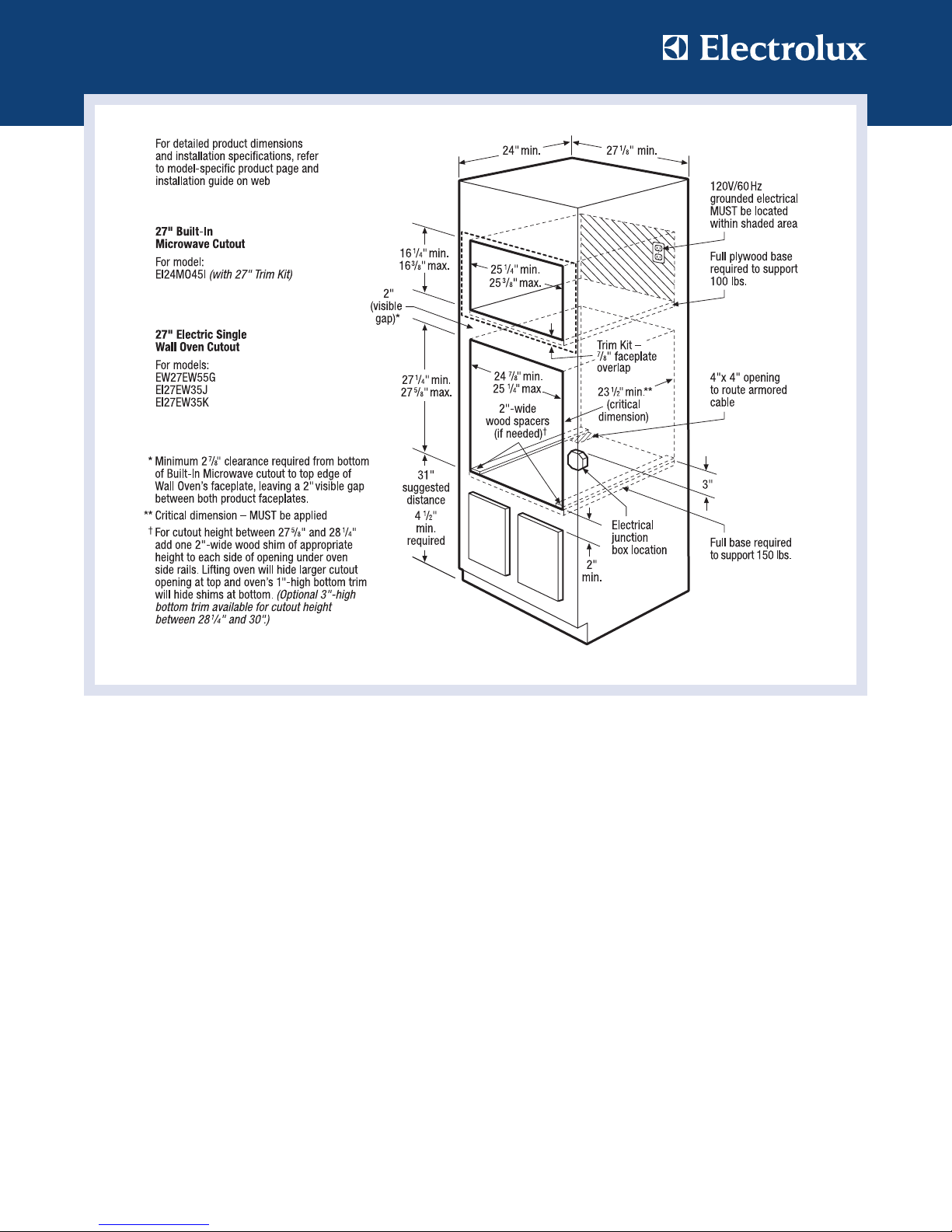

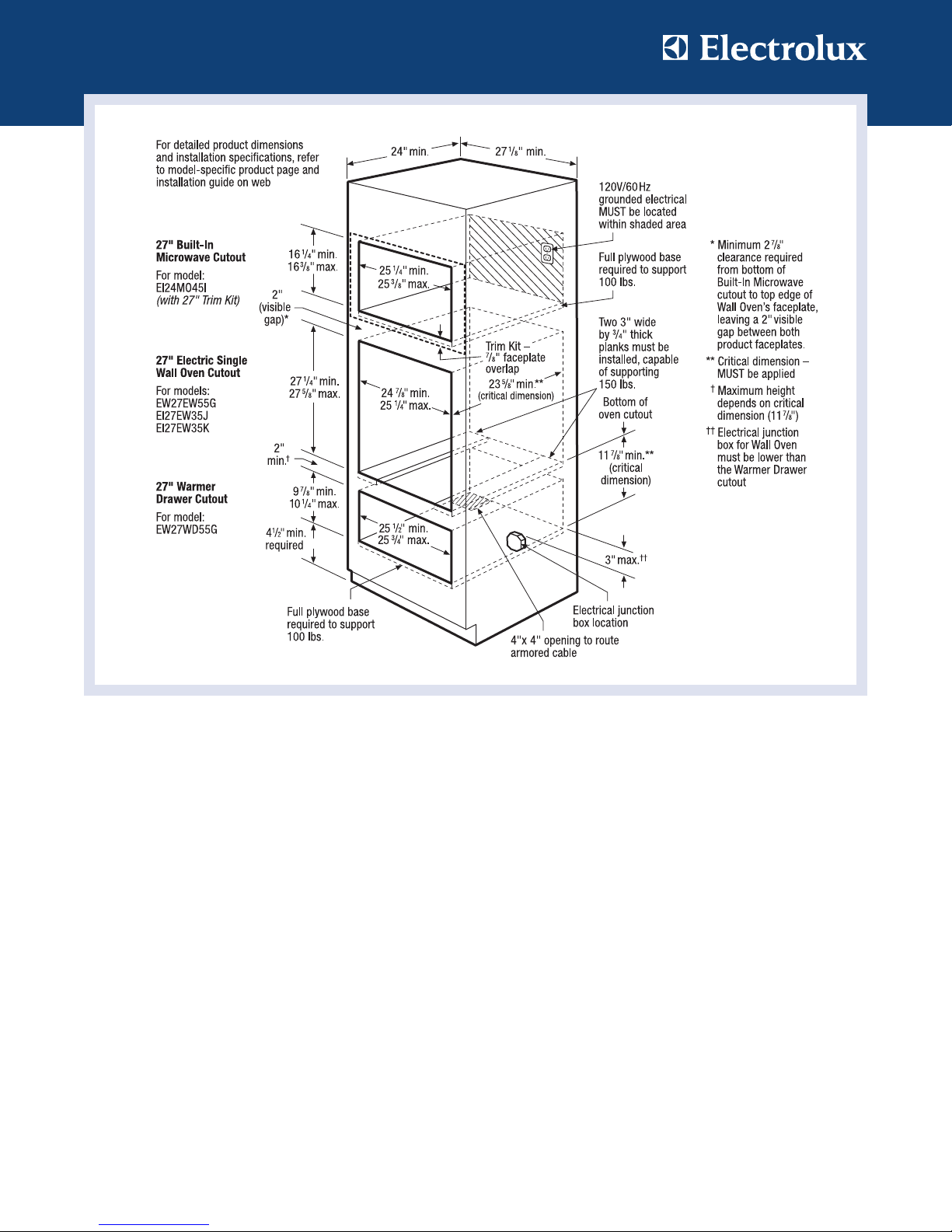

27" Combination Installation Specifications
•
Always consult local and national electric codes.
(Refer to product-specific electrical specifications on this page.)
•
Minimum 23-1/2" deep cutout dimension is critical for proper
combination installation, to ensure that each built-in product’s faceplate
will fit flush against cabinet front.
•
Bases must be level and cabinet front must be square.
•
Minimum 4-1/2"required distance from bottom of Wall Oven cutout
to floor, 31"suggested.
•
Respect critical dimensions as noted for proper installation of built-In
products.
•
Minimum 21" clearance needed for Wall Oven door depth when open.
27" Built-In Microwave Specifications
•
Product Weight – 48 Lbs.
•
Voltage Rating –120V/60Hz/15 or 20 Amps
•
Connected Load (kW Rating) @120 Volts = 1.5kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts =13 Amps
•
Full oven base of solid plywood or similar material required, capable of
supporting 100 Lbs.
•
Minimum 2-7/8" clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.
27" Electric Single Wall Oven Specifications
•
Product Weight – 150 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 3.4/2.6kW
•
Amps @ 240/208 Volts =14.2/12.6 Amps
•
Full oven base of solid plywood or similar material required, capable of
supporting 150 Lbs.
•
To adapt oven to fit cutout height between 27-5/8" and 28-1/4", add
one 2"-wide wood shim of appropriate height to each side of opening
under oven side rails. Lifting oven will hide larger cutout opening at
top and oven’s 1"-high bottom trim will hide shims at bottom.
(Standard 1"-High Bottom Trim included.)
•
To adapt oven to fit cutout height between 28-1/4" and 30", optional
3"-High Bottom Trim available.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
27" Combination Installation –
Built-In Microwave/Single Wall Oven
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
MOSS_EW 27INST EL 07/11 © 2011 Electrolux Major Appliances, NA Printed in the U.S.A.

30" Combination Installation Specifications
•
Always consult local and national electric codes.
(Refer to product-specific electrical specifications on this page.)
•
Minimum 23-5/8" deep cutout dimension is critical for proper
combination installation, to ensure that each built-in product’s faceplate
will fit flush against cabinet front.
•
Bases must be level and cabinet front must be square.
•
Minimum 4-1/2"required distance from bottom of Warmer Drawer cutout
to floor.
•
Respect critical dimensions as noted for proper installation of built-In
products.
•
Minimum 21" clearance needed for Wall Oven door depth when open.
30" Built-In Microwave Specifications
•
Product Weight – 48 Lbs.
•
Voltage Rating –120V/60Hz/15 or 20 Amps
•
Connected Load (kW Rating) @120 Volts = 1.5kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts =13 Amps
•
Full oven base of solid plywood or similar material required, capable
of supporting 100 Lbs.
•
Minimum 2-7/8" clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.
30" Electric Single Wall Oven Specifications
•
Product Weight – 200 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 4.0/3.0kW
•
Amps @ 240/208 Volts =17.0/14.5 Amps
•
To support Wall Oven, two 3"-wide x 3/4"-thick planks must be installed
as a base, capable of supporting 200 Lbs. Do NOT use full base, since
planks are necessary to allow for proper air displacement.
30" Warmer Drawer Specifications
•
Product Weight – 65 Lbs.
•
Voltage Rating –120V/450W/60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 0.45kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120V = 3.75 Amps
•
Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
30" Combination Installation –
Built-In Microwave/Single Wall Oven/Warmer Drawer
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
MOSS_EW_WD 30INST EL 07/11 © 2011 Electrolux Major Appliances, NA Printed in the U.S.A.

27" Combination Installation Specifications
•
Always consult local and national electric codes.
(Refer to product-specific electrical specifications on this page.)
•
Minimum 23-5/8" deep cutout dimension is critical for proper
combination installation, to ensure that each built-in product’s faceplate
will fit flush against cabinet front.
•
Bases must be level and cabinet front must be square.
•
Minimum 4-1/2"required distance from bottom of Warmer Drawer cutout
to floor.
•
Respect critical dimensions as noted for proper installation of built-In
products.
•
Minimum 21" clearance needed for Wall Oven door depth when open.
27" Built-In Microwave Specifications
•
Product Weight – 48 Lbs.
•
Voltage Rating –120V/60Hz/15 or 20 Amps
•
Connected Load (kW Rating) @120 Volts = 1.5kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts =13 Amps
•
Full oven base of solid plywood or similar material required, capable of
supporting 100 Lbs.
•
Minimum 2-7/8" clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.
27" Electric Single Wall Oven Specifications
•
Product Weight – 150 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 3.4/2.6kW
•
Amps @ 240/208 Volts =14.2/12.6 Amps
•
To support Wall Oven, two 3"-wide x 3/4"-thick planks must be installed
as a base, capable of supporting 150 Lbs. Do NOT use full base, since
planks are necessary to allow for proper air displacement.
27" Warmer Drawer Specifications
•
Product Weight – 55 Lbs.
•
Voltage Rating –120V/450W/60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 0.45kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120V = 3.75 Amps
•
Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
27" Combination Installation –
Built-In Microwave/Single Wall Oven/Warmer Drawer
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
MOSS_EW_WD 27INST EL 07/11 © 2011 Electrolux Major Appliances, NA Printed in the U.S.A.

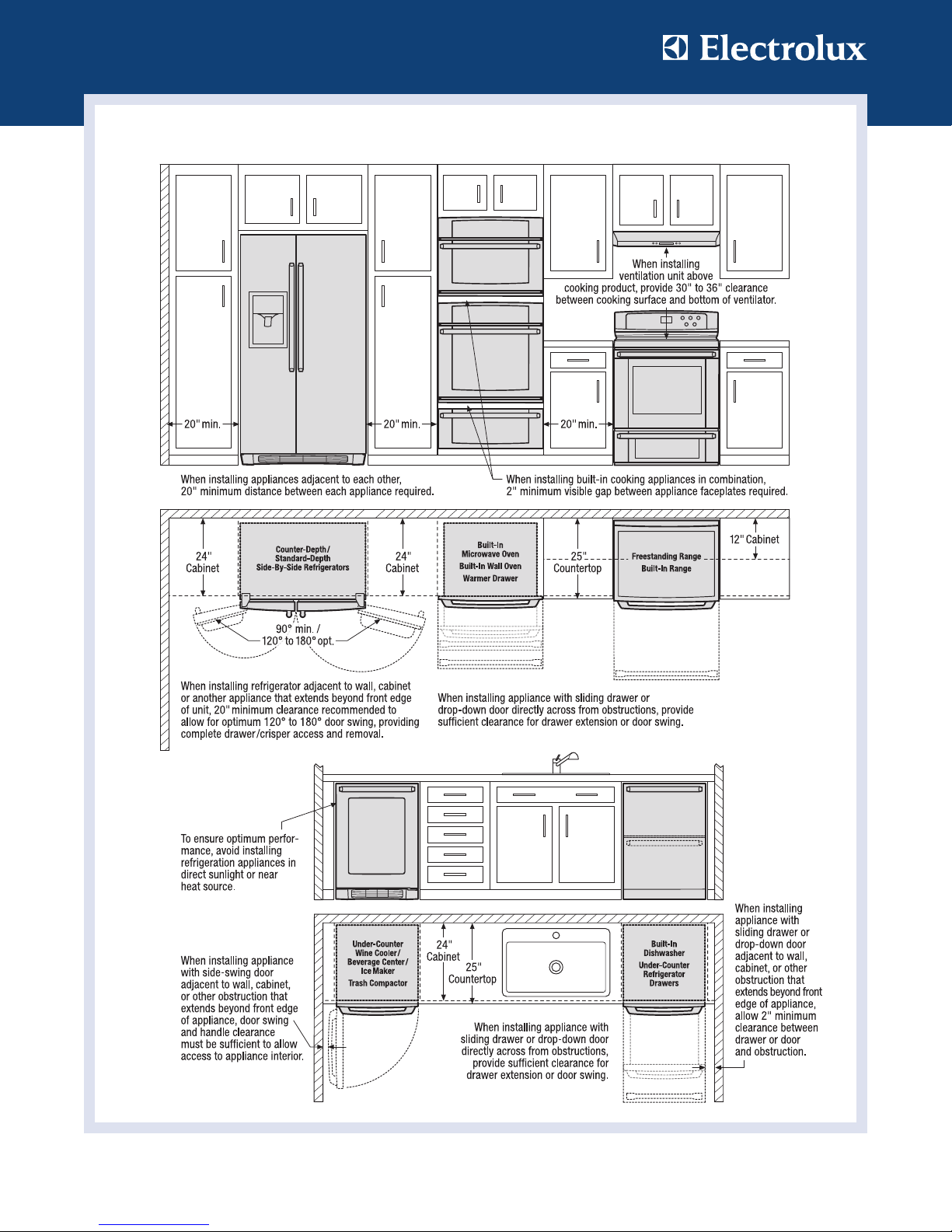

General Installation Guidelines
with Side-by-Side Refrigerator
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
INSTGDLNS_SSR EL 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at electroluxappliances.com.
Top
Front
Front
Top

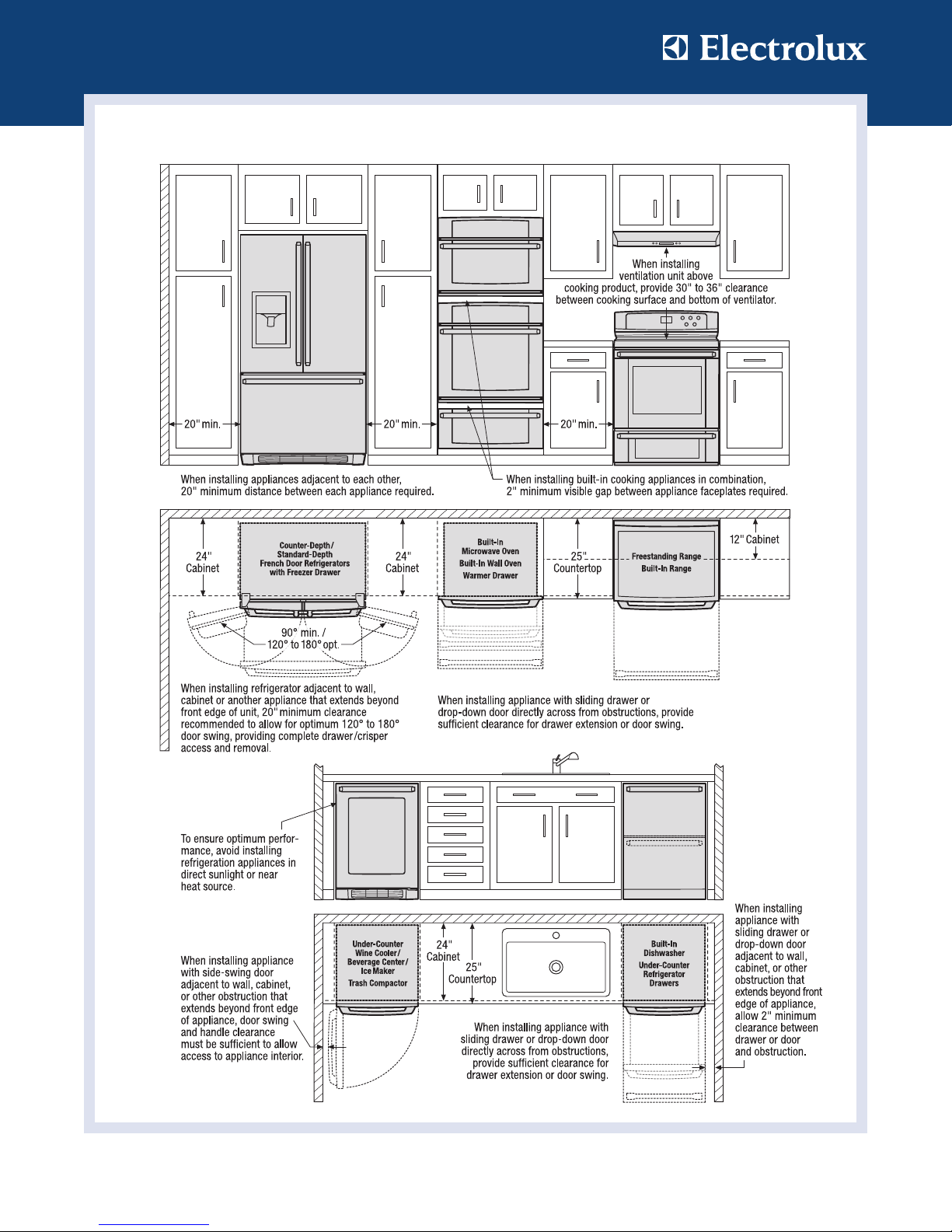

General Installation Guidelines
with French Door Refrigerator
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
INSTGDLNS_FDR EL 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at electroluxappliances.com.
Front
Front
Top
Top
