30" OVER-THE-RANGE CONVECTION MICROWAVE
Oven Cavity
Watts
Oven Interior
Interior Light
14-1/4" Glass Turntable
Control Panel Features
IQ-Touch™Electronic Controls
Front Display with Blue LED
Electronic Clock & Timer
Humidity Sensor
Power Levels
Touch Pad Controls
Fast Cook Options
Cook-2-Perfection®Technology
Auto-Start
Auto-Defrost Options
Auto-Cook Options –
Quick Meal (4), Dinner Recipes (5)
Auto-Melt / Soften Options –
Ice Cream (1), Cream Cheese (1), Butter (1), Chocolate (1)
Auto-Reheat Options –
Breads (2), Pasta (1)
Beverage (0.5 – 2.0 Cups)
Sensor-Cook Options –
Cook (5), Reheat (1), Popcorn (1), Baked Potato (1),
Frozen Vegetables (1), Fresh Vegetables (1)
Multi-Stage Cooking Options
Shortcut Options
Add 30 Seconds
Custom Help Options
Panel Lock
Demo Mode
Adjustable Sound Level For Timers / Reminders
More / Less Function
Keep Warm Setting
Additional Features
Signature Soft-Arc Oven Door and Handle Design
Glass Window
Ventilation System
Hood Fan
Exhaust Duct
Exhaust Fan (400 CFM)
Charcoal Filters (Recirculated Installation)
Grease Filters
Accessories
Metal Rack
36" Filler Panel Kit
Stainless Steel – PN # MWFILKTSS
Specifications
Color –
Stainless Steel
Oven Cavity Dimensions –
Height
Width
Depth
Product Dimensions –
Height (Including Lower Extrusion)
Width
Depth (to Center of Arc - Including Rear Extrusion)
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts‡
Amps @ 120 Volts
Frequency (MHz)
Microwave – Watts @ 120 Volt input
Convection – Watts @ 120 Volt input
40" Electrical Cable
Shipping Weight (Approx.)
*Ventilation system is preset to recirculate air inside with no ducting. Converting to exterior
exhaust is optional.
‡ For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate
ground wire. Appliance must be grounded for safe operation.
NOTE: Always consult local and national electric codes. Refer to Product Installation Guide
for detailed installation instructions on the web at electroluxappliances.com.
Specifications subject to change.
1.8 Cu. Ft.
1000
Stainless Steel
Yes
Yes
Yes
Yes
Yes
Yes
10
31
Yes
Yes
Yes
6
9
4
3
Yes
10
4
6
Yes
5
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Convertible*
4-Speed
1
2
Included
Optional
S
9-15/16"
21-1/4"
14-23/32"
17-9/16"
29-7/8"
17-3/8"
Right Top Rear
120V / 60Hz / 15A
1.71
14.3
2450
1050
1500
Included
85 Lbs.
Over-the-Range Microwave
EI30BM60M S
Fast Cook Options
Gives you oven results at microwave
speed — perfect for roasting, cooking and
baking everything from steaks to cupcakes.
Cook-2-Perfection®Technology
Uses a diamond-design rear wall, plus
stirring fan and turntable to heat your food
evenly every time.
Sure-2-Fit®Capacity
Our 1.8 cu. ft. extra-large microwave
will hold nearly any dish.
Auto-Cook Options
Cook display prompts you through Quick Meal
options and Dinner Recipes.

High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
30" Over-the-Range Microwave Specifications
•
ProductWeight–70Lbs.
•
VoltageRating–120V/60Hz/15Amps
•
ConnectedLoad(kWRating)@120Volts=1.71kW
(Foruseonadequatelywired120V,dedicatedcircuithaving2-wire
servicewithaseparategroundwire.Appliancemustbegrounded
forsafeoperation.)
•
Amps@120Volts=14.3Amps
•
Alwaysconsultlocalandnationalelectriccodes.
•
Groundedoutletshouldbelocatedincabinetabove,withholeinbase
toroutepowercord.Carefullyfollowtoptemplateinstructionsforpower
cordclearancewheninstallingbeneathsmooth,flatcabinets.
•
Microwave’sventilationsystemispresettorecirculateairinsidewith
noductingsystemrequired.Exhaustingairoutsideisoptional,using
eitherverticalorhorizontalductingsystem.(RefertoDuctedOption
Specificationsforoutsideventilation.)
•

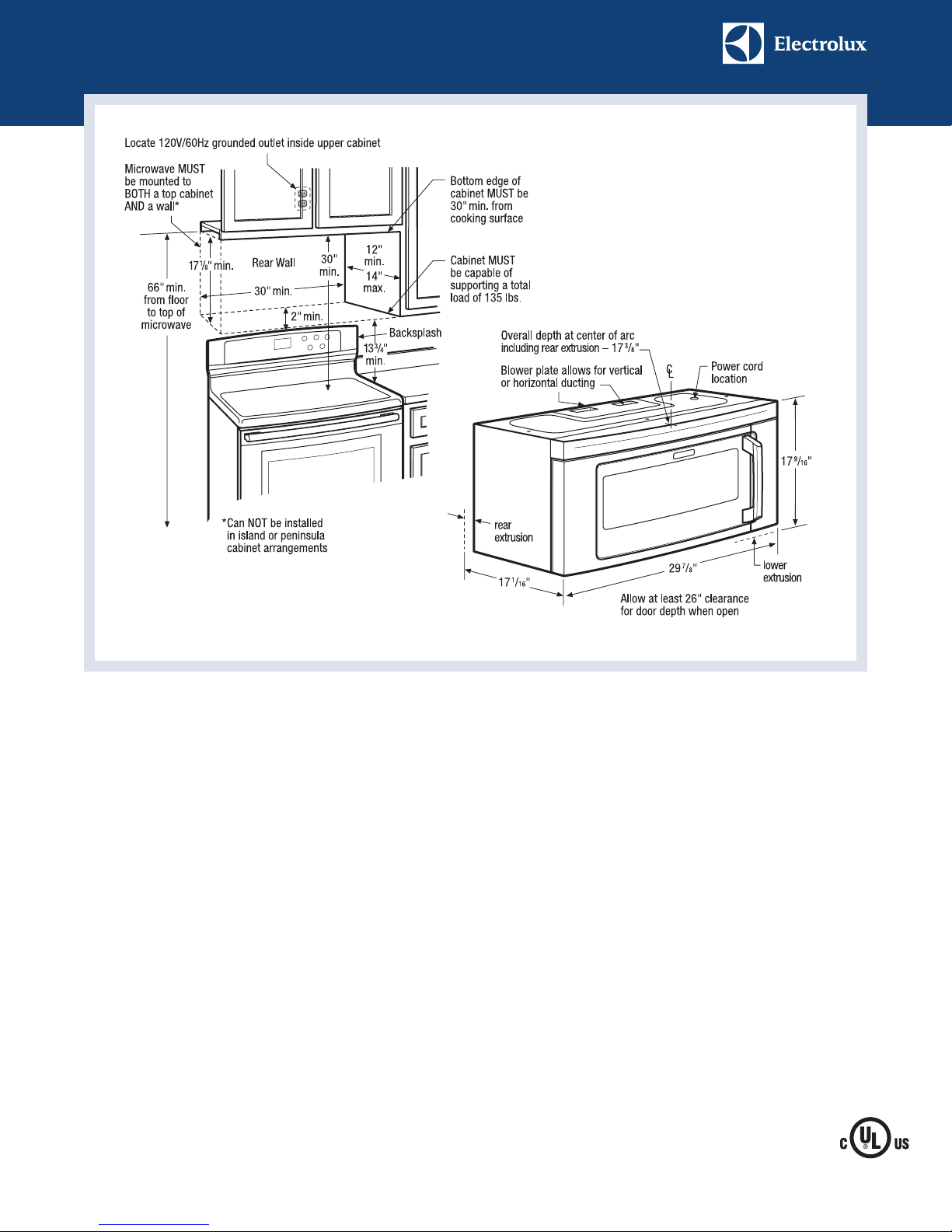

Forsafeandproperinstallation,microwaveMUSTbemountedtoBOTH
atopcabinetANDawall,andconnectedtoatleastonewallstud.Can
NOTbeinstalledinislandorpeninsulacabinetarrangements.
•
CabinetbottomMUSTbeleveltoinsureproperinstallation.
•
CabinetMUSTbecapableofsupportingatotalloadof135lbs.
•
Fillerblocksrecommendedforinstallationwhencabinetfronthangs
belowrecessedbottomshelf.
•
Minimumdistanceof30"requiredfromcookingsurfacetobottomedge
oftopcabinet.
•
Minimumdistanceof66"requiredfromfloortotopofmicrowave.
•
OpeningbetweencabinetsMUSTbe30"wideandfreeofobstructions.
Foropeningsupto36"wide,orderoptional36"FillerPanelKittofillin
gapbetweenunitandcabinets.
•
Allow26"minimumclearancefor90°doorswing.
Over-the-RangeMicrowave
EI30BM60M S
Electrolux Major Appliances, N.A.
USA •10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •electroluxappliances.com
CANADA •5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •electroluxappliances.ca
EI30BM60M 05/12 © 2012 Electrolux Home Products, Inc.
Ducted Option Specifications
•
Foroutsideventilation.
•
Exhaustductadapterwillbeneededforoutsideventilation,tomate
withstandard3-1/4"x10"rectangularduct.Ifroundductrequired,
rectangular-to-roundtransitionadapterwillbeneededwithnomore
than6"diameter.
•
Formostefficientairflowexhaust,useastraightrunorasfewelbows
aspossiblewithamaximumductlengthof3-1/4"x10"rectangularor
6"diameterroundduct,nottoexceed120equivalentfeet.
•
Forhorizontalinstallation,besuretoallowenoughspacebetweenwall
studstoaccommodateexhaust.
•
Refertoinstallationinstructionsonwebfordetailedductpreparationand
convertingexhaustventblowersystemforexteriorexhaustventilation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Optional Accessories
•
36"FillerPanelKits:S–(PN#MWFILKTSS).
