1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damage that are the result of incorrect
installation or usage. Always keep the instructions in a safe
and accessible location for future reference.
1.1 Children and vulnerable people safety
•This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their
safety.
•Children should be supervised to ensure that they do not
play with the appliance.
•Keep all packaging away from children and dispose of it
appropriately.
•WARNING: The appliance and its accessible parts become
hot during use. Keep children and pets away from the
appliance when in use and when cooling down.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
1.2 General Safety
•This appliance is for cooking purposes only.
•This appliance is designed for single household domestic
use in an indoor environment.
•This appliance may be used in, offices, hotel guest rooms,
bed & breakfast guest rooms, farm guest houses and other
similar accommodation where such use does not exceed
(average) domestic usage levels.
ENGLISH 3

•Only a qualified person must install this appliance and
replace the cable.
•Do not use the appliance before installing it in the built-in
structure.
•Disconnect the appliance from the power supply before
carrying out any maintenance.
•If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre
or similarly qualified persons to avoid an electrical hazard.
•WARNING: Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
•WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements.
•Always use oven gloves to remove or insert accessories or
ovenware.
•To remove the shelf supports first pull the front of the shelf
support and then the rear end away from the side walls.
Install the shelf supports in the opposite sequence.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the glass door since they can scratch the surface,
which may result in shattering of the glass.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
• Install the appliance in a safe and suitable
place that meets installation requirements.
• Keep the minimum distance from other
appliances and units.
• Before mounting the appliance, check if
the oven door opens without restraint.
• The appliance is equipped with an electric
cooling system. It must be operated with
the electric power supply.

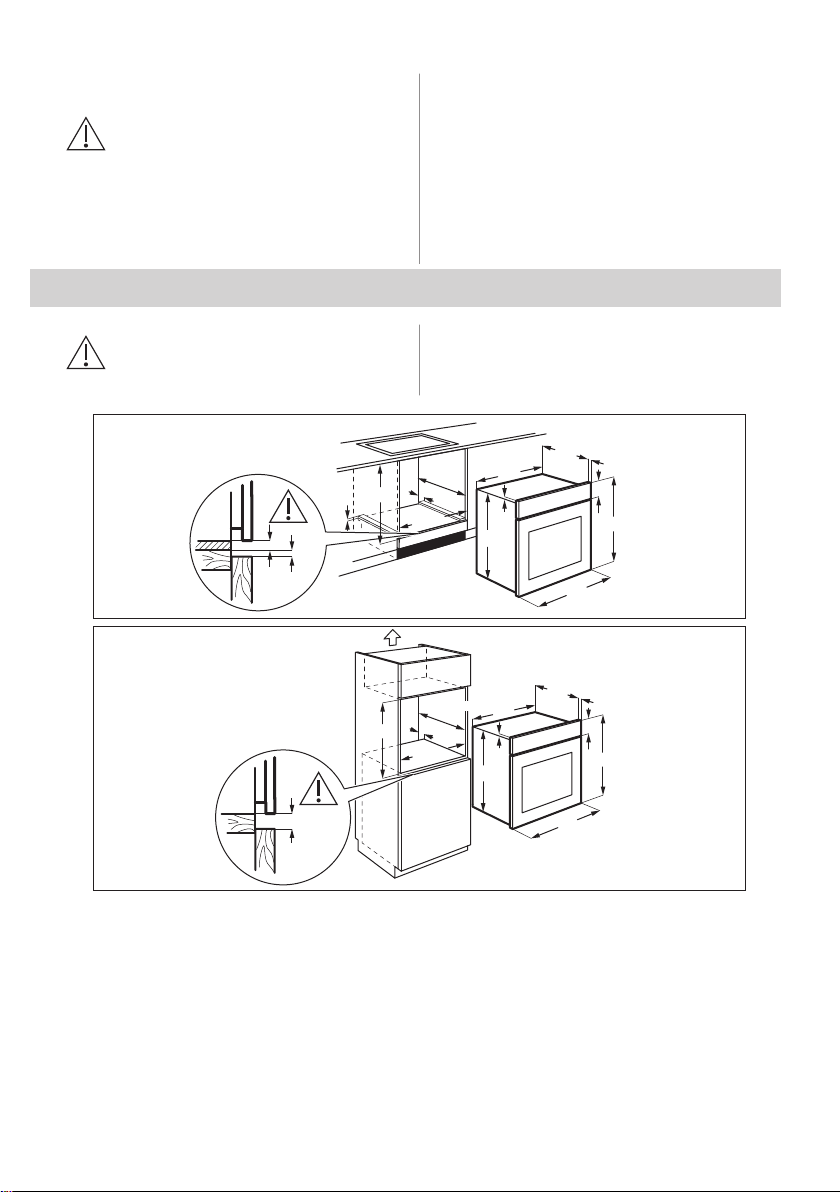

Cabinet minimum height
(Cabinet under the worktop
minimum height)
580 (600) mm
Cabinet width 560 mm
4 ENGLISH

Cabinet depth 550 (550) mm
Height of the front of the
appliance
589 mm
Height of the back of the
appliance
570 mm
Width of the front of the ap‐
pliance
594 mm
Width of the back of the
appliance
558 mm
Depth of the appliance 561 mm
Built in depth of the appli‐
ance
540 mm
Depth with open door 1007 mm
Ventilation opening mini‐
mum size. Opening placed
on the bottom rear side
560x20 mm
Mains supply cable length.
Cable is placed in the right
corner of the back side
1100 mm
Mounting screws 4x25 mm
2.2 Electrical connection
WARNING!
Risk of fire and electric shock.
• All electrical connections should be made
by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by our
Authorised Service Centre.
• Do not let mains cables touch or come
near the appliance door or the niche
below the appliance, especially when it
operates or the door is hot.
• The shock protection of live and insulated
parts must be fastened in such a way that
it cannot be removed without tools.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you disconnect
the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
• This appliance is supplied with a main
plug and a main cable.
Cable types applicable for installation or
replacement for Europe:
H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05
V2V2-F (T90), H05 BB-F
For the section of the cable refer to the total
power on the rating plate. You can also refer
to the table:
Total power (W) Section of the cable
(mm²)
maximum 1380 3 x 0.75
maximum 2300 3 x 1
maximum 3680 3 x 1.5
The earth cord (green / yellow cable) must be
2 cm longer than phase and neutral cables
(blue and brown cables).
2.3 Use
WARNING!
Risk of injury, burns and electric
shock or explosion.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended
during operation.
ENGLISH 5

• Deactivate the appliance after each use.
• Be careful when you open the appliance
door while the appliance is in operation.
Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully. The
use of ingredients with alcohol can cause
a mixture of alcohol and air.
• Do not let sparks or open flames to come
in contact with the appliance when you
open the door.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
WARNING!
Risk of damage to the appliance.
• To prevent damage or discoloration to the
enamel:
– do not put ovenware or other objects
in the appliance directly on the
bottom.
– do not put aluminium foil directly on
the bottom of cavity of the appliance.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food in
the appliance after you finish the
cooking.
– be careful when you remove or install
the accessories.
• Discoloration of the enamel or stainless
steel has no effect on the performance of
the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• Always cook with the appliance door
closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make sure the
door is never closed when the appliance
operates. Heat and moisture can build up
behind a closed furniture panel and cause
subsequent damage to the appliance, the
housing unit or the floor. Do not close the
furniture panel until the appliance has
cooled down completely after use.
2.4 Care and cleaning
WARNING!
Risk of injury, fire, or damage to
the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains plug
from the mains socket.
• Make sure the appliance is cold. There is
the risk that the glass panels can break.
• Replace immediately the door glass
panels when they are damaged. Contact
the Authorised Service Centre.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Clean the appliance with a moist soft
cloth. Use only neutral detergents. Do not
use abrasive products, abrasive cleaning
pads, solvents or metal objects.
• If you use an oven spray, follow the safety
instructions on its packaging.
2.5 Internal lighting
WARNING!
Risk of electric shock.
• Concerning the lamp(s) inside this product
and spare part lamps sold separately:
These lamps are intended to withstand
extreme physical conditions in household
appliances, such as temperature,
vibration, humidity, or are intended to
signal information about the operational
status of the appliance. They are not
intended to be used in other applications
and are not suitable for household room
illumination.
• Use only lamps with the same
specifications.
2.6 Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
6 ENGLISH

2.7 Disposal
WARNING!
Risk of injury or suffocation.
• For information on how to dispose of the
appliance, contact your dealer,
manufacturer's authorized person, or your
local solid waste operator.
• Disconnect the appliance from the mains
supply.
• Cut off the mains electrical cable close to
the appliance and dispose of it.
• Remove the door catch to prevent
children or pets from becoming trapped in
the appliance.
3. INSTALLATION
WARNING!
Refer to Safety chapters.
3.1 Building in
589
594
114
19
21540
570
558
min. 550
20
6
600
min. 560
3
6
(*mm)
min. 550
20
580
min. 560 589
594
114
19
21540
570
558
9
(*mm)
ENGLISH 7

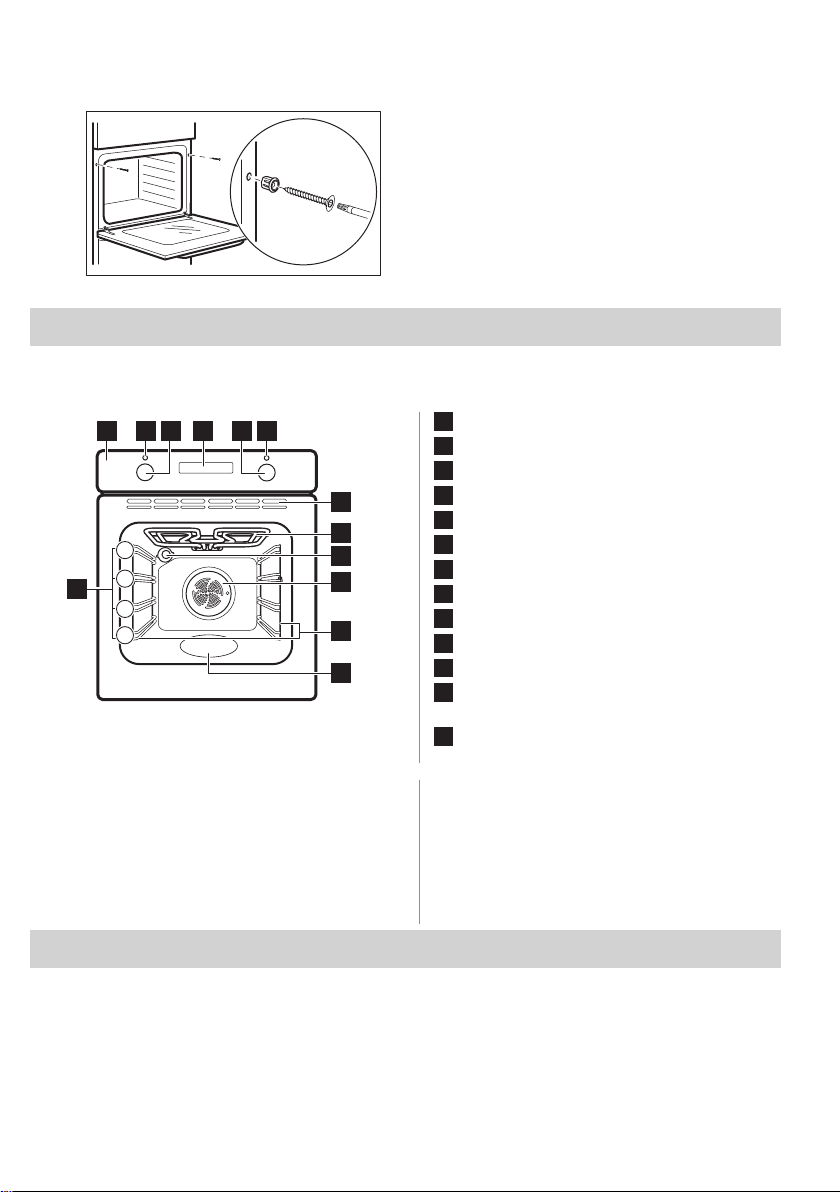

3.2 Securing the oven to the cabinet
4. PRODUCT DESCRIPTION
4.1 General overview
1 43 52 6
7
8
12
9
10
11
4
3
2
1
13
1Control panel
2Power lamp / symbol
3Knob for the heating functions
4Display
5Control knob (for the temperature)
6Temperature indicator / symbol
7Air vents for the cooling fan
8Heating element
9Lamp
10 Fan
11 Shelf support, removable
12 Cavity embossment - Aqua cleaning
container
13 Shelf positions
4.2 Accessories
•Wire shelf
For cookware, cake tins, roasts.
•Baking tray
For cakes and biscuits.
•Grill- / Roasting pan
To bake and roast or as pan to collect fat.
•Telescopic runners
With the telescopic runners you can put in
and remove the shelves more easily.
5. CONTROL PANEL
5.1 Retractable knobs
To use the appliance press the knob. The
knob comes out.
8 ENGLISH

5.2 Sensor fields / Buttons
To set the time.
To set a clock function.
To set the time.
5.3 Display
A B
A. Clock functions
B. Timer
6. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
6.1 Before first use
The oven can emit an odour and smoke during preheating. Make sure that the room is
ventilated.
Step 1 Step 2 Step 3
Set the clock Clean the oven Preheat the empty oven
1. , - press to set the time.
After approximately 5 sec., the
flashing stops and the display
shows the time.
1. Remove all accessories and re‐
movable shelf supports from
the oven.
2. Clean the oven and the acces‐
sories with a soft cloth, warm
water and a mild detergent.
1. Set the maximum temperature
for the function: .
Time: 1 h.
2. Set the maximum temperature
for the function: .
Time: 15 min.
3. Set the maximum temperature
for the function: .
Time: 15 min.
Turn off the oven and wait until it is cold. Place the accessories and the removable shelf supports in the oven.
ENGLISH 9

7. DAILY USE
WARNING!
Refer to Safety chapters.
7.1 How to set: Heating function
Step 1 Turn the knob for the heating functions
to select a heating function.
Step 2 Turn the control knob to select the tem‐
perature.
Step 3 When the cooking ends, turn the knobs
to the off position to turn off the oven.

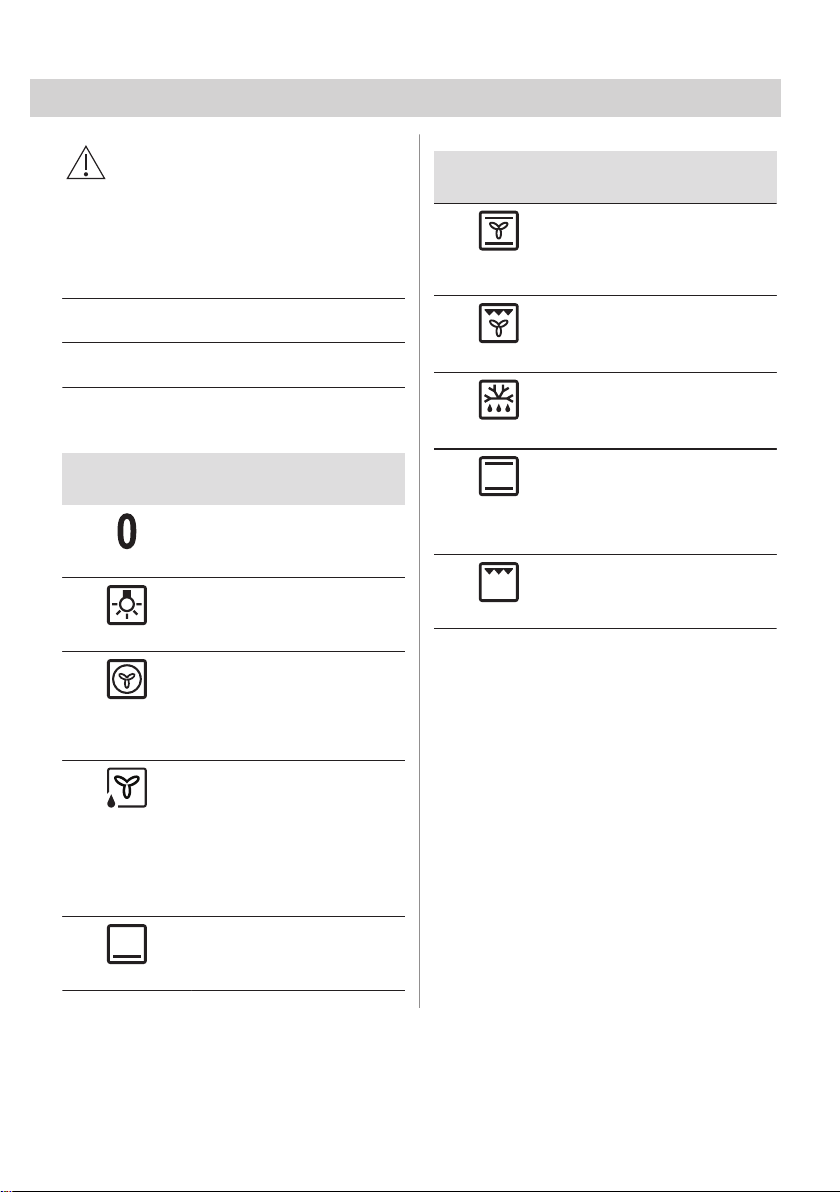

7.2 Heating functions
Heating func‐
tion
Application
Off position
The oven is off.
Light
To turn on the lamp.
True Fan Cooking
To bake on up to two shelf posi‐
tions at the same time and to
dry food.
Set the temperature 20 - 40 °C
lower than for Conventional
Cooking.
Moist Fan Baking
This function is designed to
save energy during cooking.
When you use this function, the
temperature in the cavity may
differ from the set temperature.
The heating power may be re‐
duced. For more information re‐
fer to "Daily Use" chapter, Notes
on: Moist Fan Baking.
Bottom Heat
To bake cakes with crispy bot‐
tom and to preserve food.
Heating func‐
tion
Application
Fan Cooking
To roast or roast and bake food
with the same cooking tempera‐
ture on more than one shelf po‐
sition, without flavour transfer‐
ence.
Turbo Grilling
To roast large meat joints or
poultry with bones on one shelf
position. To make gratins and to
brown.
Defrost
To defrost food (vegetables and
fruit). The defrosting time de‐
pends on the amount and size
of the frozen food.
Conventional
Cooking / Aqua
Clean
To bake and roast food on one
shelf position.
Refer to "Care and cleaning"
chapter for more information
about: Aqua Clean.
Grill
To grill thin pieces of food and
to toast bread.
7.3 Notes on: Moist Fan Baking
This function was used to comply with the
energy efficiency class and ecodesign
requirements according to EU 65/2014 and
EU 66/2014. Tests according to EN 60350-1.
The oven door should be closed during
cooking so that the function is not interrupted
and the oven operates with the highest
energy efficiency possible.
For the cooking instructions refer to "Hints
and tips" chapter, Moist Fan Baking. For
general energy saving recommendations
refer to "Energy Efficiency" chapter, Energy
Saving.
10 ENGLISH

8. CLOCK FUNCTIONS
8.1 Clock functions
Clock function Application
Time of Day
To set, change or check the time of day.
Duration
To set how long the oven works.
Minute Minder
To set a countdown. This function has no effect on the operation of the
oven. You can set this function at any time, also when the oven is off.
8.2 How to set: Clock functions
How to set: Time of Day
- flashes when you connect the oven to the electrical supply, when there was a power cut or when the timer is
not set.
, - press to set the time.
After approximately 5 sec., the flashing stops and the display shows the time.
How to change: Time of Day
Step 1 - press repeatedly to change the time of day. - starts to flash.
Step 2 , - press to set the time.
After approximately 5 sec., the flashing stops and the display shows the time.
How to set: Duration
Step 1 Set an oven function and the temperature.
Step 2 - press repeatedly. - starts to flash.
Step 3 , - press to set the duration.
The display shows: .
- flashes when the set time ends. The signal sounds and the oven turns off.
Step 4 Press any button to stop the signal.
Step 5 Turn the knobs to the off position.
How to set: Minute Minder
Step 1 - press repeatedly. - starts to flash.
ENGLISH 11

How to set: Minute Minder
Step 2 , - press to set the time.
The function starts automatically after 5 sec.
When the set time ends, the signal sounds.
Step 3 Press any button to stop the signal.
Step 4 Turn the knobs to the off position.
How to cancel: Clock functions
Step 1 - press repeatedly until the clock function symbol starts to flash.
Step 2 Press and hold: .
The clock function turns off after few seconds.
9. USING THE ACCESSORIES
WARNING!
Refer to Safety chapters.

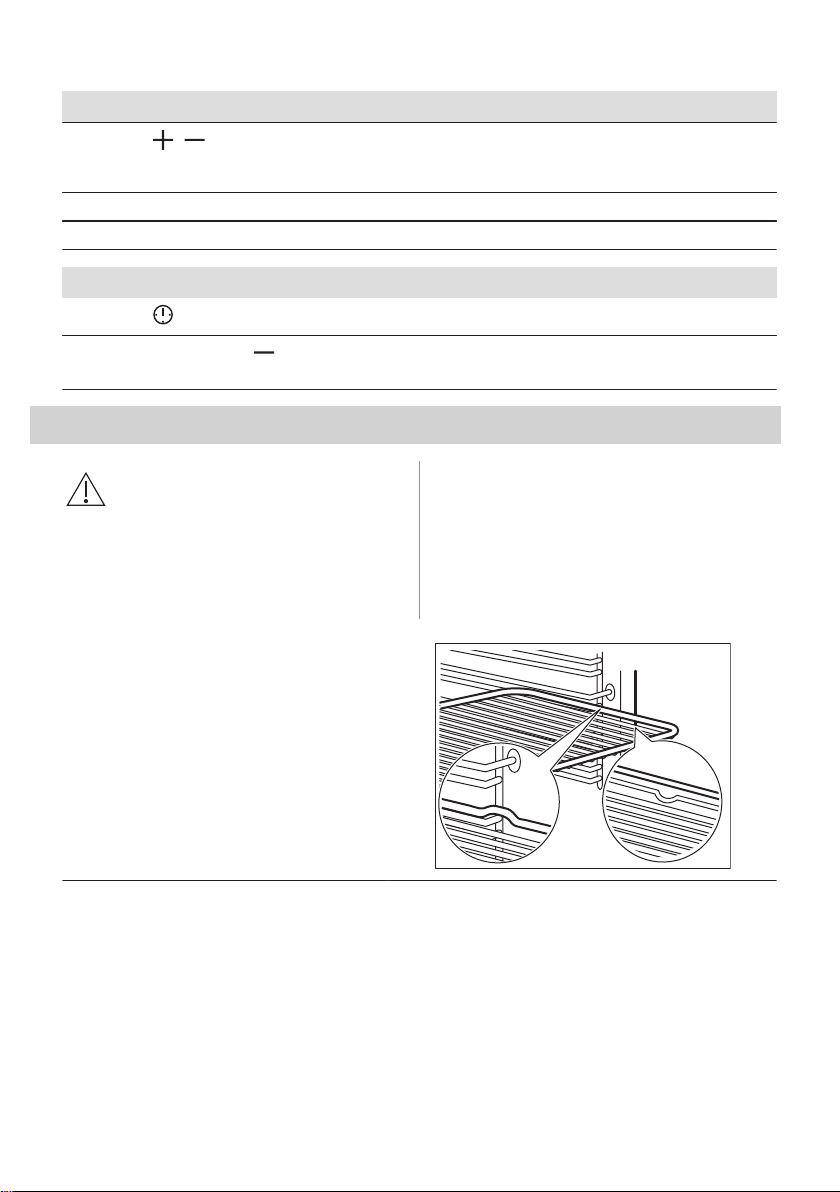

9.1 Inserting accessories
A small indentation at the top increases
safety. The indentations are also anti-tip
devices. The high rim around the shelf
prevents cookware from slipping of the shelf.
Wire shelf:
Push the shelf between the guide bars of the shelf
support and make sure that the feet point down.
12 ENGLISH

Baking tray / Deep pan:
Push the tray between the guide bars of the shelf
support.
Wire shelf, Baking tray / Deep pan:
Push the tray between the guide bars of the shelf
support and the wire shelf on the guide bars
above.
9.2 Using telescopic runners
You can put the telescopic runners on each
level. Make sure that the two telescopic
runners are on the same level.
Do not oil the telescopic runners.
Make sure you push back the telescopic
runners fully in the oven before you close the
oven door.
Step 1 Mount the telescopic runners on the shelf
supports.
Step 2 Make sure that the telescopic runner's
tip (A) points upward.
A
ENGLISH 13

10. ADDITIONAL FUNCTIONS
10.1 Cooling fan
When the oven operates, the cooling fan
turns on automatically to keep the surfaces of
the oven cool. If you turn off the oven, the
cooling fan can continue to operate until the
oven cools down.
10.2 Safety thermostat
Incorrect operation of the oven or defective
components can cause dangerous
overheating. To prevent this, the oven has a
safety thermostat which interrupts the power
supply. The oven turns on again
automatically when the temperature drops.
11. HINTS AND TIPS
Refer to Safety chapters.
11.1 Cooking recommendations
The oven has four shelf positions.
Count the shelf positions from the bottom of
the oven floor.
Your oven may bake or roast differently to
the oven you had before.
Baking cakes
Do not open the oven door before 3/4 of the
set cooking time is up.
If you use two baking trays at the same time,
keep one empty level between them.
Cooking meat and fish
Use a deep pan for very fatty food to prevent
the oven from stains that can be permanent.
Leave the meat for approximately 15 minutes
before carving so that the juice does not
seep out.
To prevent too much smoke in the oven
during roasting, add some water into the
deep pan. To prevent the smoke
condensation, add water each time after it
dries up.
Cooking times
Cooking times depend on the type of food, its
consistency, and volume.
Initially, monitor the performance when you
cook. Find the best settings (heat setting,
cooking time, etc.) for your cookware, recipes
and quantities when you use this appliance.
11.2 Moist Fan Baking - recommended accessories
Use the dark and non-reflective tins and containers. They have better heat absorption than the
light colour and reflective dishes.
Pizza pan Baking dish
Ramekins
Flan base tin
Dark, non-reflective
28 cm diameter
Dark, non-reflective
26 cm diameter
Ceramic
8 cm diameter, 5
cm height
Dark, non-reflective
28 cm diameter
14 ENGLISH

11.3 Moist Fan Baking
For the best results follow suggestions listed
in the table below.
(°C) (min)
Sweet rolls, 12 pieces baking tray or dripping pan 180 2 35 - 40
Rolls, 9 pieces baking tray or dripping pan 180 2 35 - 40
Pizza, frozen, 0.35 kg wire shelf 220 2 35 - 40
Swiss roll baking tray or dripping pan 170 2 30 - 40
Brownie baking tray or dripping pan 180 2 30 - 40
Soufflè, 6 pieces ceramic ramekins on wire
shelf
200 3 30 - 40
Sponge flan base flan base tin on wire shelf 170 2 20 - 30
Victoria sandwich baking dish on wire shelf 170 2 35 - 45
Poached fish, 0.3 kg baking tray or dripping pan 180 3 35 - 45
Whole fish, 0.2 kg baking tray or dripping pan 180 3 35 - 45
Fish fillet, 0.3 kg pizza pan on wire shelf 180 3 35 - 45
Poached meat, 0.25
kg
baking tray or dripping pan 200 3 40 - 50
Shashlik, 0.5 kg baking tray or dripping pan 200 3 25 - 35
Cookies, 16 pieces baking tray or dripping pan 180 2 20 - 30
Macaroons, 20 pieces baking tray or dripping pan 180 2 40 - 45
Muffins, 12 pieces baking tray or dripping pan 170 2 30 - 40
Savory pastry, 16
pieces
baking tray or dripping pan 170 2 35 - 45
Short crust biscuits, 20
pieces
baking tray or dripping pan 150 2 40 - 50
Tartlets, 8 pieces baking tray or dripping pan 170 2 20 - 30
Vegetables, poached,
0.4 kg
baking tray or dripping pan 180 3 35 - 40
Vegetarian omelette pizza pan on wire shelf 200 3 30 - 45
Mediterranean vegeta‐
bles, 0.7 kg
baking tray or dripping pan 180 4 35 - 40
11.4 Information for test institutes
Tests according to IEC 60350-1.
ENGLISH 15

(°C) (min)
Small cakes,
20 per tray
Conventional
Cooking
Baking tray 3 170 20 - 30 -
Apple pie, 2
tins Ø20 cm
Conventional
Cooking
Wire shelf 1 170 80 - 120 -
Sponge
cake, cake
mould Ø26
cm
Conventional
Cooking
Wire shelf 2 170 35 - 45 -
Short bread Conventional
Cooking
Baking tray 3 150 20 - 35 Preheat the oven for
10 minutes.
Toast, 4 - 6
pieces
Grill Wire shelf 3 max. 2 - 4 minutes first
side; 2 - 3 minutes
second side
Preheat the oven for 3
minutes.
Beef burger,
6 pieces, 0.6
kg
Grill Wire shelf
and dripping
pan
3 max. 20 - 30 Put the wire shelf on
the third level and the
dripping pan on the
second level of the
oven. Turn the food
halfway through the
cooking time.
Preheat the oven for 3
minutes.
12. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
12.1 Notes on cleaning
Cleaning Agents
Clean the front of the oven with a soft cloth with warm water and a mild detergent. Clean and
check the door gasket around the frame of the cavity.
Use a cleaning solution to clean metal surfaces.
Clean stains with a mild detergent.
Everyday Use
Clean the cavity after each use. Fat accumulation or other residue may cause fire.
Moisture can condense in the oven or on the door glass panels. To decrease the condensa‐
tion, let the oven work for 10 minutes before cooking. Do not store the food in the oven for
longer than 20 minutes. Dry the cavity with a soft cloth after each use.
16 ENGLISH

Accessories
Clean all accessories after each use and let them dry. Use a soft cloth with warm water and
a mild detergent. Do not clean the accessories in a dishwasher.
Do not clean the non-stick accessories using abrasive cleaner or sharp-edged objects.
12.2 How to remove: Shelf supports
Remove the shelf supports to clean the oven.
Step 1 Turn off the oven and wait until it is
cold.
Step 2 Pull the front of the shelf support
away from the side wall.
Step 3 Pull the rear end of the shelf support
away from the side wall and remove
it.
2
1
Step 4 Install the shelf supports in the oppo‐
site sequence.
The retaining pins on the telescopic
runners must point to the front.
12.3 How to use: Aqua Clean
This cleaning procedure uses humidity to
remove remaining fat and food particles from
the oven.
Step 1 Pour water into the cavity embossment:
150 ml.
Step 2 Set the function: .
Step 3 Set the temperature to 90 °C.
Step 4 Let the oven work for 30 min.
Step 5 Turn off the oven.
Step 6 Wait until the oven is cold. Dry the cavi‐
ty with a soft cloth.

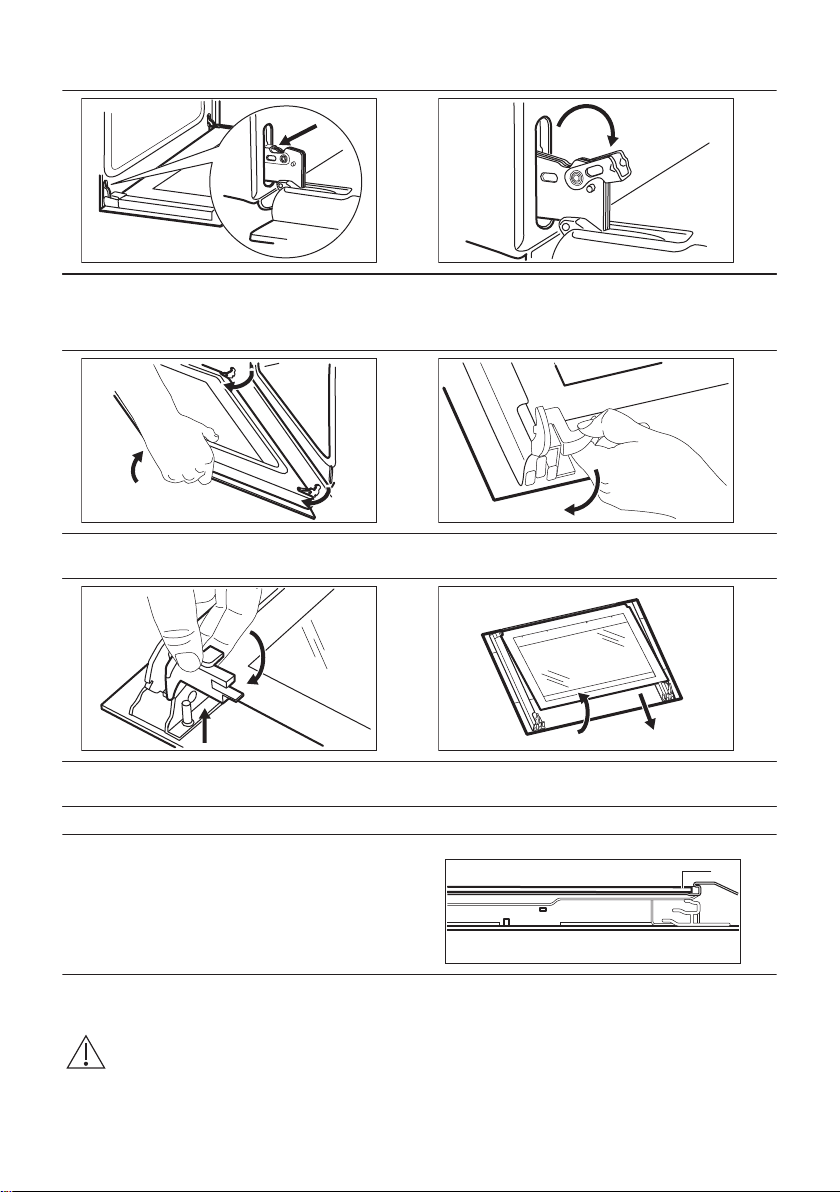

12.4 How to remove and install: Door
The oven door has two glass panels. You can remove the oven door and the internal glass
panel to clean it. Read the whole "Removing and installing door" instruction before you remove
the glass panels.
CAUTION!
Do not use the oven without the glass panels.
Step 1 Open the door fully and hold both
hinges.
Step 2 Lift and turn the levers fully on both
hinges.
ENGLISH 17

Step 3 Close the oven door halfway to the
first opening position. Then lift and
pull forward and remove the door
from its seat.
Step 4 Put the door on a soft cloth on a stable
surface and release the locking system
to remove the internal glass panel.
Step 5 Turn the fasteners by 90° and remove
them from their seats.
Step 6 First lift carefully and then remove the
glass panel.
90°
12
Step 7 Clean the glass panels with water and soap. Dry the glass panels carefully. Do not clean the glass
panels in the dishwasher.
Step 8 After cleaning, install the glass panel and the oven door.
When installed correctly the door trim clicks.
Make sure that you install the internal glass panel in
the seats correctly.
A
12.5 How to replace: Lamp
WARNING!
Risk of electric shock.
The lamp can be hot.
18 ENGLISH

Before you replace the lamp:
Step 1 Step 2 Step 3
Turn off the oven. Wait until the
oven is cold.
Disconnect the oven from the
mains.
Put a cloth on the bottom of the cav‐
ity.
Back lamp
Step 1 Turn the glass cover to remove it.
Step 2 Clean the glass cover.
Step 3 Replace the lamp with a suitable 300 °C heat-resistant lamp.
Step 4 Install the glass cover.
13. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
13.1 What to do if...
In any cases not included in this table please
contact with an Authorised Service Centre.
Problem Check if...
The oven does not heat
up.
The fuse is blown.
Problem Check if...
The door gasket is dam‐
aged.
Do not use the oven.
Contact an Authorised
Service Centre.
The display shows
"12.00".
There was a power cut.
Set the time of day.
The lamp does not work. The lamp is burnt out.
13.2 Service data
If you cannot find a solution to the problem yourself, contact your dealer or an Authorised
Service Centre.
The necessary data for the service centre is on the rating plate. The rating plate is on the front
frame of the oven cavity. Do not remove the rating plate from the oven cavity.
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
Serial number (S.N.) .........................................
ENGLISH 19

14. TECHNICAL DATA
14.1 Technical data
Voltage 220 - 240 V
Frequency 50 - 60 Hz
15. ENERGY EFFICIENCY
15.1 Product Information and Product Information Sheet*
Supplier's name Electrolux
Model identification
OEF5H50BK 944068288
OEF5H50BW 944068287
OEF5H50BX 944068286
Energy Efficiency Index 95.1
Energy efficiency class A
Energy consumption with a standard load, conventional mode 0.89 kWh/cycle
Energy consumption with a standard load, fan-forced mode 0.78 kWh/cycle
Number of cavities 1
Heat source Electricity
Volume 65 l
Type of oven Built-In Oven
Mass
OEF5H50BK 29.3 kg
OEF5H50BW 29.3 kg
OEF5H50BX 29.3 kg
* For European Union according to EU Regulations 65/2014 and 66/2014.
For Republic of Belarus according to STB 2478-2017, Appendix G; STB 2477-2017, Annexes A and B.
For Ukraine according to 568/32020.
Energy efficiency class is not applicable for Russia.
EN 60350-1 - Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills - Methods
for measuring performance.
15.2 Energy saving
The oven has features which
help you save energy during
everyday cooking.
Make sure that the oven door is closed when
the oven operates. Do not open the oven
door too often during cooking. Keep the door
gasket clean and make sure it is well fixed in
its position.
Use metal cookware to improve energy
saving.
When possible, do not preheat the oven
before cooking.
20 ENGLISH
